Tempco Electric Heating Corporation, Inc.

Tempco Custom Heater Manufacturing

Click image to enlarge

  • PCM-1000 Series 24 Amp

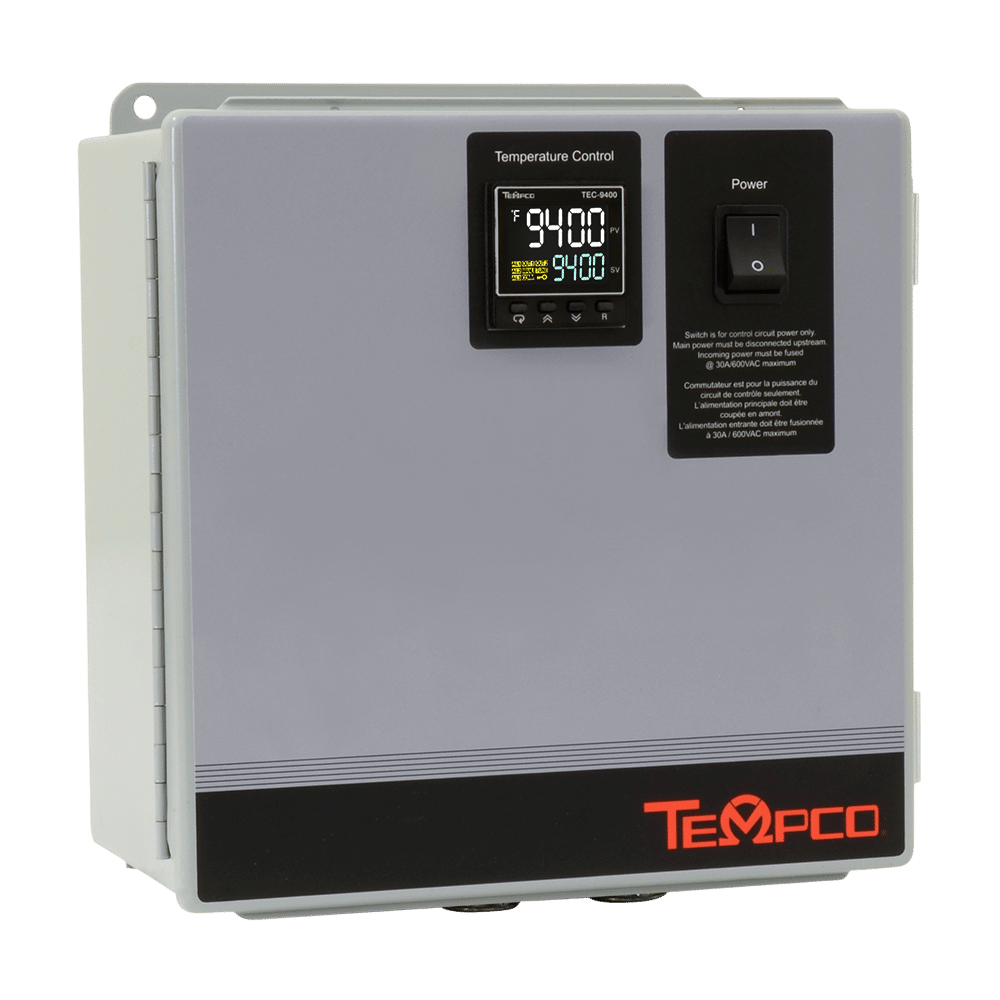

PCM Pre-Wired Control Box, 24 Amp

PCM-1000, 24 Amp Design Features

  • Temperature Range: 0-2400°F
  • TEC-9400 PID temperature control with bright LCD Display using NFDA/IEC standard colors
  • NO-NC alarm contacts
  • 32A magnetic contactor
  • BX connectors for sensor, incoming & heater leads
  • Agency Approval: CUL

Resources

In-Stock Parts

Explore PCM-2000 Series Pre-Wired Control Box Specifications

Please wait while we gather your results.

Part Number PCM10080

  • Voltage: 240 VAC (1 or 3 Phase)
  • Maximum Wattage: 5760 or 9970 W
  • Enclosure Dimensions: 10"H × 10"W × 6"D
  • Wall mounting slots: 8" centers side to side, 10-3/4" centers top to bottom

Part Number PCM10081

  • Voltage: 480 VAC (1 or 3 Phase)
  • Maximum Wattage: 11,520 or 19,930 W
  • Enclosure Dimensions: 14"H × 12"W × 6"D
  • Wall mounting slots: 10" centers side to side, 14-3/4" centers top to bottom
