Tempco Cartridge Heaters

Unique Solutions for Unique Applications

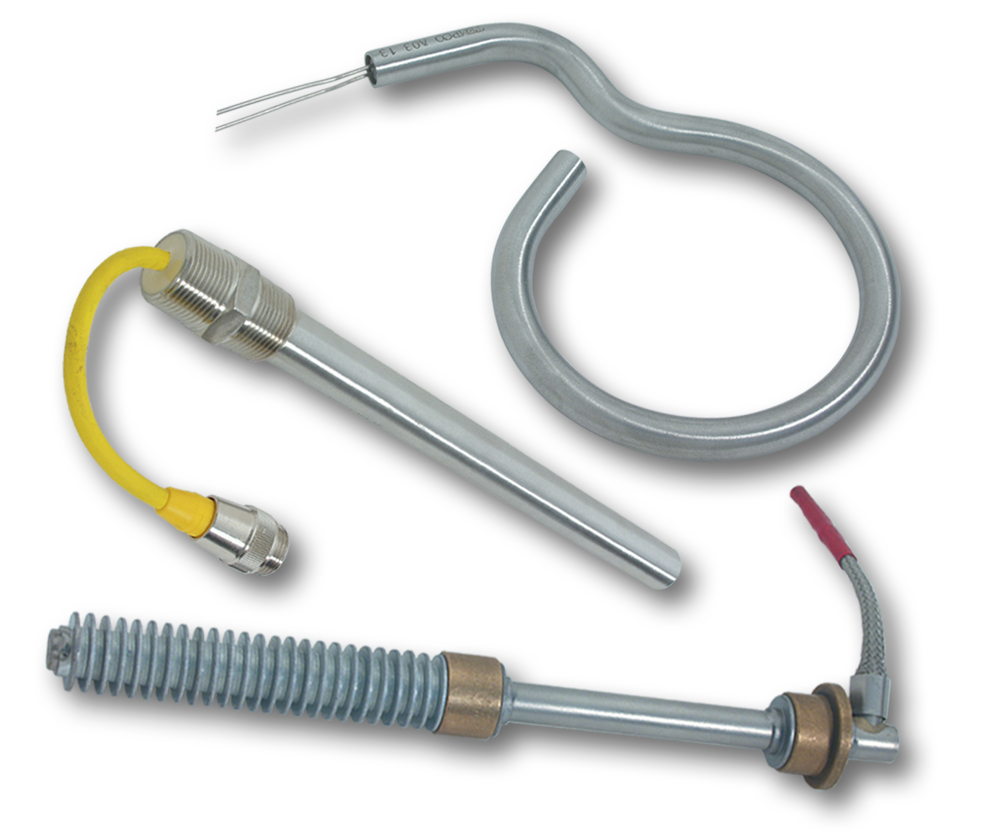

Tempco provides engineering expertise to design and manufacture quality, innovative, application-driven cartridge heaters to customer specifications. Our compact and customizable cartridge heaters are designed for excellent heat transfer at high watt densities. With thousands of customization options available, Tempco has the ideal cartridge heater to meet the challenges of your application.

Stay Connected with Tempco

First Name

Last Name

Company Name

Email [email protected]

Yes! I would like to receive emails that keep me connected with Tempco.

TWO CARTRIDGE HEATER TYPES

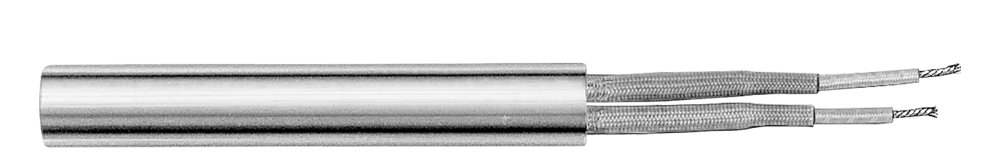

1) Hi-Density (HD) Cartridge Heaters

Max. Temperature: 1400°F (760°C)
Max. Watt Density: 100-300 W/in2 (15.5-46.5 W/cm2) (depending on heater size and operating temperature)
Standard Sheath Materials: Stainless Steel, Incoloy®
Agency Approvals: UL, CSA and CE
Swaged construction provides excellent heat transfer characteristics, allowing higher watt density designs without sacrificing life expectancy

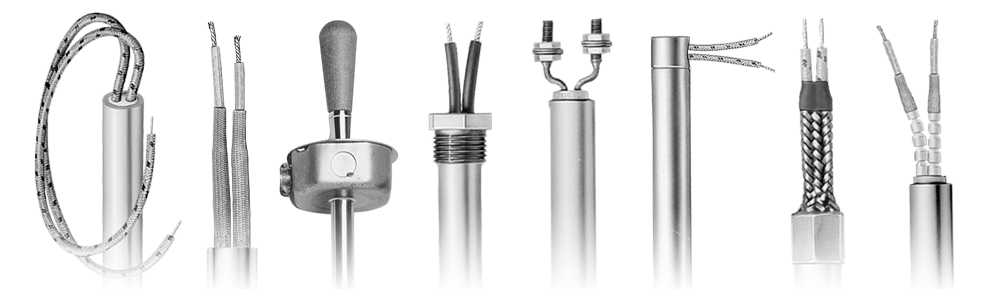

Standard Hi-Density Termination: Type N

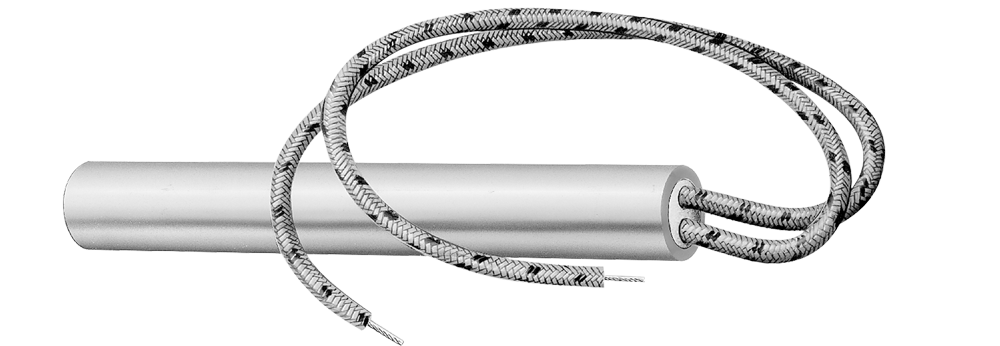

2) Low-Density (LD) Cartridge Heaters

Max. Temperature: 1200°F (650°C)
Maximum Watt Density: 20-45 W/in2 (3.1-7.0 W/cm2) (depending on heater size and operating temperature)
Standard Sheath Material: Stainless Steel
Agency Approvals: UL, CSA and CE
A quality and economical heater used in applications requiring lower operating temperatures and watt densities
