WCT1 Wraparound Full Coverage Blanket Heater

Construction Characteristics

• Designed for caged, plastic, or metal tote tanks/IBCs
• Wraparound blanket design allows you to heat a tote tank/IBC from the outside to avoid contamination inside
• Does not contaminate or scorch your product
• Two separate heat zones allow you to adjust heater output when content levels decrease

Insulated Tote Tank / IBC Top Cover Part Number: WCT90001

Design Features

• Full coverage plug-and-play system
• Fits any tote tank from 40" x 40" (1016 mm x 1016 mm) to 48" x 48" (1219 mm x 1219 mm)
• Three standard height sizes: 36" (914 mm), 42" (1067 mm) and 48" (1220 mm)
• Two separate heat zones (top and bottom)
• Adjustable thermostat: 50-160°F (10-71°C)
• Built-in manual reset high-limit safety thermostat set at 195°F (91°C) for each heat zone
• Attachment method: adjustable nylon straps with buckles (Two across the top and three around the tank)
• Silicone impregnated cloth facing and liner
• 1/4" (6 mm) fiberglass insulation
• “Mouse hole” designed for spigot
• Grounded for your safety
• 120 or 240VAC
• Total wattage: 120VAC = 1440 watts 240VAC = 2880 watts
• Power cord 6 ft. (1.8M) long with standard 3-prong power plug: 120VAC (NEMA 5-15), 240VAC (NEMA 6-15)
• Optional insulated top cover (reduces heat loss and accelerates heat-up)

Control each zone with dual thermostats. Protect contents with manual reset high limit safety thermostats.

Fits several Tote Tank sizes with adjustable nylon straps and buckles

Series WCT2 Silicone Rubber Heater Pad and Control

Construction Characteristics

• Used under a wide range of outdoor and indoor caged tote tank / IBC heating applications
• Quick heat-up time due to direct surface contact underneath plastic bladder
• Non-invasive heat: Does not contaminate or scorch your product
• Your choice of either Tempco’s PCT-2000 Non- Indicating Temperature Control or PCT-3000 Digital TEC-220 based PID Temperature Control

Design Features

• Includes either Tempco’s PCT-2000 Non-Indicating Dual °F/°C Scale Temperature Control (indoor use) or PCT-3000 Digital TEC-220 based PID Temperature Control (indoor/outdoor use). Easy plug-and-play connections
• Wire-wound heating element is uniformly placed to maximize heat distribution
• Heating element is laminated between two extra-thick layers of 20 mil fiberglass reinforced silicone rubber
• Type K thermocouple built in to IBC heating pad
• Moisture and chemical resistant silicone rubber heating pad
• Weight-absorbent 1/2" (13 mm) thick foam pad
• 180°F (82°C) maximum exposure temperature
• Heater pad leads 6 ft. (1.8m) long with power and thermocouple plug
• Temperature control input power cord is 5-foot (1.5m) long with standard three-prong plug 120VAC (NEMA 5-15), 240VAC (NEMA 6-15)

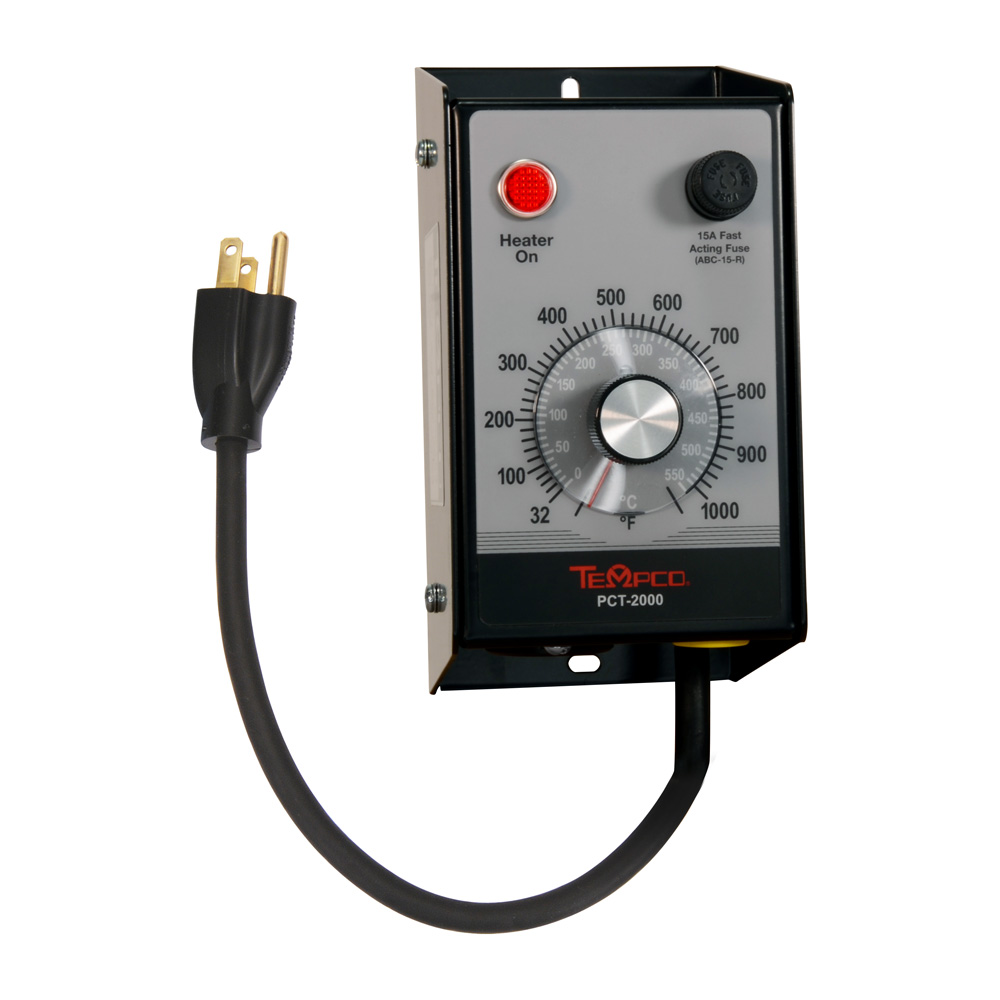

PCT-2000: Electronic Temperature Control

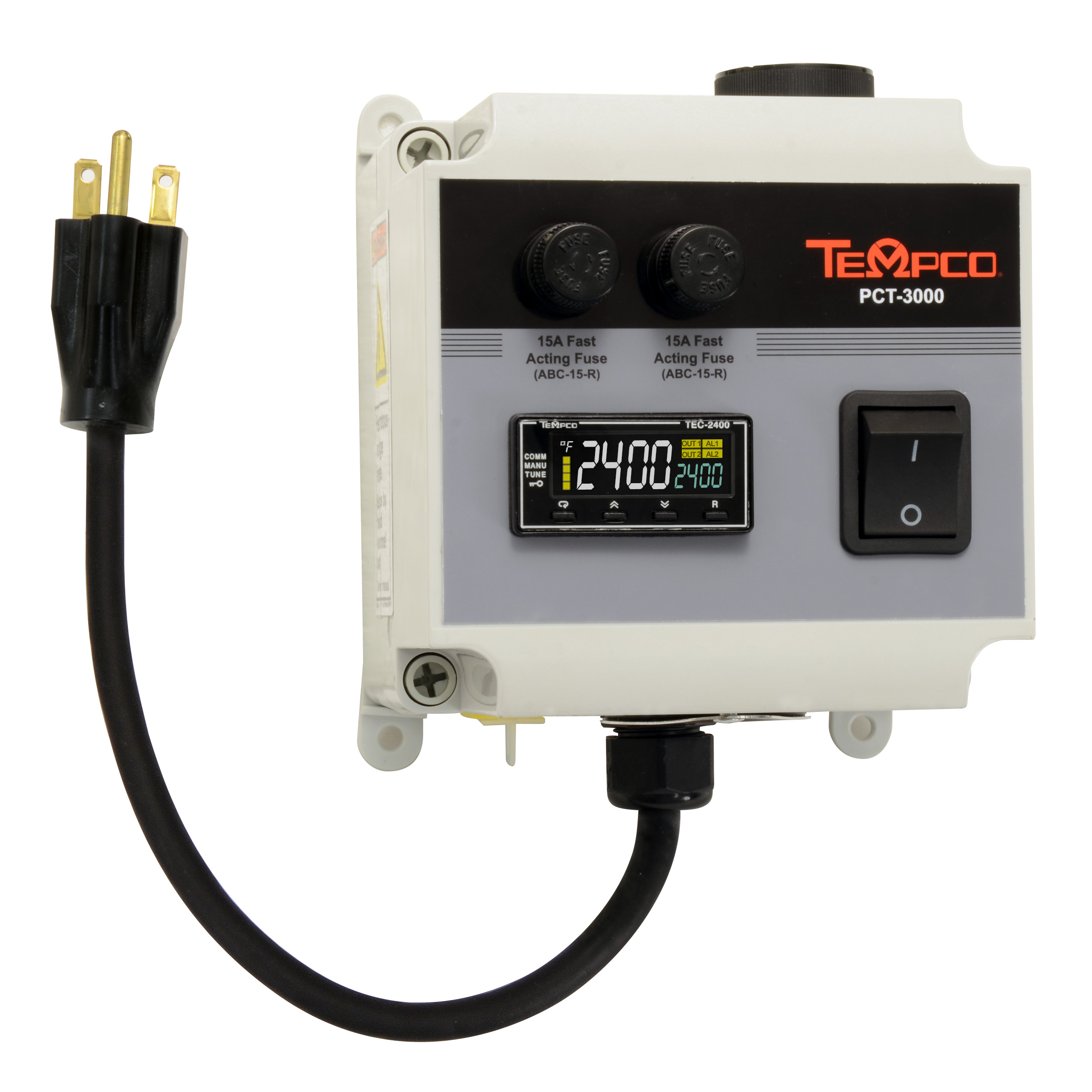

PCT-3000: Programmable PID Temperature Control

WCT2 Installation:

Installs Underneath the Bladder for Rapid Heat-Up
