Minimum Inside Diameter: 2-1/2" (63.5 mm)
Minimum Width: 2-1/2" (63.5 mm)

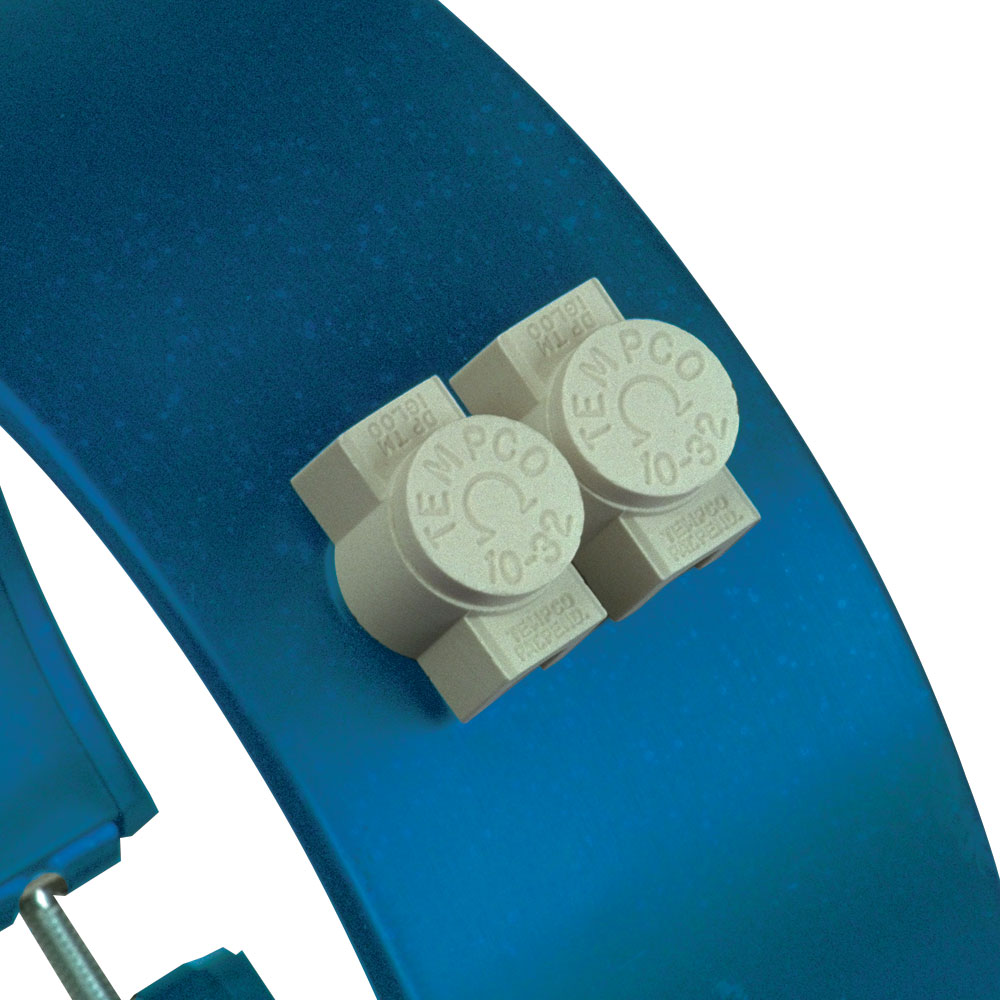

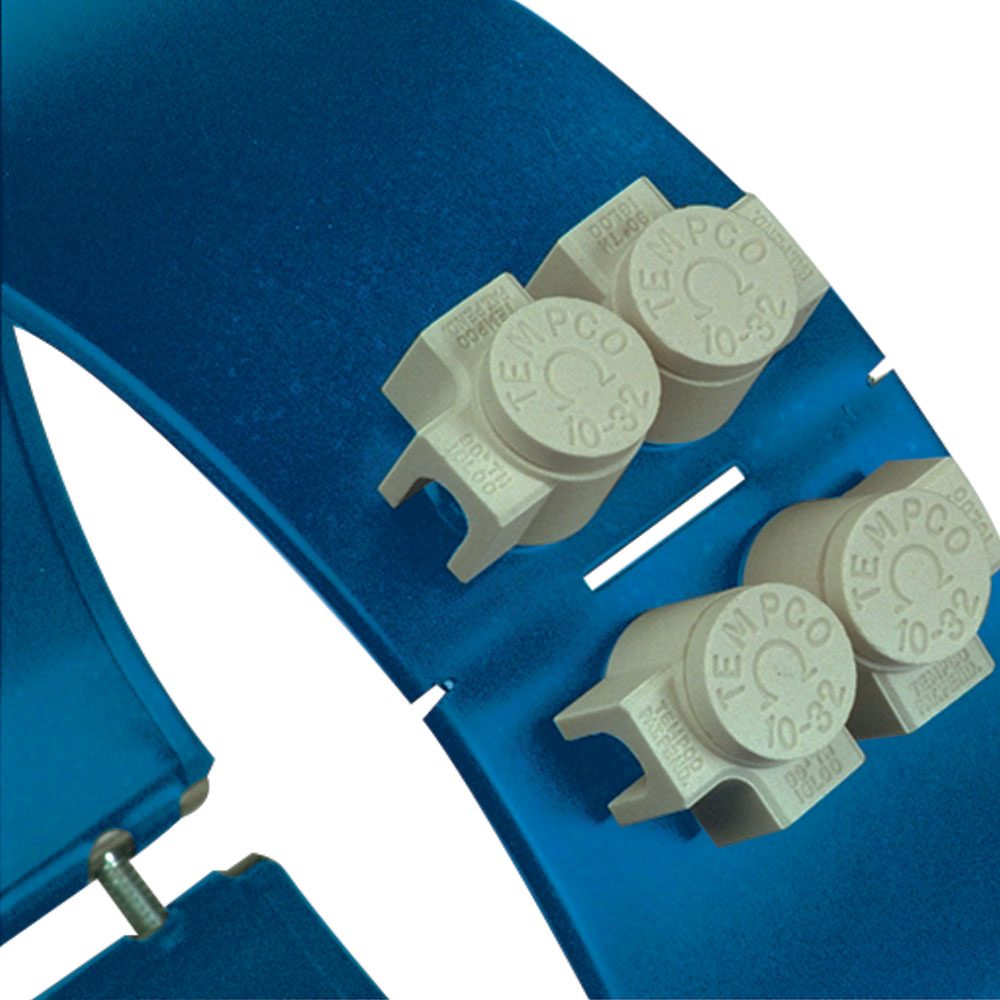

Three types of Igloo™ bases are available:
Type C6 — Double Port In-Line P/N CER-101-104
Type C7 — Double Port 90° P/N CER-101-106
Type C8 — Single Port P/N CER-101-107
Igloo™ caps are available in the three screw terminal sizes:
10-32 — P/N CER-102-101
10-24 — P/N CER-102-104
8-32 — P/N CER-102-105
When ordering, specify the type of Igloo and the screw terminal size.
Igloo Double Port 90° are recommended on expandable heaters with Type T3X Termination.
Igloo Double Port In-Line will not fit on expandable heaters with Type T3X termination.
