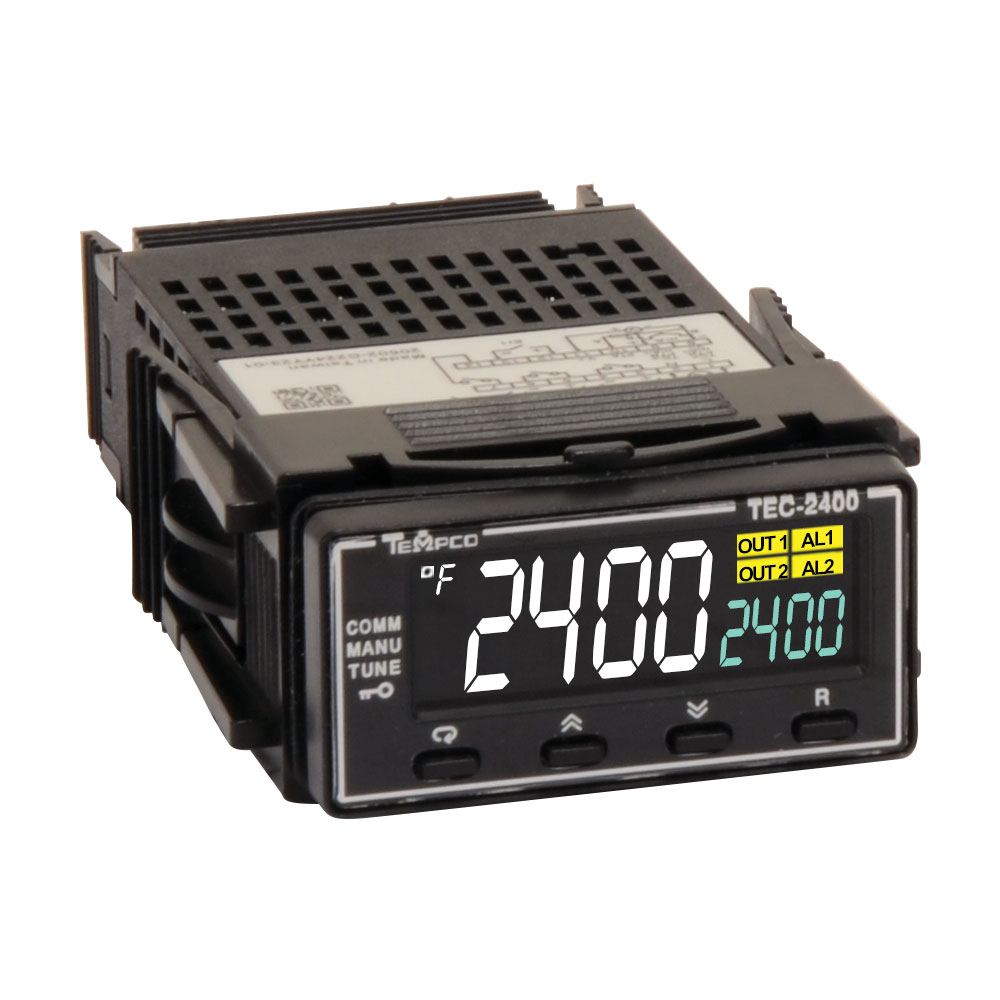

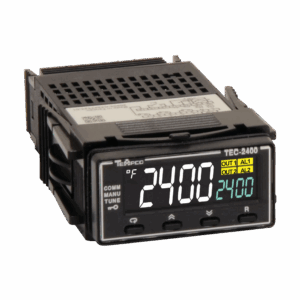

TEC-2400

• LCD Display - Using NFPA/IEC Standard Colors
• 3 Programmable Outputs
• Heater Break Alarm
• 1/32 DIN

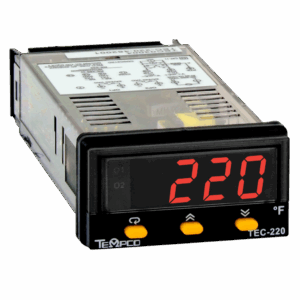

TEC-220

• NEMA 4X Front
• 3 Programmable Outputs
• 1/32 DIN

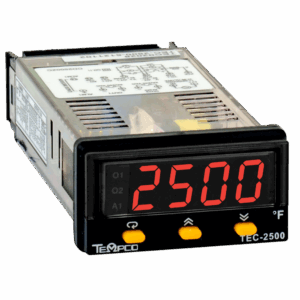

TEC-2500

• NEMA 4X Front
• 4 Programmable Outputs
• Heater Break Alarm
• 1/32 DIN

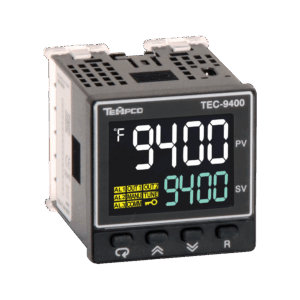

TEC-9400

• LCD Display - Using NFPA/IEC Standard Colors
• 3 Programmable Outputs
• Heater Break Alarm
• 1/16 DIN

TEC-910

• High Limit Control
• External Reset Optional
• Retransmission Optional
• Latching Relay
• 1/16 DIN

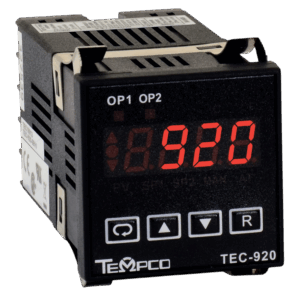

TEC-920

• Low Cost
• Single Display
• 2 Programmable Outputs
• 1/16 DIN

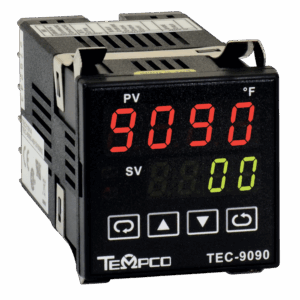

TEC-9090

• 2 Programmable Outputs
• Dual Display
• 1/16 DIN

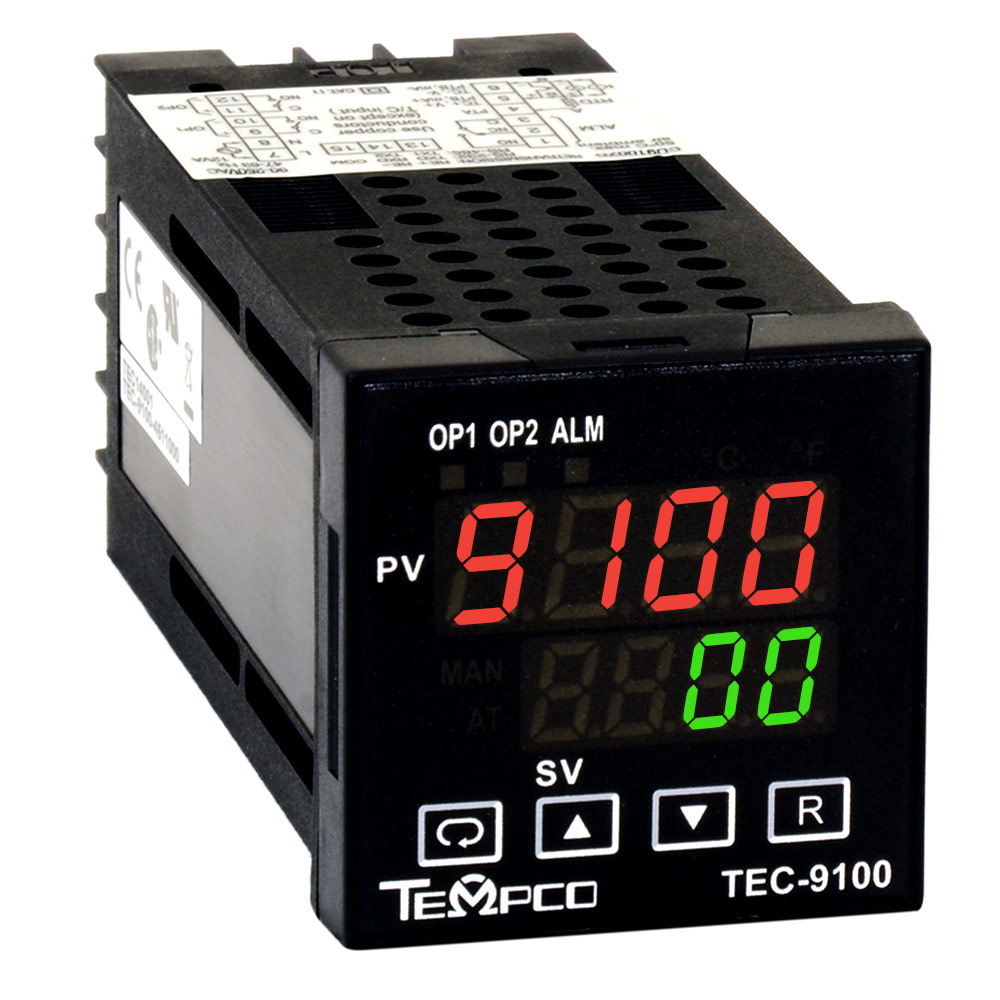

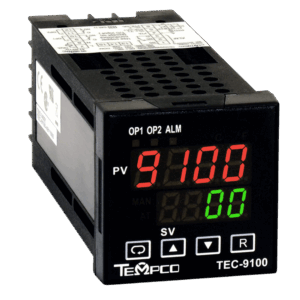

TEC-9100

• 4 Programmable Outputs
• Dual Display
• Cutting Edge Technology
• 1/16 DIN

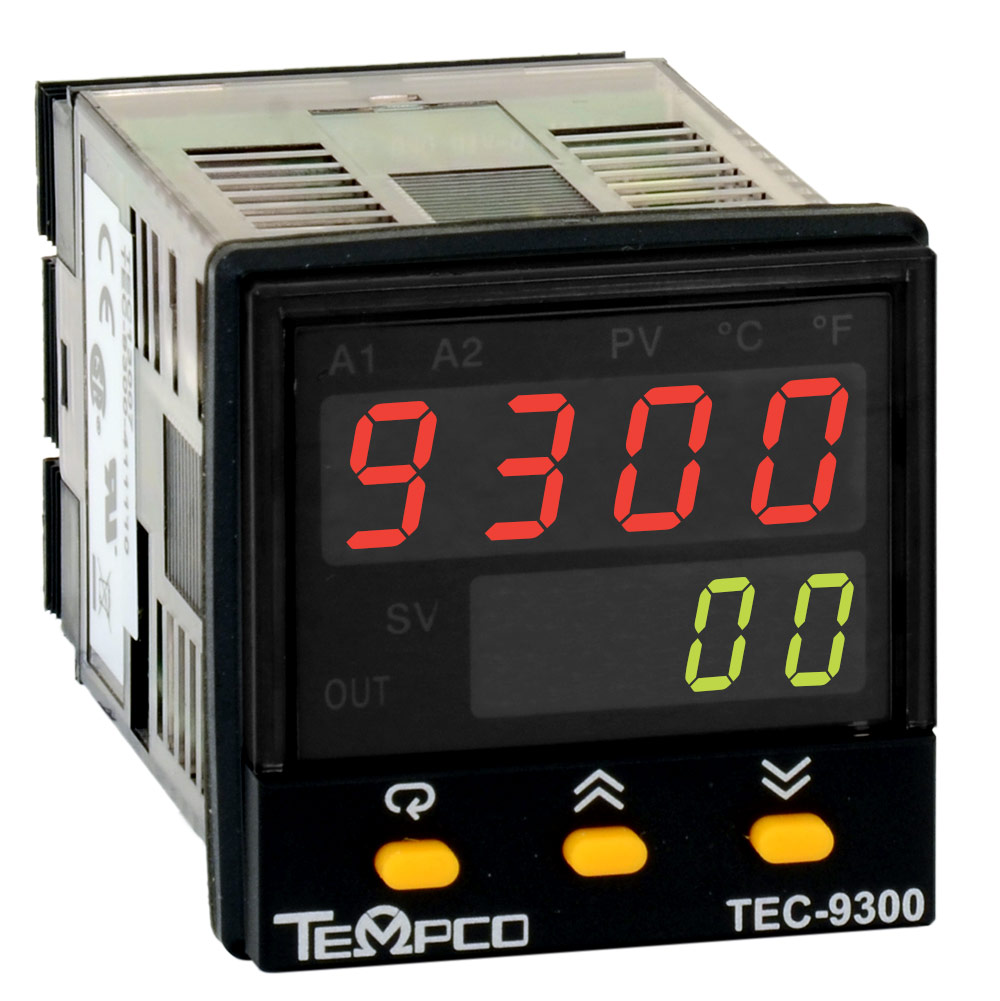

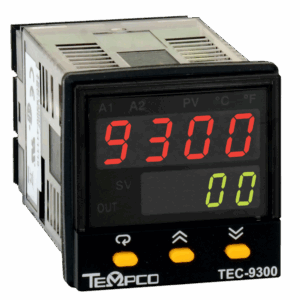

TEC-9300

• 4 Programmable Outputs
• Heater Break Alarm
• NEMA 4X Front
• 1/16 DIN

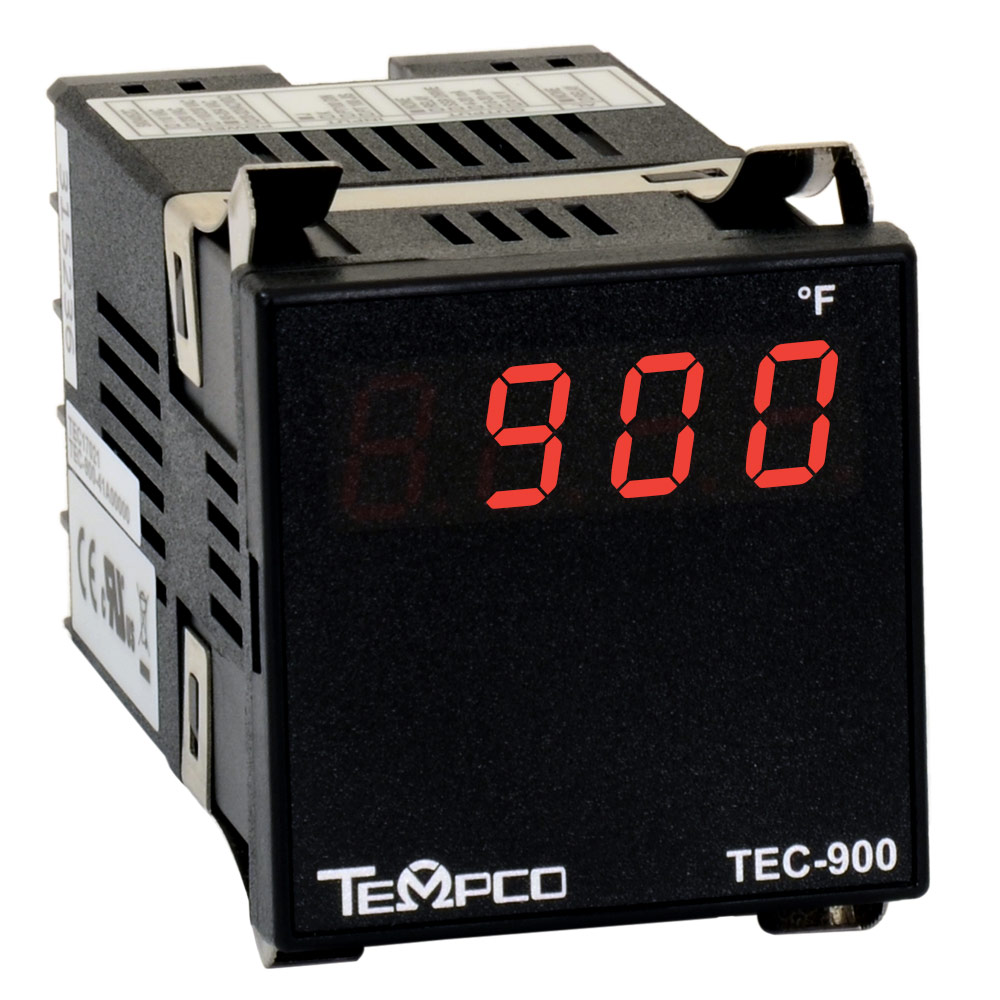

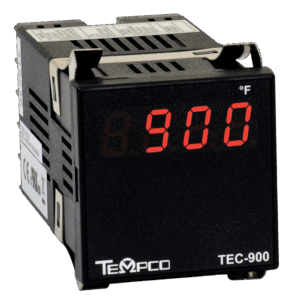

TEC-900

• Display Only
• T/C or RTD Inputs
• High or Low Voltage Operation
• 1/16 DIN

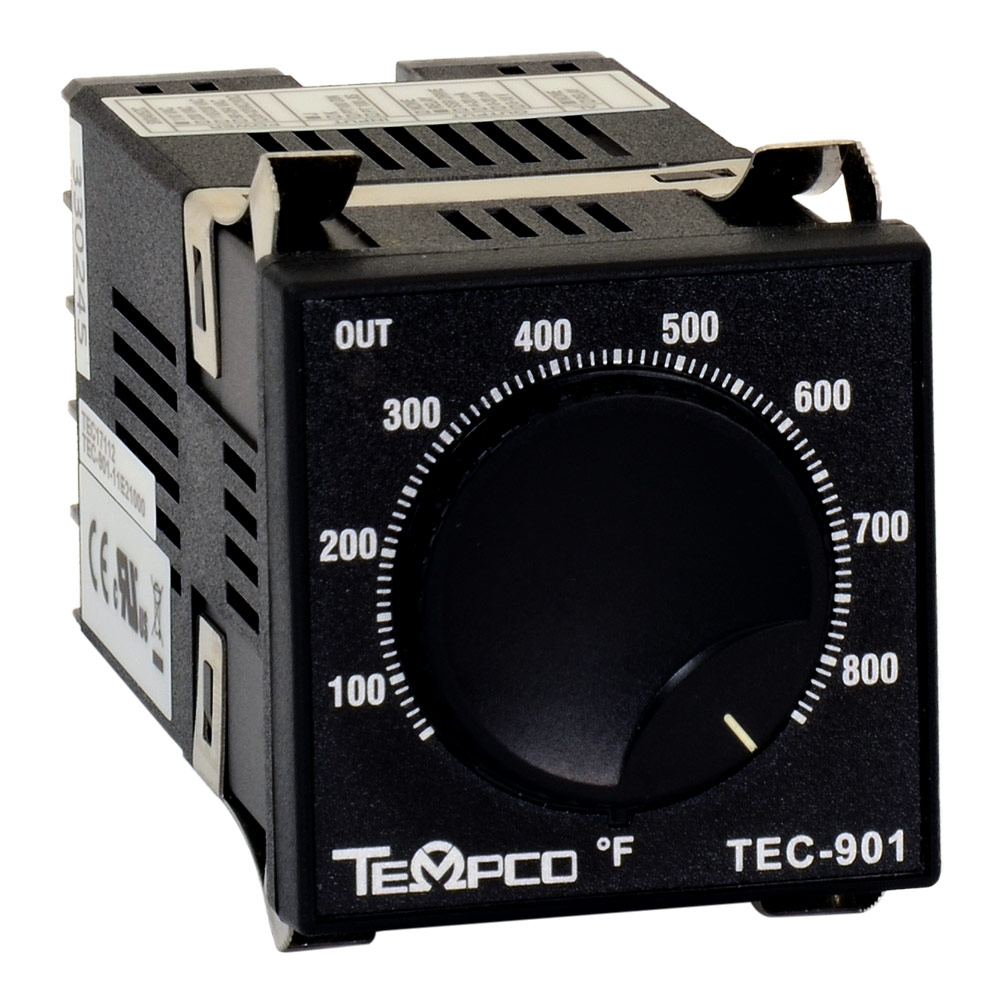

TEC-901

• Non-Indicating
• Potentiometer Setpoint
• 1/16 DIN

TEC-902

• With High /Low LED's
• Potentiometer Setpoint
• 1/16 DIN

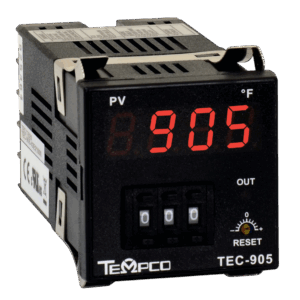

TEC-905

• Pushwheel Setpoint
• Process Digital Display
• 1/16 DIN

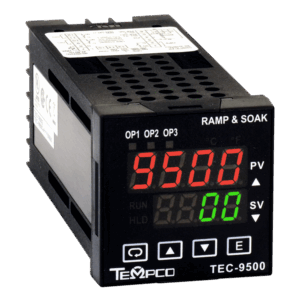

TEC-9500

• 9 Recipes
• 16, 32 or 64 Segments per Recipe
• 1/16 DIN

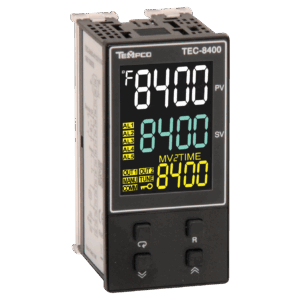

TEC-8400

• LCD Display - Using NFPA/IEC Standard Colors
• 2 Programmable Outputs, 3 Alarms
• Ramp & Soak
• Heater Break Alarm
• 1/8 DIN

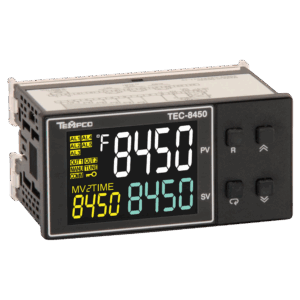

TEC-8450

• LCD Display - Using NFPA/IEC Standard Colors
• 2 Programmable Outputs, 3 Alarms
• Ramp & Soak
• Heater Break Alarm
• 1/8 DIN, Horizontal Orientation

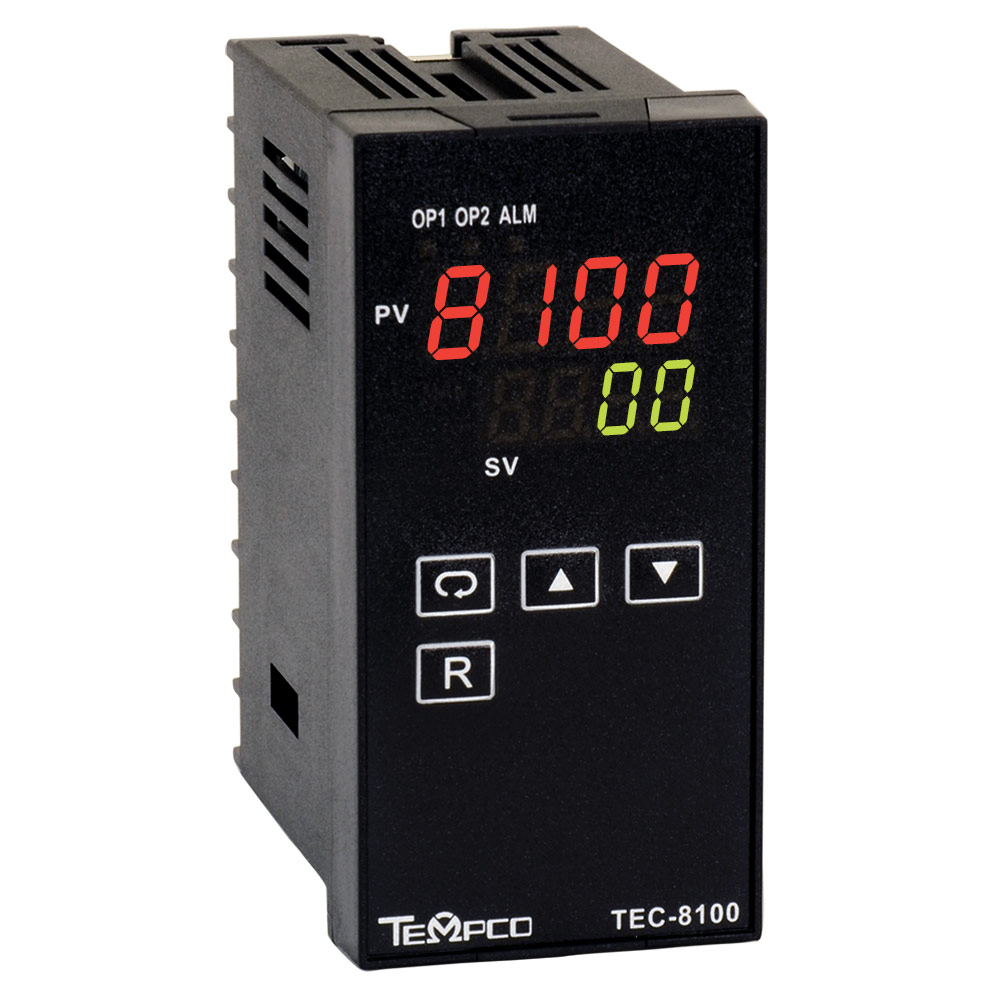

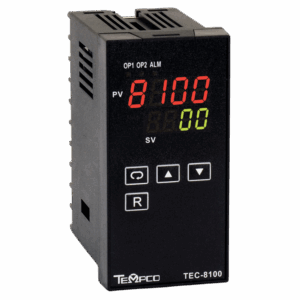

TEC-8100

• 4 Programmable Outputs
• NEMA 4X Front Optional
• Cutting Edge Technology
• 1/8 DIN

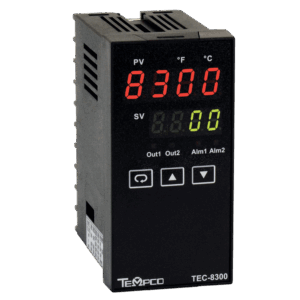

TEC-8300

• 5 Programmable Outputs
• Heater Break Alarm
• Differential Control
• Loop Break Alarm
• Analog Input
• Event Input
• Retransmission Output
• 1/8 DIN

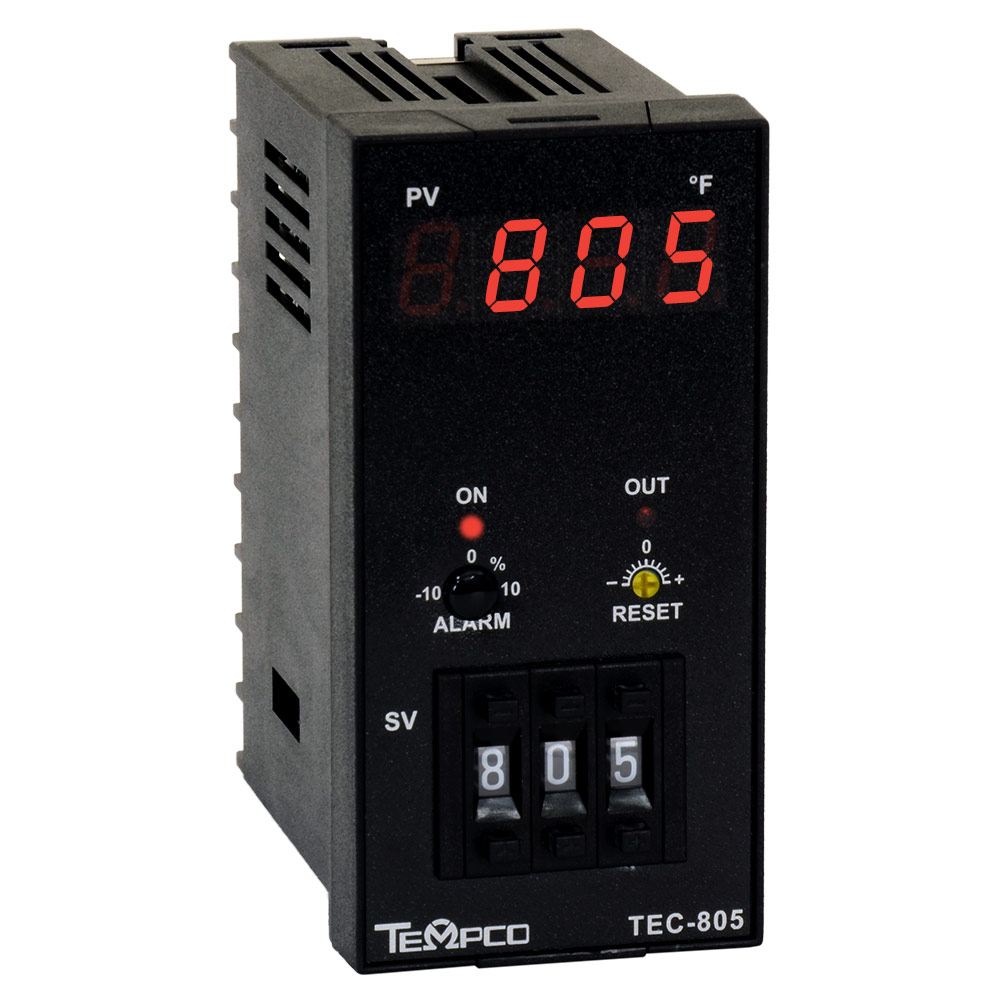

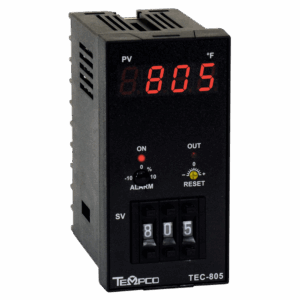

TEC-805

• Primary Output
• Deviation Alarm Optional
• Multiple Ranges Available
• Process Digital Display
• Pushwheel Setpoint
• 1/8 DIN

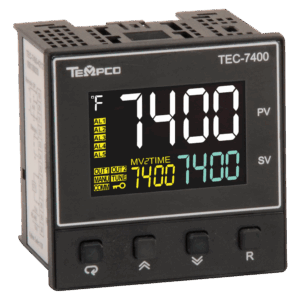

TEC-7400

• LCD Display - Using NFPA/IEC Standard Colors
• 2 Programmable Outputs, 1 Alarm
• Ramp & Soak
• Heater Break Alarm
• 3/16 DIN

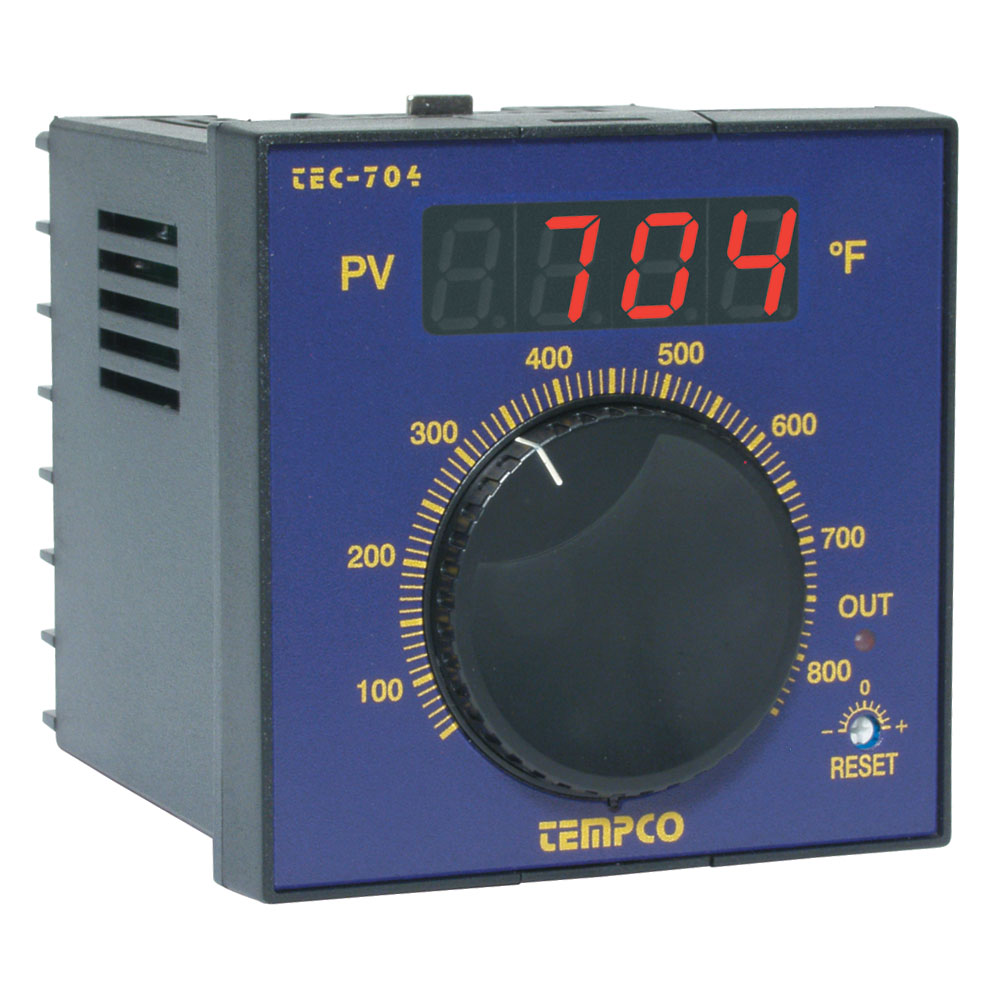

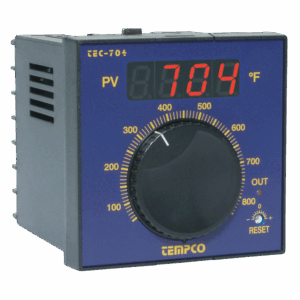

TEC-704

• Process Digital Display
• Potentiometer Setpoint
• 3/16 DIN

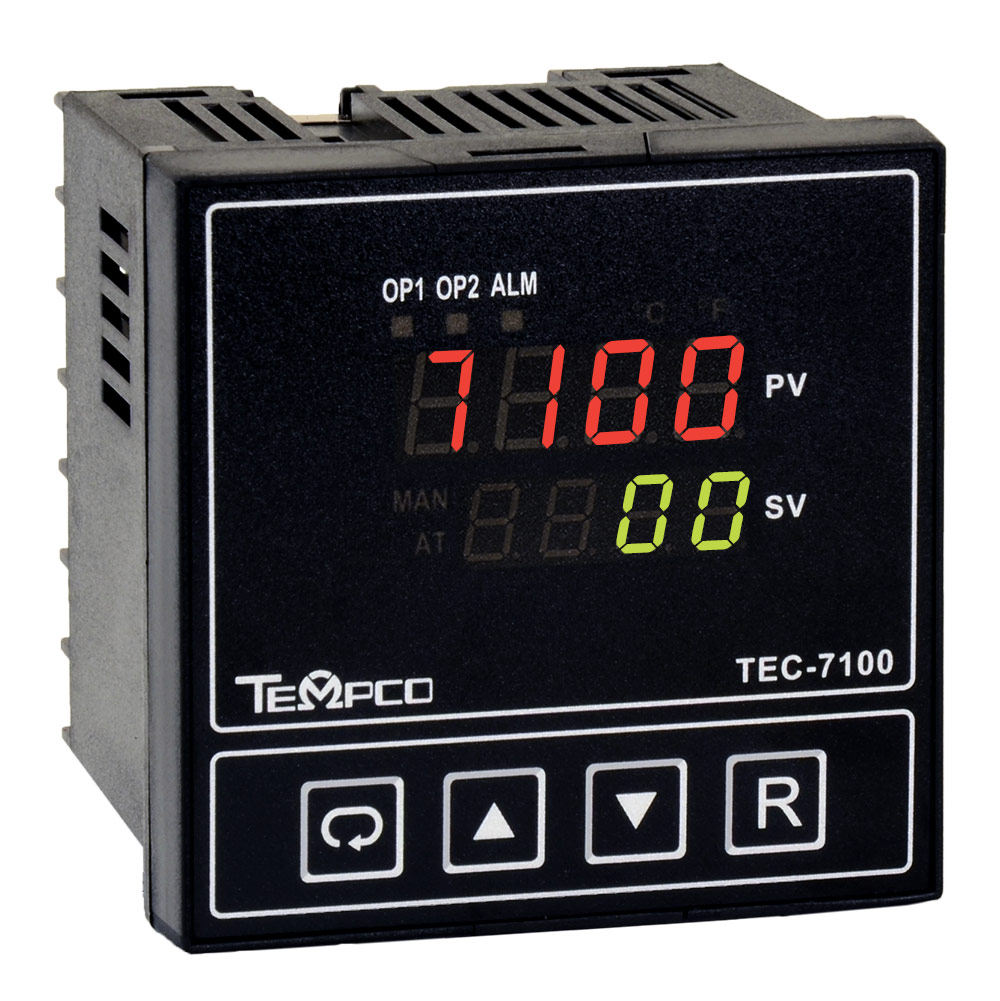

TEC-7100

• 4 Programmable Outputs
• Compact Size
• 3/16 DIN

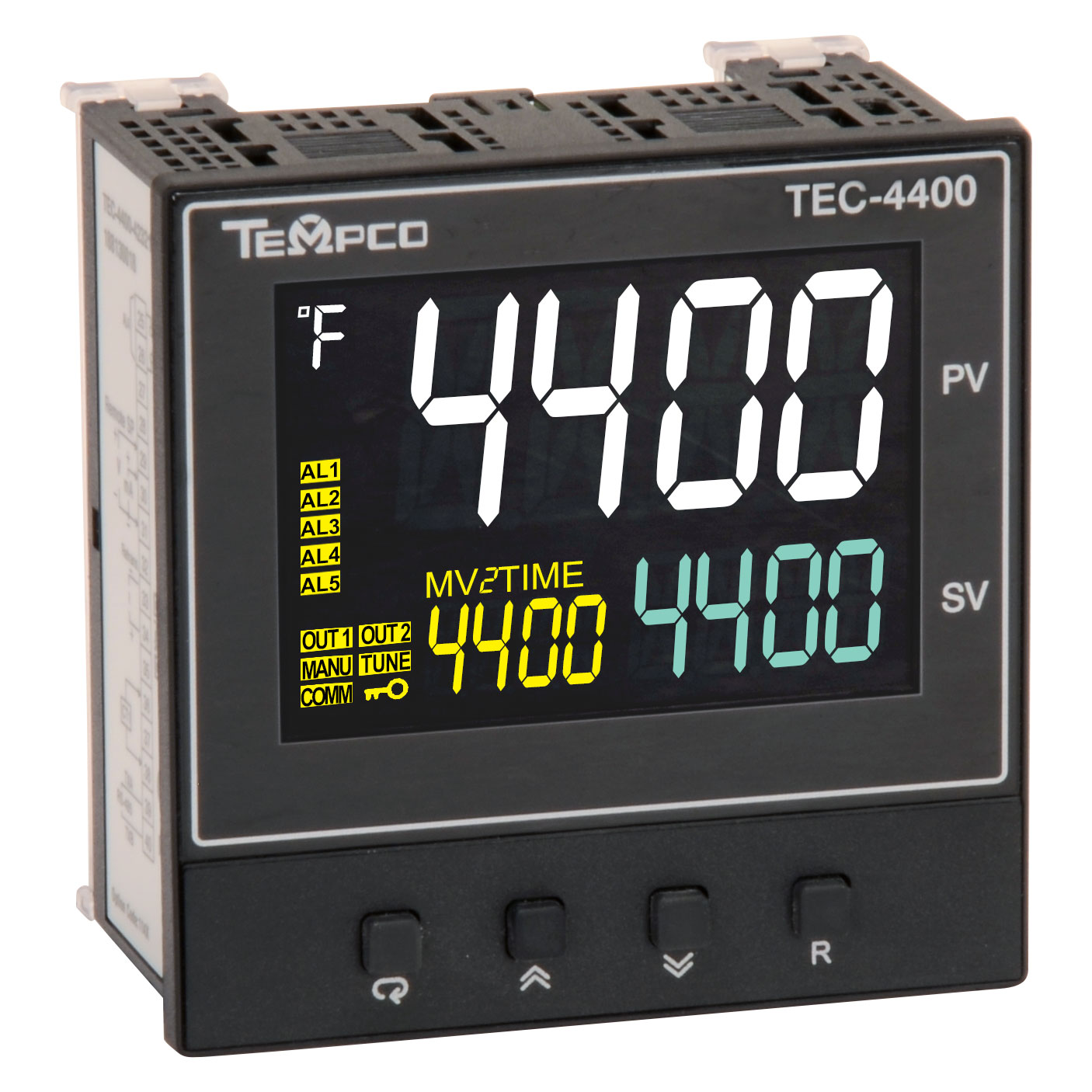

TEC-4400

• LCD Display - Using NFPA/IEC Standard Colors
• 2 Programmable Outputs, 3 Alarms
• Ramp & Soak
• Heater Break Alarm
• 1/4 DIN

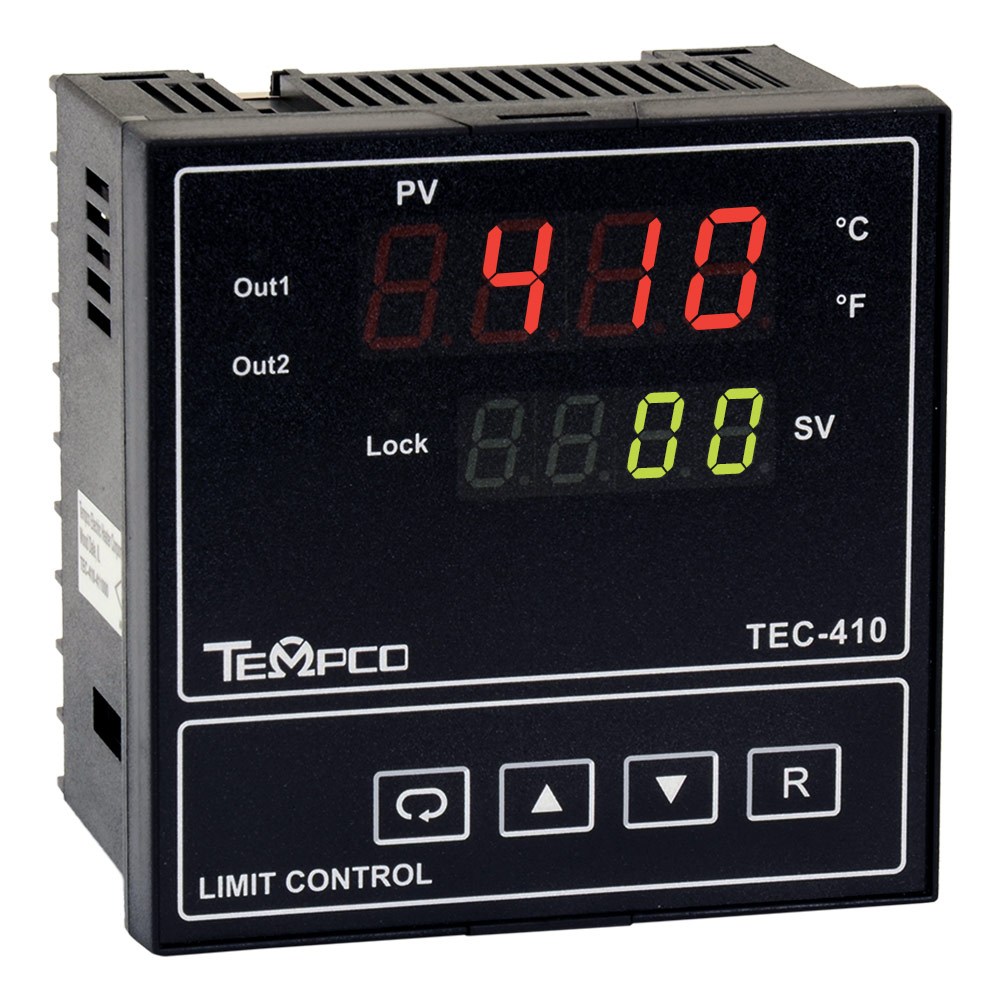

TEC-410

• High Limit Control
• External Reset Standard
• Retransmission Optional
• Latching Relay
• 1/4 DIN

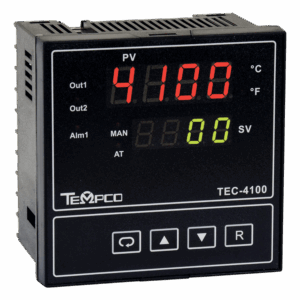

TEC-4100

• 4 Programmable Outputs
• NEMA 4X Front Optional
• Retransmission Output
• 1/4 DIN

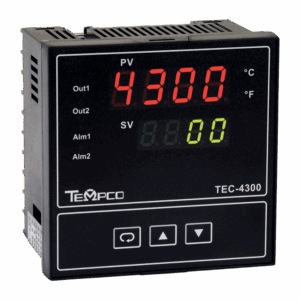

TEC-4300

• 5 Programmable Outputs
• Heater Break Alarm
• Differential Control
• Loop Break Alarm
• Analog Input
• Event Input
• Retransmission Output
• 1/4 DIN

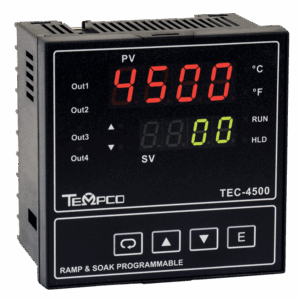

TEC-4500

• 9 Recipes
• 16, 32 or 64 Segments per Recipe
• 1/4 DIN

TEC-401

• Non-Indicating
• Potentiometer Setpoint
• Low Cost
• 1/4 DIN

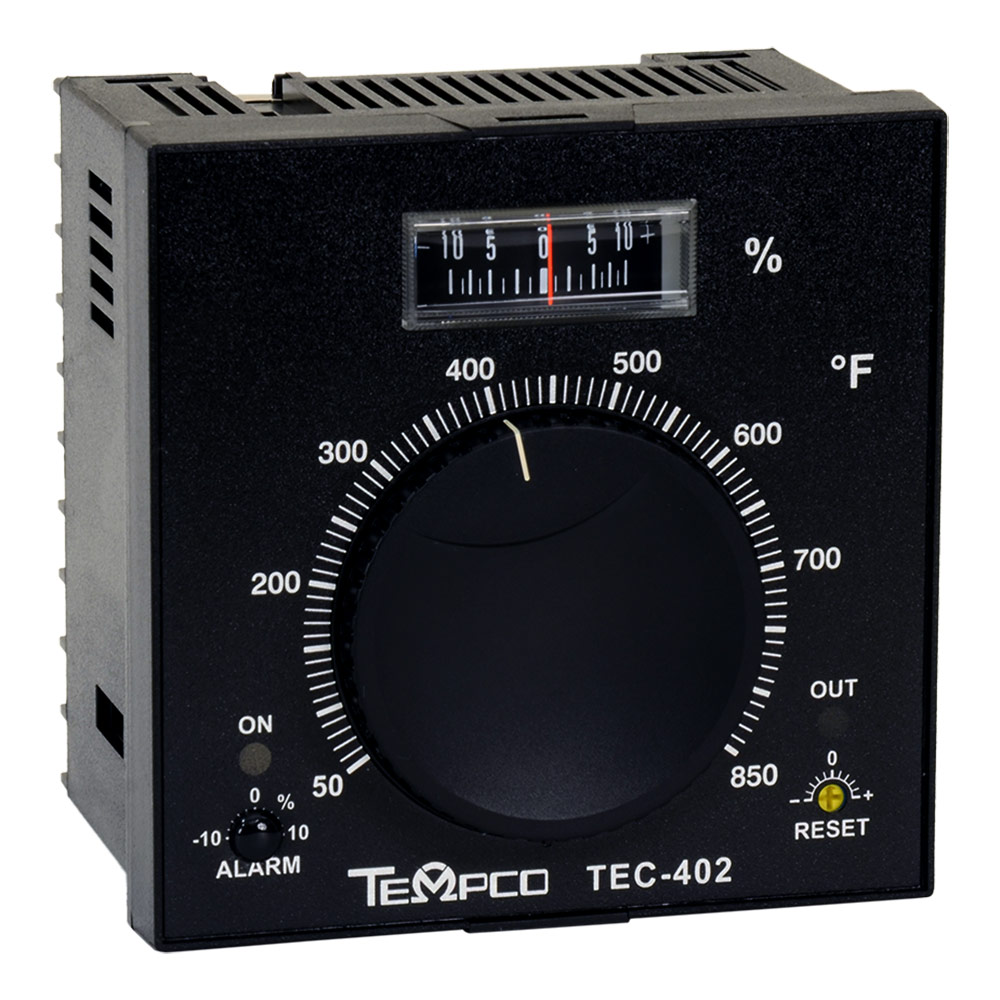

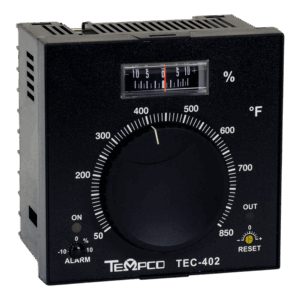

TEC-402

• Process Deviation Meter
• Potentiometer Setpoint
• Low Cost
• 1/4 DIN

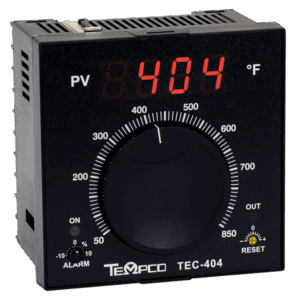

TEC-404

• Potentiometer Setpoint
• Process Digital Display
• Deviation Alarm Optional
• 1/4 DIN

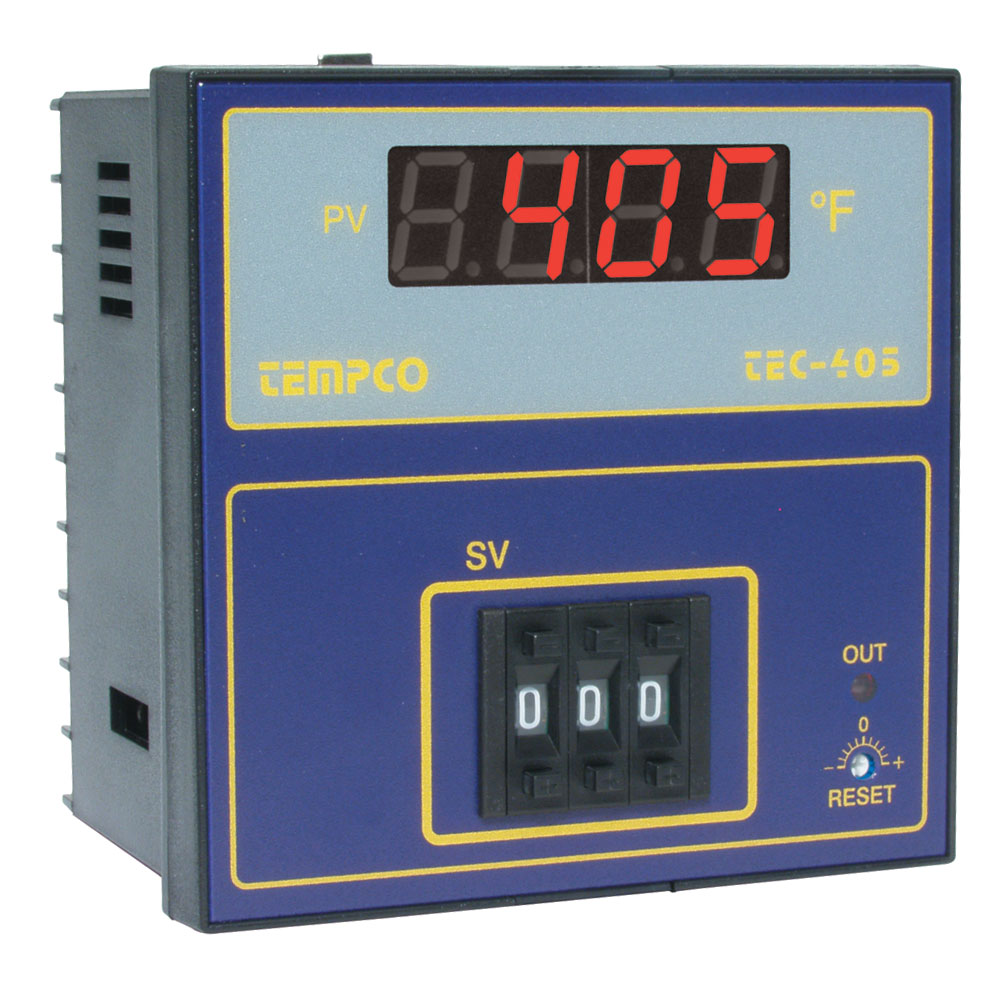

TEC-405

• Pushwheel Setpoint
• Process Digital Display
• Deviation Alarm Optional
• 1/4 DIN

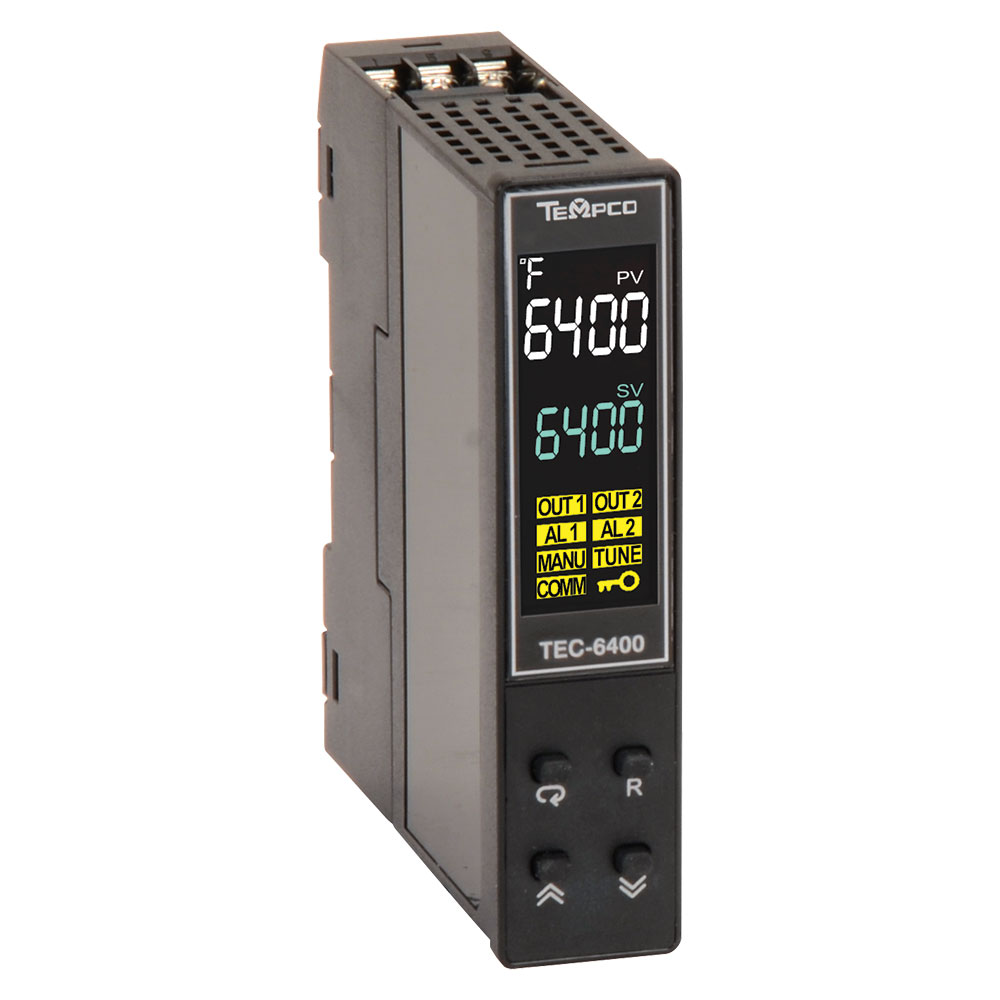

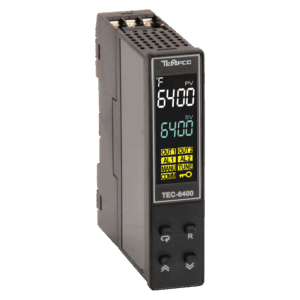

TEC-6400

• LCD Display - Using NFPA/IEC Standard Colors
• 3 Programmable Outputs
• Heater Break Alarm
• DIN Rail Mount

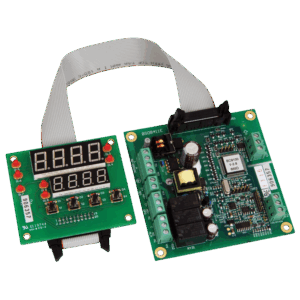

TBC-41

• 4 Programmable Outputs
• Board Control Fuzzy Logic PID

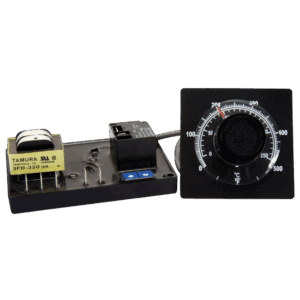

Tempco’s Series TKZ temperature controllers’ small size and low cost make them ideal for OEM applications or thermostat replacement requiring the accuracy, reliability and versatility only available in an electronic control. The control incorporates highly reliable state-of-the-art analog electronic circuitry in a very economical open board, potted design.

Accessory for Temperature Controllers:

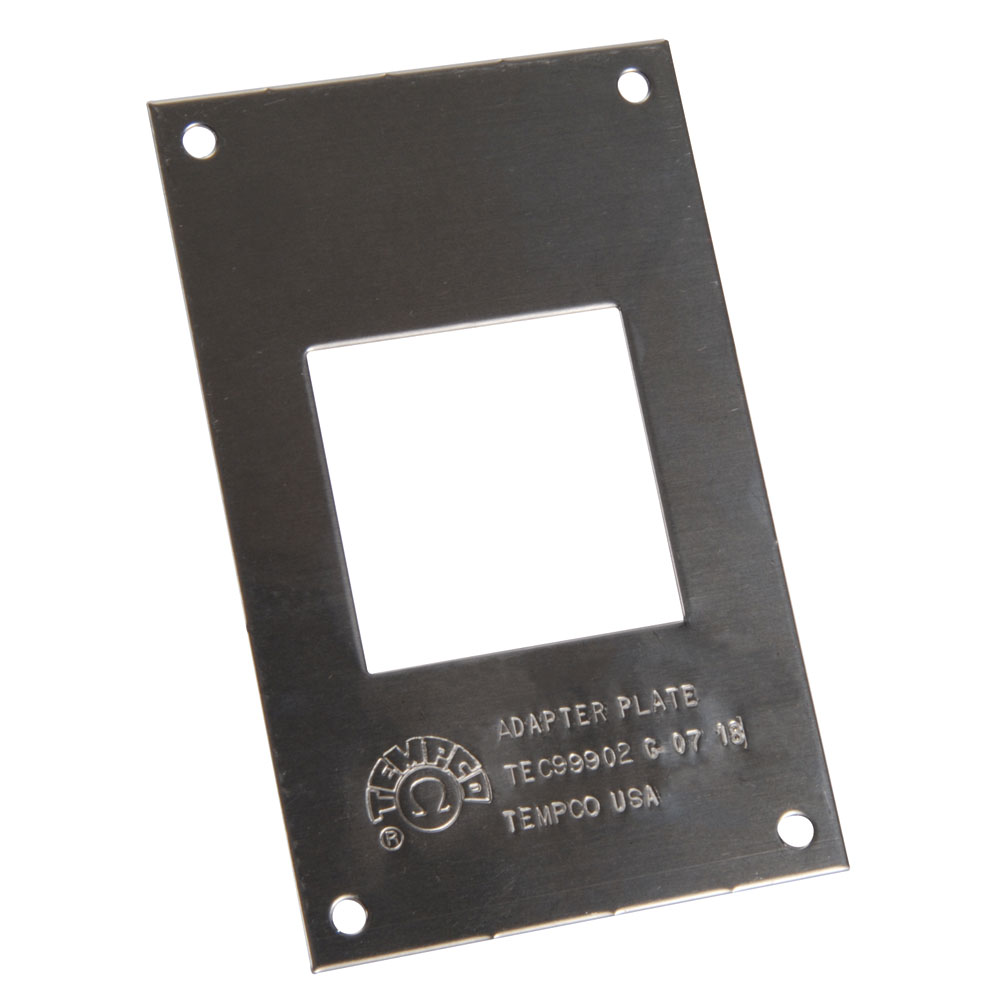

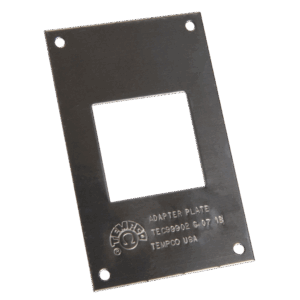

18 gauge Stainless Steel Adapter Plates with (4) #8 self-tapping sheet metal screws for mounting

TEC99901: Adapts a 1/4 DIN cut-out to a 1/16 DIN cut-out.

TEC99902: Adapts a 1/8 DIN cut-out to a 1/16 DIN cut-out.

Accessory for Temperature Controllers:

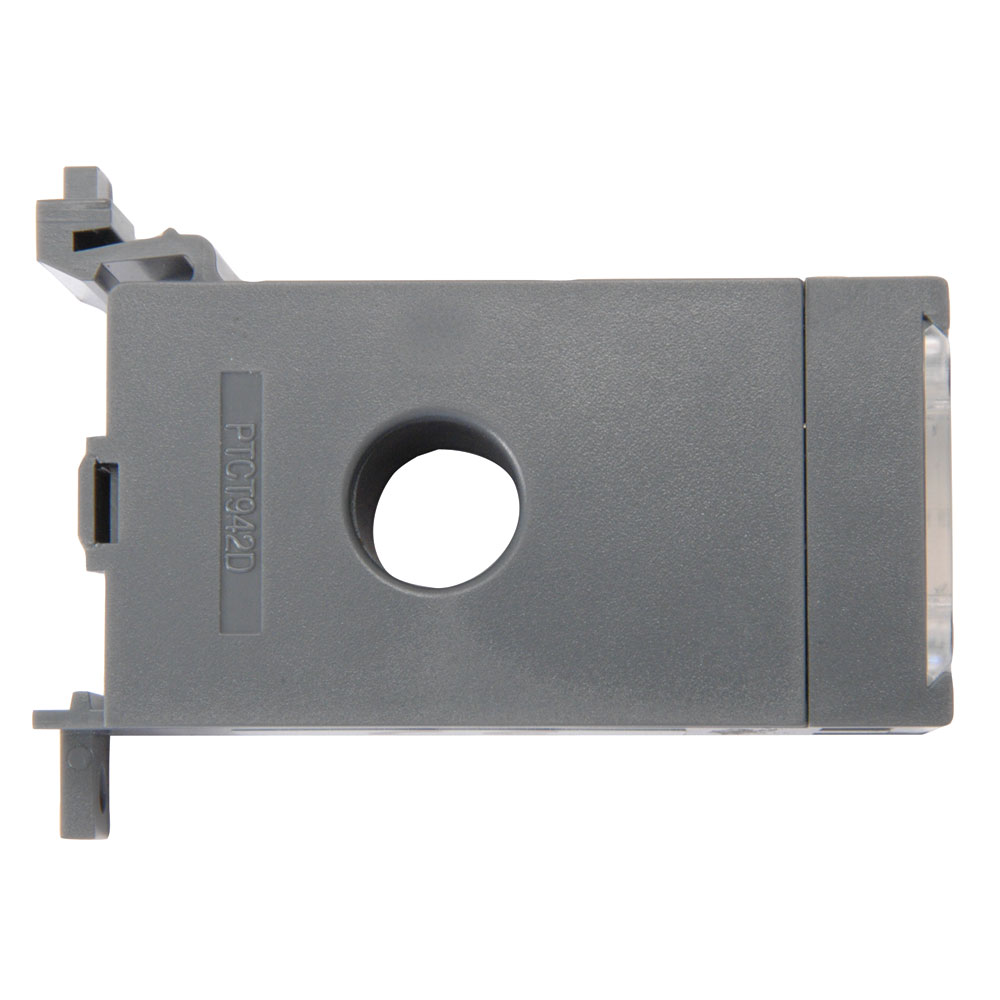

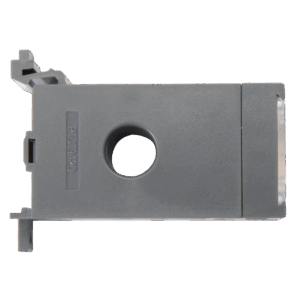

Current Transformer: Transducer use with Heater Break Alarm

Design Features

• High Accuracy: ± 2% of Reading ± 0.2A
• Wide Measuring Range: 0 – 50 Amps AC
• DC Voltage Output: 0 – 5 VDC
• 35 mm DIN Rail Mount or Surface Mount
• 7/16" (12.5mm) diameter maximum cable size

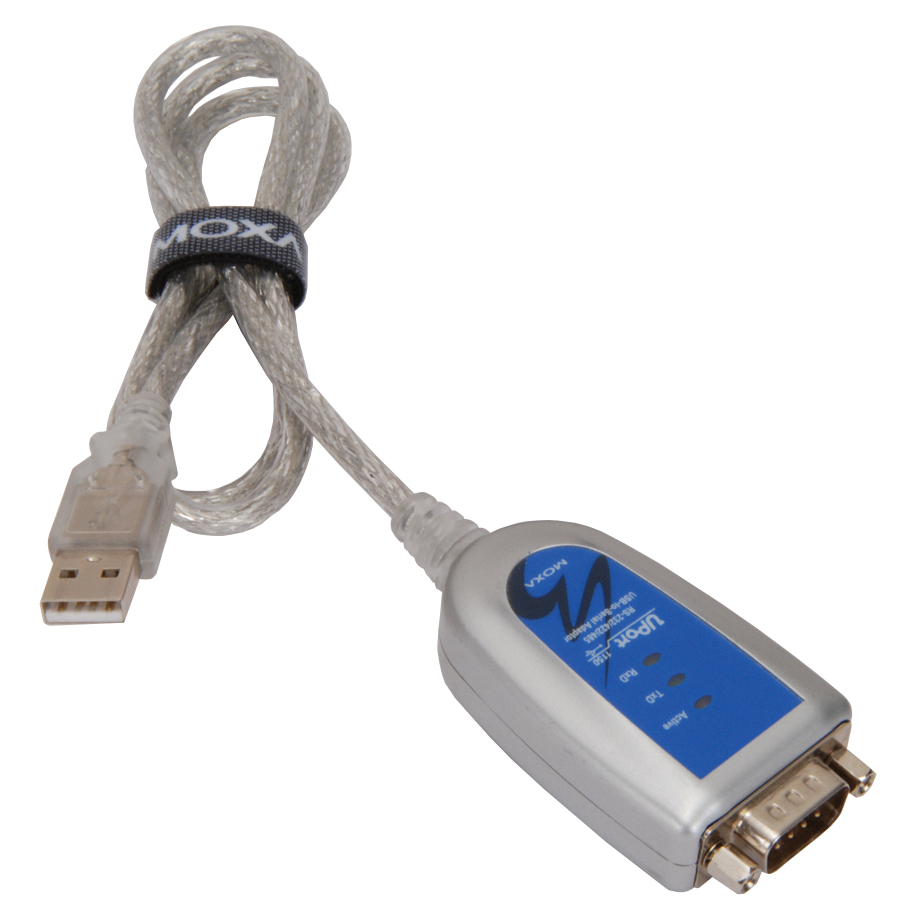

Converter Connects Devices To PC Via USB Port

Ideal for interfacing with TEC controllers, PPR chart recorders, PLCs, and general protocol conversion to a USB port

Accessory for Temperature Controllers:

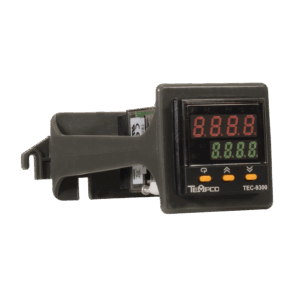

DIN Rail/Surface Mount Adapter for 1/16 DIN Controls

Cutout for Control – 45 mm/1.772" square
Maximum DIN Control Depth – 120 mm/4.72"
Material – Fire Retardant Polycarbonate GE Lexan® 940

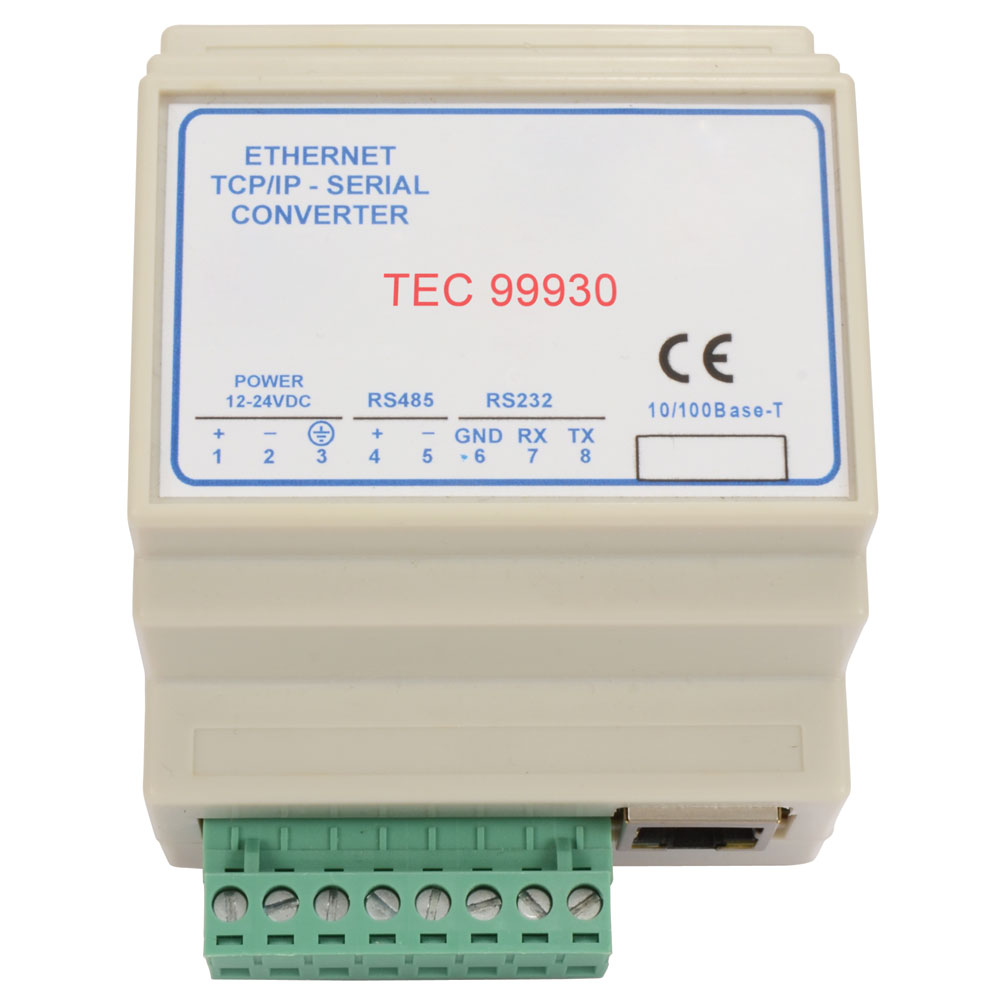

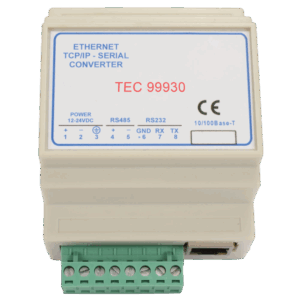

Tempco Ethernet converter / Gateway is capable of linking any serial (RS-232 or RS485) devices to your computer network via Ethernet for remote access, control, and/or monitoring purposes. Works with Tempco electronics (controllers, data loggers, etc.) using our Data Acquisition Software (Part Number TEC99923).

Accessory for Temperature Controllers:

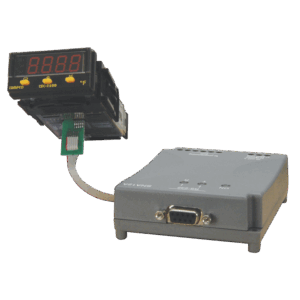

Data Communication Accessories: Programming Port Cables

Accessory for Temperature Controllers:

Data Communication Accessories: Smart Network Adapters

Accessory for Temperature Controllers:

Data Communication Accessories: Software

Accessory for Temperature Controllers:
