Heavy Duty Quick Disconnect Plugs

Tempco offers 9 Heavy Duty Quick Disconnect Plugs and Matching Connecters. (Connectors are cable mount only.)

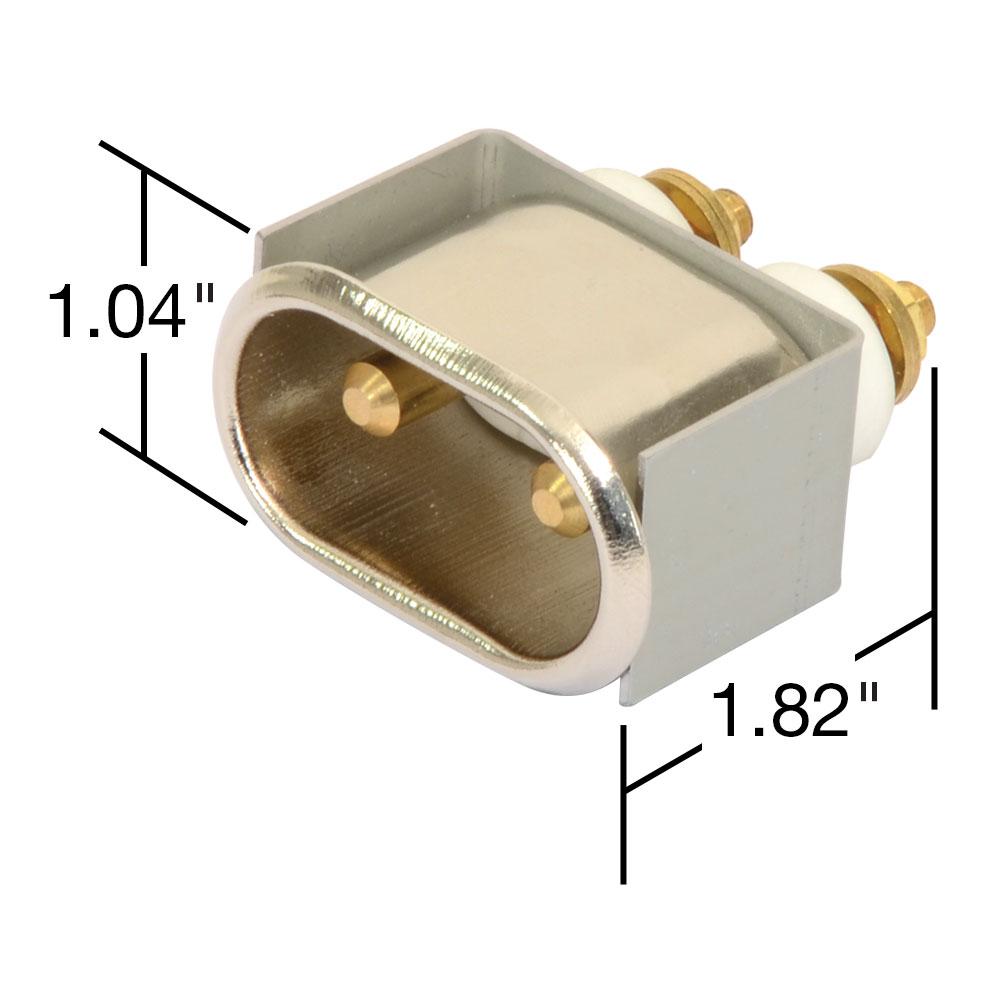

16 Amp Cup Assembly

Electrical Rating: 10 Amp – 250 VDC; 16 Amp – 250VAC
Cutout size: 1.495" × .790"
Part Number: EHDR-1001

• Replace Exposed Terminals

• Durable Cast Aluminum Body

• High Temperature Ceramic Insulators

• Solid Brass Contacts

• Replace Exposed Lead Wires

• Temperature Exposure Up to 300°C (572°F)

• Available on Many Tempco Heater Products

25 Amp Cup Assembly

Electrical Rating: 25 Amp – 400 Volt
Cutout size: 1.495" × .790"
Part Number: EHDR-1231
Mounting Bracket Included

• Replace Exposed Terminals

• Durable Cast Aluminum Body

• High Temperature Ceramic Insulators

• Solid Brass Contacts

• Replace Exposed Lead Wires

• Temperature Exposure Up to 300°C (572°F)

• Available on Many Tempco Heater Products

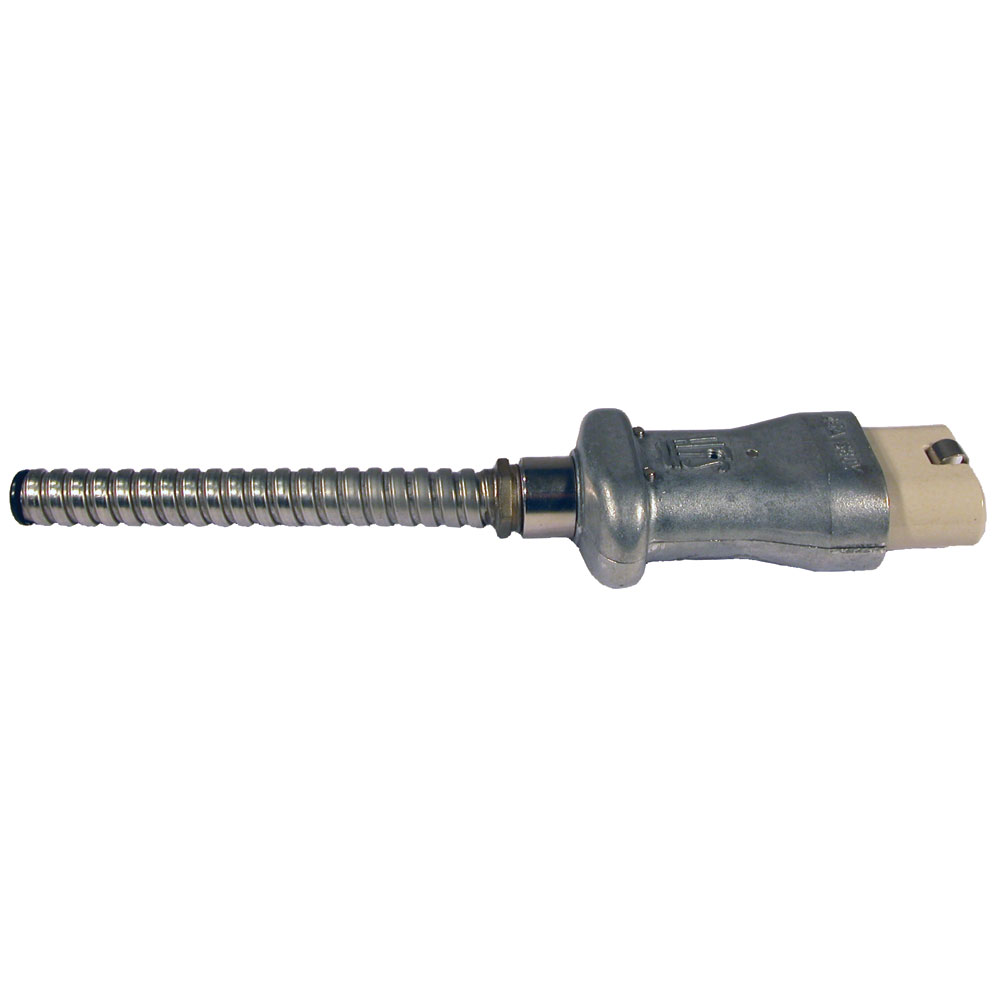

Prewired Plug

Plugs can be prewired and fitted with armor cable or wire braid leads. Consult Tempco with your requirements.
Part Number: assigned when ordered

• Replace Exposed Terminals

• Durable Cast Aluminum Body

• High Temperature Ceramic Insulators

• Solid Brass Contacts

• Replace Exposed Lead Wires

• Temperature Exposure Up to 300°C (572°F)

• Available on Many Tempco Heater Products

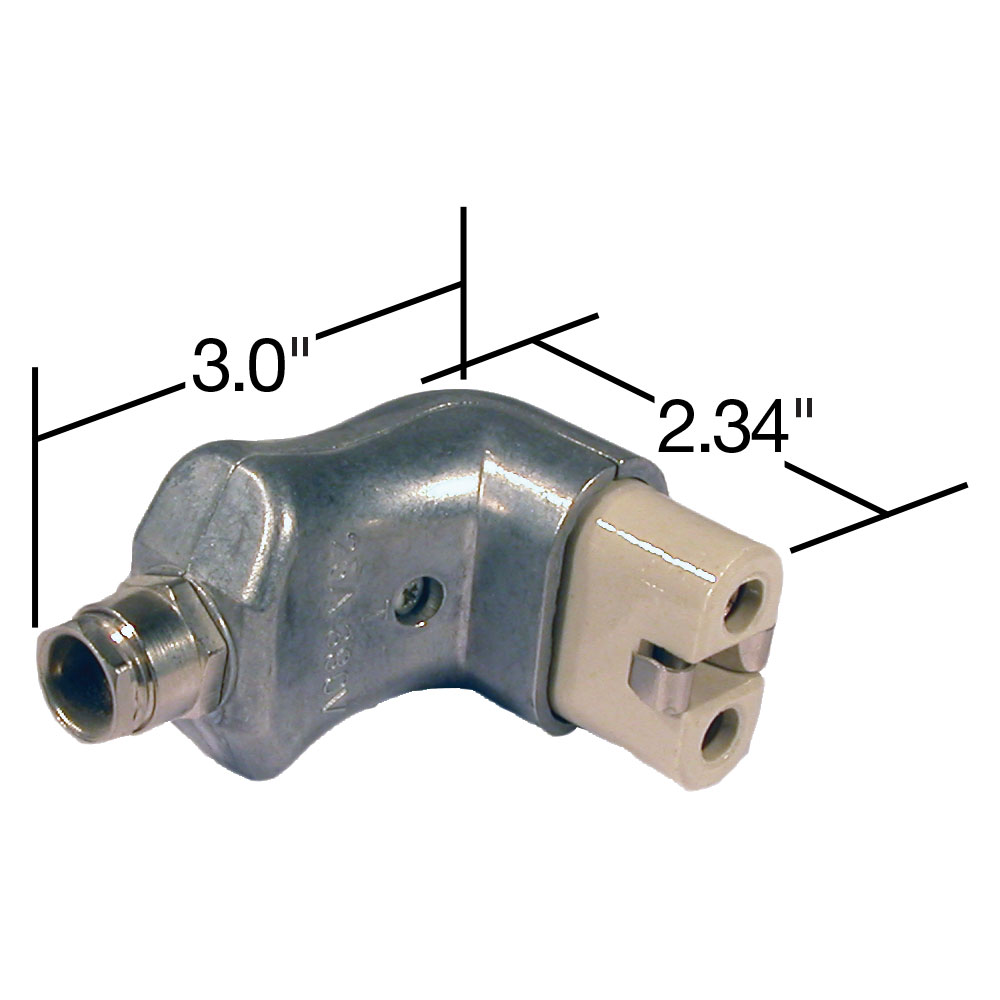

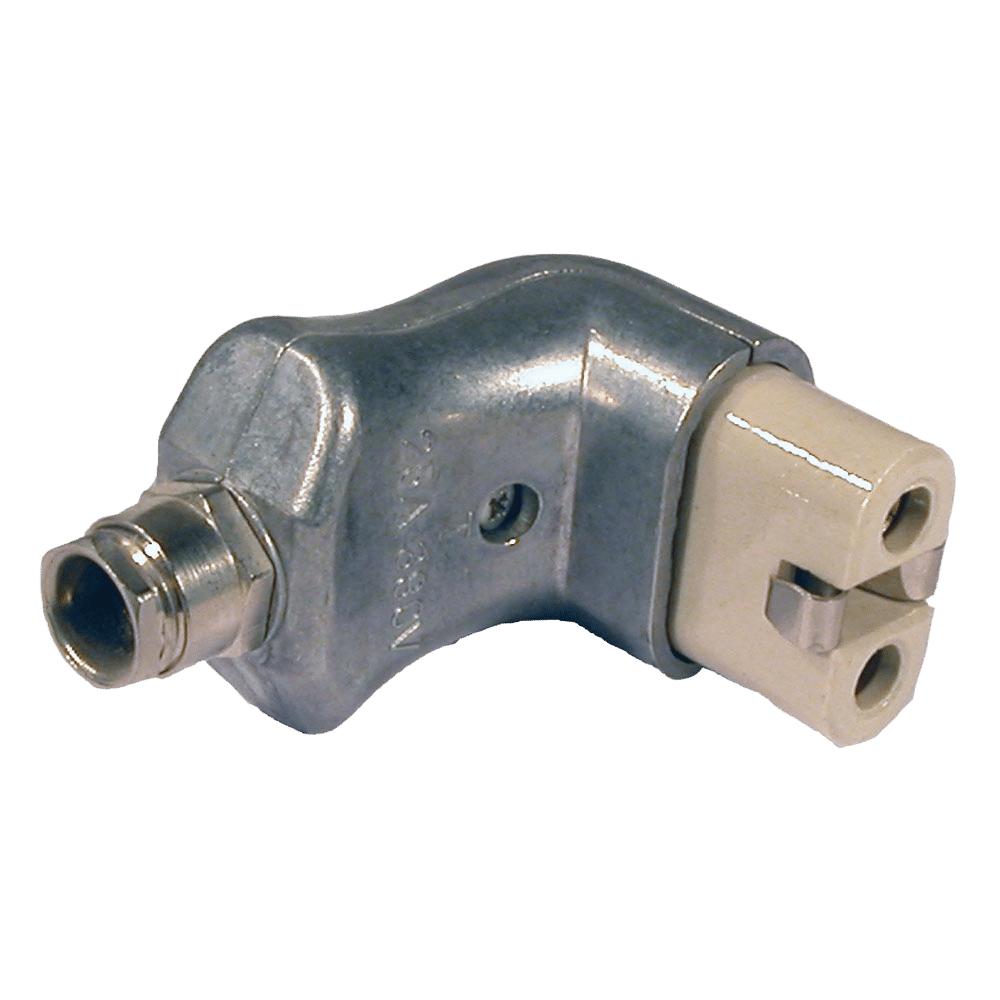

Right Angle Electrical Plug

Electrical Rating: 25 Amp, 380 Volt
Part Number: EHD-101-103

• Replace Exposed Terminals

• Durable Cast Aluminum Body

• High Temperature Ceramic Insulators

• Solid Brass Contacts

• Replace Exposed Lead Wires

• Temperature Exposure Up to 300°C (572°F)

• Available on Many Tempco Heater Products

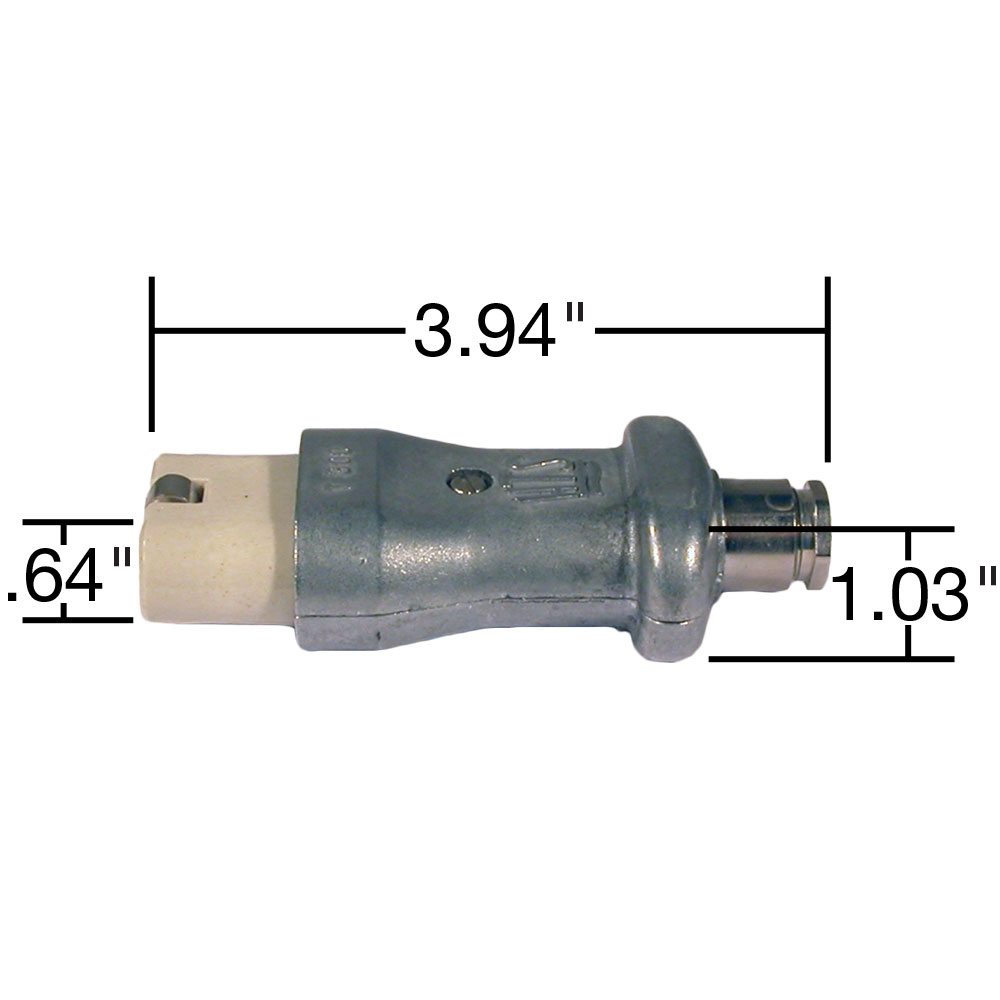

Straight Electrical Plug

Electrical Rating: 25 Amp, 380 Volt
Part Number: EHD-101-102

• Replace Exposed Terminals
• Durable Cast Aluminum Body
• High Temperature Ceramic Insulators
• Solid Brass Contacts
• Replace Exposed Lead Wires
• Temperature Exposure Up to 300°C (572°F)
• Available on Many Tempco Heater Products
