Swaged Construction permits higher watt densities. Standard 321SS and optional Incoloy 800 sheath provide good thermal conductivity and resistance to corrosion and scaling.

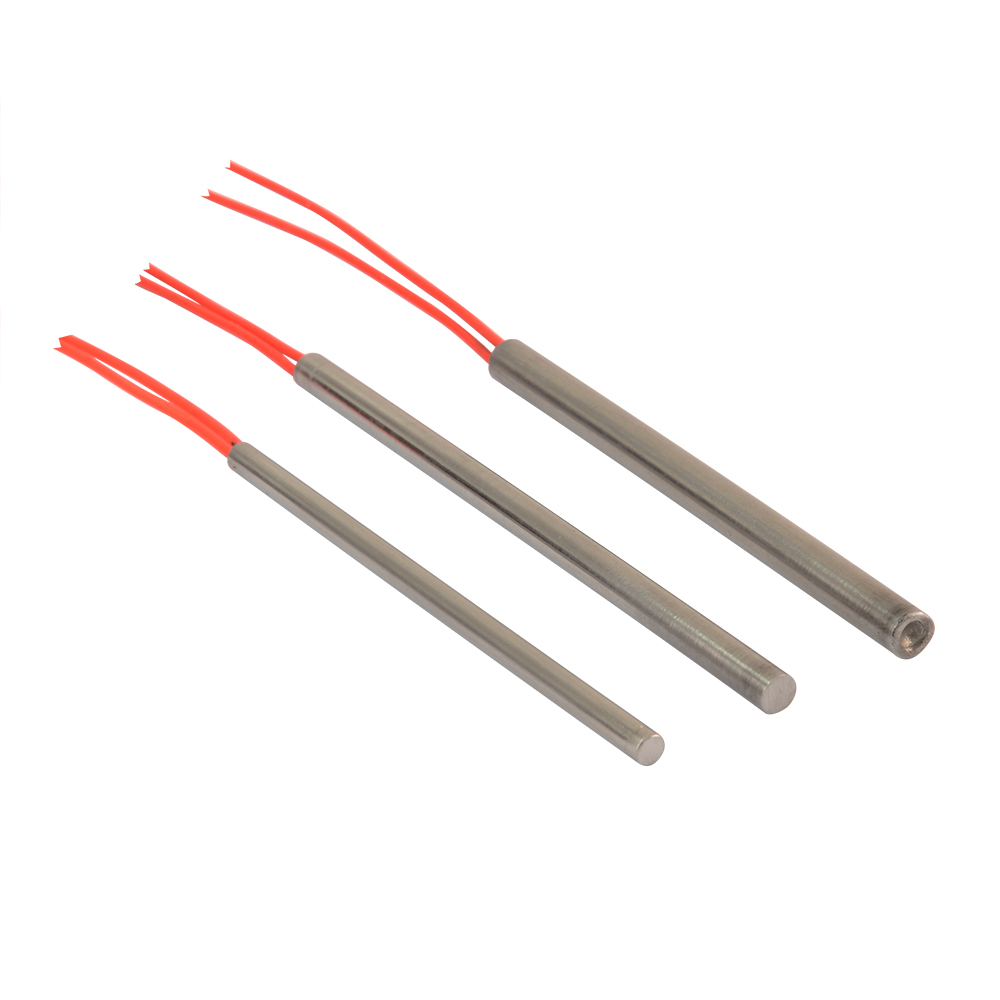

Tempco miniature cartridge heaters come in three diameters: 1/8", 5/32" and 3/16". They are ideal for applications where high, concentrated power is required within small spaces. Swaged Construction permits higher watt densities. Standard 304SS sheath provides good thermal conductivity and resistance to corrosion and scaling.

Swaged Construction permits higher watt densities. Standard 321SS and optional Incoloy 800 sheath provide good thermal conductivity and resistance to corrosion and scaling.

An economical heater used in applications requiring lower operating temperatures and watt densities.

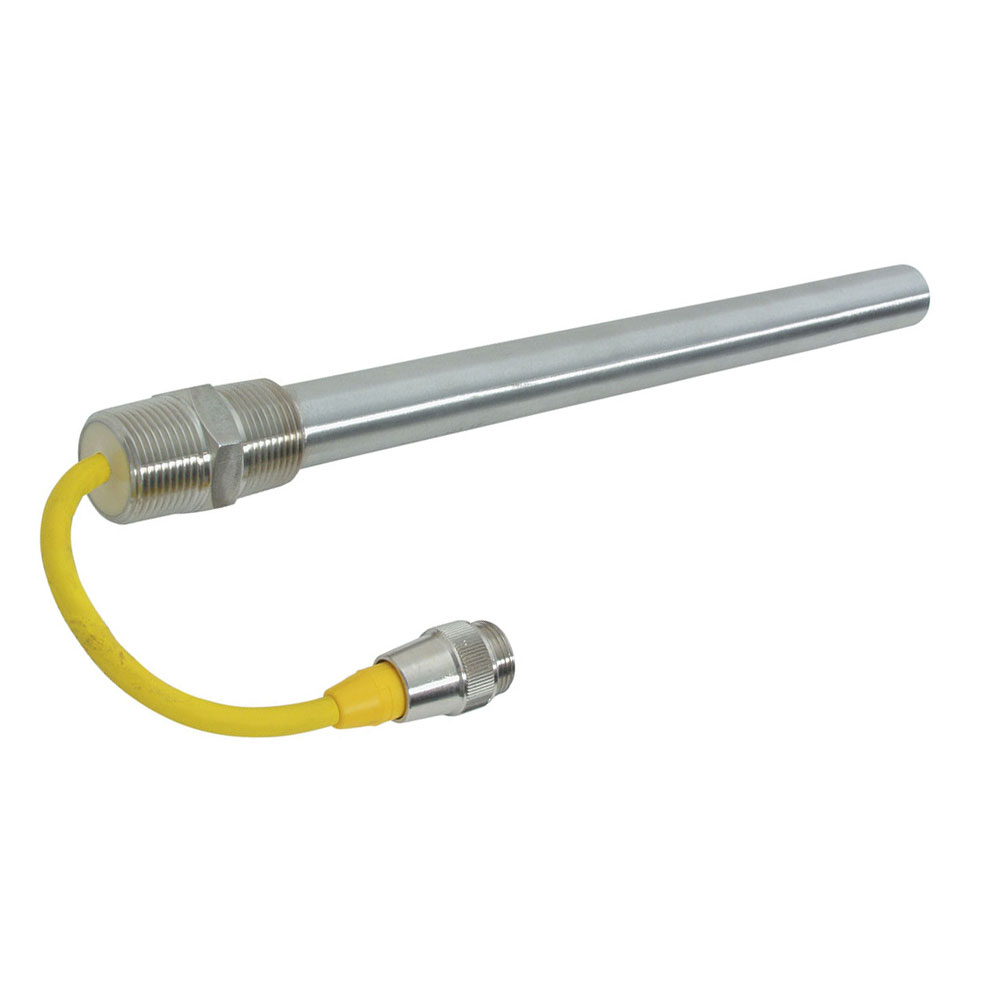

These heaters are designed for heating water and other liquids. The high watt density capabilities of this heater permit greater heat dissipation in a given area than would a tubular immersion heater. For water heating, watt densities of several hundred watts per square inch are possible; oil heating may be limited to 5 to 20 watts per square inch.

Cartridge type forced air heaters are ideal for Small Volume Air & Gas Heating.

The unique feature of the Pennybottom™ cartridge heater is the use of a flat copper end disc to maximize heat transfer and improve temperature sensing. The Pennybottom™ cartridge heater also includes a Type J thermocouple at the end disc. The junction is grounded to the flat copper end disc, providing excellent temperature control at the gating area, eliminating freeze-ups or drool, thus producing quality molded parts.

These Hi-Density cartridge heaters are designed as an exact replacement for an OEM application.

Bolt Heaters are used as an aid to tighten large bolts in heavy machinery and equipment. Heaters are sized for easy insertion into a hollow bolt. The rapid heating of the bolt expands it, allowing further tightening of the nut. The heater is then de-energized and removed. As the bolt cools, its contraction back to original size provides a tight fit.

The different construction types and numerous terminations and options available allow Tempco to manufacture custom cartridge heaters for specific use in industrial applications.

This high temperature, electrically insulating and thermally conductive coating will minimize oxidation and improve heat transfer from heater to the object being heated and is formulated to assist in the removal of cartridge heaters.
