Turnkey Process Heating Systems
Our custom complete thermal loops systems are used for processing air, gases, steam, oils, water and other liquid solutions.

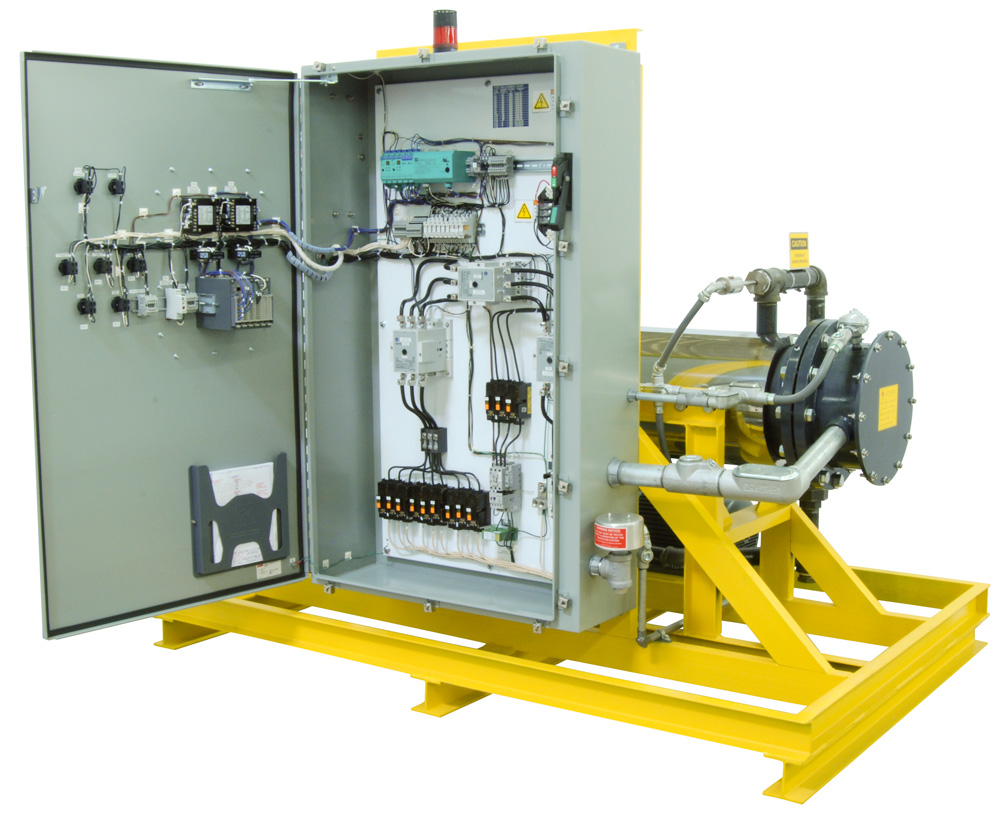

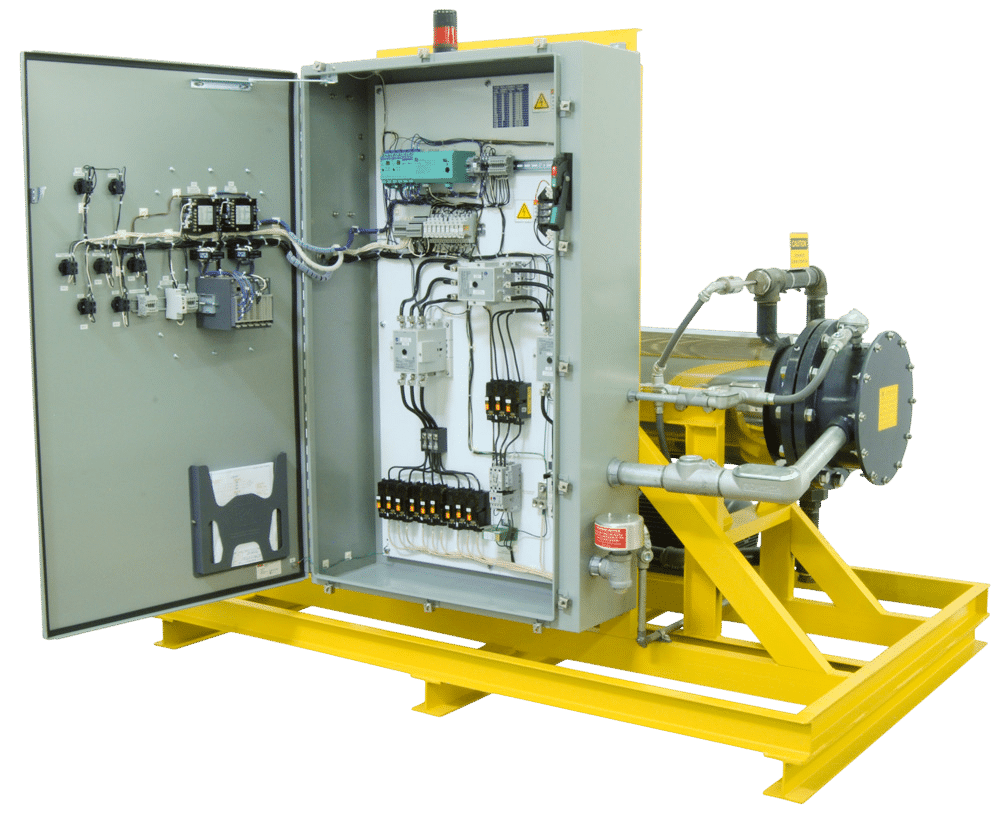

Fuel Circulation Heating System
Control Panel
- NEMA 4 Control Panel
- Purge & Pressurization Enclosure Protection System
- TEC-4100 PID Temperature Controller
- TEC-410 FM High Limit Control
- PPR-1800 Videographic Data Logger
- Safety Contactors for Over-temperature, Over-pressure and Low-flow Conditions
- Intrinsically Safe Sensor Barriers
Circulation Heater
- 90KW, 480V, 3-Phase Heater
- NEMA 4 Terminal Housing
- Flow Rate: 80 GPM
- Operating Pressure: 0-150 PSIG
- Max. Operating Temperature: 300°F/148°C

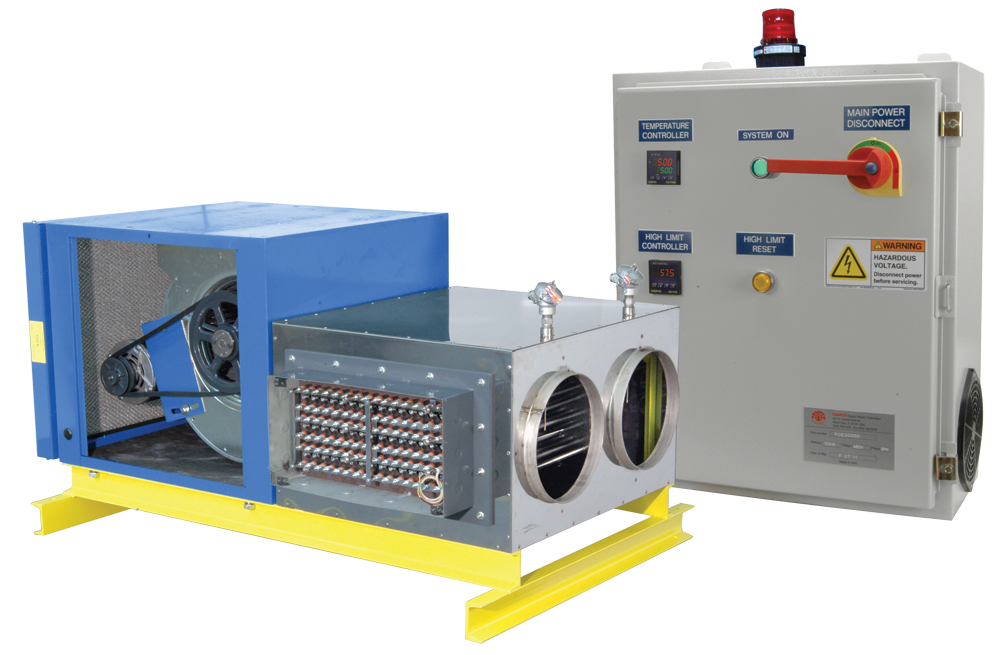

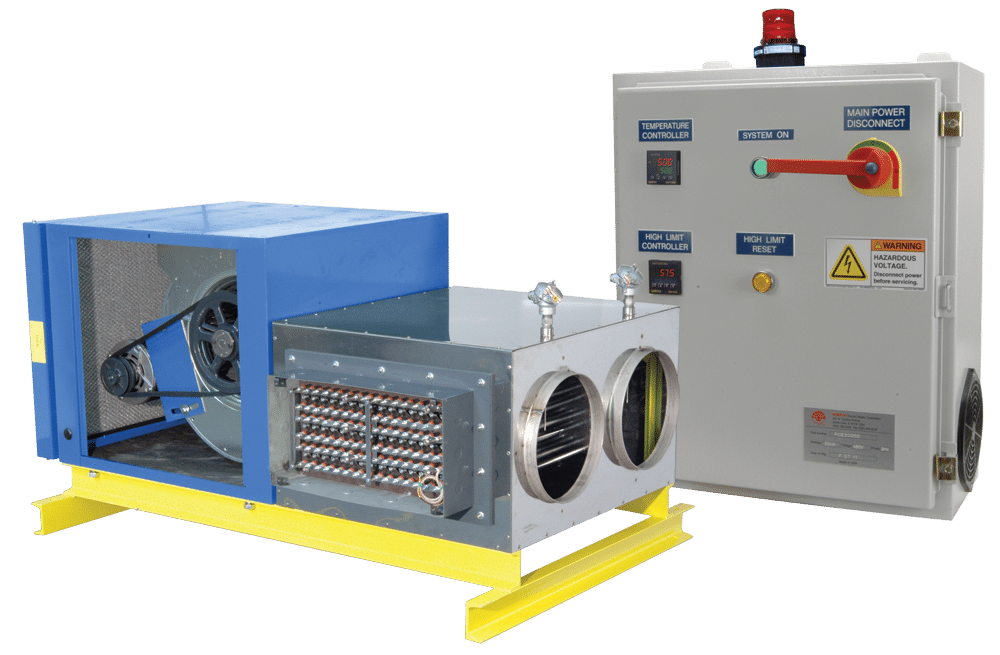

Duct Heater System
Process Heater
- 70KW, 380V, 3-phase (3 heater circuits)
- Type K Hi-Limit TC attached to Element
- Two Process Thermocouple Sensors
Blower
- 1500 CFM
- Centrifugal In-Line Belt-Drive Blower & Filter
- 215/380V 3-phase motor
Control Panel
- NEMA 12 Enclosure
- Model TEC-4100 Temperature Control
- Model TEC-410 High Limit Control
- Audible Alarm Horn and Flashing Beacon

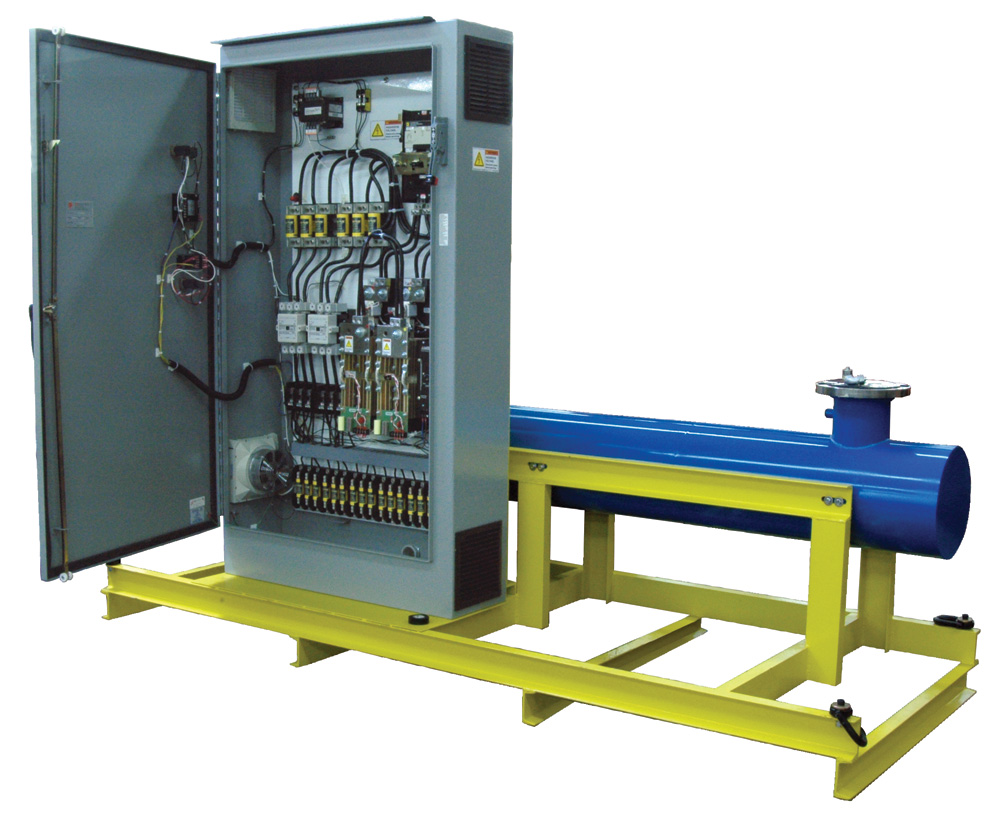

Fluid Circulation Heating System
Control Panel
- NEMA 12 Enclosure
- TEC-4100 PID Temperature Controller
- TEC-410 FM High Limit Control
- 300A SCR Power Controller
- Six Heating Circuits
- Cooling Fan & Filter Kit
Process Heater
- 200KW, 480V, 3-Phase Heater
- NEMA 4 Terminal Housing
- Flow Rate: 80 GPM
- Operating Pressure 0-150 PSIG

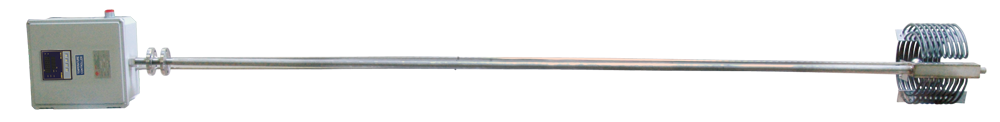

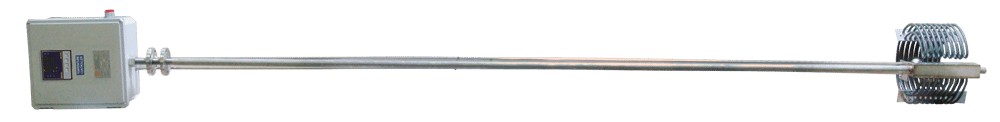

Immersion Heater with Electrical Enclosure
Electrical Enclosure
- NEMA 4 Housing
- TEC-4100 PID Temperature Controller
- Liquid Level Sensor
Deep Tank Heater
- 10KW, 480V, 3-Phase Heater
- Incoloy® 800 Heating Elements
- 316 SS for all other wetted parts
- Overall Length: 172 inches
