Wire & Wire Harness

All of Tempco's High Temperature Lead Wires are designed for internal wiring for commercial and industrial heating products, heaters, heat treating furnaces and kilns, commercial food service equipment and oven wiring.

Tempco offers ANSI Type J and Type K Duplex Thermocouple Wire and ANSI Type JX and Type KX Thermocouple extension wire in conveneient 100 foot and 250 foot spools.

Tempco has the design experience in the plastics industry and the manufacturing capability to handle your OEM requirements for many types of wire harness.

Resources

In-Stock Parts

Explore Wire & Wire Harness Specifications

Please wait while we gather your results.

Wire Types

/Tempco/Data-Assets/15-Accessories-Images/WebT542.jpg

High Temperature Type MG (550°C) Lead Wire

Stock Lead Wire:
Type MG – 600 Volt, 550°C (1022°F), UL 5400
Insulation Type – Mica/Glass (MG) Composite
Conductor Material – Nickel Clad Copper (NCC) (27% Nickel by weight)
Spool Sizes (Feet per Spool) – 100, 250, 500, 1000

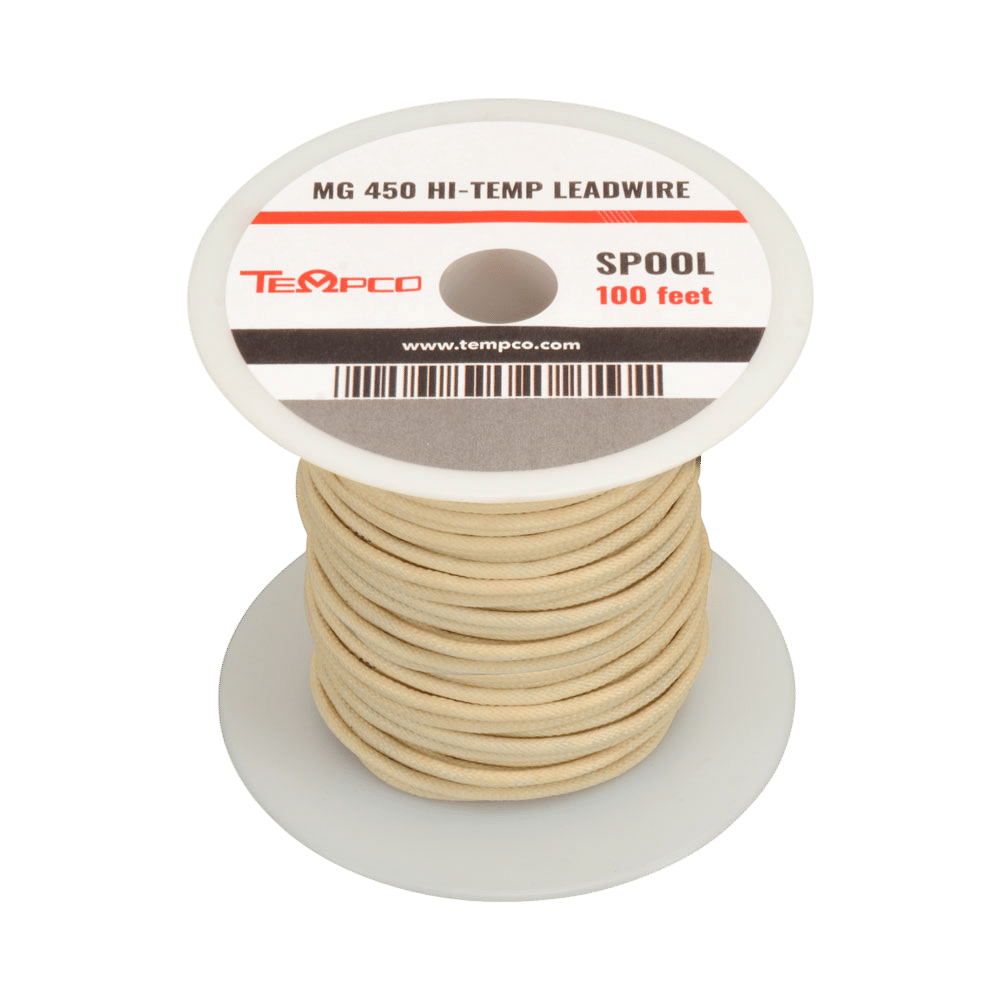

High Temperature Type MG (450°C) Lead Wire

Stock Lead Wire
Type MG – 600 Volt, 450°C (842°F), UL 5335/5107
Insulation Type – Mica/Glass (MG) Composite
Conductor Material – Nickel Clad Copper (NCC) (27% Nickel by weight)
Spool Sizes (Feet per Spool) – 100, 250, 500, 1000

/Tempco/Data-Assets/15-Accessories-Images/WebT554.jpg

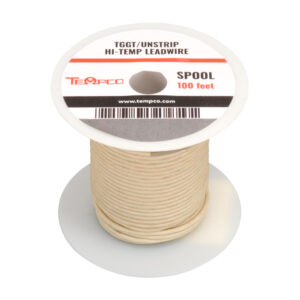

High Temperature Type TGGT (250°C) Lead Wire

Stock Lead Wire
Type TGGT – 600 Volt, 250°C (482°F), UL 5256
Insulation Type – Teflon®/Glass/Glass/Teflon® (TGGT)
Conductor Material – Nickel Plated Copper (NPC) (2% Nickel by weight)
Spool Sizes (Feet per Spool) – 100, 250, 500, 1000

/Tempco/Data-Assets/15-Accessories-Images/WebT545.jpg

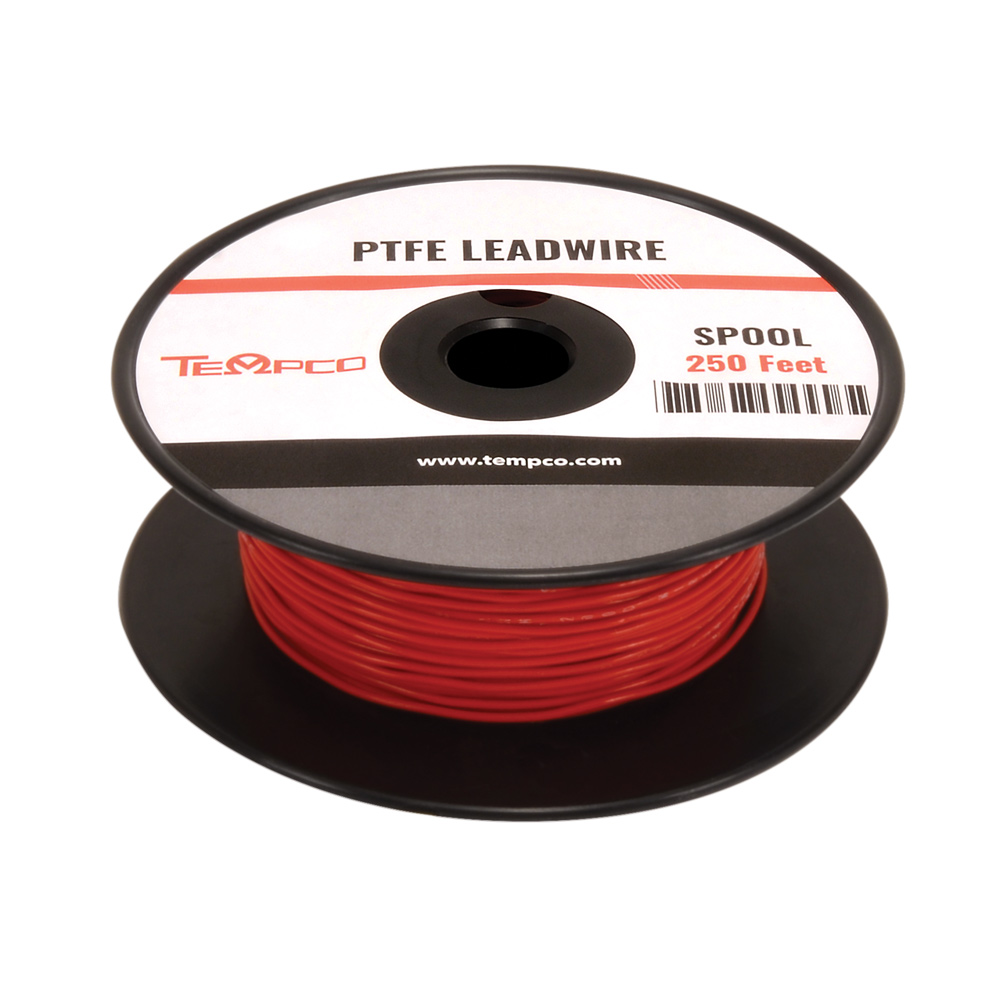

Type PTFE (200°C/392°F) Lead Wire

Stock Lead Wire
Type PTFE – 300 Volt, 200°C (392°F) UL 1180
Insulation Type – PTFE
Conductor Material – Silver Plated Copper (SPC)
Insulation Colors – Red, White or Black
Spool Sizes (Feet per Spool) – 100, 250

/Tempco/Data-Assets/15-Accessories-Images/WebT546.jpg

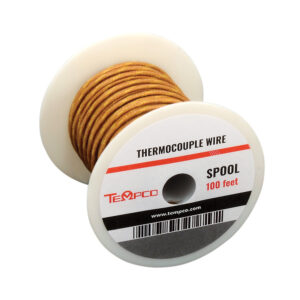

ANSI Type J & Type K Duplex Thermocouple Wire

Tempco's Thermocouple Wire and Extension Wire is supplied to meet Standard Tolerances of ANSI Circular MC96.1-1982. It can be used for manufacturing thermocouple assemblies or as hook up wire between a thermocouple assembly and display instrumentation or a temperature control. The calibration is guaranteed to the full temperature range of the thermocouple type.
Spool Sizes (Feet per Spool) – 100, 250

/Tempco/Data-Assets/15-Accessories-Images/WebT541.jpg

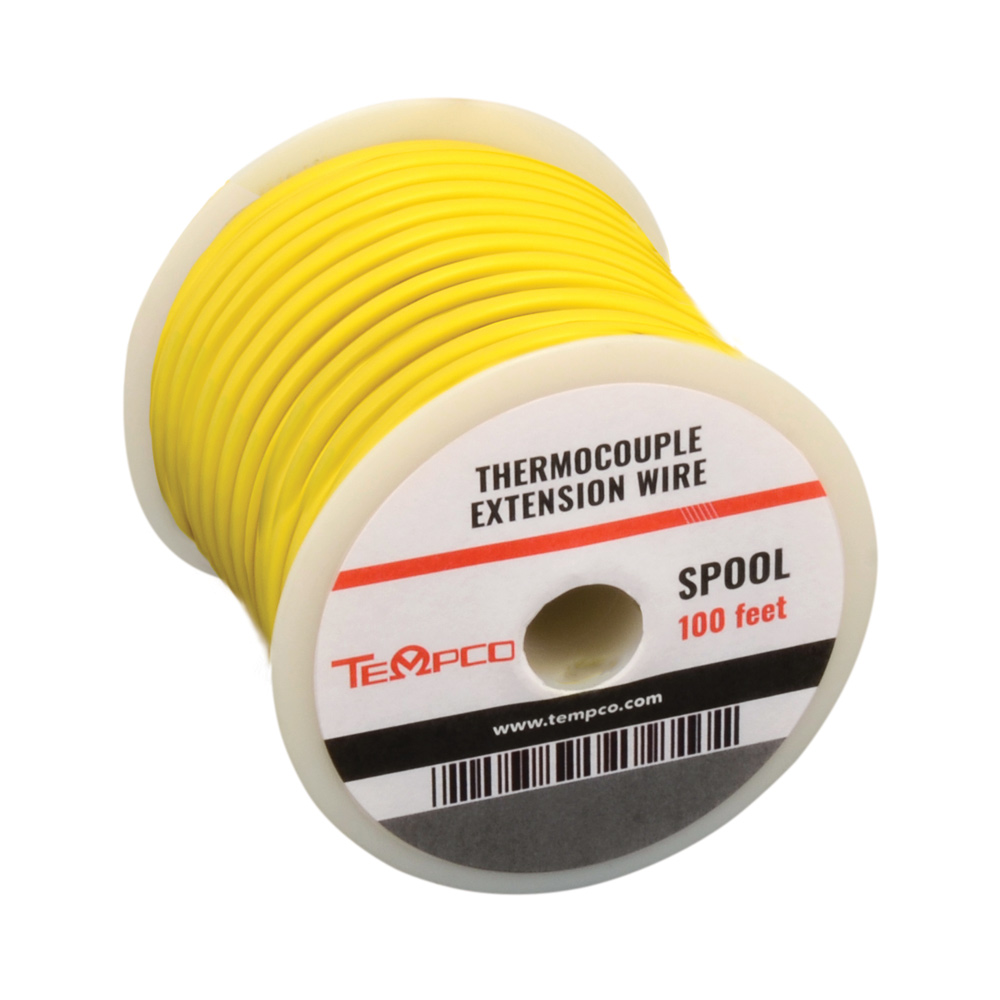

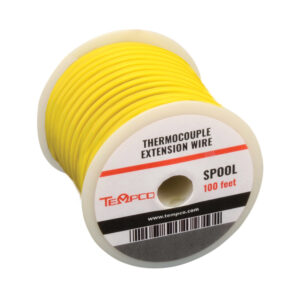

ANSI Type JX & Type KX Thermocouple Extension Wire

Tempco's Thermocouple Wire and Extension Wire is supplied to meet Standard Tolerances of ANSI Circular MC96.1-1982. Due to its cost advantage thermocouple extension wire is used to make the connection between the thermocouple assembly and the measuring instrument, especially when long distances are involved. Thermocouple extension wire has approximately the same characteristics as thermocouple wire but its accuracy is guaranteed over a limited temperature range.
Spool Sizes (Feet per Spool) – 100, 250

/Tempco/Data-Assets/15-Accessories-Images/WebItem-21.jpg

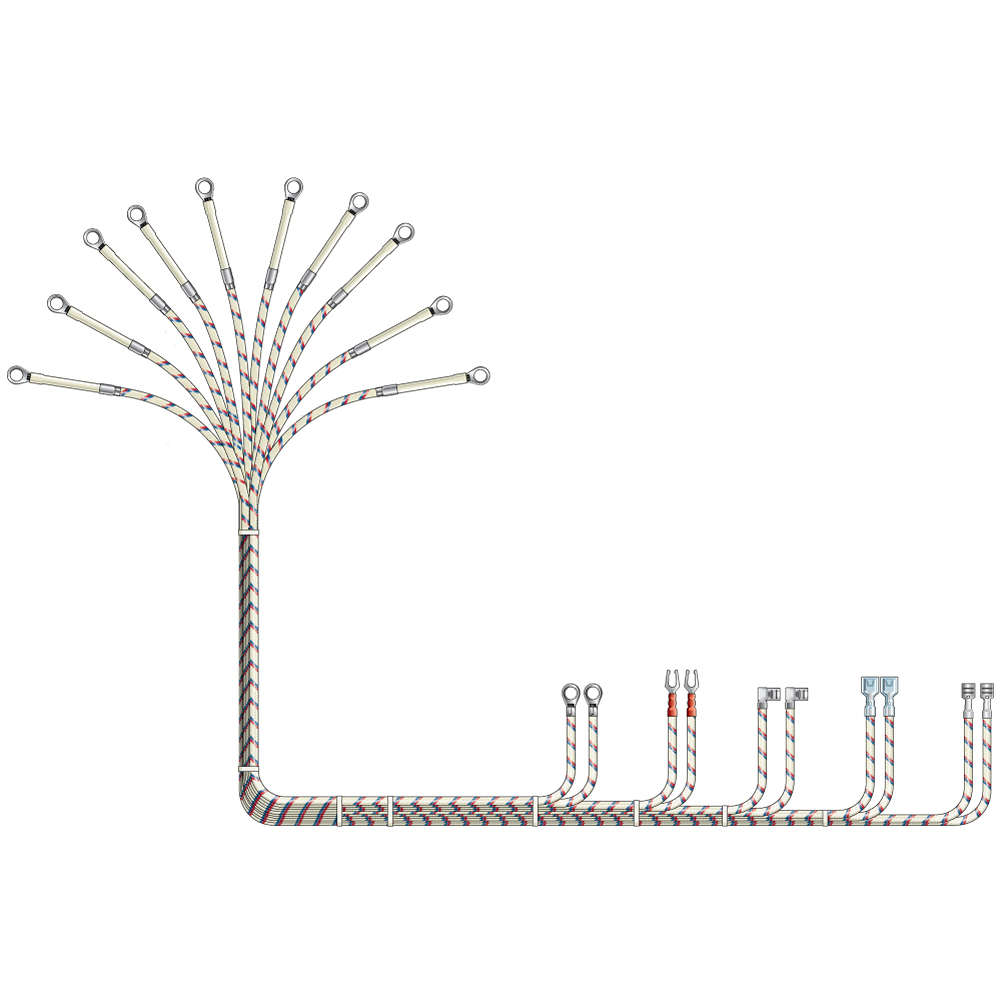

High Temperature Wire Harness

Tempco's High Temperature Ceramic Insulated Wire Harnesses are designed with specially selected High Temperature Alloy Wire chosen for its ability to carry the rated current at the required temperature and provide long life.

Ceramic beads are used for making turns and to provide flexibility at the terminal area.
Solid ceramic pieces are used for straight runs.
Ceramic terminal blocks are used for lead connections.

Send all requirements, drawings or samples to Tempco for a fully detailed quote proposal that will meet your requirements. Standard lead time is typically 2 weeks.
