• 3/16" diameter stainless steel probe
• Operating temp. 392°F (200°C); 900°F (482°C) available
• 3-wire circuit
• 100 ohms Class B element per IEC 751
• Can be installed wherever existing thermocouples of similar design are used

• 3/16" diameter stainless steel probe
• Operating temp. 392°F (200°C); 900°F (482°C) available
• One-time adjustable 1/8"-27 NPT brass compression fitting
• 3-wire circuit
• 100 ohms Class B element per IEC 751
• Can be installed wherever existing thermocouples of similar design are used

• 3/16" diameter Probe
• 100 ohm Class B element per IEC 751
• 3-wire circuit
• Can be installed wherever standard melt thermocouples are used
• Operating temp. 392°F (200°C), 900°F (482°C) available
• Available in 3" and 6" bolt designs
• Bolts and Probes are 300 series stainless steel

• 3/16" diameter stainless steel probe
• Operating temp. 392°F (200°C); 900°F (482°C) available
• 3-wire circuit
• 100 ohms Class B element per IEC 751
• Can be installed wherever existing thermocouples of similar design are used

• 100 ohm RTD
• 4-20mA Programmable Linear Output Transmitter
• Available with Spring-Loaded Sheath
• Temperature Range of -58°F to 500°F (-50° to 260°C)
• Transmitter Accuracy of +/-0.2% of temperature span
• For field programming of the temperature transmitter see Part Number ETM90006
• Available in Single 3-wire Circuit only
• 1/2" NPT process connection

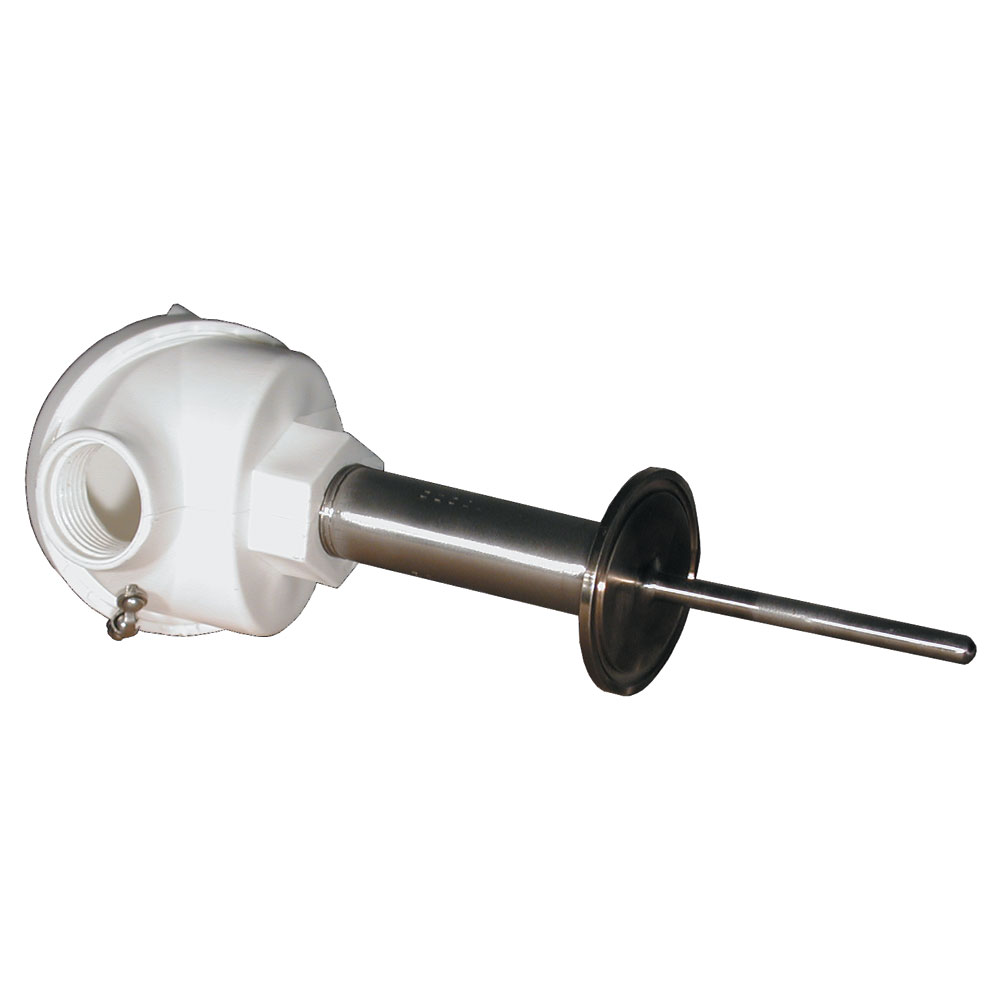

• Platinum Resistance Element
• Ideal for Food and Dairy Applications
• 316 SS Construction
• Available in Standard .250 dia. Tip or Optional .500 dia. Reduced to .250 dia.
• Improved Response Time
• Welded and Highly Polished Components
• Operating Temperature Range of -58° to 500°F (-50° to 260°C)

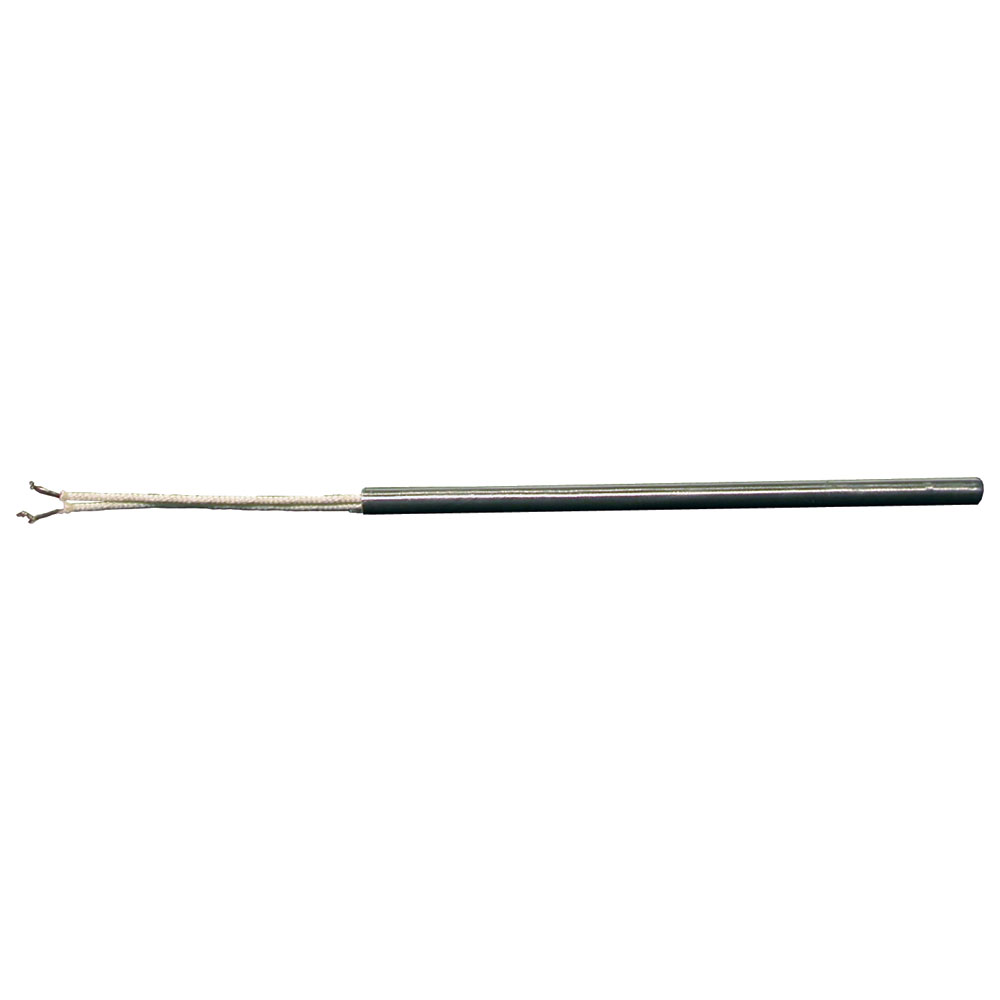

Straight Probe

• Platinum Resistance Element
• Two Construction Styles to Suit Any Application:
  Tube & Wire or Mineral Insualated

Plug or Jack Termination

• Platinum Resistance Element
• Available with standard or mini, 2- or 3-prong plug or jack
• Two Construction Styles to Suit Any Application

Open Disc Termination

• Platinum Resistance Element
• Ceramic disc 1-1/8" O.D. for 2-, 3- and 4-wire designs, 2-1/32" O.D. for dual 6-wire design (.188" and .250" O.D. sheath); consult factory for 1/8" sheath O.D.
• Two Construction Styles to Suit Any Application

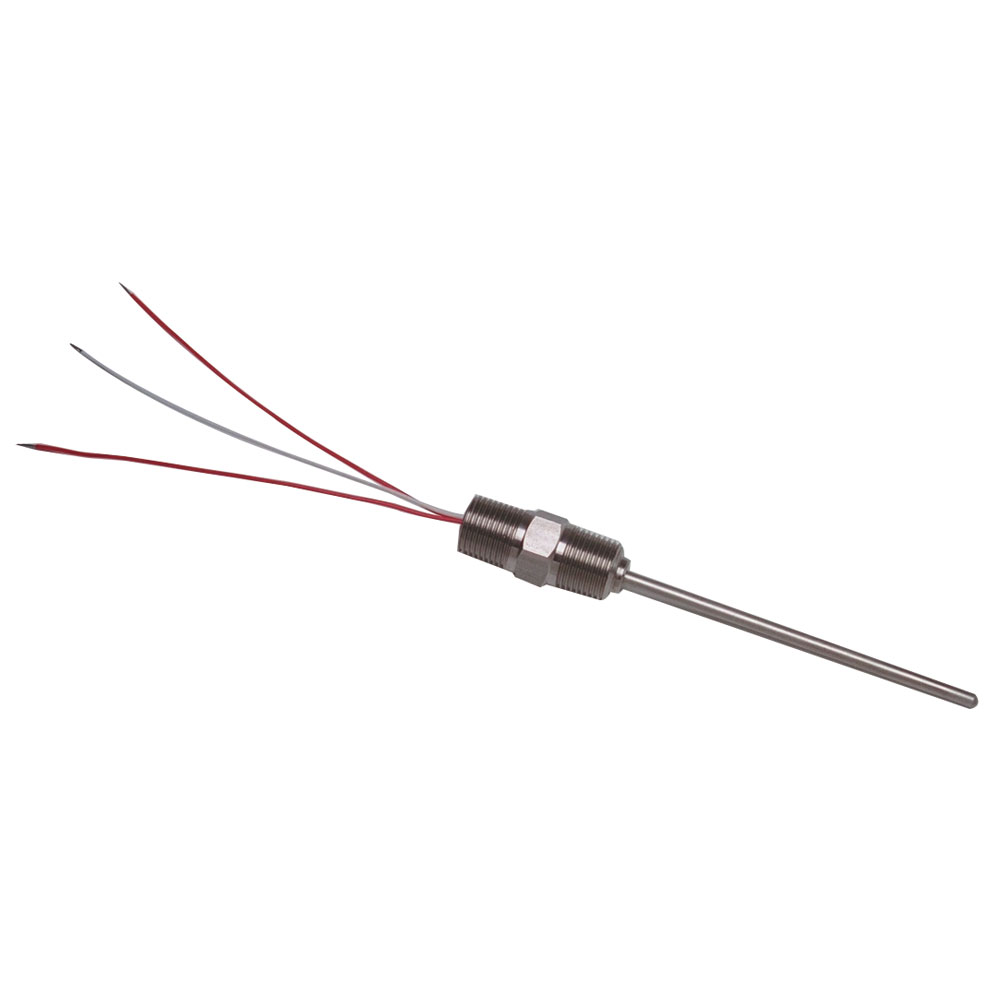

Process Connection

• Platinum Resistance Element
• Designed for mounting to connection head and thermowells
• Optional spring loading on 1/2" NPT only
• Stainless Steel fittings with 1/4" or 1/2" NPT thread
• Two Construction Styles to Suit any Application

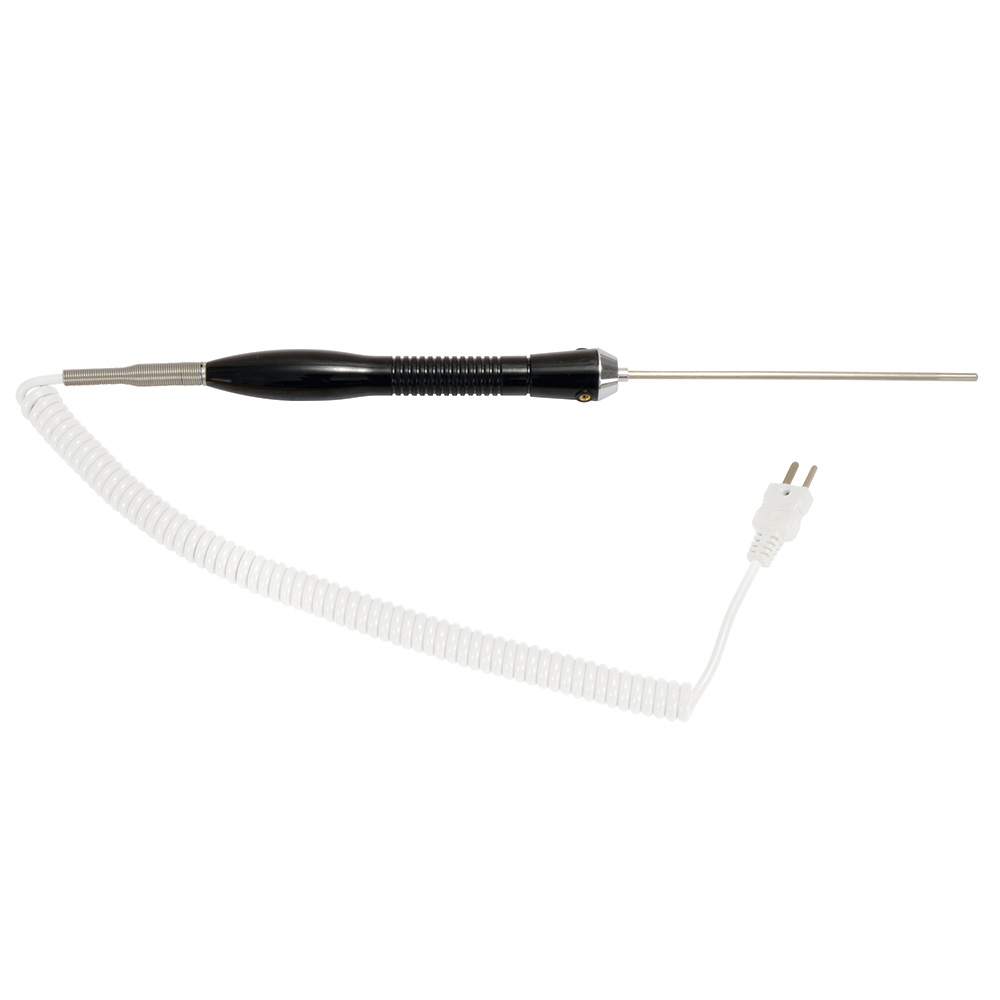

Handheld Probe

• Platinum Resistance Element
• Ground conical point for easy meat penetration
• Large handle makes penetration and removal easy
• Three Construction Styles to Suit any Application

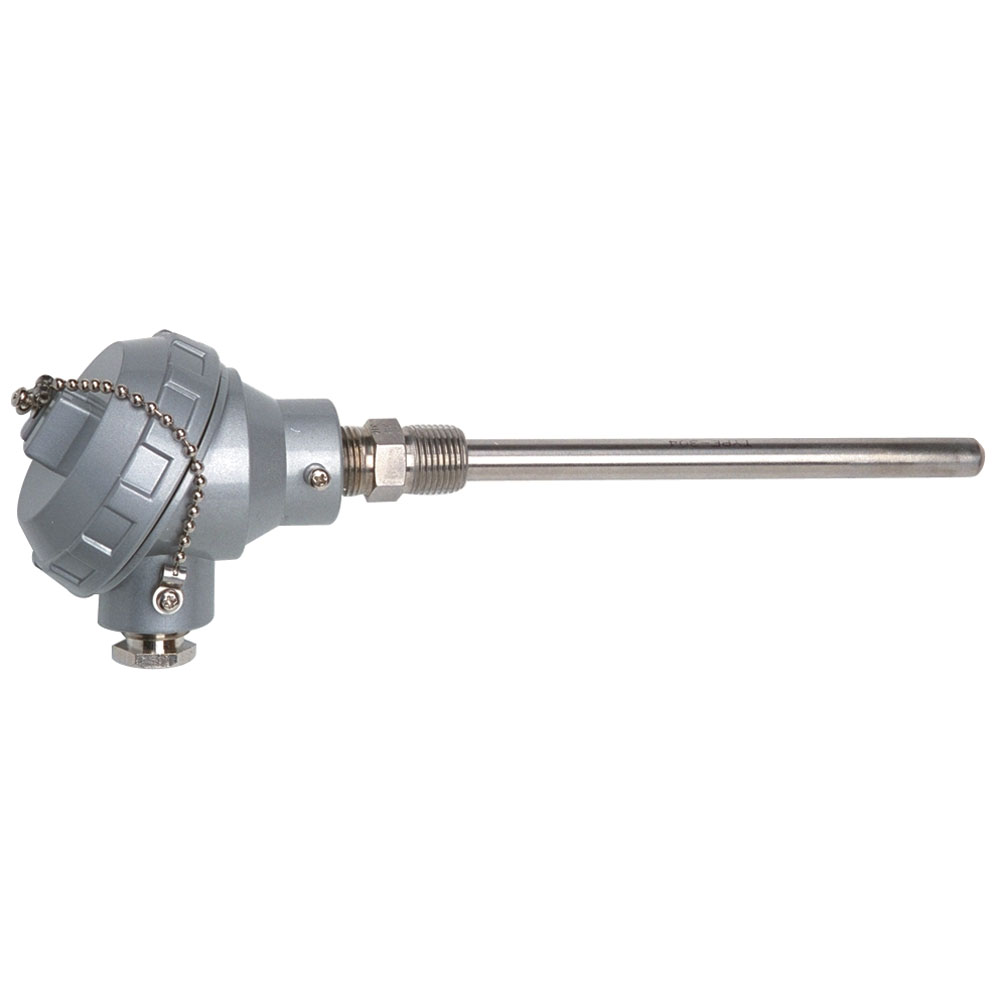

Connection Head with optional Compression Fitting

• Platinum Resistance Element in single or dual circuit.
• Tempco's connection heads are gasketed to seal against moisture, dust and corrosive or hostile atmospheres.
• Screw covers are attached to body with a stainless steel chain and screws.
• Tempco's connection heads are available in die cast aluminum, cast iron, stainless steel and Bakelite. Explosion proof heads are also available in aluminum and stainless steel.
• Two Construction Styles to Suit Any Application

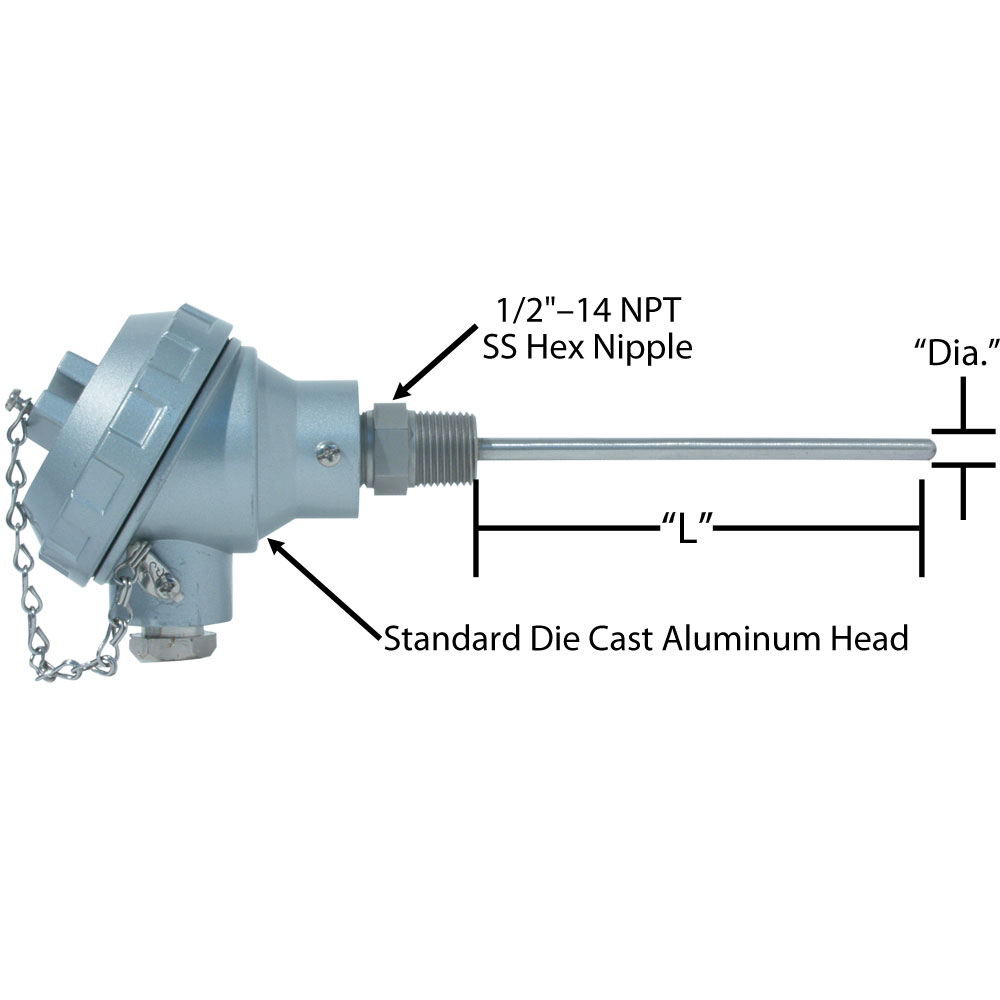

Connection Head with 1/2" NPT Hex Nipple

• Platinum Resistance Element.
• Gasketed to seal against moisture, dust and corrosive or hostile atmospheres.
• Screw covers are attached to body with a plated chain.
• Covers have lugs for tightening or loosening with a screwdriver or wrench.
• Available in single or duplex.
• Available in die cast aluminum, Bakelite and cast iron in a variety of sizes from miniature for confined areas, to the large universal head designed for heavy process and industrial applications. See Sensor Accessories for complete details.
• Two Construction Styles to Suit Any Application

Connection Head with 1/2" NPT Pipe Nipple

• Platinum Resistance Element.
• Gasketed to seal against moisture, dust and corrosive or hostile atmospheres.
• Screw covers are attached to body with a plated chain.
• Covers have lugs for tightening or loosening with a screwdriver or wrench.
• Available in single or duplex.
• Available in die cast aluminum, Bakelite and cast iron in a variety of sizes from miniature for confined areas, to the large universal head designed for heavy process and industrial applications. See Sensor Accessories for complete details.
  ✴ Pipe Nipple is galvanized.
• Two Construction Styles to Suit Any Application

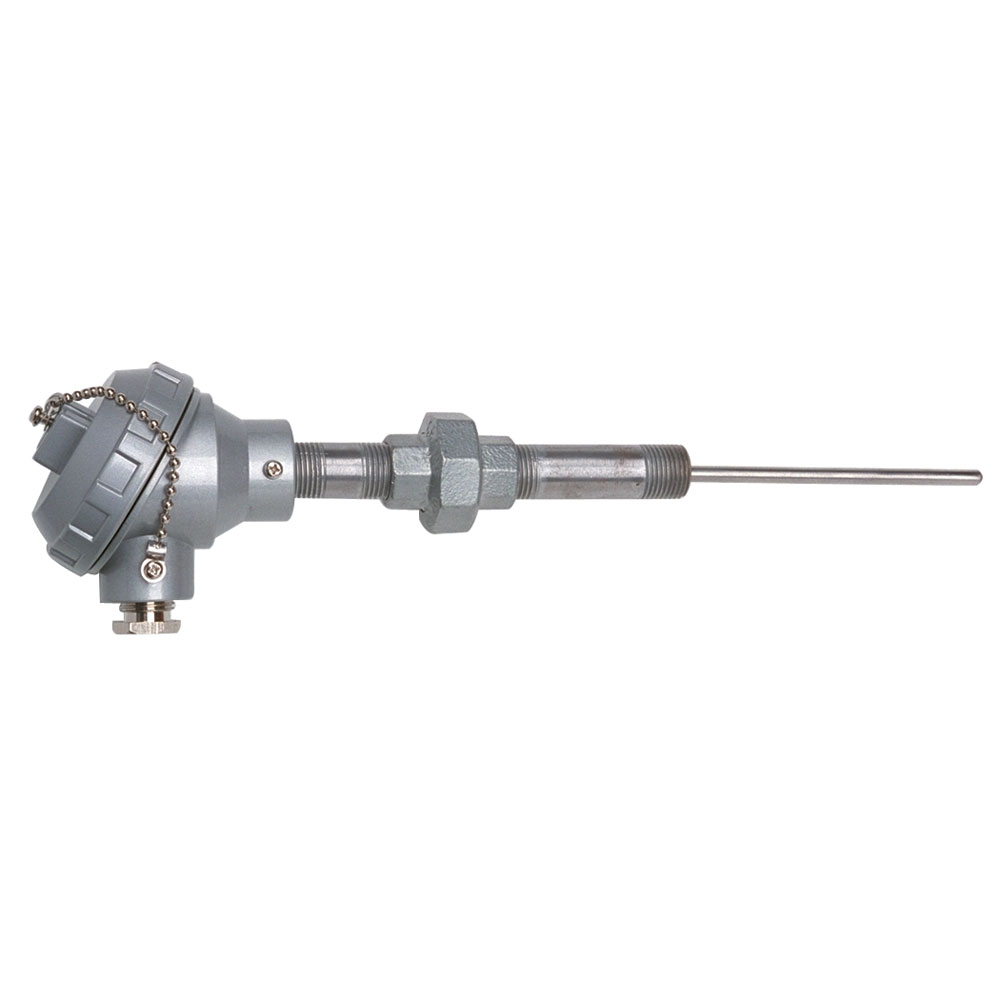

Connection Head with 1/2" NPT Nipple, Union, Nipple

• Platinum Resistance Element.
• Gasketed to seal against moisture, dust and corrosive or hostile atmospheres.
• Screw covers are attached to body with a plated chain.
• Covers have lugs for tightening or loosening with a screwdriver or wrench.
• Available in single or duplex.
• Available in die cast aluminum, bakelite and cast iron in a variety of sizes from miniature for confined areas, to the large universal head designed for heavy process and industrial applications. See Sensor Accessories for complete details.
  ✴ Nipple-Union-Nipple is galvanized.
• Two Construction Styles to Suit Any Application
