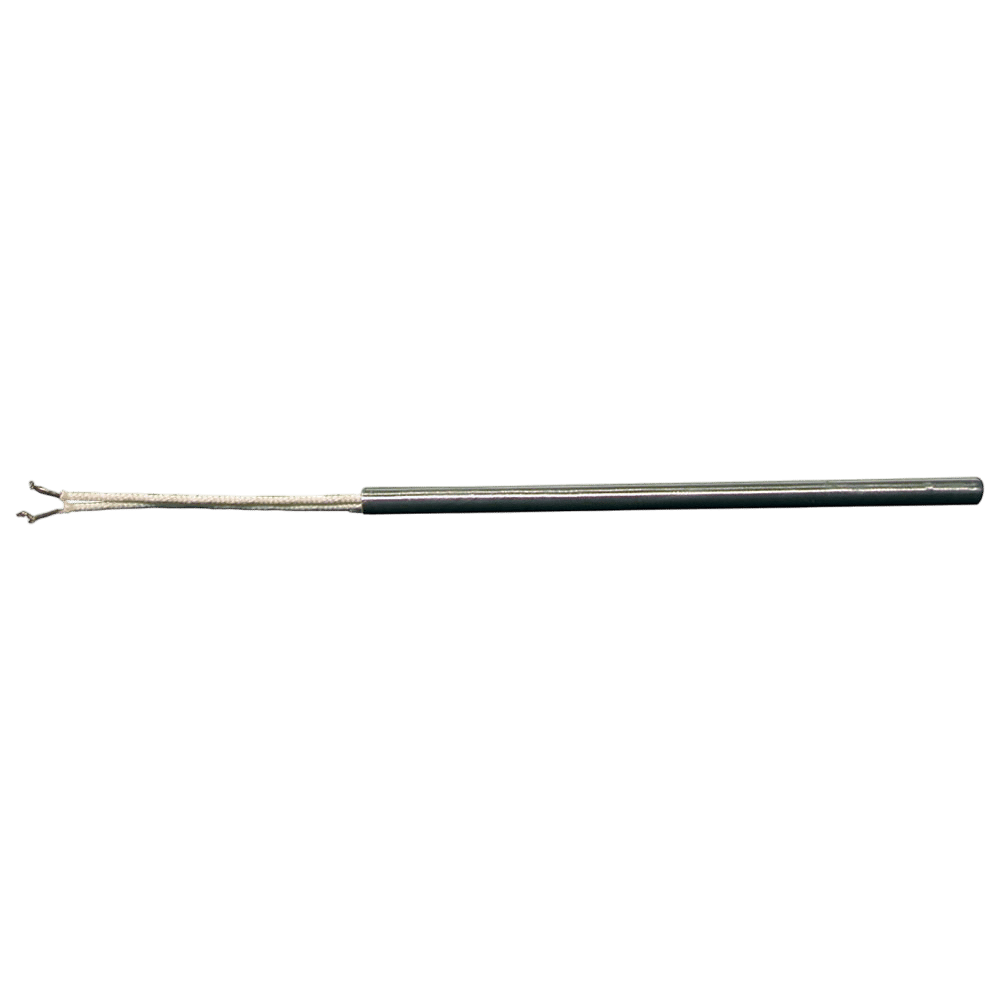

Click image to enlarge
RTD's are offered with the options listed in the form below. Make your selections and Submit to Tempco for a quote request. Part Numbers are assigned at the time an order is placed.
Style B - Plain Ends
Style C - Spade Lugs with BX Connector
Style D - Miniature Plug
Style E - Miniature Jack
Style J - Standard Jack
Style P - Standard Plug
Style S - Spade Lugs
Element – TCR = .00385 ohm/ohm/°C --Select--S = 100Ω SingleD = 100Ω DualK = 1000Ω SingleL = 1000Ω Dual
Element Class --Select--A = ±0.06% at 0°C, OptionalB = ±0.12% at 0°C, Standard
Number Of Leads --Select--2 = 2-wire circuit3 = 3-wire circuit4 = 4-wire circuit 0.125 O.D. 4-wire circuit not available
Sheath Diameter --Select--F = 0.125" (Single Element Only)G = 0.188"H = 0.250"X = Other (Specify)
Sheath Material --Select--B = 304 SSC = 316 SSA = Alloy 600 (Type “M” construction only)

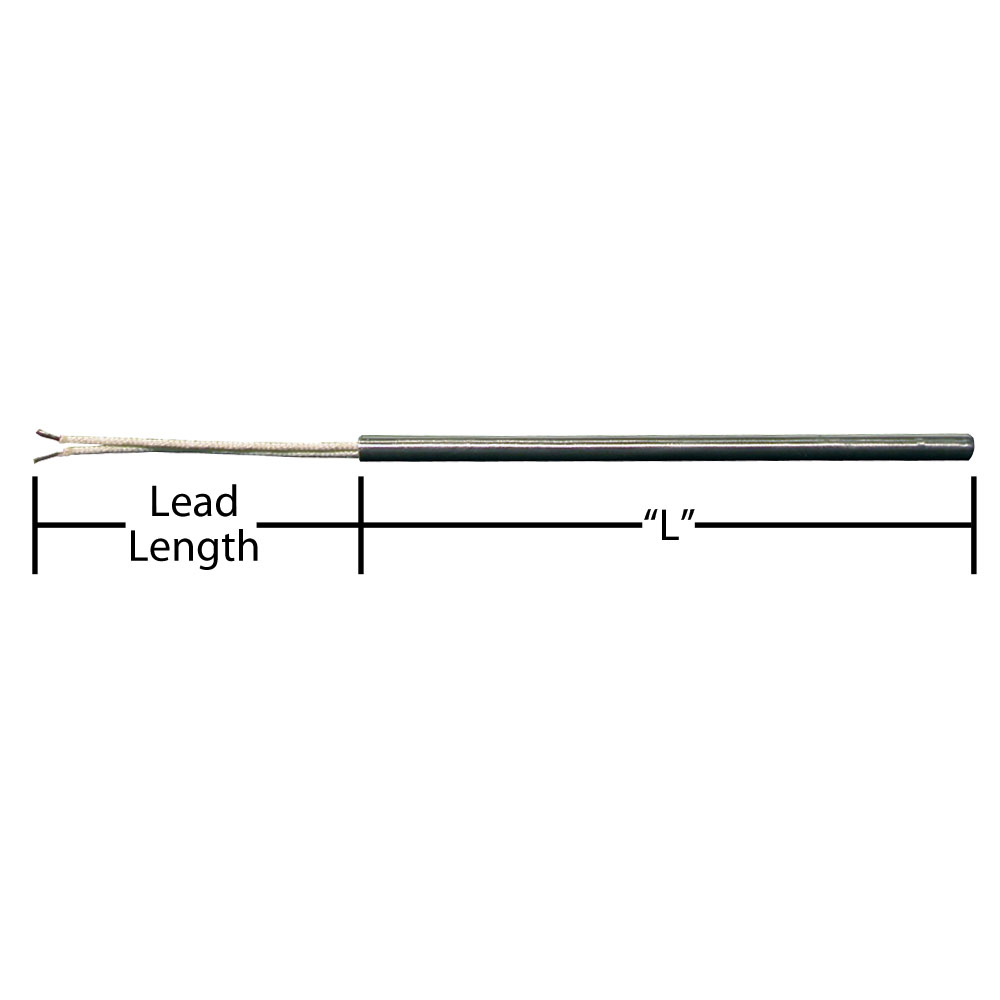

Sheath Length "L" – Whole Inches 01 to 99 For lengths over 99 in. call TEMPCO.
Sheath Length "L" – Fractional Inches --Select--0 = 0"1 = 1/8"2 = 1/4"3 = 3/8"4 = 1/2"5 = 5/8"6 = 3/4"7 = 7/8"
Lead Wire Length – Whole Inches 001 to 999 12" (012) Standard

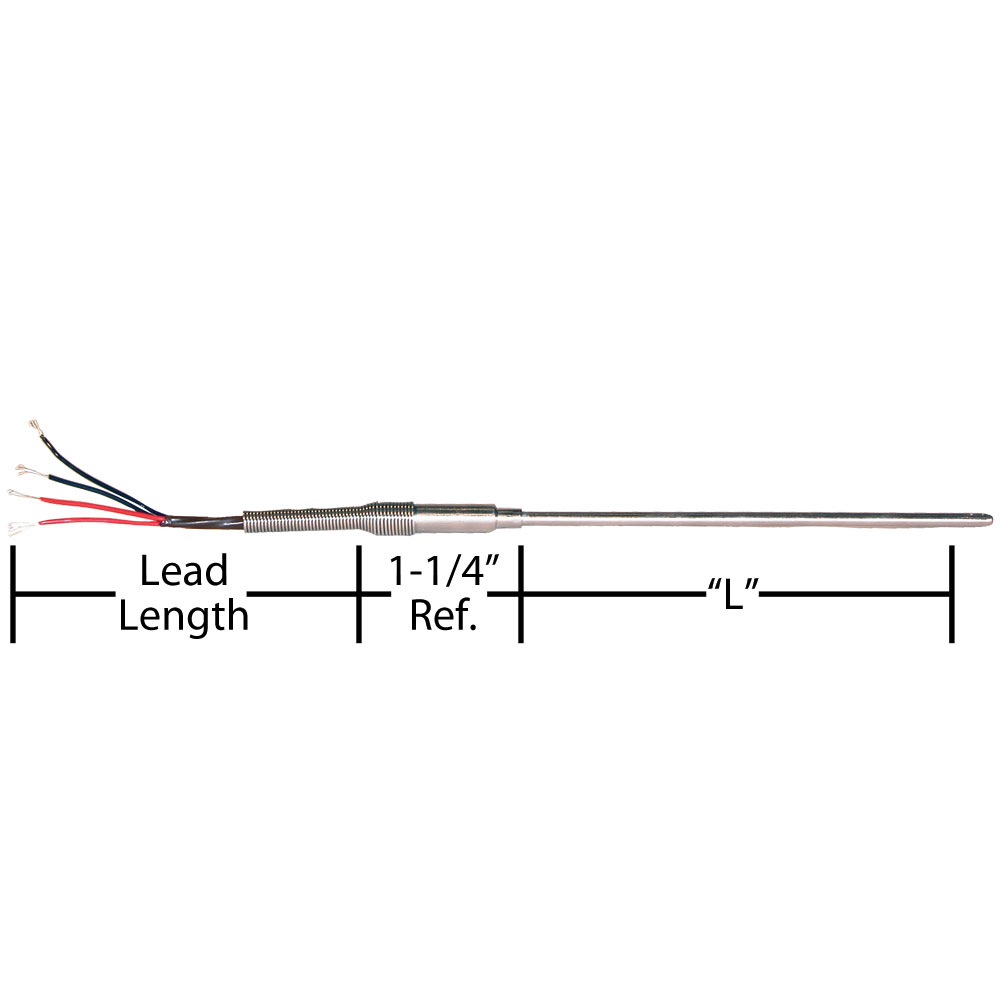

RTD Construction Type --Select--T = Tube and Wire ConstructionM = MgO Insulated Construction with strain relief spring (Type “M” not available for “K” or “L” Element)
Lead Wire Construction --Select--S = Fiberglass 900°F (482°C)B = Fiberglass 900°F (482°C) w/ SS OverbraidA = Fiberglass 900°F (482°C) w/SS Flex ArmorT = Teflon® 392°F (200°C)D = Teflon® 392°F (200°C) w/ SS OverbraidF = Teflon® 392°F (200°C) w/SS Flex Armor
Lead Wire Termination --Select--P = Standard Male Plug 350°F (177°C)J = Standard Female JackK = Std. Plug with Mating JackD = Mini Male Plug 350°F (177°C)E = Mini Female JackF = Mini Plug & Mating JackB = Std.—2-1/2 in. Split LeadsS = Leads with Spade LugsC = 2-1/2 in. Split Leads with BX Connector and Spade Lugs Plugs and Jacks for 2- and 3-Wire Only.
Optional Compression Fitting --Select--1 = 1/8" NPT SS2 = 1/4" NPT SS3 = 1/2" NPT SS4 = 1/8" NPT Brass5 = 1/4" NPT Brass6 = 1/2" NPT Brass0 = None Required
Special Requirements --Select--X = Specify0 = None
