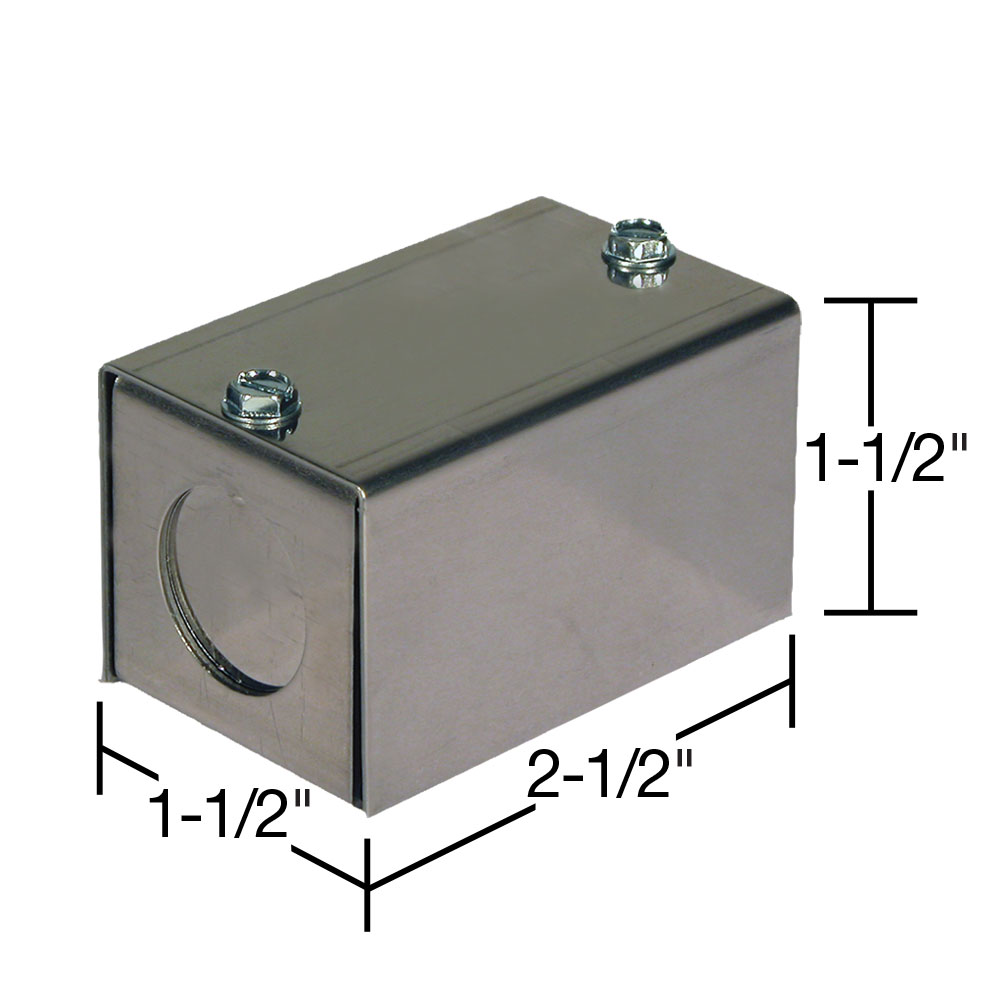

Terminal Box 2
Can be field retrofit or factory installed on Mica Band Heaters, Ceramic Band Heaters, Mi-Plus® Band Heaters and Mica Strip Heaters. (Other style boxes such as PVC, drawn aluminum or, explosion-proof are available.)
For use on Standard T2 Screw Termination with 10-32 studs.
Terminal mounting centers: 7/8"
Two Knockouts: 1/2" conduit, One on each side
Part Number: HSGR-1013
