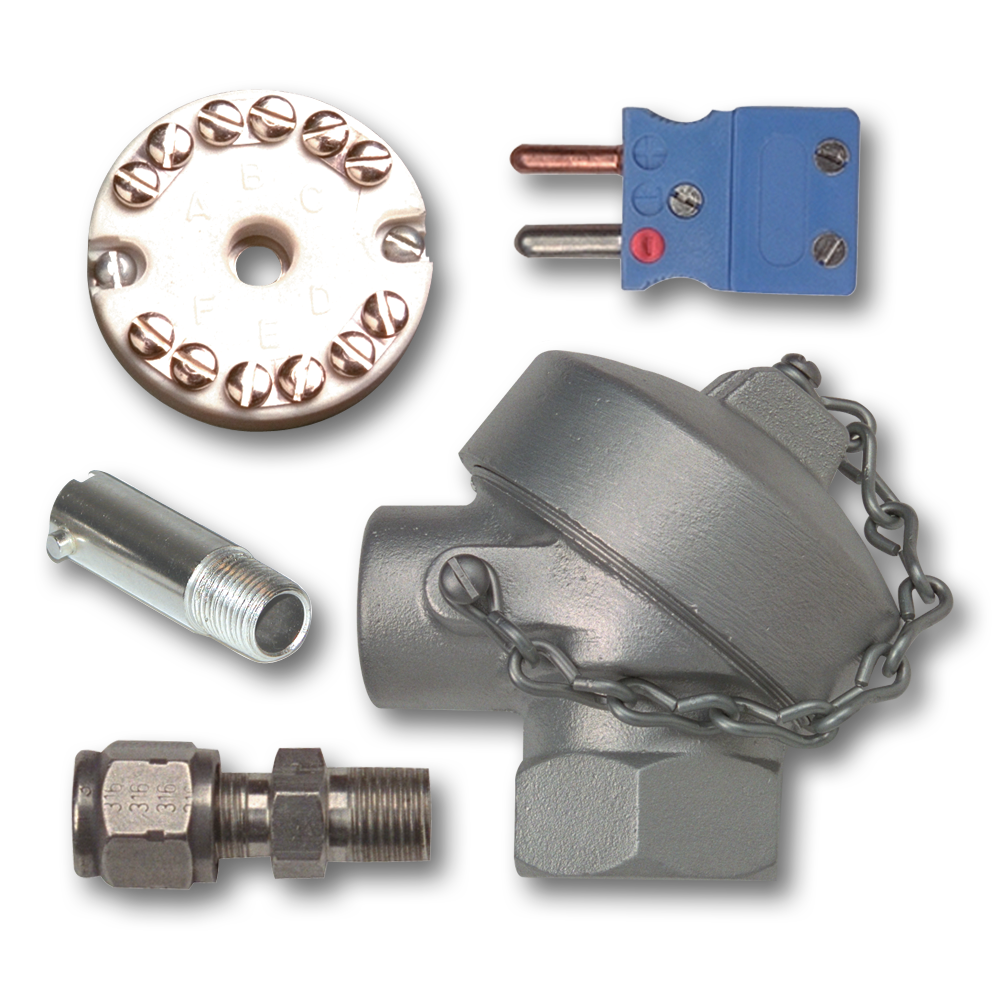

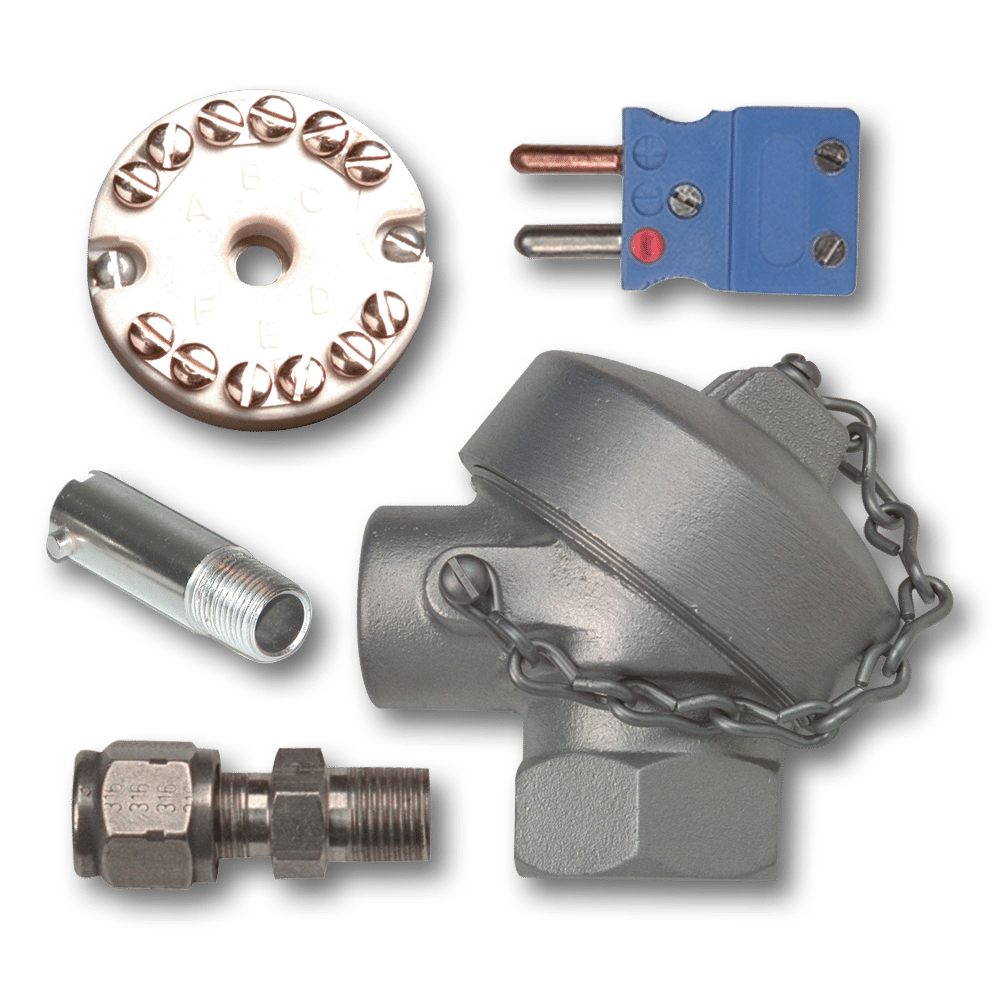

Tempco carries miscellaneous thermocouple and RTD hardware accessory items including, bayonet adapters,
terminal blocks, various plugs and jacks, thermocouple and RTD extension assemblies, sensor heads and insulators.

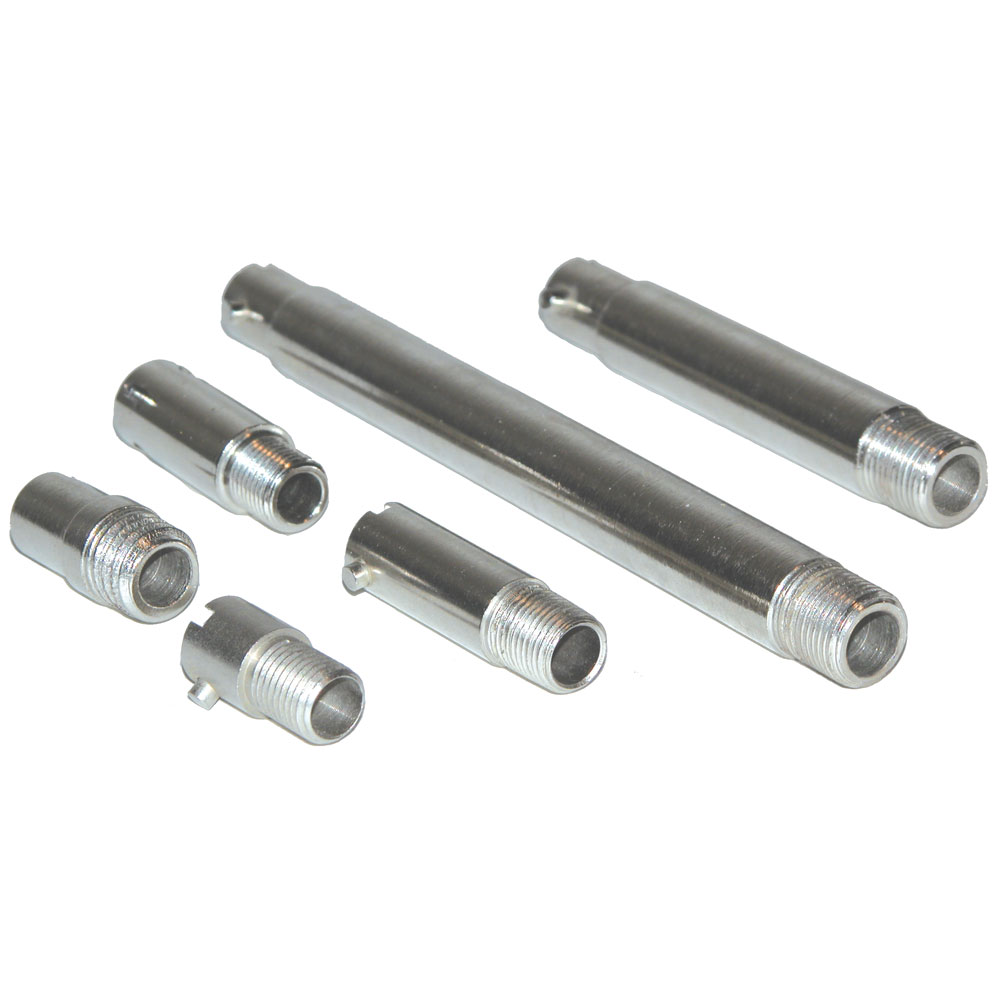

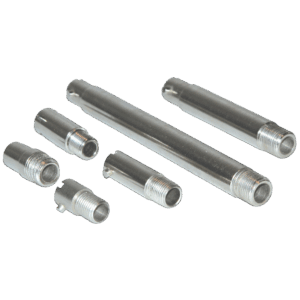

Bayonet Type Adapters are used in conjunction with spring-loaded bayonet cap type thermocouples. After inserting the thermocouple sheath through the adapter the spring is compressed and locked by the cap, pushing the sensor against the surface being measured.

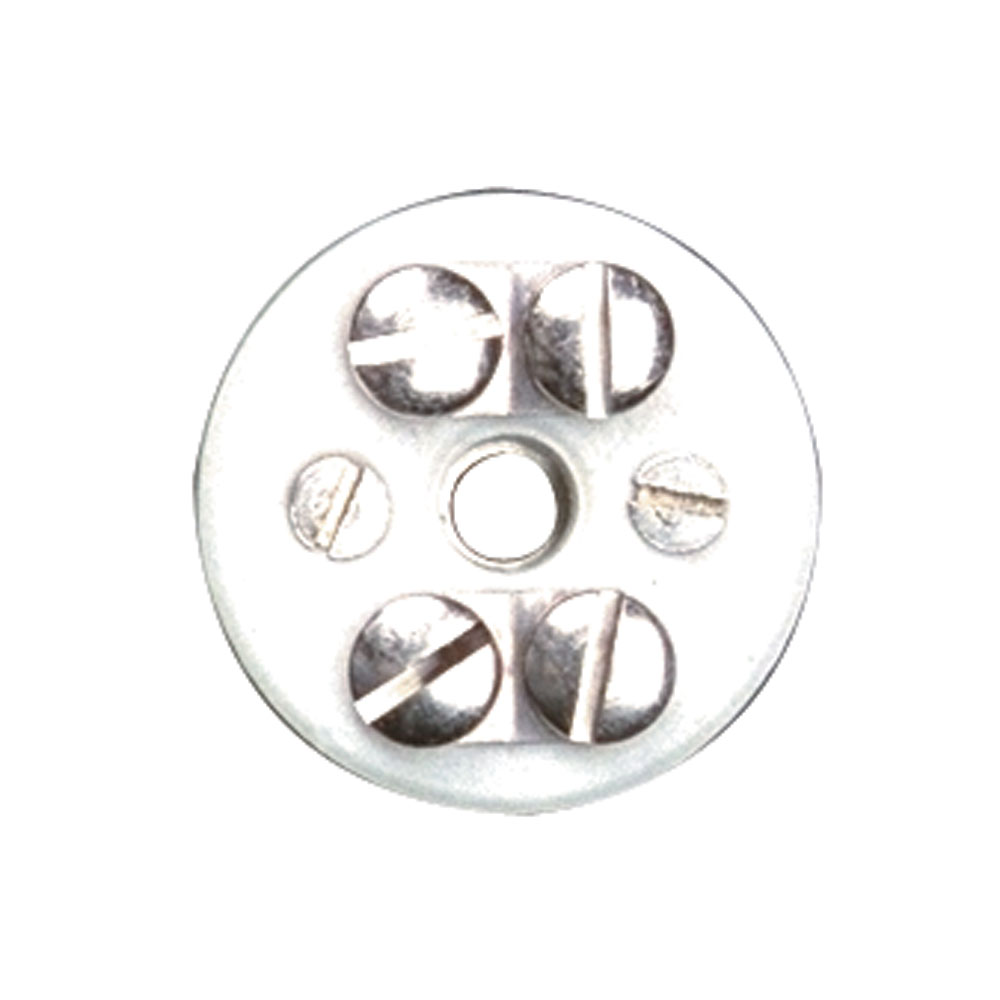

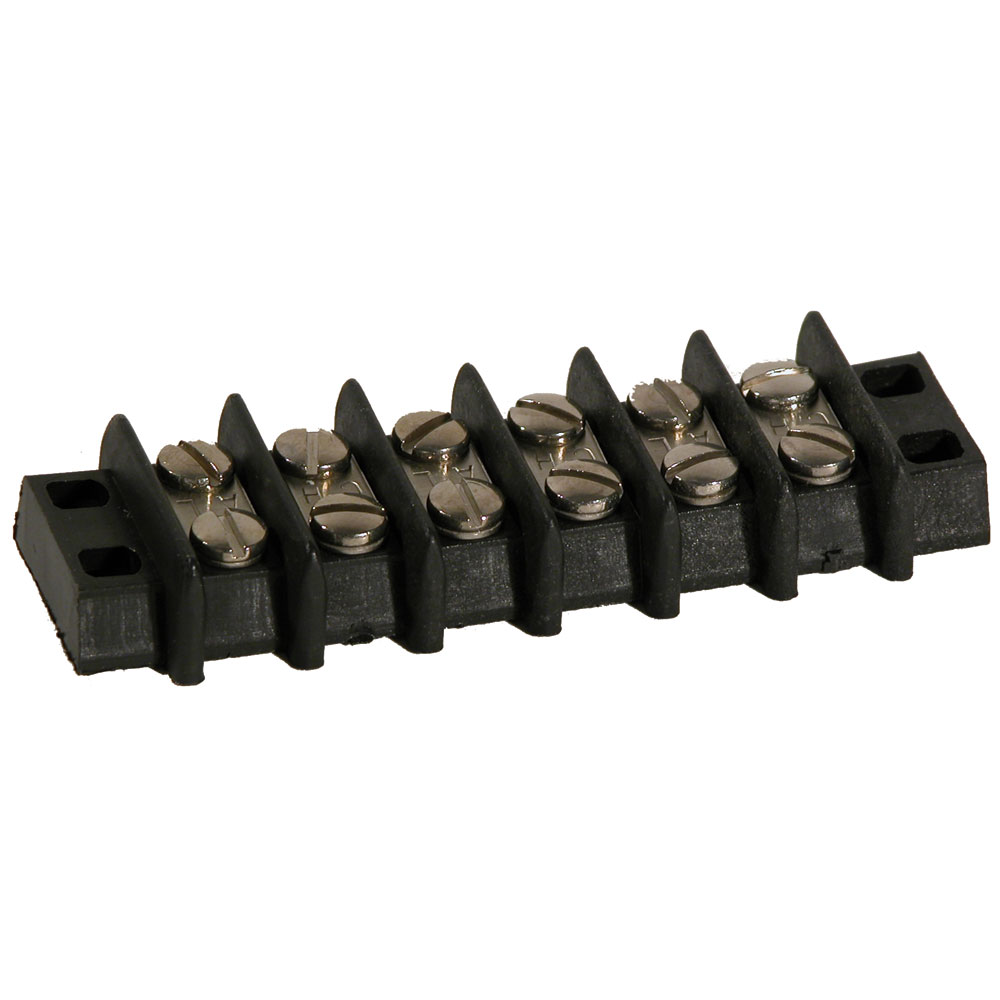

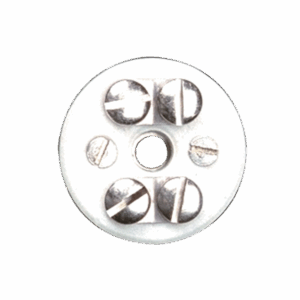

The open disc terminal blocks are available for both single and dual element thermocouples or single-element RTD assemblies. Available in two different materials. Silicone glass/fiber has a higher resistance to vibration and thermal shock than do the ceramic discs.

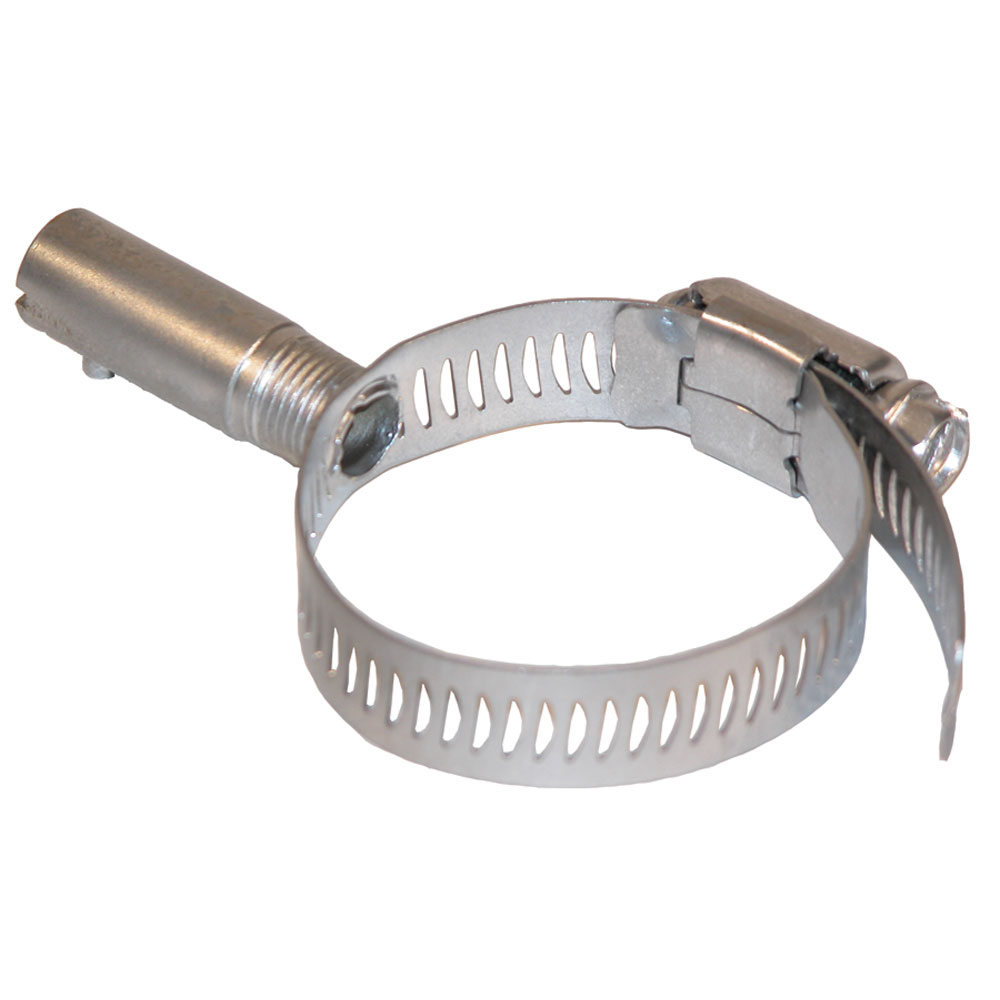

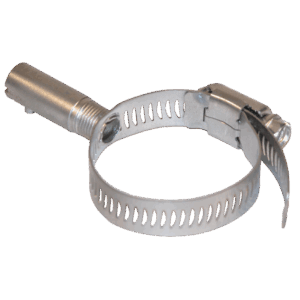

Pipe Clamp adapters place the sensing junction tight against the surface being measured for increased accuracy and faster response time.
Pipe Clamp adapters permit thermocouple placement without the drilling and tapping of holes to attach the adapter.

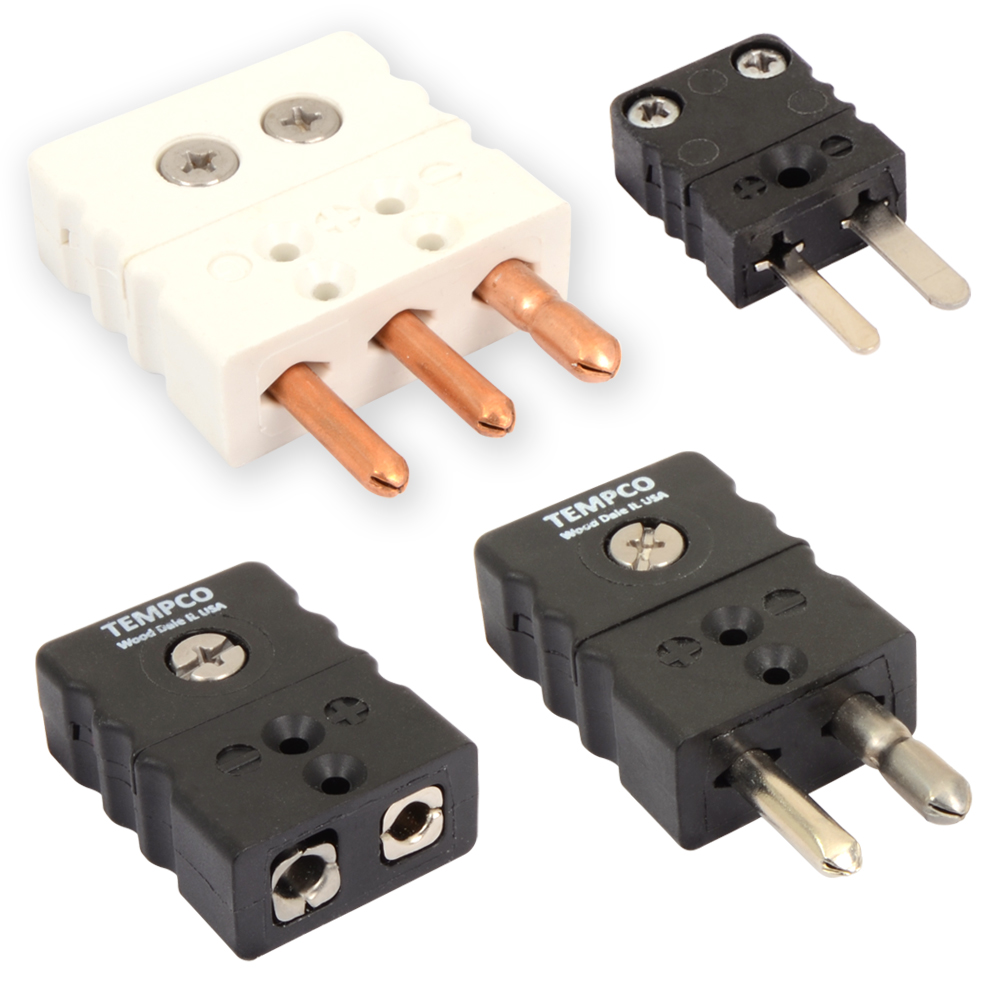

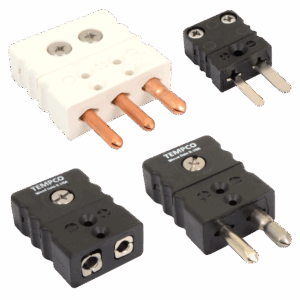

Plug and jacks are offered in 2- or 3-pin configurations with either hollow or solid pins in standard or miniature sizes. Body colors correspond with ANSI calibrations. High temperature and ultra-high temperature options are also available.

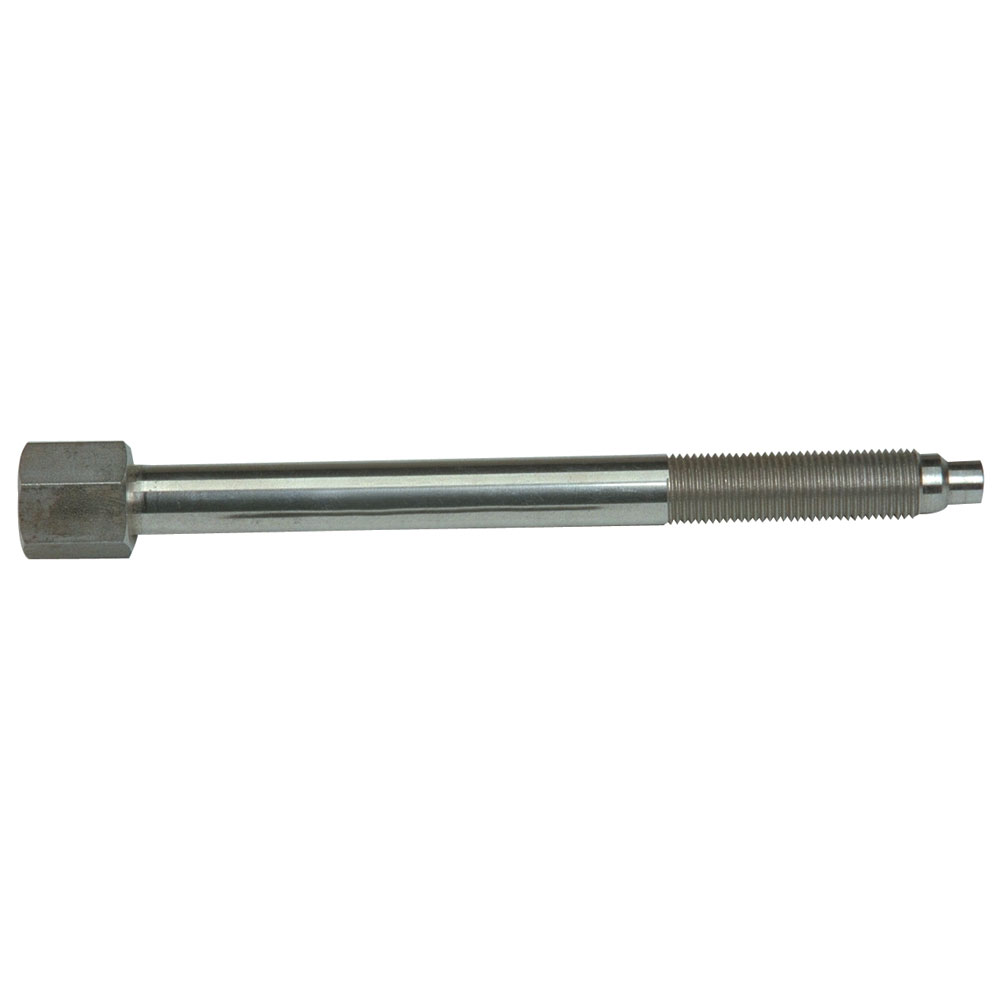

Plastic melt bolts accept 1.8” diameter thermocouple. Blank bolts are used to seal hole if thermocouple is removed from an extruder.

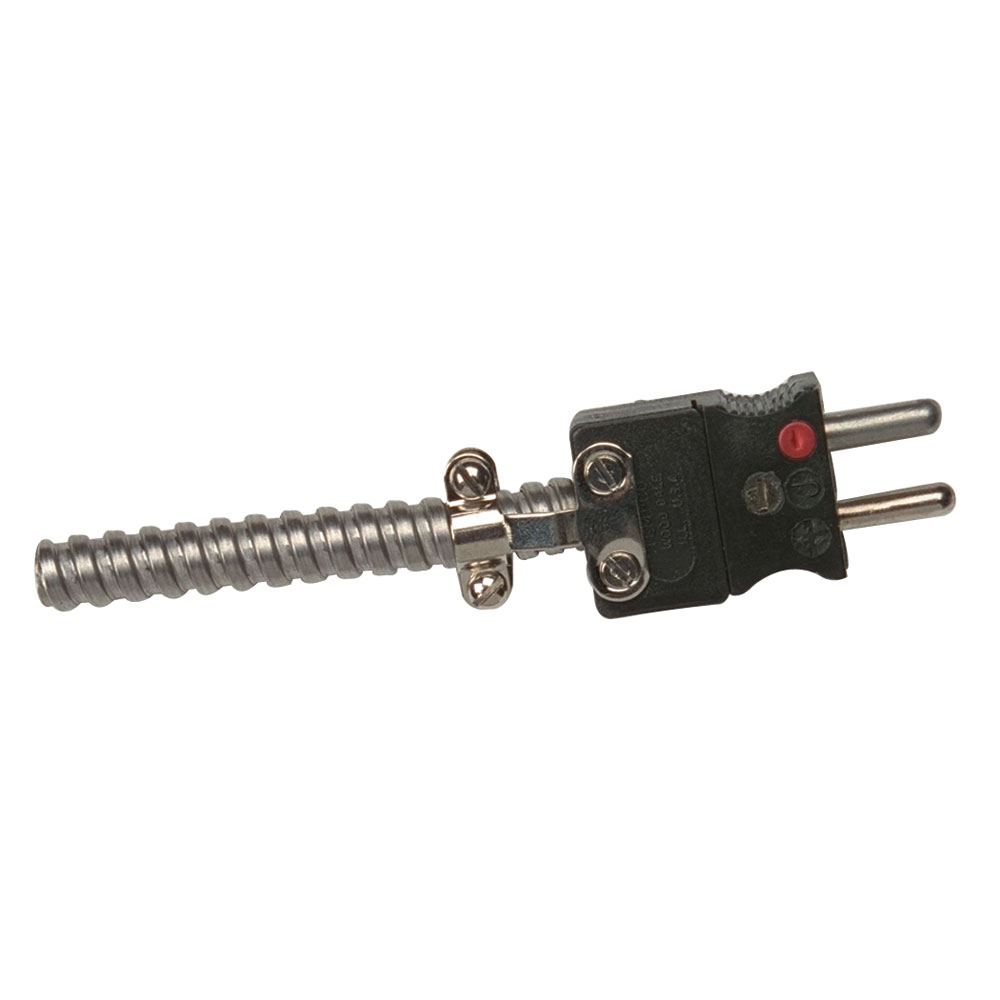

Plug and Jack Accessories include adapters for adding armor cable, mounting brackets and other options to protect the thermocouple connection.

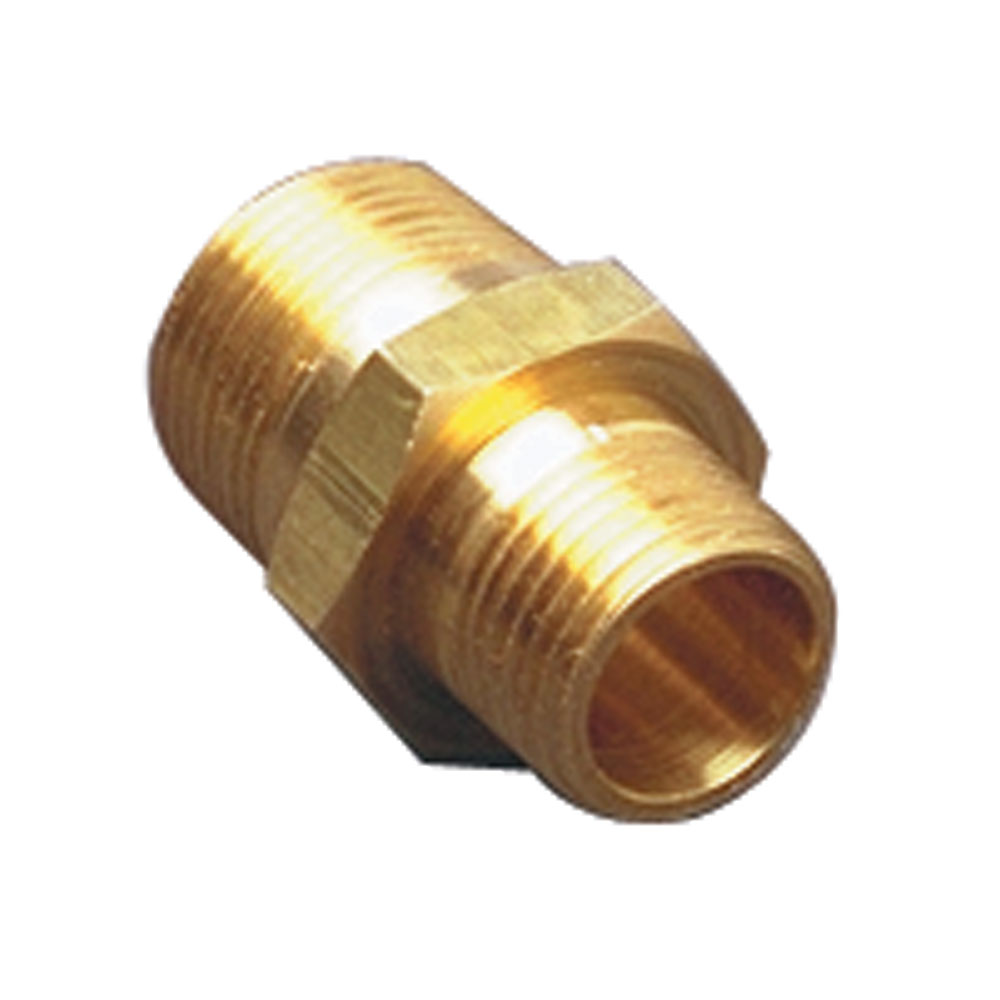

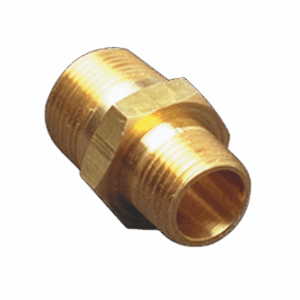

Protection Tube Mounting Parts are pipe fittings and flanges used to mount and secure ceramic and metal tubes.
Used to extend the distance between the RTD and the controller using a calibrated or a less expensive extension wire.
Can be used to prevent the creation of EMF voltages that will cause an error in the temperature reading.

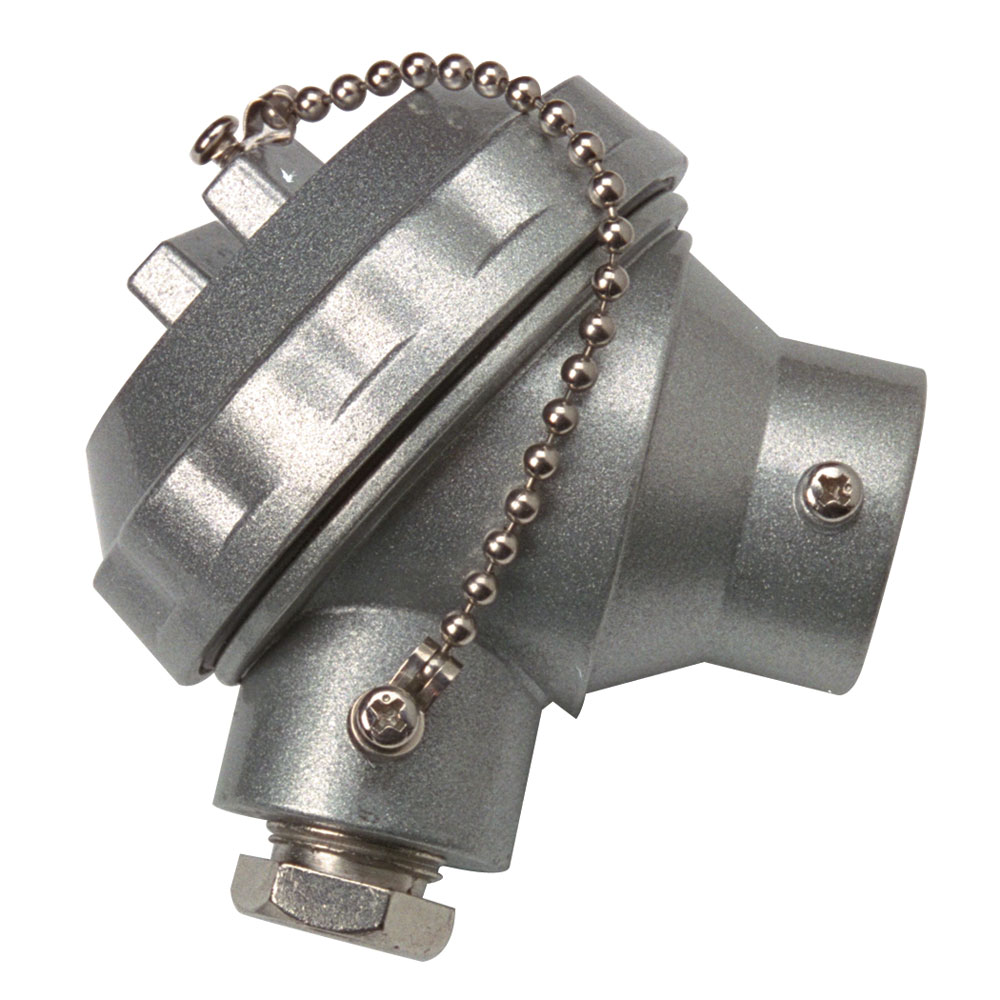

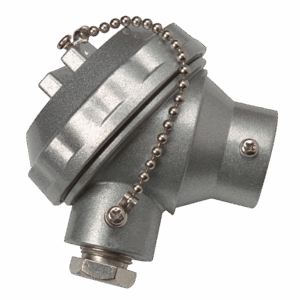

Available for wet and hazardous locations. Contain a terminal block to connect sensor.

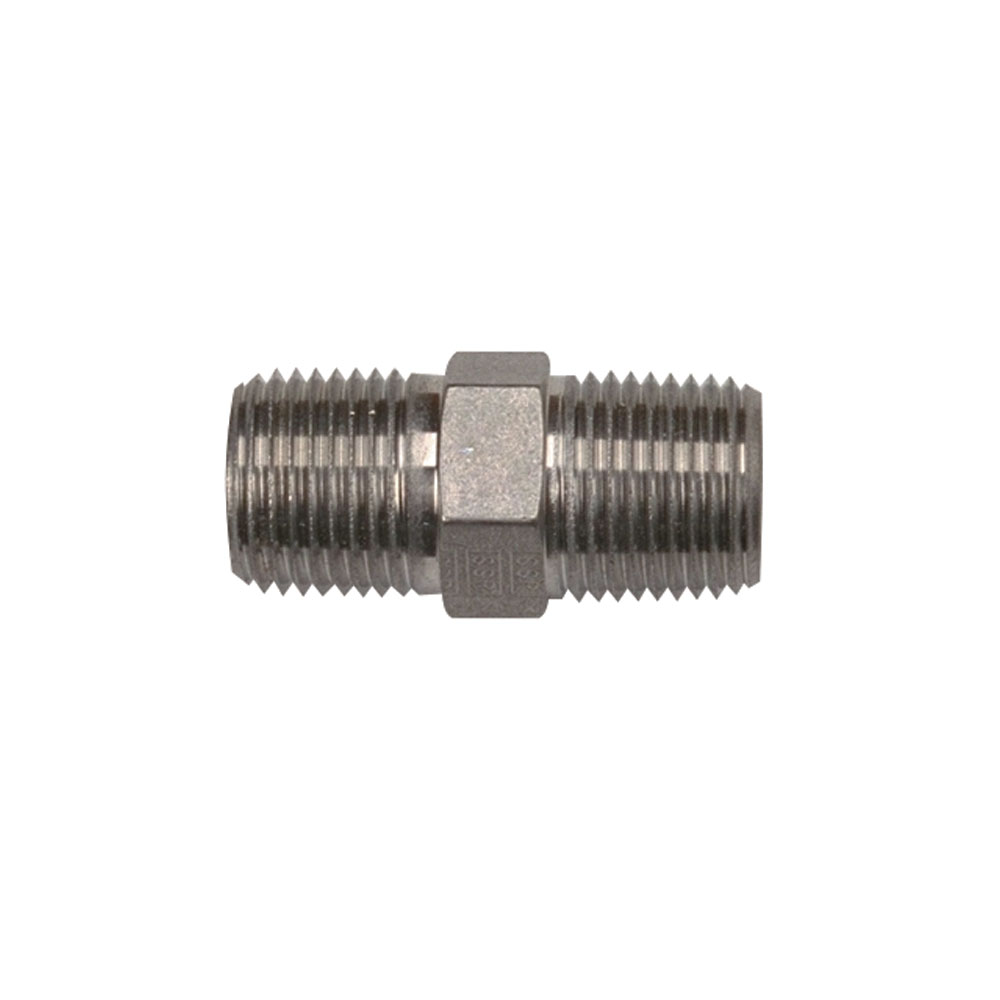

Sensor Mounting Fixed Fittings include NPT Hex Head Bushings brazed to the sensor sheath with a specific immersion length specified and Compression Fittings which permit an adjustable immersion length.

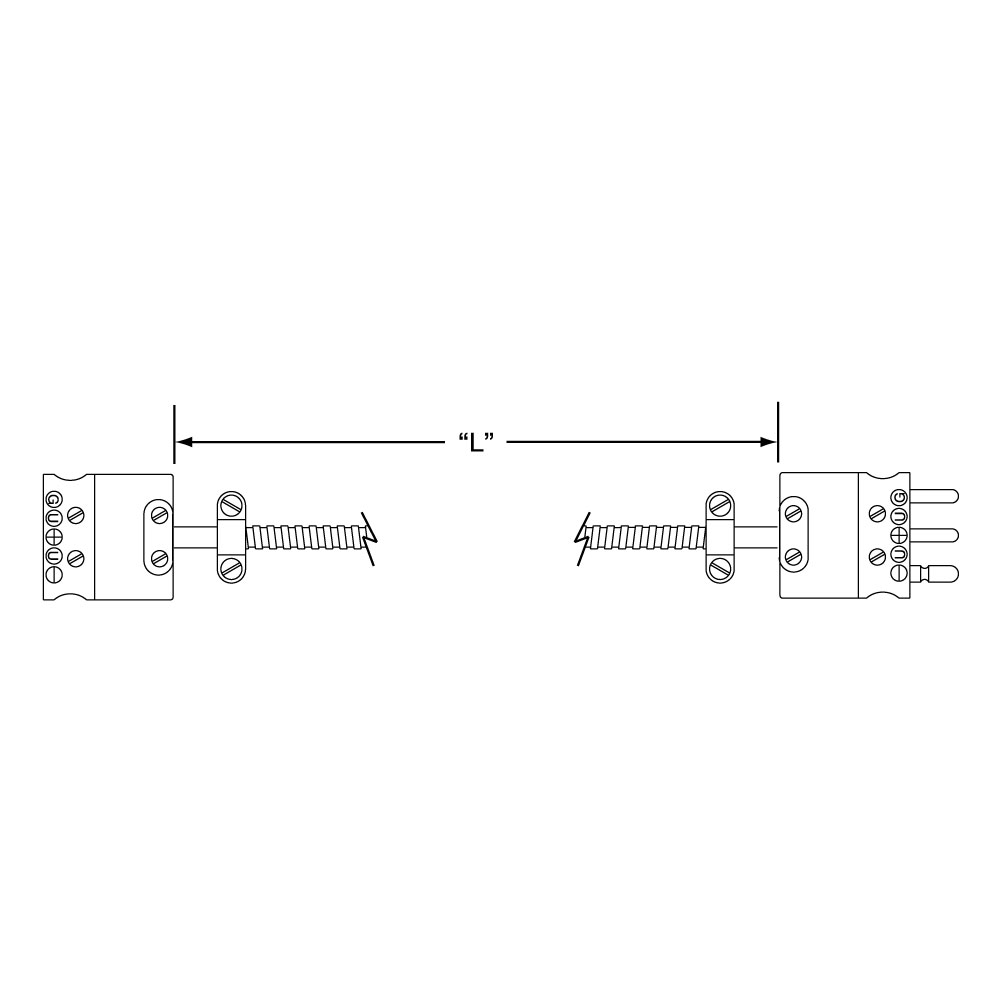

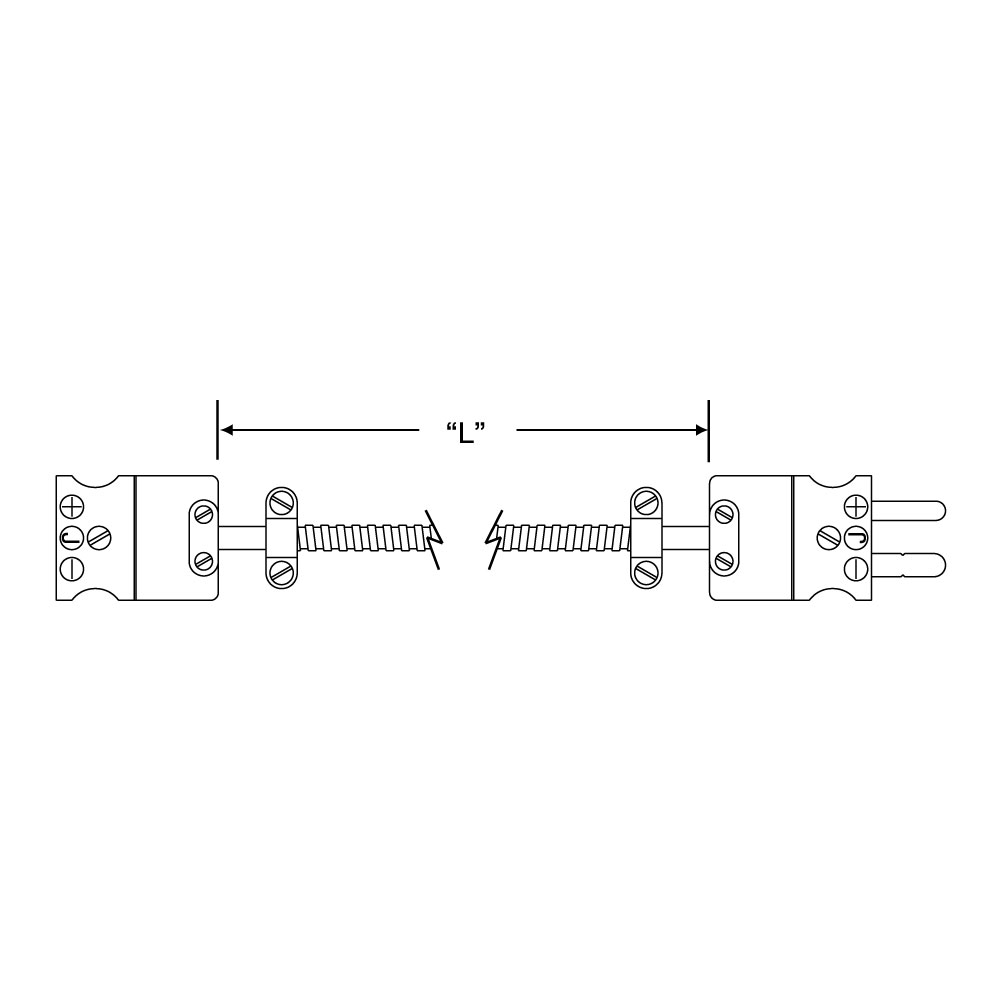

Used to extend the distance between the thermocouple and the controller using a calibrated or a less expensive extension wire.

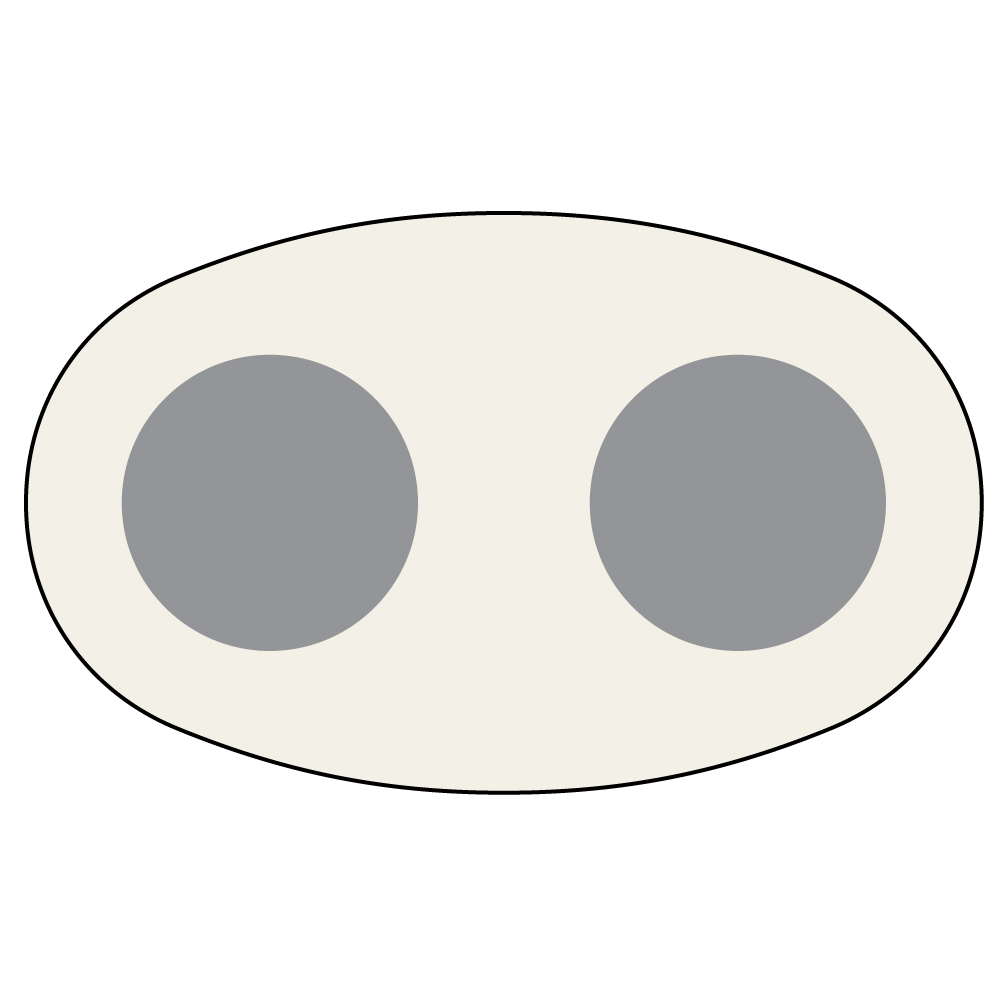

Used for insulating the thermocouple are high temperatures and to resist thermal shock.
