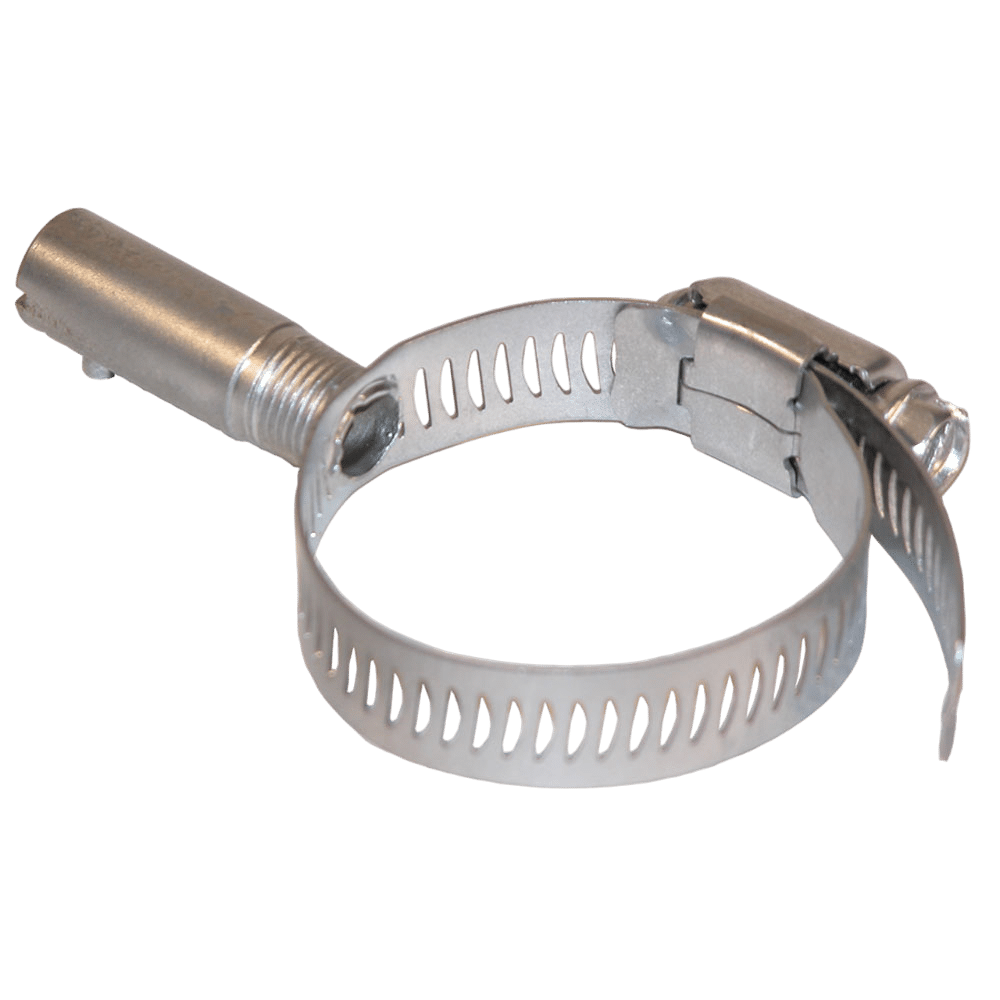

Pipe Clamp Adapters
Spring-loaded bayonet cap type thermocouples are used in conjunction with bayonet adapters. After inserting the thermocouple sheath through the adapter the spring is compressed and locked by the cap.
Part
Number |
Pipe Diameter (in) |
| Min. |
Max. |
| TCH00001 |
1⁄2 |
7⁄8 |
| TCH00002 |
7⁄8 |
11⁄2 |
| TCH00003 |
15⁄16 |
21⁄4 |
| TCH00004 |
21⁄4 |
35⁄16 |
| TCH00005 |
35⁄16 |
41⁄4 |
| TCH00006 |
45⁄16 |
51⁄4 |
