  • Ceramic Disc for Single Element
  • Ceramic Disc for Dual Elements
  • Silicone/Glass Fiber for Single Element Only
  • Ceramic Disc for Six Wire

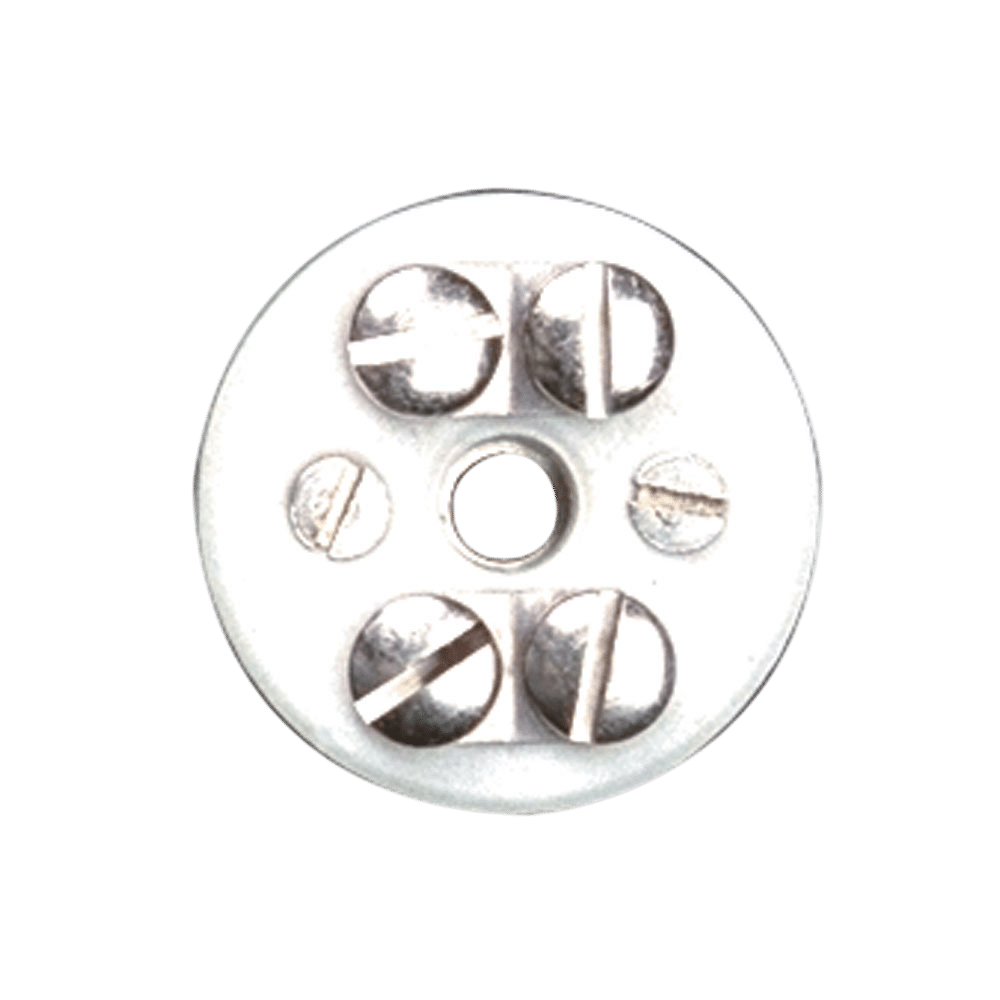

Open Disc Terminal Blocks

Ceramic discs are rated for 1000°F (530°C) and silicone/glass fiber discs are rated for 350°F (117°C). Each disc is assembled to a 1" O.D. × 1/8" thick brass (standard) or optional stainless steel back-up plate by two screws, and the plate is directly brazed to the sensor sheath.

Explore Open Disc Terminal Blocks Specifications

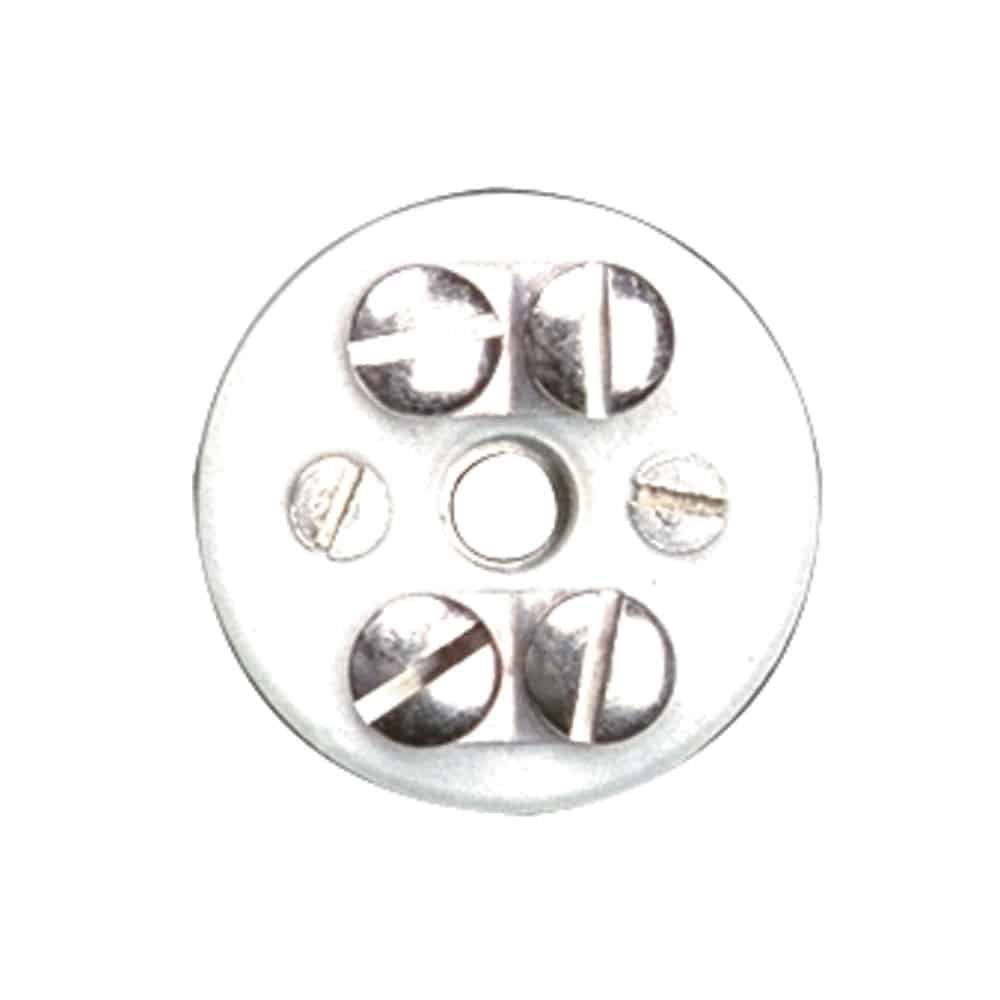

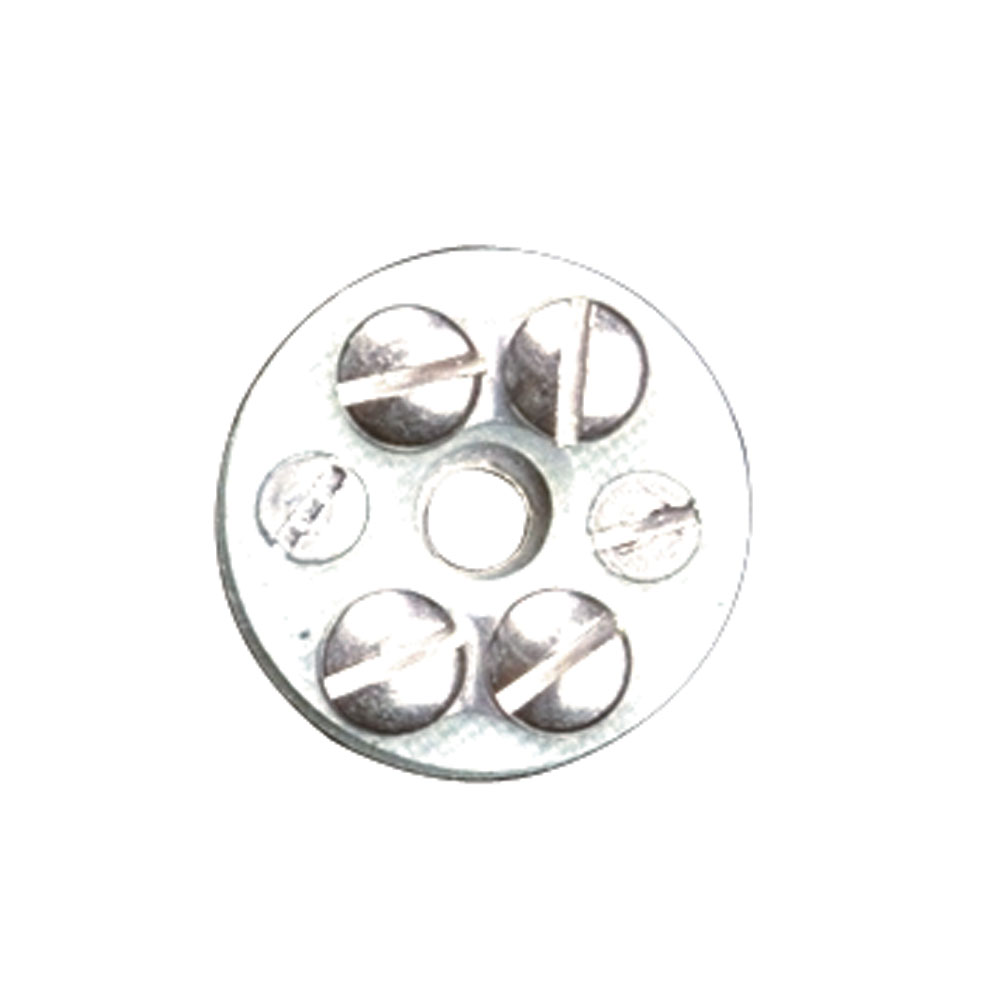

Ceramic Disc
for Single Element

Ceramic Disc for Single Element
Part Number: TCA-110-126

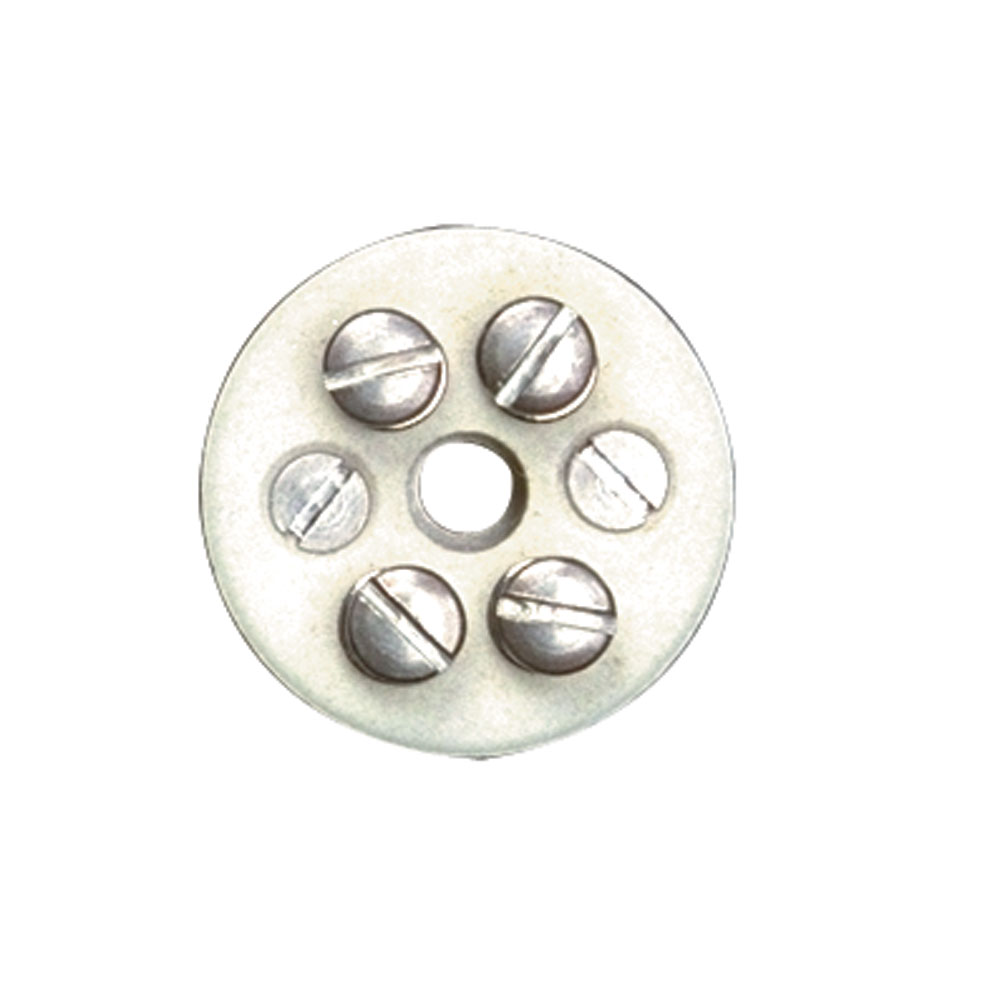

Ceramic Disc
for Dual Elements

Ceramic Disc for Dual Elements
Part Number: TCA-110-127

Silicone/Glass Fiber
for Single Element Only

Silicone/Glass Fiber for Single Element Only
Part Number: TCA-110-128

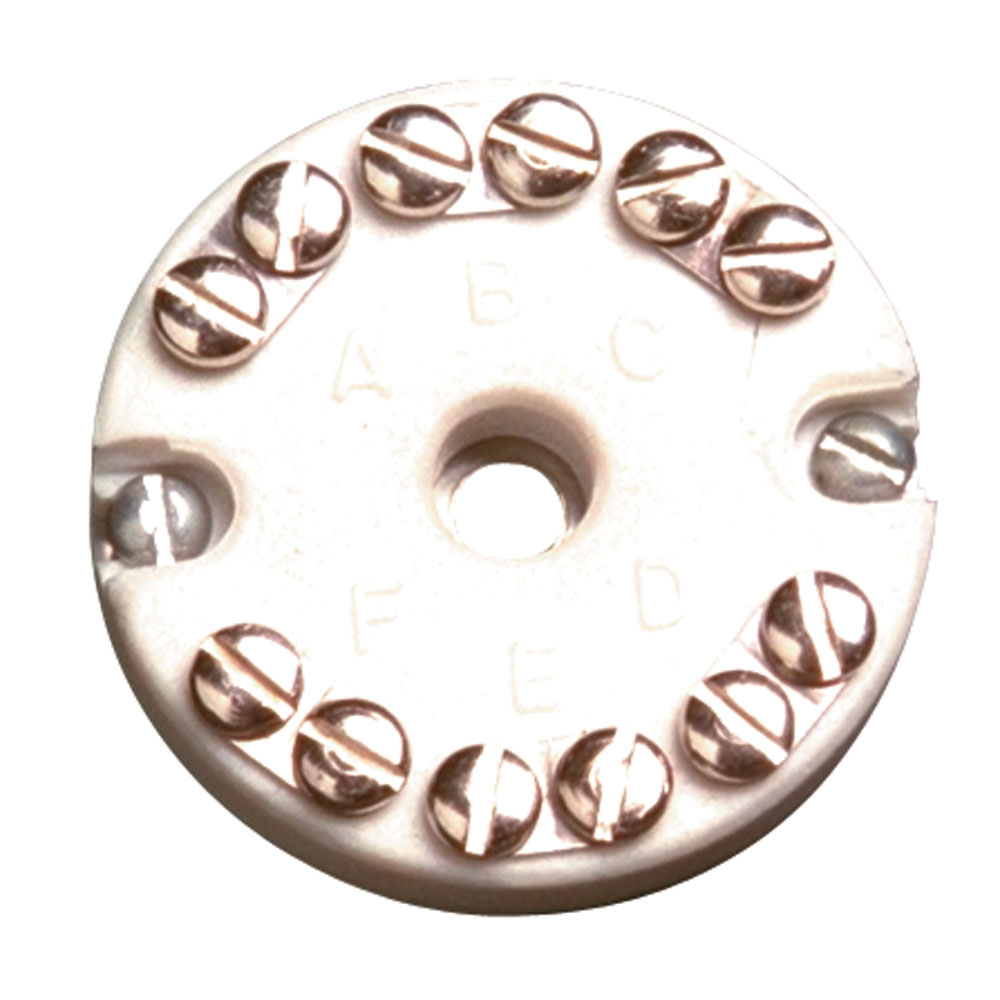

Ceramic Disc
for Six Wire

Ceramic Disc for Six Wire
Part Number: TCA-110-129

Ceramic Open Disc with Brass Back-Up Plate and Mounting Screws

Sheath
O.D.
(in)
Single/Dual Element
Approximate
Dimensions (in)
Part Numbers Six Wire Element
Approximate
Dimensions (in)
Single Element Dual Element Six Wire Element
1⁄8 11⁄8 O.D. × 9⁄16 H TCH10045 TCH10048 TCH10051 21⁄32 O.D. × 9⁄16 H
3⁄16 11⁄8 O.D. × 9⁄16 H TCH10046 TCH10049 TCH10052 21⁄32 O.D. × 9⁄16 H
1⁄4 11⁄8 O.D. × 9⁄16 H TCH10047 TCH10050 TCH10053 21⁄32 O.D. × 9⁄16 H



Ceramic Open Disc with Stainless Steel Back-Up Plate and Mounting Screws

Sheath
O.D.
(in)
Single/Dual Element
Approximate
Dimensions (in)
Part Number Six Wire Element
Approximate
Dimensions (in)
Single Element Dual Element Six Wire Element
1⁄8 11⁄8 O.D. × 9⁄16 H TCH10054 TCH10057 TCH10060 21⁄32 O.D. × 9⁄16 H
3⁄16 11⁄8 O.D. × 9⁄16 H TCH10055 TCH10058 TCH10061 21⁄32 O.D. × 9⁄16 H
1⁄4 11⁄8 O.D. × 9⁄16 H TCH10056 TCH10059 TCH10062 21⁄32 O.D. × 9⁄16 H



Silicone/Glass Fiber Open Disc with Brass Back-Up Plate and Mounting Screws

Sheath
O.D.
(in)
Approximate
Dimensions
(in)
Part Number
Single Element Dual Element
1⁄8 1" O.D. × 9⁄16 H TCH10063 n/a
3⁄16 1" O.D. × 9⁄16 H TCH10064 n/a
1⁄4 1" O.D. × 9⁄16 H TCH10065 n/a



Silicone/Glass Fiber Open Disc with Stainless Steel Back-Up Plate and Mounting Screws

Sheath
O.D.
(in)
Approximate
Dimensions
(in)
Part Number
Single Element Dual Element
1⁄8 1" O.D. × 9⁄16 H TCH10066 n/a
3⁄16 1" O.D. × 9⁄16 H TCH10067 n/a
1⁄4 1" O.D. × 9⁄16 H TCH10068 n/a
