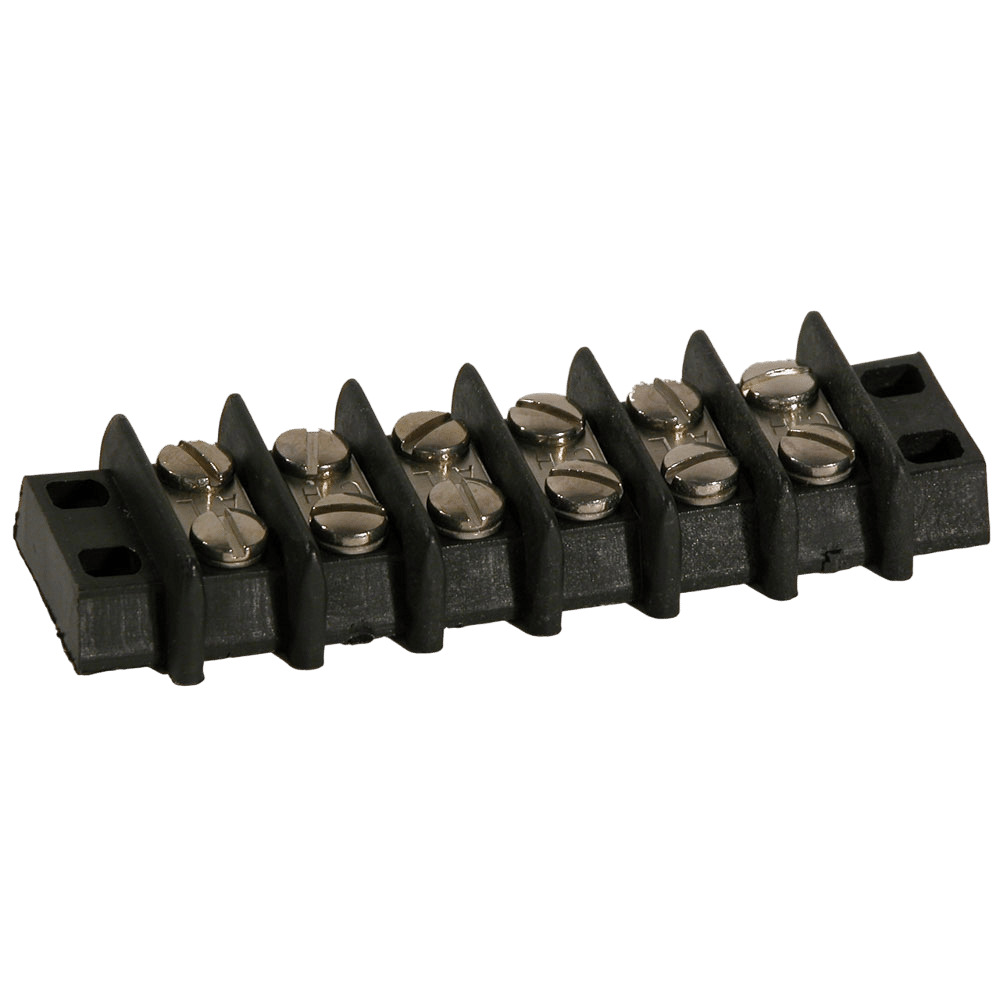

  • WebN551.jpg

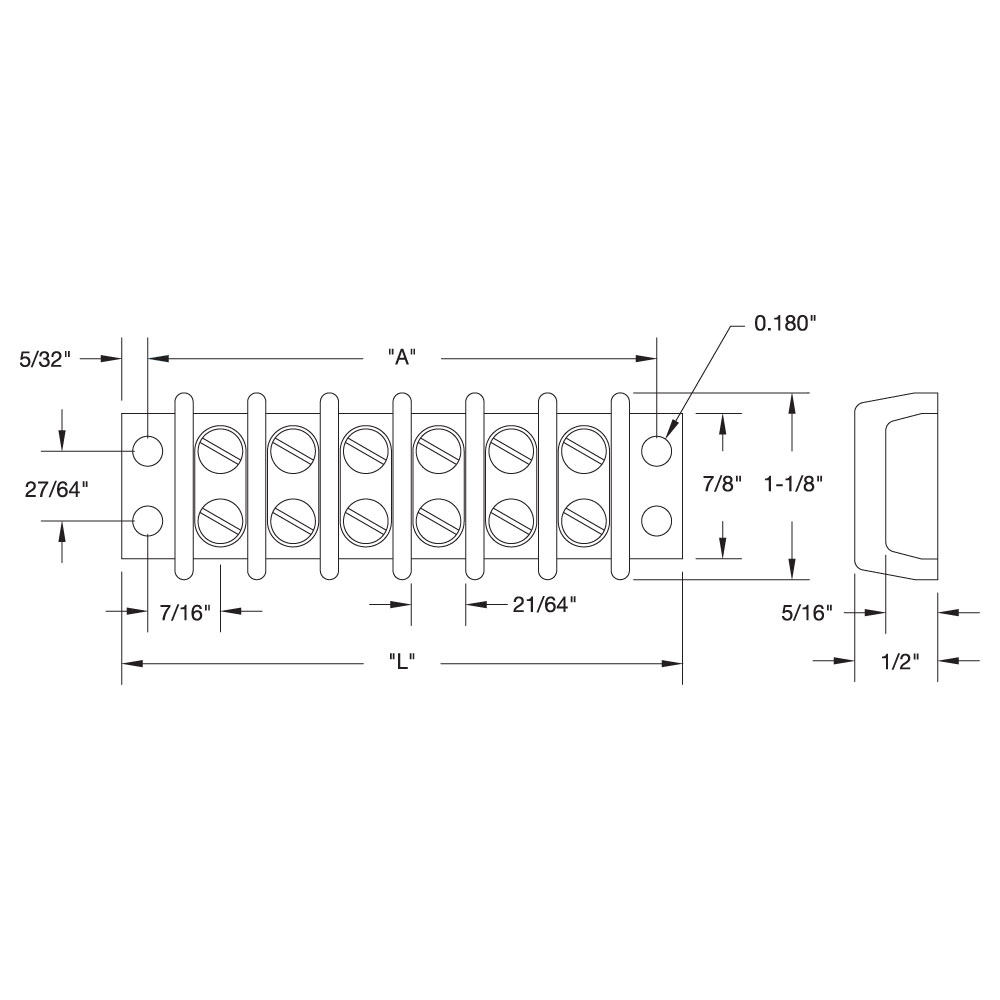

  • Barrier Block Drawing

Screw Terminal Barrier Blocks

Design Features

  • Made of Glass-Filled Nylon, 350°F (177°C) max.
  • 250 VAC RMS max. Voltage Rating, 20 Amps max.
  • Supplied with 6-32 Terminal Screws.
  • Available with Nickel-Plated Copper Lugs, Thermocouple Compensating Lugs or No Lugs.

Explore Screw Terminal Barrier Blocks Specifications



Choose TBS Options

 Enter Whole Number 02 to 20




Additional Information

Quantity

Questions or Comments

Contact Information (Required)

Customer Type

Location

City

Industry

Are you an existing Tempco Customer?  Yes    No

First Name

Last Name

Company

Email    [email protected]

Phone    xxx-xxx-xxxx

   Ooh, dat's hot! Please email me the latest product information and company updates from Tempco.
We won't share your information with anyone. You can unsubscribe at any time.

Number of Terminals "A" Dim.
(inches)
"L" Dim.
(inches)
2 1.31 1.63
3 1.75 2.06
4 2.19 2.50
6 3.06 3.38
8 3.94 4.25
10 4.81 5.13
12 5.69 6.00
14 6.56 6.88
16 7.44 7.75
20 9.19 9.50
