Plastic Melt Bolts

Bolts are made from 300 series Stainless Steel.

See Melt Bolt Thermocouples for Style R and Style F details.

Resources

In-Stock Parts

Explore Plastic Melt Bolts Specifications

Please wait while we gather your results.

Detailed Dimensions for Plastic Melt Bolts

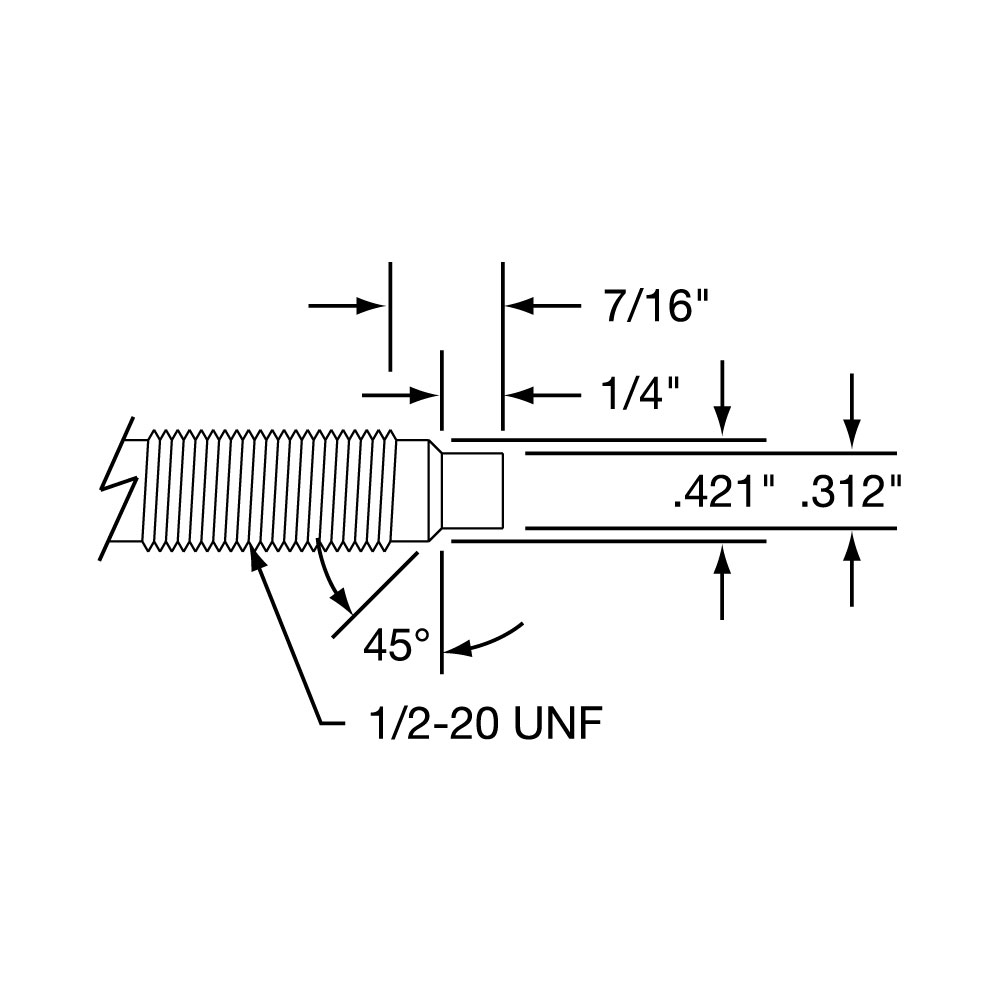

Bolt-Tip Dimensions

Bolt-Tip Dimensions

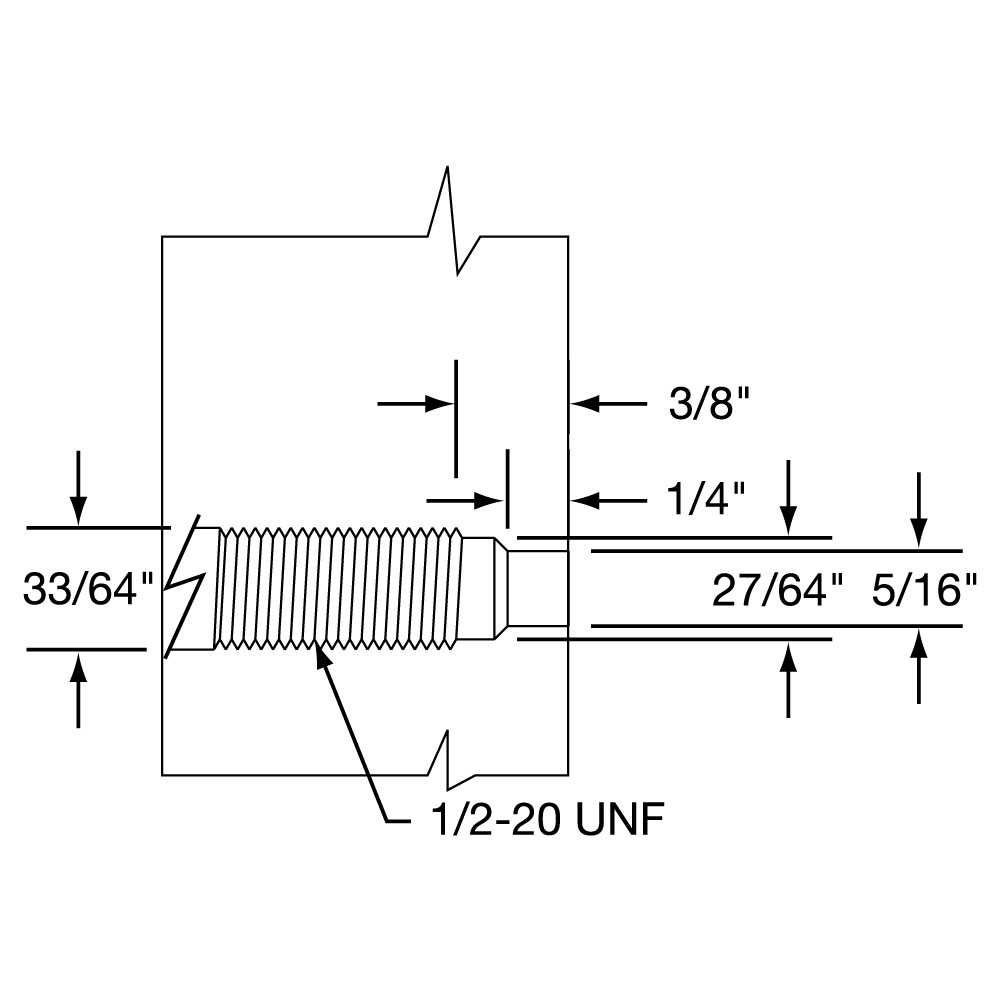

Recommended Drilling Dimensions for Proper Mounting in Extruder

Recommended drilling dimensions for proper mounting in extruder

Length
“L”
Blank		 With 1⁄8"
Diameter Hole		 With
Teflon® Insert		 To make
Style “R” *		 To make Style “R”
w/Teflon® insert *		 To make
Style “F”		 To make Style “F”
w/Teflon® Insert
3"** FAS-116-101 FAS-116-103 FAS-116-105 FAS-116-107 FAS-116-109 FAS-116-111 FAS-116-113
6"** FAS-116-102 FAS-116-104 FAS-116-106 FAS-116-108 FAS-116-110 FAS-116-112 FAS-116-114

* Includes hardware to mount plug
** 300 series stainless steel
