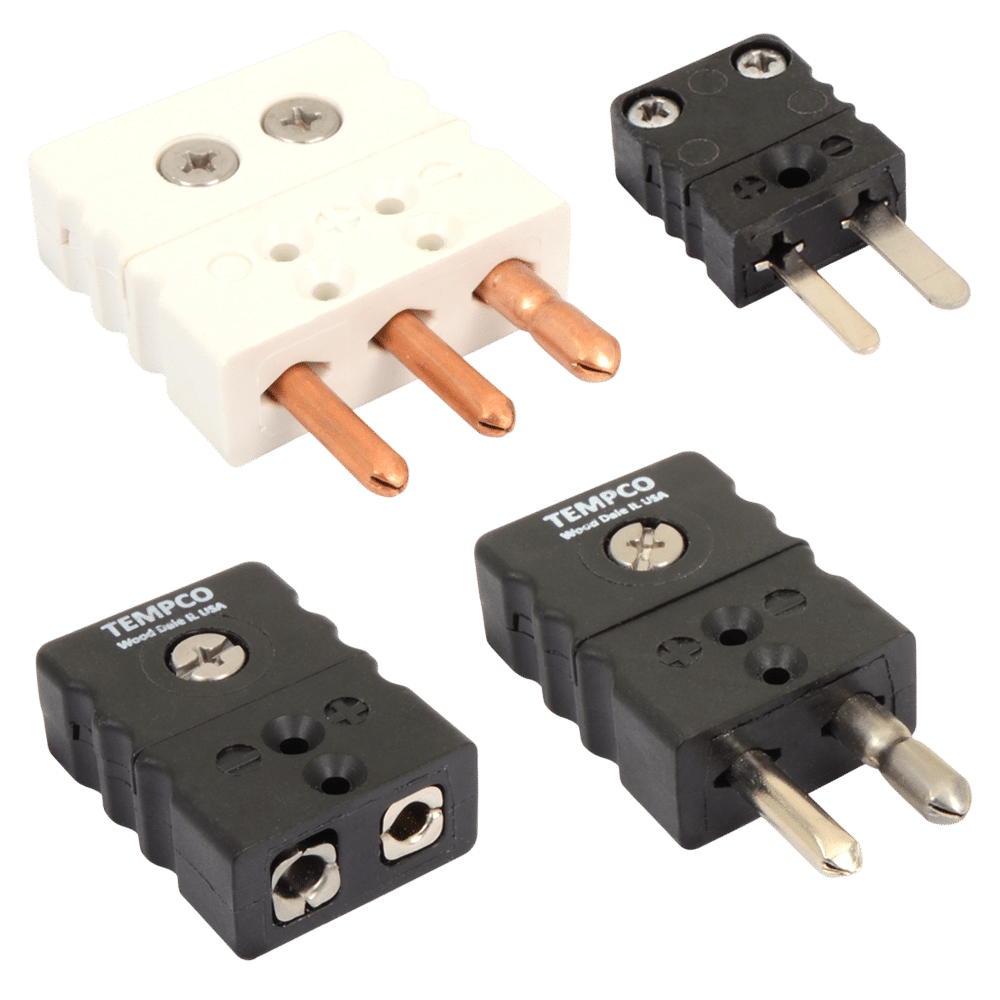

Quick Disconnect Plugs and Jacks

Standard plugs and jacks in 2- and 3-pin configurations, High-Temperature and Ultra-High Temperature in 2-pin configurations, and Miniature plugs and jacks in 2- and 3-pin configurations share these Common Design Features:

  • Quick and easy wire connections without the need for making a loop
    • Standard:  up to 16AWG
    • Miniature: up to 20AWG
  • Bodies are ANSI color coded
    • Standard: glass-filled, high quality thermoplastic
    • Miniature: glass-filled nylon
  • Polarized pins made of material to match thermocouple calibrations
    • Miniature R/S calibrations materials are compensated
  • Plugs available in hollow or solid pins
    • Hollow pins not availabe for Miniature plugs
  • Plugs and Jacks are interchangeable with other similar thermocouple connectors
    • Standard pin spacing: 7/16 inch
    • Miniature pin spacing: 5/16 inch
  • Can be imprinted with customer’s name (min. order & tooling charges apply)
  • Single screw cover for effortless assembly

Explore Quick Disconnect Plugs and Jacks Specifications




Standard Plugs & Jacks

  • Temperature rating of 392°F (200°C)
  • Type U is designated for RTDs and type B thermocouples
  • ANSI calibrations and body colors shown below

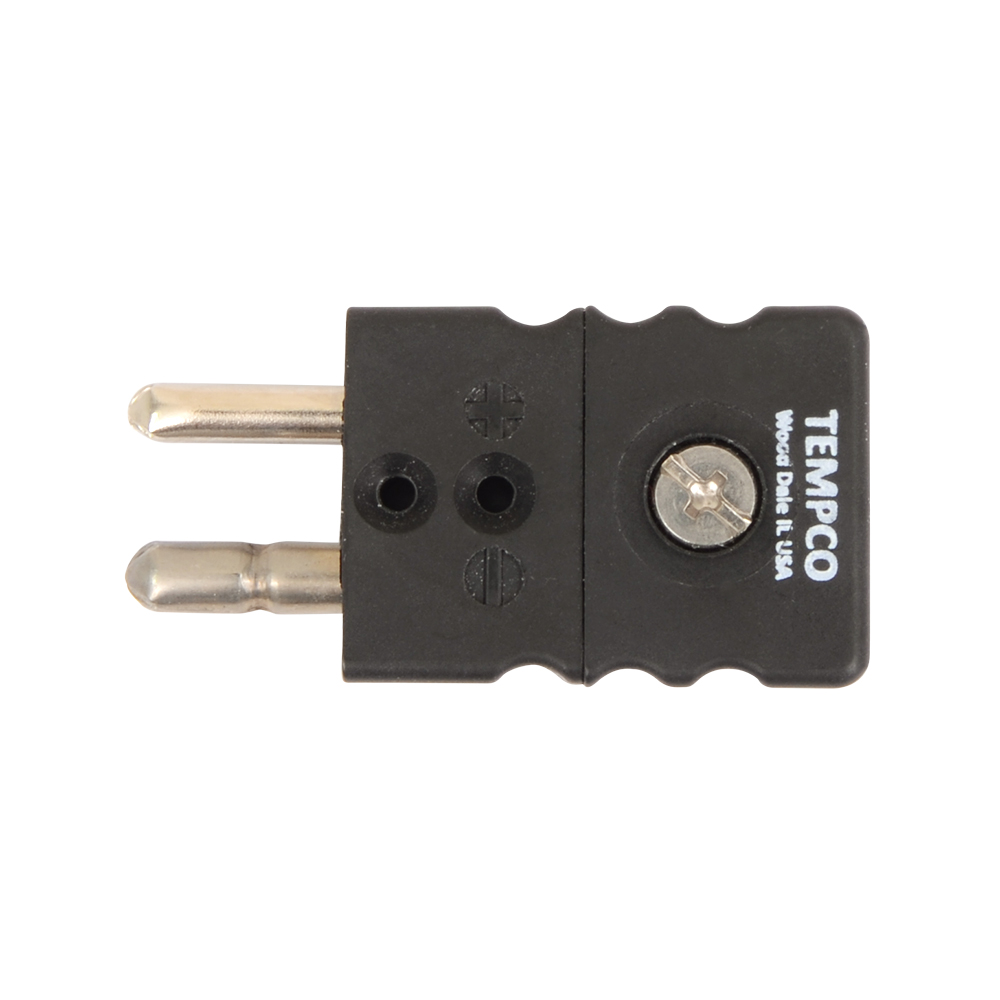

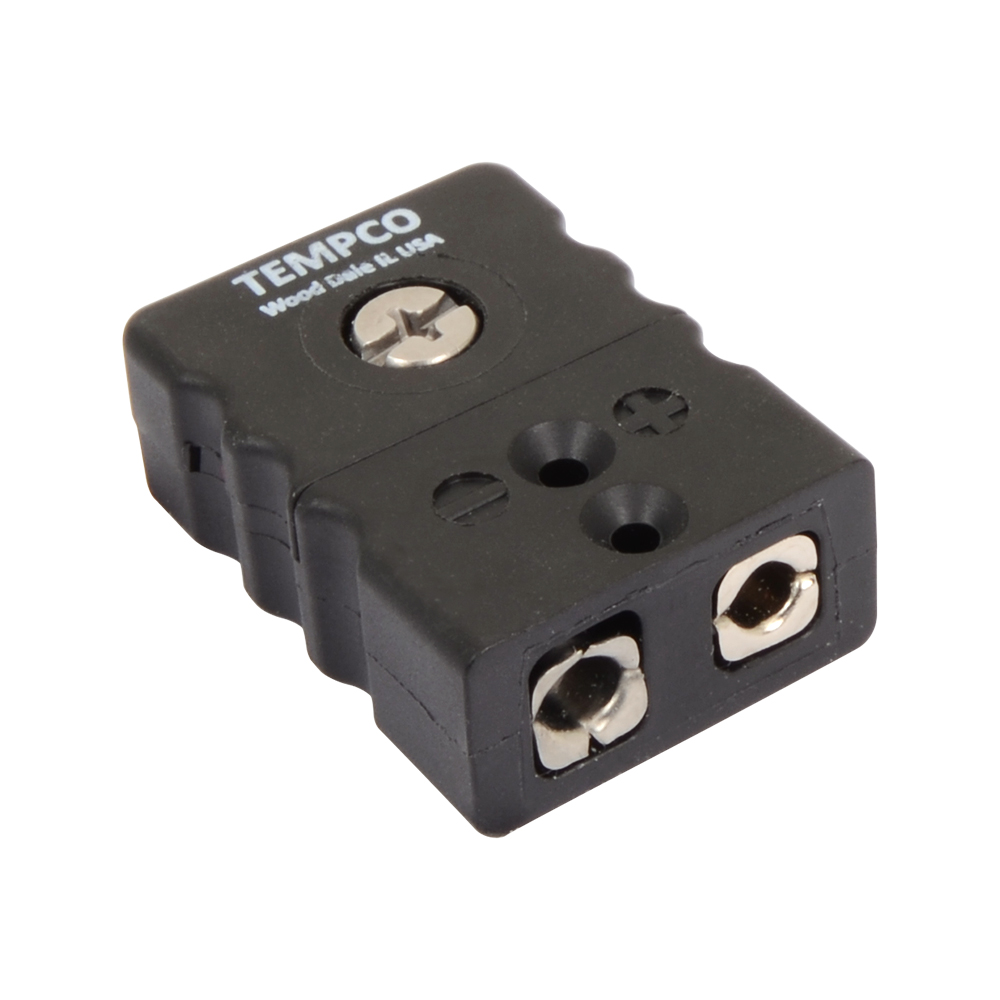

Standard plugStandard Jack

High Temperature Standard Plugs & Jacks

  • Temperature rating of 662°F (350°C) maximum
  • Type U is designated for RTDs and type B thermocouples
  • Calibration type painted on the body
  • Body color comes in “Brown” only

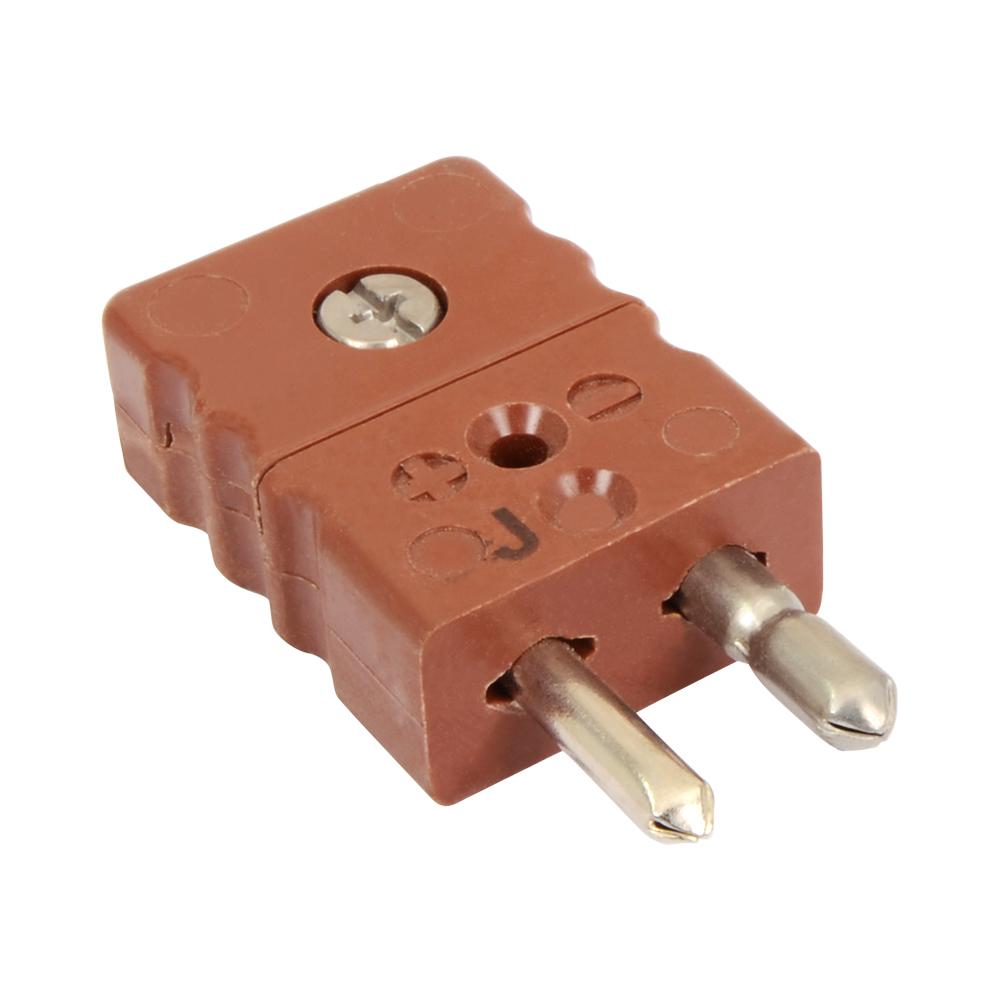

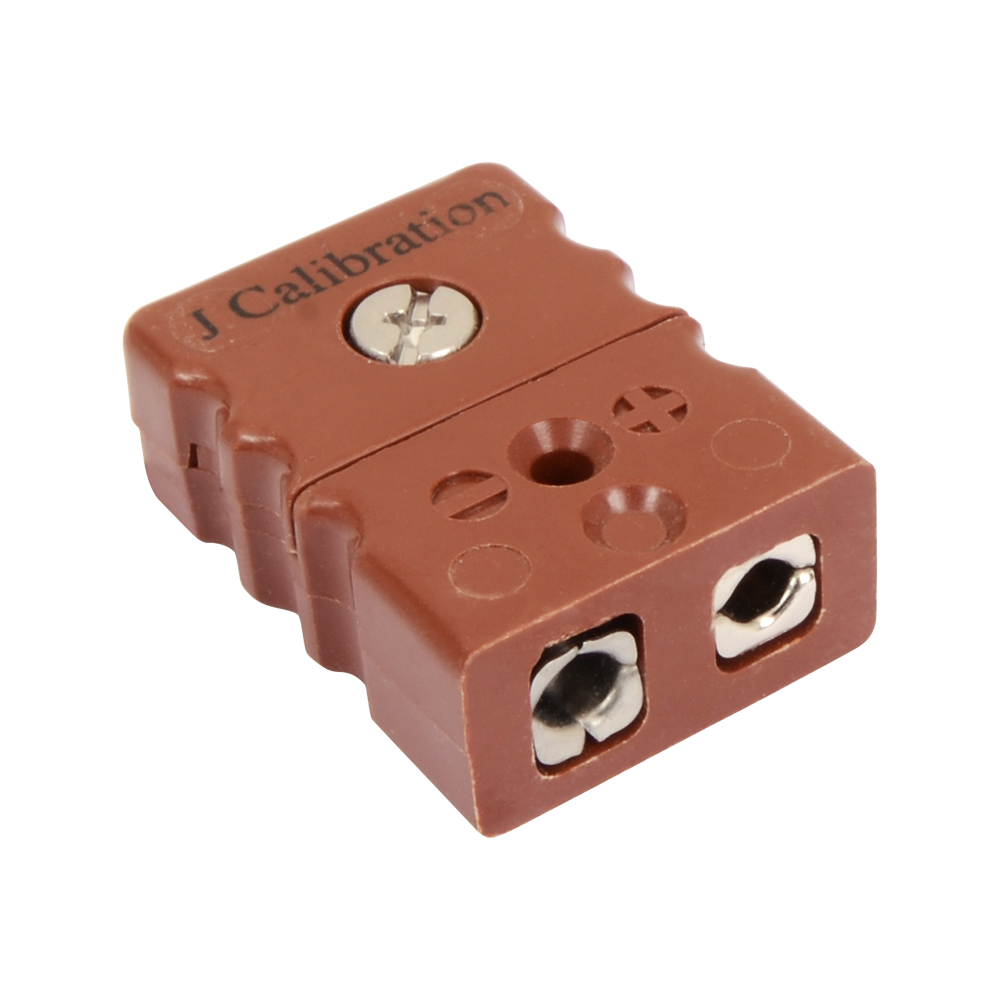

High Temperature Hollow 2-Pin PlugHigh Temperature Hollow Jack

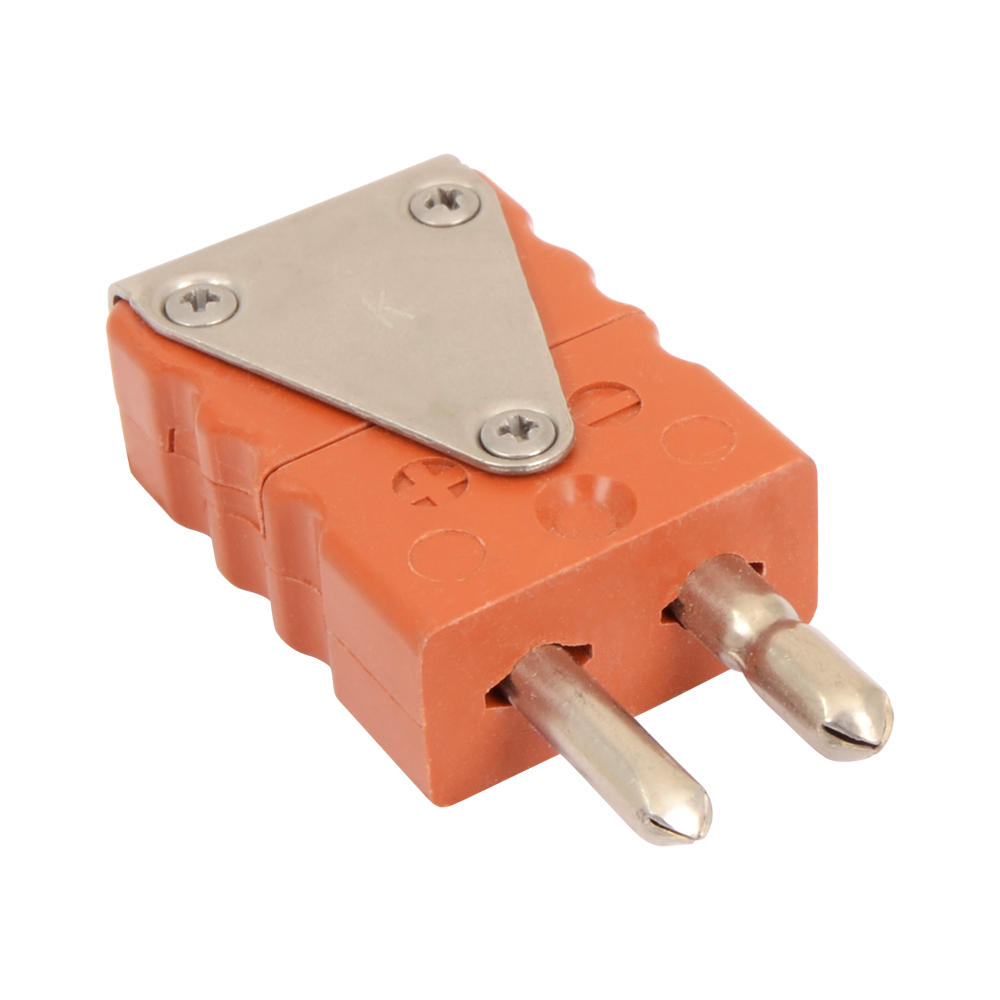

Ultra-High Temperature Plugs & Jacks

  • Temperature rating of 800°F (425°C) continuous and 1000°F (540°C) intermittent
  • Includes stainless steel bracket for support, stamped with calibration type
  • Type J and Type K are standard calibrations; Other calibrations available upon request
  • Body color comes in “Reddish-Brown” only

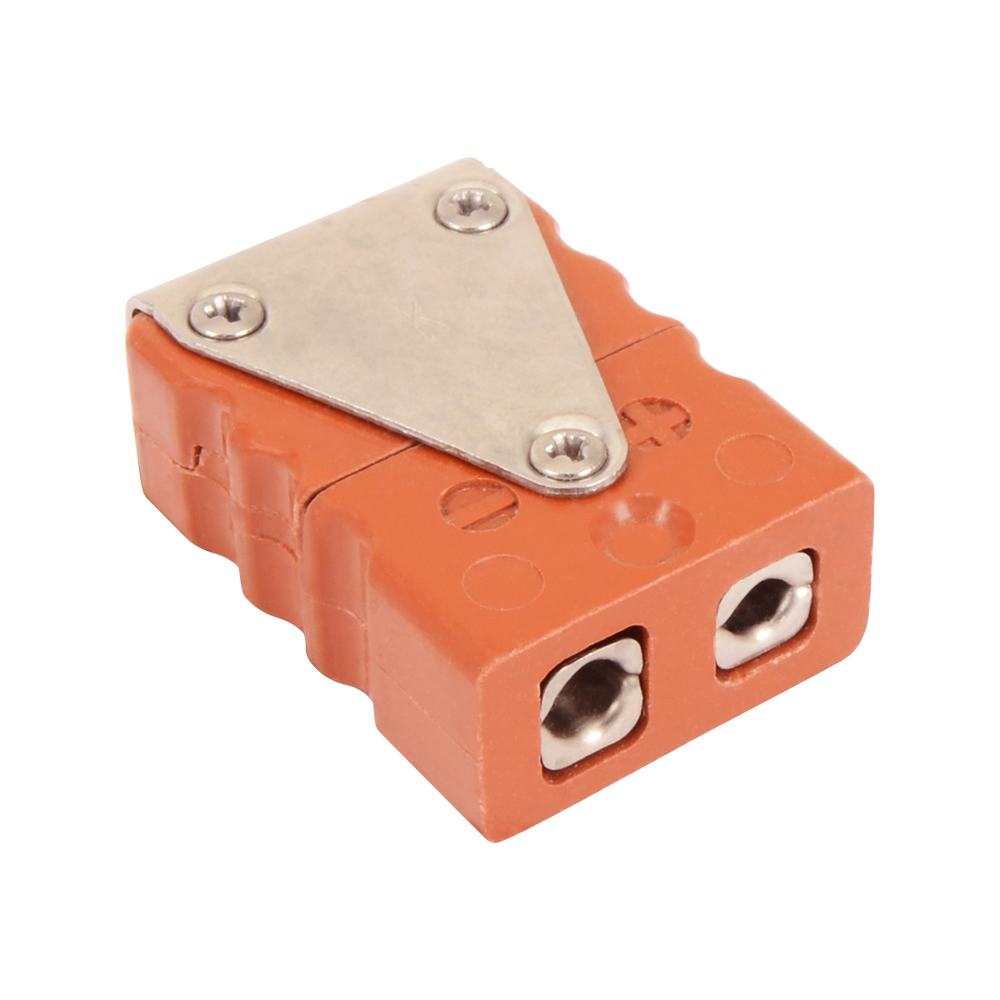

Ultra-High Temperature Hollow 2-Pin Plug Ultra-High Temperature Jack

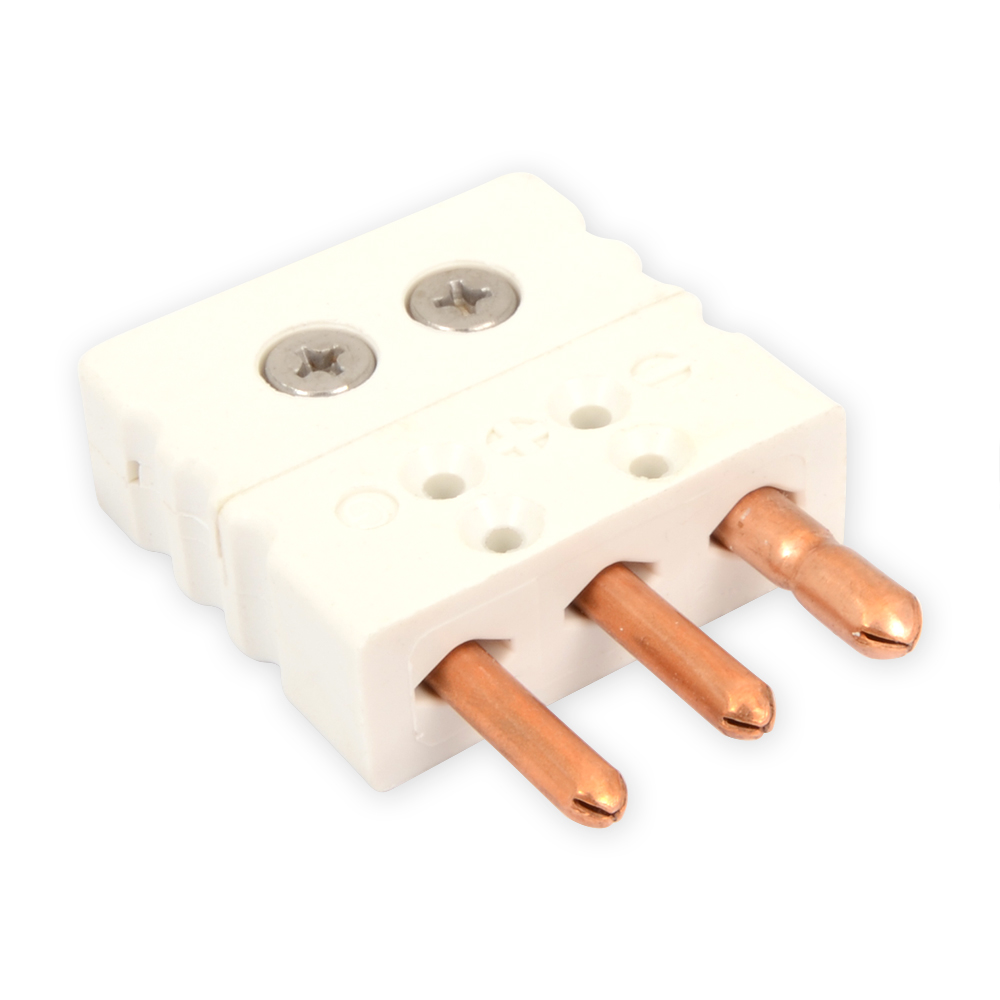

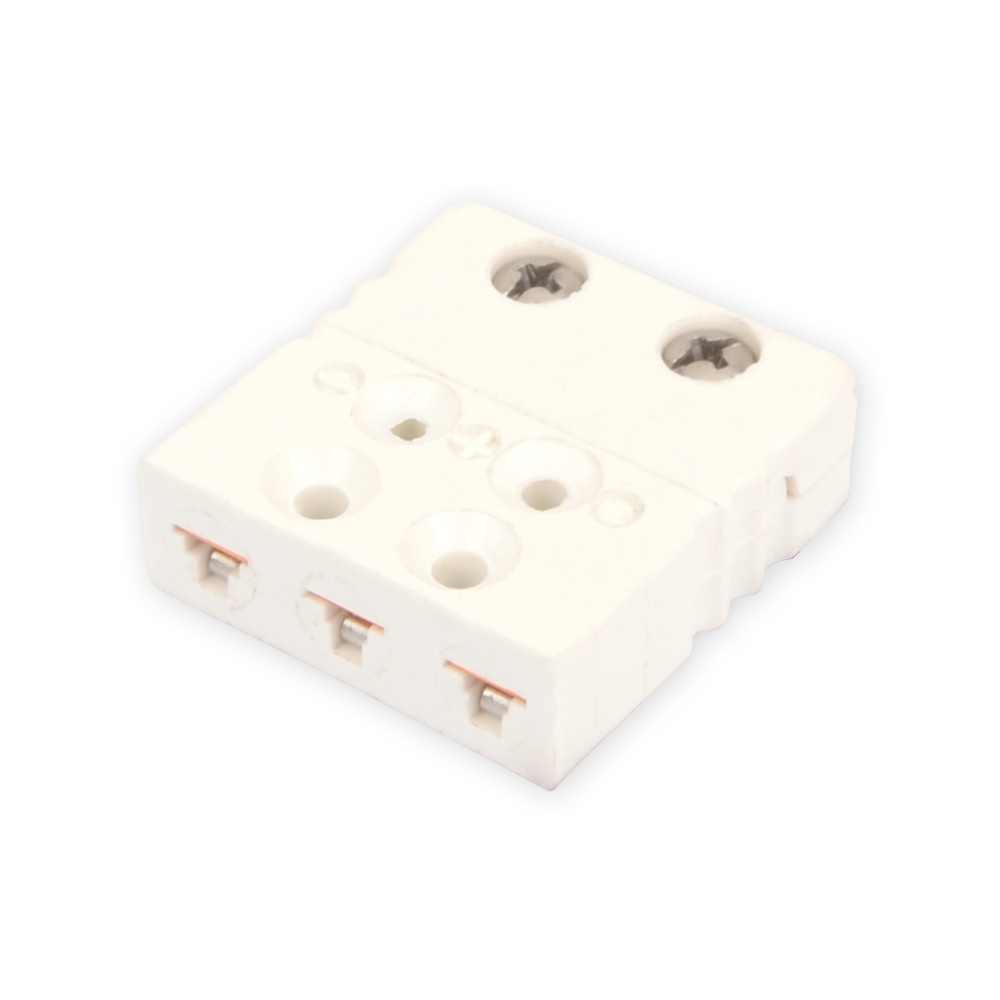

Standard 3-Pin Plugs & Jacks

  • Temperature rating of 392°F (200°C)
  • 3-Pin Plugs available in hollow or solid pins
  • Standard 3-Pin Plugs and Jacks accept all accessories of the standard 2-pin plug and jack
  • ANSI calibrations and body colors shown below

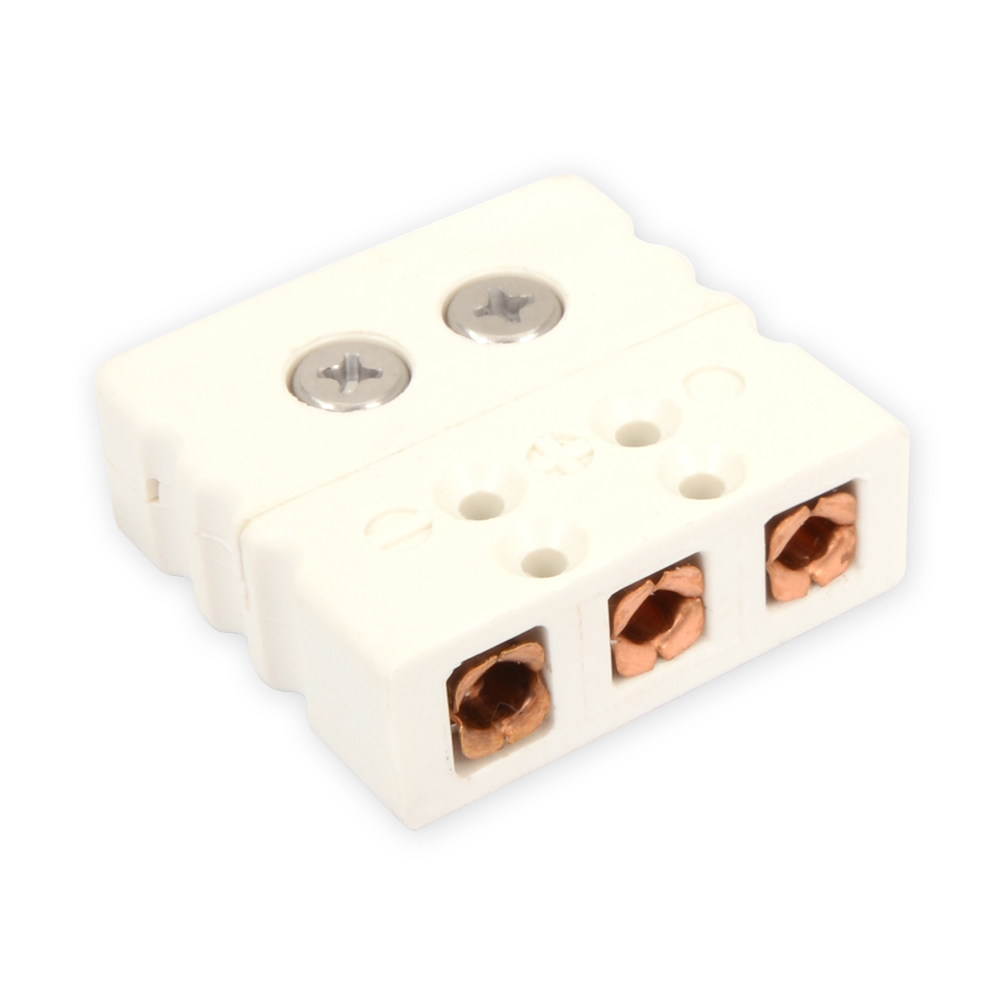

Hollow 3-Pin Standard Plug 3-Pin Standard Jack


Miniature Plugs & Jacks

  • Temperature rating of 392°F (200°C)
  • Designed to be lightweight and to be space-saving
  • ANSI calibrations and body colors shown below

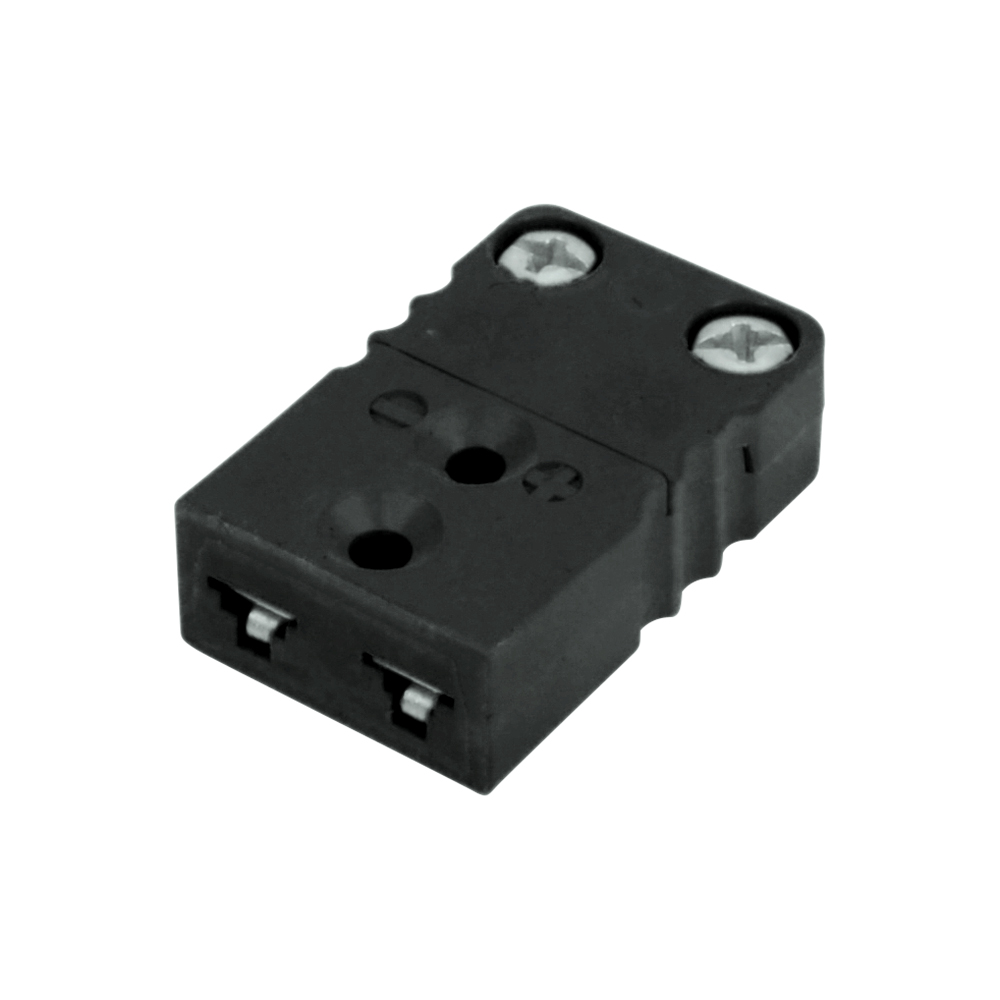

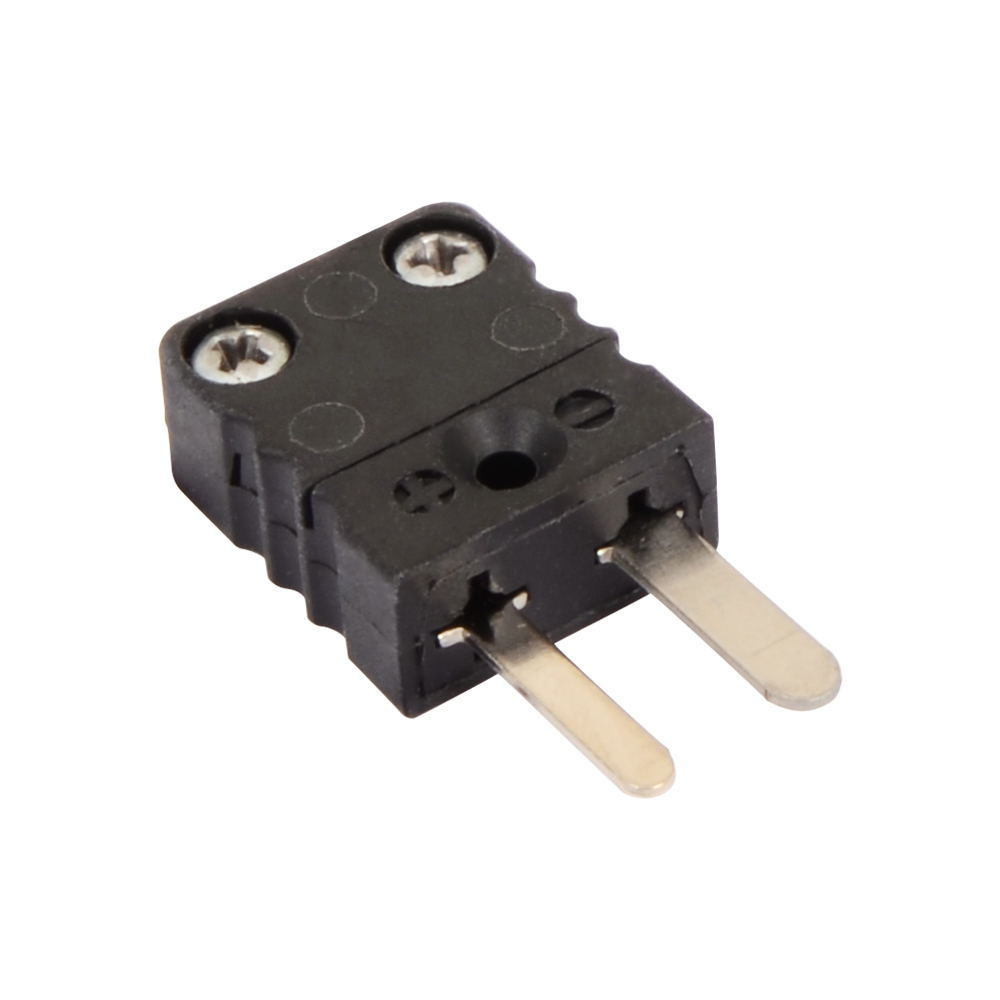

Miniature PlugMiniature 2-pin jack

Miniature 3-pin Plugs & Jacks

  • Temperature rating of 392°F (200°C)
  • Designed to be lightweight and to be space-saving
  • Will accept 2-pin plug and jack accessories
  • ANSI calibrations and body colors shown below

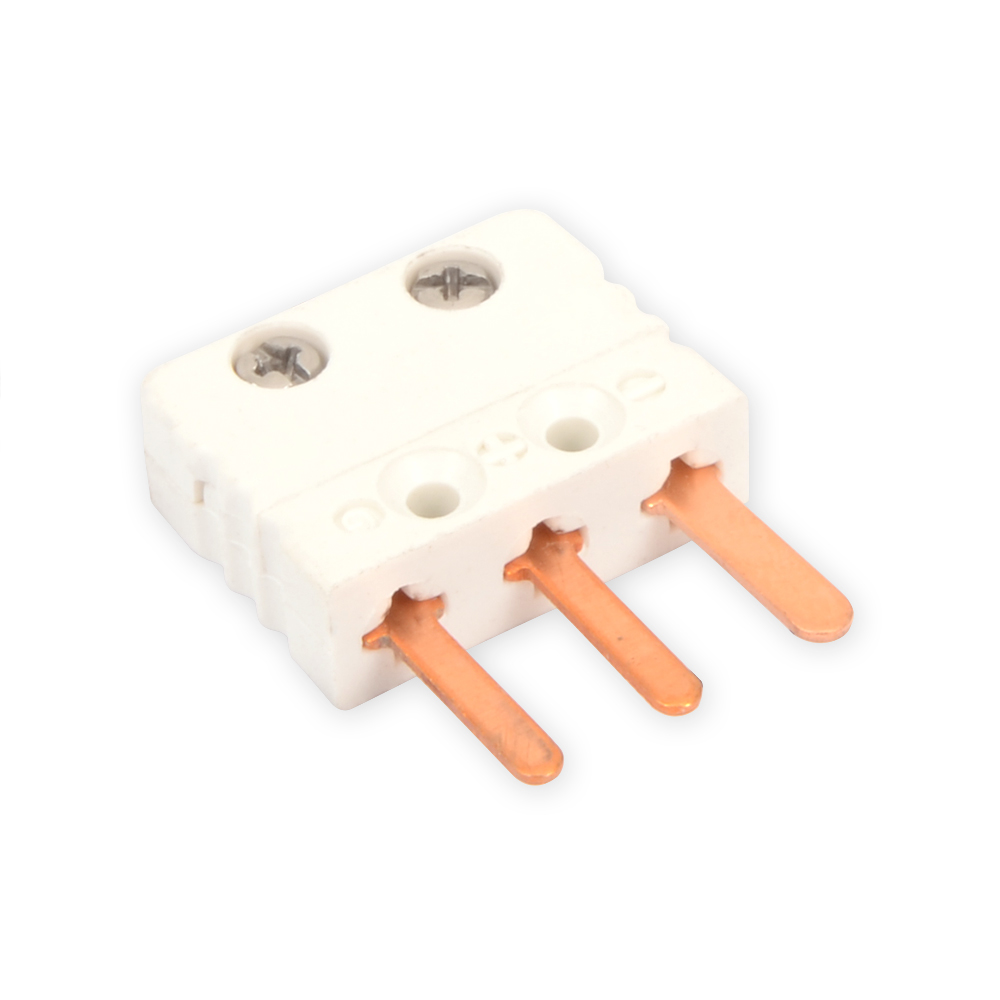

Miniature 3-pin plugMiniature 3-Pin jack


ANSI Calibration/Body Colors for Standard and Miniature Plugs and Jacks

Standard 2-Pin, Hollow Plugs shown

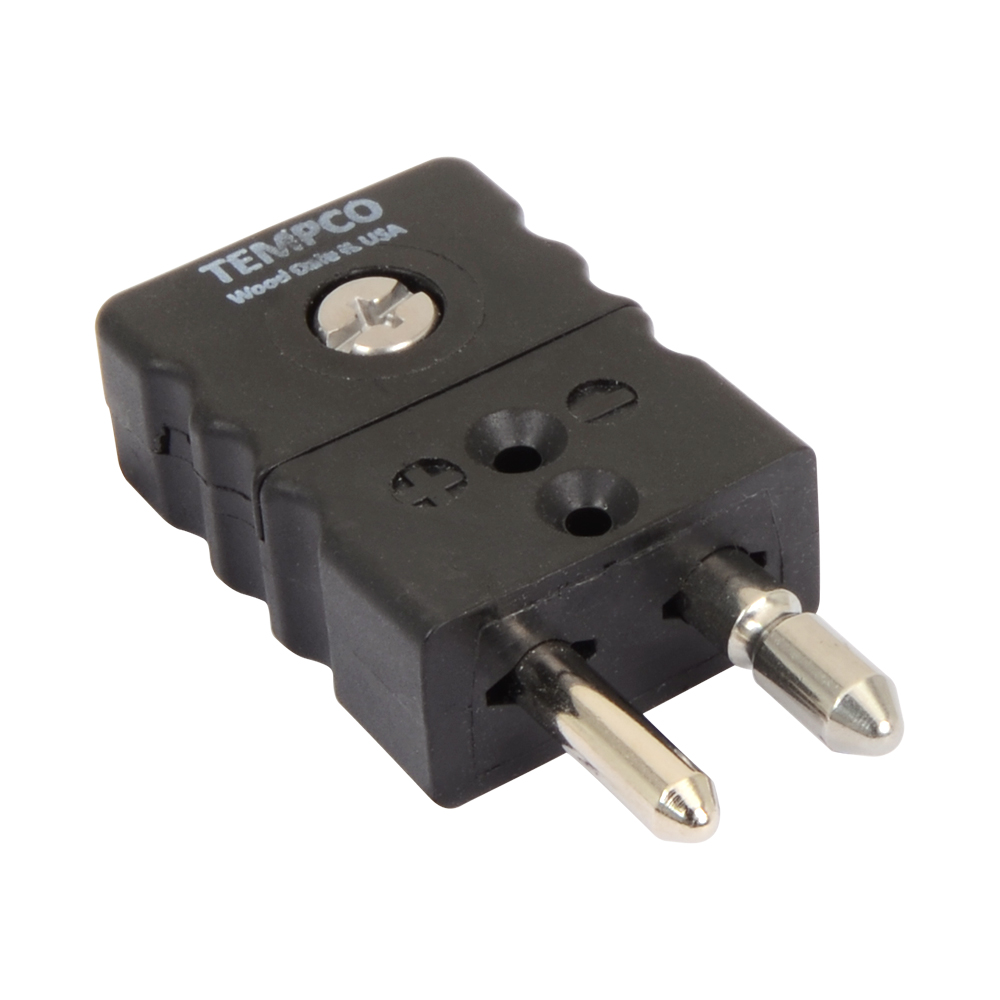

Type J, Black Plug
Type J, Black

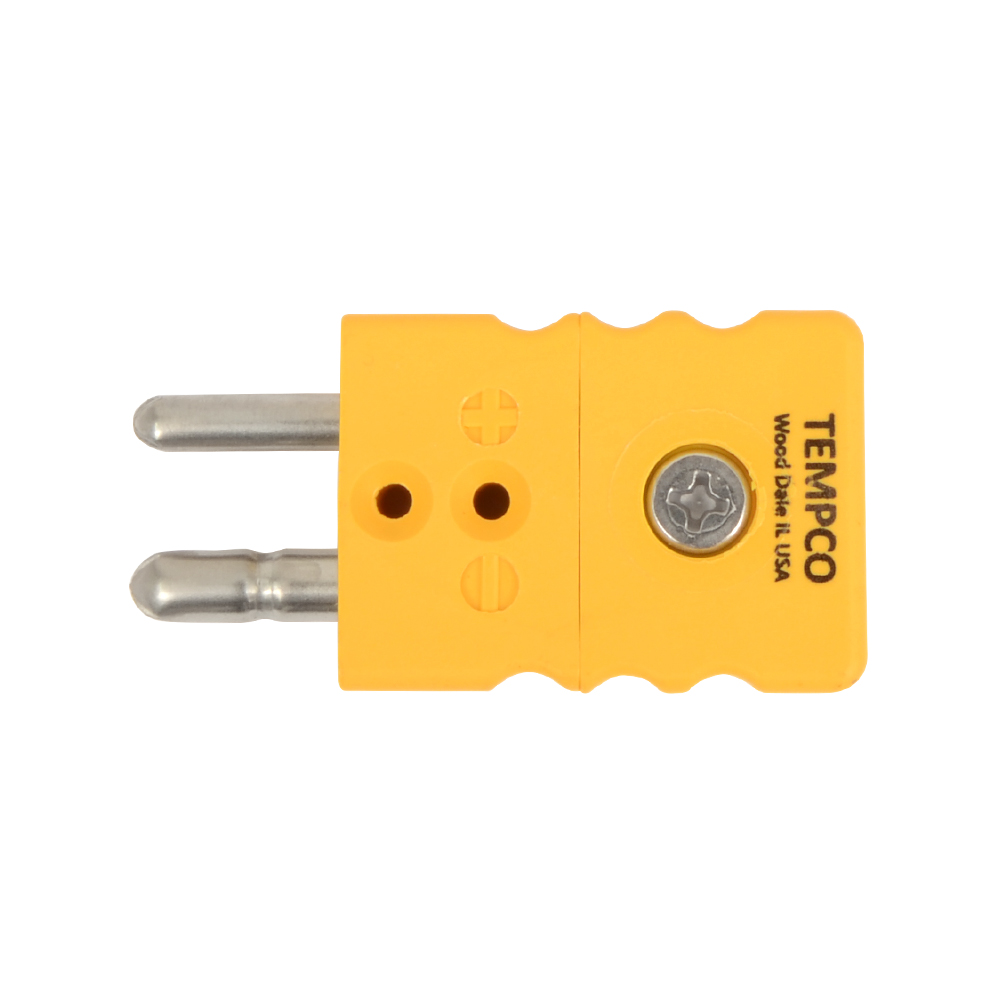

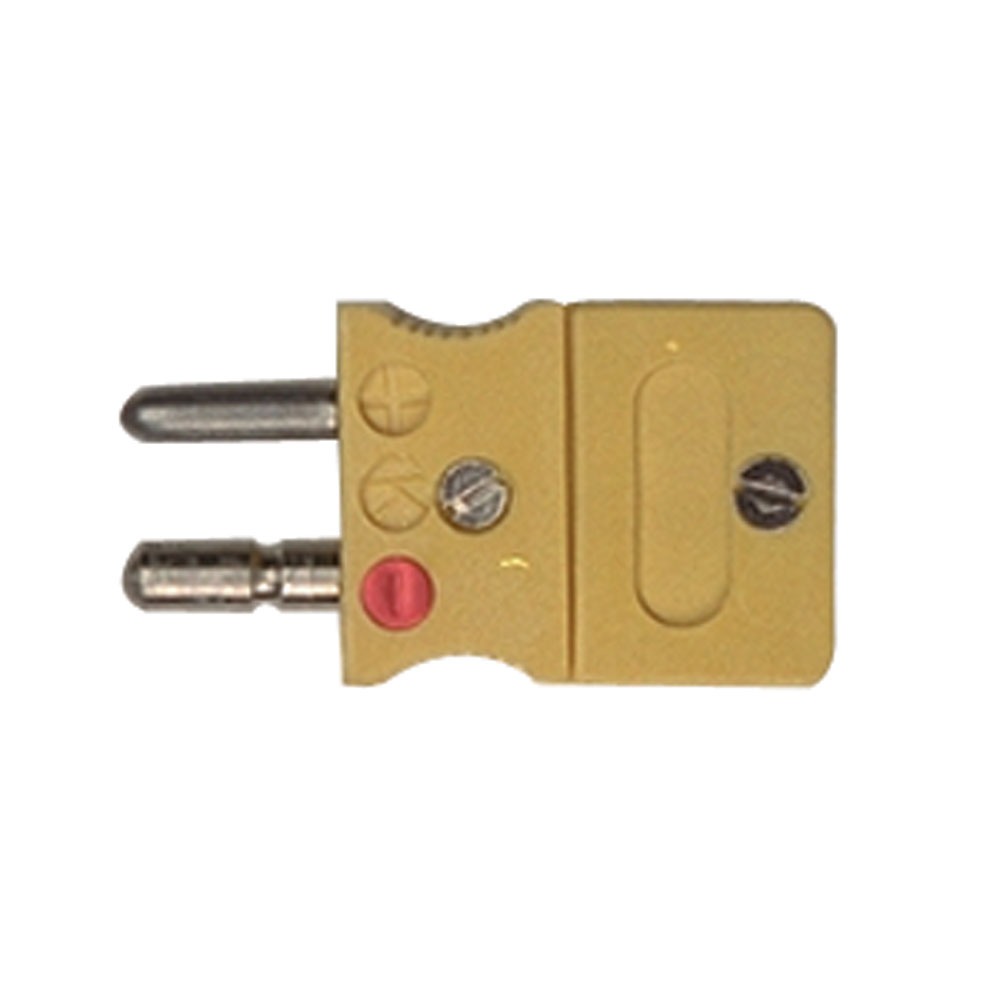

Type K, Yellow Plug
Type K, Yellow

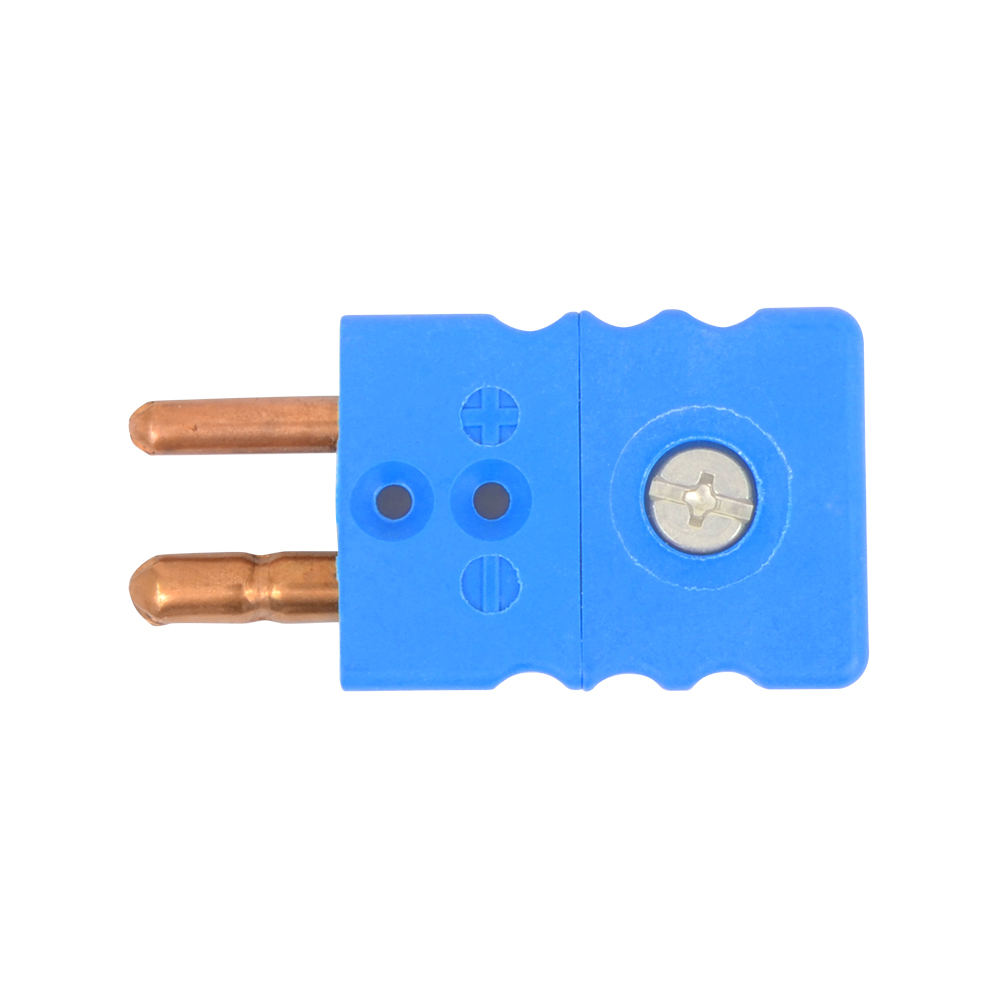

Type T, Blue Plug
Type T, Blue

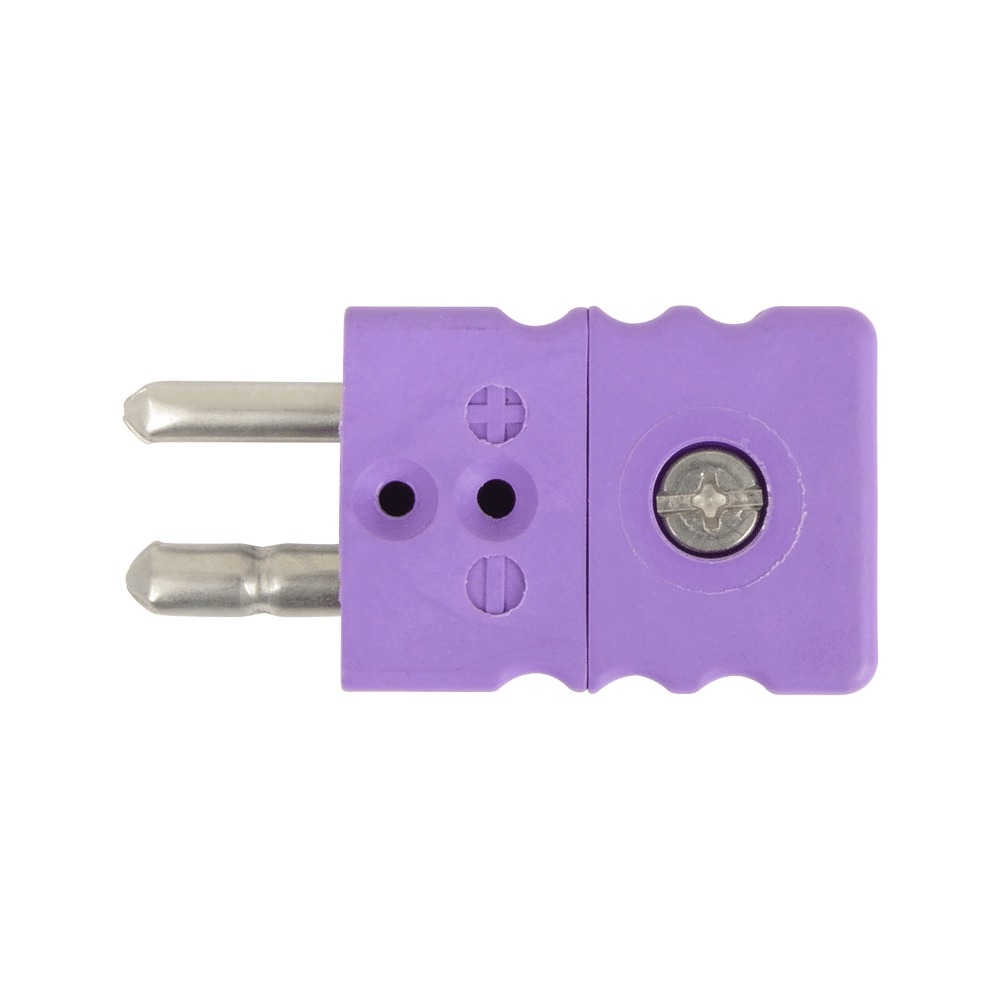

Type E, Purple Plug
Type E, Purple

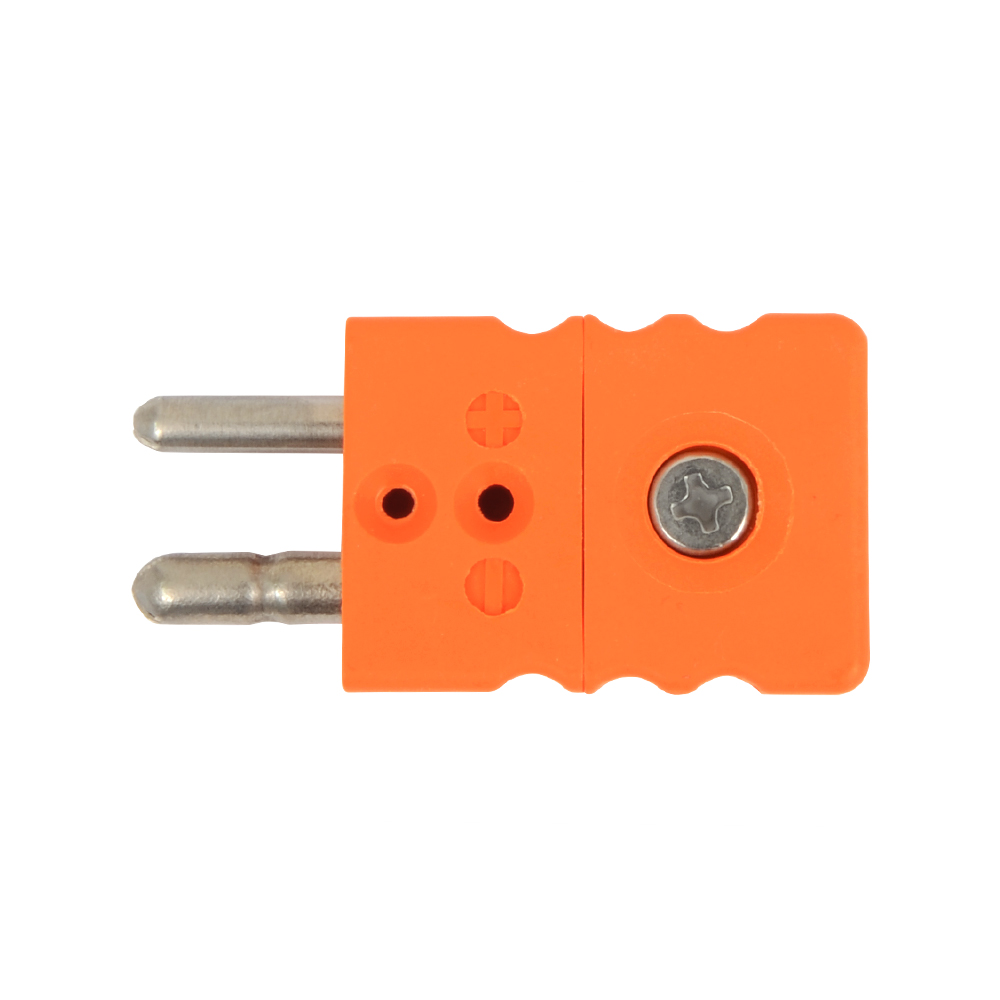

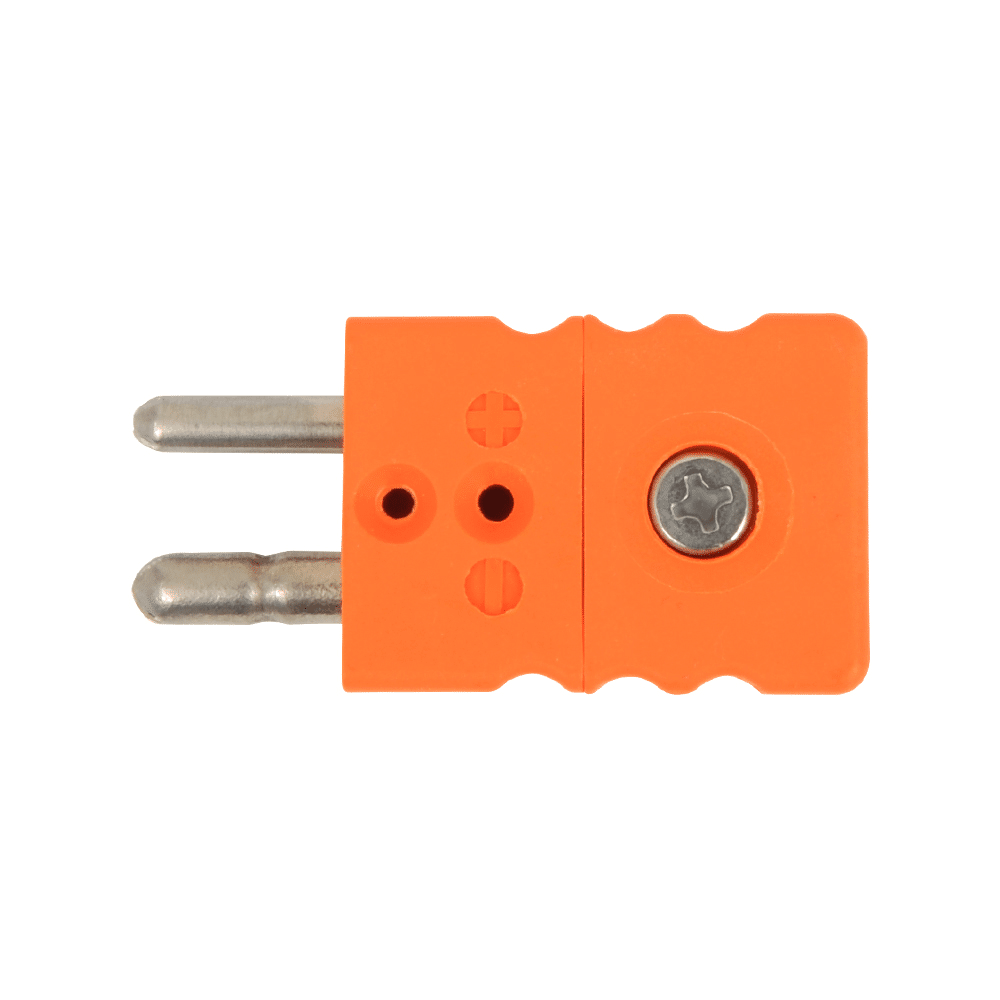

Type N, Orange Plug
Type N, Orange

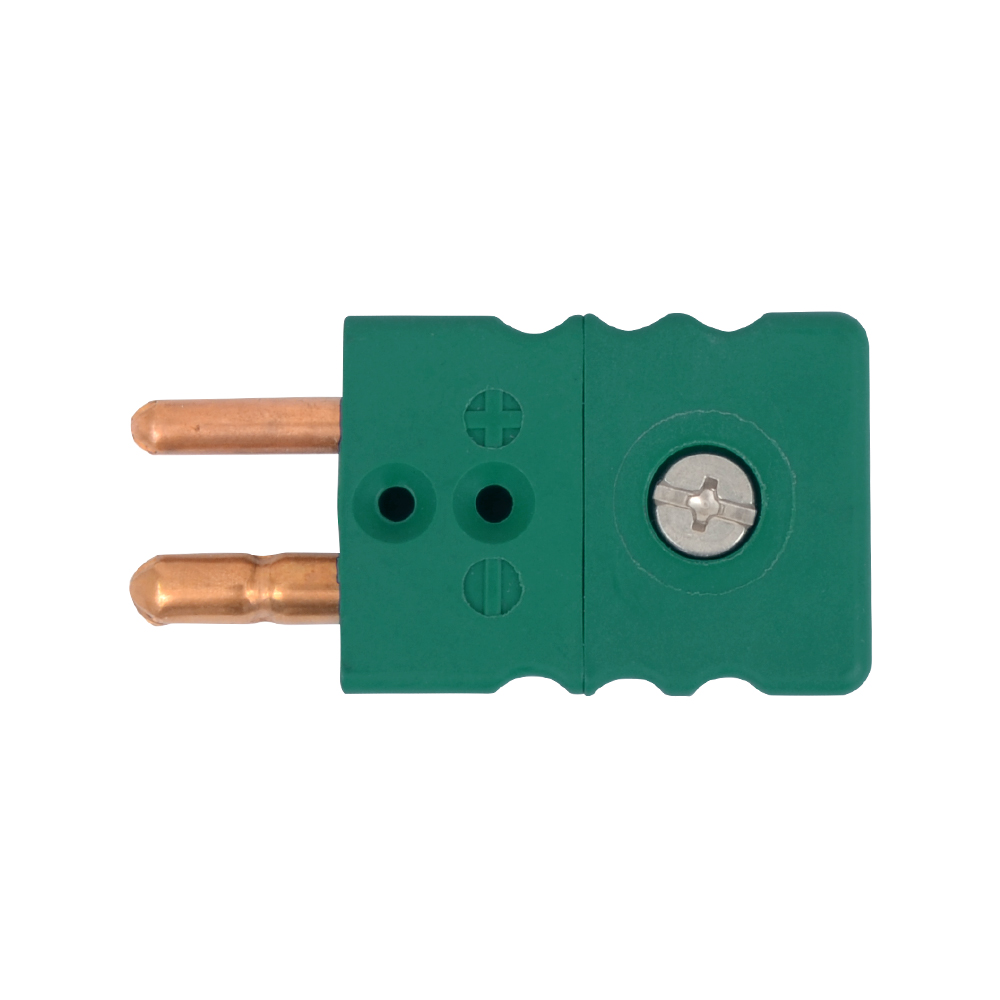

Type R and Type S, Green Plug
Type R and Type S, Green

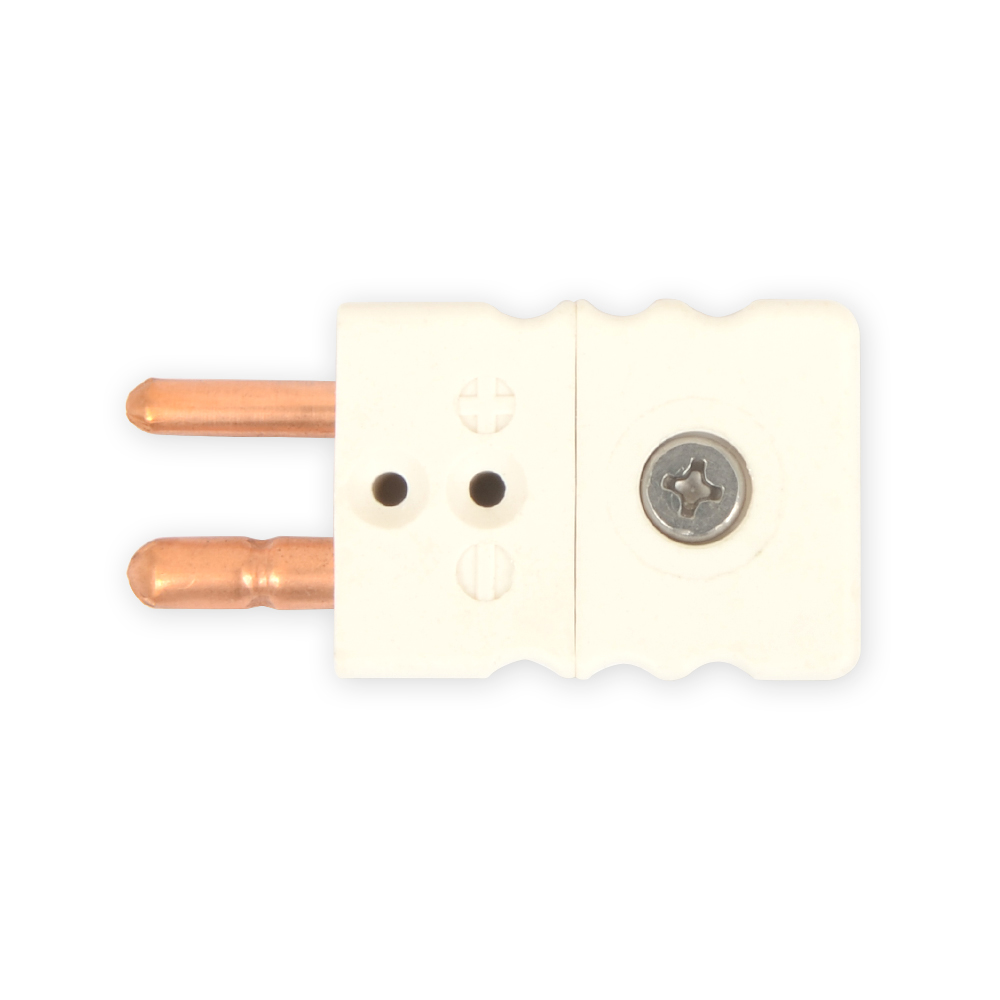

Type U, White Plug
Type U, White
