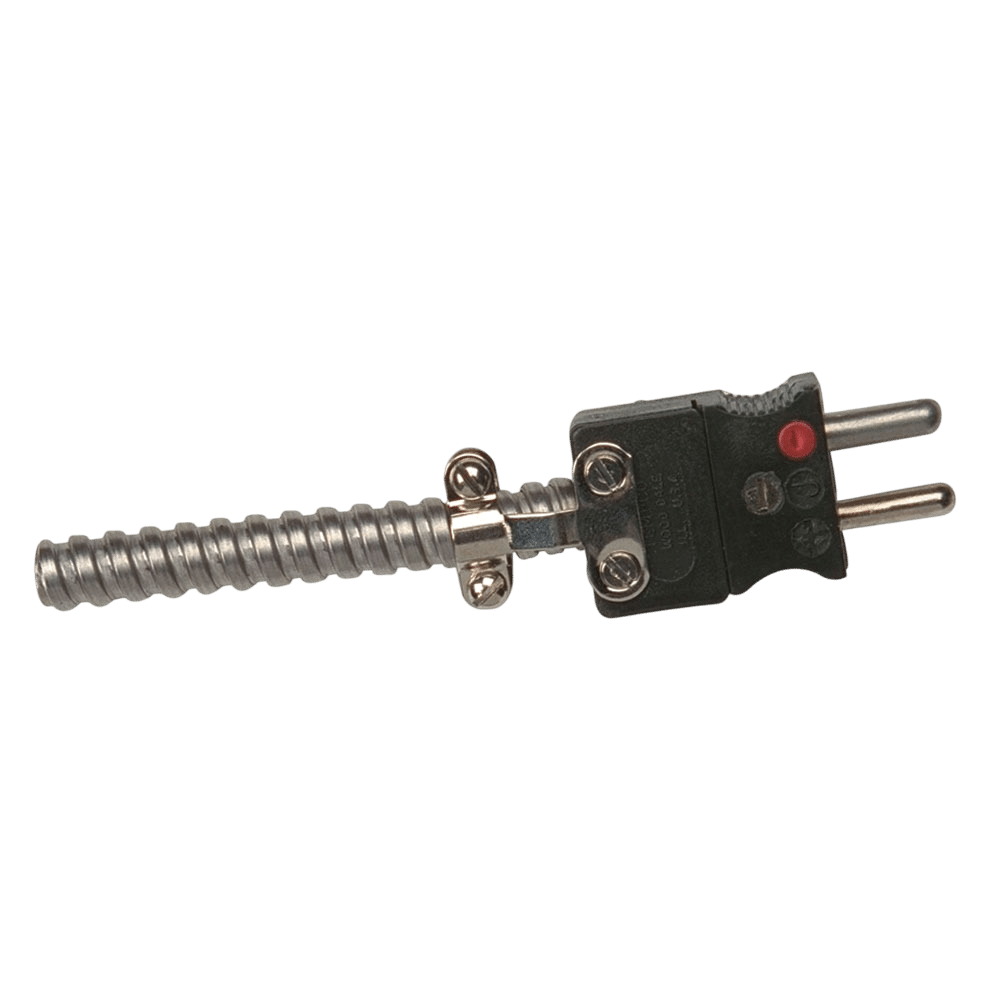

Plug and Jack Accessories

Accessories for standard and miniature plugs and jacks:

  • Cable clamps
  • Grommets
  • Washers
  • Inserts
  • Adapters
  • Boots
  • Brackets
  • Plate Sets



Explore Plug and Jack Accessories Specifications



Cable Clamps, Grommets and Washers

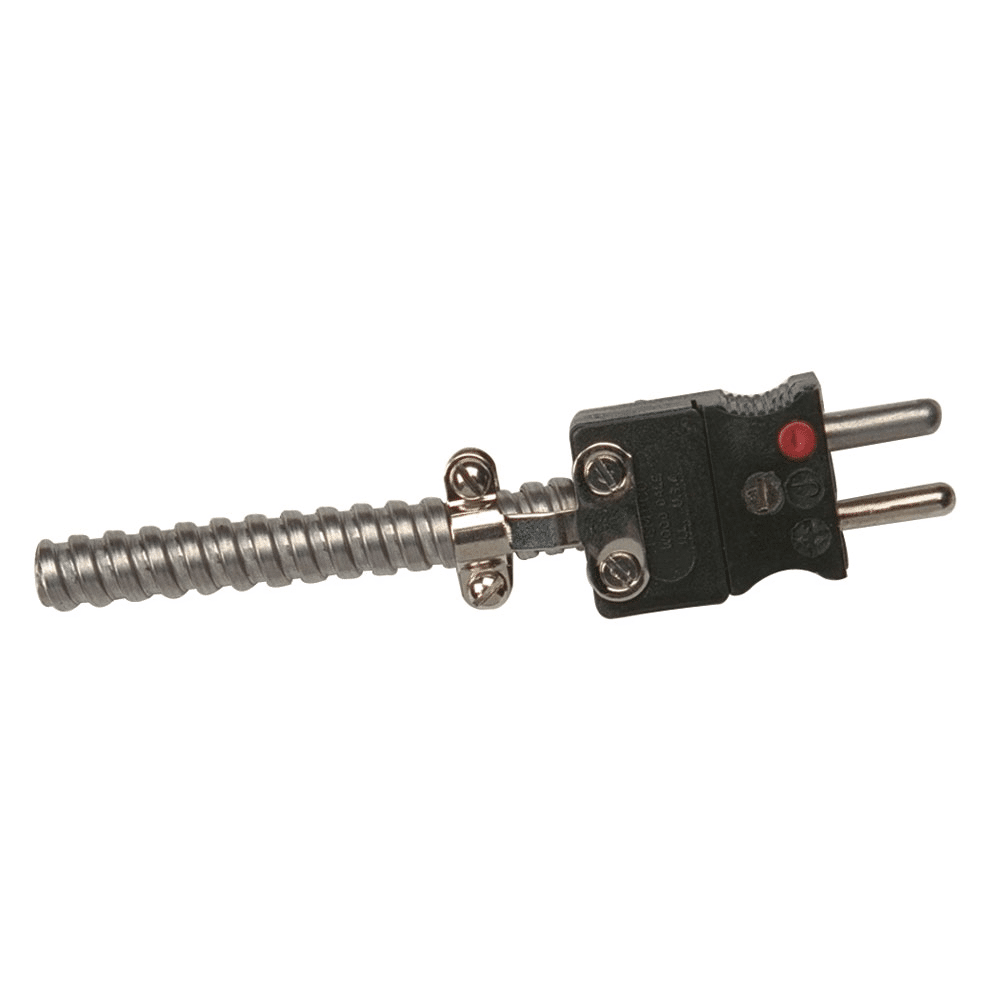

Cable Clamp

Cable Clamp

For 3/8" Diameter sheath or 1/4" armor cable
*Part Number: TCA-107-102

*Part Discontinued.
Please use TCA-107-106 pictured to the right.

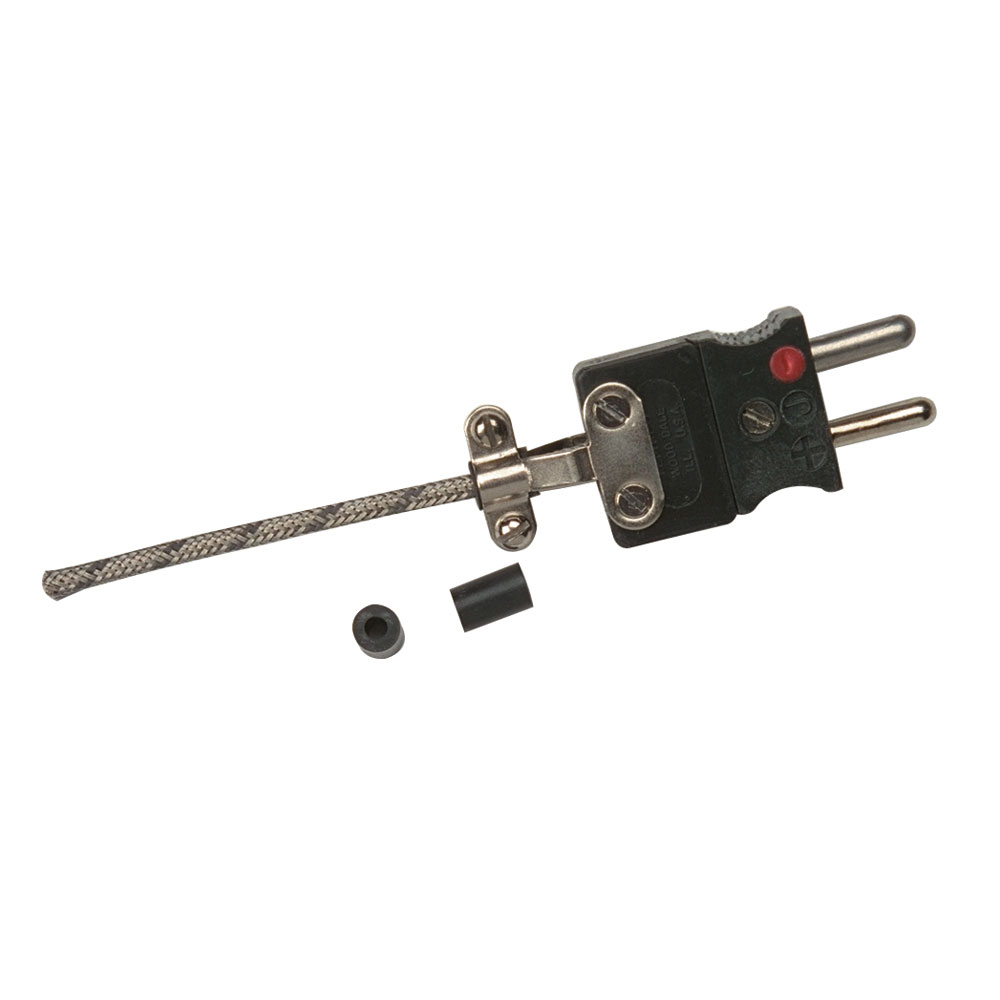

Cable Clamp and Neoprene Grommet

Clamp and Grommet

For Lead Wire or Armor Cable
Cable Clamp Part Number: TCA-107-106
Neoprene Grommet Part Number: TCA-109-102

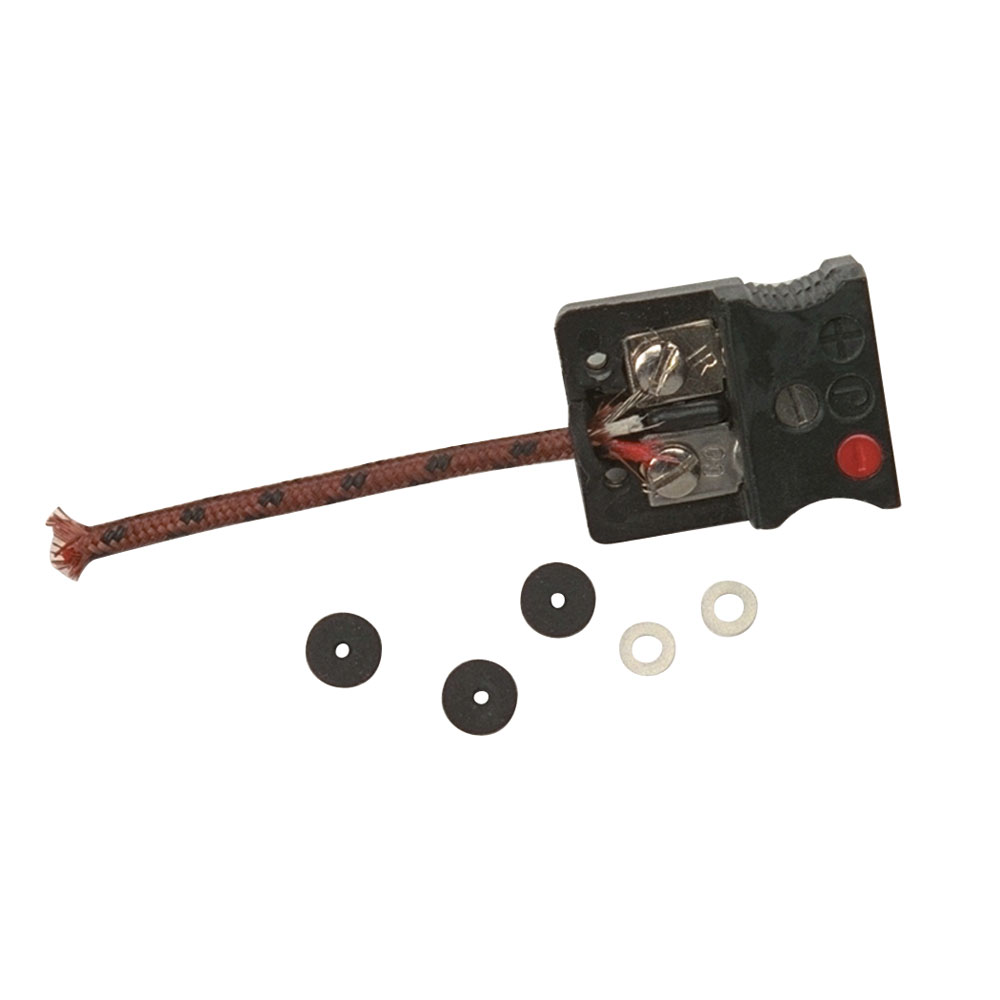

Grommets and Washers

Grommets and Washers

Grommets used in place of Cable Clamp
Part Number: TCA-109-105

Washer protects fine wire from breakage
Part Number: TCA-120-101

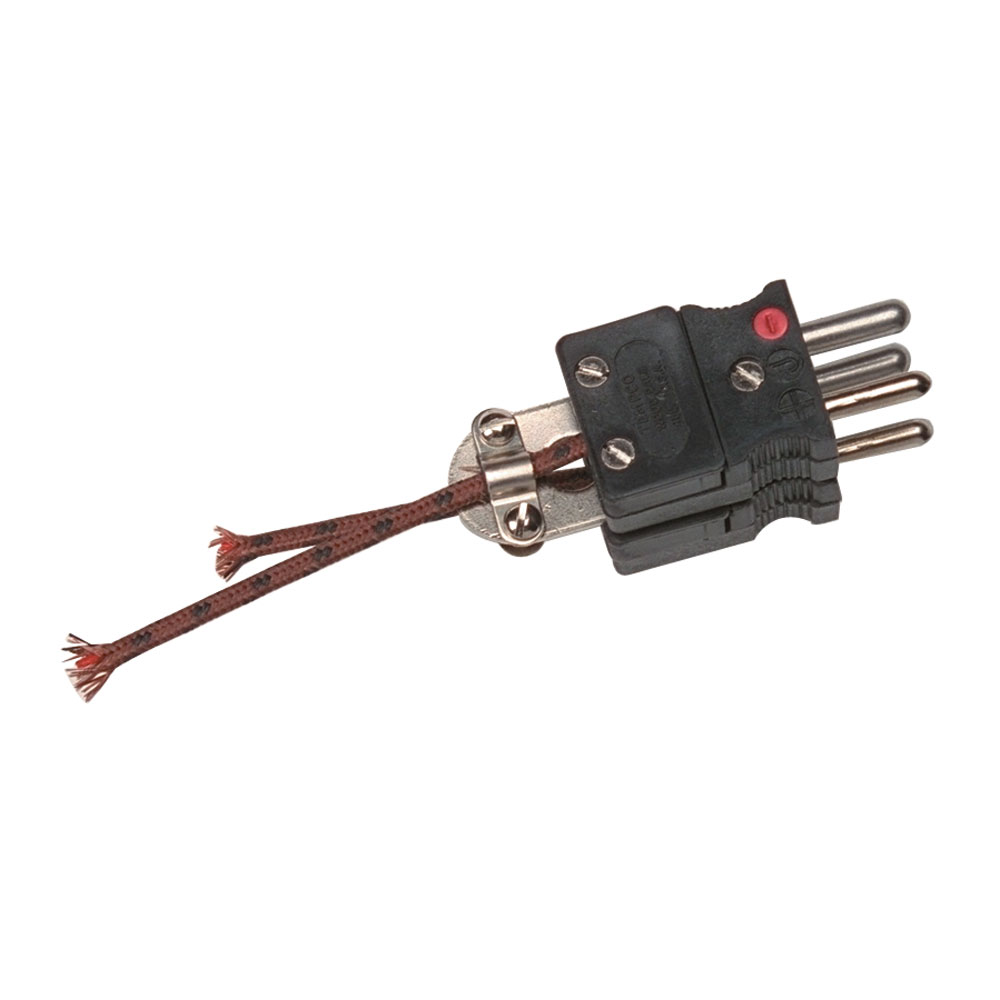

Dual Cable Clamps

Dual Cable Clamps

  • Assemble Standard Connectors into Dual Connectors
  • Accommodate either One or Two Lead-In Cables
  • Use 2-Pin Connectors only

Part Number: TCA-107-103

Cable Clamps and Grommets for Miniature Plugs and Jacks

Cable Clamps and Grommets for Miniature Plugs and Jacks

Cable Clamp (For 2-Pin Miniature)
Part Number: TCA-107-105

Cable Clamp (For 3-Pin Miniature)
Part Number: TCA-107-109

Neoprene Grommet
Part Number: TCA-109-102

Neoprene Wire Entrance Grommets and Nylon Wire Protection Washers

Neoprene Wire Entrance Grommets
Nylon Wire Protection Washers

  • For all Miniature Connectors
  • Grommet is used in place of cable clamp
  • Washer protects fine wire from breakage Grommet

Part Number: TCA-109-104
Washer Part Number: TCA-120-102



Inserts

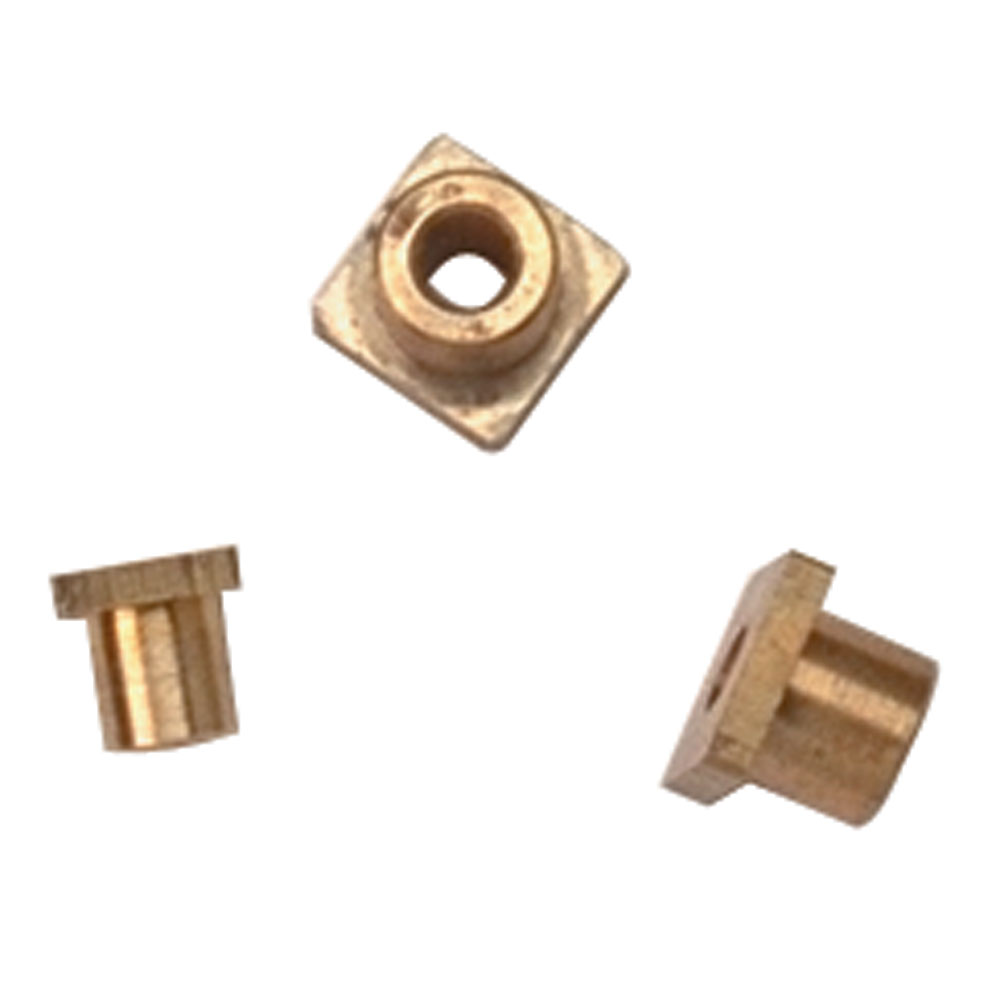

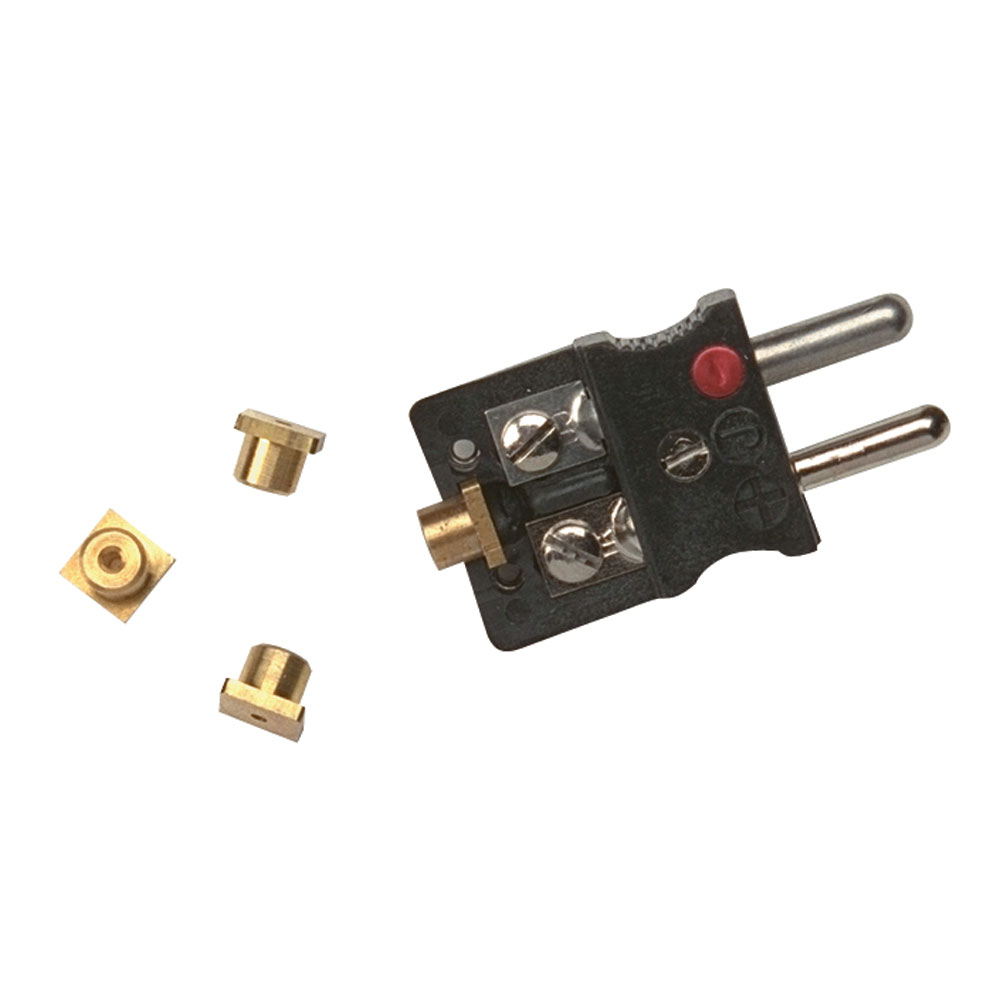

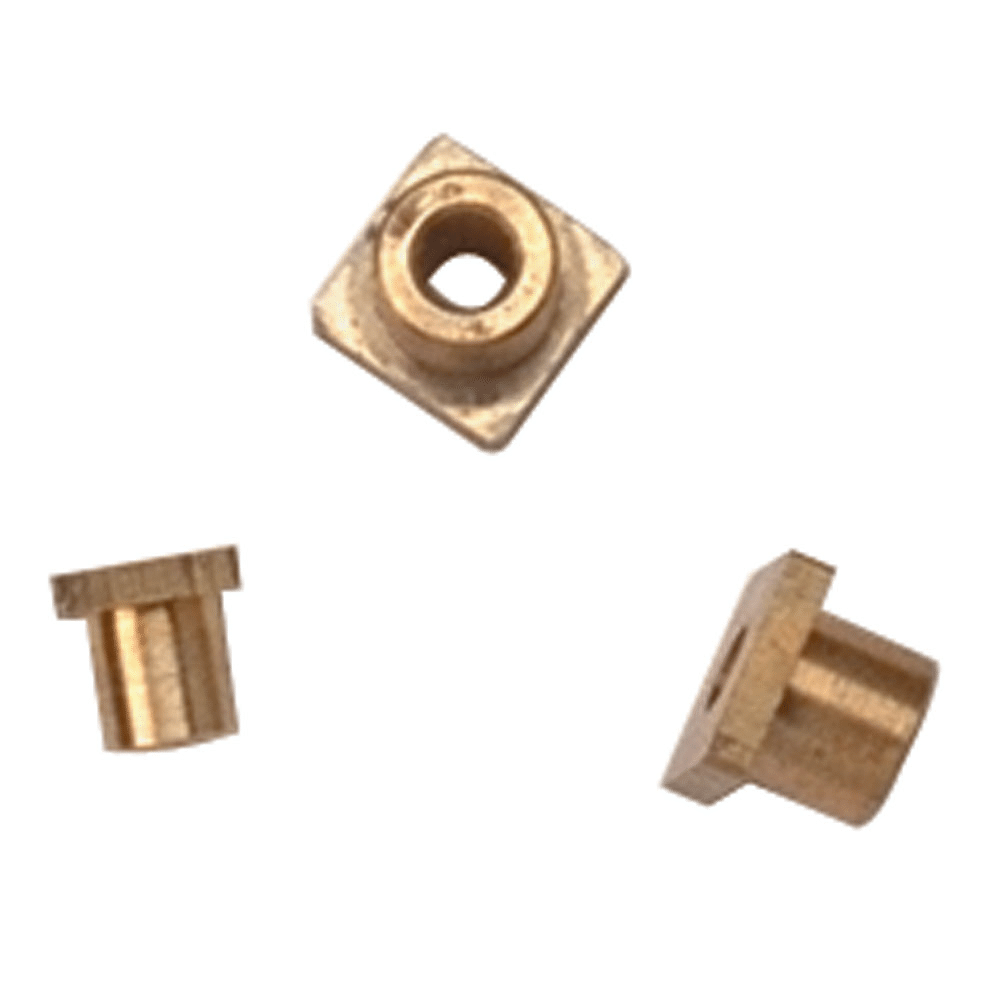

Brass Crimping Inserts

Brass Crimping Inserts

Used primarily with TEMPCO-PAK

Sheath Diameter Part
Number
in mm
Undrilled TCA-112-101
0.020 0.5 TCA-112-102
0.040 1.0 TCA-112-103
0.063 1.6 TCA-112-104
0.125 3.17 TCA-112-105
0.188 4.77 TCA-112-106
0.250 6.35 TCA-112-107
0.118 3.0 TCA-112-108
0.177 4.5 TCA-112-109
0.236 6.0 TCA-112-110

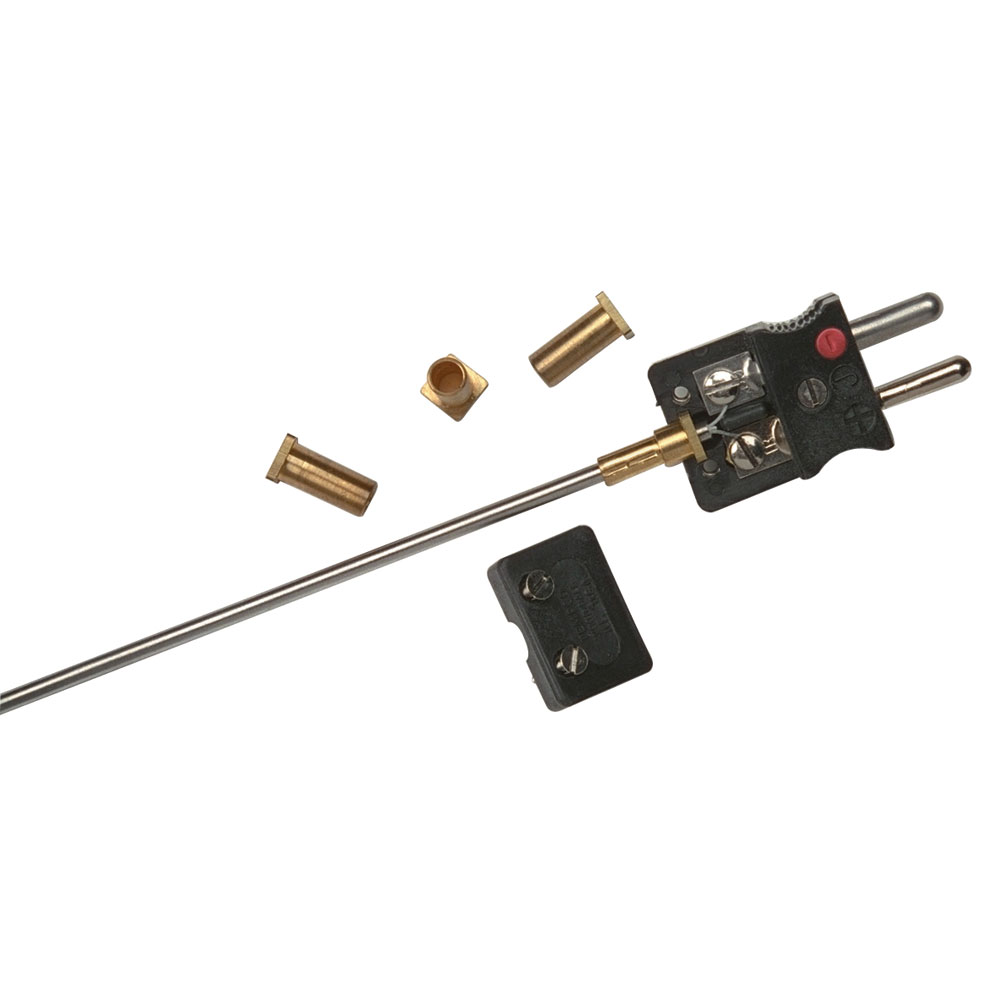

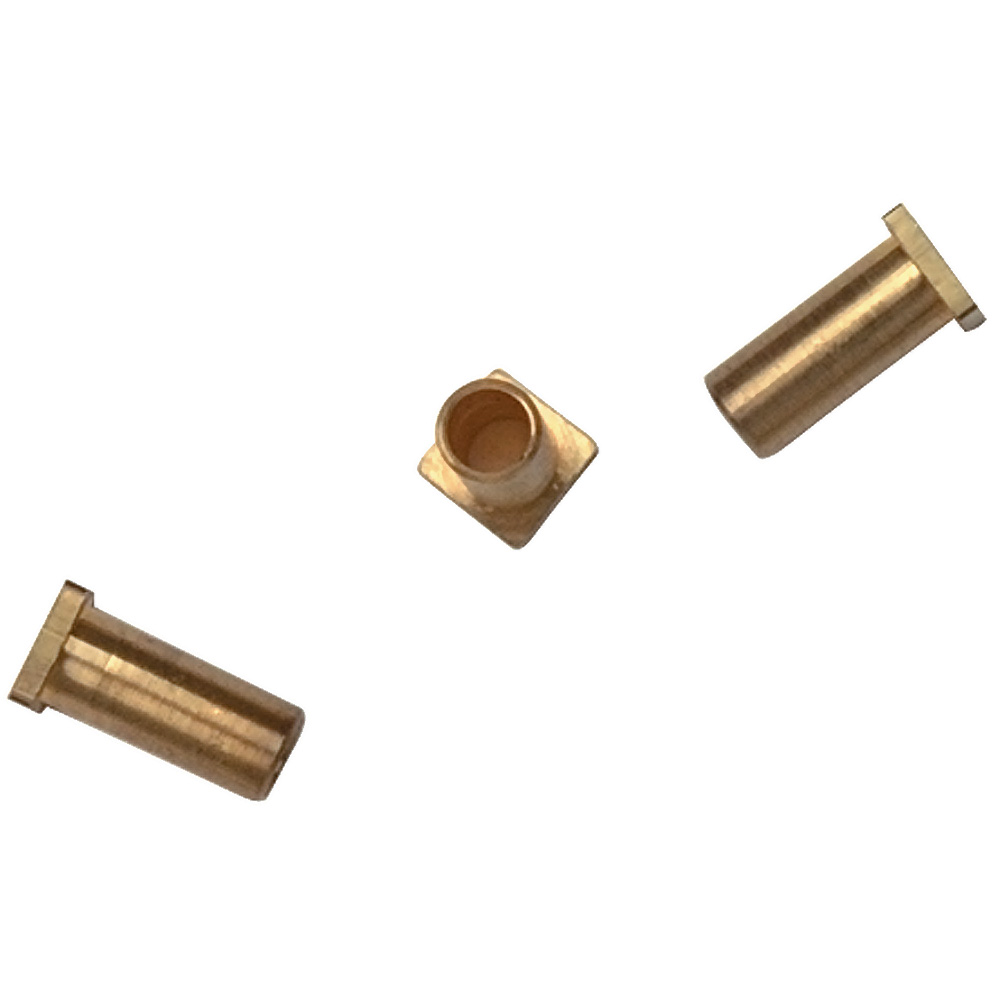

Brass Brazing Inserts

Brass Brazing Inserts

Can be used with Tubing or TEMPCO-PAK

Sheath Diameter Part
Number
in mm
Undrilled TCA-113-101
0.020 0.5 TCA-113-102
0.040 1.0 TCA-113-103
0.063 1.6 TCA-113-104
0.125 3.17 TCA-113-105
0.188 4.77 TCA-113-106
0.250 6.35 TCA-113-107
0.236 6.0 TCA-113-108





Brass Crimping/Brazing Inserts

Crimping and Inserts

Brass Crimping/Brazing Inserts for Ultra-Temp Plugs & Jacks



Sheath
Diameter
Part
Number
0.040" TCA-112-119
0.062" TCA-112-117
0.125" TCA-112-118
0.188" TCA-112-120
0.250" TCA-112-121







Crimping Inserts

Crimping Inserts for Miniature Plugs and Jacks

  • For all Miniature Connectors
  • Used primarily with TEMPCO-PAK
Sheath Diameter Part
Number
(in) (mm)
Undrilled TCA-112-111
0.02 0.50 TCA-112-112
0.04 1 TCA-112-113
0.063 1.6 TCA-112-114
0.125 3.17 TCA-112-115
0.188 4.77 TCA-112-116







Brazing Inserts for Miniature Plugs and Jacks

Brazing Inserts for Miniature Plugs and Jacks

  • For all Miniature Connectors
  • Can be used with Tubing or TEMPCO-PAK
Sheath Diameter Part
Number
(in) (mm)
Undrilled TCA-113-116
0.02 0.50 TCA-113-117
0.04 1 TCA-113-118
0.063 1.6 TCA-113-119
0.125 3.17 TCA-113-120
0.188 4.77 TCA-113-121


Adapters

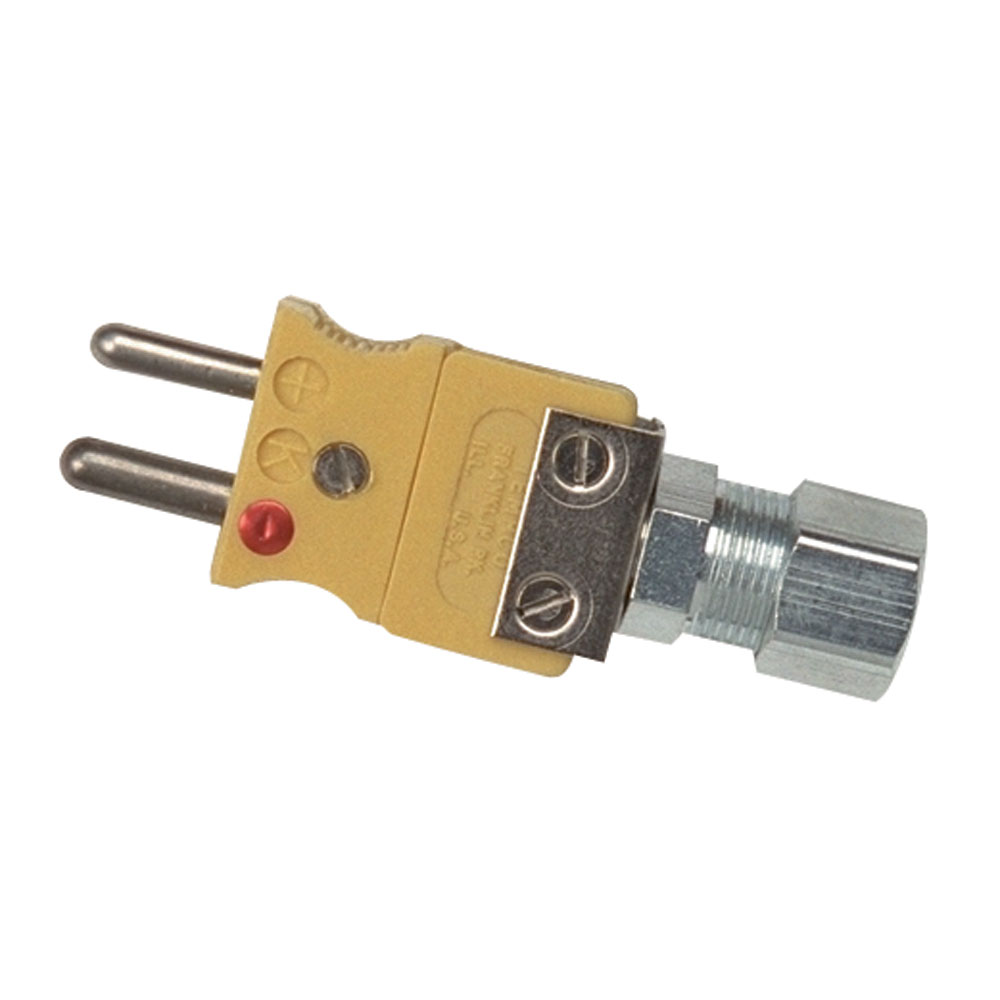

Standard Tube Adapters

Standard Tube Adapters
Affords higher degree of stability to Plug or Jack

Sheath
Diameter
Part
Number
0.040" TCA-103-106
0.063" TCA-103-102
0.125" TCA-103-101
0.188" TCA-103-103
0.250" TCA-103-104
0.313" TCA-103-107
0.375" TCA-103-108

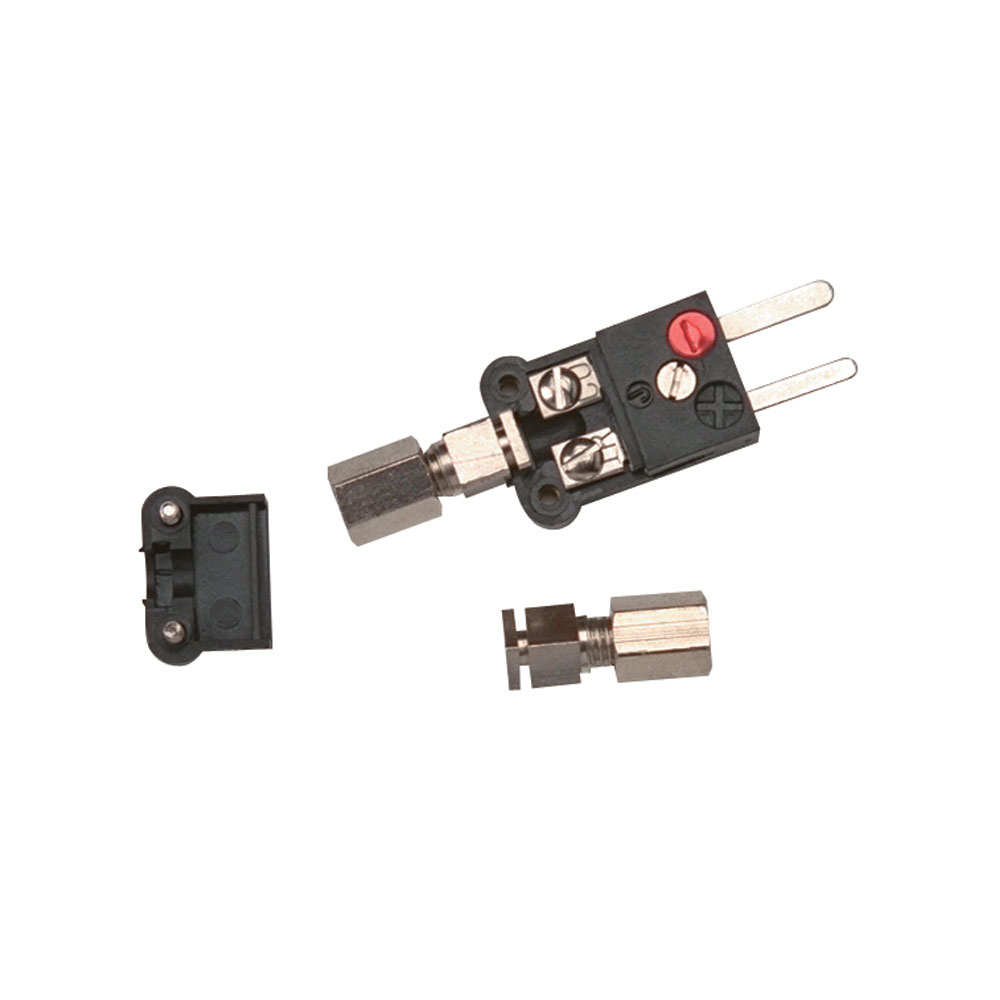

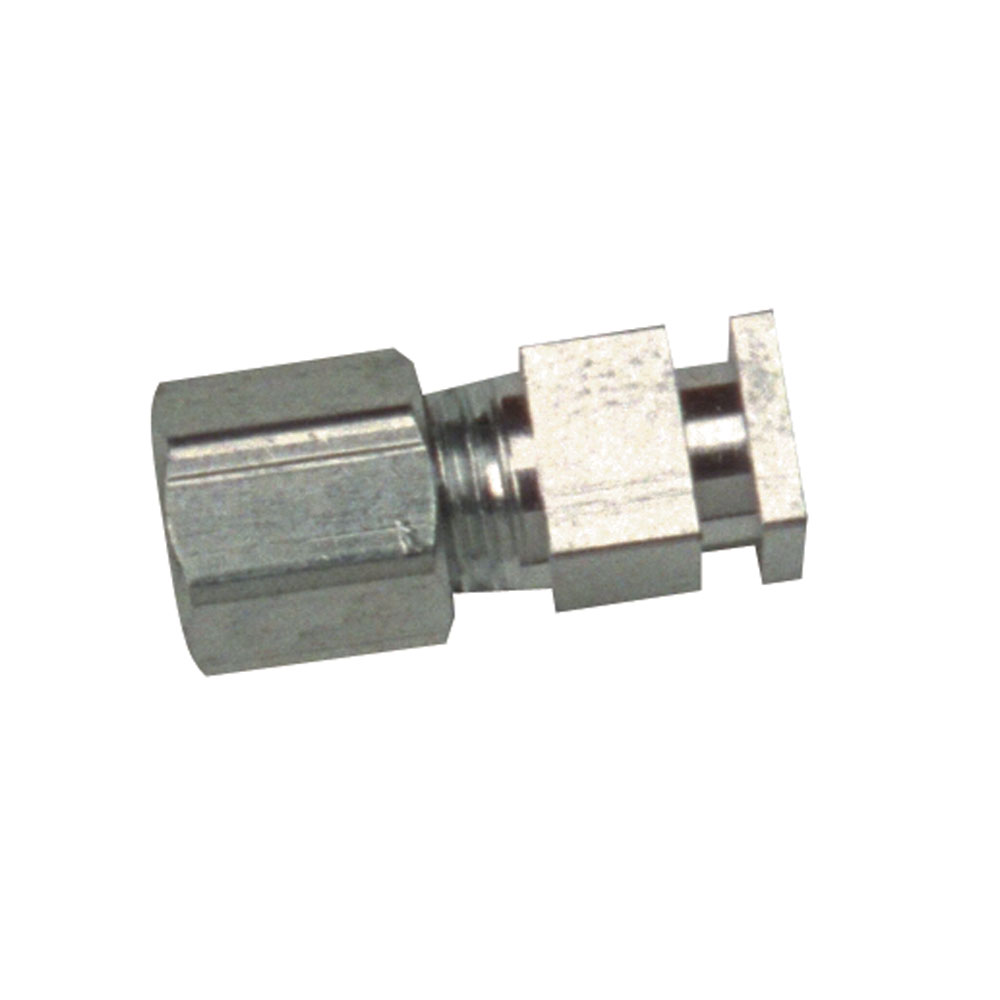

insert Tube Adapter

Insert Tube Adapter

Secured by slots in body of the Plug or Jack (2-Pin or 3-Pin)

Sheath
Diameter
Part
Number
0.040" TCA-103-109
0.063" TCA-103-110
0.125" TCA-103-111

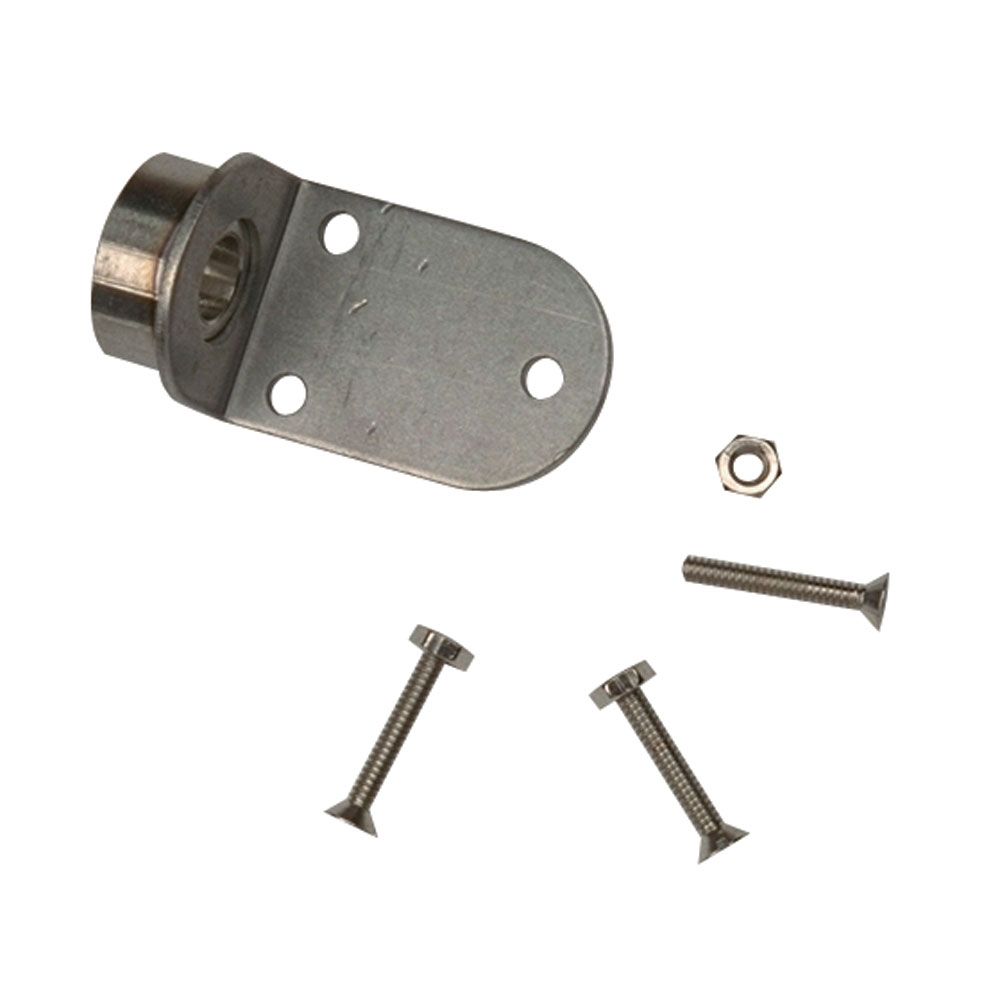

Stainless Steel Spool-Type Brazing Adapters

Stainless Steel Spool-Type Brazing Adapters

  • Provides maximum rigidity to Plug or Jack
  • For 2-Pin connectors only
Sheath
Diameter
Part
Number
Undrilled TCA-113-109
0.063" TCA-113-110
0.125" TCA-113-111
0.188" TCA-113-112
0.250" TCA-113-113
0.313" TCA-113-114
0.375" TCA-113-115

Dual Tube Adapters

Dual Tube Adapters

  • Assemble Standard Connectors into Dual Connectors
  • For adjacent TEMPCO-PAK
  • Has Brass Ferrule
  • Use 2-Pin Connectors only
Sheath
Diameter
Part
Number
0.063" TCA-103-112
0.125" TCA-103-113
0.188" TCA-103-114
0.250" TCA-103-115
0.313" TCA-103-116
0.375" TCA-103-117

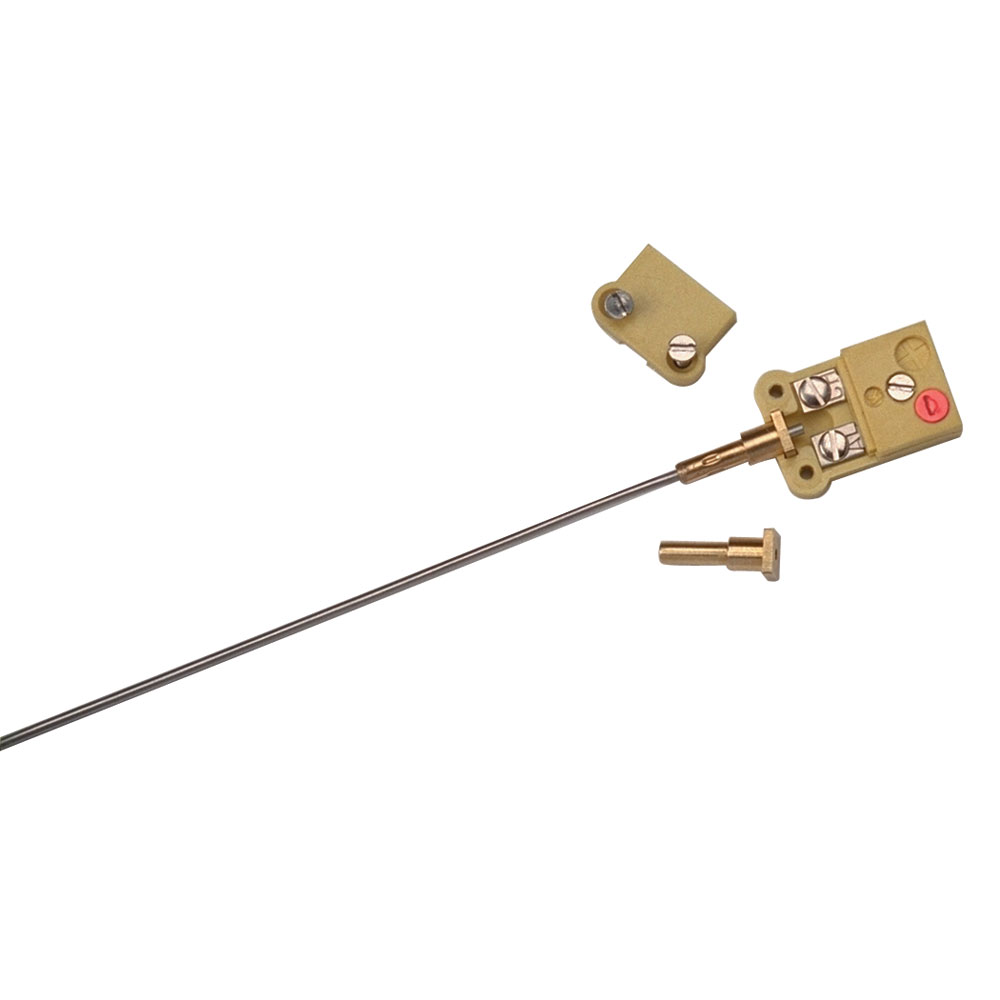

Mini Insert Tube Adapter

Mini Insert Tube Adapter

  • Secured by slots in body of the Plug or Jack (2-pin or 3-Pin)
  • Compression Fitting has Brass Ferrules
  • Can be used with TEMPCO-PAK or Tubing
  • For all Miniature Connectors only
Sheath Diameter Part
Number
(in) (mm)
0.04 1 TCA-103-118
0.063 1.6 TCA-103-119
0.125 3.17 TCA-103-120


Additional Accessories

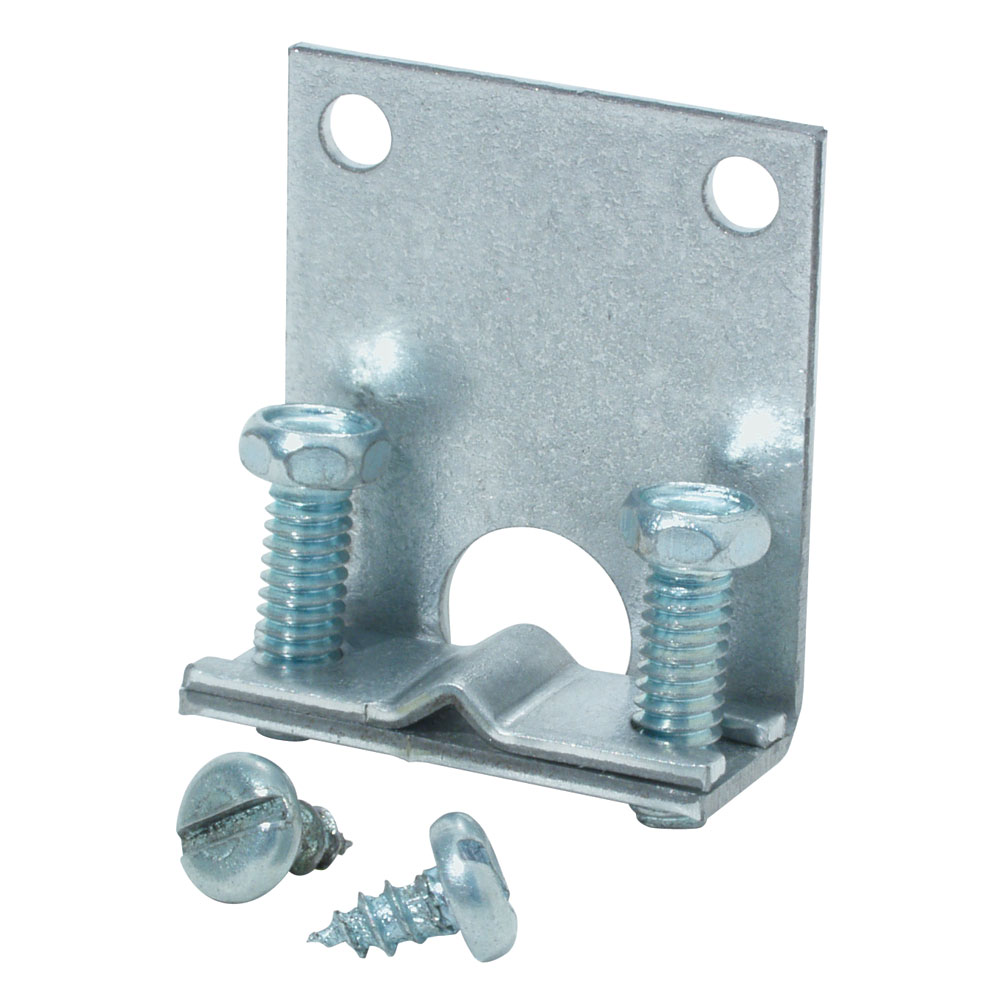

Thermocouple Bracket

Thermocouple Bracket

  • Used to mount T/C Probes on Panel or Oven Walls
  • Supplied with two #6 Self-Tapping Screws

Part Number: SMPR-1062

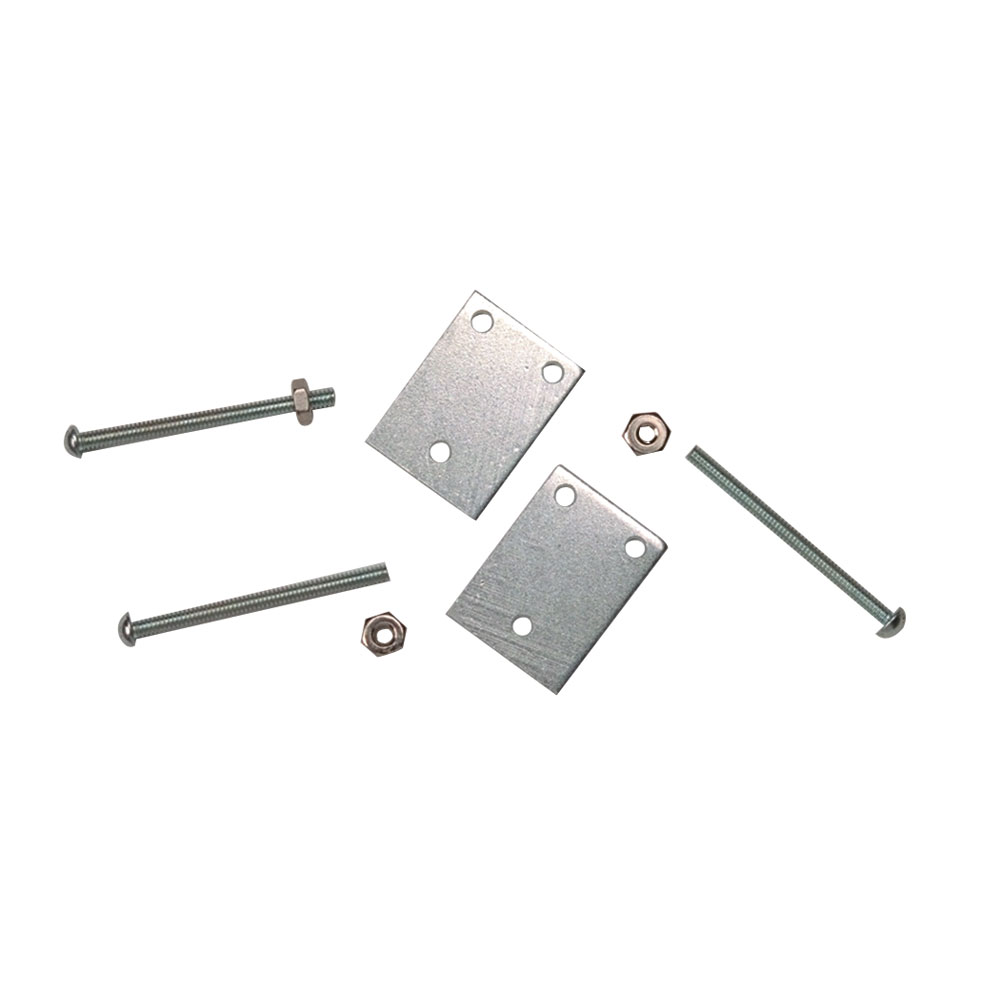

Filler Plate Set

Filler Plate Set

  • When combined with Dual Tube Adapter or Dual Cable Clamp, the Filler Plate Set provides the 3/4" pin spacing of a single Duplex Connector.

Part Number: TCA-107-104

Neoprene Boot for Miniature Plug and Jack

Neoprene Boot for Miniature Plug and Jack

  • Made of Flexible Neoprene
  • Sized to cover miniature connectors even with accessories (such as Cable Clamps and Tube Adapters)
  • 3/32" Wire Entrance
  • Order 2 per Assembly
  • For 2-Pin Connections only

Part Number: TCA-121-102
