Thermocouple Insulators

 PRODUCTS  TEMPORARILY   UNAVAILABLE   FOR   PURCHASE

Depending on properties required available as oval or round and in several materials:

Explore Thermocouple Insulators Specifications


Oval - Double Hold Cordierite Thermocouple Insulator

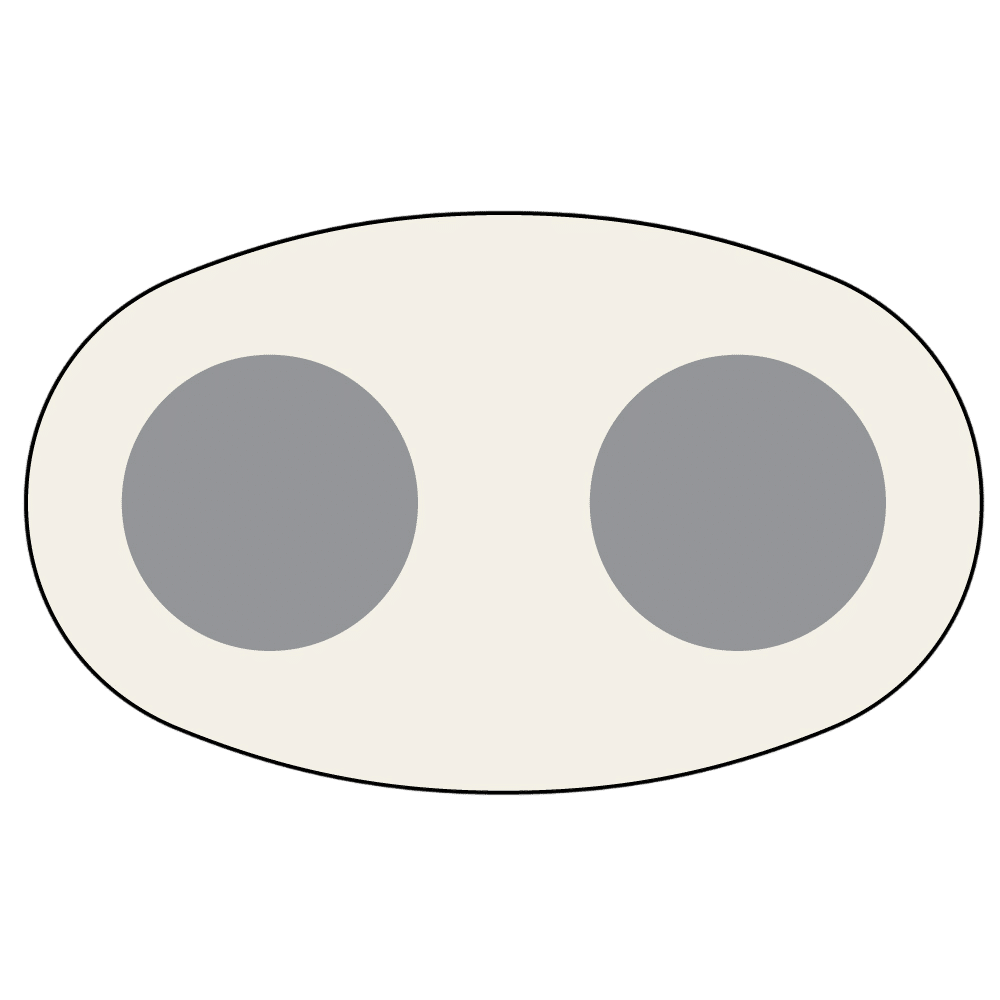

Oval, Double Hole TC Insulator

Maximum Temperature: 2900°F (1593°C)

Part
Number
Width
(in)
Thickness
(in)
Bore
(in)
Max. B & S
Gauge Size
Length
(in)
COR-120-105 0.437 0.25 0.156  7 1
COR-120-104 0.375 0.217 0.11 10 1
COR-120-106 0.172 0.118 0.042 19 1

Round - Single Hole Mullite Thermocouple Insulator

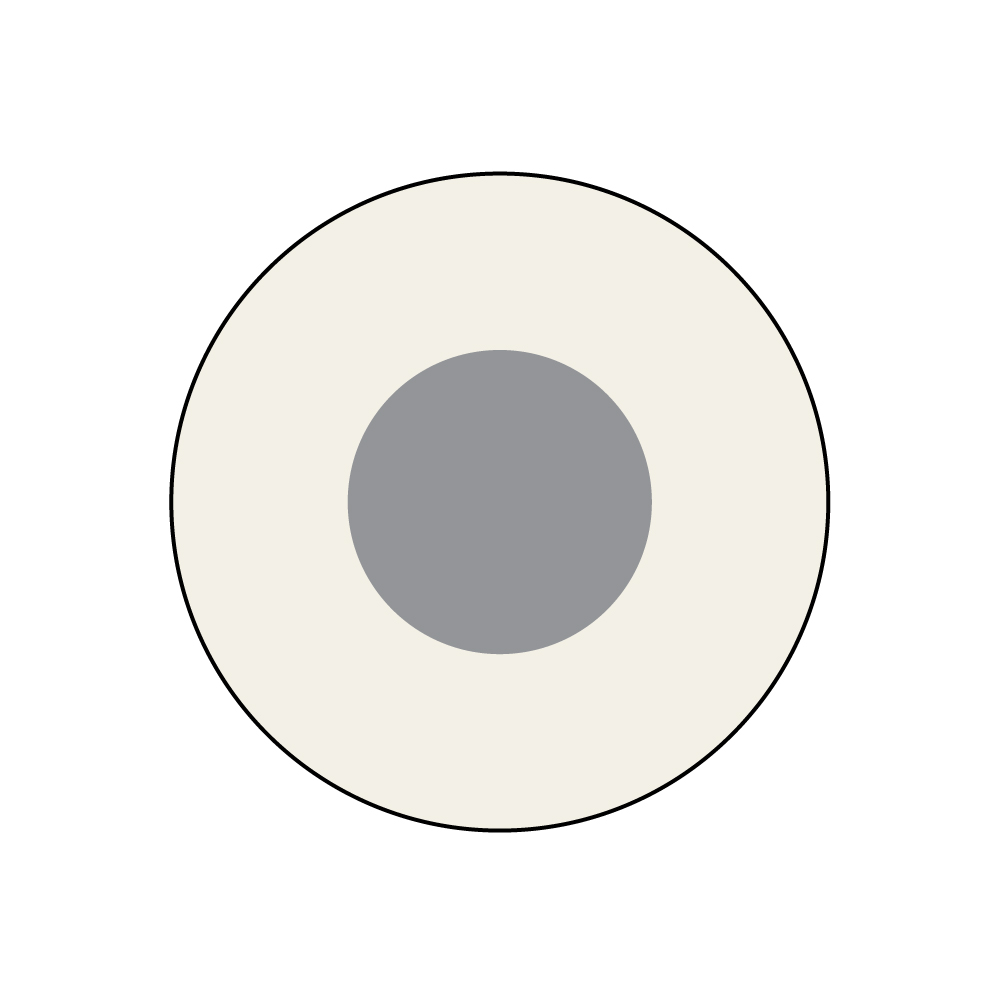

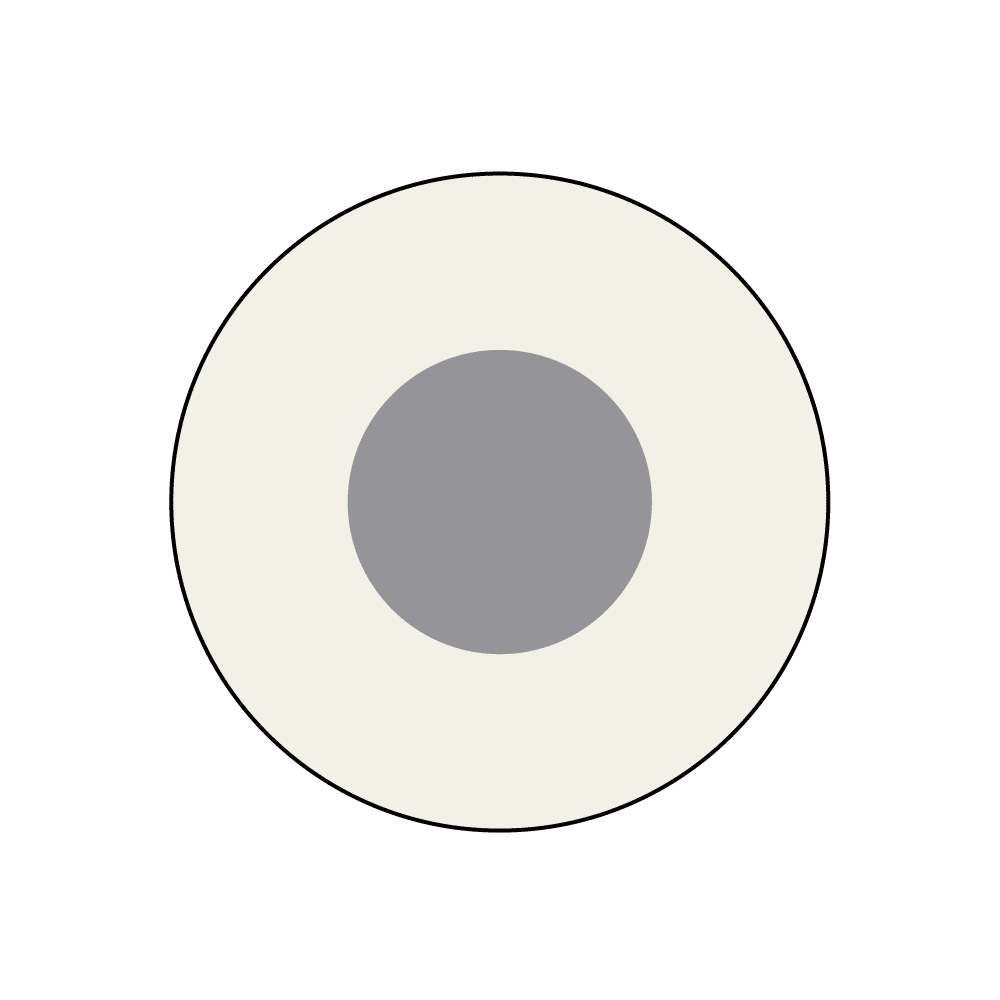

Round, Single Hole TC Insulator

Maximum Temperature: 2900°F (1593°C)

Part Number Diameter
(in)
Bore
(in)
Max. B & S
Gauge Size
Length
(in)
COR-123-101 0.062 0.031 22 12
COR-123-102 0.125 0.062 16 12
COR-123-103 0.187 0.094 12 12

Round - Double Hole Mullite Thermocouple Insulator

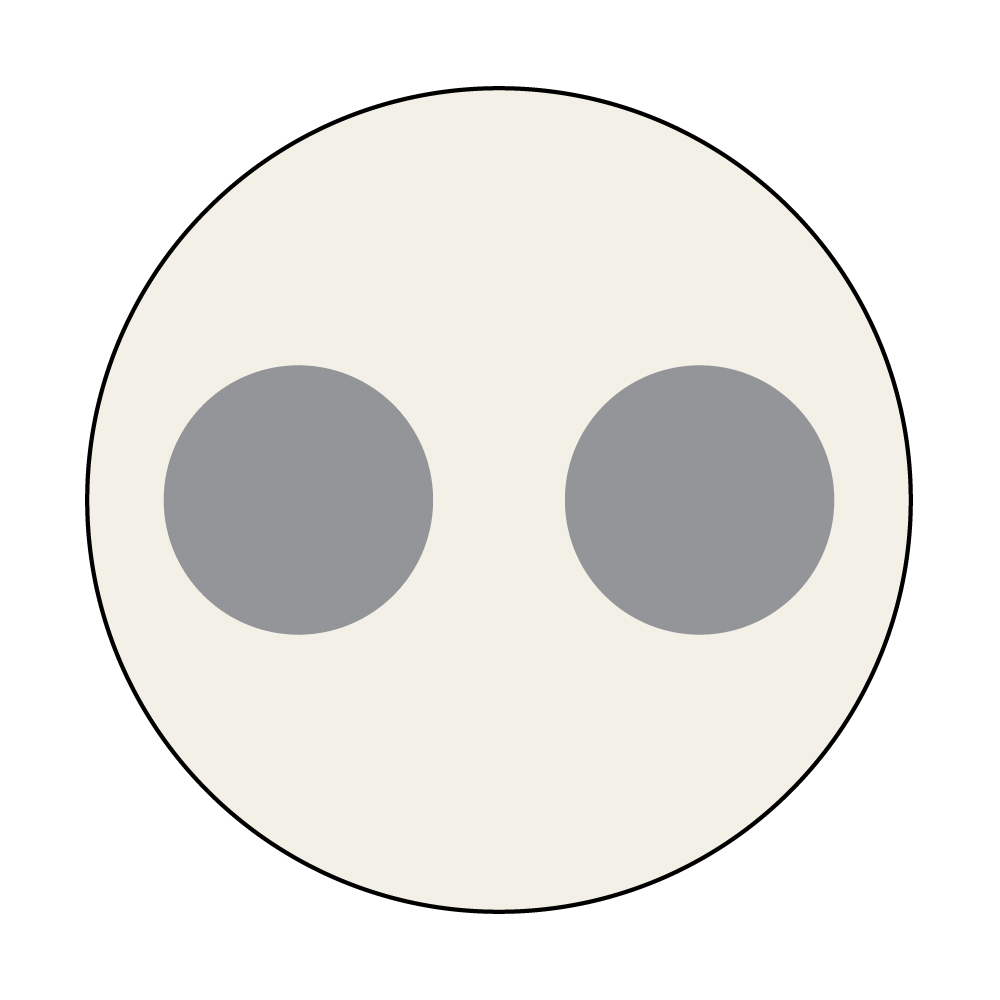

Round, Double Hole TC Insulator

Maximum Temperature: 2400° (1315°C)

Part Number Diameter
(in)
Bore
(in)
Max. B & S
Gauge Size
Length
(in)
COR-125-101 0.156 0.046 18 1
COR-125-102 0.156 0.046 18 3
COR-126-101 0.25 0.085 13 1
COR-126-102 0.25 0.085 13 3
*COR-127-101 0.437 0.156  7 1
*COR-127-102 0.437 0.156  7 3

Round - Double Hole Alumina Thermocouple Insulator

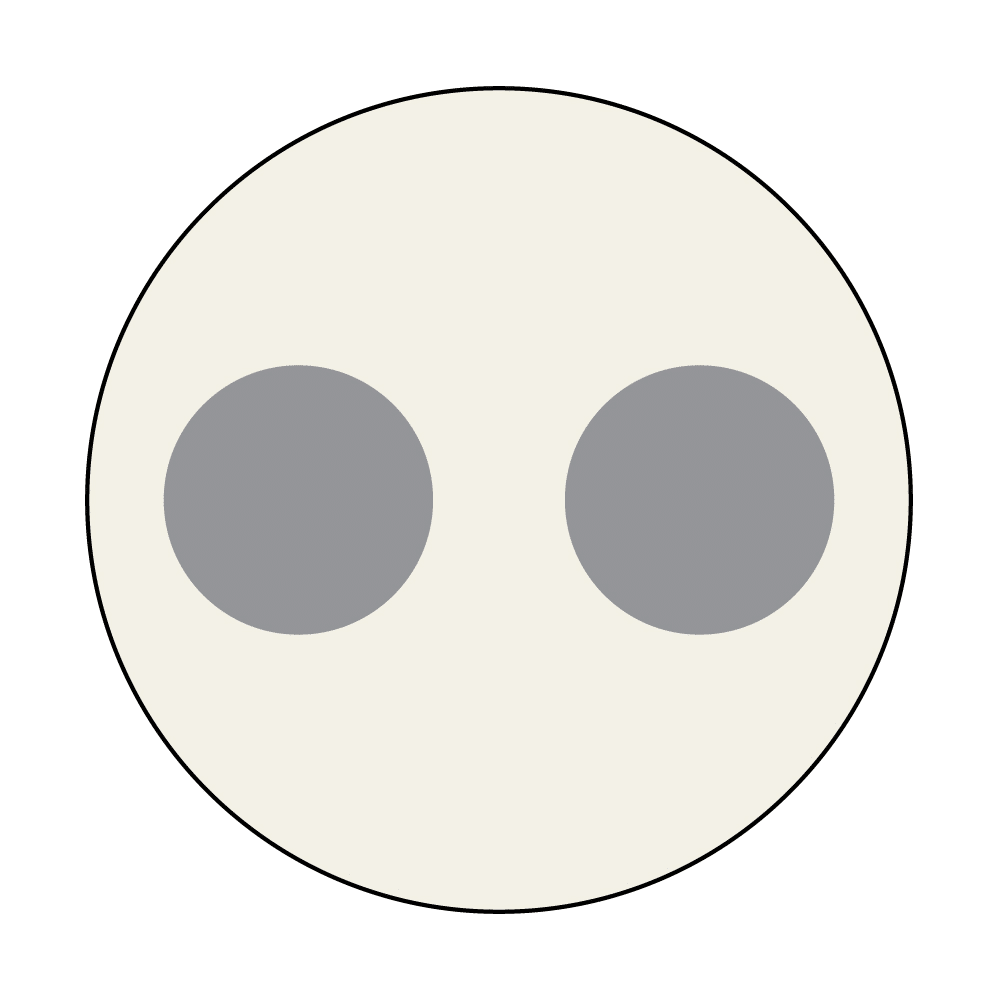

Round, Double Hole Thermocouple Insulator

Maximum Temperature: 3300°F (1815°C)

Part Number Diameter
(in)
Bore
(in)
Max. B & S
Gauge Size
Length
(in)
COR-124-101 0.125 0.031 22  1
COR-124-102 0.125 0.031 22  2
COR-124-103 0.125 0.031 22  3
COR-124-104 0.125 0.031 22 12
COR-124-105 0.062 0.016 28 12
COR-124-106 0.187 0.04 20 12

Round - Four Hole Alumina Thermocouple Insulator

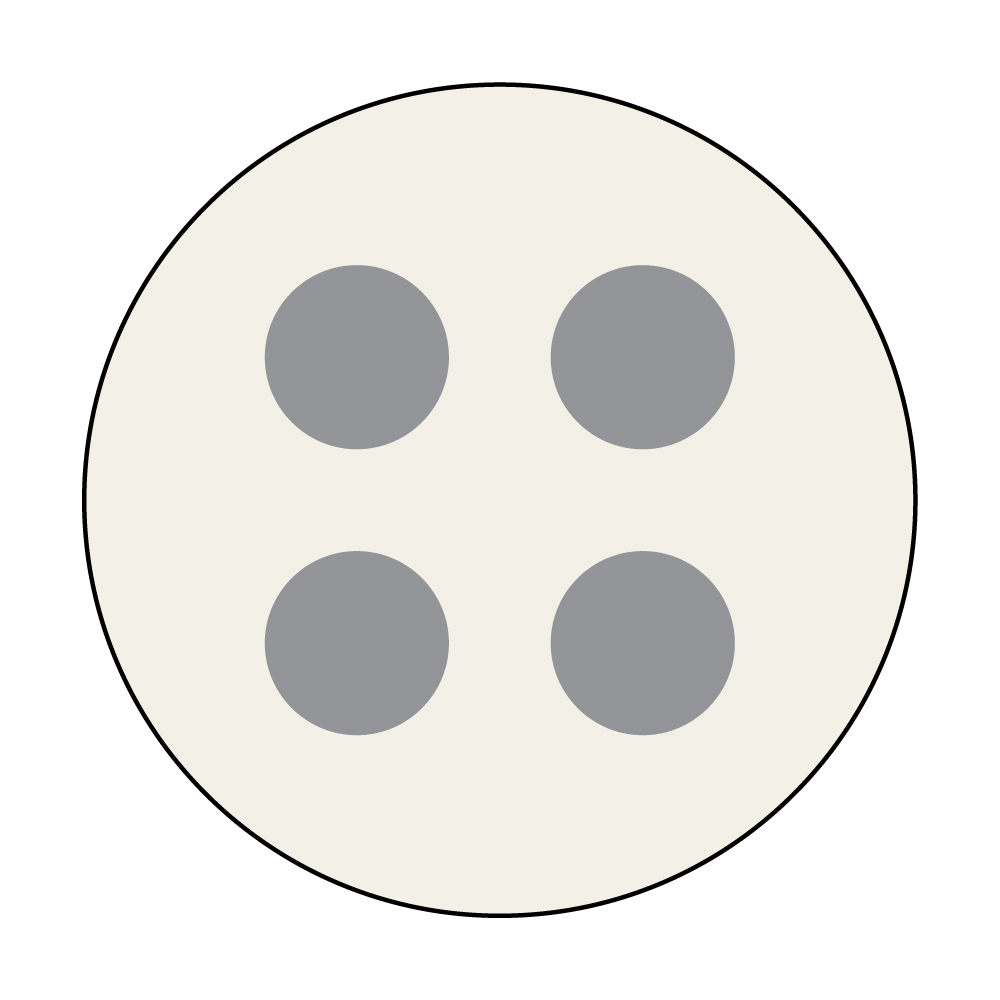

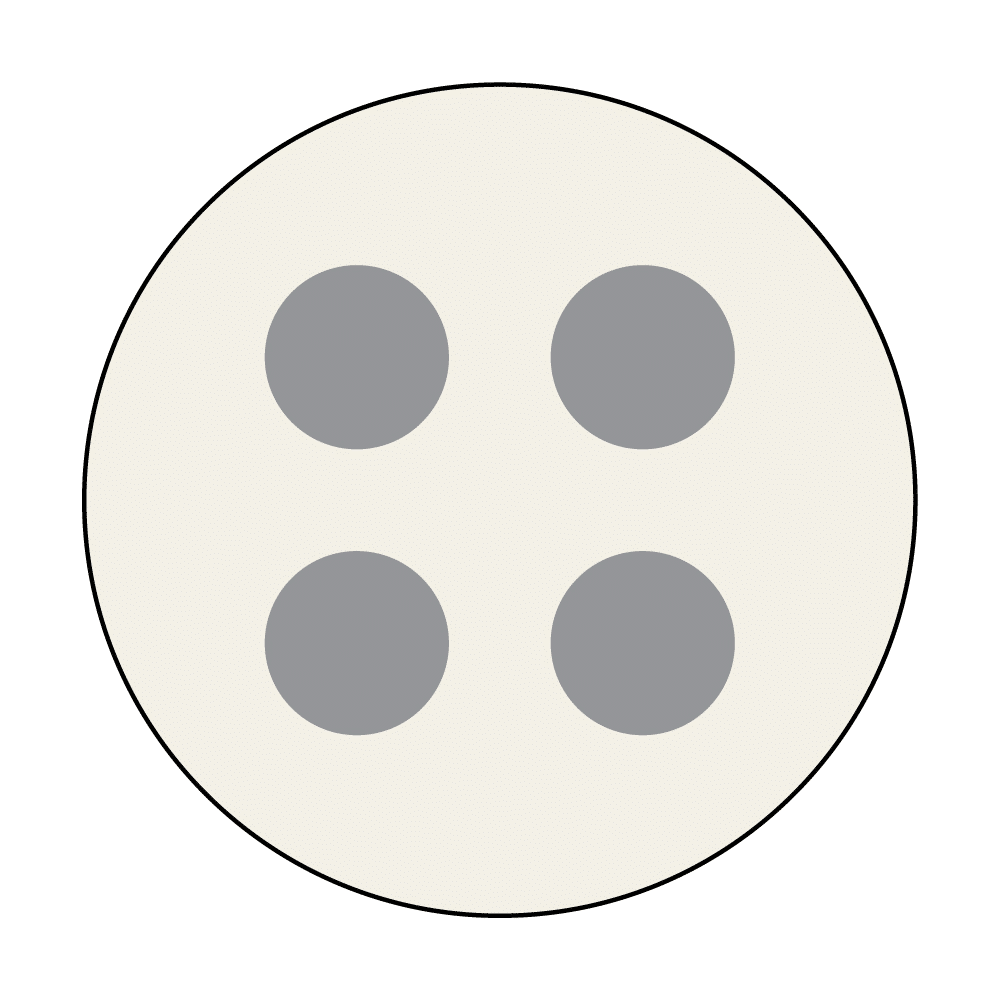

Round, Four Hole Thermocouple Insulator

Maximum Temperature: 3300°F (1815°C)

Part Number Diameter
(in)
Bore
(in)
Max. B & S
Gauge Size
Length
(in)
COR-128-101 0.187 0.047 18 1
COR-128-102 0.312 0.078 13 1

Fish Spine - Steatite Ball and Socket Thermocouple Insulators

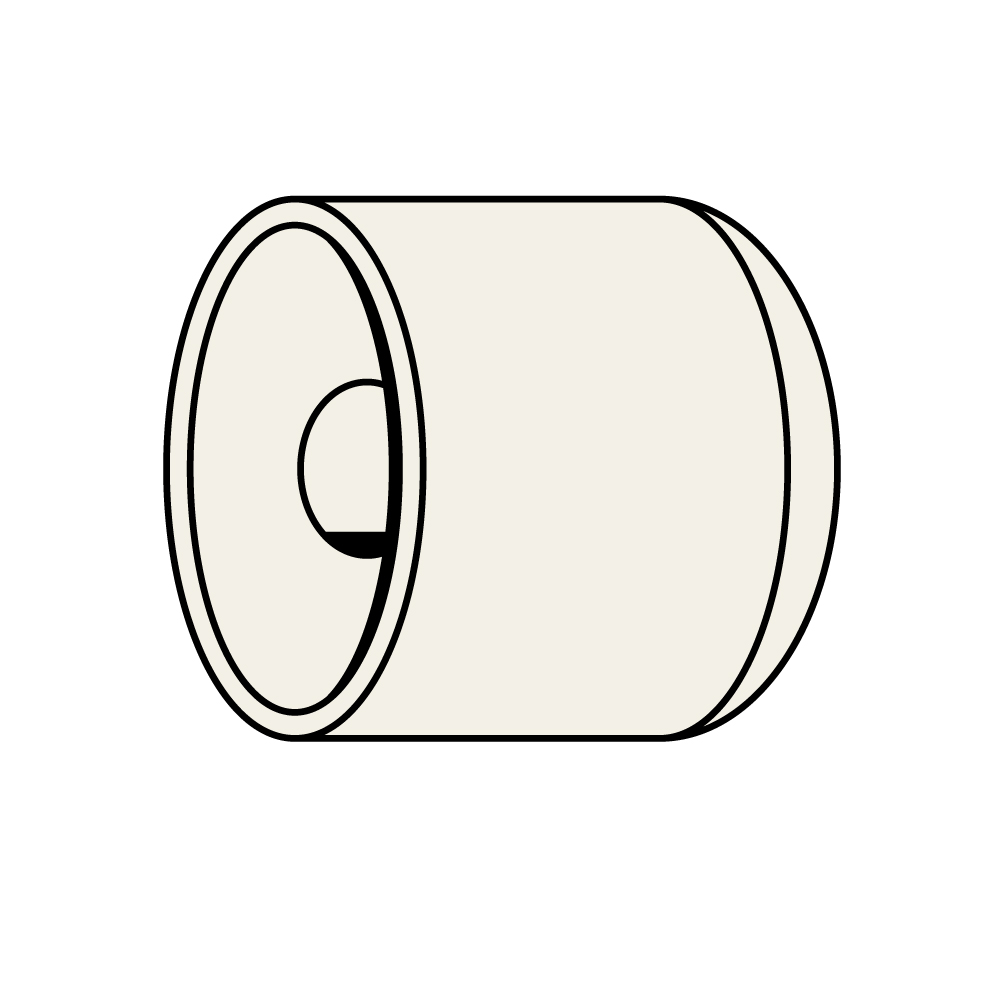

Fish Spine, Ball and Socket Thermocouple Insulator

Maximum Temperature: 2400°F (1315°C)

Part Number Diameter
(in)
Bore
(in)
Max. B & S
Gauge Size
Length
(in)
Number of Pcs.
per Sleeve
CER-103-101 0.11 0.056 16 0.11 67 pcs/6"
CER-103-102 0.17 0.068 14 0.17 86 pcs/12"
CER-103-104 0.2 0.092 12 0.2 Bulk Loose
CER-103-105 0.33 0.124  9 0.33 Bulk Loose
CER-103-106 0.4 0.156  7 0.4 Bulk Loose
CER-103-109 0.26 0.156  7 0.26 Bulk Loose
