Sensor Mounting Fixed Fittings

Fized fittings are brazed to the sheath of the sensor probe. The immersion length "U" must be specified in inches or millimeters. the immersion length is from the probe tip to the beginning of the thread on the fitting.

Fittings include:



Explore Sensor Mounting Fixed Fittings Specifications

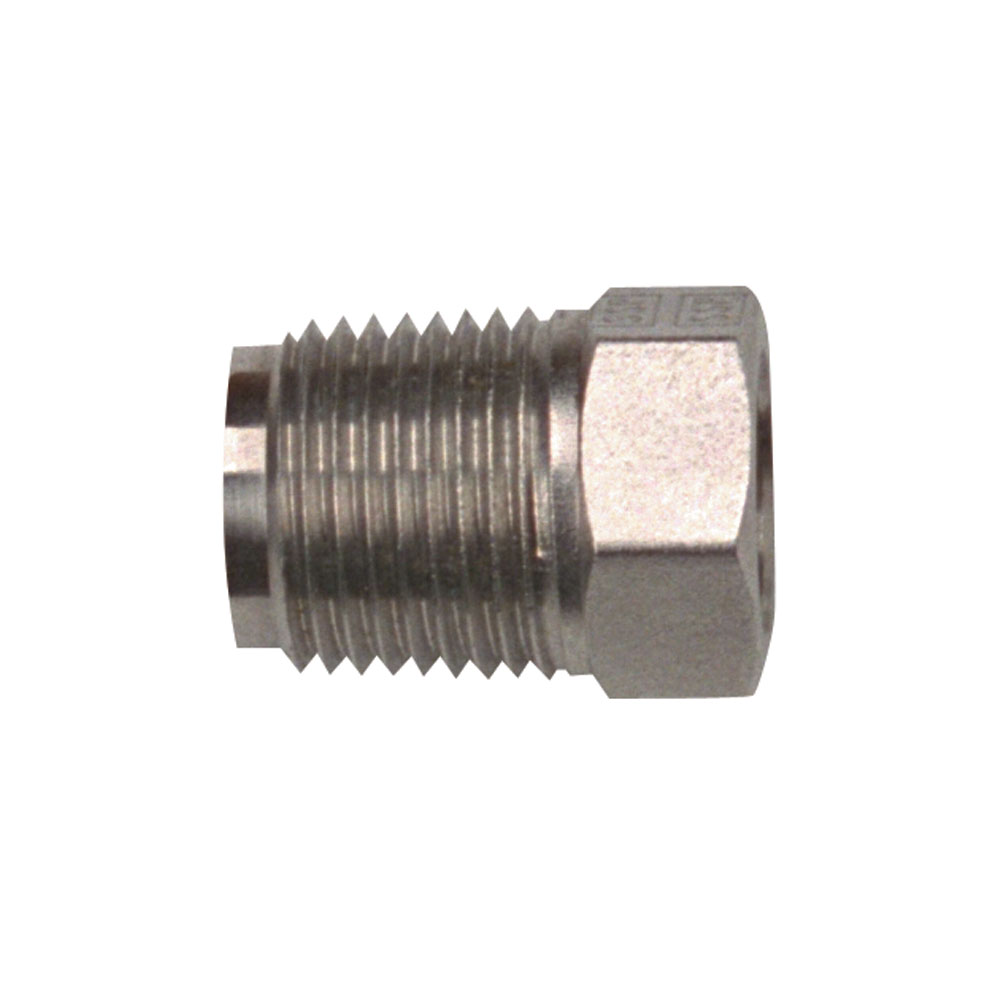

Hex Bushings

Hex Bushings

Sheath
Diameter
(in)
Male
NPT
(in)
Overall
Length
(in)
Hex
Across
Flats (in)
Part Number
Brass Stainless Steel
1/16 1⁄8 3⁄4 7⁄16 FTG-159-101 FTG-162-101
1⁄4 1 9⁄16 FTG-159-102 FTG-162-102
1⁄2 1-1⁄4 7⁄8 FTG-159-103 FTG-162-103
1/8 1⁄8 3⁄4 7⁄16 FTG-159-104 FTG-162-104
1⁄4 1 9⁄16 FTG-159-105 FTG-162-105
1⁄2 1-1⁄4 7⁄8 FTG-159-106 FTG-162-106
3/16 1⁄8 3⁄4 7⁄16 FTG-159-107 FTG-162-107
1⁄4 1 9⁄16 FTG-159-108 FTG-162-108
1⁄2 1-1⁄4 7⁄8 FTG-159-109 FTG-162-109
1/4 1⁄8 3⁄4 7⁄16 FTG-159-110 FTG-162-110
1⁄4 1 9⁄16 FTG-159-111 FTG-162-111
1⁄2 1-1⁄4 7⁄8 FTG-159-112 FTG-162-112
5/16 1⁄4 1 9⁄16 FTG-159-113 FTG-162-113
1⁄2 1-1⁄4 7⁄8 FTG-159-114 FTG-162-114
3/8 1⁄4 1 9⁄16 FTG-159-115 FTG-162-115
1⁄2 1-1⁄4 7⁄8 FTG-159-116 FTG-162-116

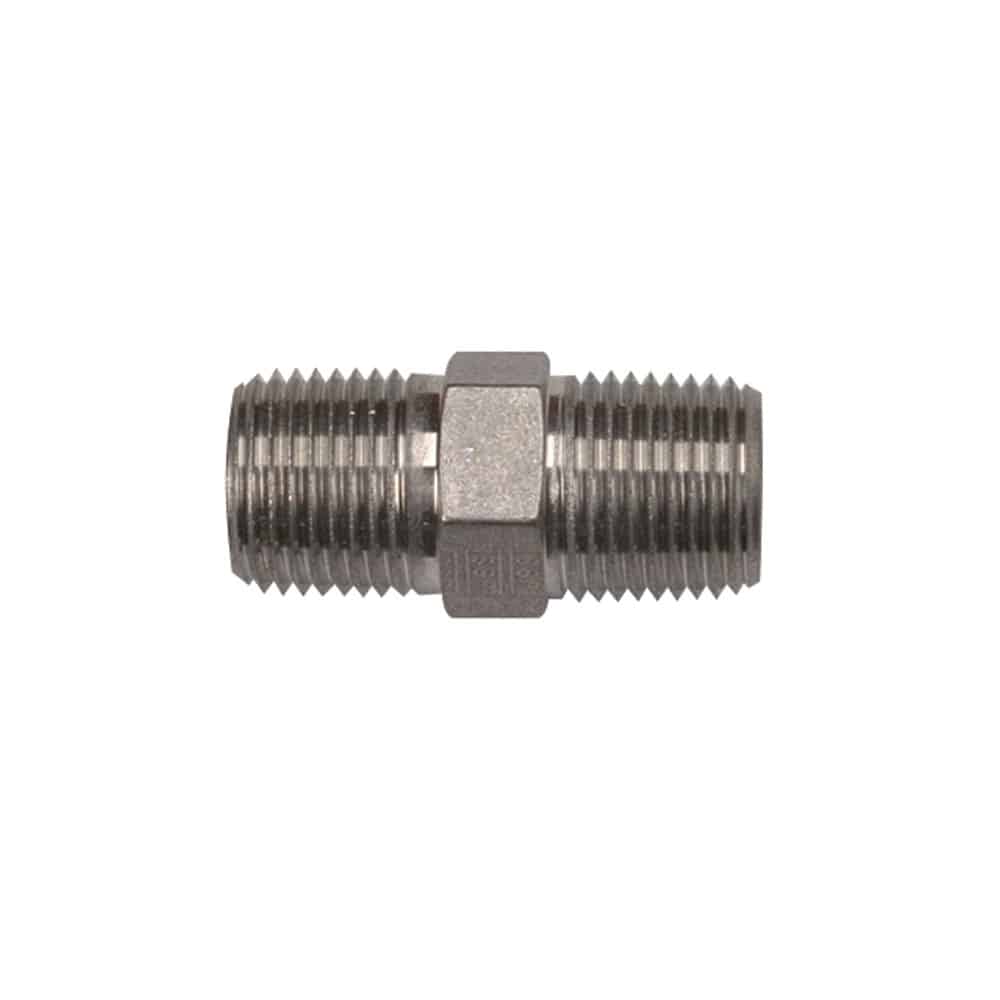

Hex Nipples

Hex Nipples

Sheath
Diameter
(in)
Male
NPT
(in)
Overall
Length
(in)
Hex
Across
Flats (in)
Part Number
Brass Stainless Steel
1/16 1⁄4 1-13⁄32 9⁄16 FTG-152-101 FTG-153-101
1⁄2 1-27⁄32 7⁄8 FTG-152-102 FTG-153-102
1/8 1⁄4 1-13⁄32 9⁄16 FTG-152-103 FTG-153-103
1⁄2 1-27⁄32 7⁄8 FTG-152-104 FTG-153-104
3/16 1⁄4 1-13⁄32 9⁄16 FTG-152-105 FTG-153-105
1⁄2 1-27⁄32 7⁄8 FTG-152-106 FTG-153-106
1/4 1⁄4 1-13⁄32 9⁄16 FTG-152-107 FTG-153-107
1⁄2 1-27⁄32 7⁄8 FTG-152-108 FTG-153-108
5/16 1⁄4 1-13⁄32 9⁄16 FTG-152-109 FTG-153-109
1⁄2 1-27⁄32 7⁄8 FTG-152-110 FTG-153-110
3/8 1⁄4 1-13⁄32 9⁄16 FTG-152-111 FTG-153-111
1⁄2 1-27⁄32 7⁄8 FTG-152-112 FTG-153-112

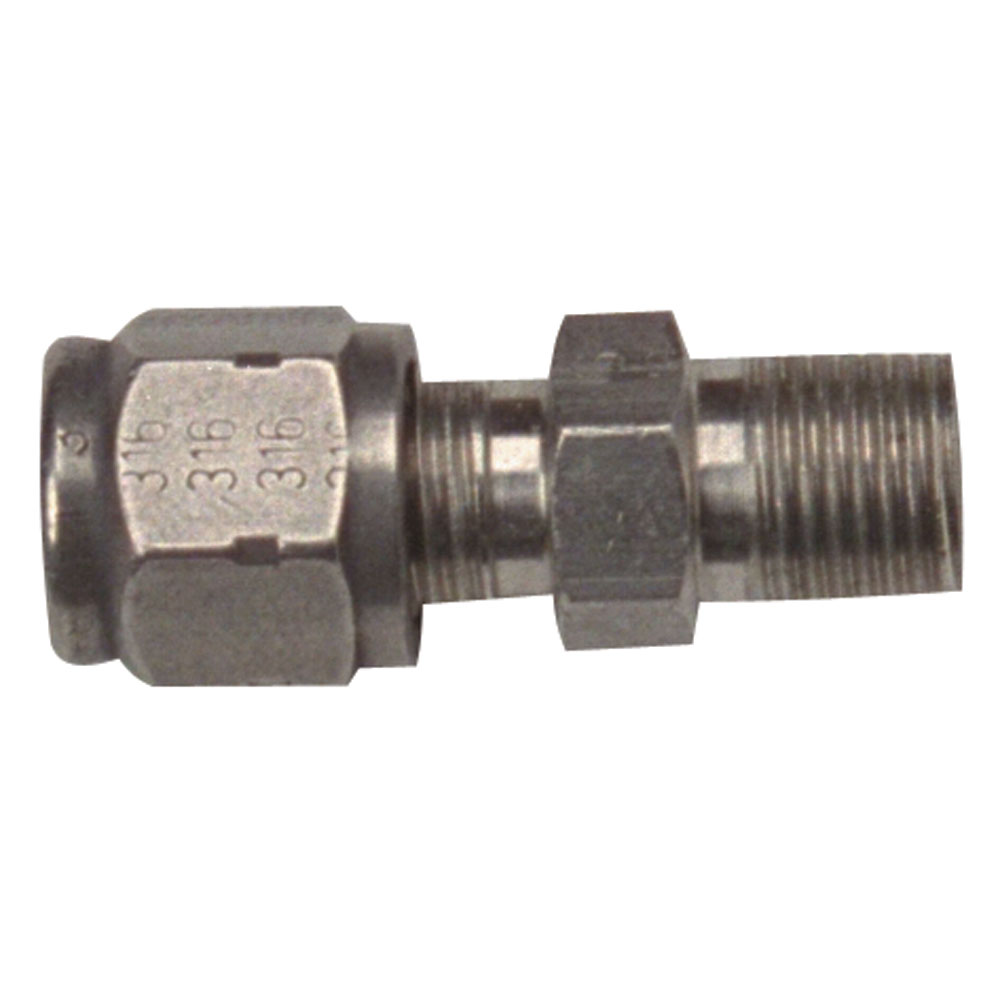

Compression Fittings

Compression Fittings

MNPT
(in)
Sheath
O.D.
(in)
Part Number
Non-Adjustable
Brass
Non-Adjustable
Stainless Steel
Adjustable
 Brass
Adjustable
Stainless Steel
1/16 1⁄16 FTG-154-101 FTG-155-101 FTG-156-101 FTG-157-101
1⁄8 FTG-154-102 FTG-155-102 FTG-156-102 FTG-157-102
1/8 1⁄16 FTG-154-104 FTG-155-104 FTG-156-104 FTG-157-104
1⁄8 FTG-154-105 FTG-155-105 FTG-156-105 FTG-157-105
3⁄16 FTG-154-106 FTG-155-106 FTG-156-106 FTG-157-106
1⁄4 FTG-154-107 FTG-155-107 FTG-156-107 FTG-157-107
1/4 1⁄16 FTG-154-110 FTG-155-110 FTG-156-110 FTG-157-110
1⁄8 FTG-154-111 FTG-155-111 FTG-156-111 FTG-157-111
3⁄16 FTG-154-112 FTG-155-112 FTG-156-112 FTG-157-112
1⁄4 FTG-154-113 FTG-155-113 FTG-156-113 FTG-157-113
5⁄16 FTG-154-114 FTG-155-114 FTG-156-114 FTG-157-114
3⁄8 FTG-154-115 FTG-155-115 FTG-156-115 FTG-157-115
1/2 1⁄8 FTG-154-116 FTG-155-116 FTG-156-116 FTG-157-116
1⁄4 FTG-154-117 FTG-155-117 FTG-156-117 FTG-157-117
3⁄8 FTG-154-118 FTG-155-118 FTG-156-118 FTG-157-118

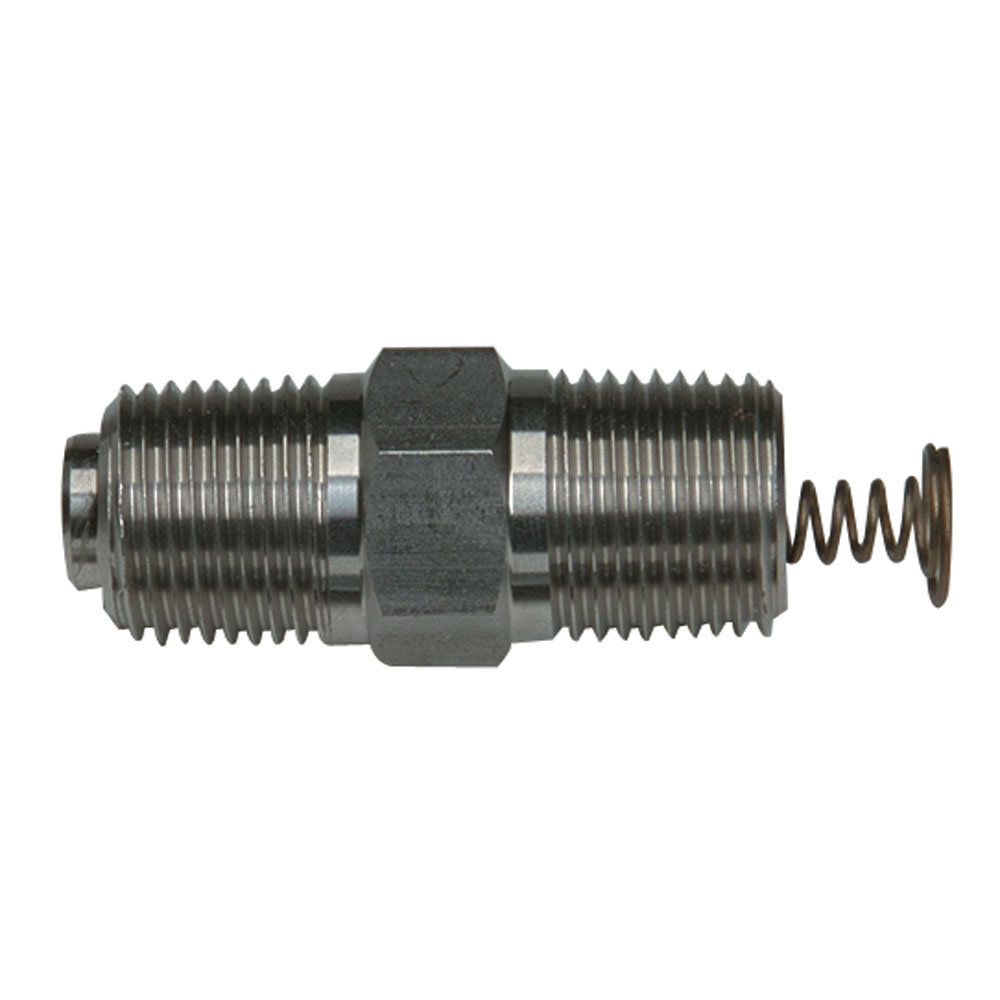

Spring-Loaded Hex Nipples

Spring-Loaded Hex Nipple

Sheath
Diameter (in)
Part
Number
1/8 FTG-158-101
3/16 FTG-158-102
1/4 FTG-158-103
