Rigid Bayonet Style RTD's

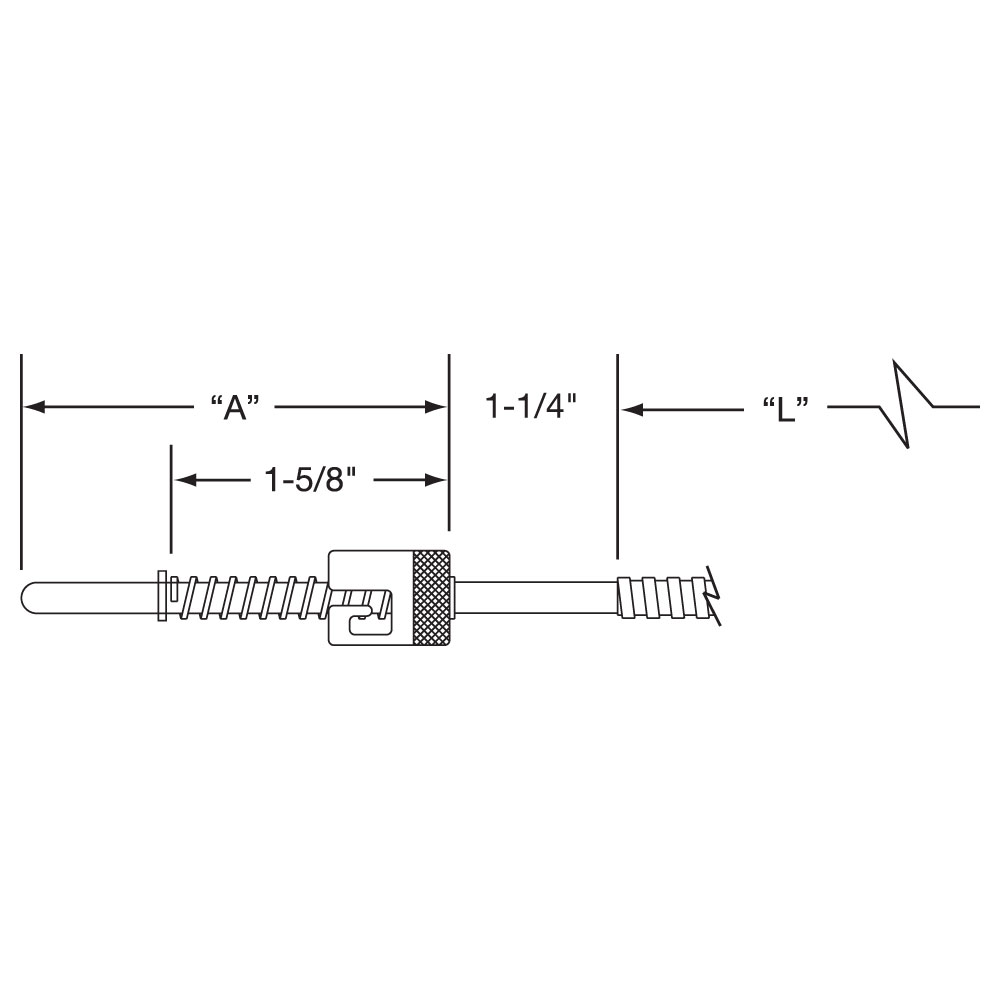

Style 3 – Rigid Straight Bayonet RTD

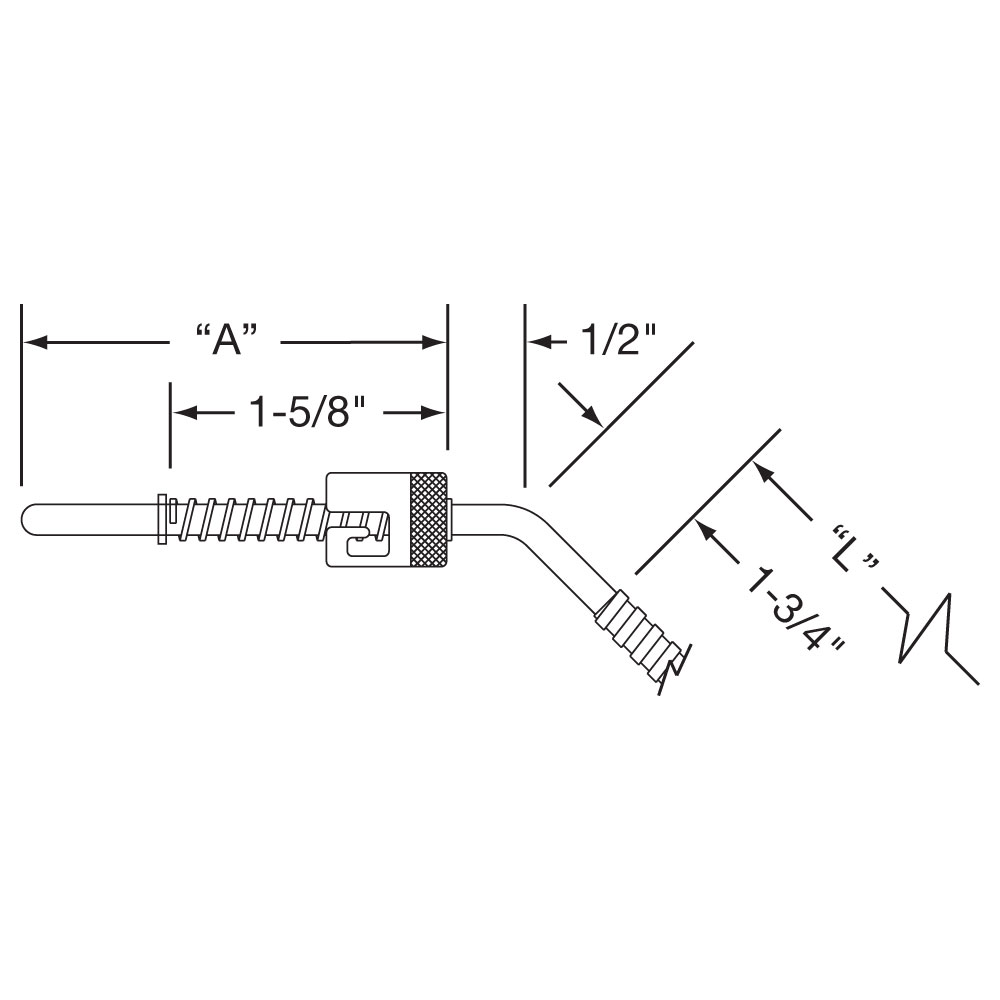

Style 4 – Rigid 45° Bend Bayonet RTD

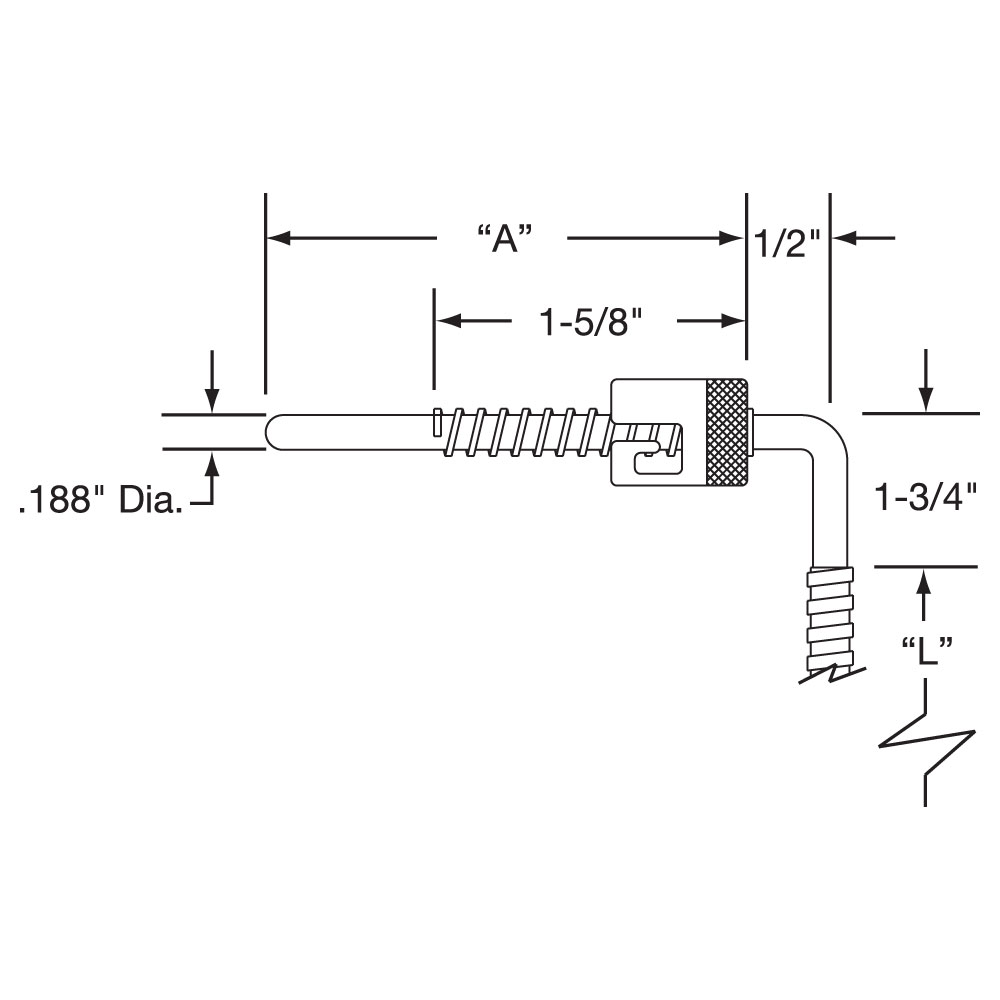

Style 5 – Rigid 90° Bend Bayonet RTD


Design Features:

  • 3/16" diameter stainless steel probe
  • Operating temperature:
    • 392°F (200°C) standard
    • 900°F (482°C) available
  • One-time adjustable 1/8"-27 NPT brass compression fitting
  • 3-wire circuit
  • 100 ohms Class B element per IEC 751
  • Can be installed wherever existing thermocouples of similar designs are used



Optional RTD Termination Styles

Style B - Plain Ends
Style B

Style C - Spade Lugs with BX Connector
Style C

Style D - Miniature Plug
Style D

Style E - Miniature Jack
Style E

Style J - Standard Jack
Style J

Style P - Standard Plug
Style P

Style S - Spade Lugs
Style S
