Melt Bolt RTD's

Melt Bolt RTD's come in three styles. Visit the Preconfigured & Stock Parts page for complete part number details and ordering information.

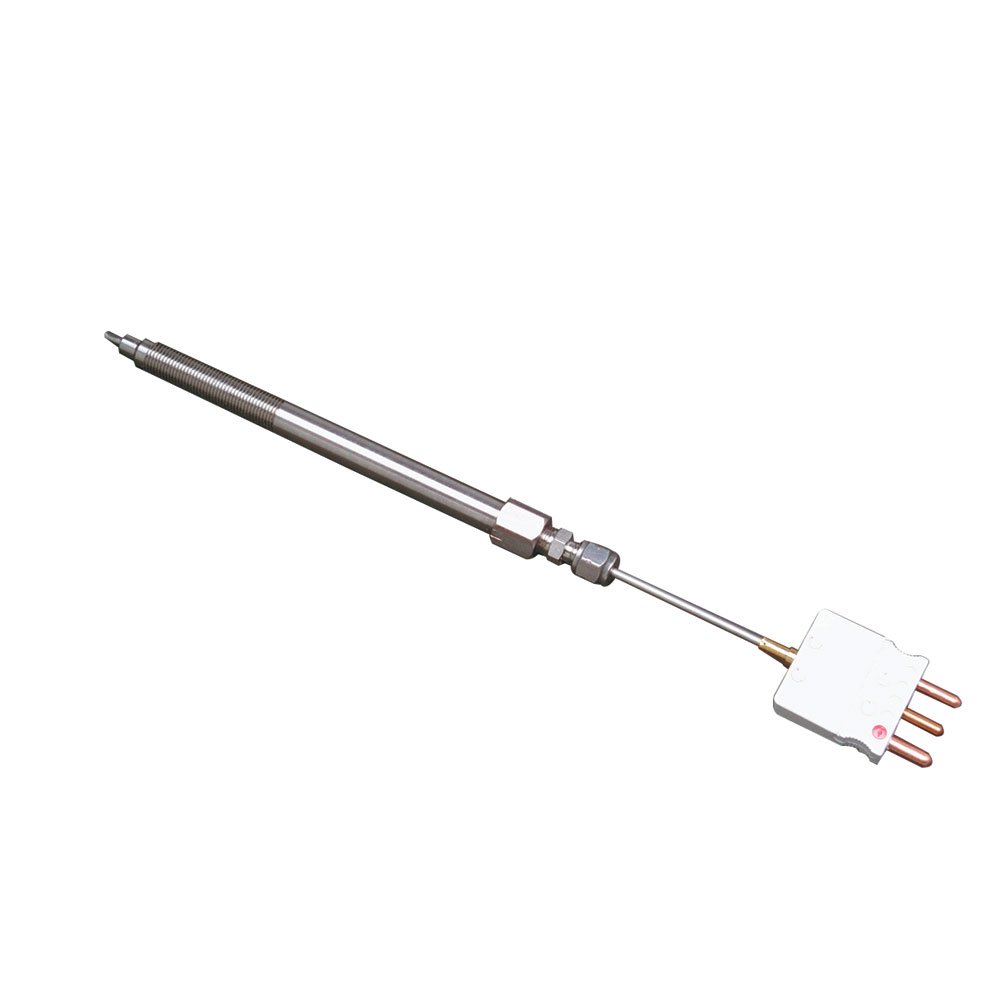

Style RT1—Adjustable Tip

  • Thermocouple tip immersion length can be field adjusted from flush to 2"
  • Eliminates excess inventory

Style RT2—Rigid Plug Mount Fixed Tip
Style RT3—Flexible Mounted Plug



Resources

In-Stock Parts

Explore Melt Bolt RTD's Specifications

Please wait while we gather your results.



Design Features:

  • 3/16" diameter Probe
  • 100 ohm Class B element per IEC 751
  • 3-wire circuit
  • Can be installed wherever standard melt thermocouples are used
  • Operating tempertures:
    • 392°F (200°C) standard
    • 900°F (482°C) available
  • Available in 3" and 6" bolt designs
  • Bolts and Probes are 300 series stainless steel

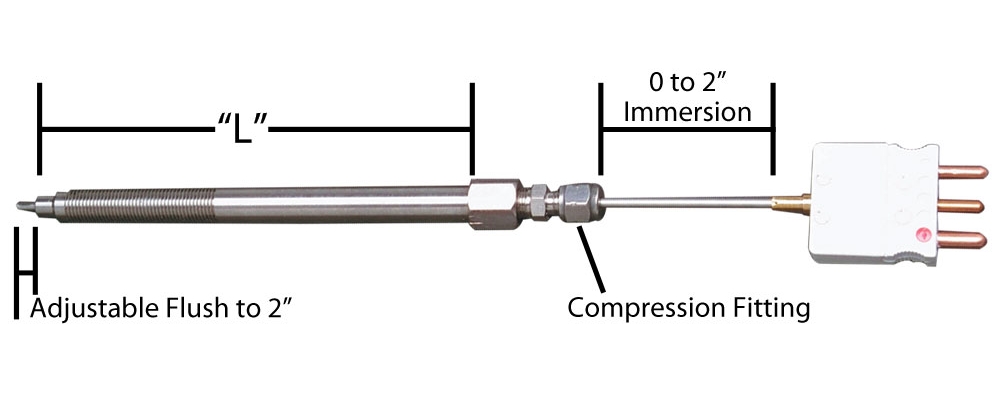

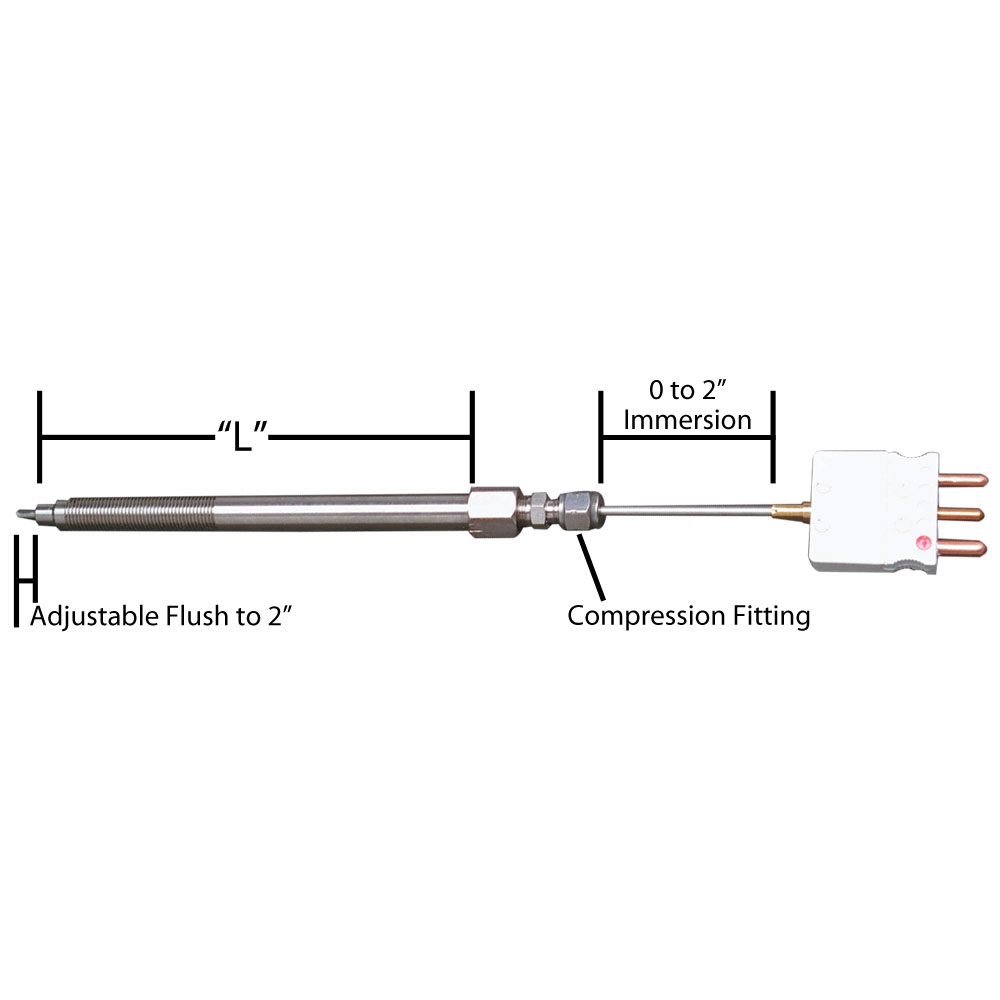

Style RT1 - Adjustable Tip

Style RT1 - Adjustable Tip

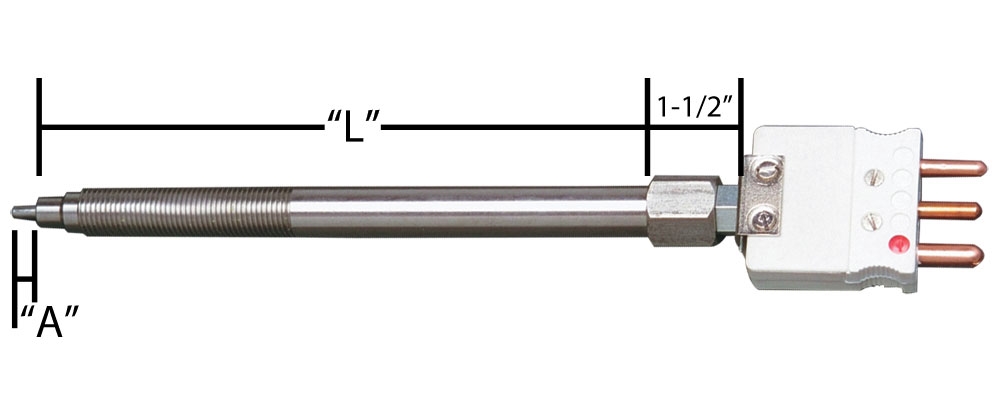

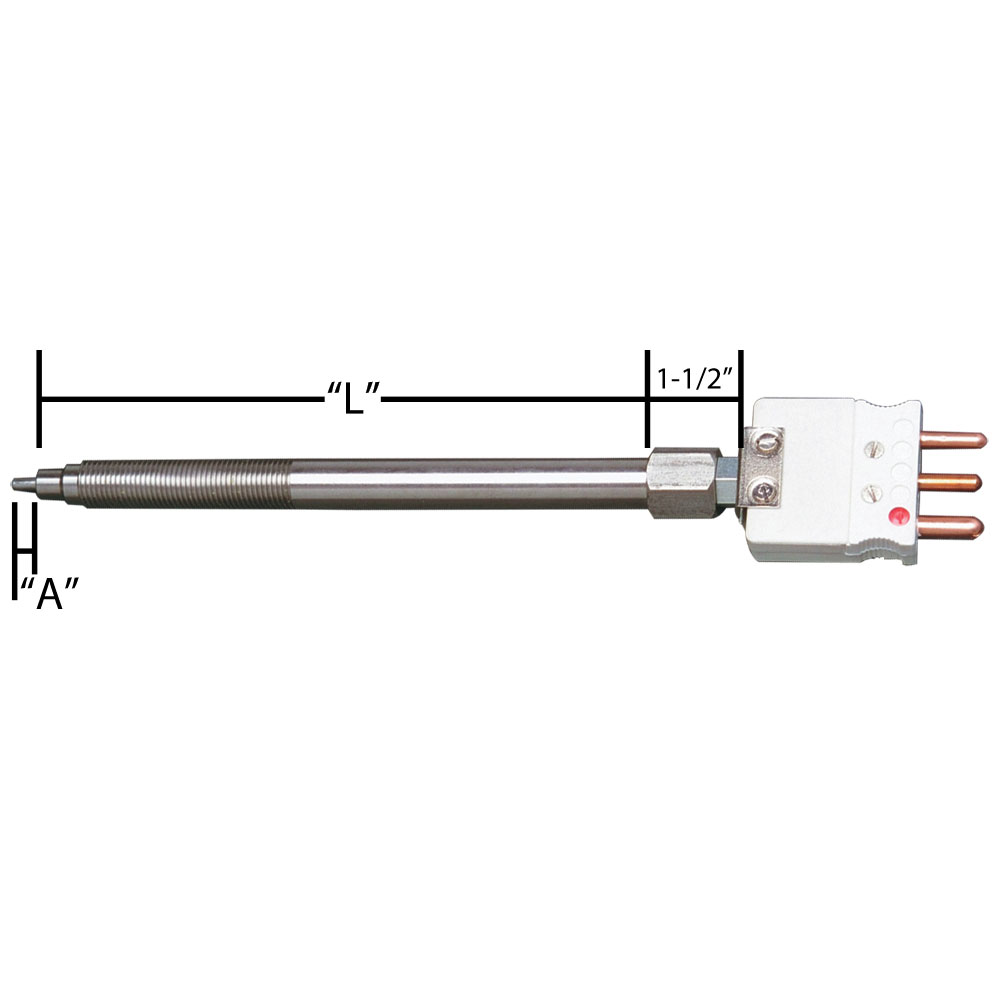

Style RT2 - Rigid Plug Mount Fixed Tip

Style RT2 - Rigid Plug Mount Fixed Tip

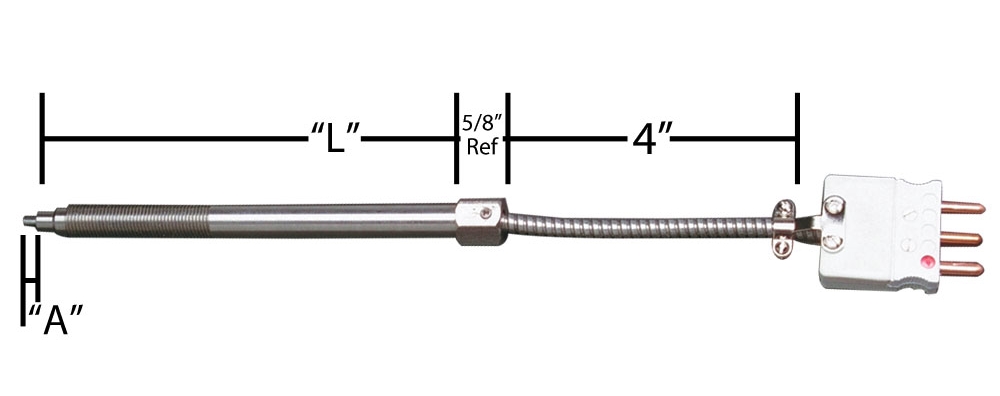

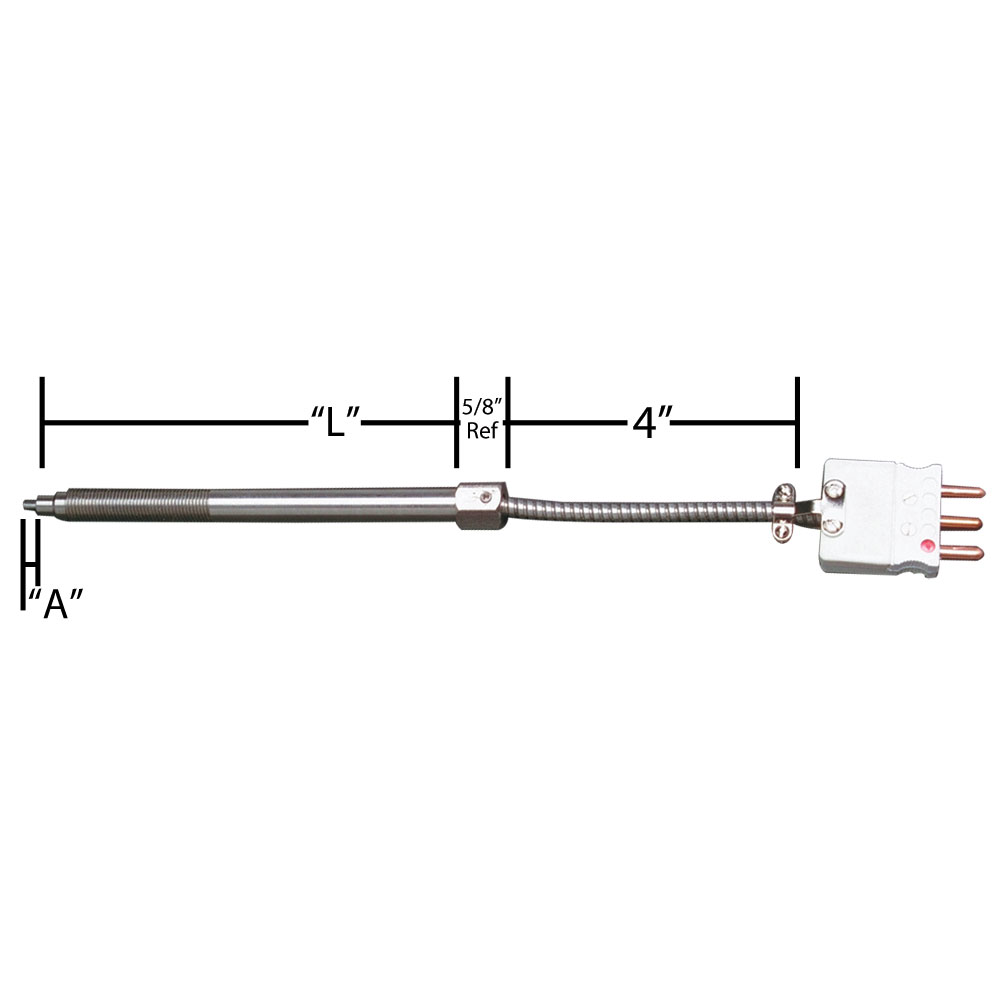

Style RT3 - Flexible Mount Plug

Style RT3 - Flexible Mounted Plug
