Click image to enlarge
RTD's are offered with the options listed in the form below. Make your selections and Submit to Tempco for a quote request. Part Numbers are assigned at the time an order is placed.

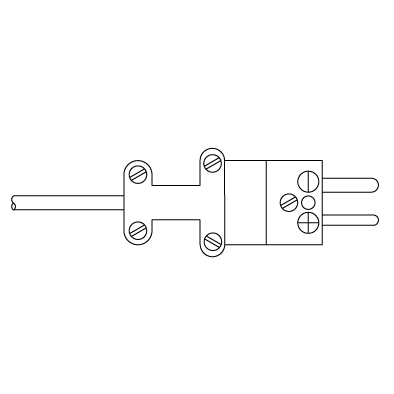

Style D - Miniature Plug

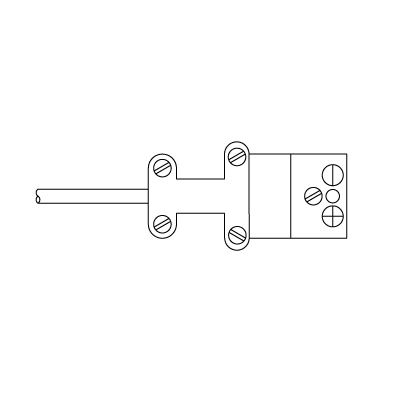

Style E - Miniature Jack

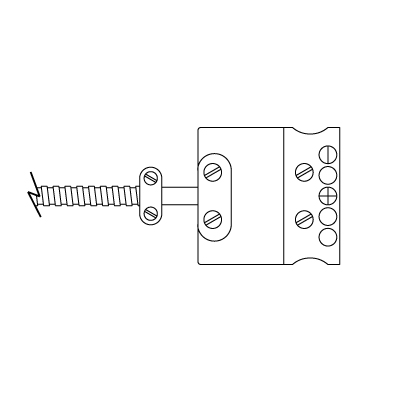

Style J - Standard Jack

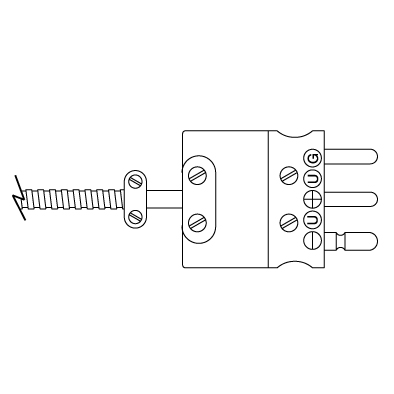

Style P - Standard Plug
Element – TCR = .00385 ohm/ohm/°C --SelectS = 100Ω SingleD = 100Ω DualK = 1000Ω SingleL = 1000Ω Dual
Element Class --Select--A = ±0.06% at 0°C, OptionalB = ±0.12% at 0°C, Standard
Number Of Leads --Select--2 = 2-wire circuit3 = 3-wire circuit (Dual circuit not available)
Sheath Diameter --Select--F = 0.125" (Single Element Only)G = 0.188"H = 0.250"
Sheath Material --Select--B = 304 SSC = 316 SSA = Alloy 600 (Type M MgO Insulated only)

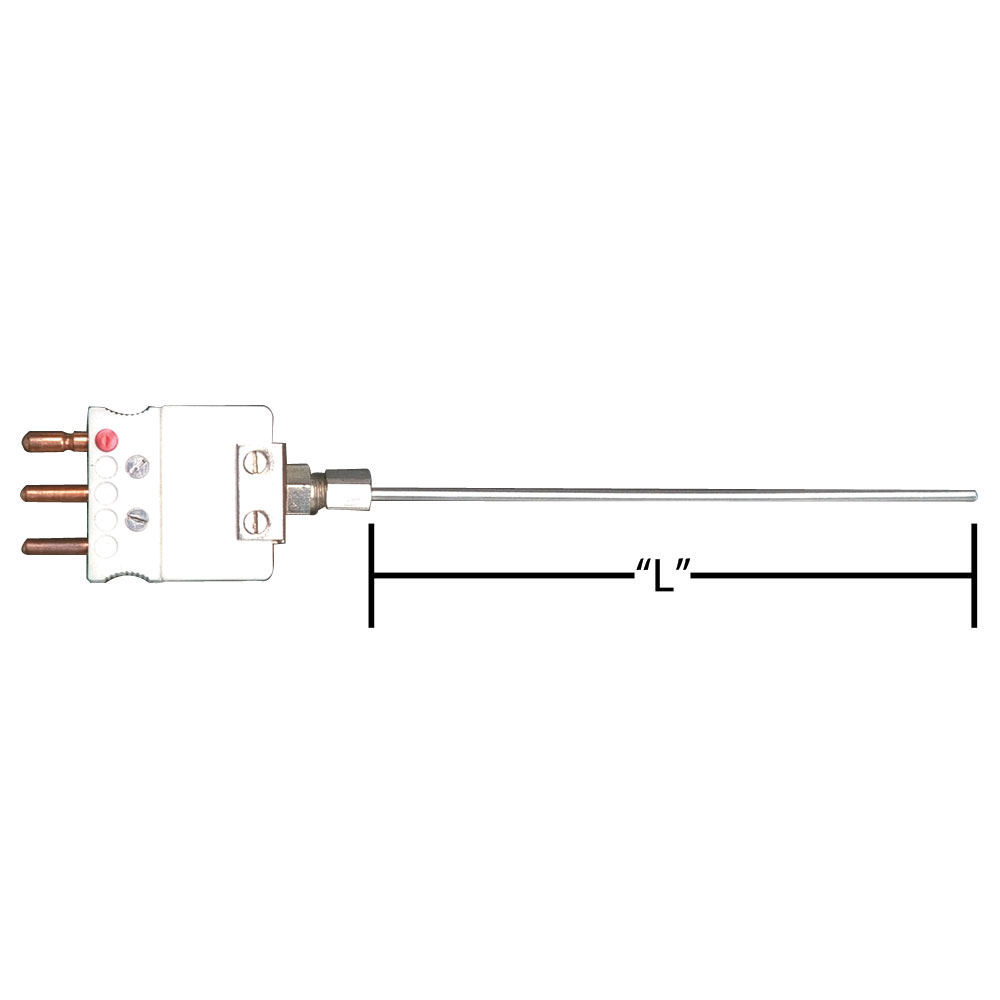

Sheath Length "L" – Whole Inches 01 to 99 For lengths over 99 in. call TEMPCO.
Sheath Length "L" – Fractional Inches --Select--0 = 0"1 = 1/8"2 = 1/4"3 = 3/8"4 = 1/2"5 = 5/8"6 = 3/4"7 = 7/8"
Termination --Select--P = Standard Male Plug 350°F (177°C)J = Standard Female JackK = Std. Plug with Mating JackD = Mini Male Plug 350°F (177°C)E = Mini Female JackF = Mini Plug with Mating Jack
RTD Construction Type --Select--S = Fiberglass insulated 900°F (450°C)T = Teflon® Insulated 392°F (200°C)M = MgO Insulated 1200°F (650°C) (Type “M” not available for “K” or “L” Element)
Optional Compression Fitting --Select--1 = 1/8" NPT SS2 = 1/4" NPT SS3 = 1/2" NPT SS4 = 1/8" NPT Brass5 = 1/4" NPT Brass6 = 1/2" NPT Brass0 = None Required
Special Requirements --Select--X = Specify0 = None
