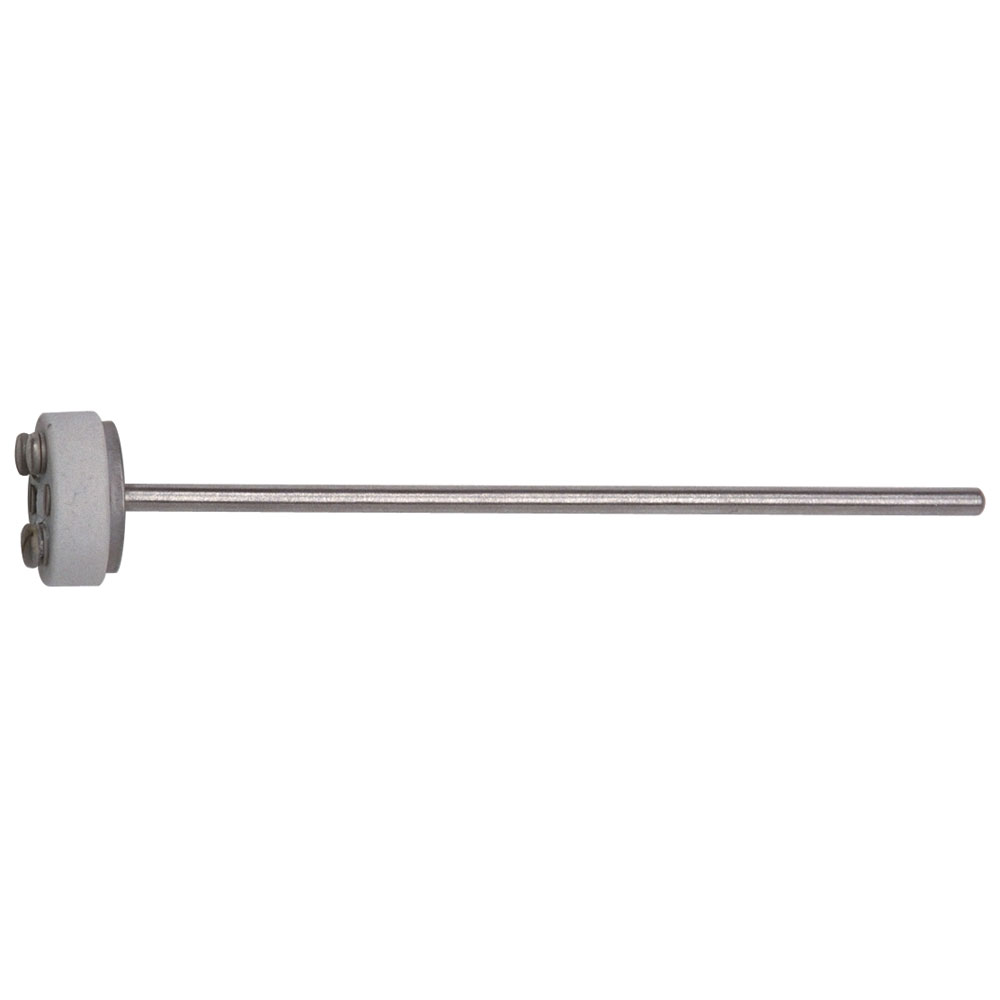

  • Web05.jpg

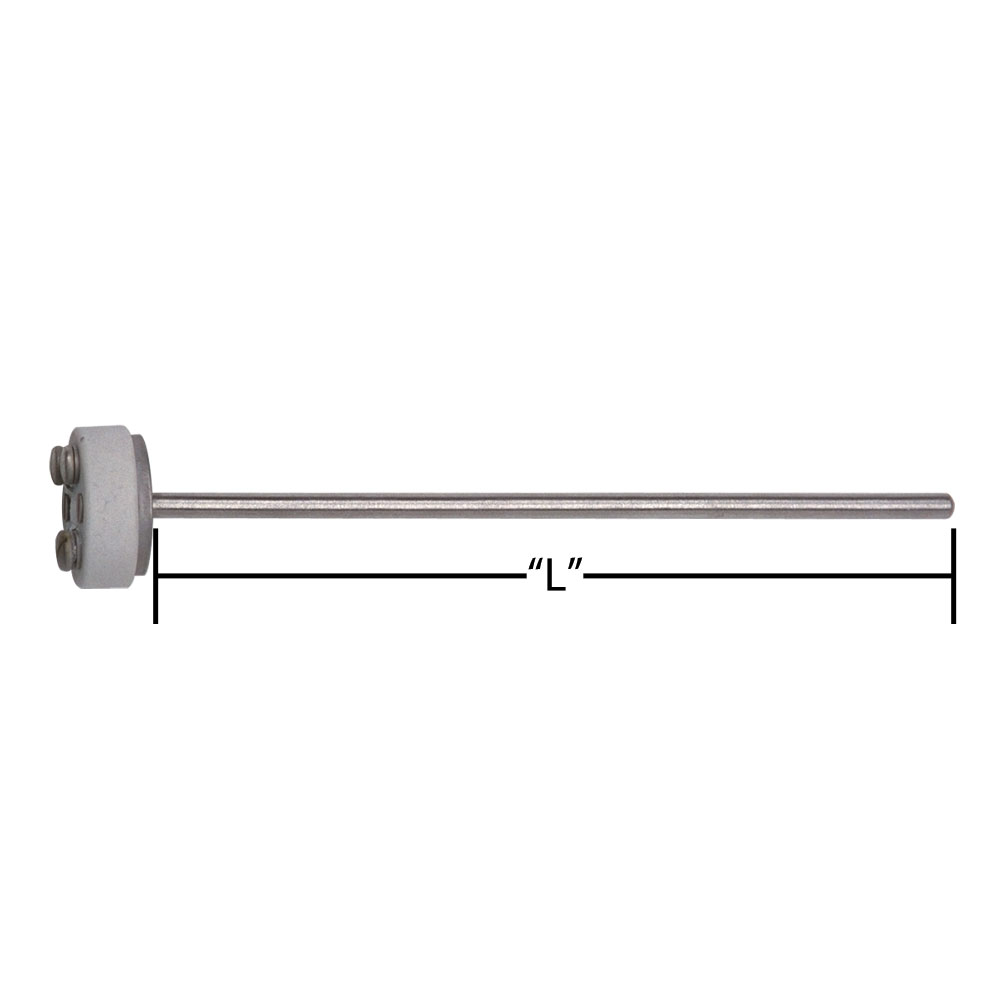

  • Web05_Dim.jpg

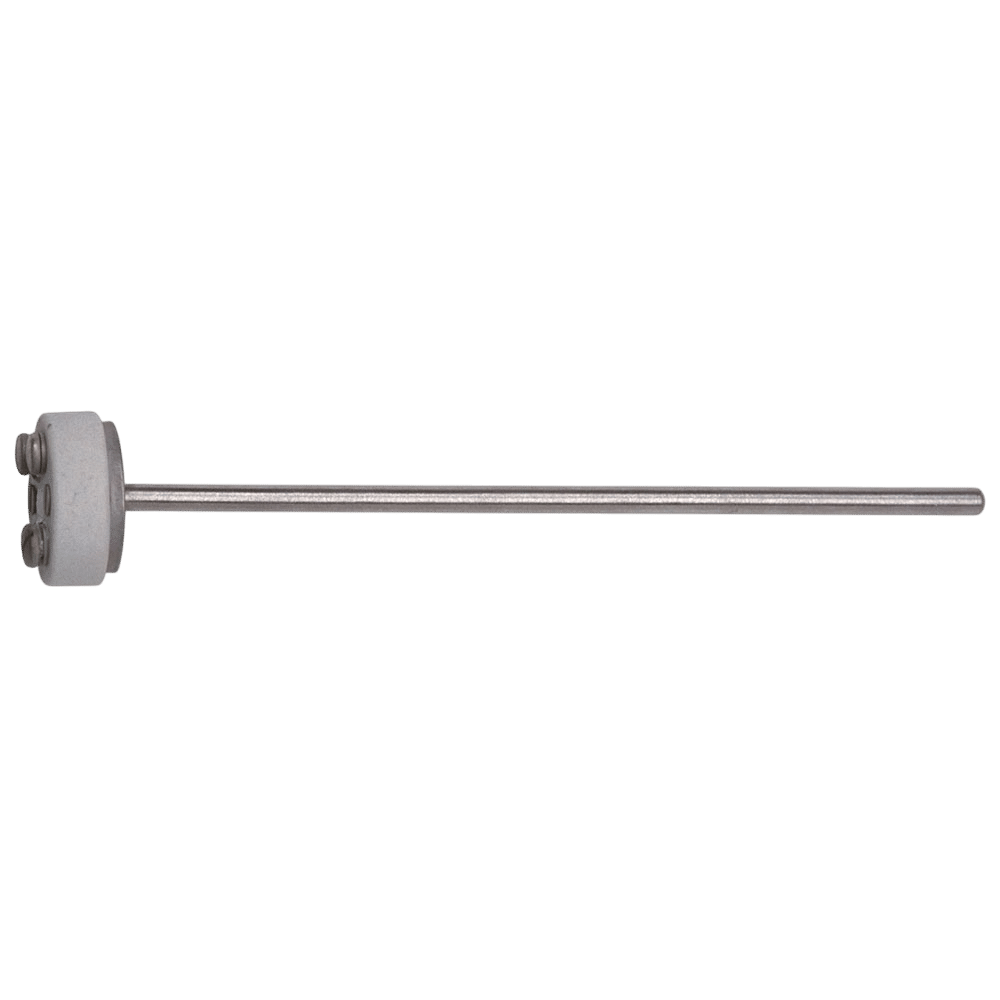

Style RTD3

Open Disc Termination in Two Construction Styles

  • Standard Industry Tube and Wire construction with fiberglass 900°F (482°C) or Teflon® 392°F (200°C) lead wires
  • Mineral Insulated construction rated up to 1200°F (650°C). This construction type allows forming and bending the sheath to meet design requirements.

RTD's are offered with the options listed in the form below. Make your selections and Submit to Tempco for a quote request. Part Numbers are assigned at the time an order is placed.

Explore Style RTD3 Specifications



Choose RTD3 Options (Select for Quote)

Element – TCR = .00385 ohm/ohm/°C

Element Class

Number Of Leads
0.125" O.D. (Dual circuit not available)

Sheath Diameter

Sheath Material

Sheath Length "L" – Whole Inches 01 to 99
For lengths over 99 in. call TEMPCO.

Sheath Length "L" – Fractional Inches

RTD Construction Type

Optional Compression Fitting

Special Requirements

Additional Information


Questions or Comments
