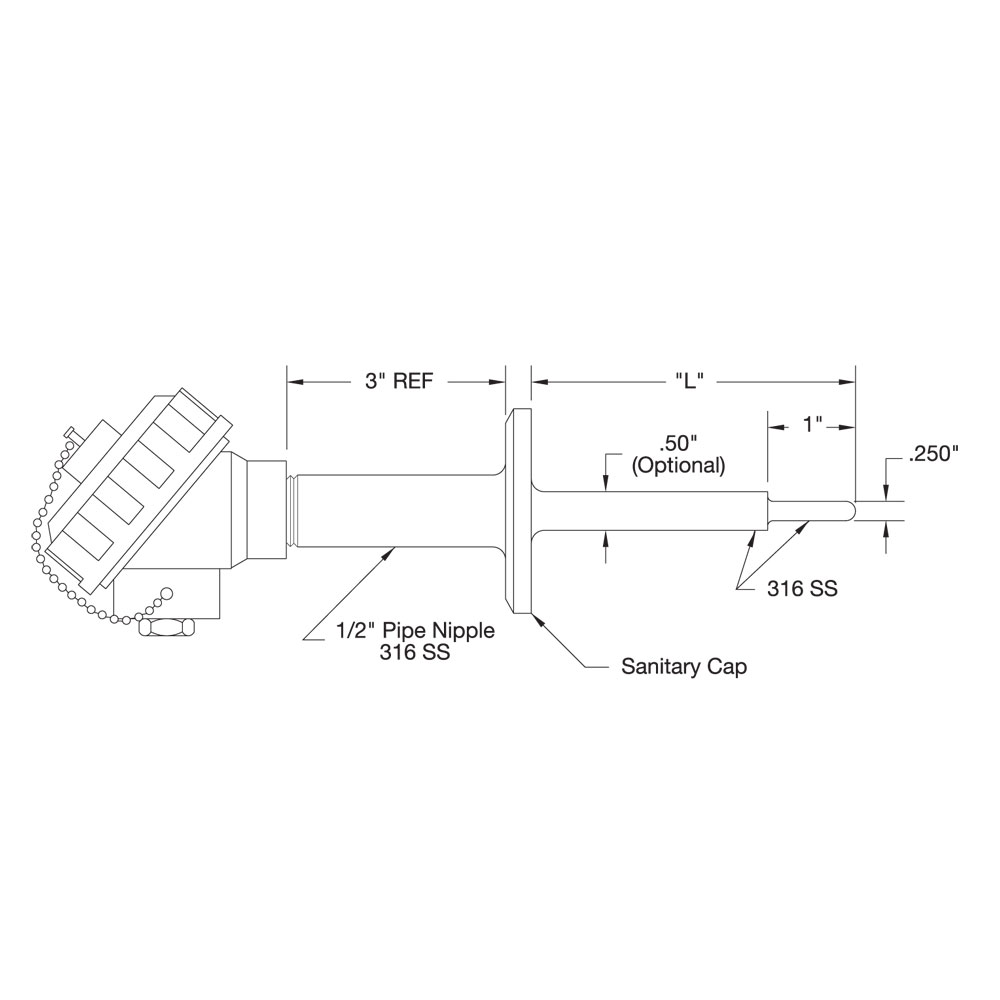

Click image to enlarge
RTD's are offered with the options listed in the form below. Make your selections and Submit to Tempco for a quote request. Part Numbers are assigned at the time an order is placed.
Design Features:
Sheath Diameter --Select--1 = 0.250"2 = 0.500" with .250" tip
Element – TCR = .00385 ohm/ohm/°C --Select--S = 100Ω SingleD = 100Ω DualK = 1000Ω SingleL = 1000Ω Dual
Element Class --Select--A = ±0.06% at 0°C, OptionalB = ±0.12% at 0°C, Standard
Number Of Leads --Select--2 = 2-wire circuit3 = 3-wire circuit4 = 4-wire circuit (Dual Circuit not available)
Sanitary Cap Type (Standard Finish) --Select--A = 16 AMP Tri-CloverX = Other (Specify)
Sanitary Cap Size --Select--A = 1-1/2"B = 2"C = 2-1/2"D = 3"X = Other (Specify)
Sheath Length "L" – Whole Inches 01 to 99
Sheath Length "L" – Fractional Inches --Select--0 = 0"1 = 1/8"2 = 1/4"3 = 3/8"4 = 1/2"5 = 5/8"6 = 3/4"7 = 7/8"
Connection Head --Select--P = Polypropylene Head (FDA Approved)A = Standard Die Cast Aluminum Head (Note: Conduit connection for A is 1/2", and for B is 3/4".)
Special Requirements --Select--X = Specify0 = None
Quantity
Questions or Comments
