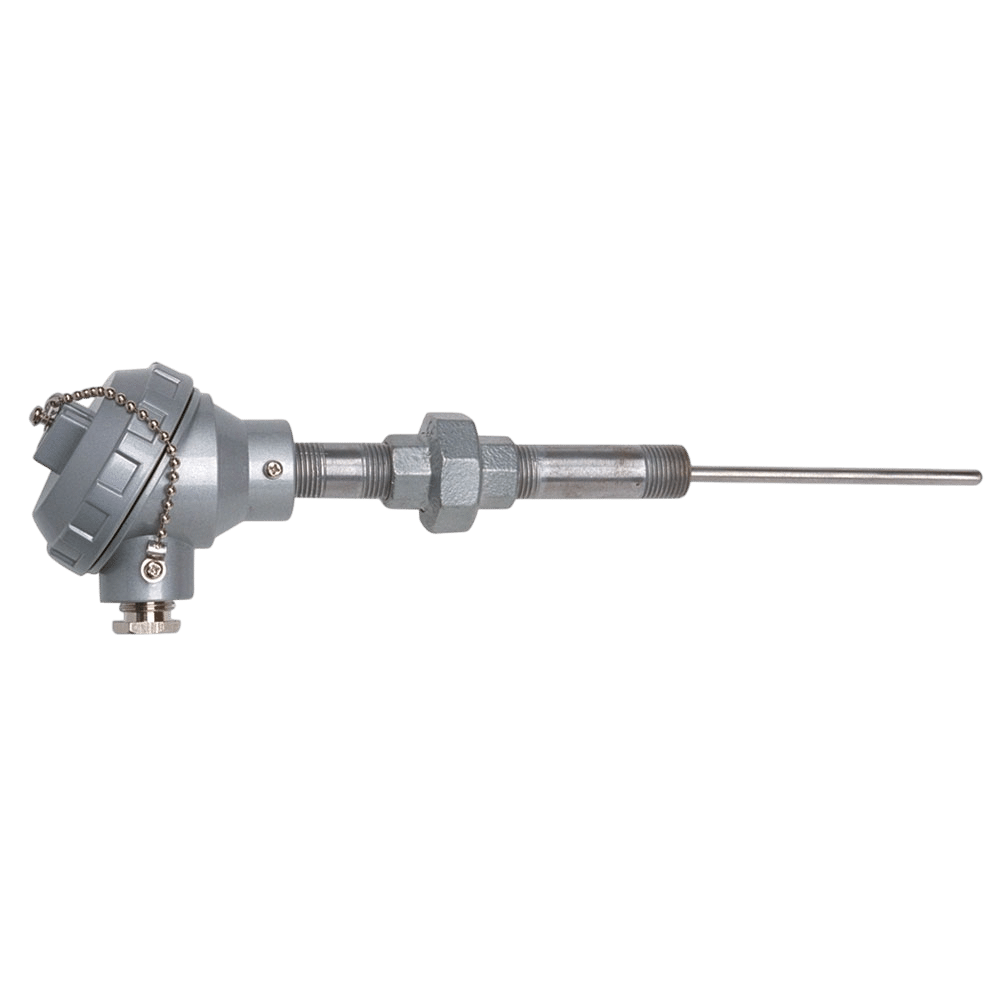

Style RTD9

Connection Head with 1/2" NPT Nipple, Union, Nipple in Two Construction Styles

  • Standard Industry Tube and Wire construction with fiberglass 900°F (482°C) or Teflon® 392°F (200°C) lead wires
  • Mineral Insulated construction rated up to 1200°F (650°C). This construction type allows forming and bending the sheath to meet design requirements.

RTD's are offered with the options listed in the form below. Make your selections and Submit to Tempco for a quote request. Part Numbers are assigned at the time an order is placed.

Explore Style RTD9 Specifications



Choose RTD9 Options (Select for Quote)

Element – TCR = .00385 ohm/ohm/°C

Element Class

Number Of Leads
0.125" O.D. (Dual circuit not available)

Sheath Diameter

Sheath Material

Sheath Length "L1" – Whole Inches 01 to 99
For lengths over 99 in. call TEMPCO.

Sheath Length "L1" – Fractional Inches

"L2" Dimension – Whole Inches
Standard Lengths S1 = 3-1/2", S2 = 6-1/2", S3 = 12-1/2"

Connection Head
Note: Conduit connection for A, F, H & S is 1/2" (3/4" available);
for B & C is 3/8"; and for P is 3/4" NPT.

Spring-Loaded Probe&

RTD Construction Type

Special Requirements

Additional Information
