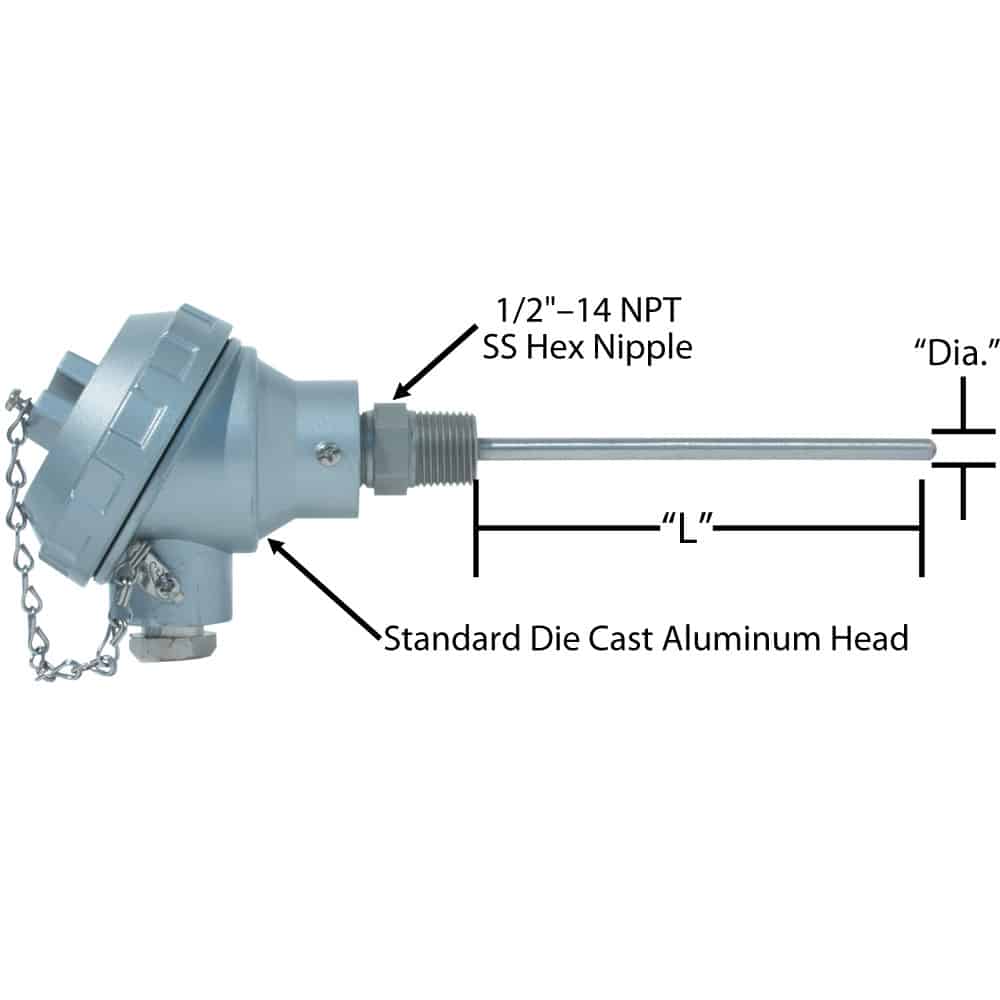

  • WebN523_Dim.jpg
  • WebJ541.jpg

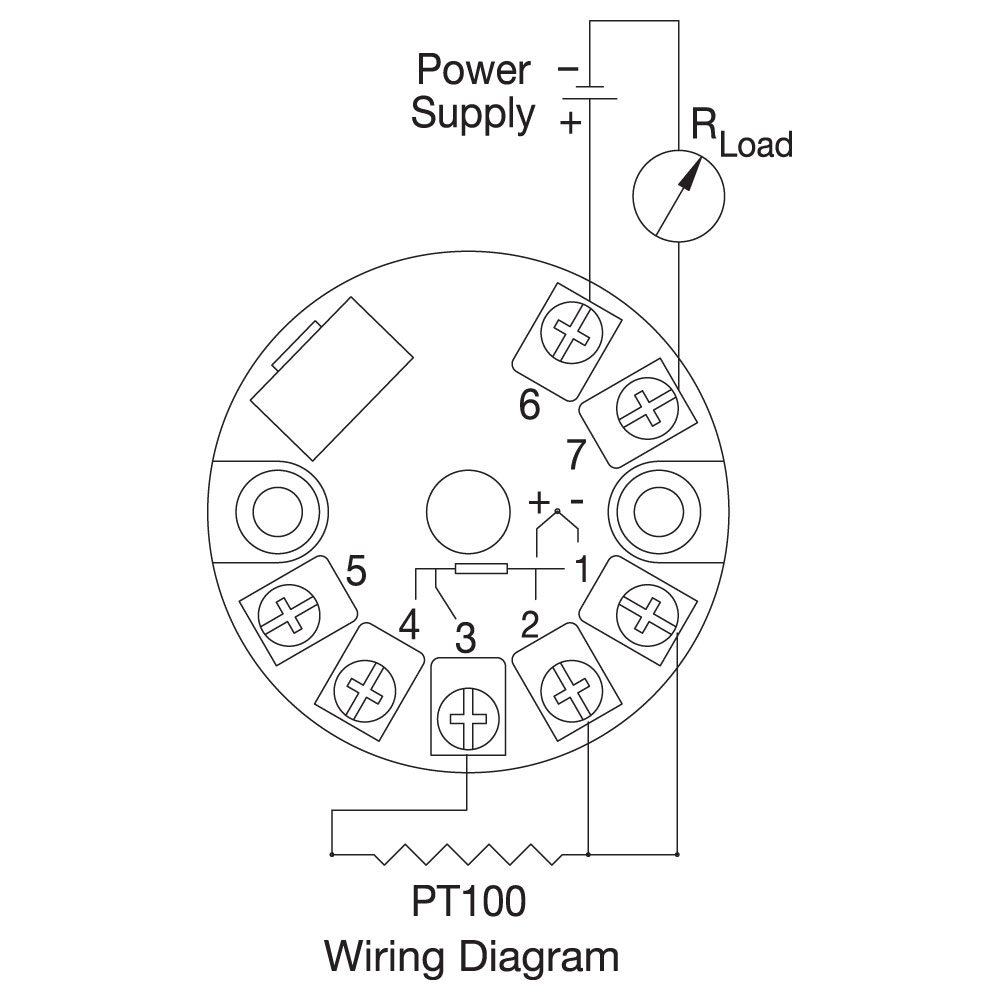

  • Wiring
  • EMT10001
  • EMT20001

Style RTM with Transmitter & Connection Head

Transmitter Ambient Temperature Range:
-40° to +185°F (-40° to +85°C)
RTD's are offered with the options listed in the form below. Make your selections and Submit to Tempco for a quote request. Part Numbers are assigned at the time an order is placed.

Explore RTD's with Transmitter & Connection Head Specifications


Design Features:
  • 100 ohm RTD
  • 4-20mA Programmable Linear Output Transmitter
  • Available with Spring-Loaded Sheath
  • Temperature Range of -58°F to 500°F (-50° to 260°C)
  • Transmitter Accuracy of +/-0.2% of temperature span
  • For field programming of the temperature transmitter see Part Number ETM90006
  • Available in Single 3-wire Circuit only
  • 1/2" NPT process connection

Choose RTM Options (Select for Quote)

Element Class

Sheath Diameter

Sheath Material

Sheath Length "L" – Whole Inches 01 to 99

Sheath Length "L" – Fractional Inches

Transmitter Type
Transmitter Temperature Low Range
Transmitter Temperature High Range
Transmitter Temperature Unit

Connection Head
Note: Conduit connection for A, H & S is 1/2";
for B is 3/8" NPT; for P is 3/4" NPT.

Spring-Loaded Probe

Special Requirements
