Click image to enlarge
RTD's are offered with the options listed in the form below. Make your selections and Submit to Tempco for a quote request. Part Numbers are assigned at the time an order is placed.
Style B - Plain Ends
Style C - Spade Lugs with BX Connector
Style D - Miniature Plug
Style E - Miniature Jack
Style J - Standard Jack
Style P - Standard Plug
Style S - Spade Lugs
Element – TCR = .00385 ohm/ohm/°C --Select--S = 100Ω SingleD = 100Ω DuaK = 1000Ω SingleL = 1000Ω Dual
Element Class --Select--A = ±0.06% at 0°C, OptionalB = ±0.12% at 0°C, Standard
Number Of Leads --Select--2 = 2-wire circuit3 = 3-wire circuit4 = 4-wire circuit 0.125" O.D. (Dual circuit not available)
Sheath Diameter --Select--F = 0.125"G = 0.188"H = 0.250"X = Other (Specify)
Sheath Material --Select--B = 304 SSC = 316 SS
Sheath Length "L" – Whole Inches 01 to 99 For lengths over 99 in. call TEMPCO.
Sheath Length "L" – Fractional Inches --Select--0 = 0"1 = 1/8"2 = 1/4"3 = 3/8"4 = 1/2"5 = 5/8"6 = 3/4"7 = 7/8"
Lead Wire Length – Whole Inches 012 to 999 60" (060) Standard. For Coil Cords Enter 060 or 180
Lead Wire Construction --Select--C = Coil Cord 221°F (105°C) Standard— = Coil Cord 221°F (105°C) w/ SS Overbraid— = Coil Cord 221°F (105°C) w/ Flex ArmorS = Fiberglass Stranded 900°F (482°C) StandardB = Fiberglass Stranded 900°F (482°C) w/ SS OverbraidA = Fiberglass Stranded 900°F (482°C) w/ Flex ArmorT = Teflon® Stranded 392°F (200°C) StandardD = Teflon® Stranded 392°F (200°C) w/ SS OverbraidF = Teflon® Stranded 392°F (200°C) w/ Flex Armor
Lead Wire Termination --Select--P = Standard Male Plug 350°F (177°C)J = Standard Female JackK = Std. Plug with Mating JackD = Mini Male Plug 350°F (177°C)E = Mini Female JackF = Mini Plug with Mating JackB = Split LeadsS = Leads with Spade LugsC = 2.5 in. with BX Connector and Spade Lugs Plugs and Jacks for 2- and 3-Wire Only

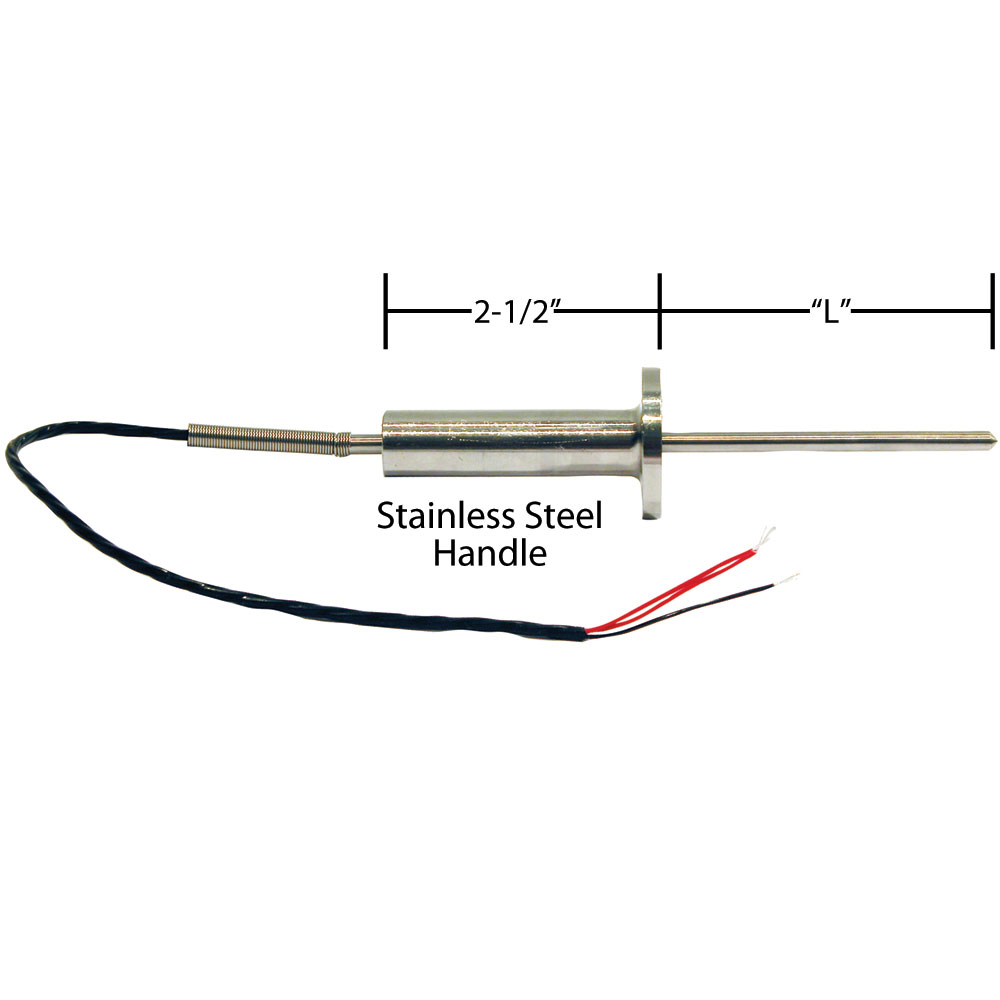

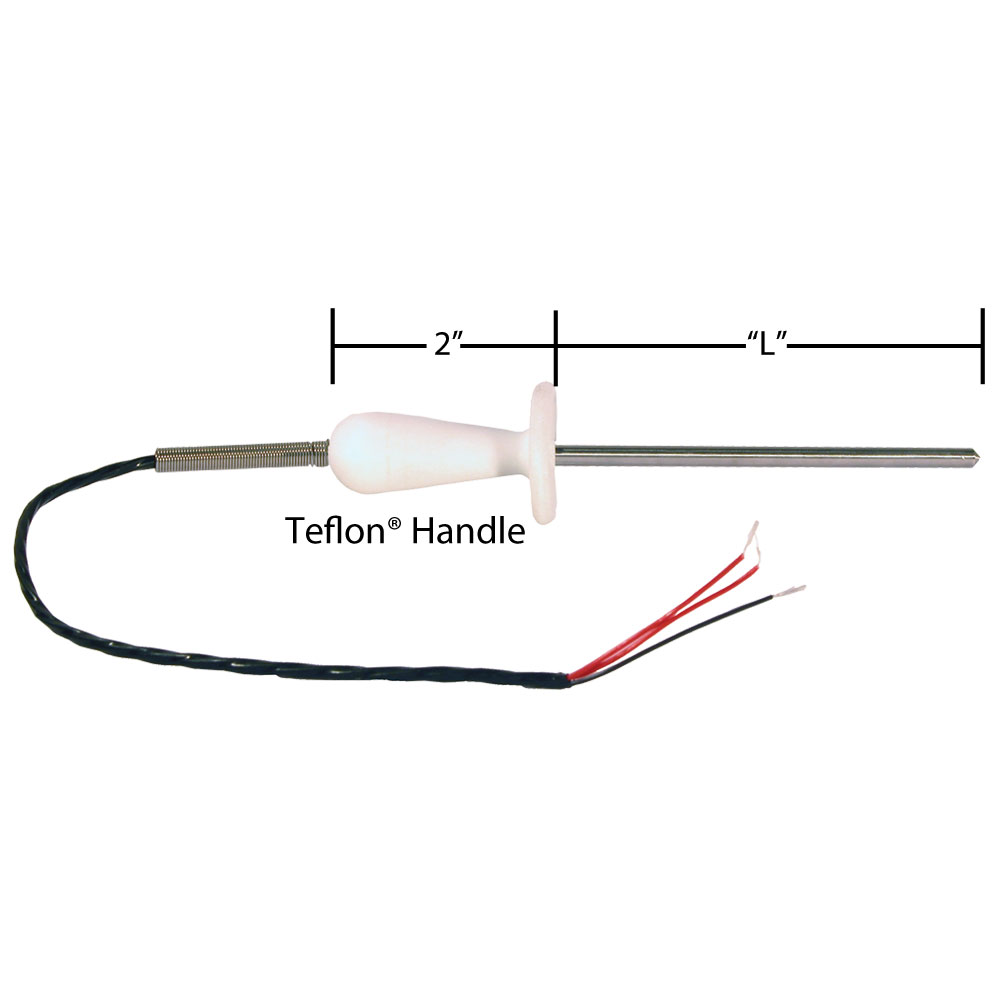

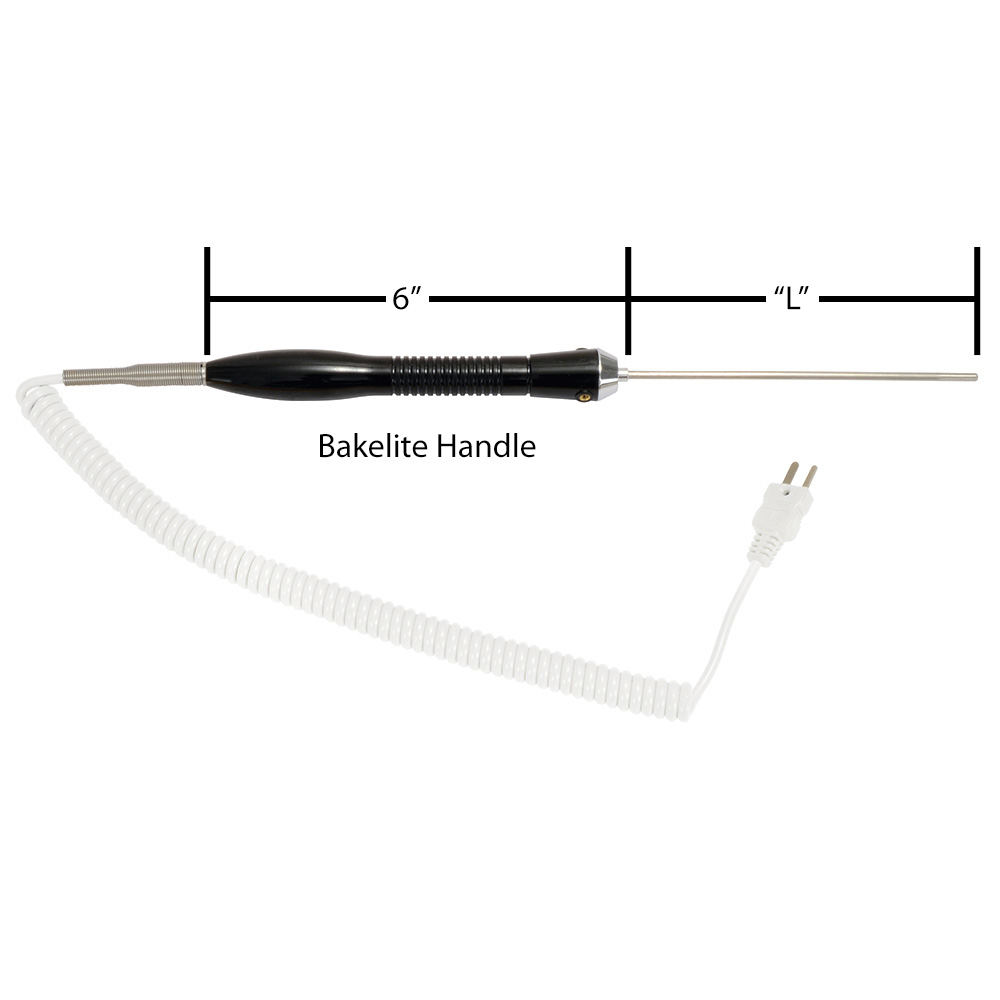

Handle Type --Select--1 = Stainless Steel2 = Teflon® 500°F (260°C)3 = Phenolic 383°F (195°C)
Special Requirements --Select--X = Specify0 = None
