Click image to enlarge

  • Style 1
  • Style 2

Adjustable Bayonet Style RTD's

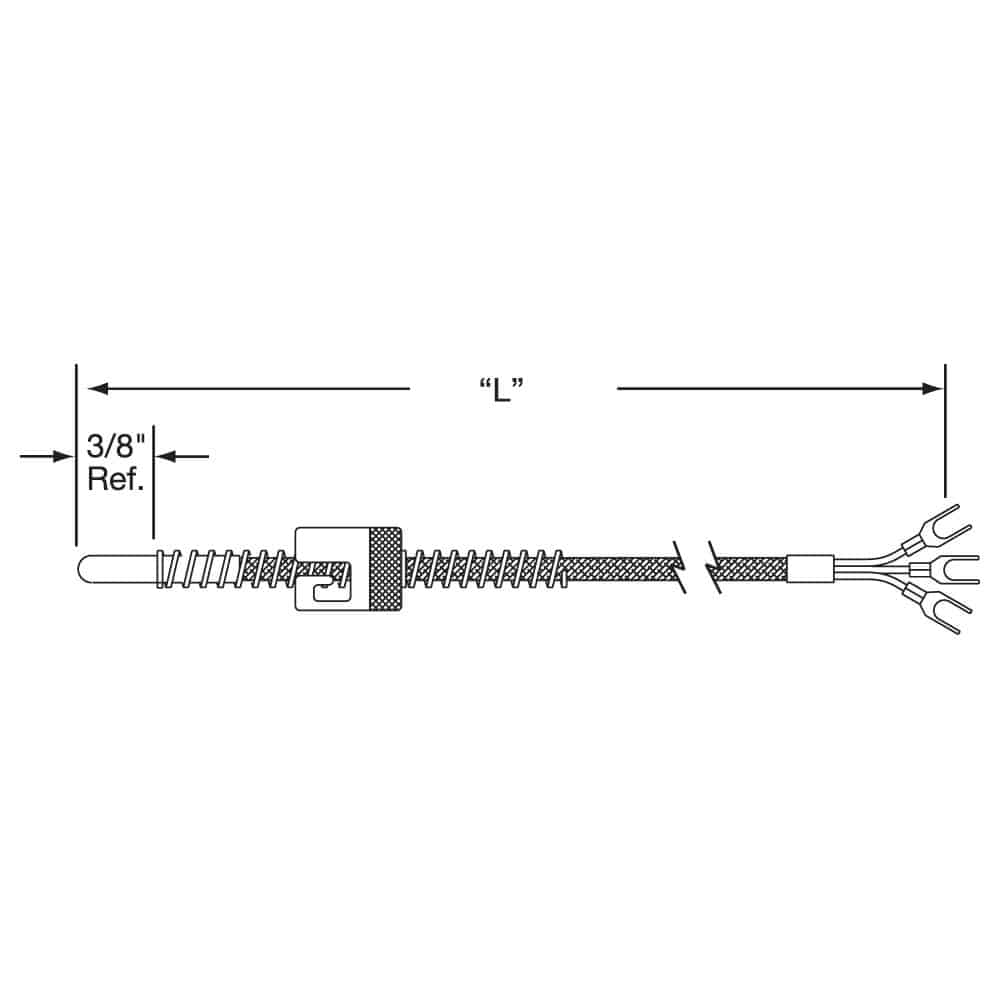

Style 1—Adjustable Spring Bayonet RTD

  • Insertion length adjustable from 1" to 10"
  • One can replace several fixed-length thermocouples
  • Forms easily to any angle

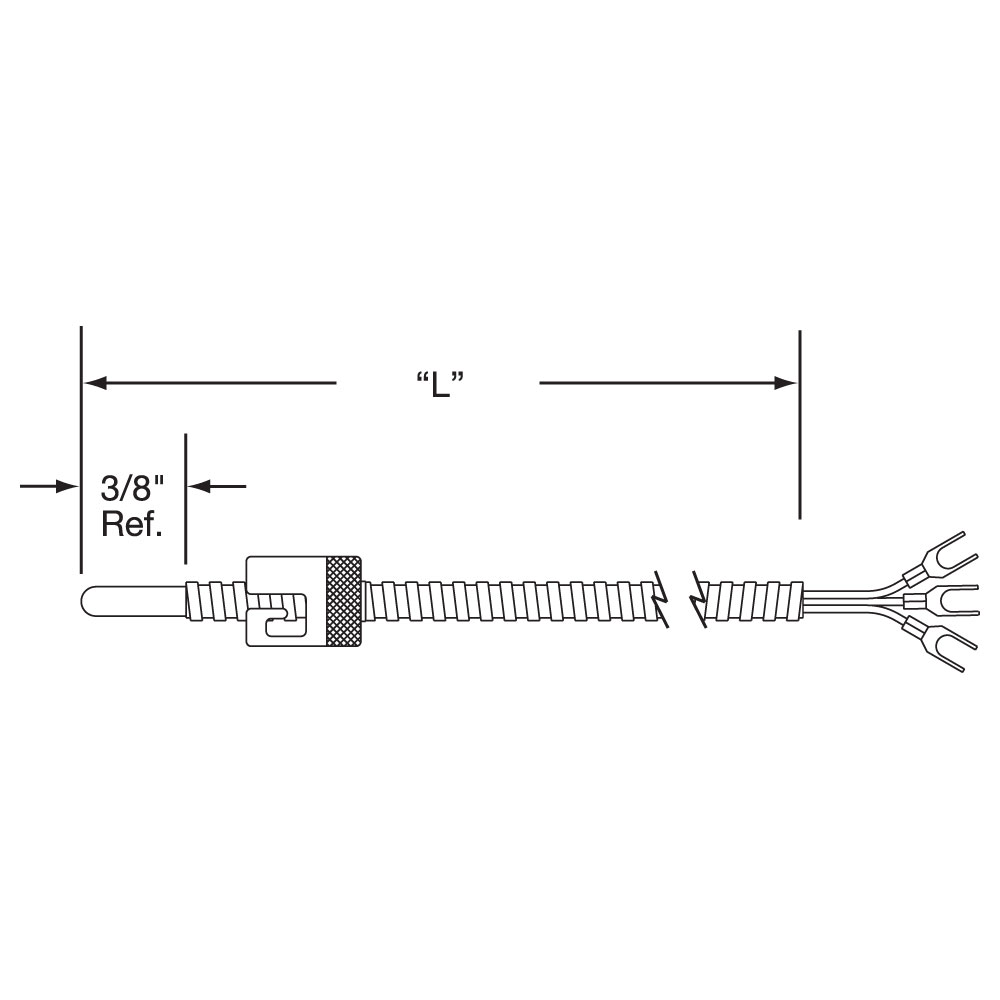

Style 2—Adjustable Armor Cable Bayonet RTD

  • Insertion length adjustable over length of armor cable
  • One can replace several fixed-length thermocouples or RTDs
  • Forms easily to any angle
RTD's are offered with the options listed in the form below. Make your selections and Submit to Tempco for a quote request. Part Numbers are assigned at the time an order is placed.



Optional RTD Termination Styles

Style B - Plain Ends
Style B

Style C - Spade Lugs with BX Connector
Style C

Style D - Miniature Plug
Style D

Style E - Miniature Jack
Style E

Style J - Standard Jack
Style J

Style P - Standard Plug
Style P

Style S - Spade Lugs
Style S

Choose RTP Options (Select for Quote)

Style

Element

Element Class

Number Of Leads

"L" Dimension – Whole Inches 012 to 999

Lead Insulation

Termination
Plugs and Jacks for 2- and 3-Wire Only

Special Requirements

Additional Information (Optional)

Quantity

Comments
