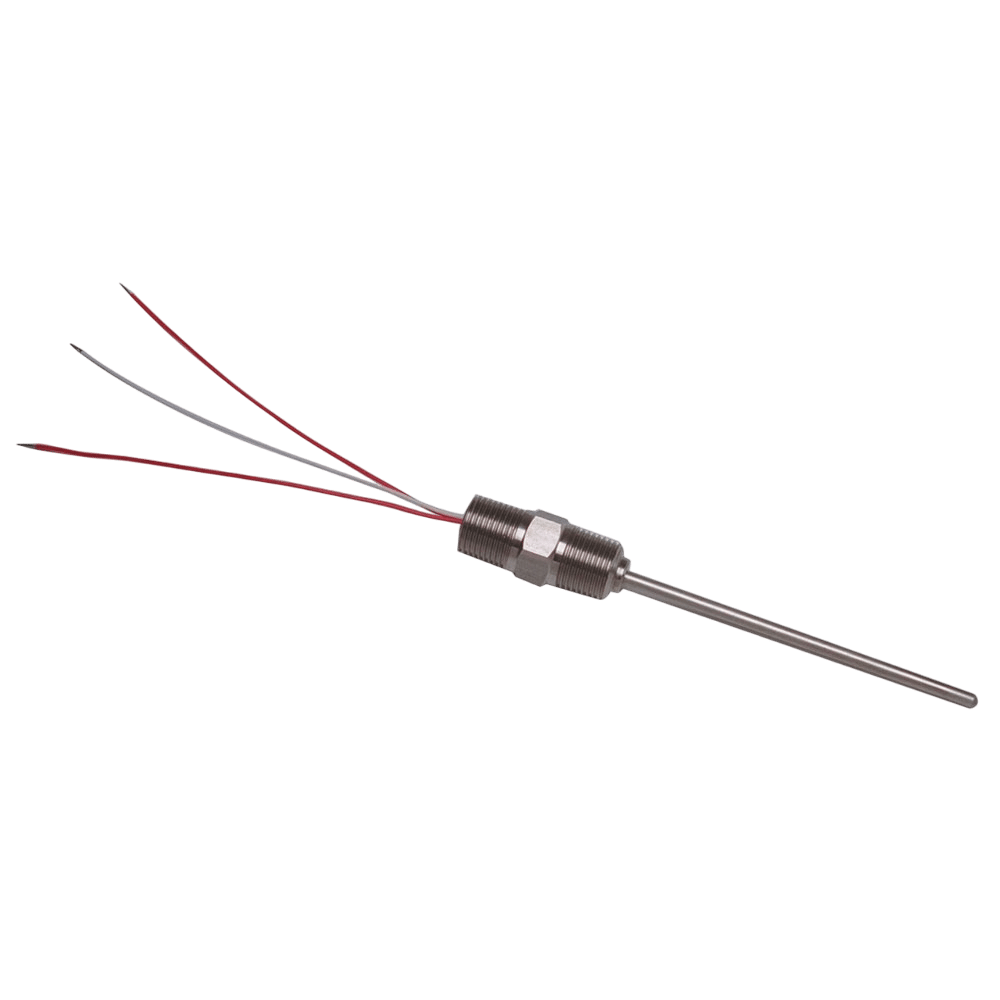

Choose RTD4 Options (Select for Quote)

Element – TCR = .00385 ohm/ohm/°C --Select--S = 100Ω SingleD = 100Ω DualK = 1000Ω SingleL = 1000Ω Dual

Element Class --Select--A = ±0.06% at 0°C, OptionalB = ±0.12% at 0°C, Standard

Number Of Leads --Select--2 = 2-wire circuit3 = 3-wire circuit4 = 4-wire circuit
0.125" O.D. (Dual circuit not available)

Sheath Diameter --Select--F = 0.125"G = 0.188"H = 0.250"X = Other (Specify)

Sheath Material --Select--B = 304 SSC = 316 SSA = Alloy 600 (Type M MgO insulated only)

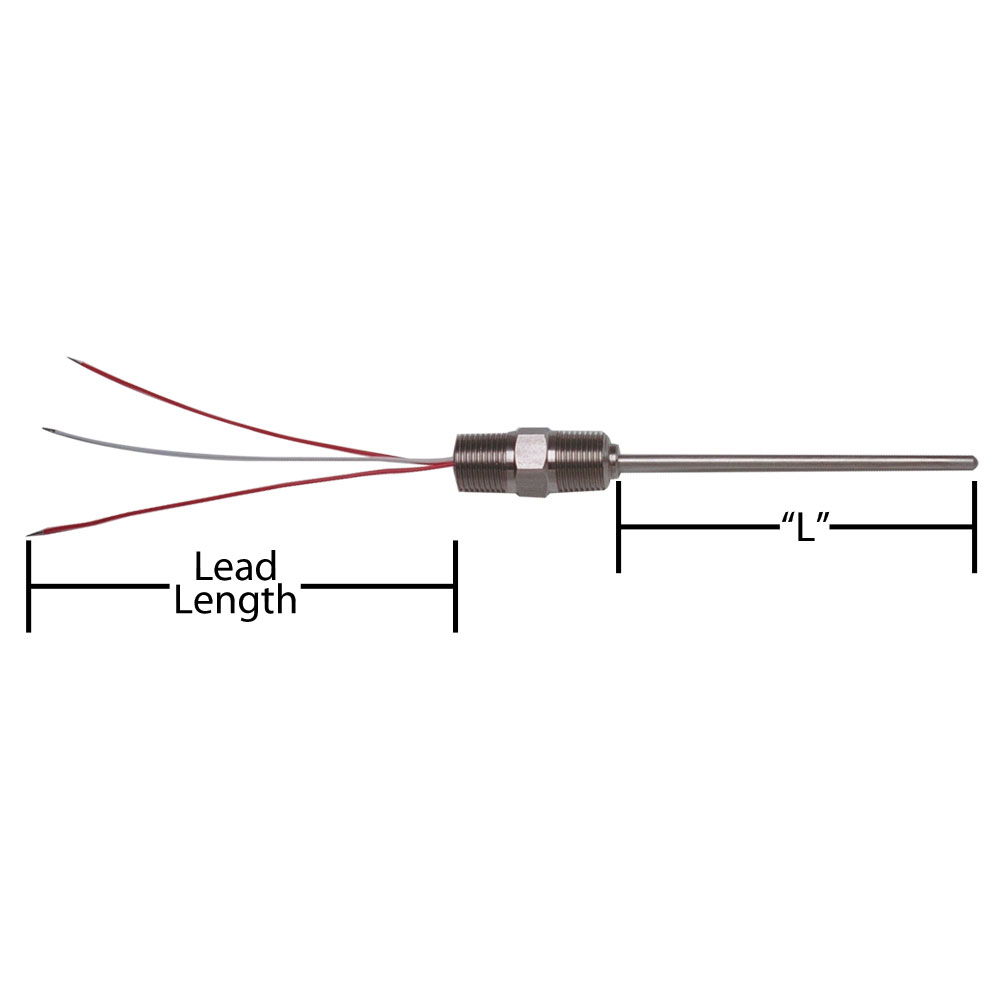

Sheath Length "L" – Whole Inches 01 to 99
For lengths over 99 in. call TEMPCO.

Sheath Length "L" – Fractional Inches --Select--0 = 0"1 = 1/8"2 = 1/4"3 = 3/8"4 = 1/2"5 = 5/8"6 = 3/4"7 = 7/8"

Lead Wire Length – Whole Inches 001 to 999
12" (012) Standard

Thread --Select--4 = 1/4"NPT2 = 1/2"NPT

Spring-Loaded Probe --Select--O = Not RequiredY = Yes, 1/2" NPT only

RTD Construction Type --Select--T = Tube and Wire ConstructionM = MgO Insulated Construction (Type “M” not available for “K” or “L” Element)

Lead Wire Construction --Select--S = Fiberglass Stranded 900° (482°C)B = Fiberglass Stranded 900° (482°C) w/ SS BraidA = Fiberglass Stranded 900° (482°C) w/ SS ArmorT = Teflon® Stranded 392°F (200°C)D = Teflon® Stranded 392°F (200°C) w/ SS BraidF = Teflon® Stranded 392°F (200°C) ww/ SS Armor

Special Requirements --Select--X = Specify0 = None

Additional Information

Quantity
