Pennybottom Cartridge Heaters

Click image to enlarge

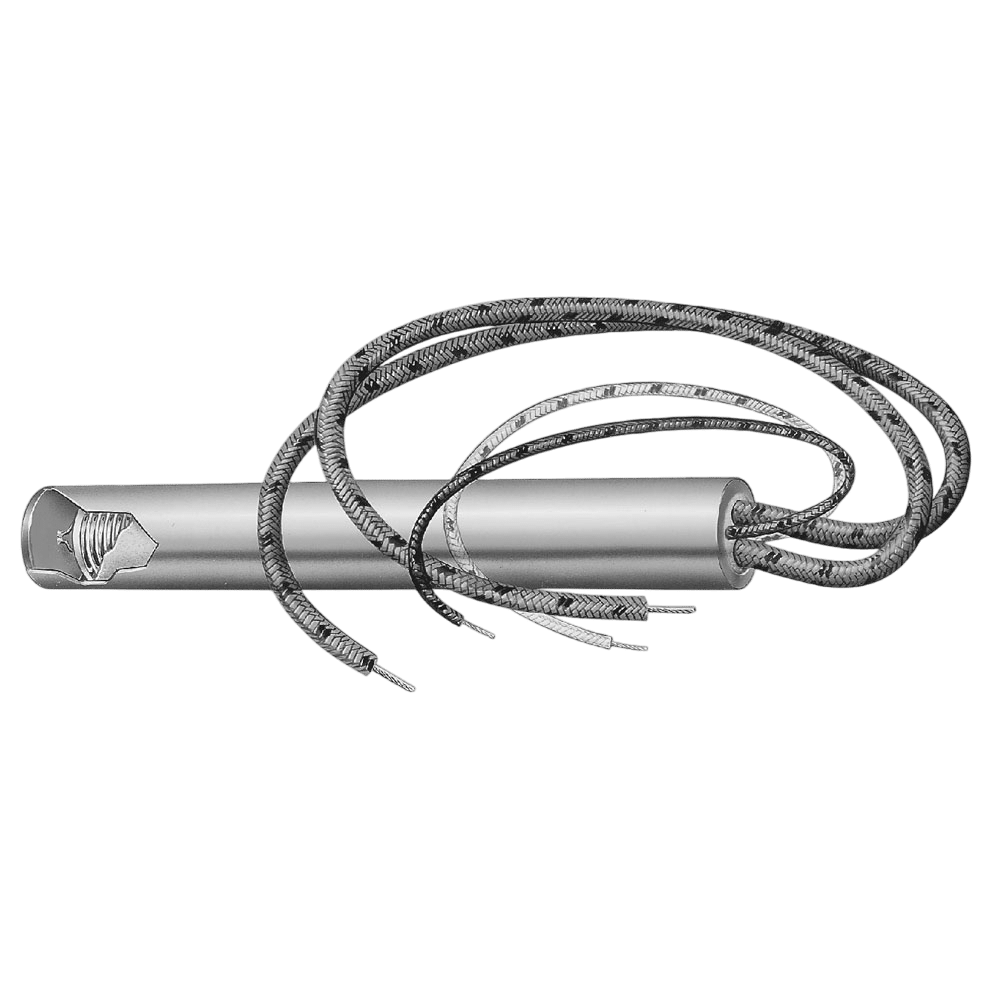

Pennybottom Cartridge Heaters

These heaters are configured for specific tasks in the plastic injection molding environment with extra long leads, Teflon® or fiberglass insulation, optional thermocouples and grounded sensor options at the end or middle of the heater.

Design Features include:

Hi-Density Swaged Construction
Copper Flat End Disc
Type J T/C
36" High Temperature Leads for both heater and T/C
Minimum cold sections / computer designed distributed wattage
OEM Replacements available from Stock for Runnerless Molding Systems

Resources

Catalog PDF
Standard Specs & Tolerances
BNS Anti-Seize Heater Coating (CML)
Cartridge Heater Gallery

In-Stock Parts

Pennybottom Heaters (HDP)

Explore Pennybottom Cartridge Heaters Specifications

Refine Results

Terminator Program

Not Available

Heater Diameter (if known)

1/4"

3/8"

1/2"

Electrical Terminations

Plain Lead Wires

Sensor Options

Grounded

Power Variations

Heat Zones

Sort by:

Alphabetical
Sort Date "Newest First"
Sort Date "Oldest First"
Most Popular
Highest Rated
Display Order Ascending
Display Order Descending
Detail Images Group 1 Size Ascending
Detail Images Group 1 Size Descending
Detail Images Group 2 Size Ascending
Detail Images Group 2 Size Descending
Detail Images Group 3 Size Ascending
Detail Images Group 3 Size Descending
Card Title Ascending
Card Title Descending

Please wait while we gather your results.

Electrical Terminations

Type F: Internally Connected Flexible Leads

Standard Termination for Low-Density Cartridge Heaters.

The fiberglass lead wires are internally connected to the terminal pins. This lead termination provides flexibility, permitting the lead wires to be sharply bent as they exit the heater.

Sensor Options

Type TJ1 and TK1: Grounded at Disc End

The thermocouple junction is grounded to the sheath at the disc end and packed with MgO. The concave end disc is filled with silver solder and ground flat. When inserted into a flat end blind hole, it will provide fast responsive temperature readings. Widely used in Hot Runner mold probes.

Power Variations

Type DW: Distributed Wattage

Cartridge heaters can be designed to vary the wattage along the length of the heater. Specify number of zones and the required watts and length per zone starting from the disk end. Leads can be connected externally or internally. Picture shows a heater with Type N externally connected leads. Heaters with other terminations may require a longer cold section at the lead end.
