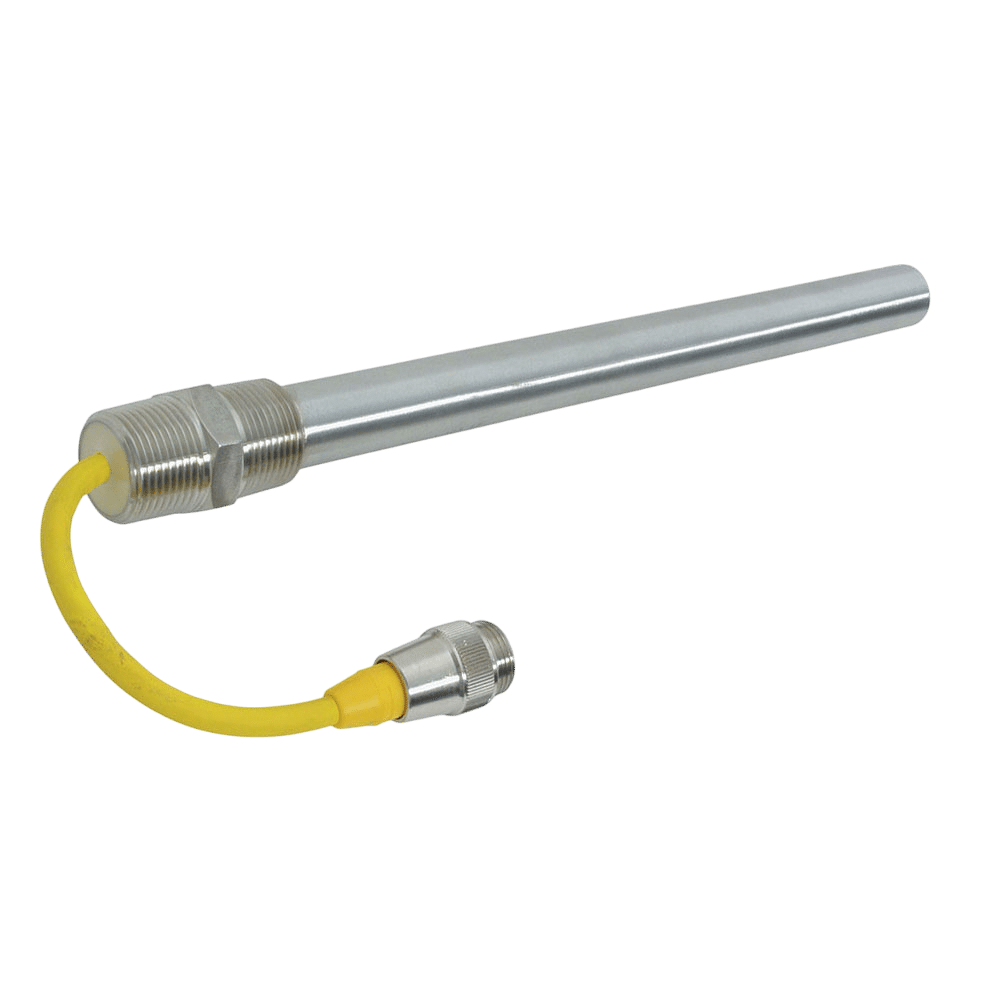

Custom Cartridge Heaters

Like most Tempco Products, our custom manufactured Cartridge Heaters are made to customer specifications for specific applications. Below is a small sampling of the specialty Cartridge Heaters that Tempco has designed.

Please wait while we gather your results.

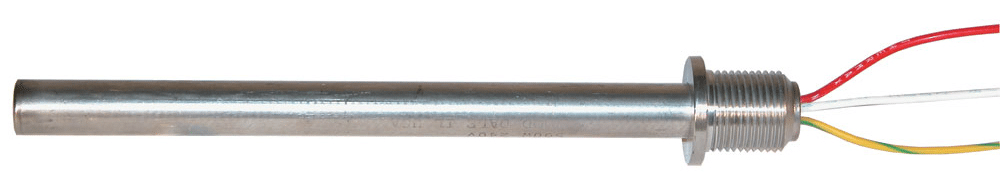

Air Immersion Cartridge Heater

Cartridge heater for continuous air heating application with Incoloy® sheath, custom machined fitting and silicone rubber moisture barrier

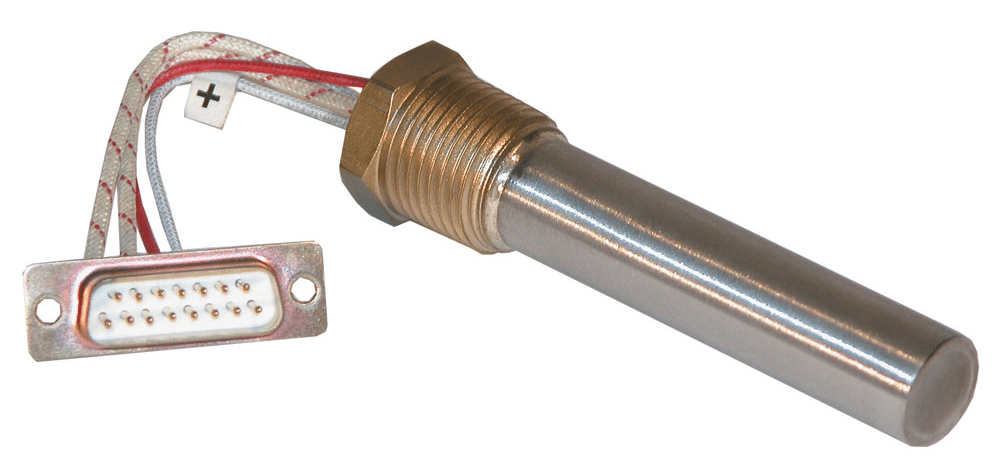

Hi-Density Cartridge Heater

Internal thermocouple is wired to a serial connector for easy assembly to a microprocessor used in incubators

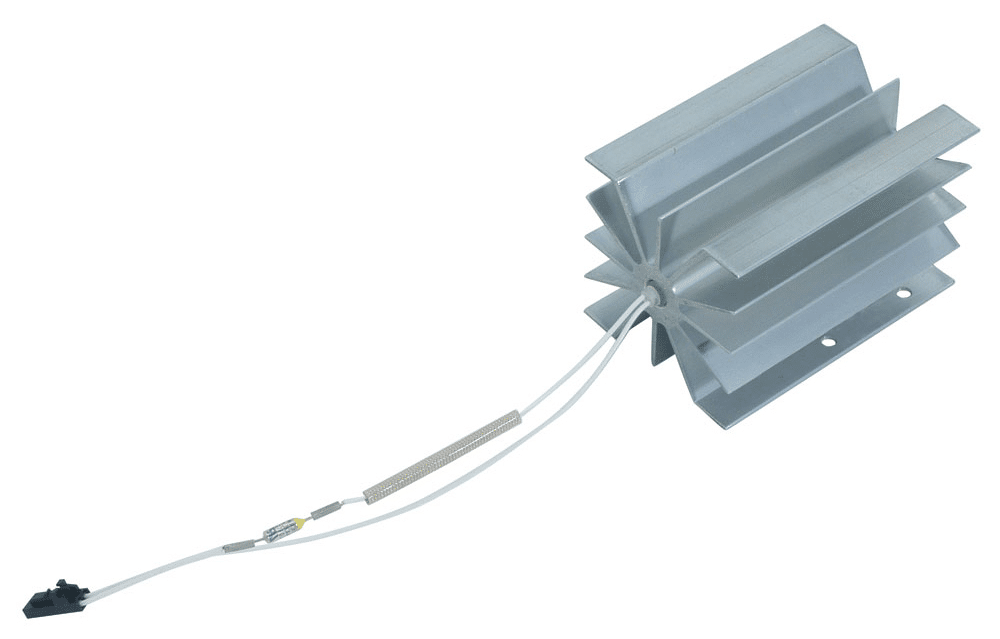

Air Immersion Cartridge Heater

Heater for medical diagnostic instruments has an integrated heat sink and thermal fuse

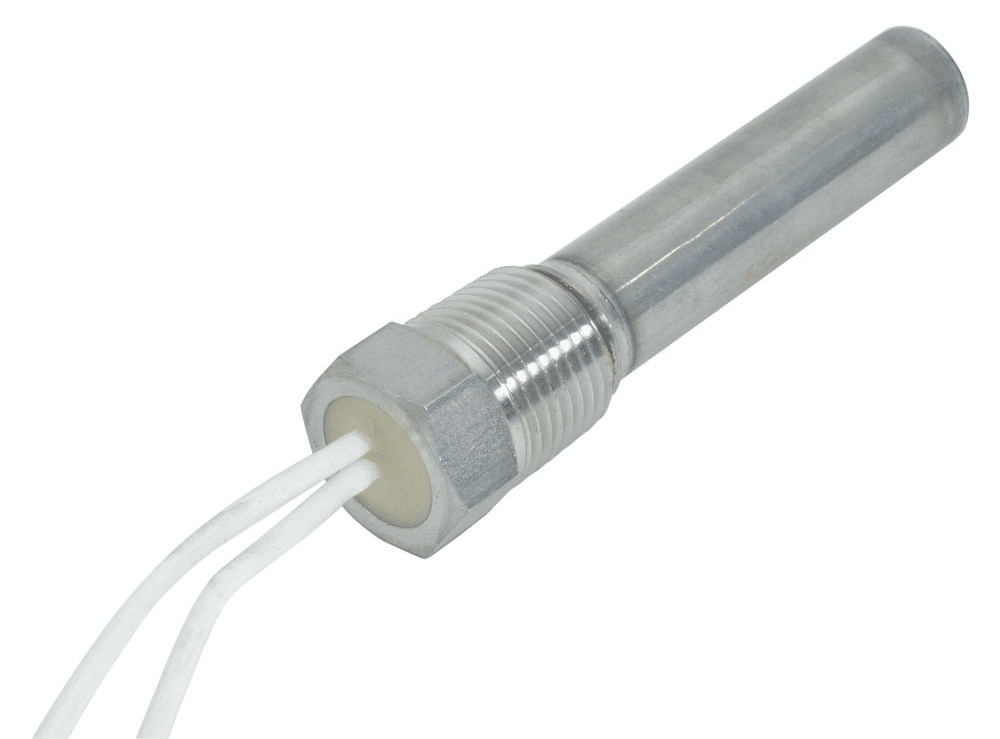

HI-Density Cartridge Heater

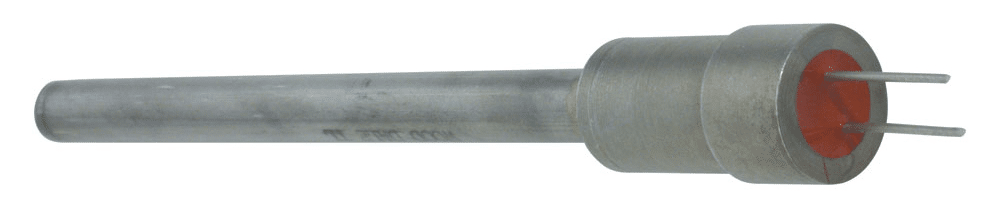

The header cap of this heater is an integral part of the fitting; leads exit through small holes that are sealed with epoxy for moisture protection

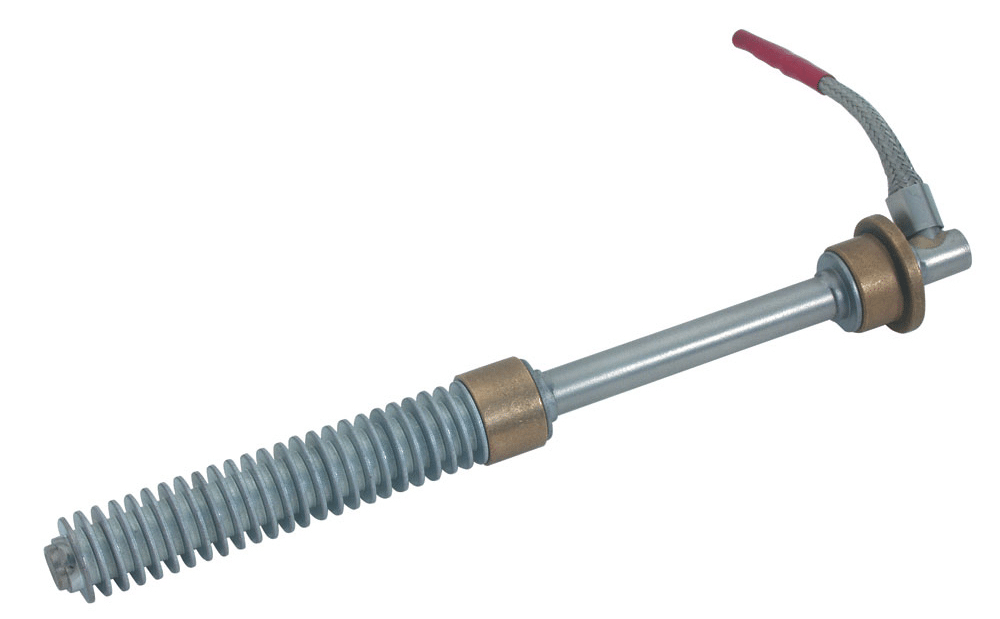

Air Immersion Cartridge Heater

Heater with custom designed fins for air heating in natural convection environment in a plastic-processing machine

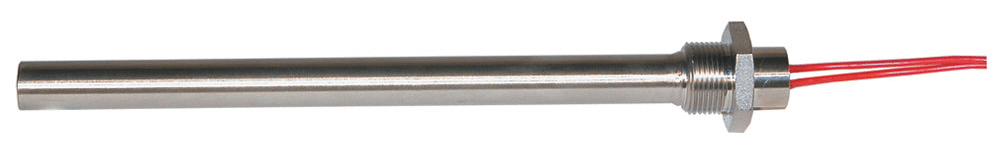

Immersion Cartridge Heater

Incoloy® fitting and seamless Incoloy® 800 sheath material used in an aviation application

Hi-Density Cartridge Heater

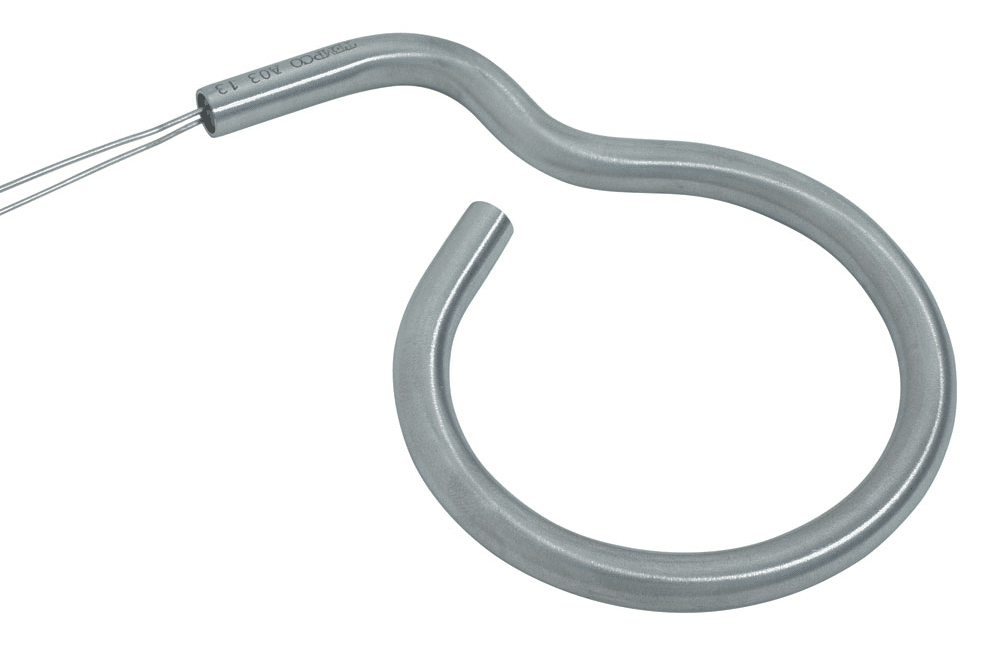

Complex shape cartridge heater

Immersion Cartridge Heater

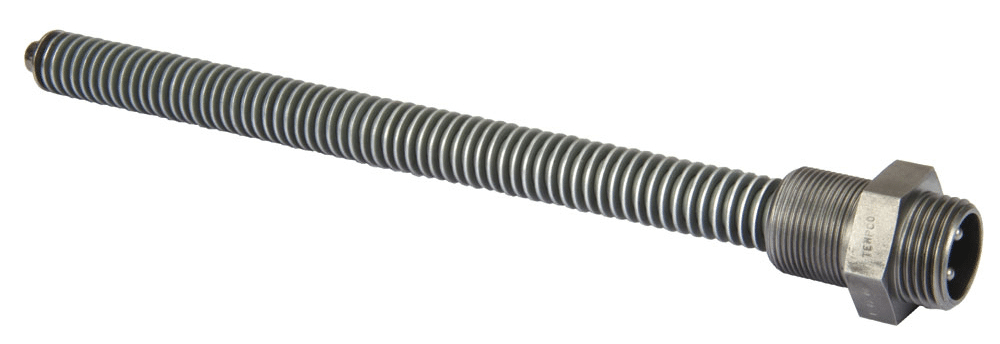

Finned cartridge oil immersion heater with liquid-tight electrical termination

Hi-Density Cartridge Heater

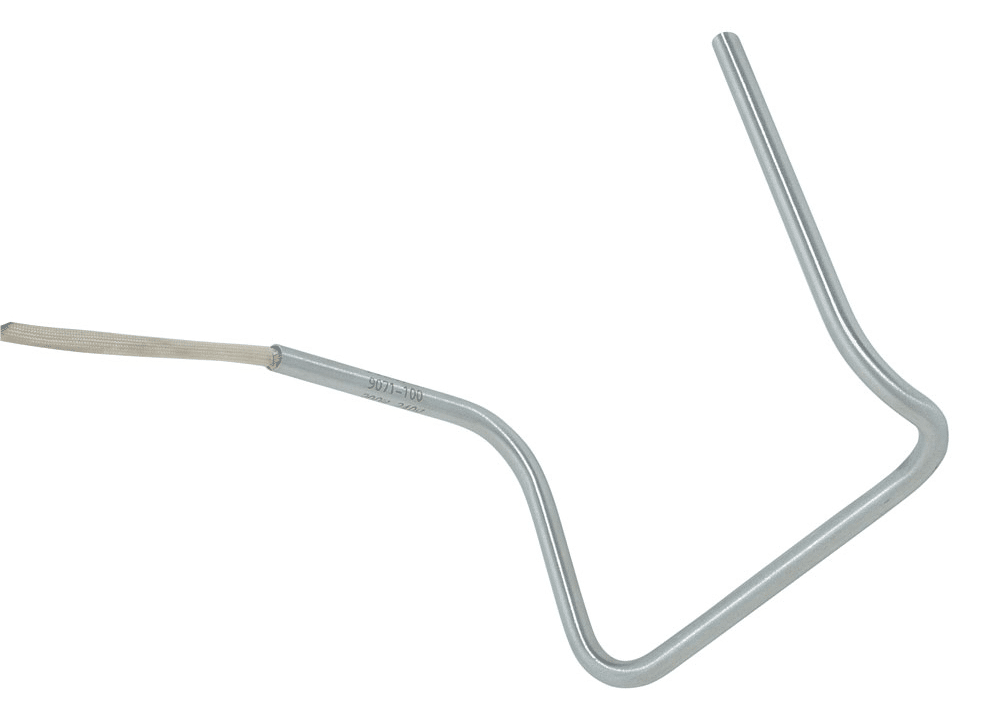

Complex shape cartridge heater

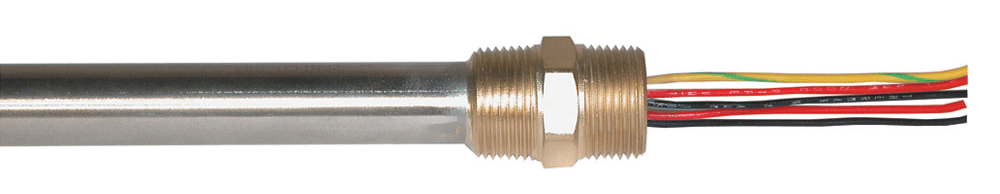

Immersion Cartridge Heater

Heater with built-in thermostat, pipe fitting and ground leads for oil heating in waste handling equipment

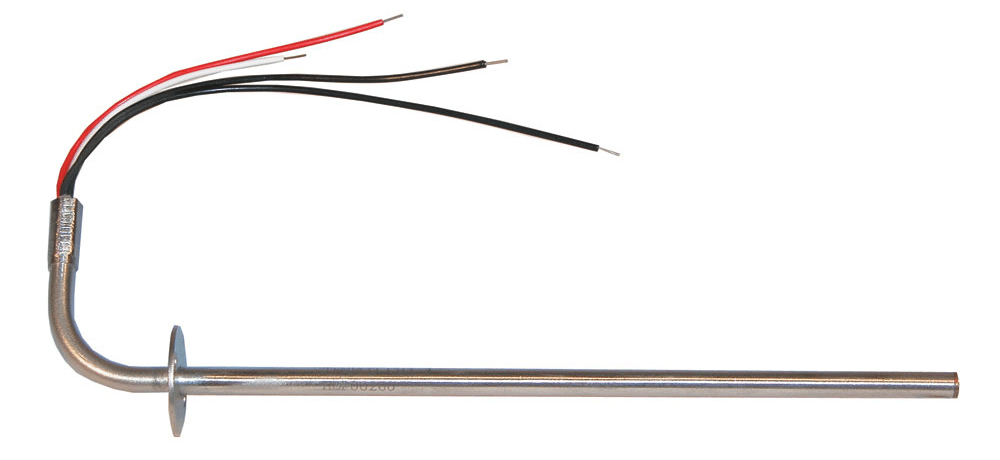

Hi-Density Cartridge Heater

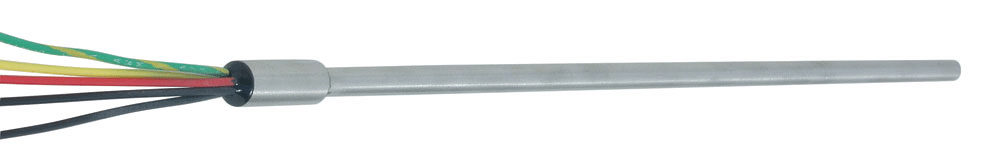

Heater designed to run continuously at 1202°F (650°C); designed with built-in isolated thermocouple and ground wire

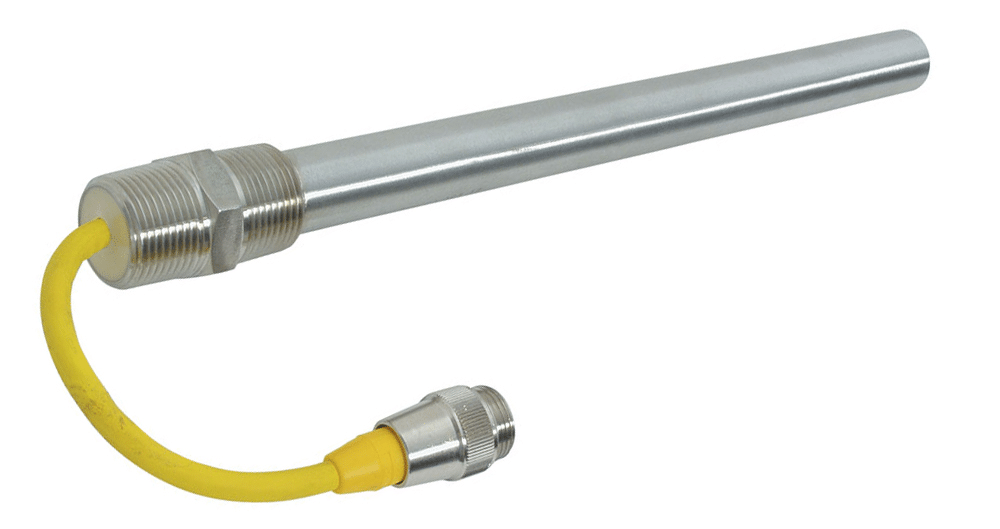

Low Density Cartridge Heater

Heater with NPT fitting and 5-pin industrial connector molded to the cord

Hi-Density Cartridge Heater

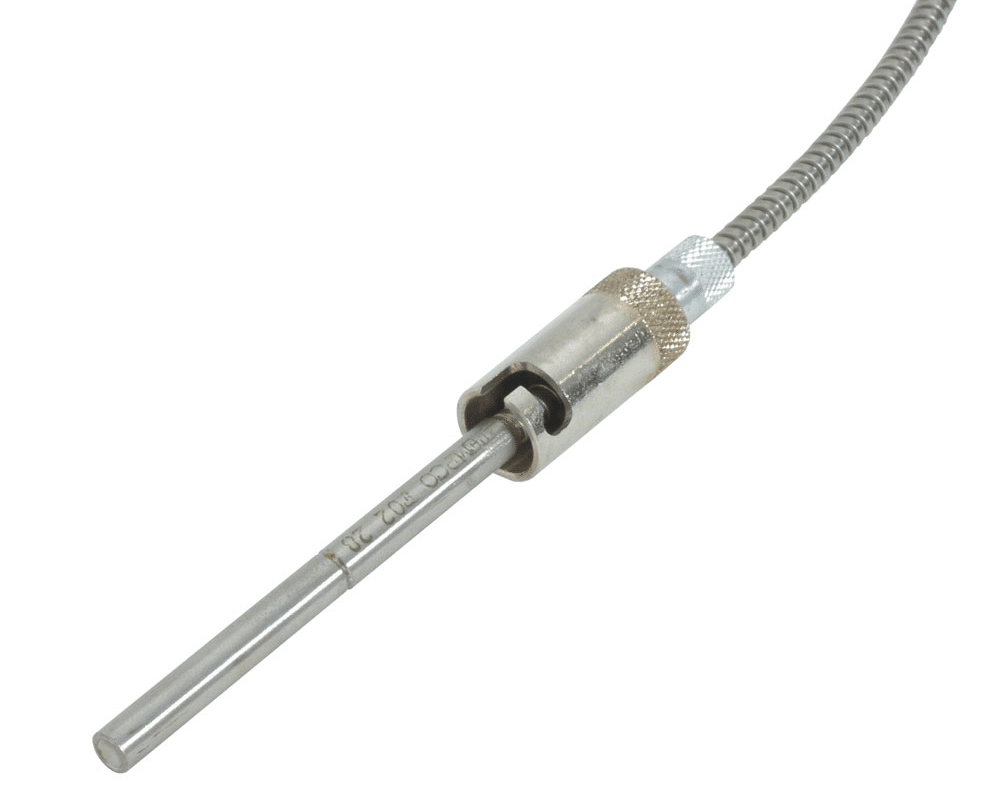

Designed with straight armor cable and adjustable bayonet cap for easy assembly

Low Density Cartridge Heater

Heater with built-in thermal fuse and ground wire for X-Ray processing equipment

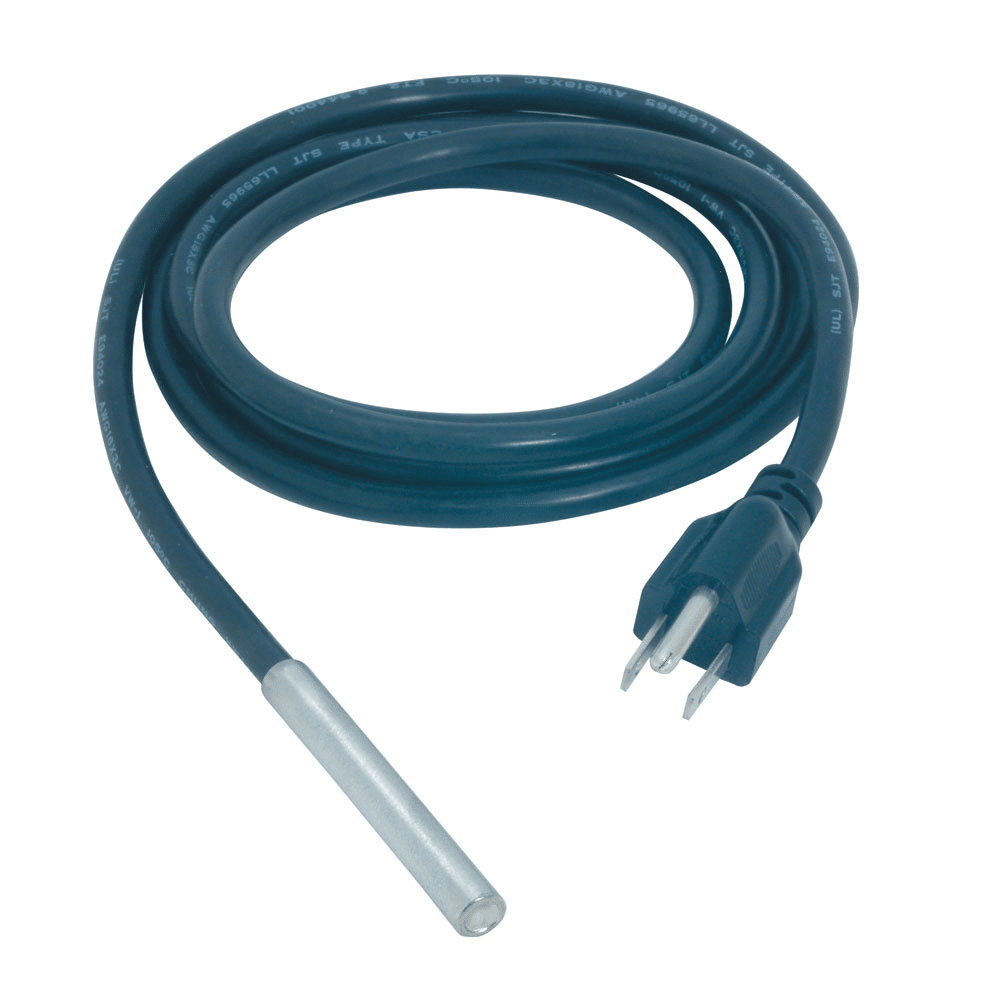

Hi-Density Cartridge Heater

SJO cord and molded plug termination for automotive air conditioning recharging units

Pennybottom™ Cartridge Heater

Pennybottom tip die bolt heater with internal thermocouple

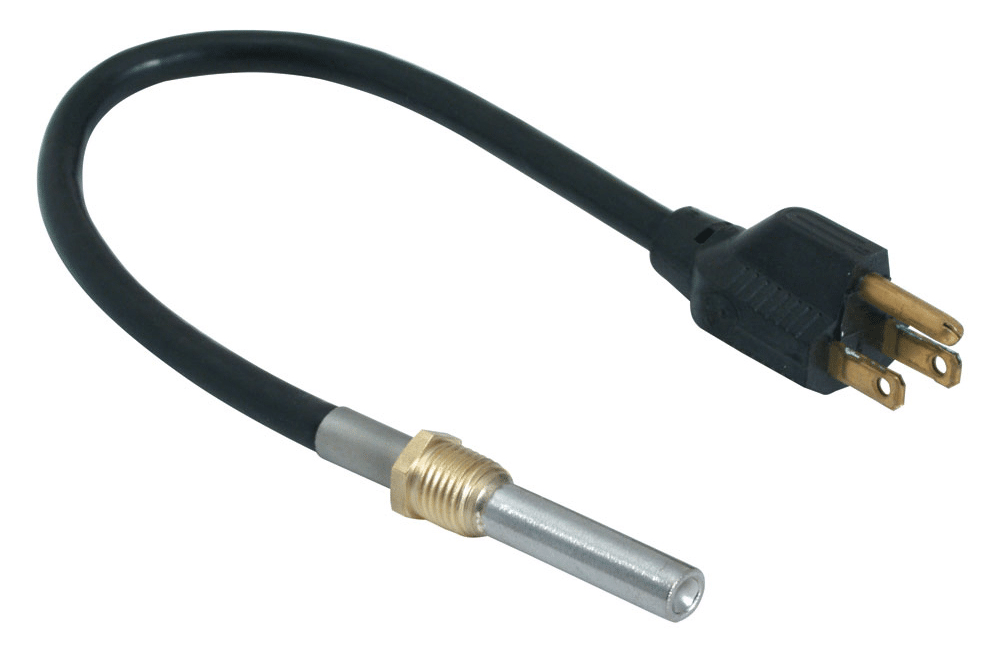

Hi-Density Cartridge Heater

SJO cord and molded plug termination for automotive air conditioning charging units

Please wait while we gather your results.



Tempco has long been at the forefront of addressing the challenges of original equipment manufacturures (OEMs) in diversified industries. With our engineering and manufacturing expertise, Tempco can provide you with the optimal solution to your process application.

Contact Us with your requirements.
