  • TEC-8300 Control

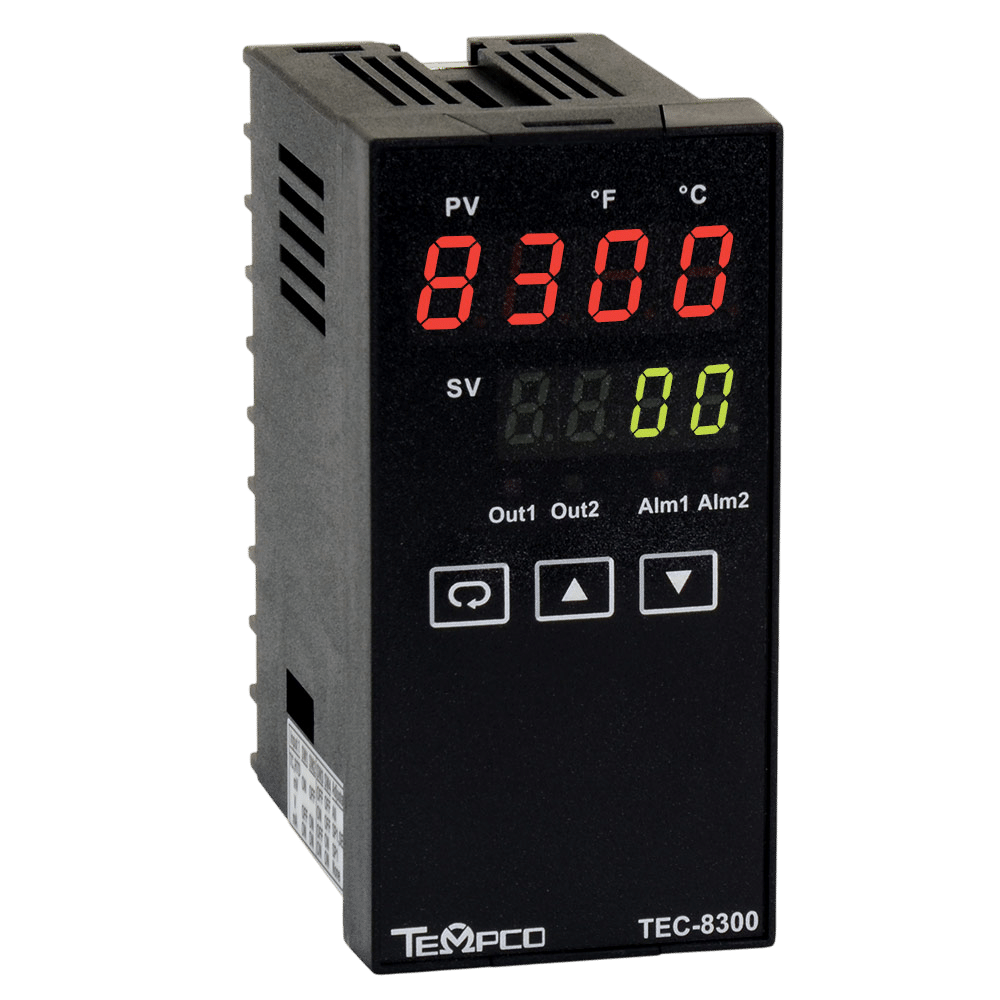

Model TEC-8300 Temperature Controller

TEC-8300 Design Features

  • 1/8 DIN size – 48 mm × 96 mm
  • Fuzzy logic PID Autotune heat and cool control
  • Short panel depth – only 2-9/16" (65 mm) required
  • Universal input, field configurable (Type J T/C default, PT100, mA, V) witih high accuarcy 18-bit D-A
  • Heater Break Alarm using 0-50 Amp current transformer
  • Output 2 can be programmed as cooling output only
  • 2 optional alarms – programmable NO or NC relay
  • Wide variety of alarm mode selections
  • Bumpless transfer to manual mode during sensor failure
  • Universal input power, 90-264 VAC
  • Power limiter output
  • RS-485 and RS-232 data communications interface
  • Bright 0.40" (10 mm) red LED process display, 0.31" (8 mm) green LED setpoint display stabilized with a digital filter if required
  • Fast input sample rate (5 samples/second)
  • Automatic programming
  • Differential control
  • "Soft-Start" ramp and dwell timer
  • Analog input for remote setpoint and current transformer
  • Event input for changing functions and setpoint
  • Hardware lockout plus remote lockout protection
  • Loop break alarm
  • Analog retransmission
  • DC power supply outputs
  • Tempco's most highly featured 1/8 DIN control


Choose TEC-8300 Options (Select for Quote)

Power Input

Signal Input – Universal, can be programmed in the field.

Output 1

Output 2

Alarm 1

Alarm 2

Data Communications

Additional Information



Contact Information (Required)

Customer Type




Are you an existing Tempco Customer?  Yes    No

First Name

Last Name


Email    name@domain.com

Phone    xxx-xxx-xxxx

   Ooh, dat's hot! Please email me the latest product information and company updates from Tempco.
We won't share your information with anyone. You can unsubscribe at any time.

Agency Approvals

RU Approval
File #: E244198

CSA Approval
File #: 218237

CE Approval
