  • TEC-4500 Control

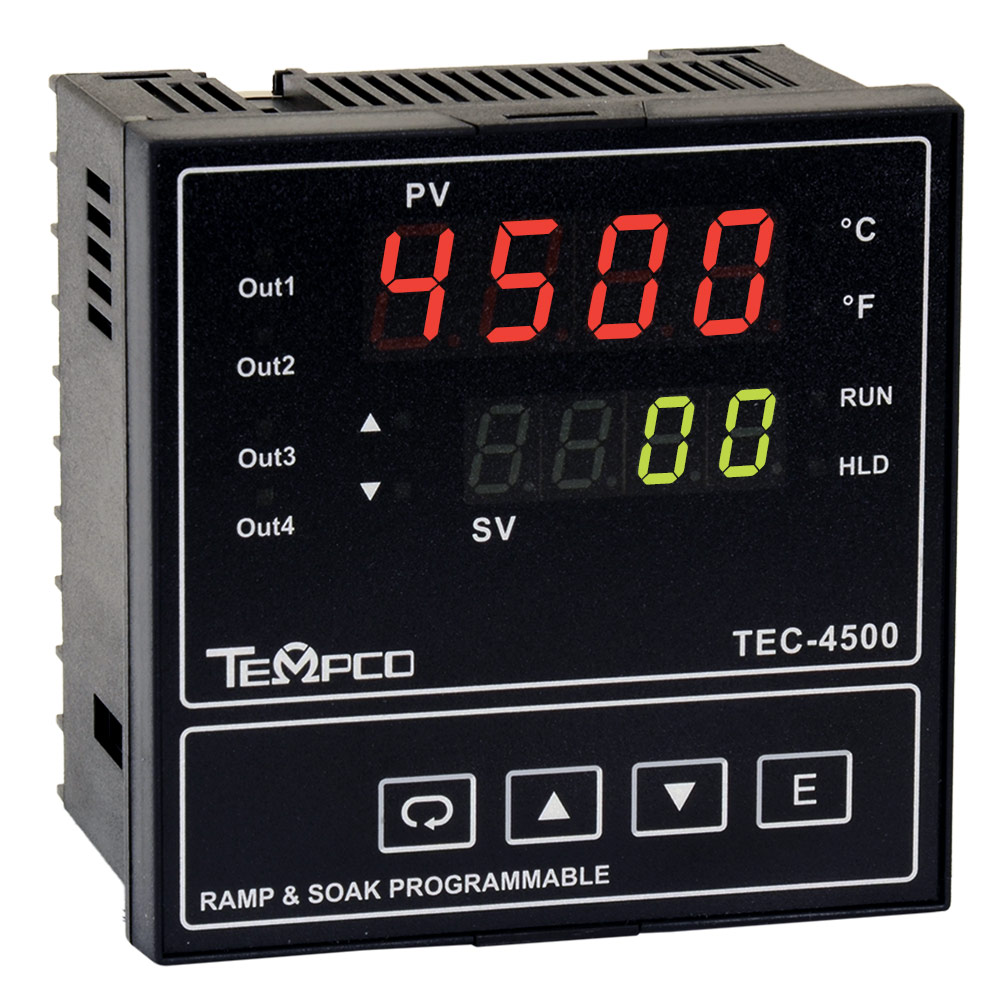

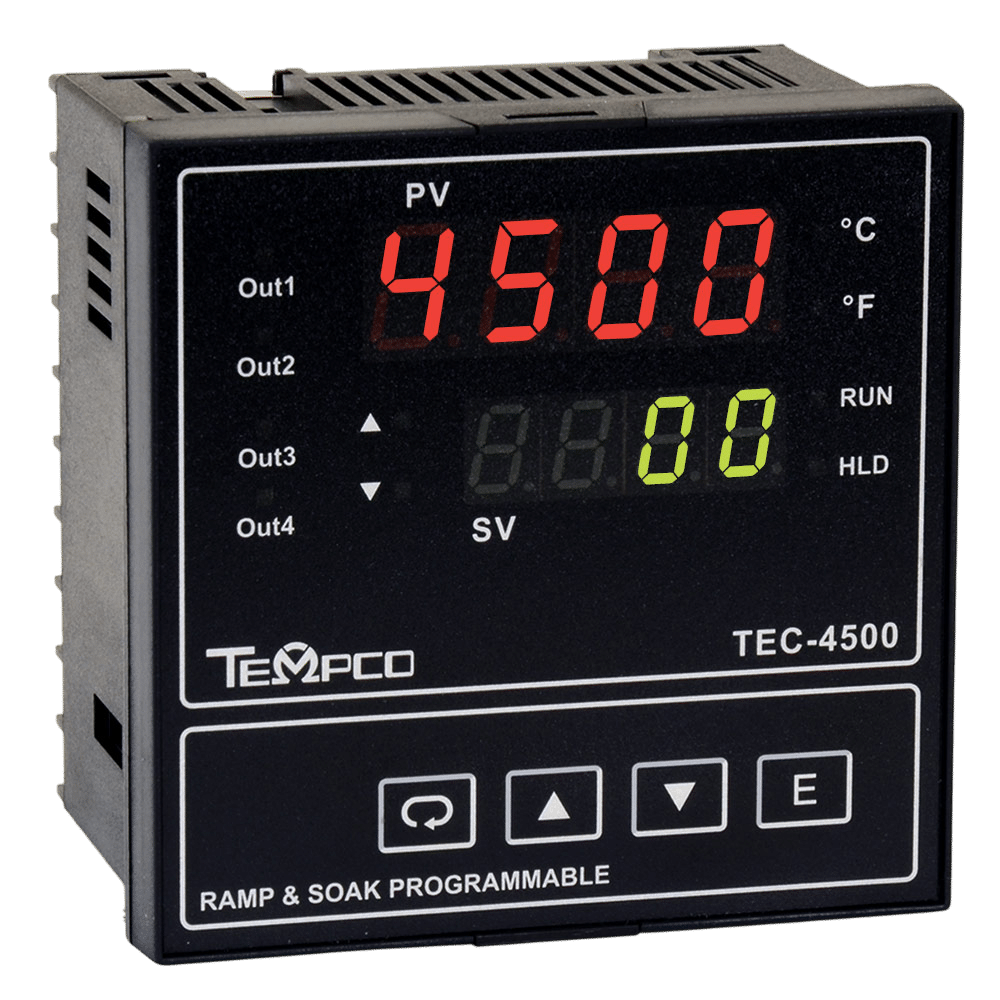

Model TEC-4500 Temperature Controller

TEC-4500 Design Features

  • Ramp & Soak Programmable Control
  • Nine recipes (profiles) available using 64 segments maximum per recipe
  • Event Input – one of 8 functions can be chosen: start run mode, hold mode, abort recipe, manual mode, failure transfer, turn off, segment advance, select 2nd set of PID parameters
  • Event Output – 3 relays are available. Can be programmed to any segment or end of recipe
  • Analog Retransmission – optional mA or VDC transfer of PV or SV values
  • Highly accurate universal input with 18 bit analog to digital converter
  • Bright 0.40" (10mm) red LED process display
  • Fast sample rate – 200ms
  • Fuzzy logic PID Autotune heat and cool control – 2 sets of values can be used
  • Optional RS-485 or RS-232 communications interface
  • Programming port available for PC connection allowing quick set-up
  • Lockout protection guards against unauthorized setting changes
  • Bumpless transfer allows continued temperature control if sensor fails
  • Universal input, field configurable (Type J T/C default, PT100, mA, V) witih high accuarcy 18-bit D-A
  • Short panel depth required

Explore Model TEC-4500 Temperature Controller Specifications




Choose TEC-4500 Options (Select for Quote)

Power Input

Signal Input – Universal, can be programmed in the field

Output 1

Output 2

Output 3

Output 4

Output 5

Case Options

Additional Information

Quantity

Questions or Comments

Contact Information (Required)

Customer Type

Location

City

Industry

Are you an existing Tempco Customer?  Yes    No

First Name

Last Name

Company

Email    [email protected]

Phone    xxx-xxx-xxxx

   Ooh, dat's hot! Please email me the latest product information and company updates from Tempco.
We won't share your information with anyone. You can unsubscribe at any time.

Agency Approvals

UL Approval
File #: E244198


CE Approval
