Tempco Custom Heater Manufacturing

Click image to enlarge

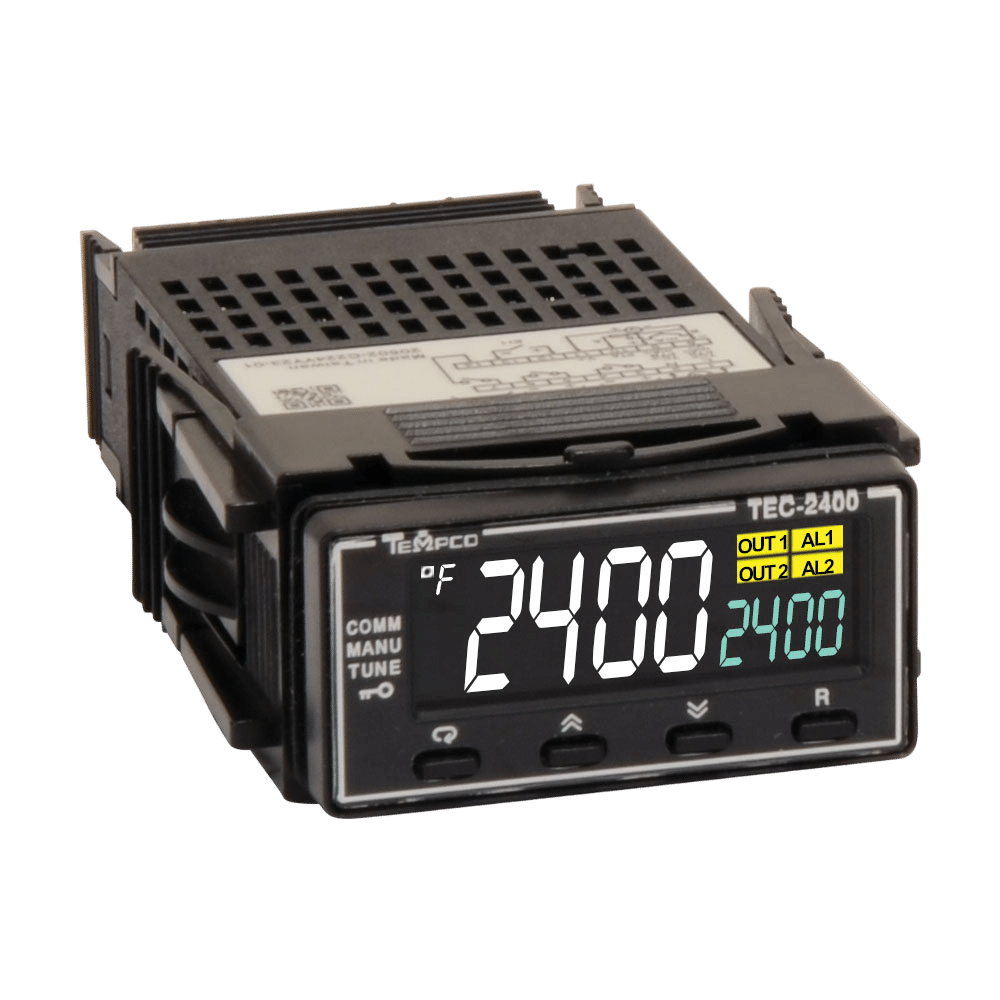

  • TEC-2400 Controller

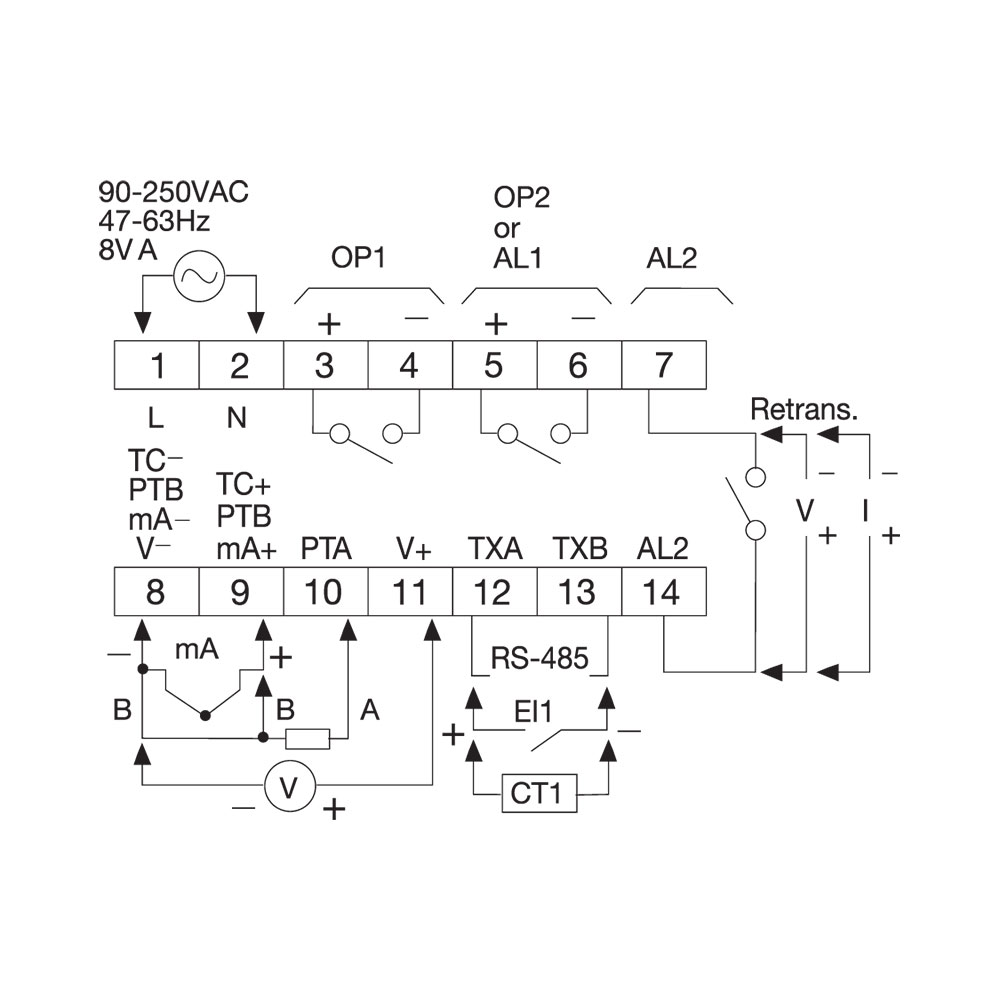

  • TEC-2400 Controller Rear Terminal Connections

Model TEC-2400 Temperature Controller

TEC-2400 Design Features

  • 1/32 DIN size – 24 mm × 48 mm
  • Fuzzy logic PID Autotune heat and cool control
  • Universal input, field configurable (Type J T/C default, PT100, mA, V) witih high accuarcy 18-bit D-A
  • Countdown display
  • RS - 485 and Analog Retransmission Available
  • Micro USB Programming Port
  • Fast sampling rate (200 msec)
  • Manual control & auto-tune function
  • Wide range of alarm mode selection
  • Lockout protection
  • Bumpless transfer during failure mode
  • Soft-start ramp & dwell timer
  • Bright LCD display using NFPA/IEC standard colors
  • High performance with low cost

Explore Model TEC-2400 Temperature Controller Specifications




Choose TEC-2400 Options (Select for Quote)

Power Input

Output 1

Output 2 / Alarm 1

Option 1

Option 2

Additional Information

Quantity

Questions or Comments

Contact Information (Required)

Customer Type

Location

City

Industry

Are you an existing Tempco Customer?  Yes    No

First Name

Last Name

Company

Email    [email protected]

Phone    xxx-xxx-xxxx

   Ooh, dat's hot! Please email me the latest product information and company updates from Tempco.
We won't share your information with anyone. You can unsubscribe at any time.

Agency Approvals:

  cULus Approval
File #: E244198

CE Approval

RoHS Approval

REACH, WEEE
