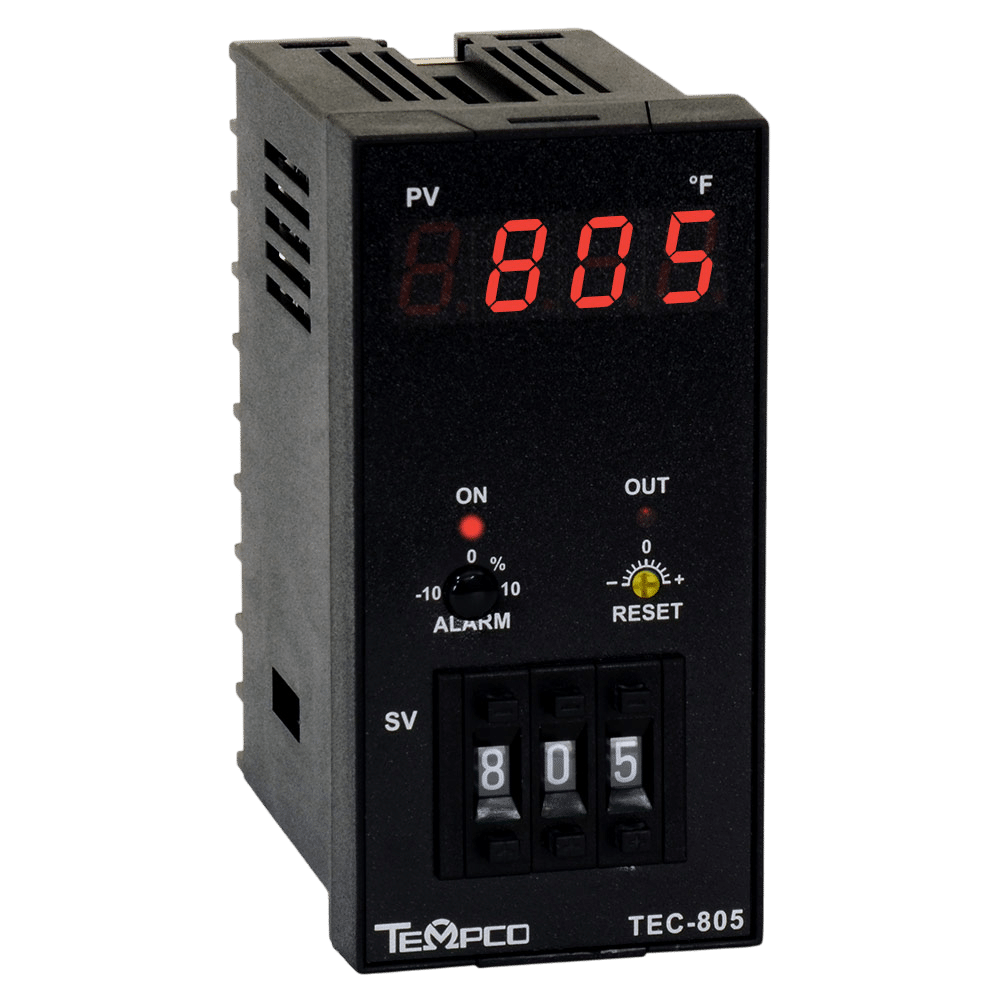

TEC-805 Design Features
Adapter Plates
Terminal Covers
Power Input -- Select --4 = 90-264 VAC 50/60 Hz
Signal Input -- Select --1 = Thermocouple: Type J2 = Thermocouple: Type K3 = RTD: 100 ohm PT, DIN 0.003854 = RTD: 100 ohm PT, JIS 0.003929 = Other
Range Code -- Select --X = 0 to 499°FV = 0 to 999°FW = 0 to 1999°FC = 0 to 299°CE = 0 to 499°CH = 0 to 999°C Other ranges are available for large volume orders.
Control Mode -- Select --1 = On - Off (used for valves & solenoids)2 = Proportional (common for electric heaters)
Output 1 -- Select --1 = Relay: 5A / 240 VAC2 = Pulse DC for SSR drive: 20 VDC (20 mA max)3 = 4-20 mA, linear (max load 500 ohms)4 = 0-20 mA, linear (max load 500 ohms)5 = 0-10 VDC, linear (min. impedance 500K ohms)9 = Other
Output 2 -- Select --0 = Not Available
Alarm -- Select --0 = None1 = Relay: 2A / 240 VAC Deviation alarm
Data Communications -- Select --0 = Not Available
Quantity
Comments
