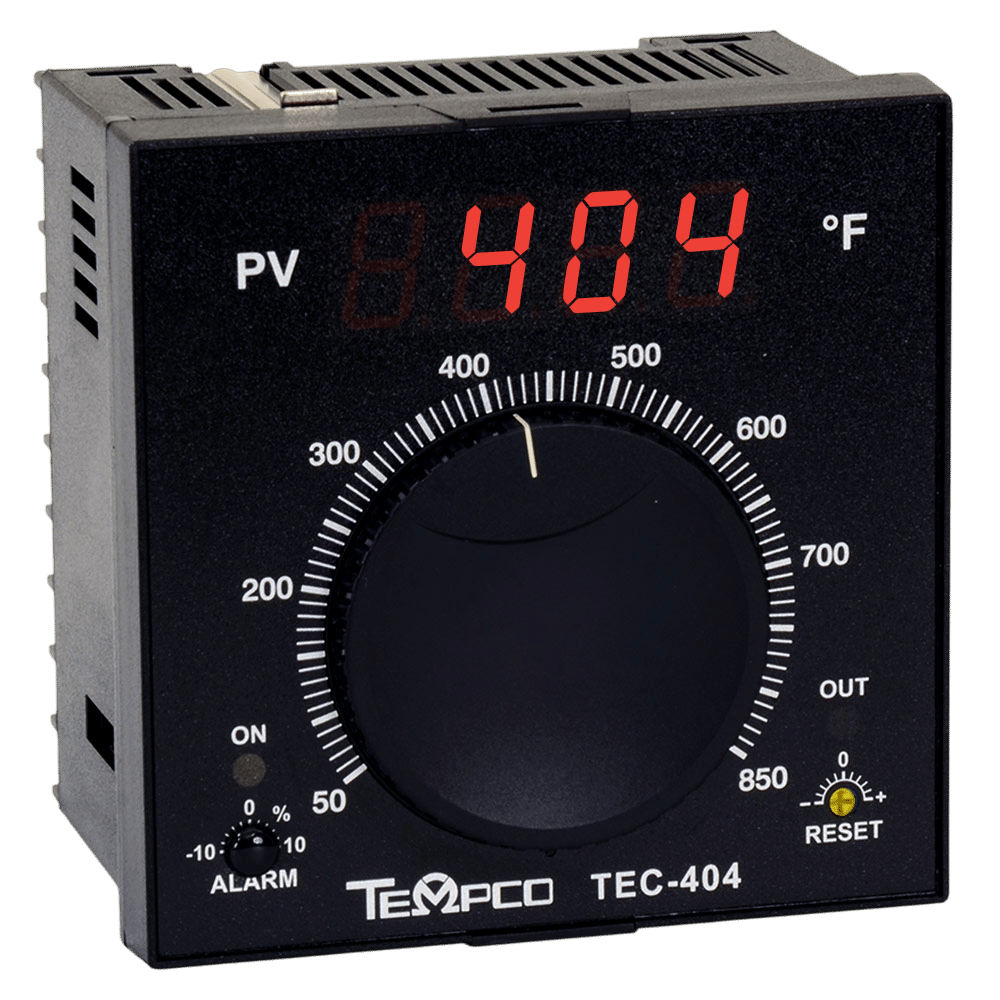

Choose TEC-404 Options (Select for Quote)

Power Input  -- Select --4 = 90-264 VAC 50/60 Hz5 = 20-32 VAC 50/60 Hz, 20 - 32 VDC

Signal Input  -- Select --1 = Thermocouple: Type J2 = Thermocouple: Type K3 = RTD: 100 ohm PT, DIN 0.003854 = RTD: 100 ohm PT, JIS 0.003929 = Other

Range Code  -- Select --4 = 0 to 300°C6 = 0 to 600°CC = 50 to 550°FE = 50 to 850°F2 = 0 to 100°C - available for large volume orders3 = 0 to 200°C - available for large volume orders5 = 0 to 400°C - available for large volume orders7 = 0 to 800°C - available for large volume orders8 = 0 to 1200°C - available for large volume ordersA = 50 to 200°F - available for large volume ordersB = 50 to 400°F - available for large volume ordersD = 50 to 750°F - available for large volume ordersF = 50 to 1100°F - available for large volume ordersG = 50 to 1400°F - available for large volume ordersH = 0 to 2200°F - available for large volume orders9 = Other

Control Mode  -- Select --1 = On - Off (used for valves & solenoids)2 = Proportional (common for electric heaters)

Output 1  -- Select --1 = Relay: 5A / 240 VAC2 = Pulse DC for SSR drive: 20 VDC (20 mA max)3 = 4-20 mA, linear (max load 500 ohms)4 = 0-20 mA, linear (max load 500 ohms)5 = 0-10 VDC, linear (min. impedance 500K ohms)9 = Other

Output 2  -- Select --0 = Not Available

Alarm  -- Select --0 = None1 = Relay: 3A / 240 VAC Deviation alarm

Data Communications  -- Select --0 = Not Available
