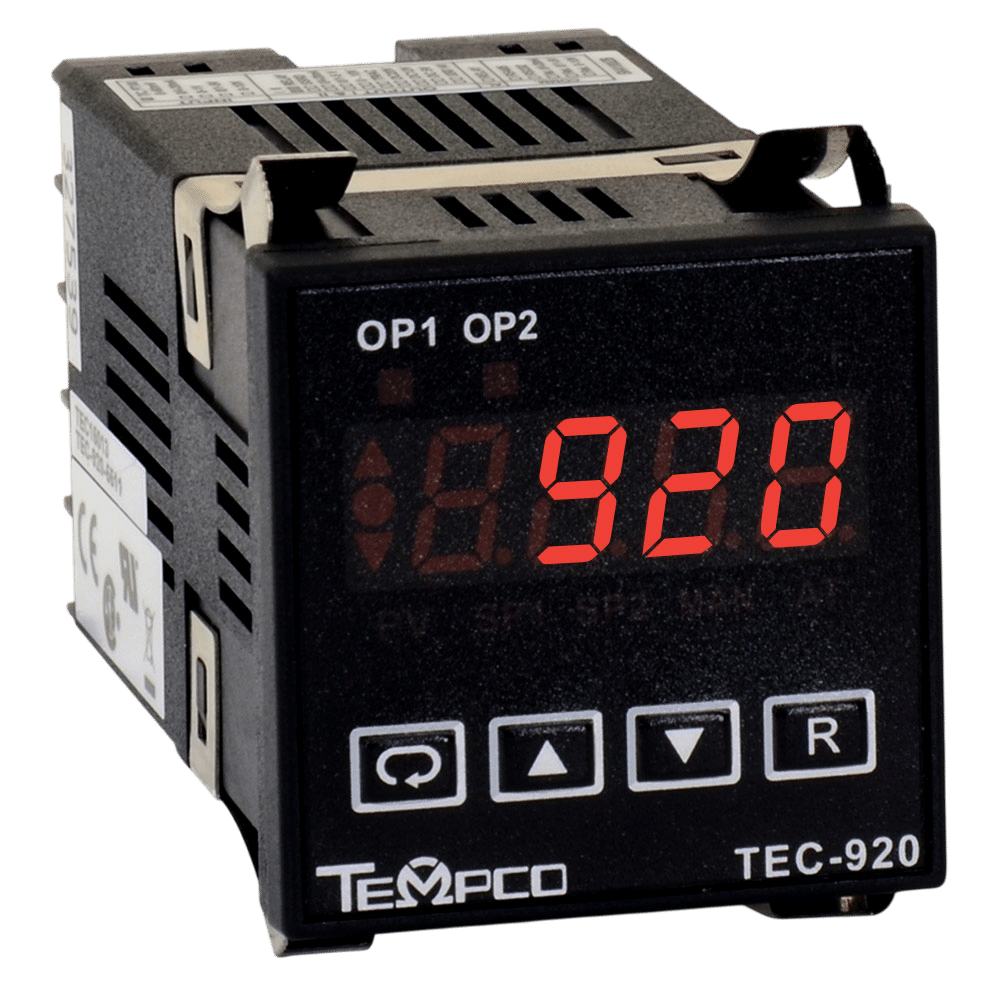

Choose TEC-920 Options (Select for Quote)

Power Input  -- Select --4 = 90-250 VAC5 = 11-26 VAC / VDC9 = Other

Signal Input – *Indicates default value
Universal, can be programmed in the field for item 5 or 6.  -- Select --5 = Thermocouple: *J, K, T, E, B, R, S, N, L 0-60mV6 = RTD: *PT100 DIN, PT100 JIS7 = 0-1 VDC8 = *0-5, 1-5 VDCA = 0-10 VDCB = *4-20, 0-20 mA9 = Other

Output 1  -- Select --1 = Relay: 2A / 240 VAC2 = Pulse DC for SSR drive: 5 VDC (30 mA max)3 = Isolated, 4-20 mA (default), 0-20 mA4 = Isolated, VDC, 1-5 (default), 0-5, 0-15 = Isolated, VDC, 0-106 = Triac-SSR output 1A / 240 VACC = Pulse DC for SSR drive: 14 VDC (40 mA max)9 = Other

Output 2 / Alarm 1  -- Select --0 = None1 = Relay: 2A / 240 VAC2 = Pulse DC for SSR drive: 5 VDC (30 mA max)3 = Isolated, 4-20 mA (default), 0-20 mA4 = Isolated VDC, 1-5 (default), 0-5, 0-15 = Isolated VDC, 0-106 = Triac-SSR output 1A / 240 VAC7 = RS-485 Data Interface8 = Isolated 20V @ 25 mA DC, Output Power SupplyA = Isolated 12V @ 40 mA DC, Output Power Supply9 = Isolated 5V @ 80 mA DC, Output Power SupplyC = Pulse DC for SSR drive: 14 VDC (40 mA max)B = Other
