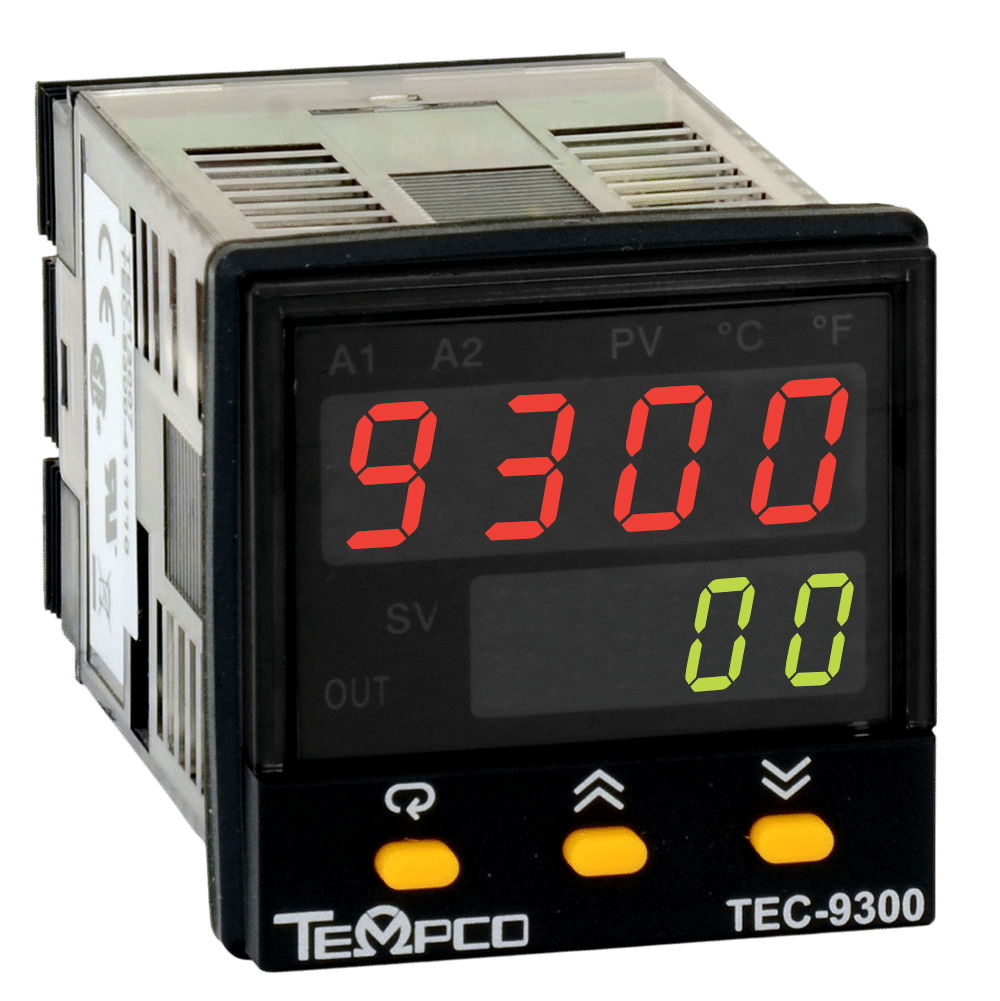

Choose TEC-9300 Options (Select for Quote)

Power Input  -- Select --4 = 90-264 VAC5 = 11-26 VAC / VDC9 = Other

Signal Input – Universal, can be programmed in the field.  -- Select --1 = Input 1 – Universal input (factory default = tc type J) Thermocouple: J, K, T, E, B, R, S, N, L RTD: PT100 DIN, PT100 JIS Current: 4-20 mA, 0-20 mA Voltage: VDC, 0-1, 0-5, 1-5, 0-10     Input 2 – CT: 0 - 50A AC current Transformer (factory default) L9 = Other

Output 1  -- Select --1 = Relay: 2A / 240 VAC2 = Pulse DC for SSR drive: 5 VDC (30 mA max)3 = Isolated, 4-20 mA (default), 0-20 mA4 = Isolated, VDC, 1-5 (default), 0-5, 0-15 = Isolated, VDC, 0-106 = Triac-SSR output 1A / 240 VACC = Pulse DC for SSR drive: 14 VDC (40 mA max)9 = Other

Output 2 / Alarm 2  -- Select --0 = None1 = Relay: 2A / 240 VAC2 = Pulse DC for SSR drive: 5 VDC (30 mA max)3 = Isolated, 4-20 mA (default), 0-20 mA4 = Isolated VDC, 1-5 (default), 0-5, 0-15 = Isolated VDC, 0-106 = Triac-SSR output 1A / 240 VAC7 = Isolated 20V @ 25 mA DC, Output Power Supply8 = Isolated 12V @ 40 mA DC, Output Power Supply9 = Isolated 5V @ 80 mA DC, Output Power SupplyC = Pulse DC for SSR drive: 14 VDC (40 mA max)A = Other

Alarm 1 -- Select --0 = None1 = Relay: 2A / 240 VAC (NO)2 = Relay: 2A / 240 VAC (NC)9 = Other

Data Communications  -- Select --0 = None1 = RS-485 Interface2 = RS-232 Interface3 = Retransmission 4-20 mA (default), 0-20 mA4 = Retransmission 1-5 VDC (default), 0-5 VDC5 = Retransmission 0-10 VDC9 = Other
