Choose TBC-41 Options (Select for Quote)

Power Input  -- Select --4 = 90-250 VAC, 50-60 Hz5 = 11-26 VAC / VDC

Signal Input  -- Select --1 = Thermocouple: J (default), K, T, E, B, R, S, N, L, RTD PT100 DIN2 = 0-60mV3 = 0-1 VDC4 = 0-5 VDC5 = 1-5 VDC6 = 4-20 mA7 = 0-20 mA8 = 0-10 VDC9 = Other

Output 1  -- Select --1 = Relay: 2A / 240 VAC2 = Pulse DC for SSR drive: 5 VDC (30 mA max)3 = Isolated 4-20 mA (default), 0-20 mA4 = Isolated VDC, 1-5 (default), 0-55 = Isolated VDC, 0-106 = Triac-SSR output 1A / 240 VACC = Pulse DC for SSR drive: 14 VDC (40 mA max)

Output 2  -- Select --0 = None1 = Relay: 2A / 240 VAC Form A2 = Pulse DC for SSR drive: 5 VDC (30 mA max)3 = Isolated 4-20 mA (default), 0-20 mA4 = Isolated VDC, 1-5 (default), 0-55 = Isolated VDC, 0-106 = Triac-SSR output 1A / 240 VAC7 = Isolated 24V @ 25 mA DC, Output Power Supply8 = Isolated 12V @ 40 mA DC, Output Power Supply9 = Isolated 5V @ 80 mA DC, Output Power SupplyC = Pulse DC for SSR drive: 14 VDC (40 mA max)

Alarm  -- Select --0 = None1 = Relay: 2A / 240 VAC, Form C

Data Communications  -- Select --0 = None1 = RS-485 Interface2 = RS-232 Interface3 = Retransmission 4-20 mA (default), 0-20 mA4 = Retransmission 1-5 VDC (default), 0-5 VDC5 = Retransmission 0-10 VDC

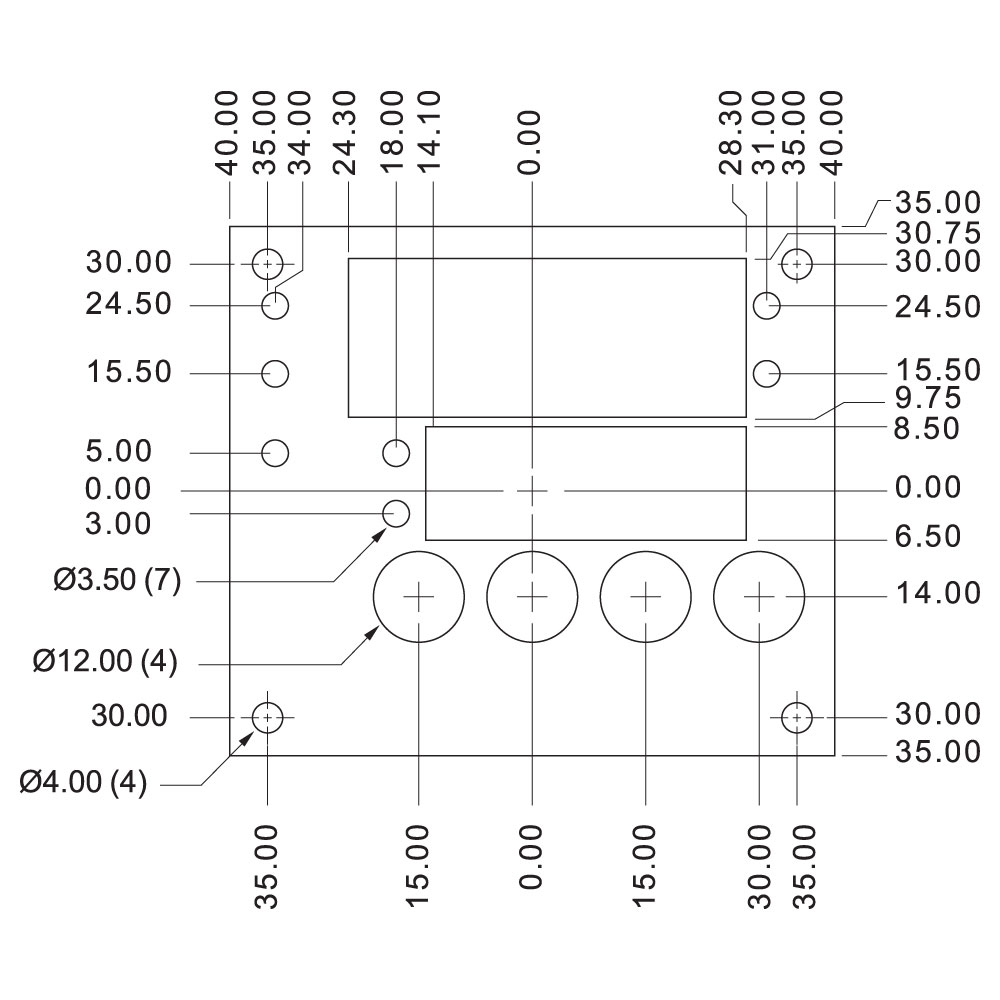

Display Board and Cable  -- Select --0 = None3 = With Display Board and 12" (300 mm) Cable (default) Consult Tempco for other cable lengths
