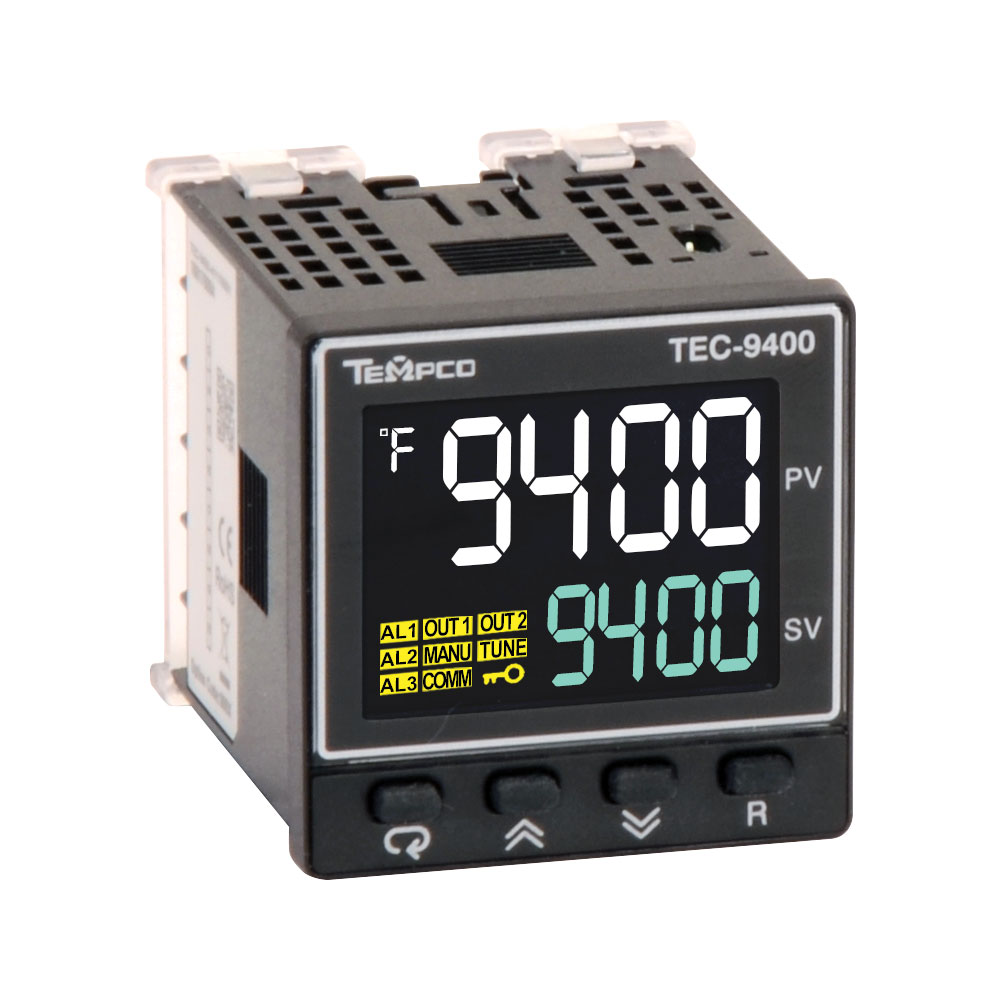

  • TEC-9400 Controller

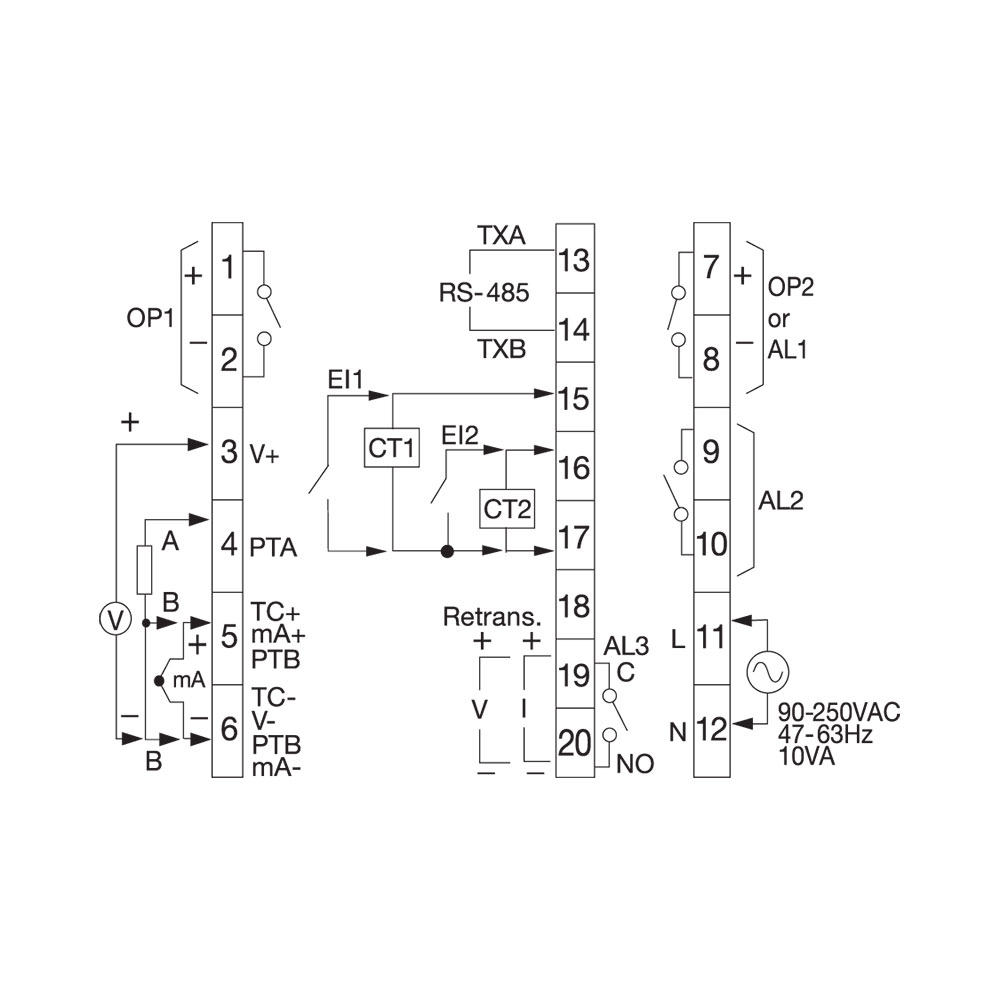

  • TEC-9400 Controller Rear Terminal Connections

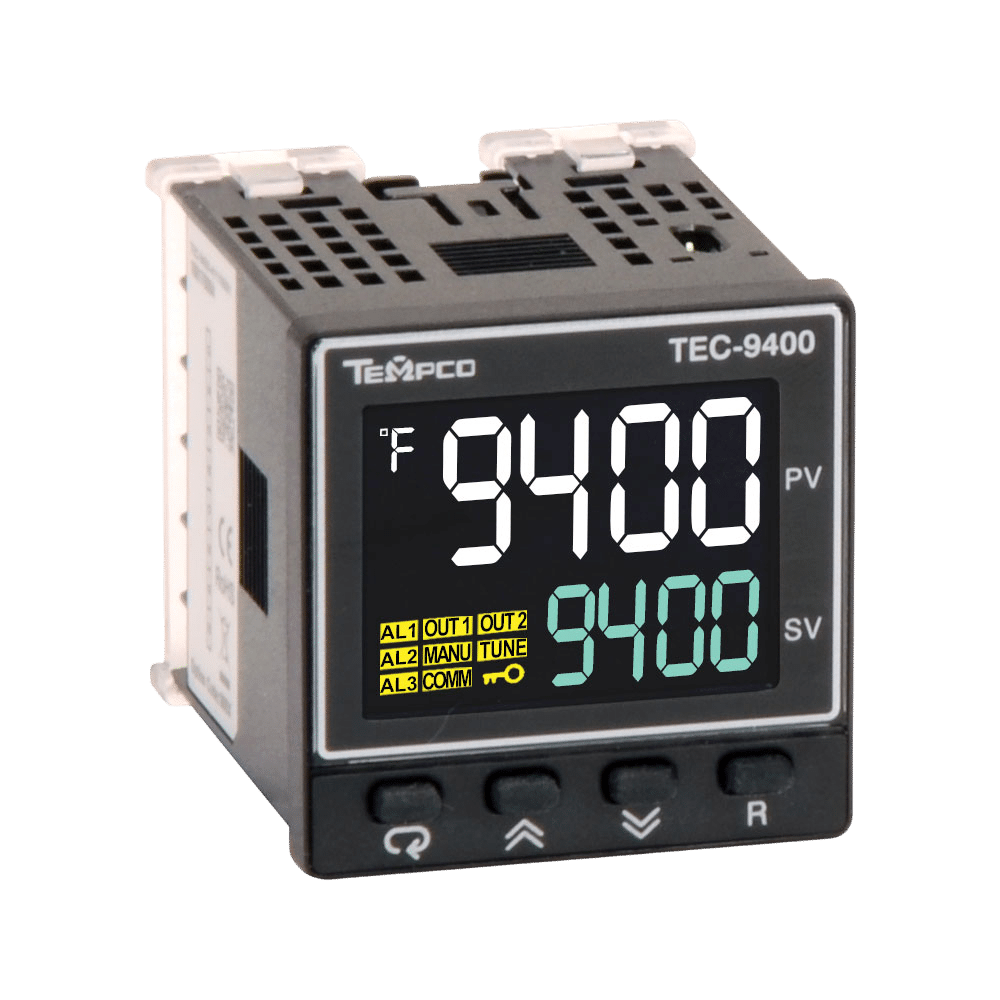

Model TEC-9400 Temperature Controller

TEC-9400 Design Features

  • 1/16 DIN size – 48 mm × 48 mm
  • Fuzzy logic PID Autotune heat and cool control
  • Universal input, field configurable (Type J T/C default, PT100, mA, V) witih high accuarcy 18-bit D-A
  • Countdown display
  • RS - 485 and Analog Retransmission Available
  • Micro USB Programming Port
  • Fast sampling rate (200 msec)
  • Manual control & auto-tune function
  • Wide range of alarm mode selection
  • Lockout protection
  • Bumpless transfer during failure mode
  • Soft-start ramp & dwell timer
  • Bright LCD display using NFPA/IEC standard colors
  • High performance with low cost

Explore Model TEC-9400 Temperature Controller Specifications


Choose TEC-9400 Options (Select for Quote)

Power Input

Output 1

Output 2 / Alarm 1

Alarm 2

Option 1

Option 2

Option 3

Option 4

Additional Information


Questions or Comments

Contact Information (Required)

Customer Type




Are you an existing Tempco Customer?  Yes    No

First Name

Last Name


Email    [email protected]

Phone    xxx-xxx-xxxx

   Ooh, dat's hot! Please email me the latest product information and company updates from Tempco.
We won't share your information with anyone. You can unsubscribe at any time.

Agency Approvals

cULus Approval
File #: E244198

CE Approval

RoHS Approval
