Additional Design Features

  • Available with or without an Integrated Thermostat (See EHA below for Remote Thermostats)
  • Custom Design and Alternate Thermostat Settings Available
  • Heater Vulcanized to an Aluminum Mounting Plate for Easy Installation
  • 120V Standard; Custom Voltages Available upon Request
  • 48" Teflon® Leads Standard
  • Dimensions Listed are for Heater and Bracket; Actual Heater Width is 1/2" Less
  • Safe to Operate, No Exposed Electrical Connections

 It is recommended that the enclosure heater be used with a thermostat either built in or mounted remotely to limit the maximum temperature reached and conserve energy. The suggested mounting method is at the bottom of the enclosure, mounted vertically. If a remote mounted thermostat is preferred, mount the heater on the bottom of the enclosure and the thermostat in the middle of the enclosure.
Remote Thermostats for Enclosure Heaters

  • Pressure Sensitive Adhesive for easy mounting
  • Standard 16ga Teflon® lead length: 48"
  • Can easily be located anywhere in the enclosure using the pressure sensitive adhesive.
  • Any standard thermostat can be used (see thermostats for available ranges)
  • Silicone rubber base and enclosure
  • Ratings: 10A/250 Vac, 15A/120 Vac

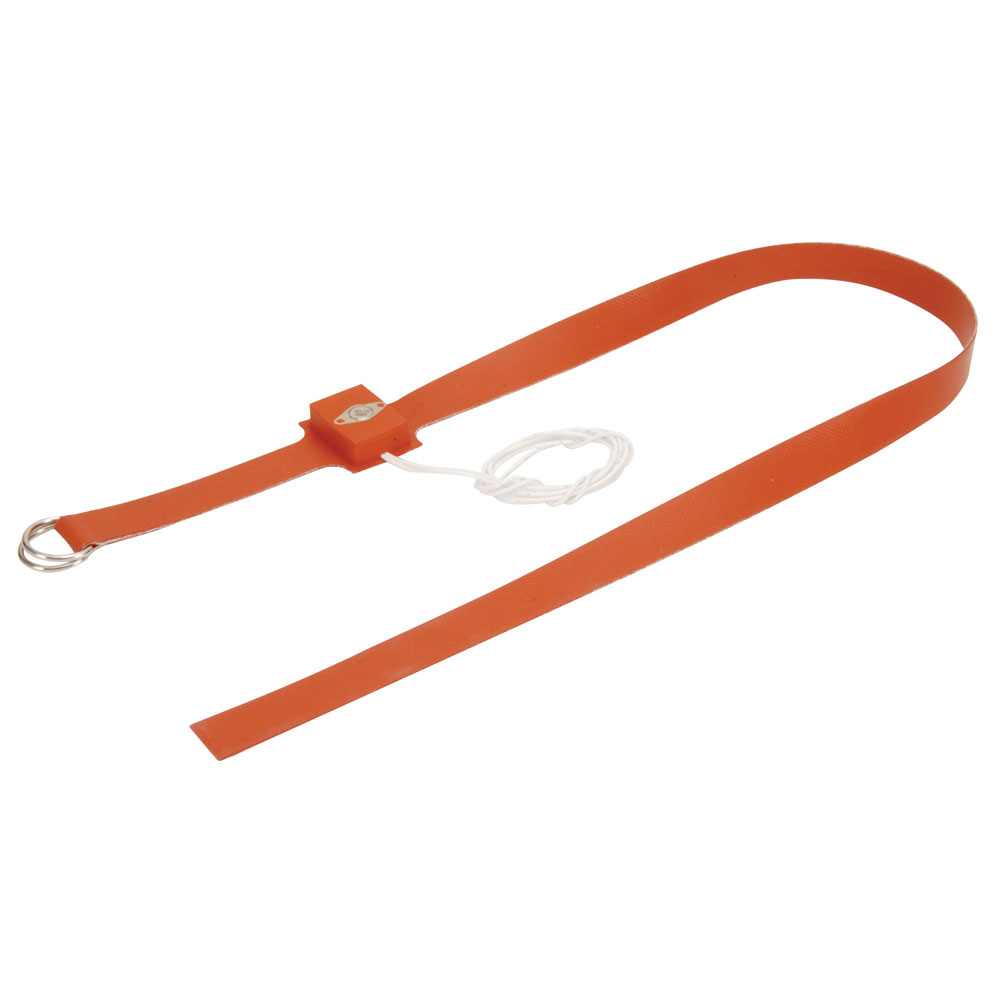

  • Part Number: EHA00005 (pictured below) – D-ring and strap mounting thermostat. Can be applied to sense the air around an object or an object directly.

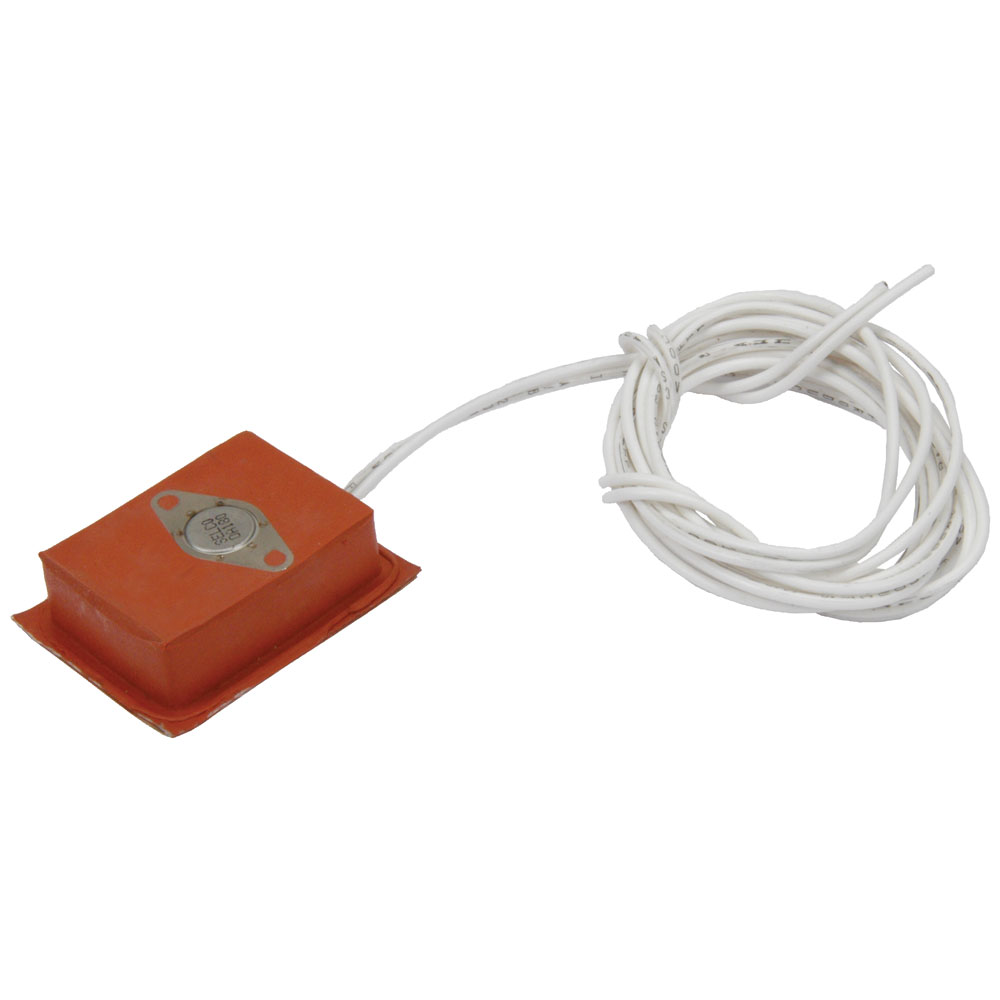

Remote Thermostat for Enclosure Heaters

Remote Thermostat for Enclosure Heaters

D-ring & Strap Mounting Strap

D-ring & Strap Mounting Strap
