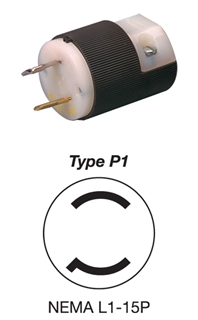

Type P1

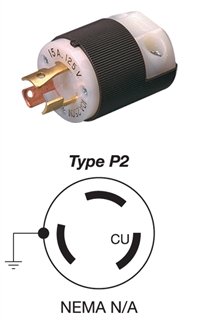

Type P2

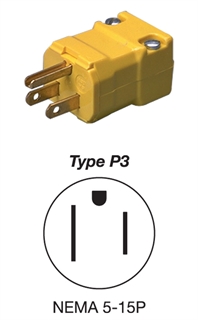

Type P3

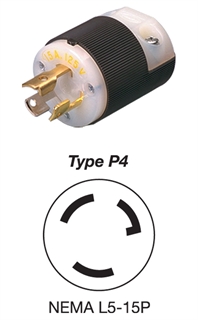

Type P4

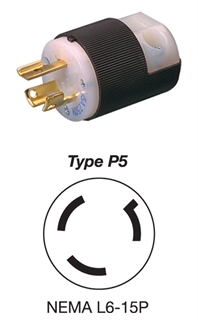

Type P5

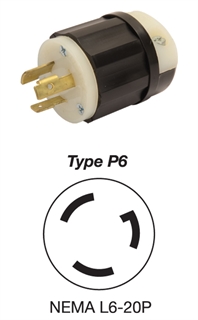

Type P6

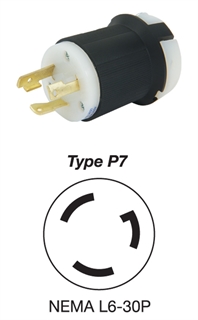

Type P7

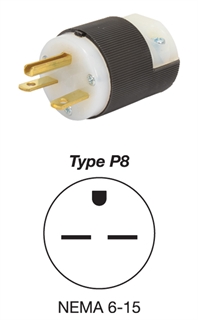

Type P8

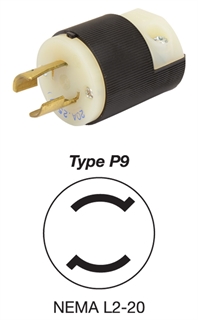

Type P9
| Reference |
NEMA
P or R |
Amps |
Volts |
Plug
Part No. |
Connectors
(Female)
Part Number |
| P1 twist lock |
L1-15 |
15A |
125V |
EHD-102-102 |
EHD-103-101 |
| P2 twist lock |
n/a |
10A |
250V |
EHD-102-107 |
EHD-103-103 |
| |
|
15A |
125V |
|
|
| P3 straight |
15-May |
15A |
125V |
EHD-102-103 |
EHD-103-102 |
| P4 twist lock |
L5-15 |
15A |
125V |
EHD-102-113 |
EHD-103-104 |
| P5 twist lock |
L6-15 |
15A |
250V |
EHD-102-121 |
EHD-103-107 |
| P6 twist lock |
L6-20 |
20A |
250V |
EHD-102-122 |
EHD-103-150 |
| P7 twist lock |
L6-30 |
30A |
250V |
EHD-102-126 |
EHD-103-125 |
| P8 straight |
15-Jun |
15 |
250V |
EHD-102-114 |
EHD-103-139 |
| P9 twist lock |
L2-20 |
20A |
250V |
EHD-102-104 |
N/A |
| P10 straight |
15-Jan |
15 |
125V |
EHD-102-101 |
N/A |
| P11 straight |
20-May |
20 |
125V |
EHD-102-140 |
N/A |
| P12 straight |
L8-20 |
20 |
480V |
EHD-102-123 |
EHD-103-106 |
Type P2 twist lock plug is not listed by UL, and is recommended for replacement use only in existing installations.
