Tempco Custom Heater Manufacturing

Click image to enlarge

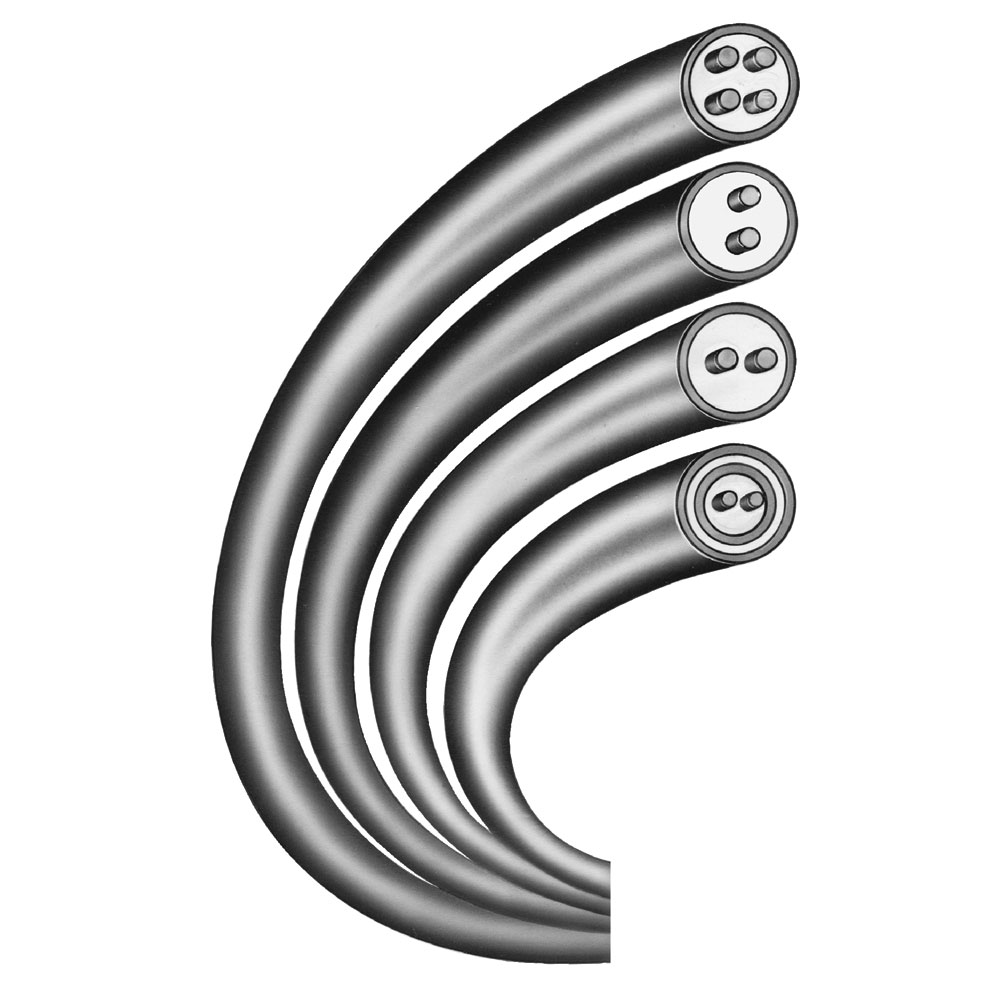

  • WebLO34.jpg

Bulk Round Heater Cable

Typical Applications:

  • Blown Film Die Heaters
  • Heat Tracing
  • De-icing Car Wash Door Rails
  • De-icing Outside Stairways

Standard sheath material:

  • 304 SS
  • Inconel® 600

Minimum Bending Radius
Minimum bending radius for all mineral insulated cable heaters is two times the sheath diameter.

Power Calculation:
The required wattage can be calculated using the following formula:

Wattage = (Voltage)2
Cable Length (in feet) × Ohms/foot (from part number tables)

Explore Bulk Round Heater Cabl Specifications

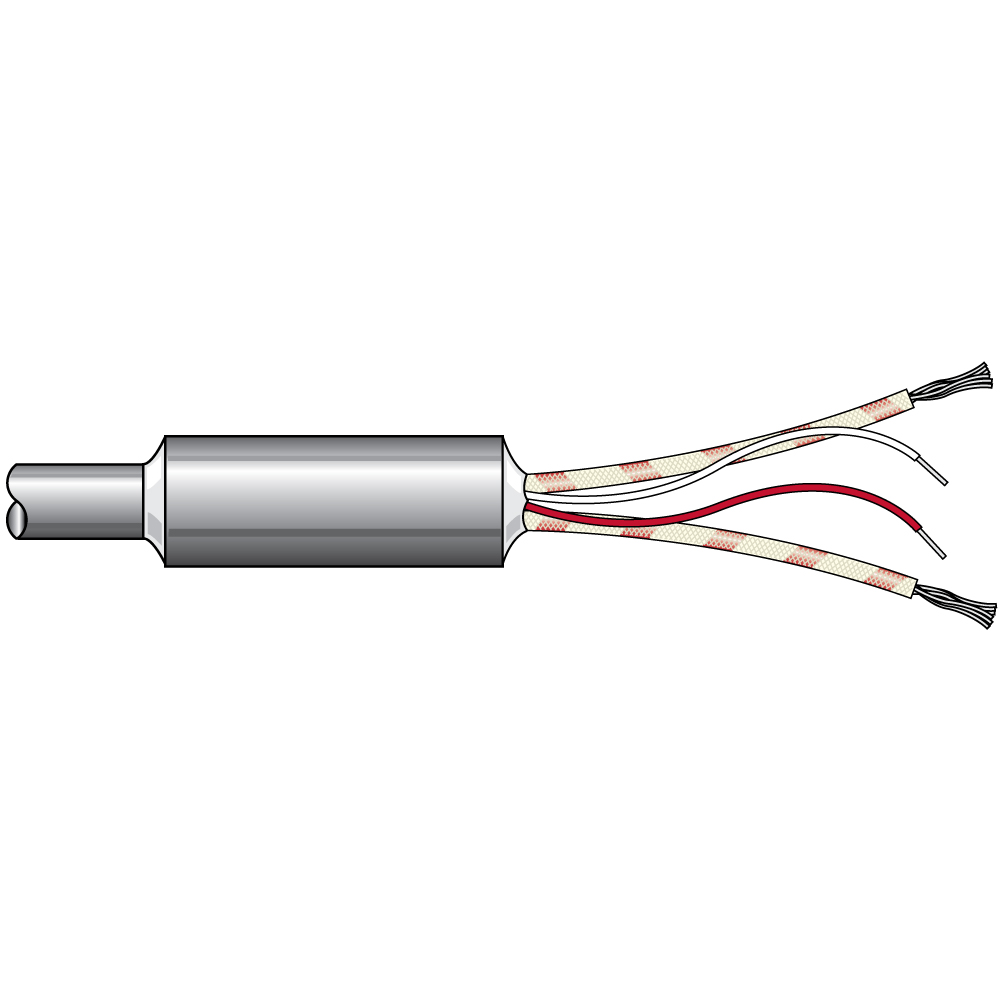

Electrical Terminations
