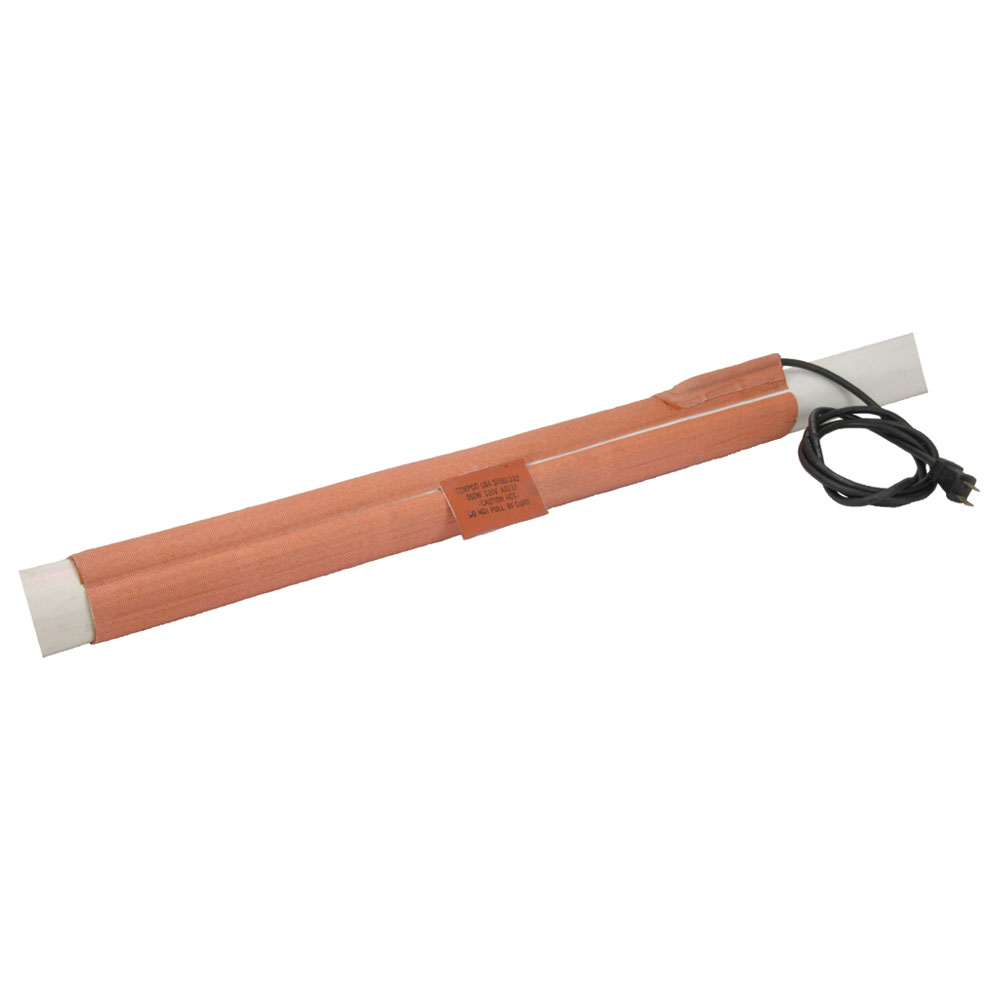

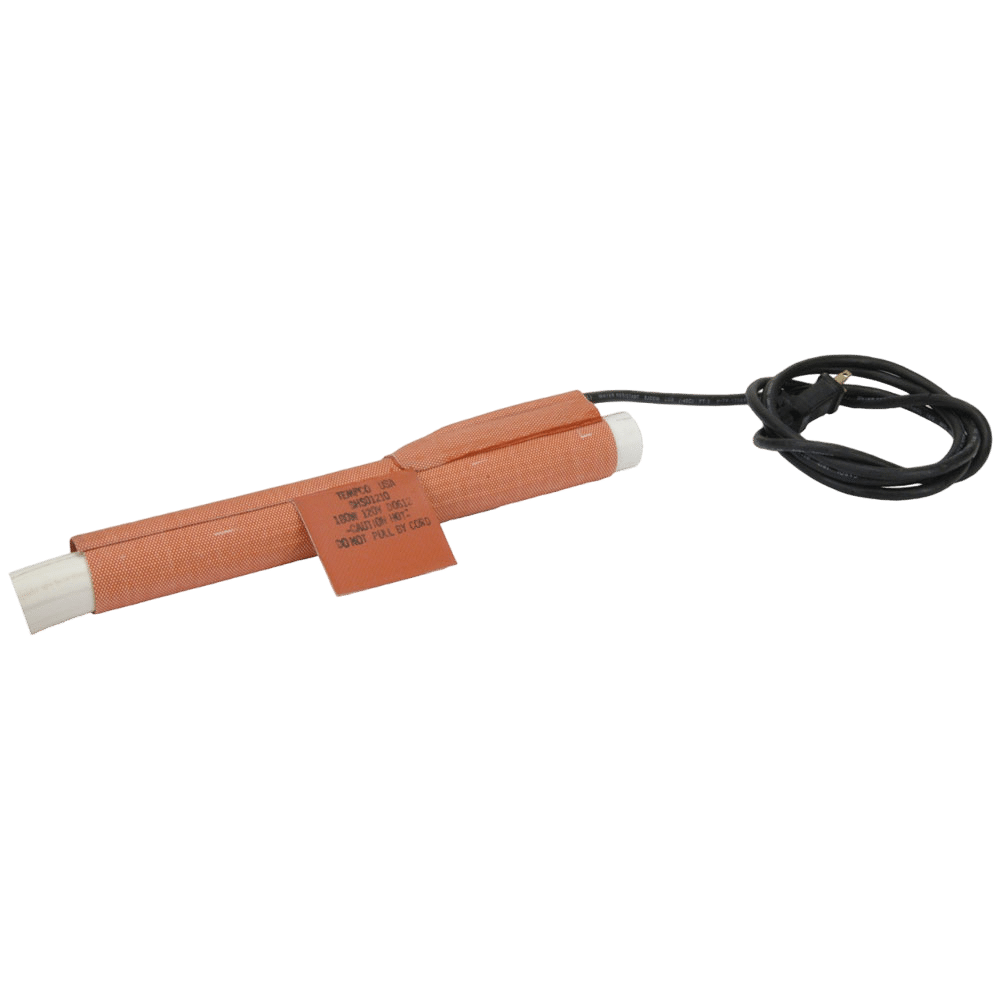

PVC Pipe Bending Heaters

This heavy-duty assembly, made from our proven wire-wound silicone rubber heater technology, will provide hundreds of hours of use.

Design Features
  • Built-in thermostat limits temperature to 194°F (90°C)
  • Standard Voltage is 120 Vac
  • 6-ft. plug and cordset standard
Stock PVC Pipe Bending Heaters
Pipe Diameter Length Watts Volts Warm-Up Time Part Number
1/2" to 1-1/2" 12" 180 120 4-10 minutes SHS01210
2" to 4" 20" 950 120 7-18 minutes SHS01222



Explore PVC Pipe Bending Heaters Specifications


Tempco’s PVC Pipe/Conduit Bending Heater Assembly

These assemblies make it easy to form PVC plastic pipe and conduit at the job site.

Instructions:

  • wrap the heater assembly around the pipe at the location desired
  • plug in assembly
  • depending on pipe size, leave heater wrapped around the pipe for 4 to 18 minutes
  • when soft enough, bend pipe by hand to the desired radius or shape
