  • Coil Cord (blue)

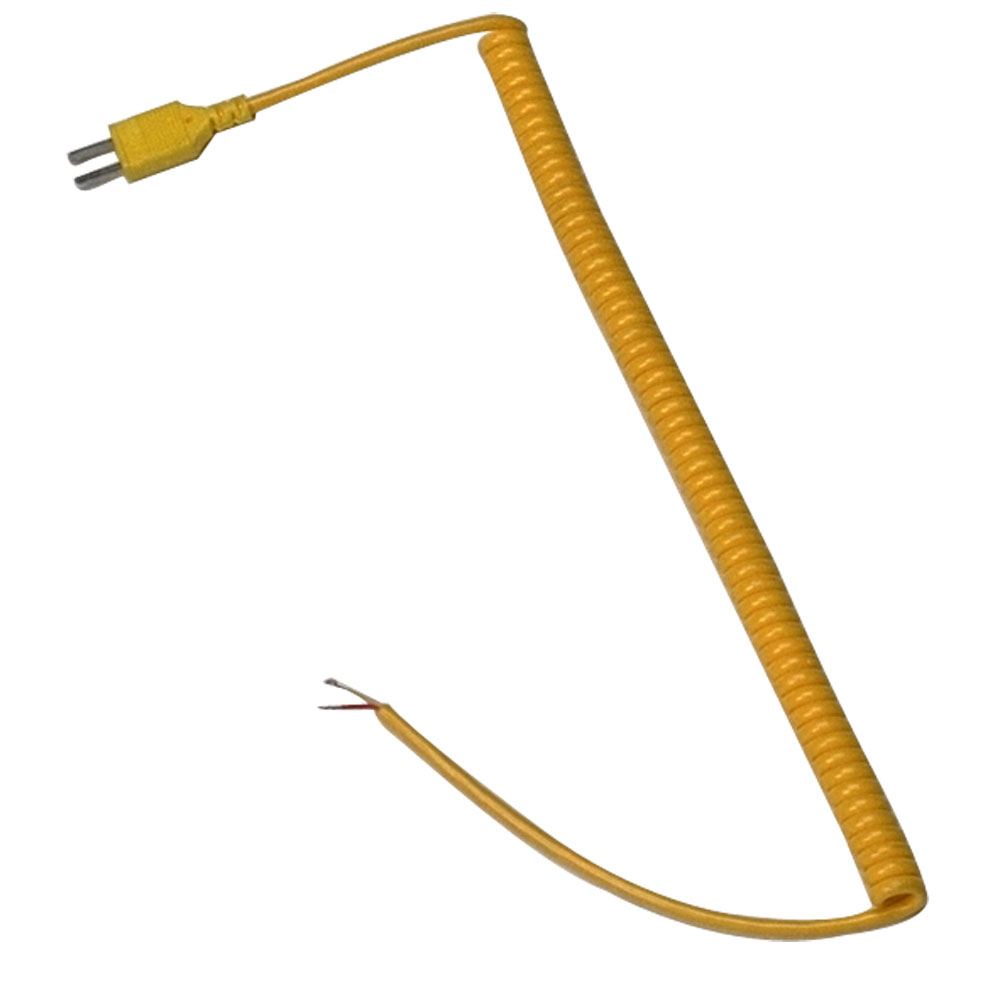

  • Coil Cord (yellow)

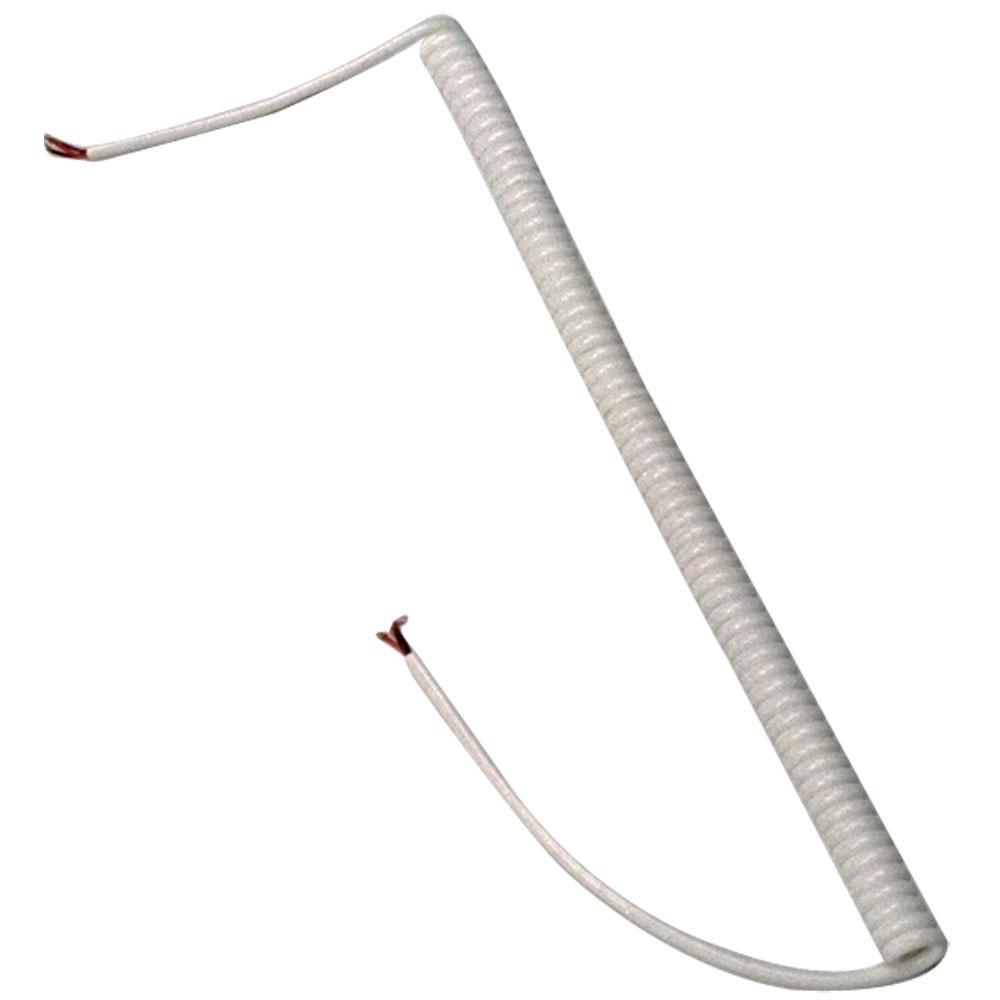

  • Coil Cord (white)

Coil Cord

 PRODUCTS   TEMPORARILY   UNAVAILABLE   FOR  PURCHASE

Design/Special Features:

  • Rated for 221°F (105°C) upper limit (above 104°F [40°C], coil form may change if stretched)
  • ANSI Color Coded Outer Jacket
  • Wire is 26 gauge stranded with PVC insulation and the outer jacket is polyurethane
  • Open ends have approximately 4 inches straight.

Resources

In-Stock Parts

Explore Coil Cord Specifications

Please wait while we gather your results.

Calibration Outer
Jacket
Color		 Coil
Length
(in)		 Extended Length
Maximum
(in)		 Part Number
†With Miniature Plug
Molded on One End		 †Both Ends
Open
J Black 12  60 TCW-124-101 TCW-125-101
J Black 24 120 TCW-124-102 TCW-125-102
K Yellow 12  60 TCW-124-103 TCW-125-103
K Yellow 24 120 TCW-124-104 TCW-125-104
E Purple 12  60 TCW-124-105 TCW-125-105
T Blue 12  60 TCW-124-106 TCW-125-106
T Blue 24 120 TCW-124-107 TCW-125-107
R/S Green 12  60 TCW-124-108 TCW-125-108
R/S Green 32 180 — TCW-125-109
U (2-wire uncompensated) White 12  60 TCW-124-109 TCW-125-110
3-wire RTD White 12  60 — TCW-125-111
3-wire RTD White 36 180 — TCW-125-112


†Other configurations and lengths are available on special request. Minimum order may apply. Constult Tempco with your requirements.
