Tubular heater specifications and Tolerances

Electrical Limitations and Minimum/Maximum Sheath Lengths

Element
Diameter
Maximum
Voltage
Maximum
Amperage
Resistance in Ohms
per Heated Inch
Sheath Length
min.max.
inmmminmaxinmminmm
0.26 6.6250150.117112792005080
0.315 8.0480300.0621112792005080
0.375 9.5600300.0421112792005080
0.4310.9600400.0421112792556807
0.47512.1600400.0421112792556807
0.62515.9600400.0417112792556477

Scroll table to view all

Sheath and Heated Length Tolerance (applicable for all diameters)

LengthSheath Length Tolerance (±)Heated Length Tolerance (±)Minimum Unheated Length
Each End
inmminmminmminmm
11-20279-5083/322.41/46125
20-50508-12701/83.21/2131–1/432
50-801270-20325/3247/8221–1/238
80-1102032-27943/164.81–1/8291–5/842
110-1402794-35567/325.61–3/8351–3/444
140-1703556-43181/46.41–5/841251
170-2004318-50803/89.51–7/8482–1/457
200-up5080-up1/212.72–3/8602–1/264

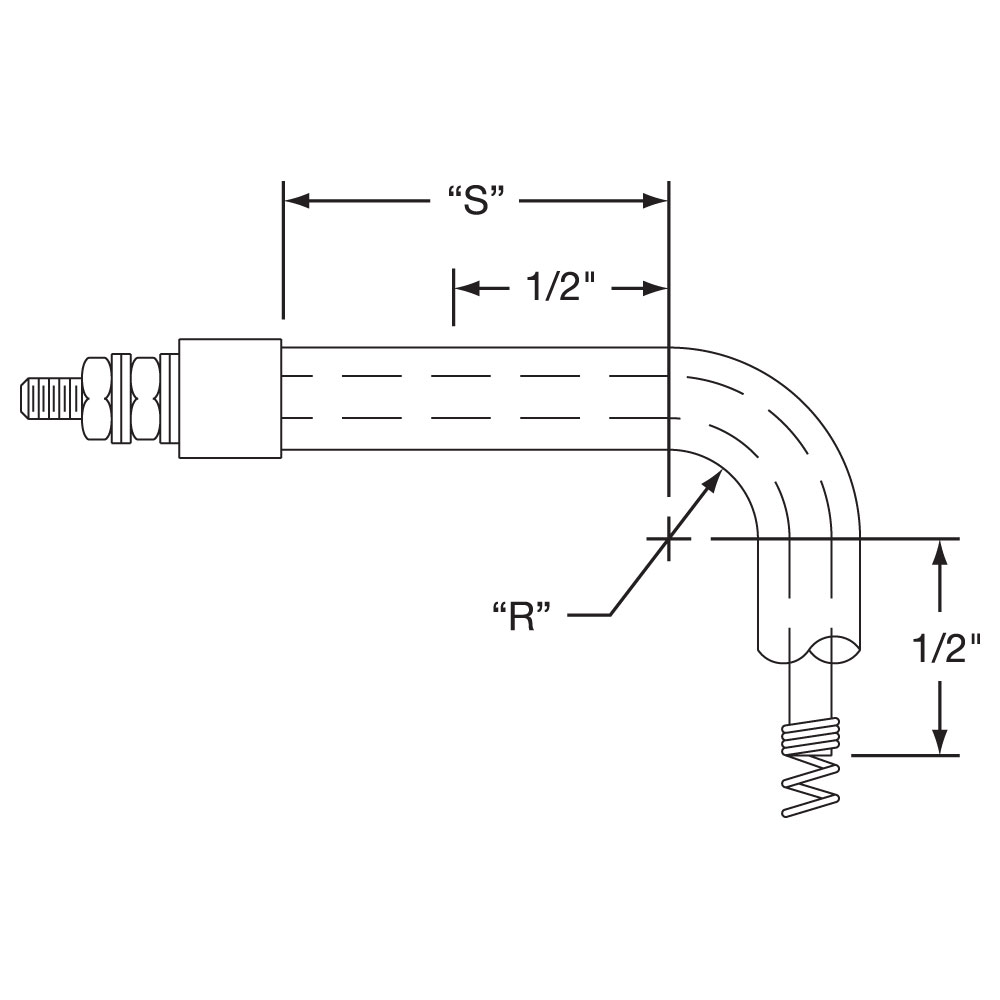

Tubular Element Minimum Bending Radius

Element DiameterFactory BendField Bend
Minimum RMinimum RMinimum S
inmminmminmminmm
0.260 6.63/8 9.53/419.11/212.7
0.315 8.01/212.7125.41/212.7
0.375 9.59/1614.3250.85/815.9
0.4310.93/419.12–1/263.53/419.1
0.475127/822.22–1/263.5125.4

Note: Smaller inside bending radius’s not listed can be factory accomplished. It requires special forming techniques to prevent damage to the tubular heater. Consult Tempco with your requirements.

Avoid bends within a minimum of 1/2″ of the terminal pin and resistance wire junctions unless the bending radius is a minimum 3″(75 mm).
