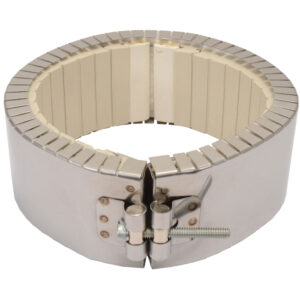

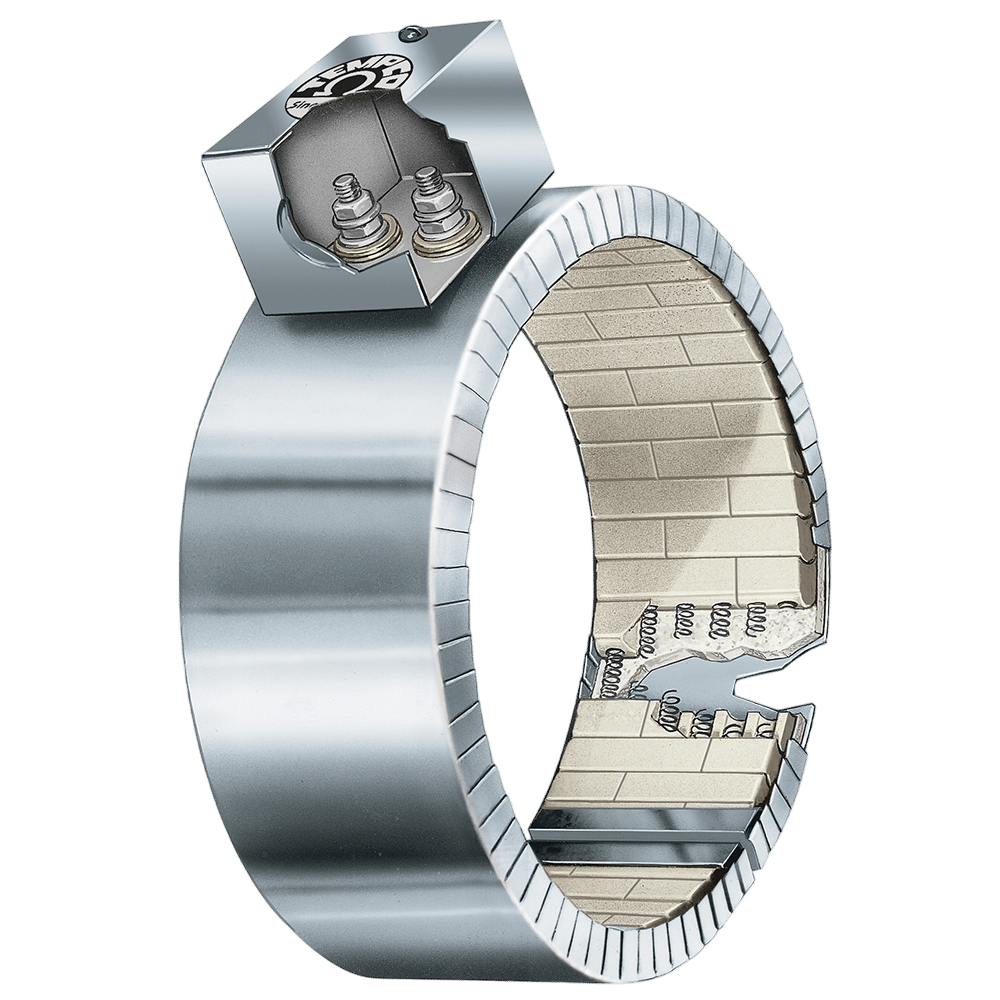

One-Piece Band

The One-Piece Ceramic Band Heater is the basic design most often specified by OEMs and processors. It is available with all types of insulation, construction styles, clamping or termination variations.

Standard Insulation (S): 1/4"
Built-In ceramic fiber insulation ¼" thick standard on all Ceramic Bands will reduce power consumption by 25 to 30 percent, and lower external temperatures.
See Additional Options > Construction Options for more insulation options

Two-Piece Band

The Two-Piece Ceramic Band Heater is commonly used on sizes larger than 21" diameter or when it would be inconvenient to use a one-piece heater. It is available with all types of insulation, construction styles, clamping or termination variations.

Standard Insulation (S): 1/4"
Built-In ceramic fiber insulation ¼" thick standard on all Ceramic Bands will reduce power consumption by 25 to 30 percent, and lower external temperatures.
See Additional Options > Construction Options for more insulation options

Reverse Band

Reverse Ceramic Band Heaters are intended for the outer surface of the band to heat the inner surface of a cylinder. These heaters use the same built-in insulation as normal ceramic bands and therefor can either reduce the power needed to heat an application to the desired temperature or offer some thermal protection to anything else that might also be inside the cylinder.

Standard Insulation (S): 1/4"
Built-In ceramic fiber insulation ¼" thick standard on all Ceramic Bands will reduce power consumption by 25 to 30 percent, and lower external temperatures.

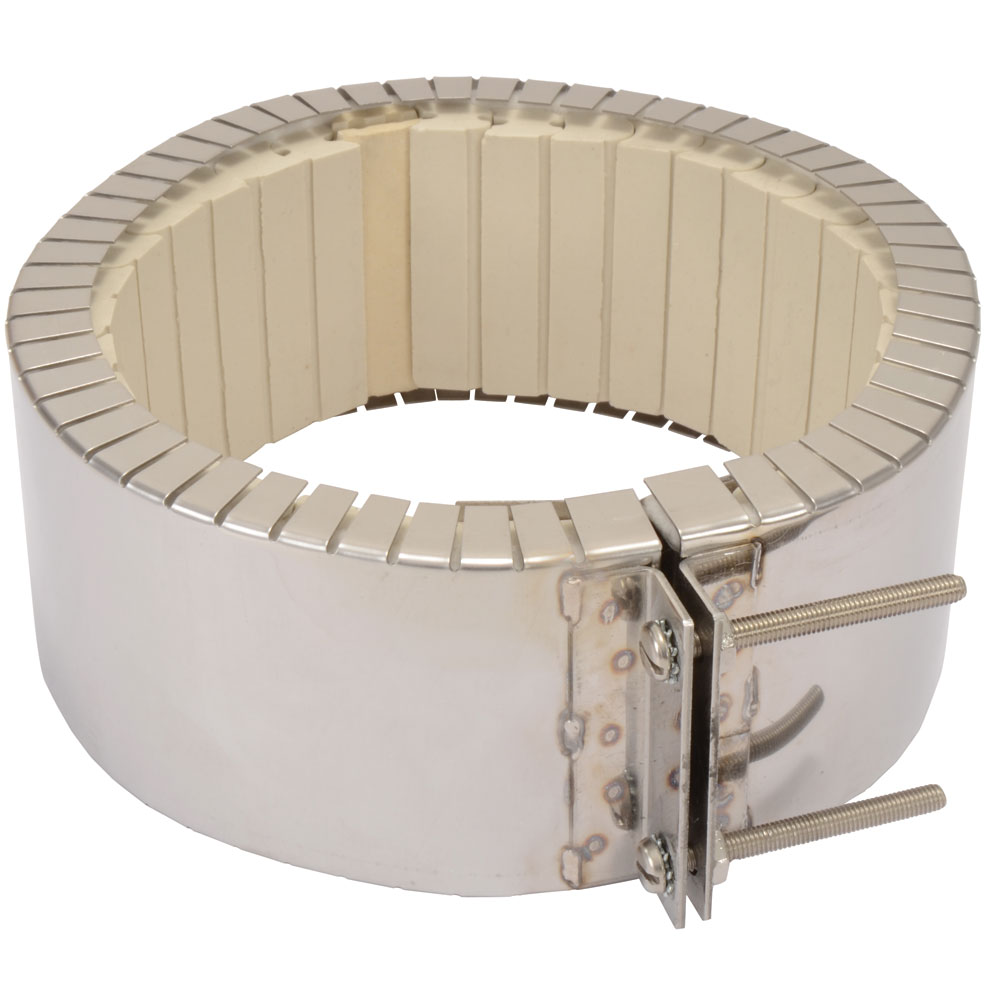

Type B – Built-In Bracket (Standard), One-Piece Band

The Built-In Bracket is the basic design most often specified by OEMs and processors. The standard screw used is 1/4-20. It is available with all types of insulation, construction styles, and termination variations.

Type B - Built-In Bracket (Standard), Two-Piece Band

The Built-In Bracket is the basic design most often specified by OEMs and processors. The standard screw used is 1/4-20. It is available with all types of insulation, construction styles, and termination variations.

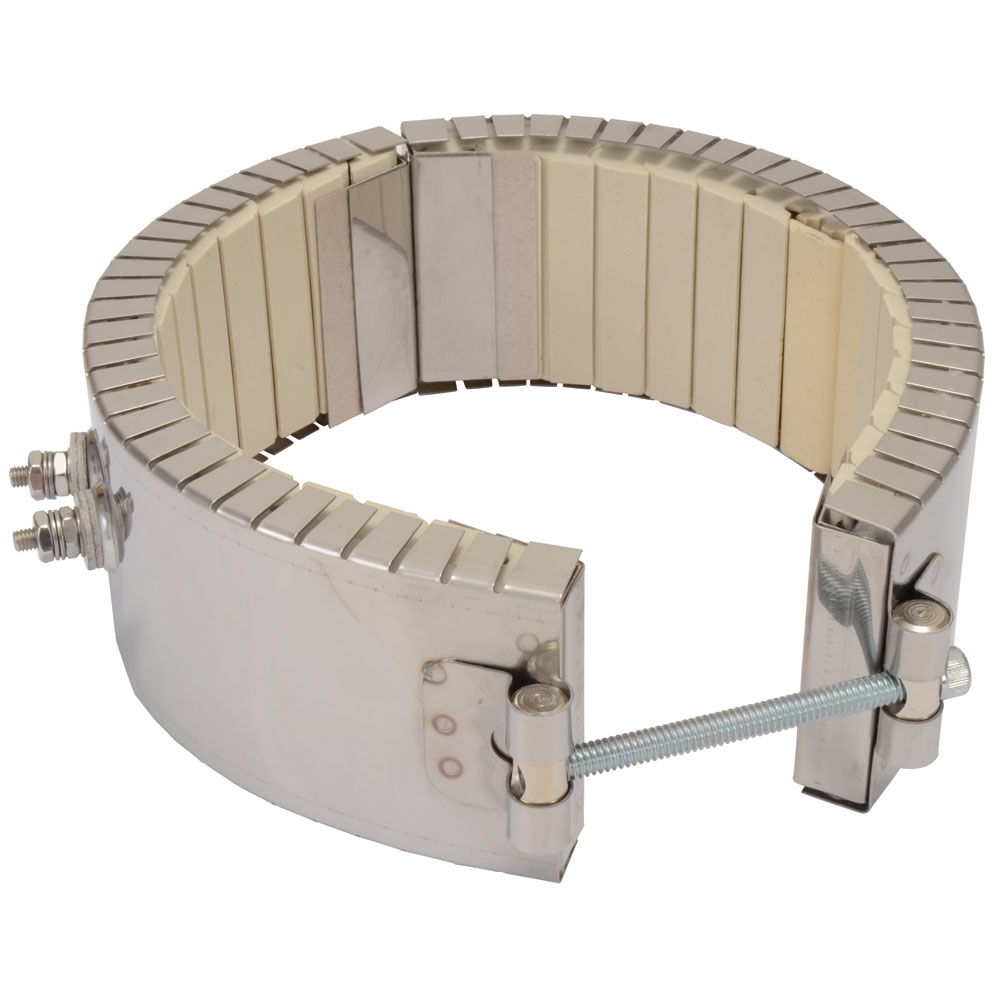

Type S – Built-In Bracket with Spring-Loaded Screw, One-Piece Band

The Built-In Bracket can also be supplied with a spring- loaded screw. The spring-loaded clamp aids in absorbing thermal expansion.

Type S – Built-In Bracket with Spring-Loaded Screw, Two-Piece Band

The Built-In Bracket can also be supplied with a spring- loaded screw. The spring-loaded clamp aids in absorbing thermal expansion.

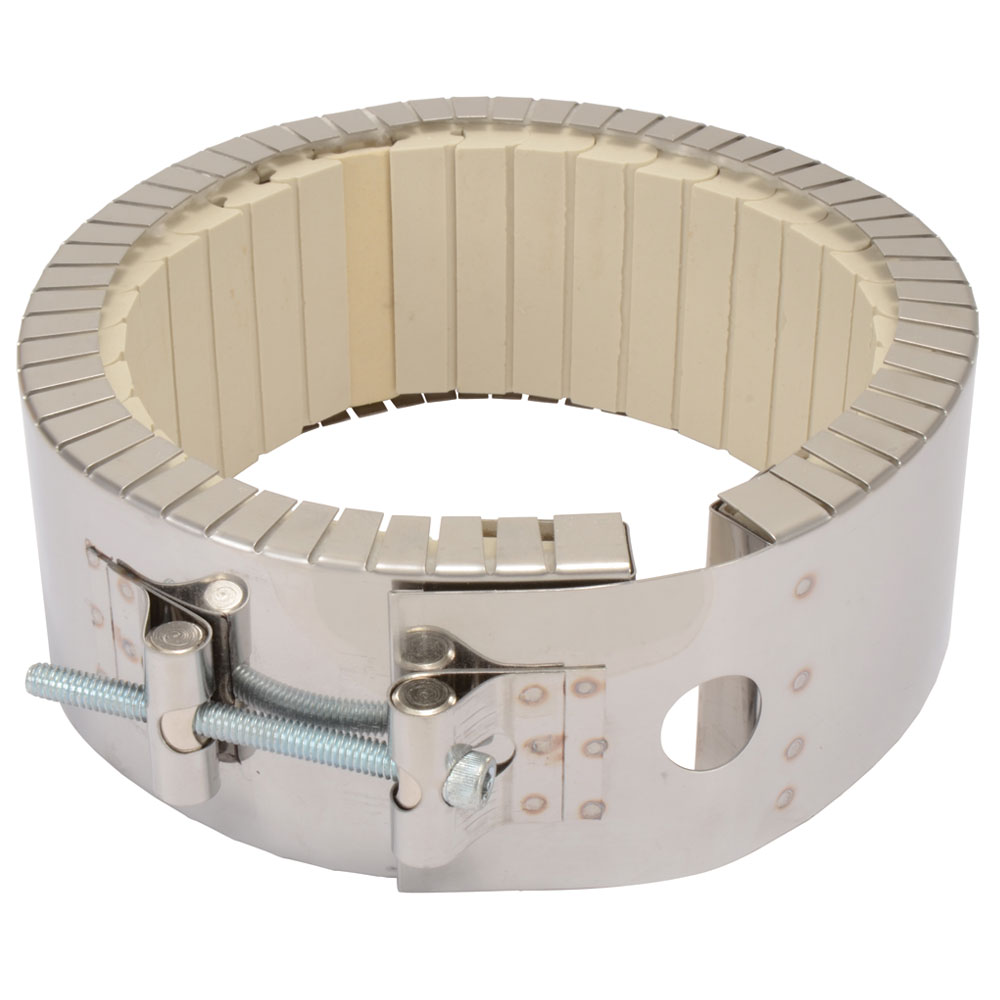

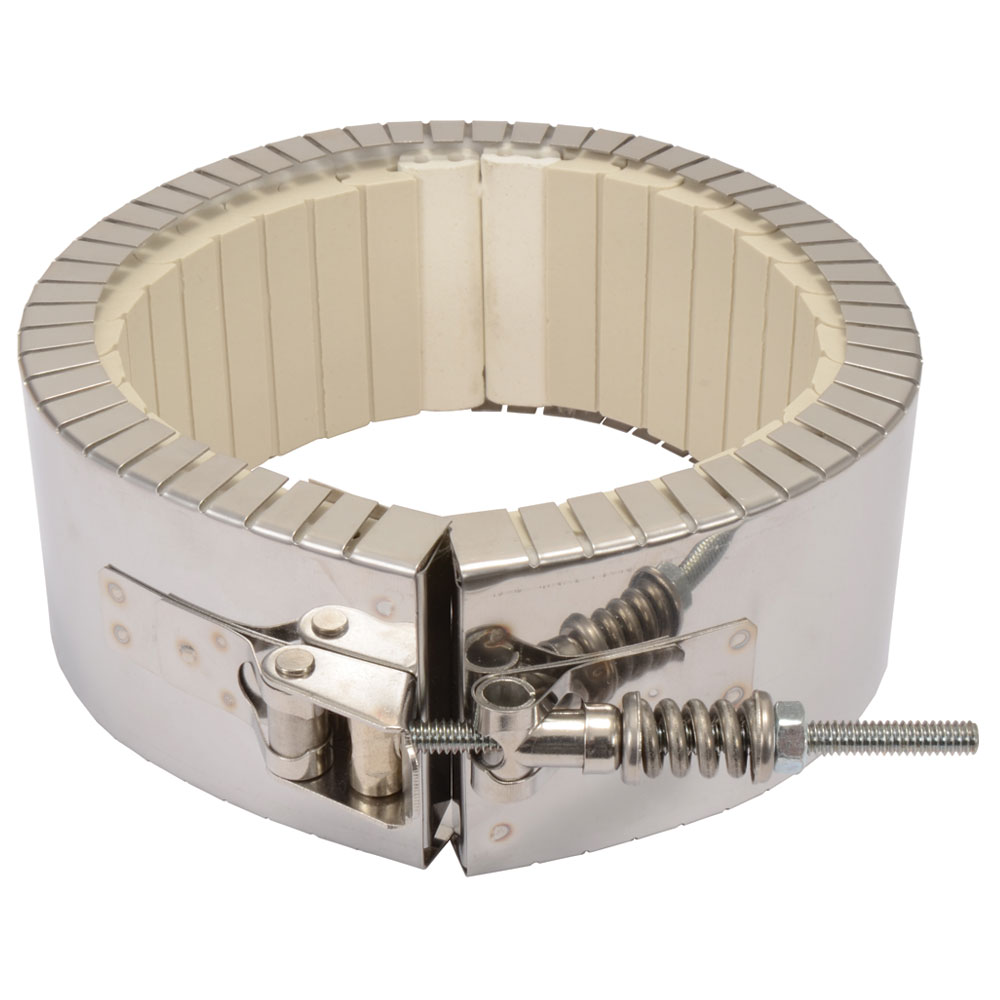

Type L – Latch and Trunnion, One-Piece Band

The spring-loaded Latch and Trunnion clamping system is ideal for bands over 12" in diameter to absorb thermal expansion and facilitate installation on large bands.
The Latch and Trunnion clamping system is available with all types of insulation, construction styles, and termination variations.

Type L – Latch and Trunnion, Two-Piece Band

The spring-loaded Latch and Trunnion clamping system is ideal for bands over 12" in diameter to absorb thermal expansion and facilitate installation on large bands.
The Latch and Trunnion clamping system is available with all types of insulation, construction styles, and termination variations.

Type F – Bent-Up Flange (Ears), One-Piece Band

The Bent-Up Flange (Ears) design is available with all types of insulation, construction styles, and termination variations.

Type F – Bent-Up Flange (Ears), Two-Piece Band

The Bent-Up Flange (Ears) design is available with all types of insulation, construction styles, and termination variations.

Shell Overlap, One-Piece Band

The Shell Overlap design is the preferred method of providing a thermocouple mounting hole in a ceramic band heater. It is available with all types of insulation, construction styles, clamping and termination variations.

Shell Overlap, Two-Piece Band

The Shell Overlap design is the preferred method of providing a thermocouple mounting hole in a ceramic band heater. It is available with all types of insulation, construction styles, clamping and termination variations.

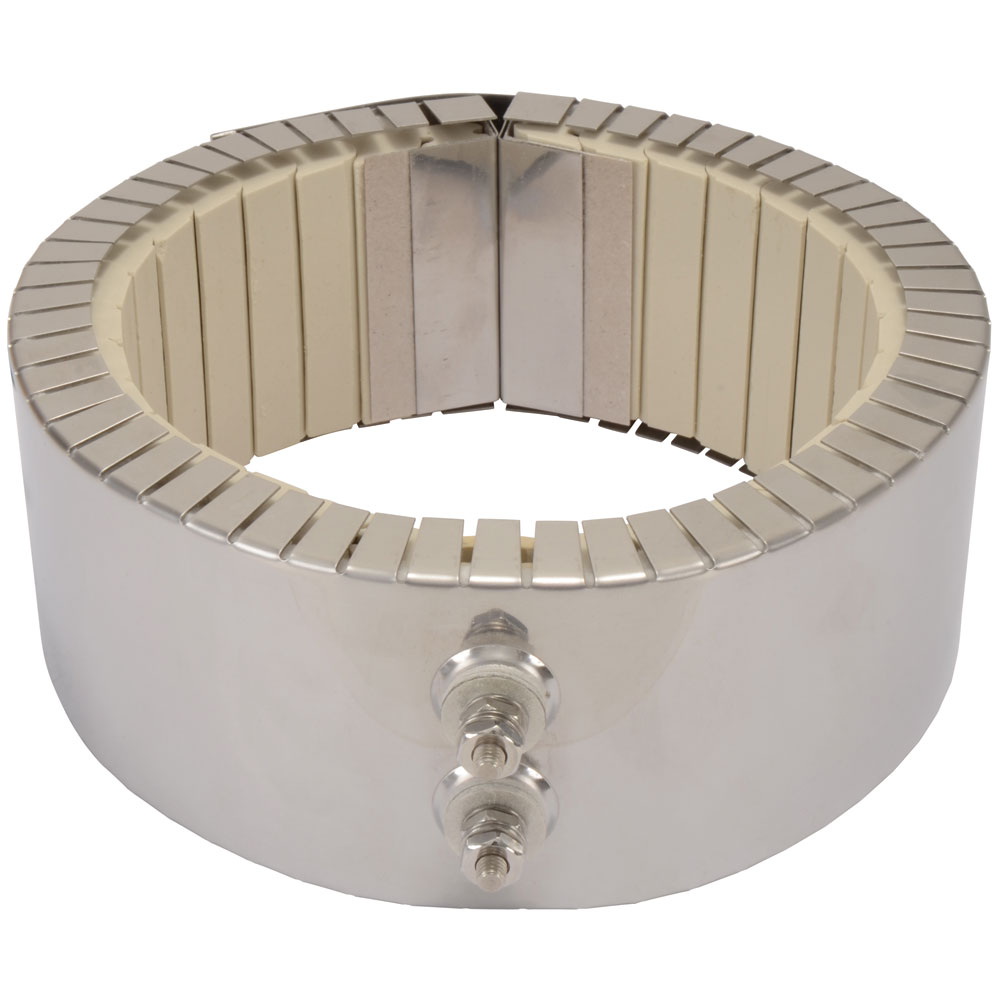

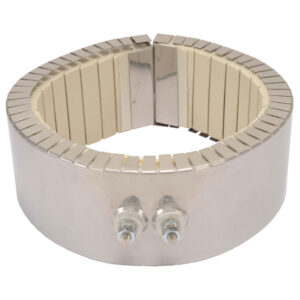

Type T2: Screw Terminals, One-Piece Band

Standard Termination Location: opposite the gap; center of width

Minimum Inside Diameter: 2" (50.8 mm)

Minimum Width: 1" (25.4 mm)

Maximum Volts/Amps: 480VAC/25A

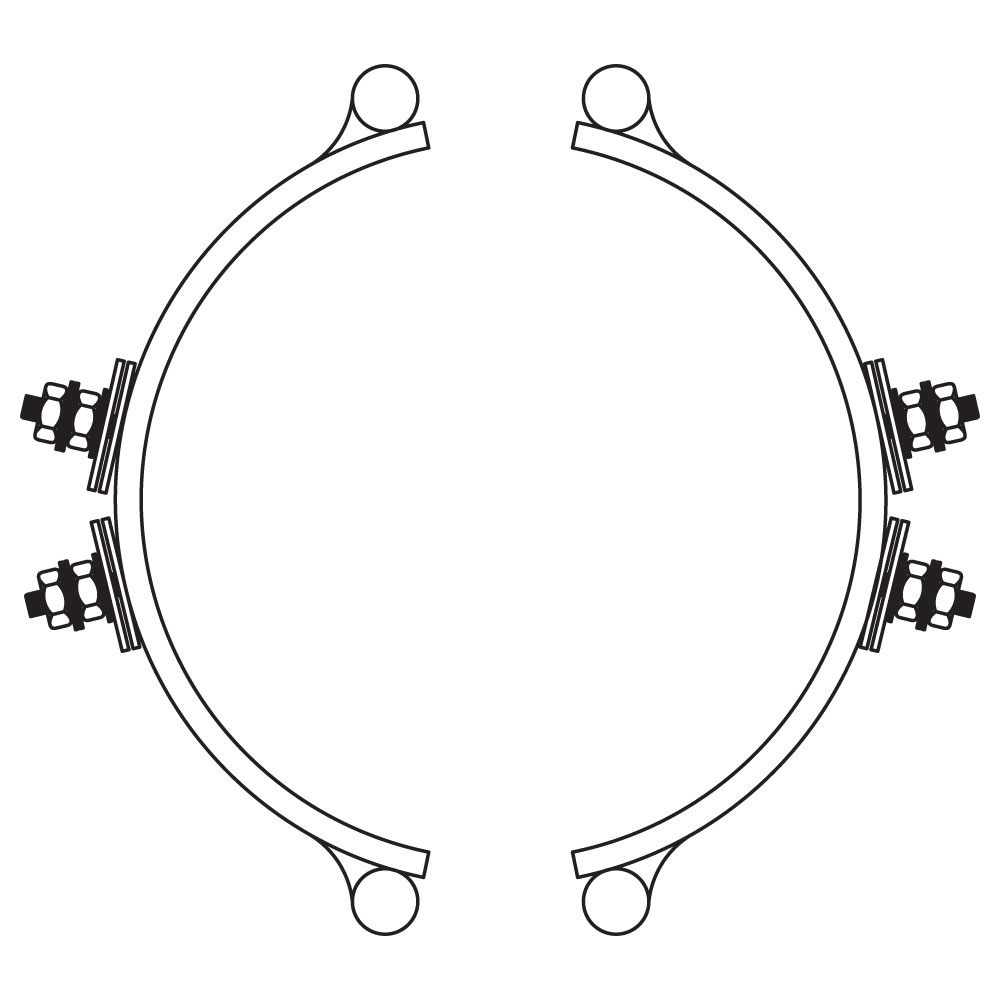

Type T2: Screw Terminals, Two-Piece Band

Standard Termination Location: center of each half; center of width

Minimum Inside Diameter: 4" (101.6 mm)

Minimum Width: 1" (25.4 mm)

Maximum Volts/Amps: 480VAC/25A each half

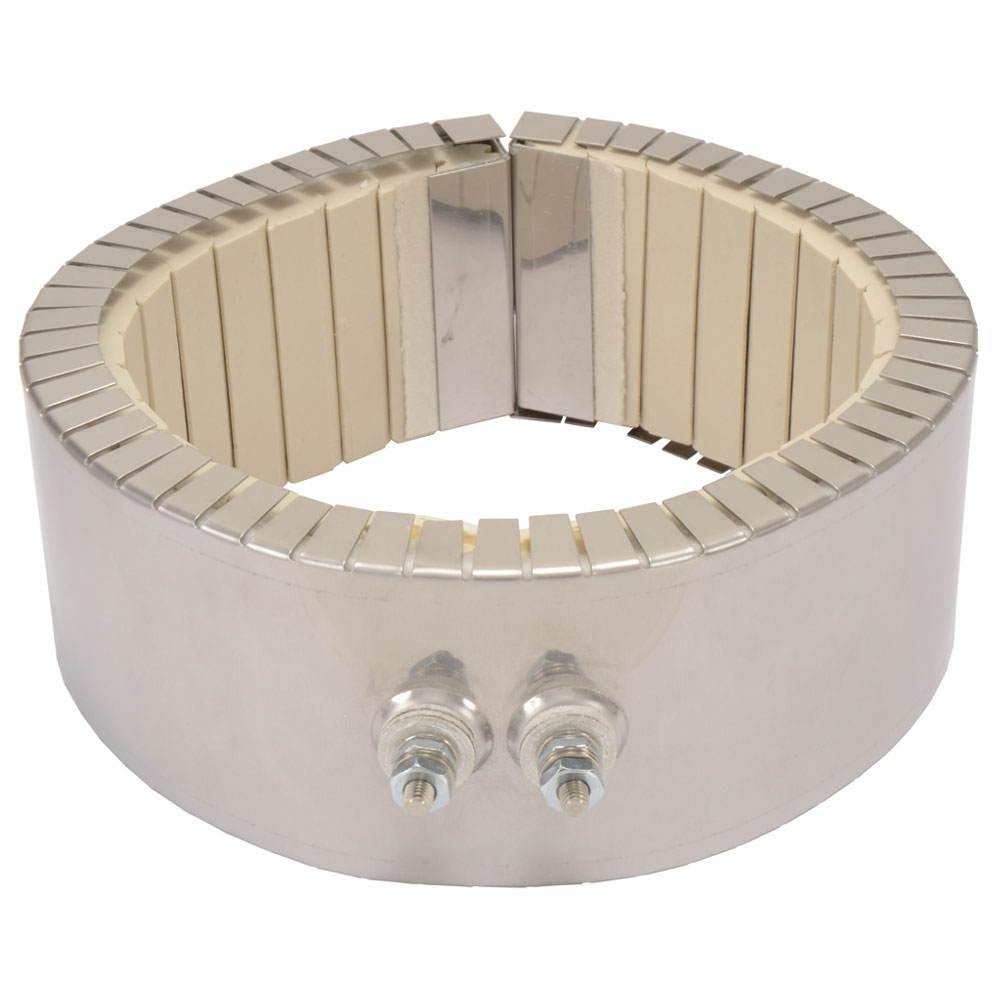

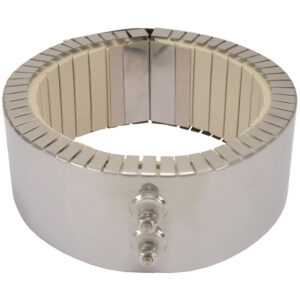

Type T3: Screw Terminals, One-Piece Band

Standard Termination Location: opposite the gap; across center of width

Minimum Inside Diameter: 2" (50.8 mm)
Reverse Band:  5-1/2" (139.7 mm)

Minimum Width: 2" (50.8 mm)

Maximum Volts/Amps: 480VAC/25A

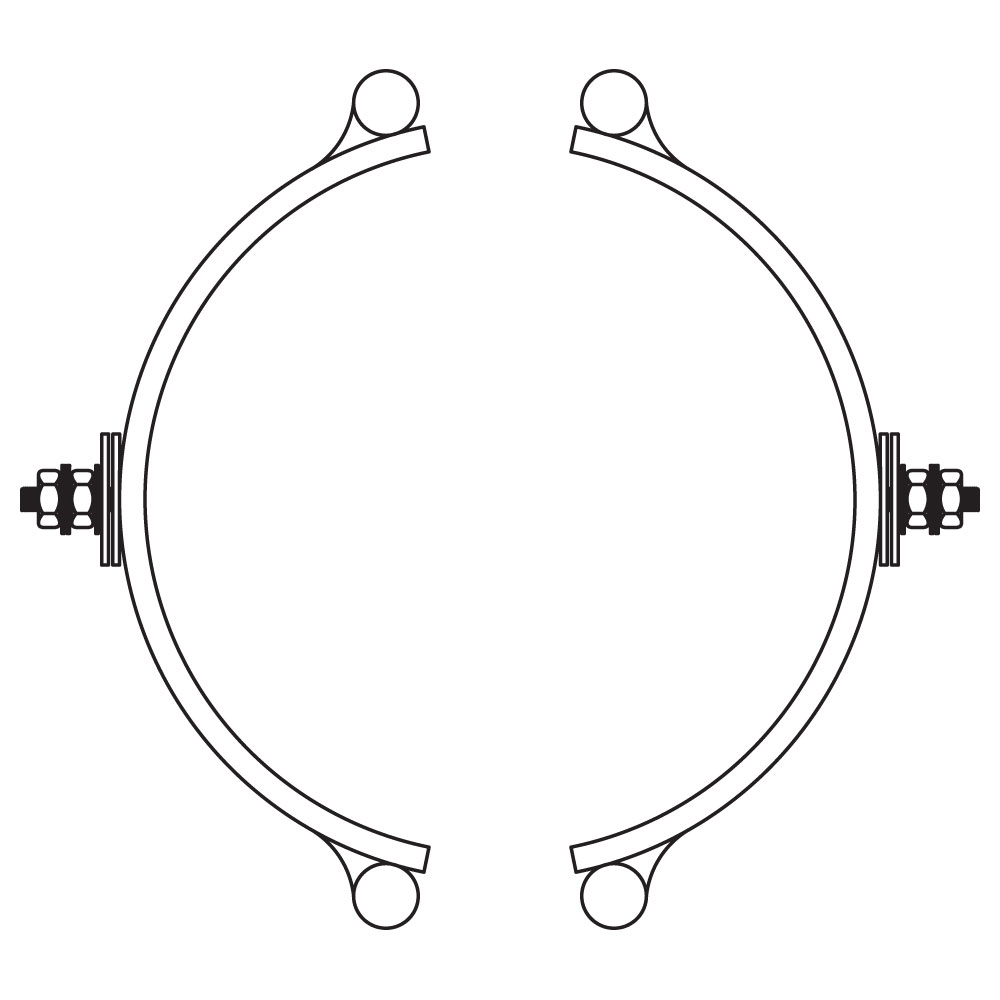

Type T3: Screw Terminals, Two-Piece Band

Standard Termination Location: center of each half; across center of width

Minimum Inside Diameter: 4" (101.6 mm)
Reverse Band:  5-1/2" (139.7 mm)

Minimum Width: 2" (50.8 mm)

Maximum Volts/Amps: 480VAC/25A each half

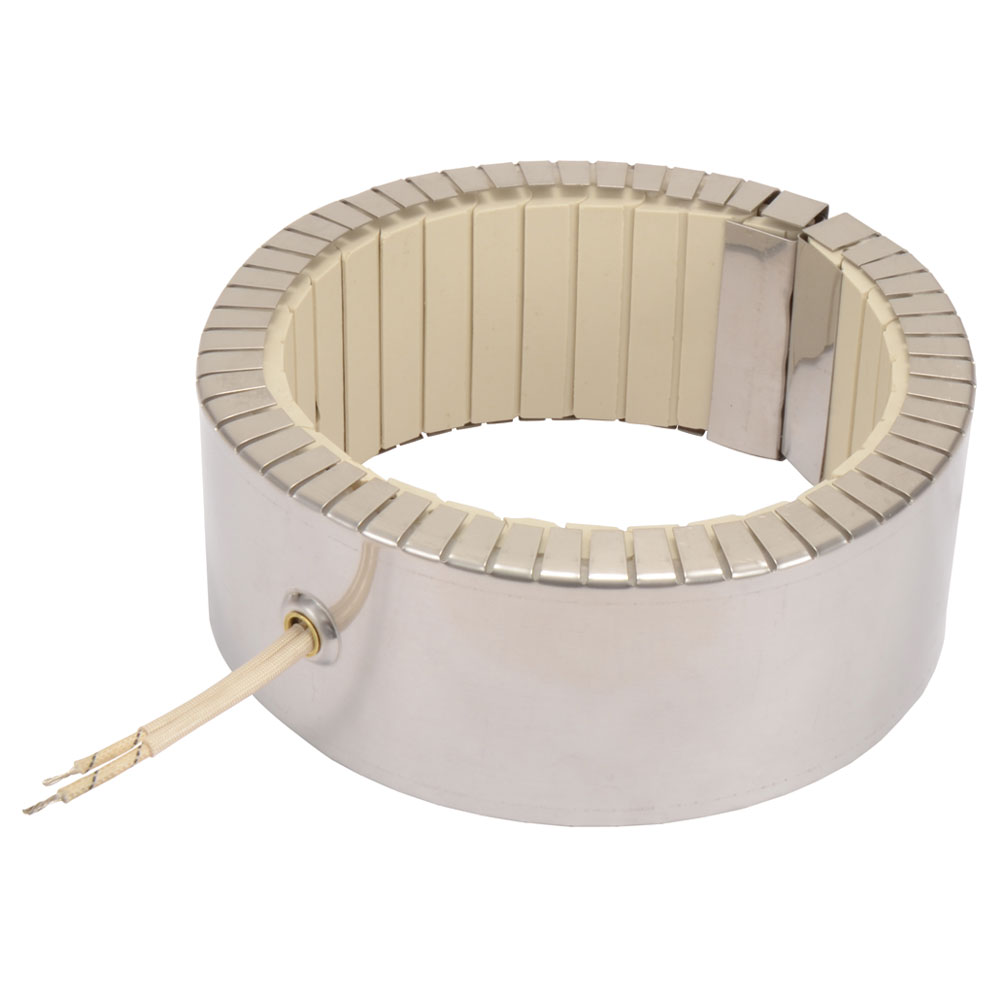

Type L1: Straight Lead Wires, One-Piece Band

Standard Termination Location: opposite the gap; center of width

Minimum Inside Diameter: 2" (50.8 mm)
Reverse Band:  5-1/2" (139.7 mm)

Minimum Width: 1" (25.4 mm)

Maximum Volts/Amps: 480VAC/12.5A

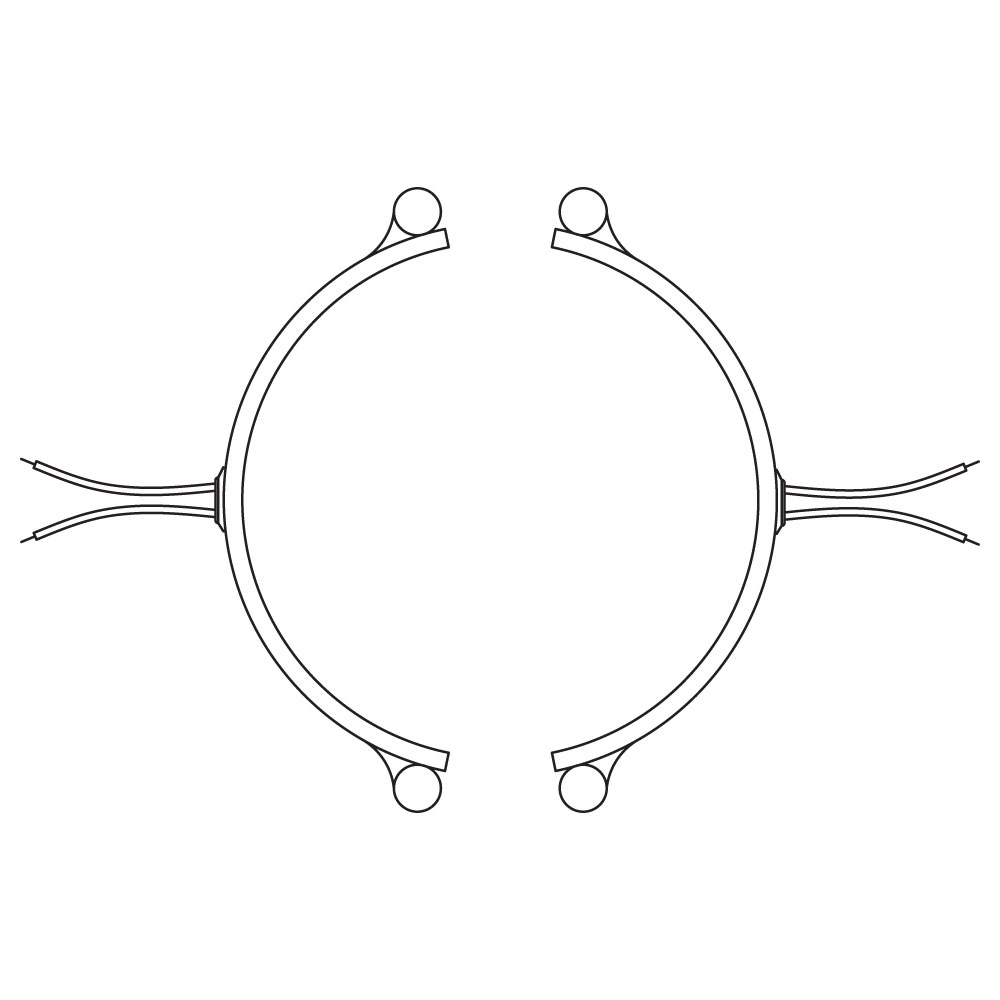

Type L1: Straight Lead Wires, Two-Piece Band

Standard Termination Location: center of each half; center of width

Minimum Inside Diameter: 4" (101.6 mm)
Reverse Band:  5-1/2" (139.7 mm)

Minimum Width: 1" (25.4 mm)

Maximum Volts/Amps: 480VAC/12.5A each half

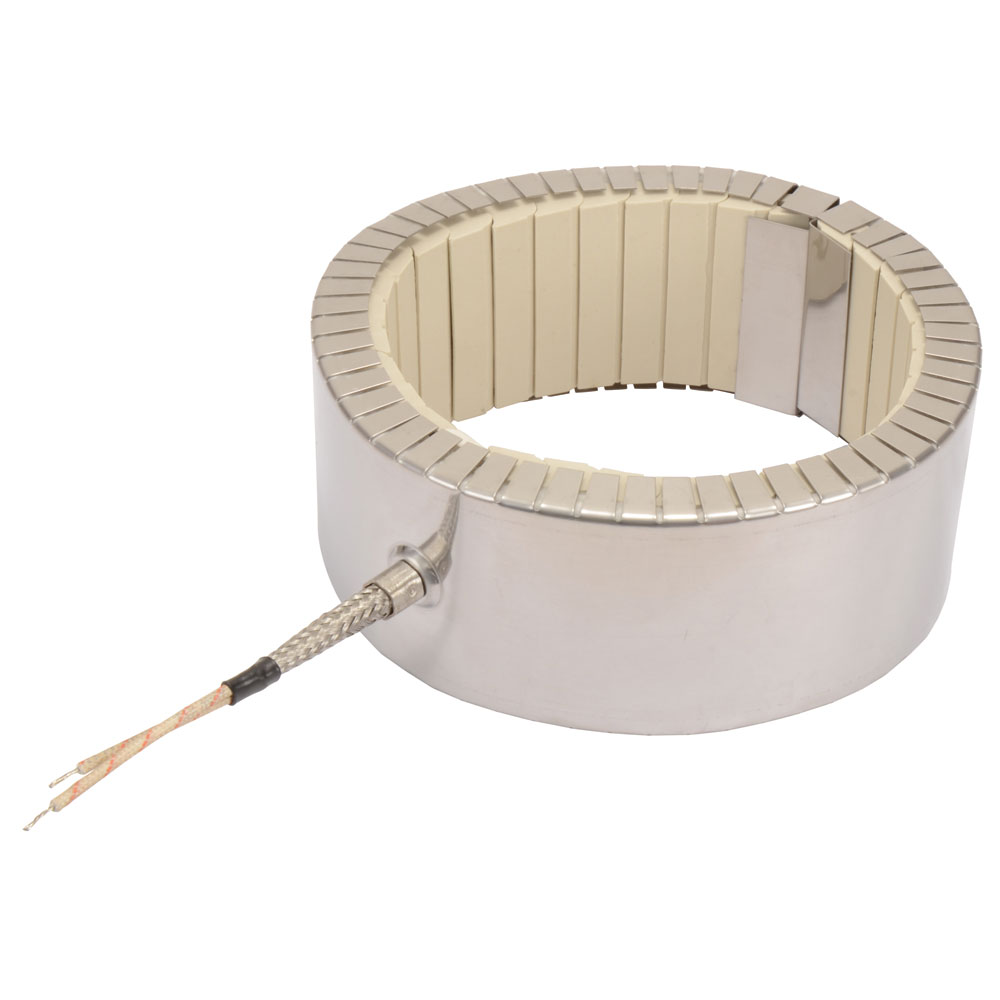

Type W1: Abrasion Resistant Straight Wire Braid Leads, One-Piece Band

Standard Termination Location: opposite the gap; center of width

Minimum Inside Diameter: 2" (50.8 mm)
Reverse Band:  5-1/2" (139.7 mm)

Minimum Width: 1" (25.4 mm)

Maximum Volts/Amps: 480VAC/12.5A

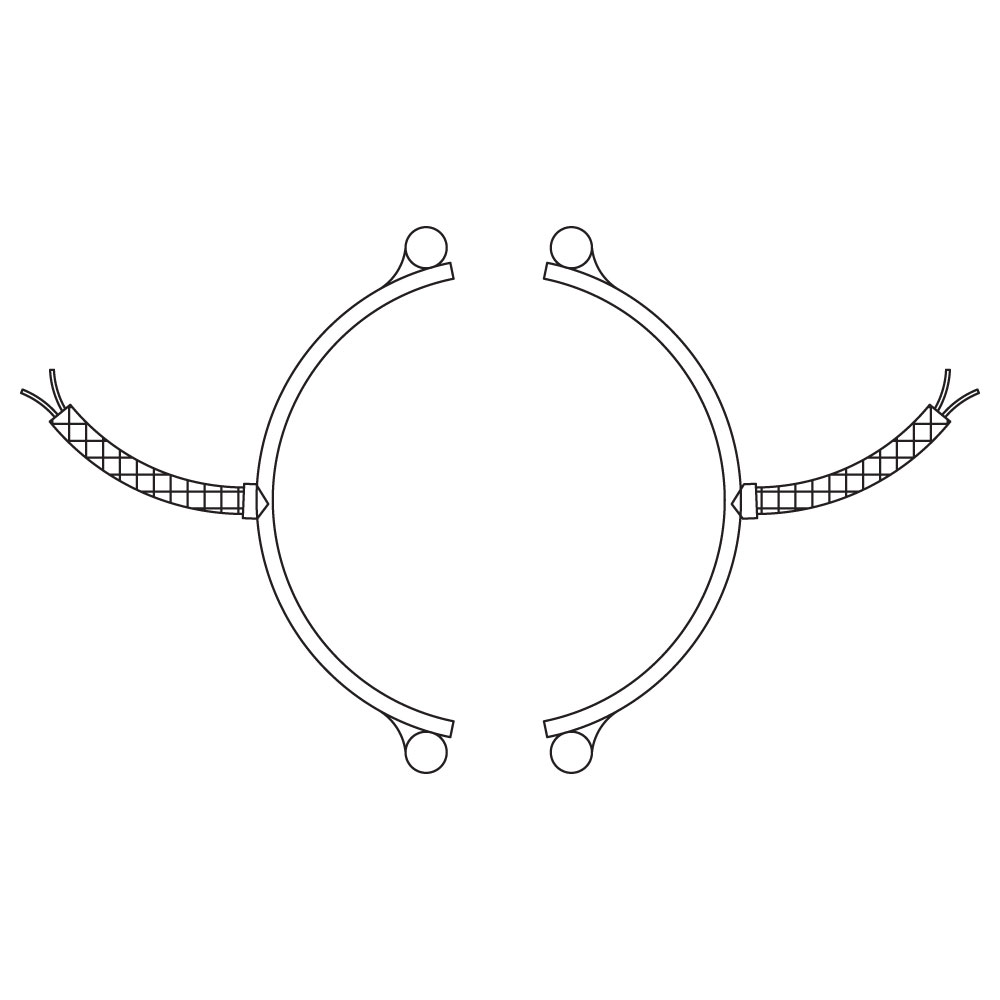

Type W1: Abrasion Resistant Straight Wire Braid Leads, Two-Piece Band

Standard Termination Location: center of each half; center of width

Minimum Inside Diameter: 4" (101.6 mm)
Reverse Band:  5-1/2" (139.7 mm)

Minimum Width: 1" (25.4 mm)

Maximum Volts/Amps: 480VAC/12.5A each half

Type W2M: Right-Angle Wire Braid Leads, 90° to Heater, One-Piece Band

Standard Termination Location: opposite the gap; center of width

Minimum Inside Diameter: 2" (50.8 mm)
Reverse Band:  5-1/2" (139.7 mm)

Minimum Width: 1" (25.4 mm)

Maximum Volts/Amps: 480VAC/12.5A

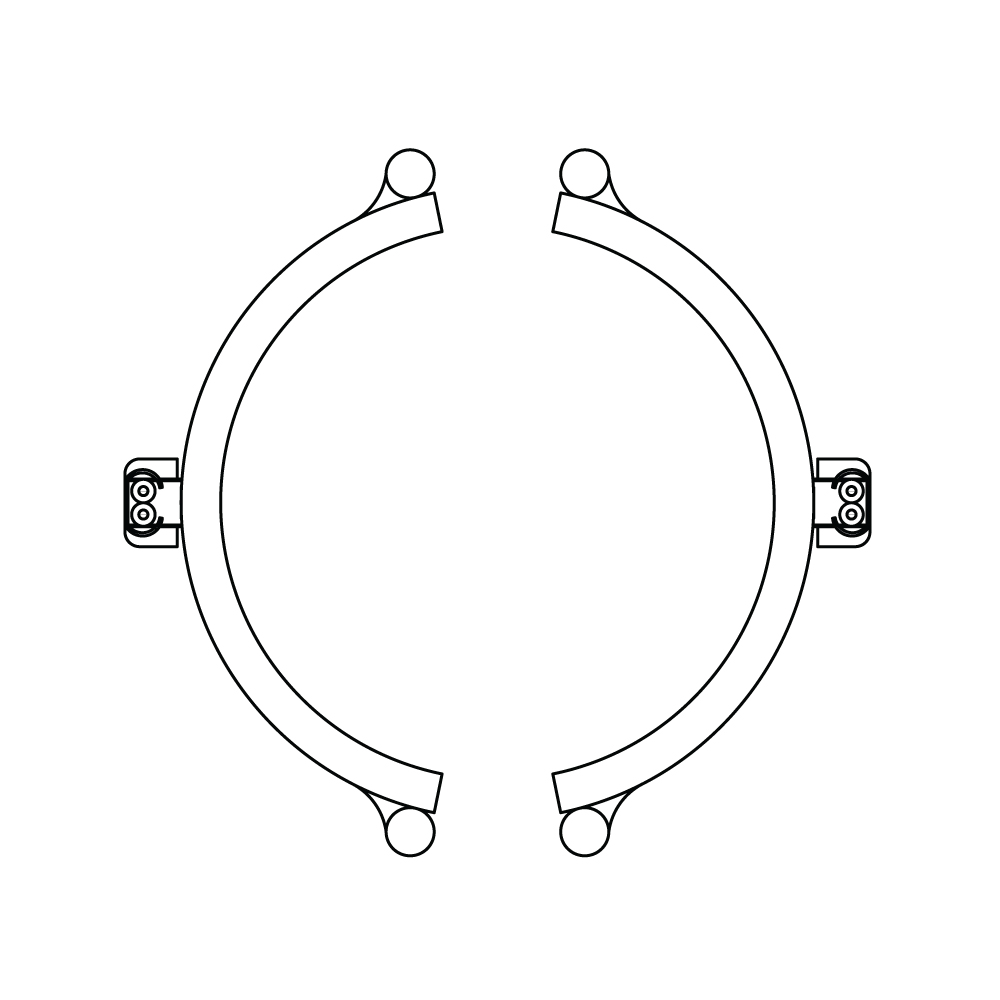

Type W2M: Right-Angle Wire Braid Leads, 90° to Heater, Two-Piece Band

Standard Termination Location: center of each half; center of width

Minimum Inside Diameter: 4" (101.6 mm)
Reverse Band:  5-1/2" (139.7 mm)

Minimum Width: 1" (25.4 mm)

Maximum Volts/Amps: 480VAC/12.5A each half

Type W5M: Right-Angle Wire Braid Leads, Parallel to Heater, One-Piece Band

Standard Termination Location: opposite the gap; center of width

Minimum Inside Diameter: 2" (50.8 mm)
Reverse Band:  5-1/2" (139.7 mm)

Minimum Width: 1" (25.4 mm)

Maximum Volts/Amps: 480VAC/12.5A

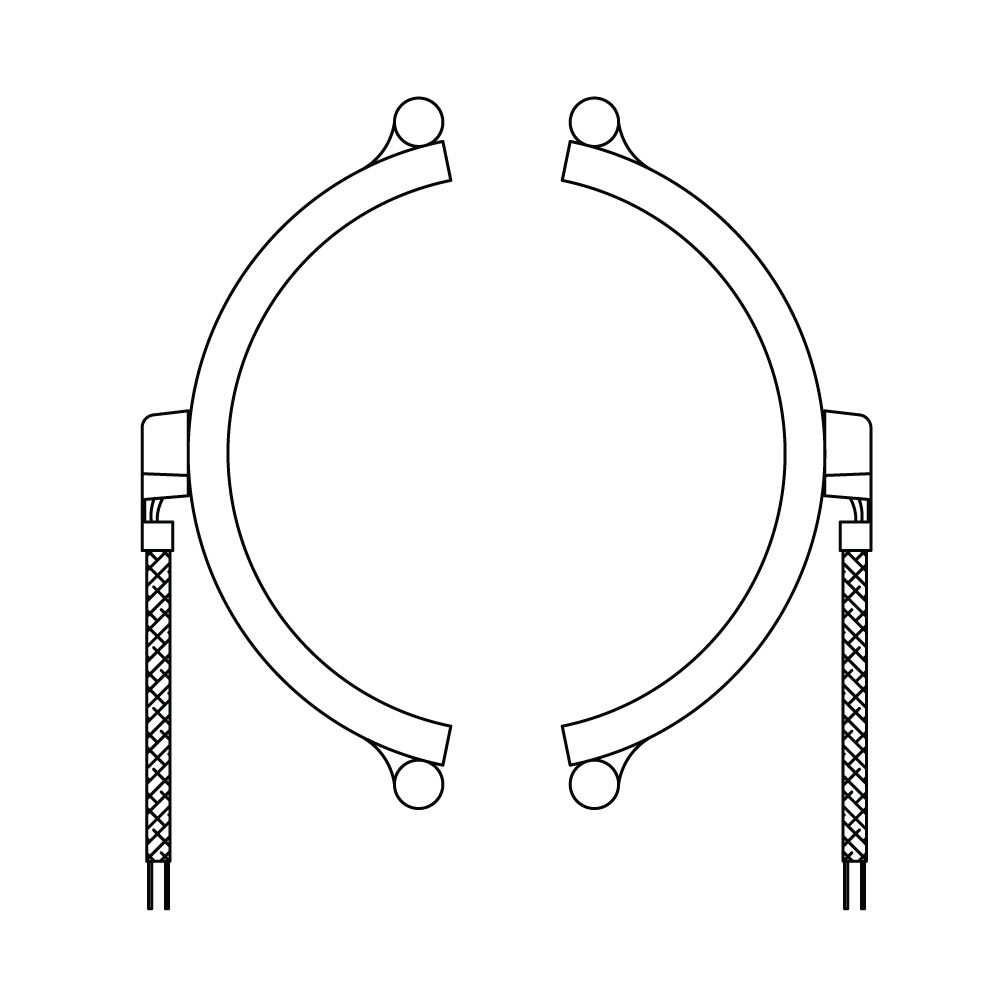

Type W5M: Right-Angle Wire Braid Leads, Parallel to Heater, Two-Piece Band

Standard Termination Location: opposite the gap; center of width

Minimum Inside Diameter: 2" (50.8 mm)
Reverse Band:  5-1/2" (139.7 mm)

Minimum Width: 1" (25.4 mm)

Maximum Volts/Amps: 480VAC/12.5A

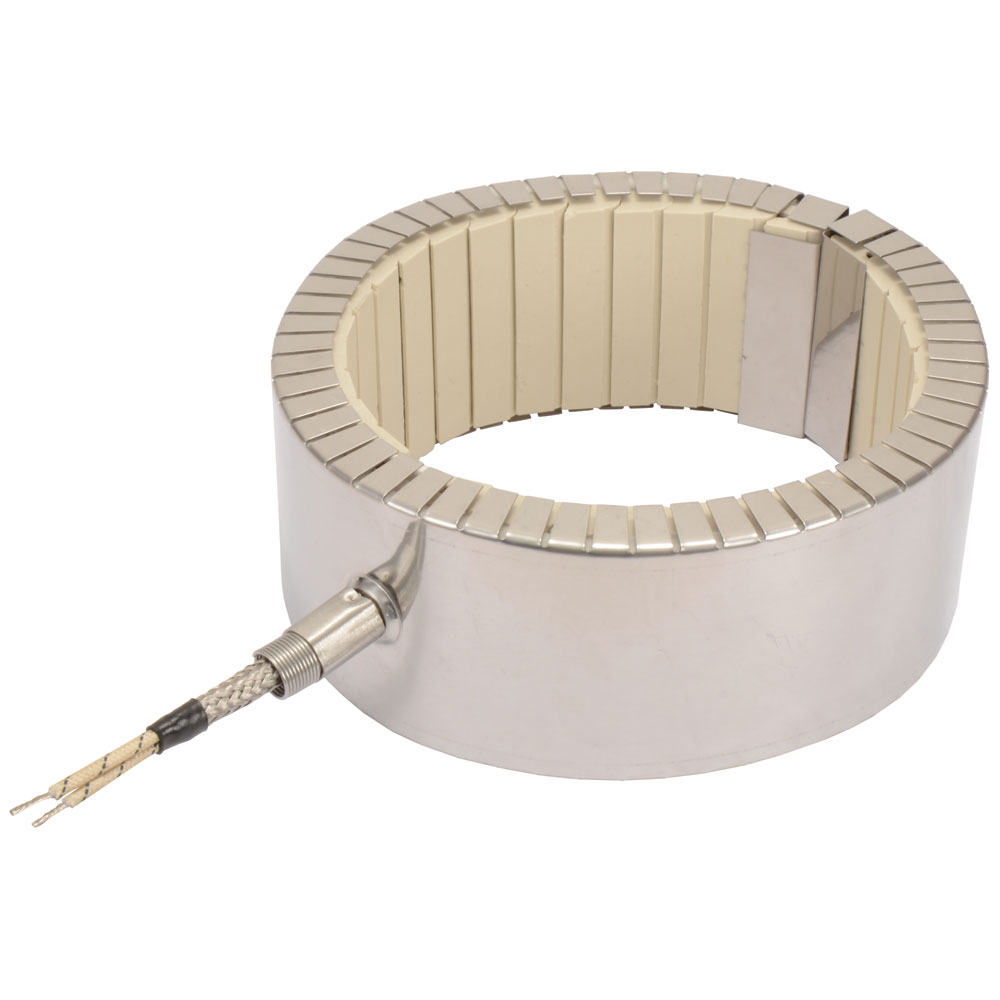

Type R1: Abrasion Resistant Straight Armor Cable, One-Piece Band

Standard Termination Location: opposite the gap; center of width

Minimum Inside Diameter: 2" (50.8 mm)
Reverse Band:  5-1/2" (139.7 mm)

Minimum Width: 1" (25.4 mm)

Maximum Volts/Amps: 480VAC/12.5A

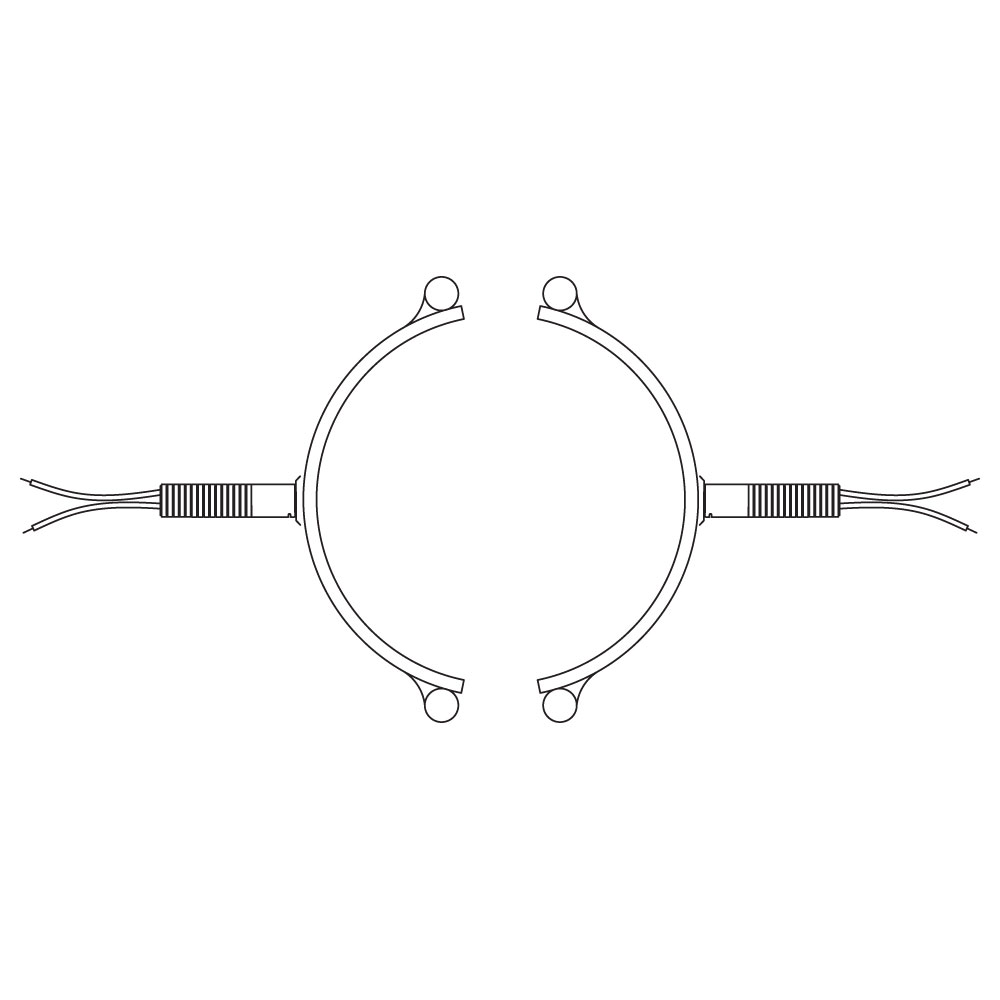

Type R1: Abrasion Resistant Straight Armor Cable, Two-Piece Band

Standard Termination Location: center of each half; center of width

Minimum Inside Diameter: 4" (101.6 mm)
Reverse Band:  5-1/2" (139.7 mm)

Minimum Width: 1" (25.4 mm)

Maximum Volts/Amps: 480VAC/12.5A each half

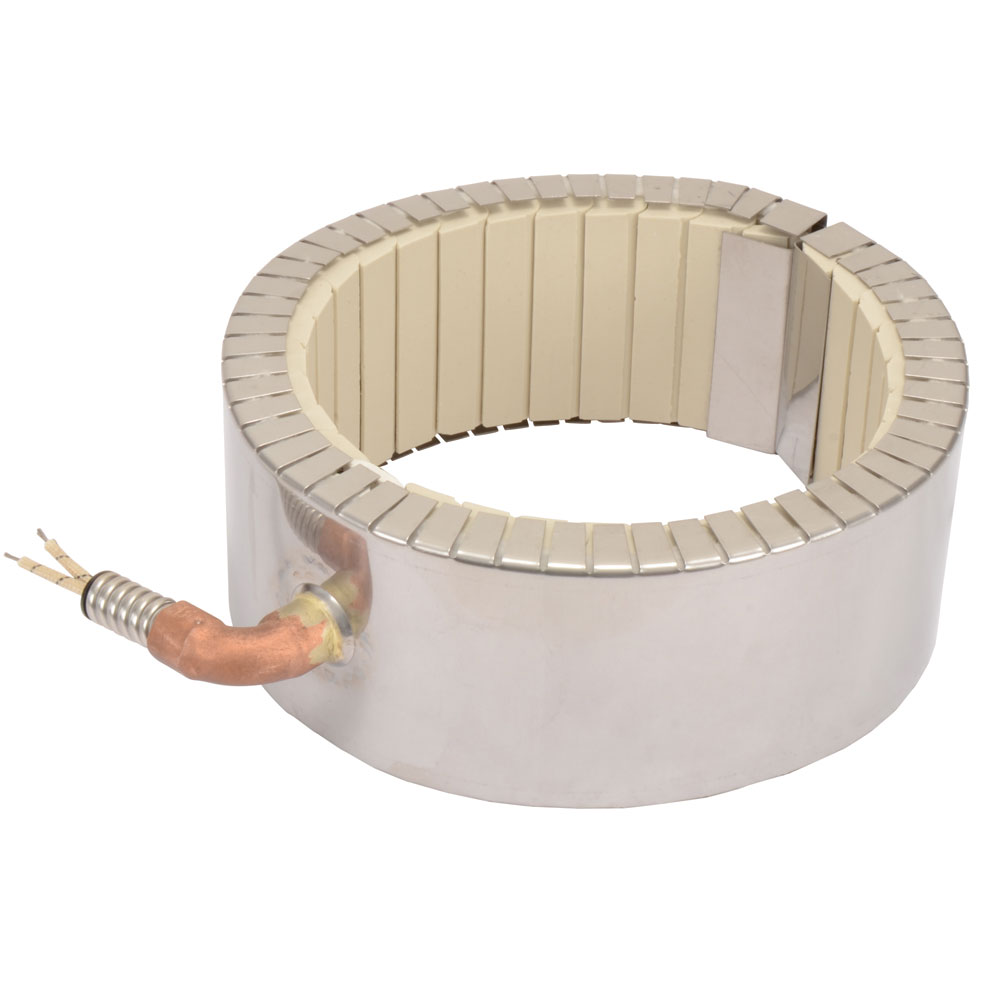

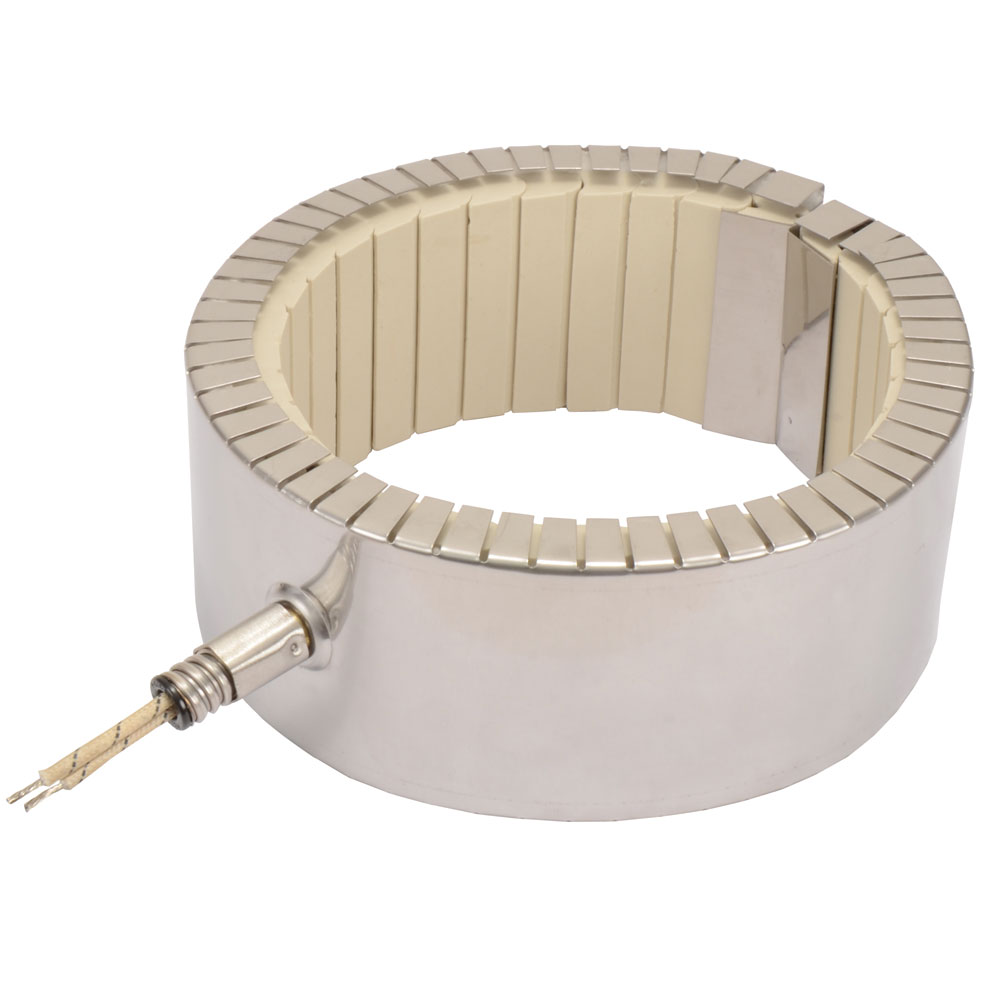

Type R2: Abrasion Resistant Right-Angle Armor Cable, One-Piece Band

Standard Termination Location: opposite the gap; center of width

Minimum Inside Diameter: 2" (50.8 mm)
Reverse Band:  5-1/2" (139.7 mm)

Minimum Width: 1" (25.4 mm)

Maximum Volts/Amps: 480VAC/12A

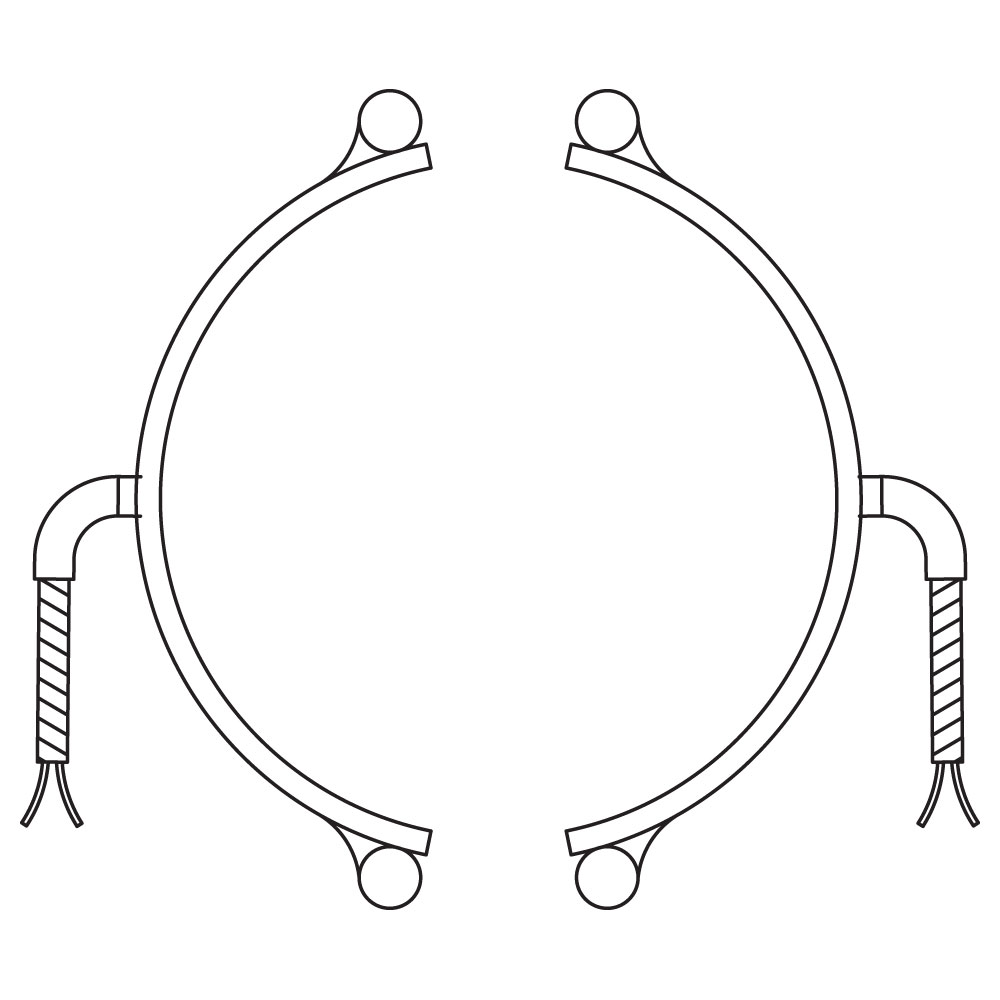

Type R2: Abrasion Resistant Right-Angle Armor Cable, Two-Piece Band

Standard Termination Location: center of each half; center of width

Minimum Inside Diameter: 4" (101.6 mm)
Reverse Band:  5-1/2" (139.7 mm)

Minimum Width: 1" (25.4 mm)

Maximum Volts/Amps: 480VAC/12.5A each half

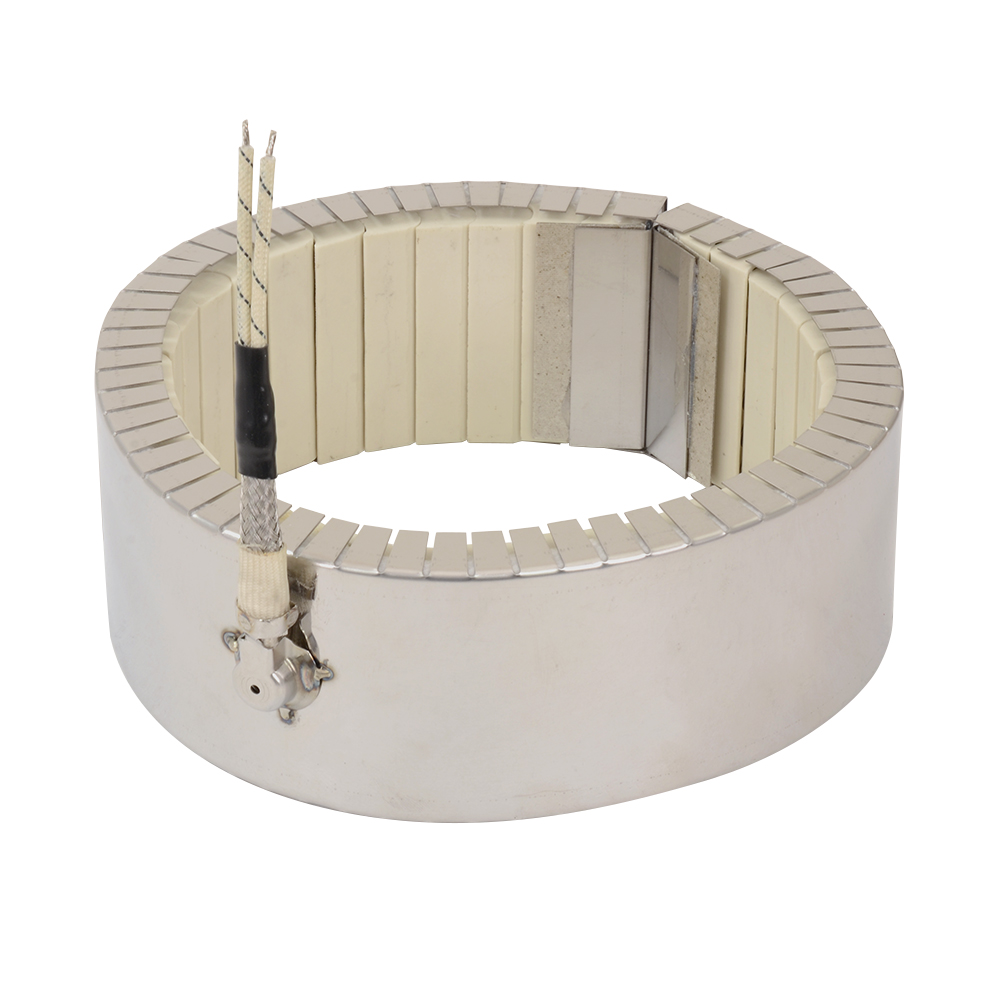

Type S1: Lead Wire Spring Strain Relief, One-Piece Band

Standard Termination Location: opposite the gap; center of width

Minimum Inside Diameter: 2" (50.8 mm)
Reverse Band:  5-1/2" (139.7 mm)

Minimum Width: 1" (25.4 mm)

Maximum Volts/Amps: 480VAC/12.5A

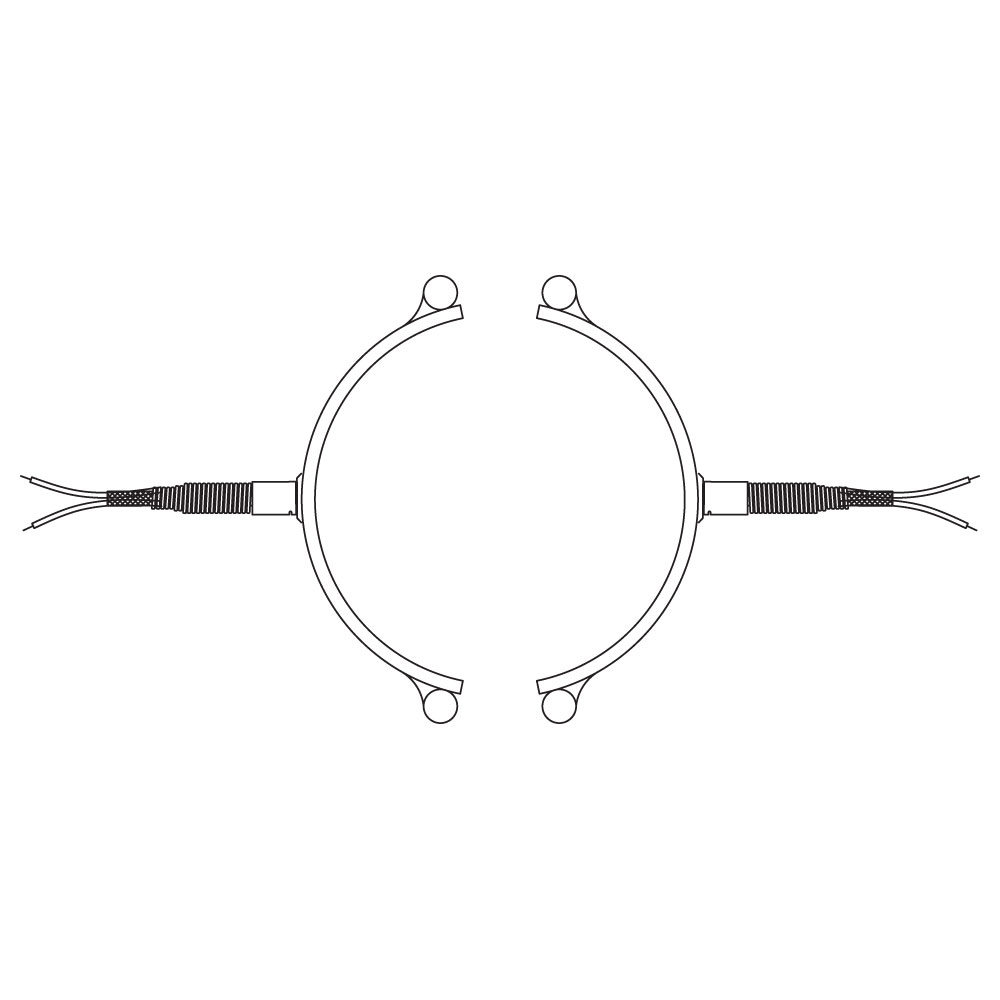

Type S1: Lead Wire Spring Strain Relief, Two-Piece Band

Standard Termination Location: center of each half; center of width

Minimum Inside Diameter: 4" (101.6 mm)
Reverse Band:  5-1/2" (139.7 mm)

Minimum Width: 1" (25.4 mm)

Maximum Volts/Amps: 480VAC/12.5A each half

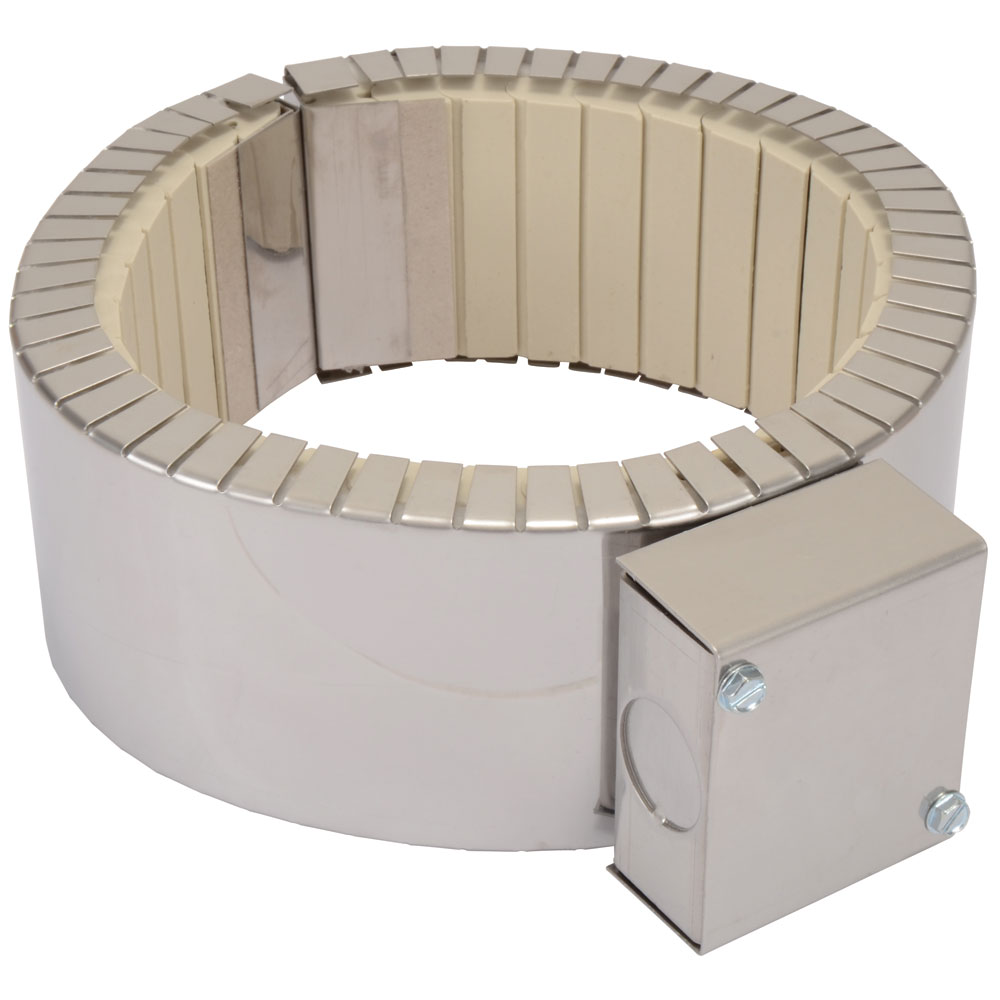

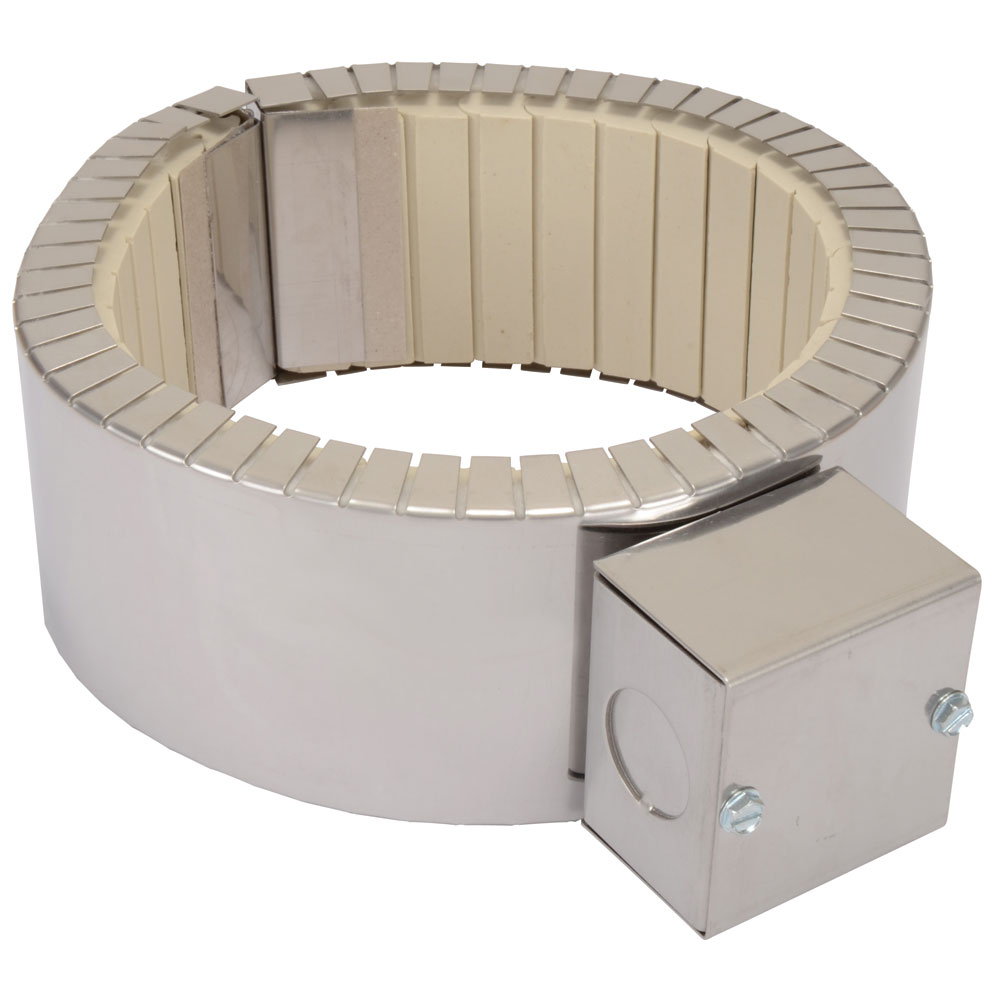

Type C2: Standard Terminal Box, One-Piece Band

Standard Termination Location: opposite the gap; center of width

Minimum Inside Diameter: 2" (50.8 mm)
Reverse Band:  15" (381 mm)

Minimum Width: 1-1/2" (38.1 mm)

Maximum Volts/Amps: 480VAC/25A

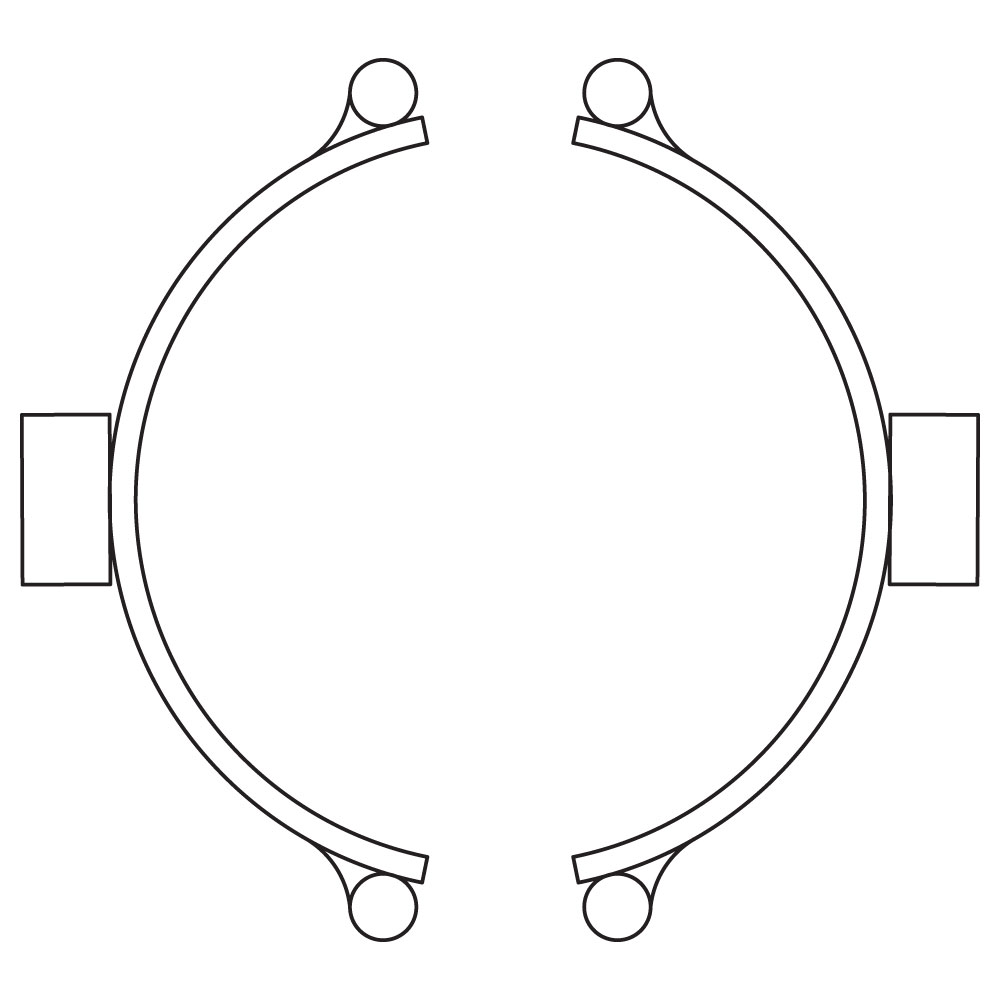

Type C2: Standard Terminal Box, Two-Piece Band

Standard Termination Location: center of each half; center of width

Minimum Inside Diameter: 4" (101.6 mm)
​​​​​​​Reverse Band:  15" (381 mm)

Minimum Width: 1-1/2" (38.1 mm)

Maximum Volts/Amps: 480VAC/25A each half

Type C5: Low-Profile Terminal Box, One-Piece Band

Standard Termination Location: opposite the gap; center of width

Minimum Inside Diameter: 2" (50.8 mm)
​​​​​​​Reverse Band:  15" (381 mm)

Minimum Width: 1-1/2" (38.1 mm)

Maximum Volts/Amps: 480VAC/25A

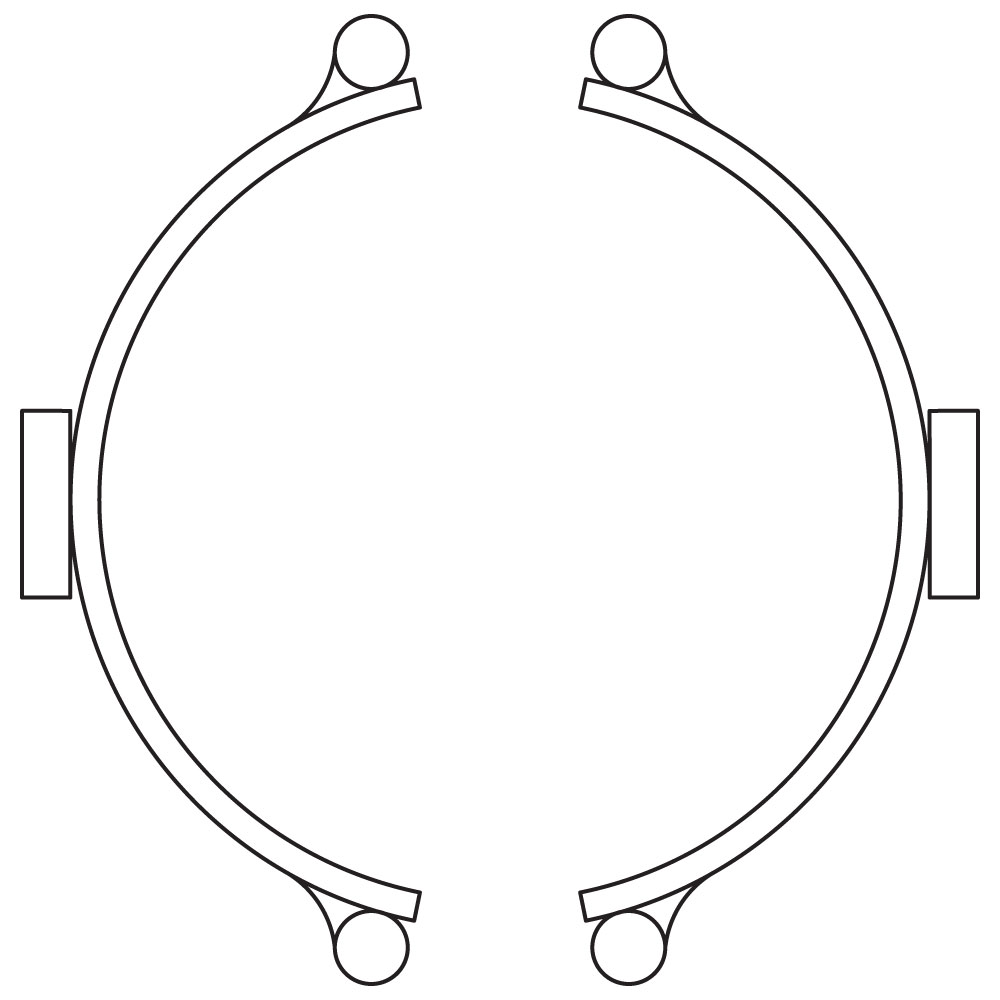

Type C5: Low-Profile Terminal Box, Two-Piece Band

Standard Termination Location: center of each half; center of width

Minimum Inside Diameter: 4" (101.6 mm)
​​​​​​​Reverse Band:  15" (381 mm)

Minimum Width: 1-1/2" (38.1 mm)

Maximum Volts/Amps: 480VAC/25A each half

Type P1: Quick Disconnect Plugs, One-Piece Band

Standard Termination Location: opposite the gap; center of width

Minimum Inside Diameter: 2" (50.8 mm)
Reverse Band:  5-1/2" (139.7 mm)

Minimum Width: 2" (50.8 mm) depending on termination orientation

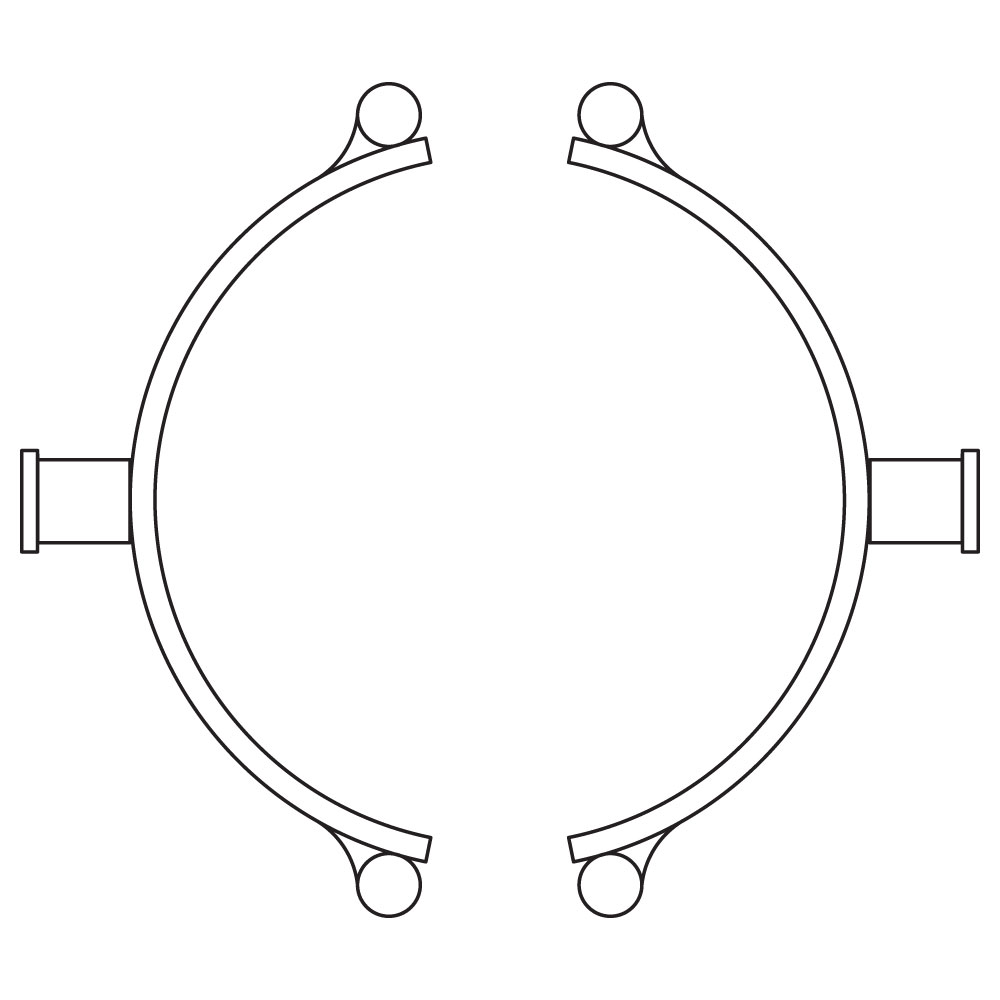

Type P1: Quick Disconnect Plugs, Two-Piece Band

Standard Termination Location: center of each half; center of width

Minimum Inside Diameter: 4" (101.6 mm)
Reverse Band:  5-1/2" (139.7 mm)

Minimum Width: 2" (50.8 mm) depending on termination orientation

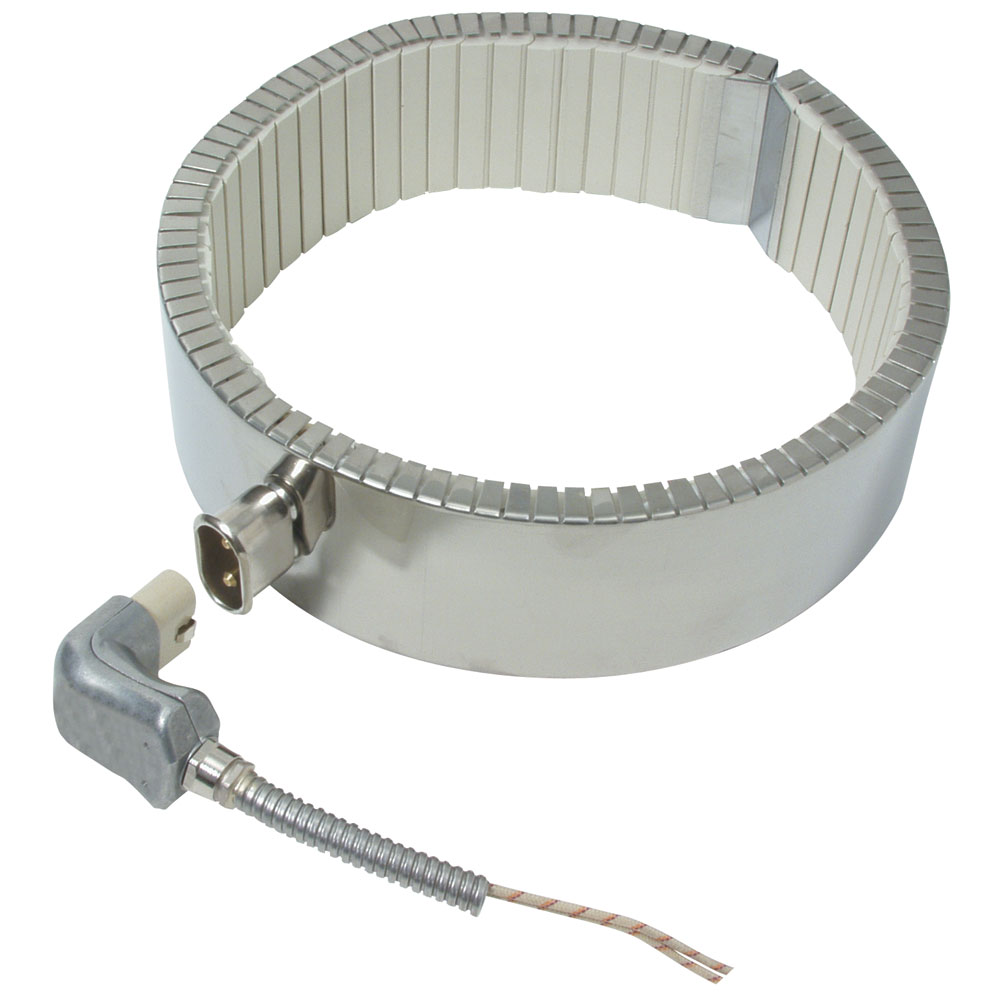

Type P2: Quick Disconnect Plugs, Low-Profile, One-Piece Band

Standard Termination Location: opposite the gap; center of width

Minimum Inside Diameter: 2" (50.8 mm)
Reverse Band:  Consult Tempco with your requirements.

Minimum Width: 2" (50.8 mm)

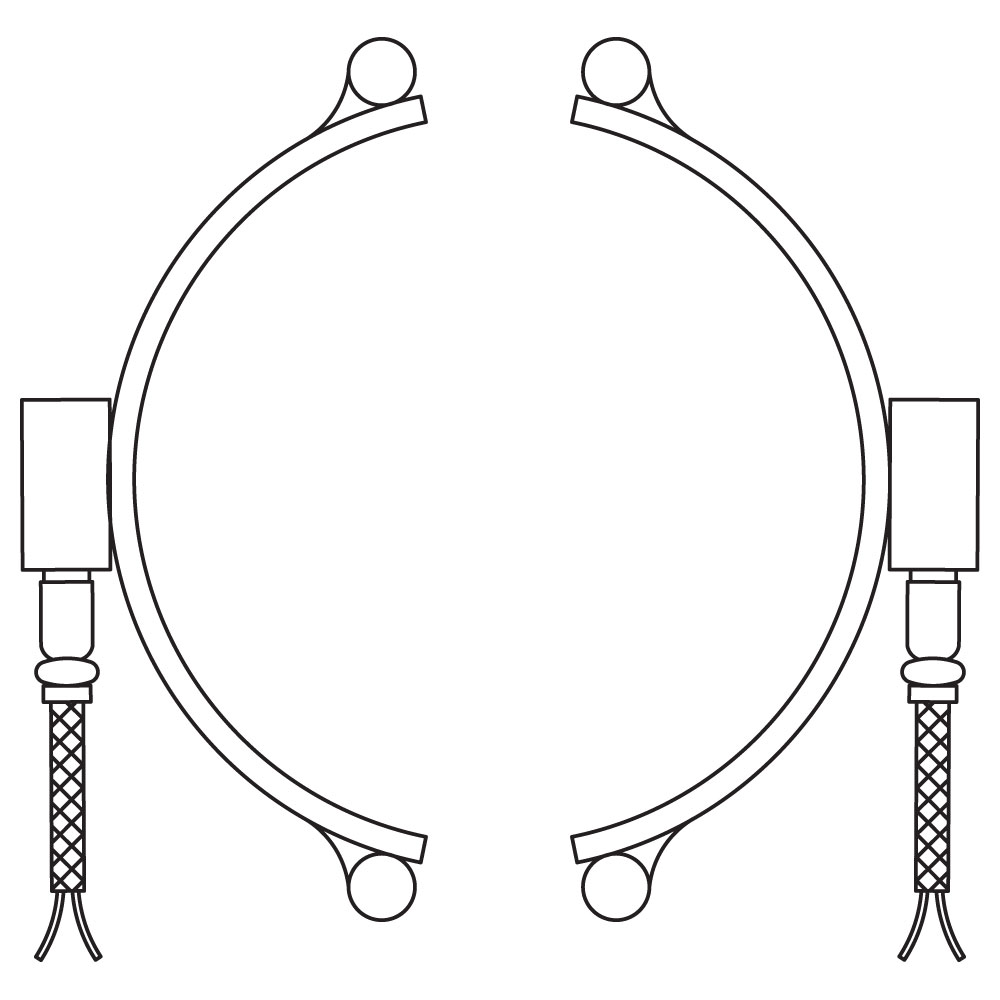

Type P2: Quick Disconnect Plugs, Low-Profile, Two-Piece Band

Standard Termination Location: center of each half; center of width

Minimum Inside Diameter: 4" (101.6 mm)
Reverse Band:  Consult Tempco with your requirements.

Minimum Width: 2" (50.8 mm)

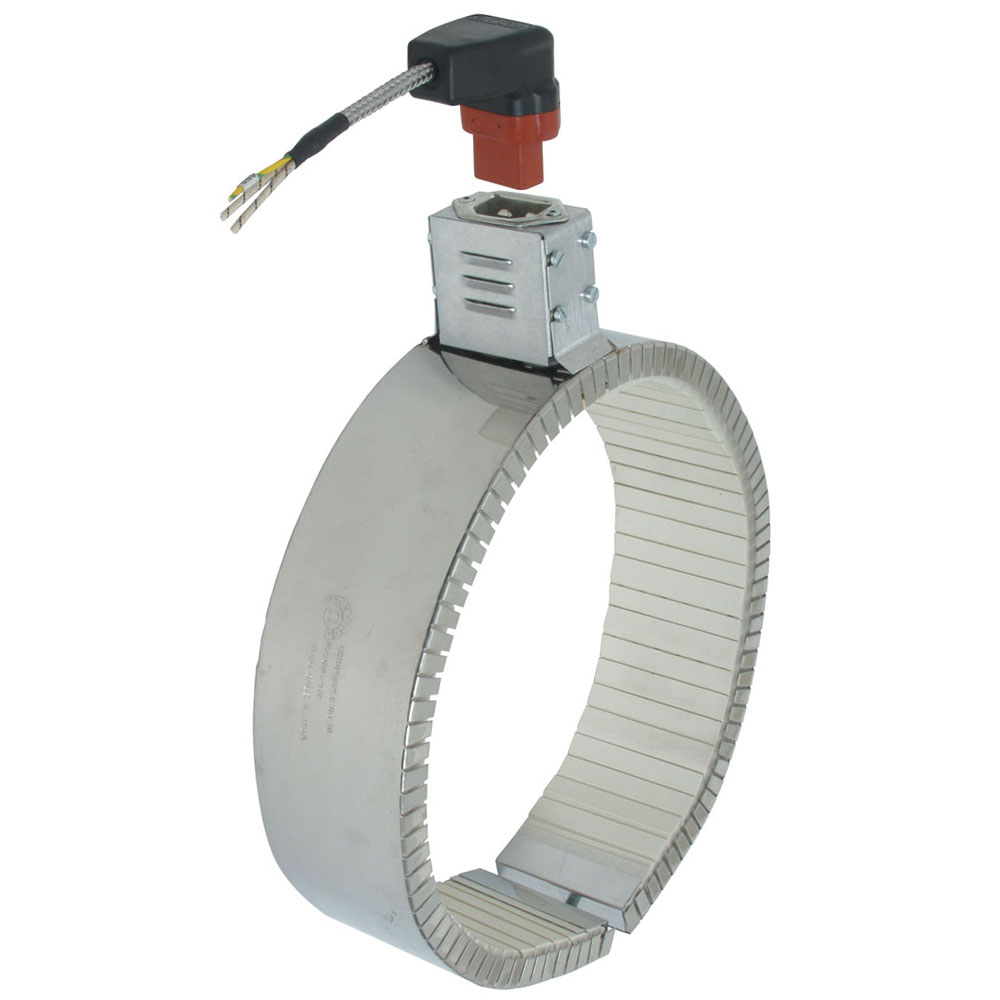

Type P3: DIN 49458 A/B Quick Disconnect Plugs, Vertical, One-Piece Band

Standard Termination Location: opposite the gap; center of width

Minimum Inside Diameter: 3" (76.2 mm)
Reverse Band:  Consult Tempco with your requirements.

Minimum Width: 2" (50.8 mm)

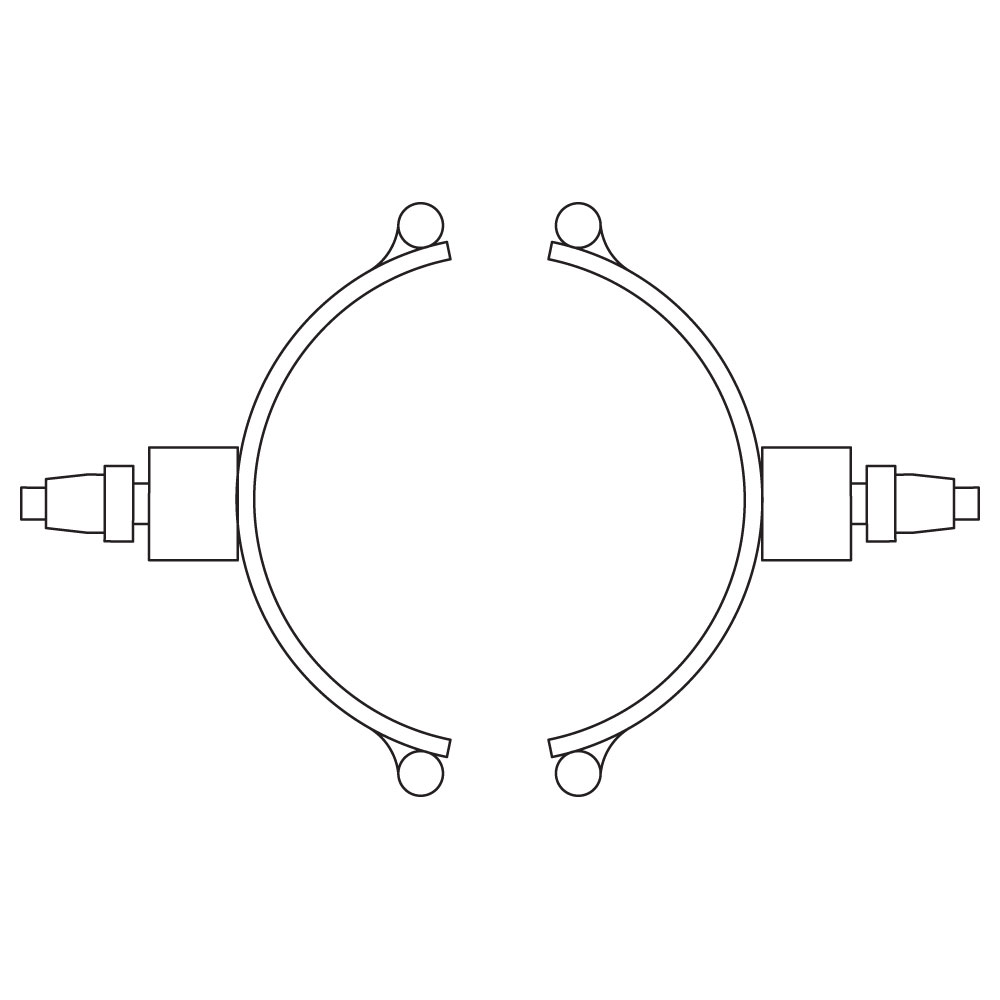

Type P3: DIN 49458 A/B Quick Disconnect Plugs, Vertical, Two-Piece Band

Standard Termination Location: center of each half; center of width

Minimum Inside Diameter: 4" (101.6 mm)
Reverse Band:  Consult Tempco with your requirements.

Minimum Width: 2" (50.8 mm)

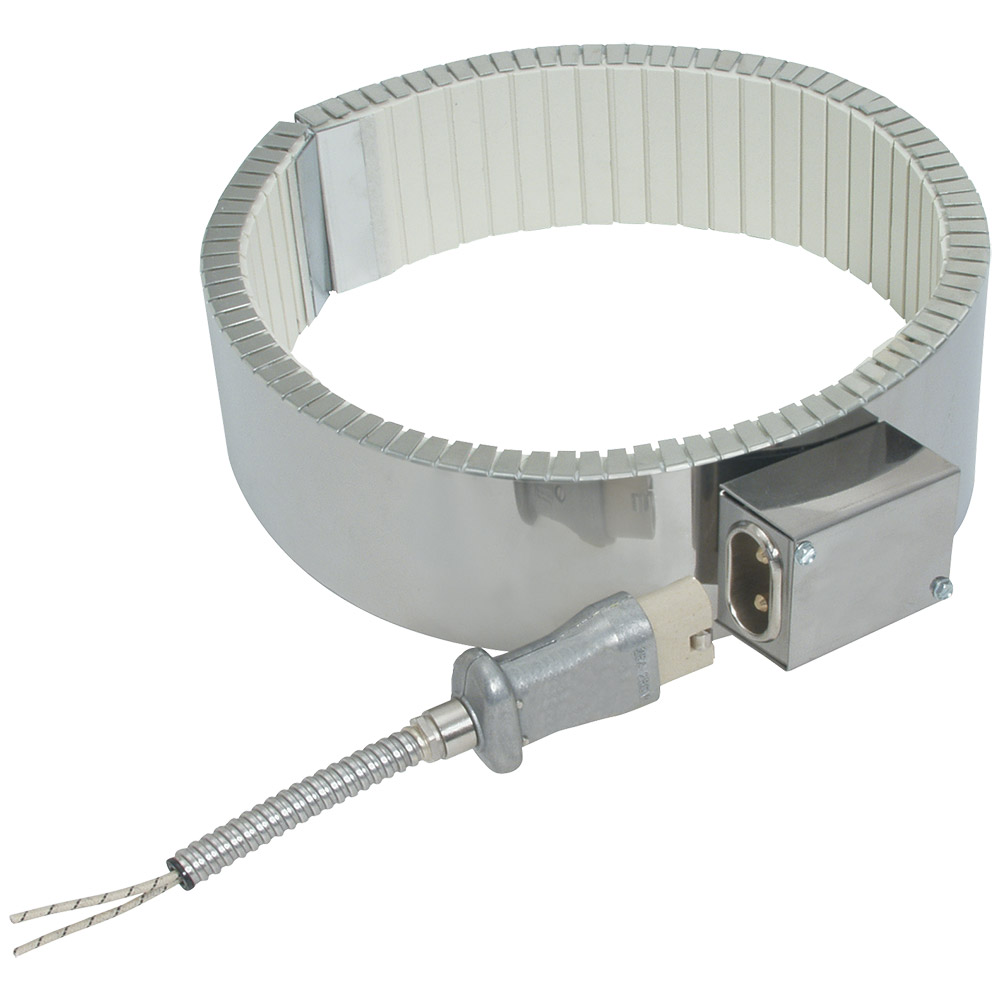

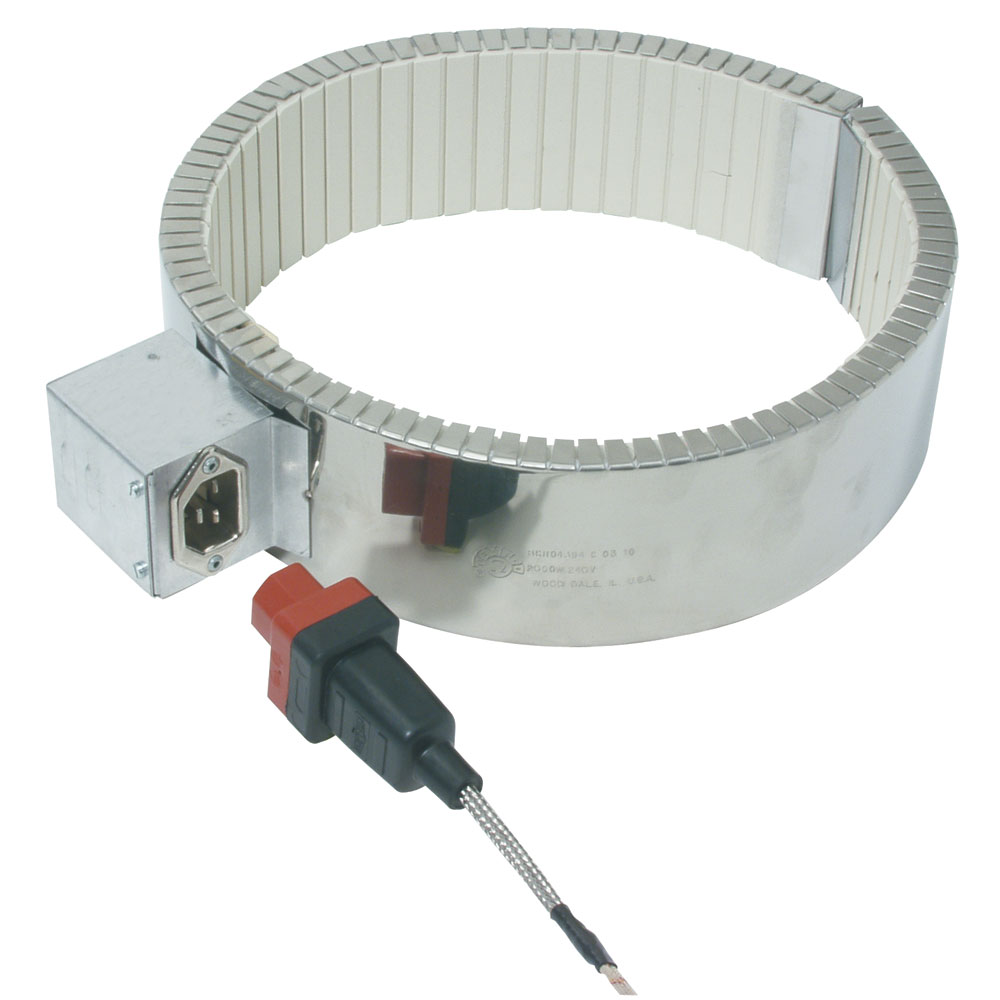

Type P4: DIN 49458 A/B Quick Disconnect Plugs, Horizontal, One-Piece Band

Standard Termination Location:opposite the gap; center of width

Minimum Inside Diameter: 2-1/2" (63.5 mm)
Reverse Band:  Consult Tempco with your requirements.

Minimum Width: 2-1/2" (63.5 mm)

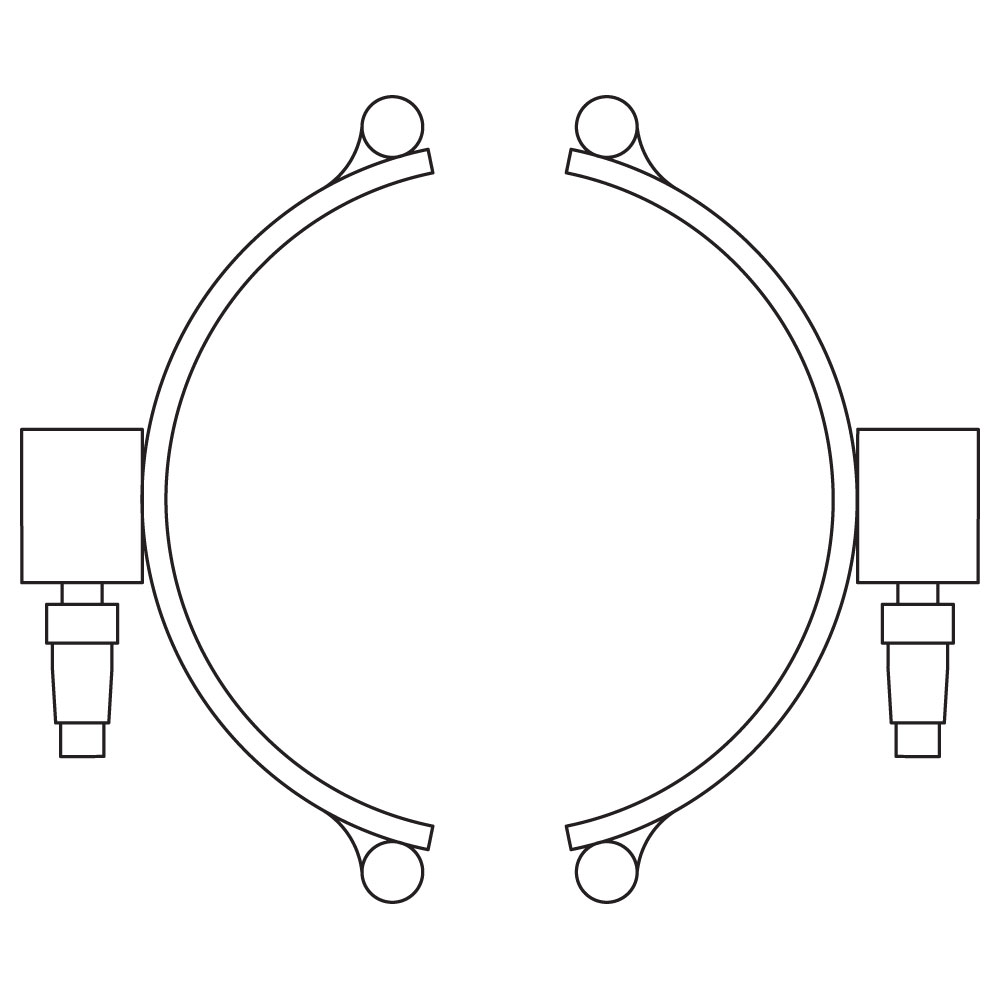

Type P4: DIN 49458 A/B Quick Disconnect Plugs, Horizontal, Two-Piece Band

Standard Termination Location:center of each half; center of width

Minimum Inside Diameter: 4" (101.6 mm)
Reverse Band:  Consult Tempco with your requirements.

Minimum Width: 2-1/2" (63.5 mm)

Optional Double Insulation (D): 1/2

Standard built-In ceramic fiber insulation 1/4" thick on all Ceramic Bands; will reduce power consumption by 25 to 30 percent and lower external temperatures (when compared to uninsulated band heaters).
Optional built-in ceramic fiber insulation 1/2" thick is available; for situations requiring additional insulation for lower external temperatures and increased electrical energy savings. This will decrease power consumption by 35 to 37 percent (when compared to uninsulated band heaters).

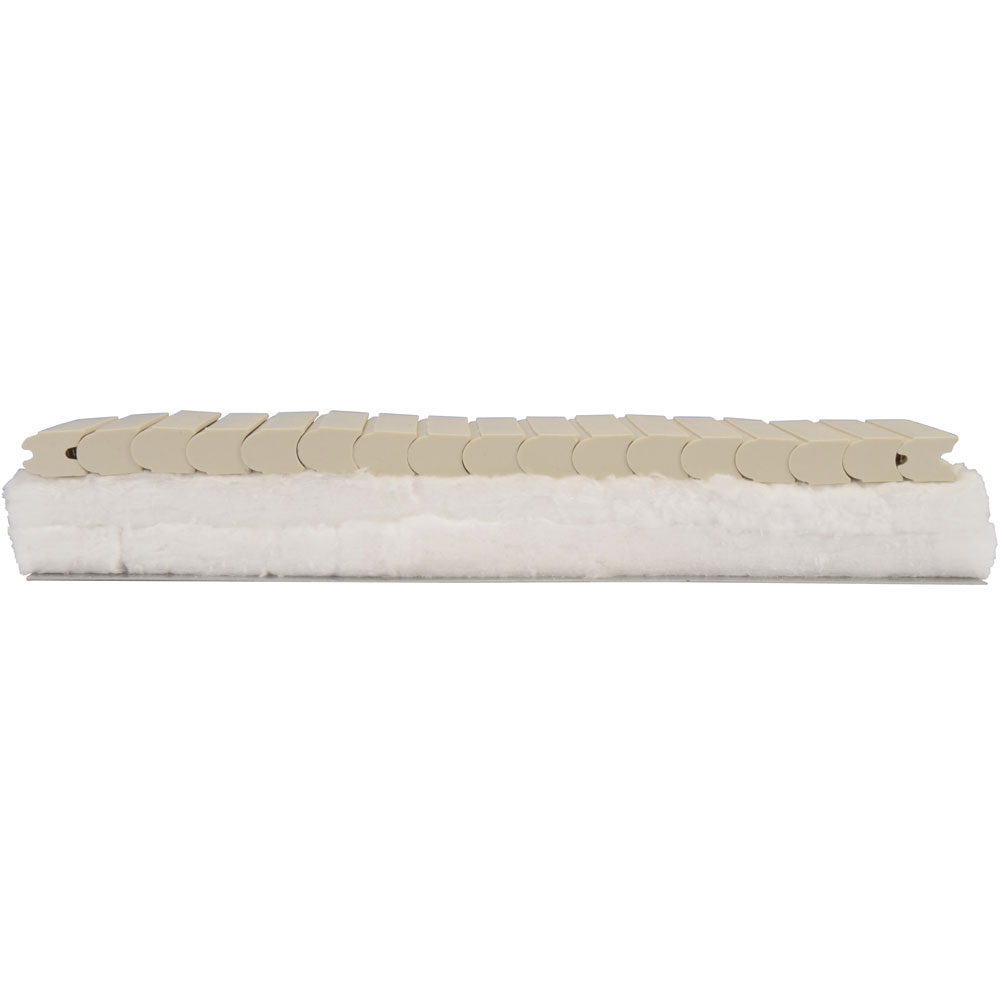

Type R: Uninsulated Ceramic Band Heaters

Type R Construction is an uninsulated ceramic band heater with a perforated Stainless Steel outer shell for more efficient cooling.  It is typically used in multiple quantities with forced air cooling systems such as Tempco's Cool TO-THE Touch Shroud Systems (see Type RCC below).

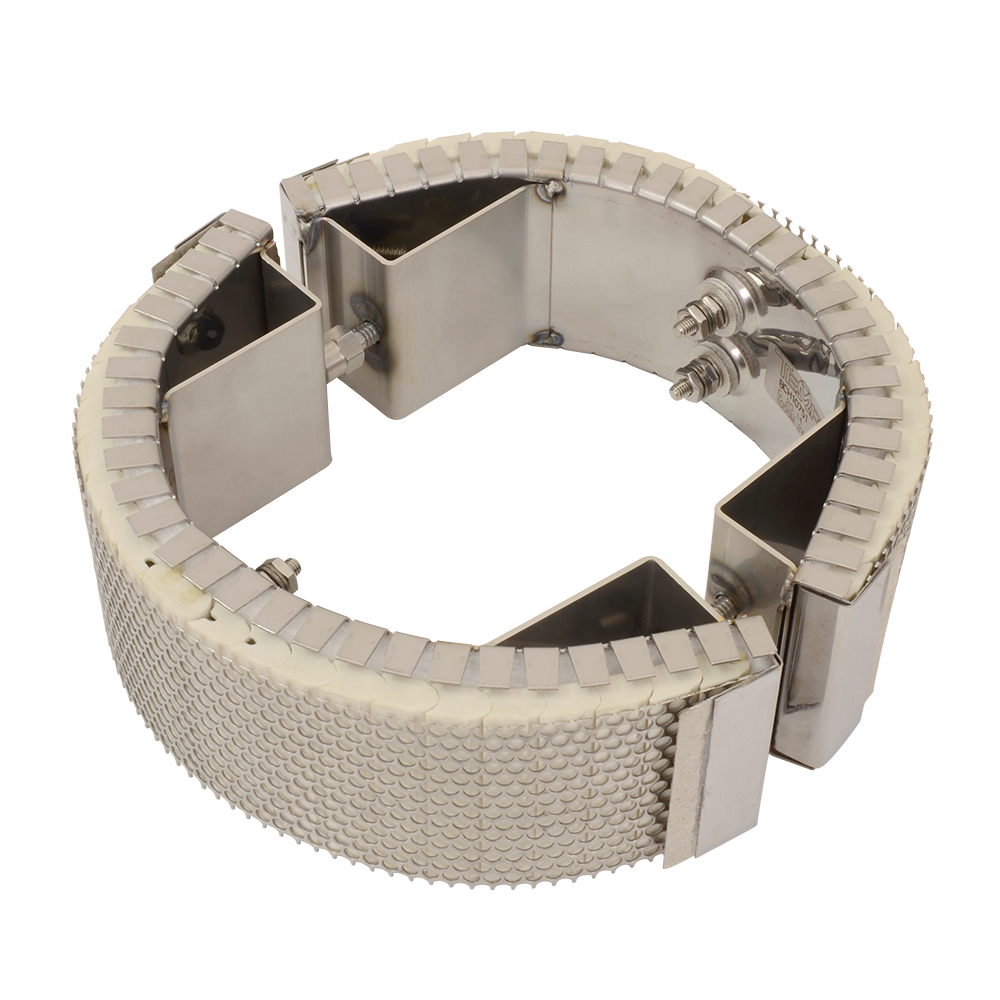

Type RCC: (Ribcage) Heating Mounting Configuration

This system was developed to reduce the cost and weight of typical shroud systems for the heating and cooling of high temperature extrusion processes.Type RCC (Rib Cage) Air Cooled Systems use multiple Type R Ceramic Band Heaters under one shroud.

See also Shroud Systems.

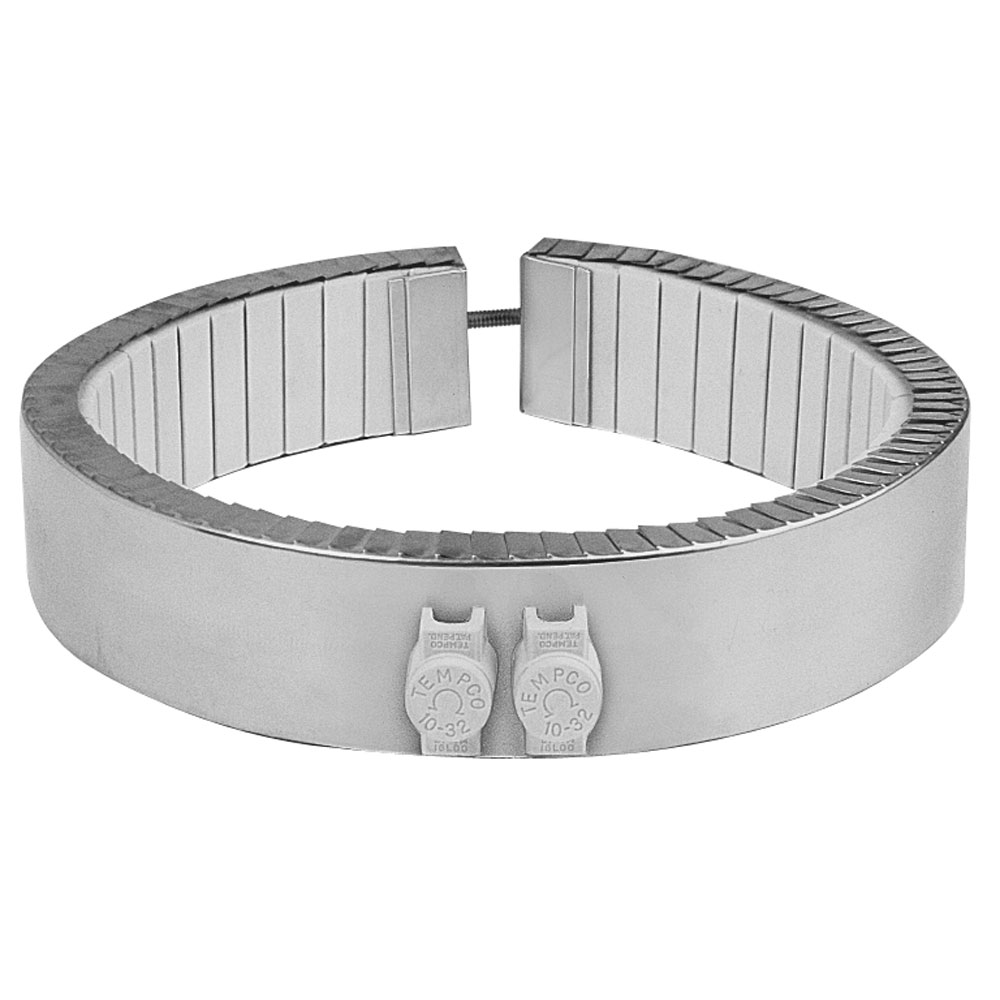

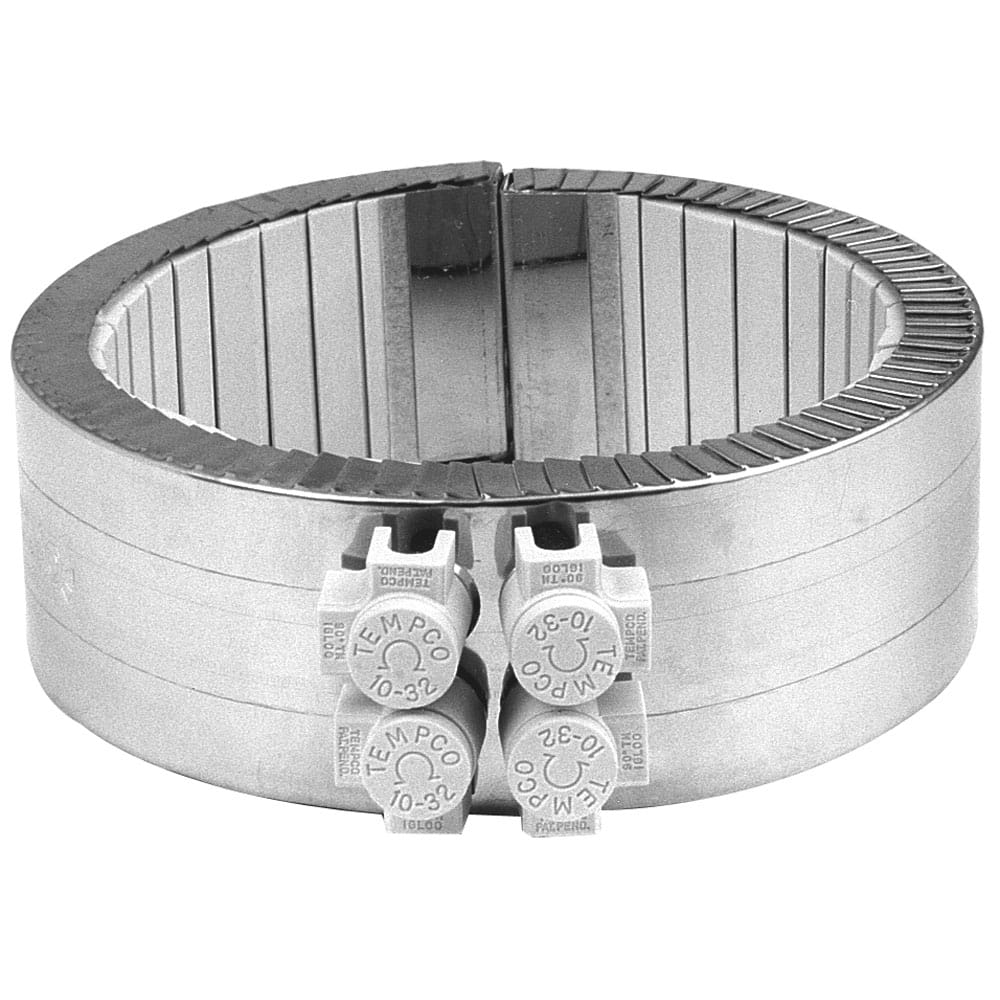

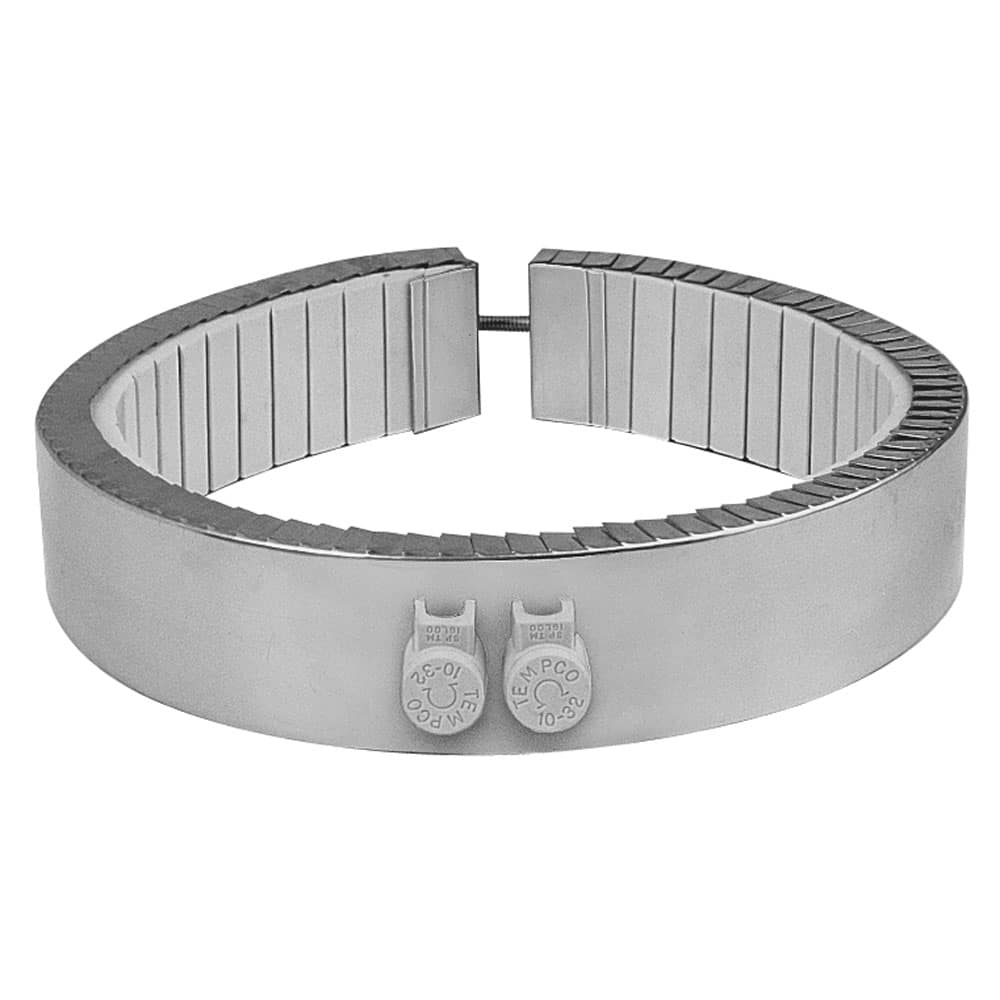

Igloo® Ceramic Terminal Covers

Three-Phase

On very high wattage band heaters it would be advantageous to set up the wiring three-phase to reduce the current load across a single conductor. Three-phase wiring is available with all types of insulation, construction styles, and clamping variations.

Minimum width: 3" (76.2 mm)

Dual Voltage

Band heaters can be designed using 3-wire series/parallel circuits for dual voltage applications. Whether the heater is run on the high or low voltage, the wattage will be the same. Dual Voltage wiring is available with all types of insulation, construction styles, or clamping variations.

Minimum width: 2" (50.8 mm)

Single-Phase/Three-Phase

Electrical Plugs

Terminal Lugs

High Temperature Lead Wire

When required, high temperature lead wire can be used. The wire is insulated with mica tapes over the stranded nickel conductors and then treated fiberglass overbraid.

Maximum temperature: 450°C (842°F)

Ground Terminal or Lead

Oversize Gap
