Mica Insulated with Mounting Tabs

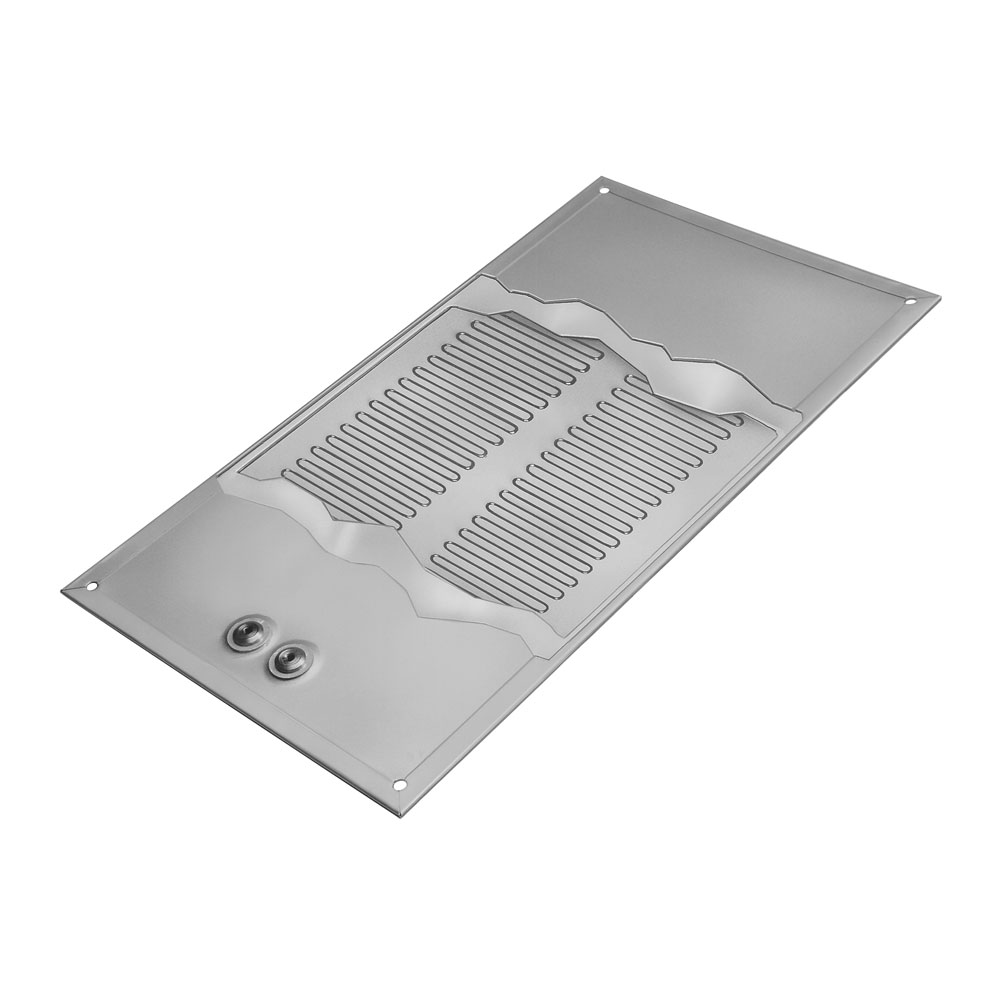

Mica Insulated without Mounting Tabs

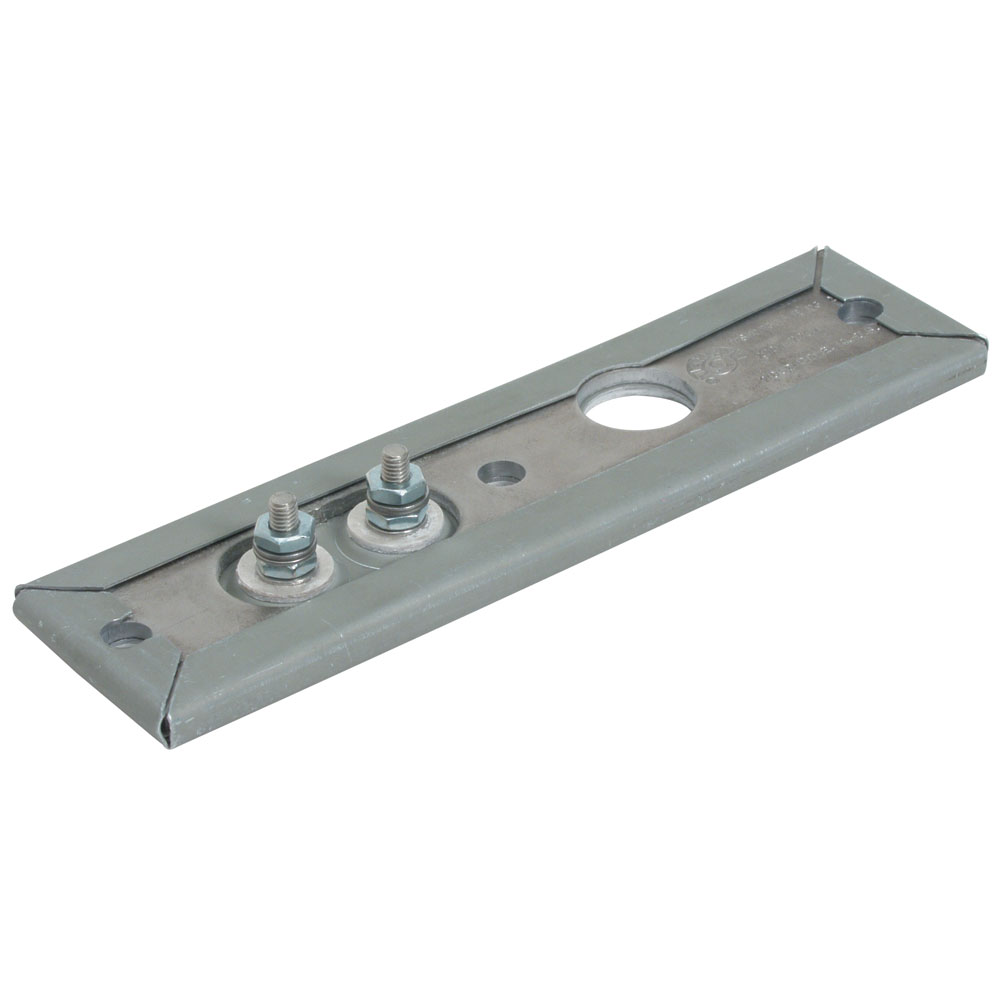

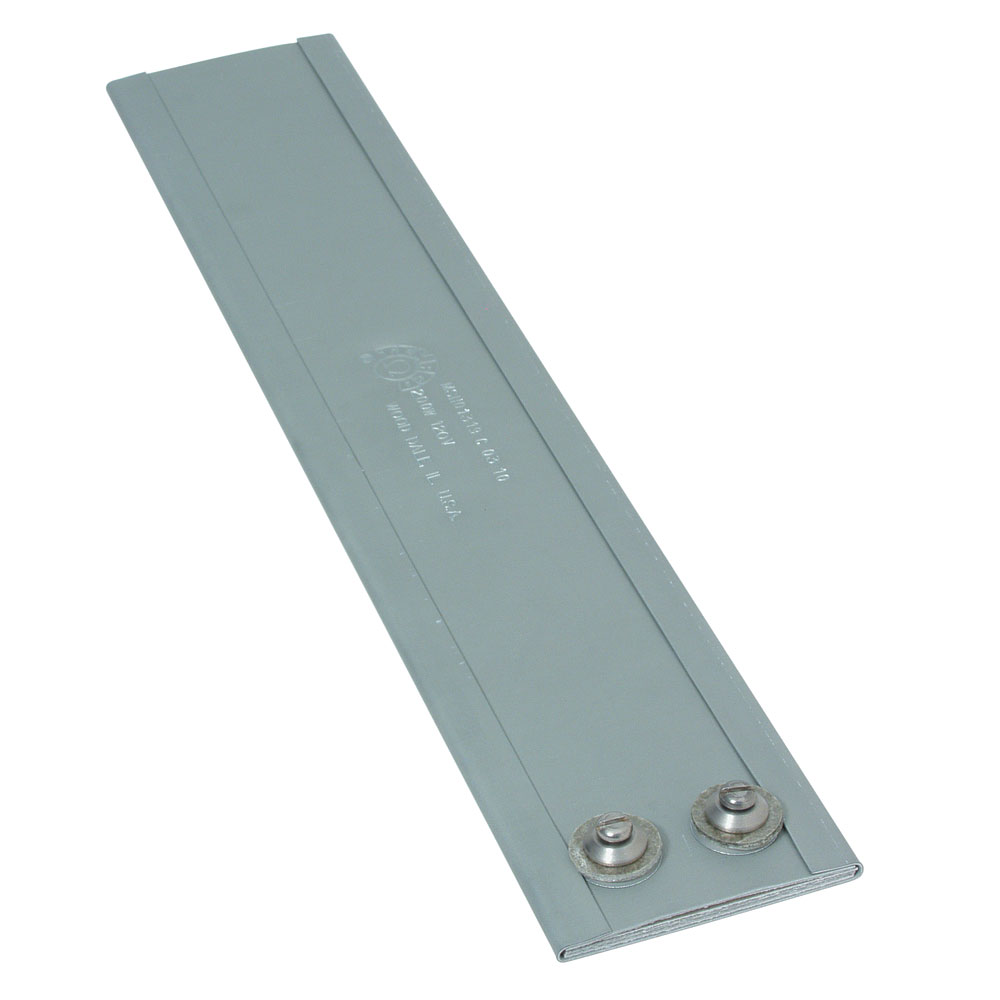

Type B: Button Terminals at one end

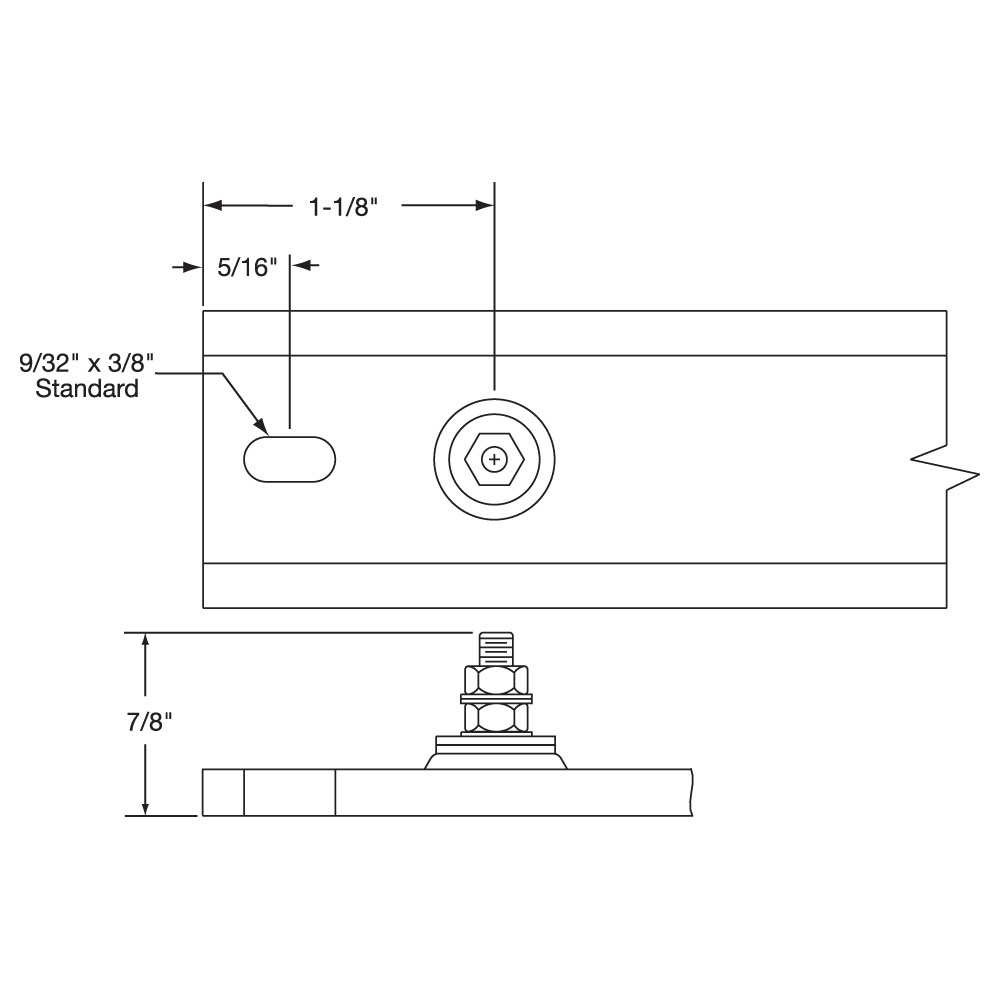

Low-profile 10-32 button terminals with binding head screws. Same location and minimum width requirements as types T1, T2 and T3. 6-32 threads available.

Type B1: Terminals at opposite ends (see T1)
Type B2: Terminals same end (see T2)
Type B3: Terminals same end (shown)

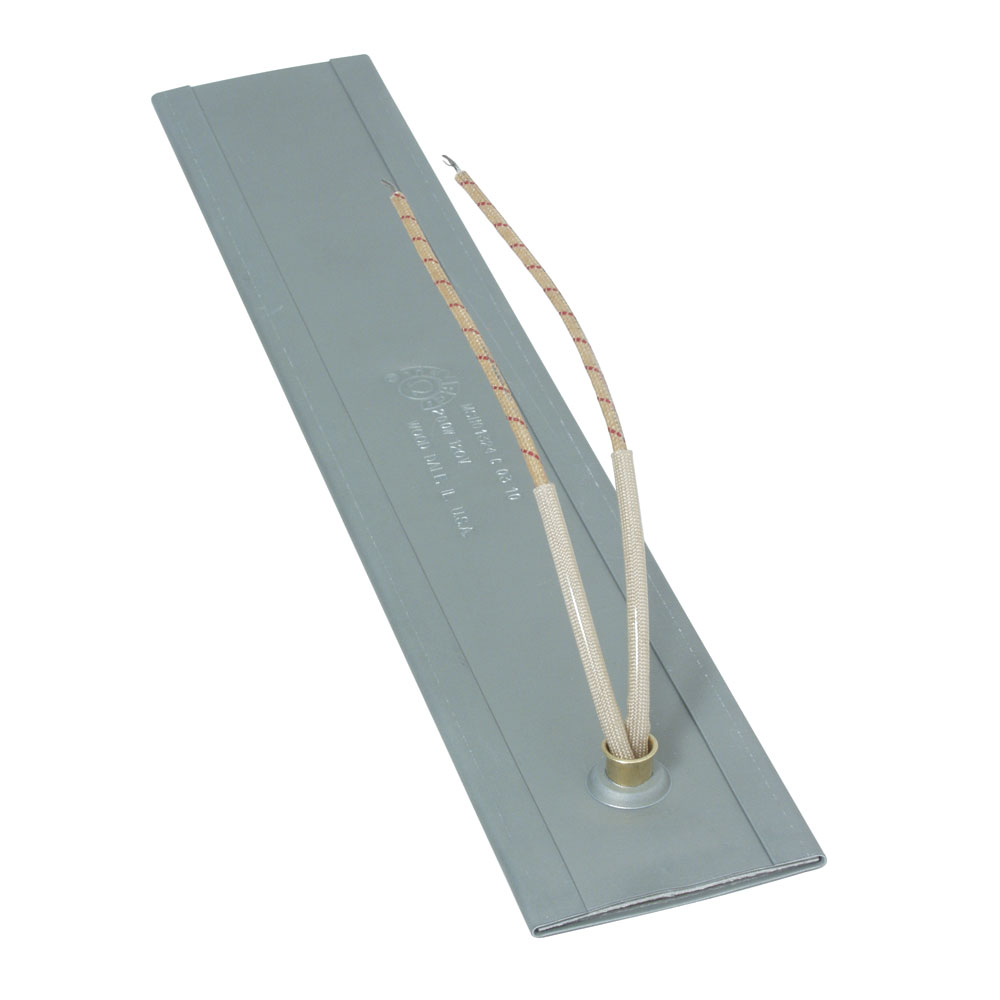

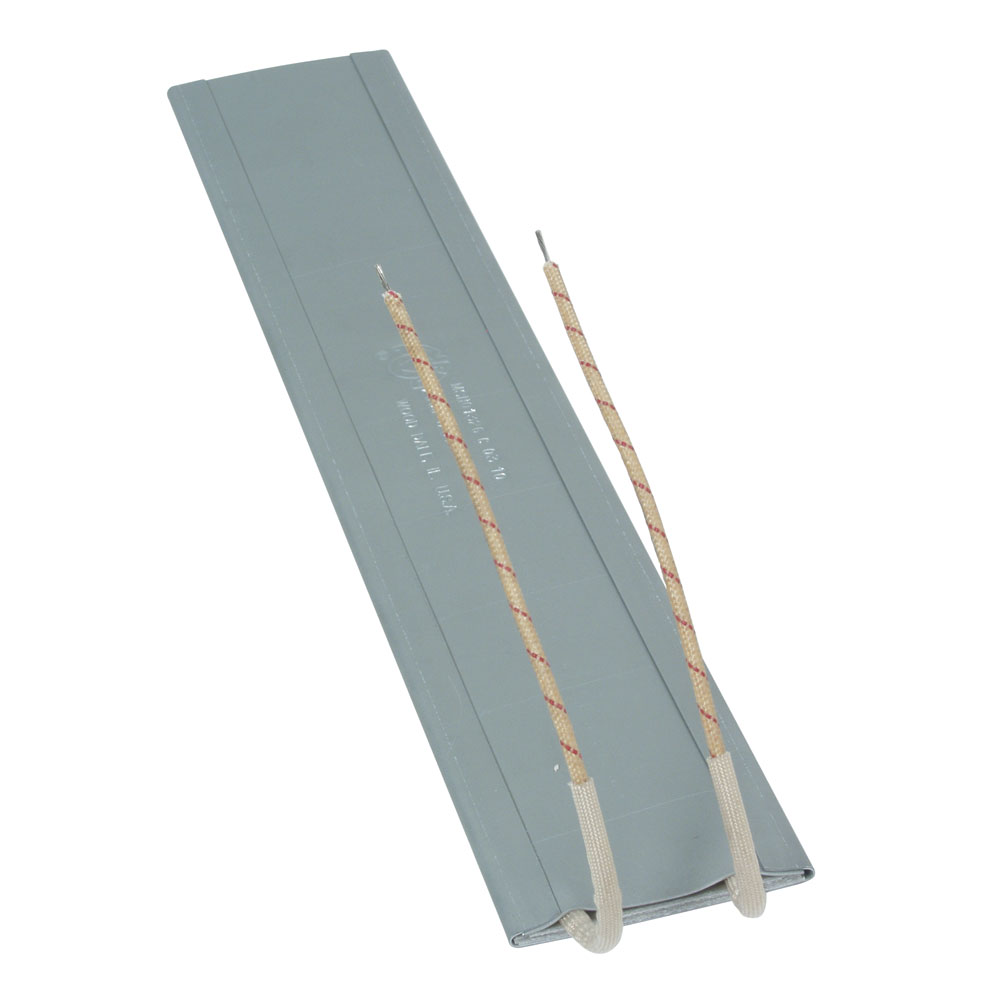

Type L1: Flexible Lead Wires at Top

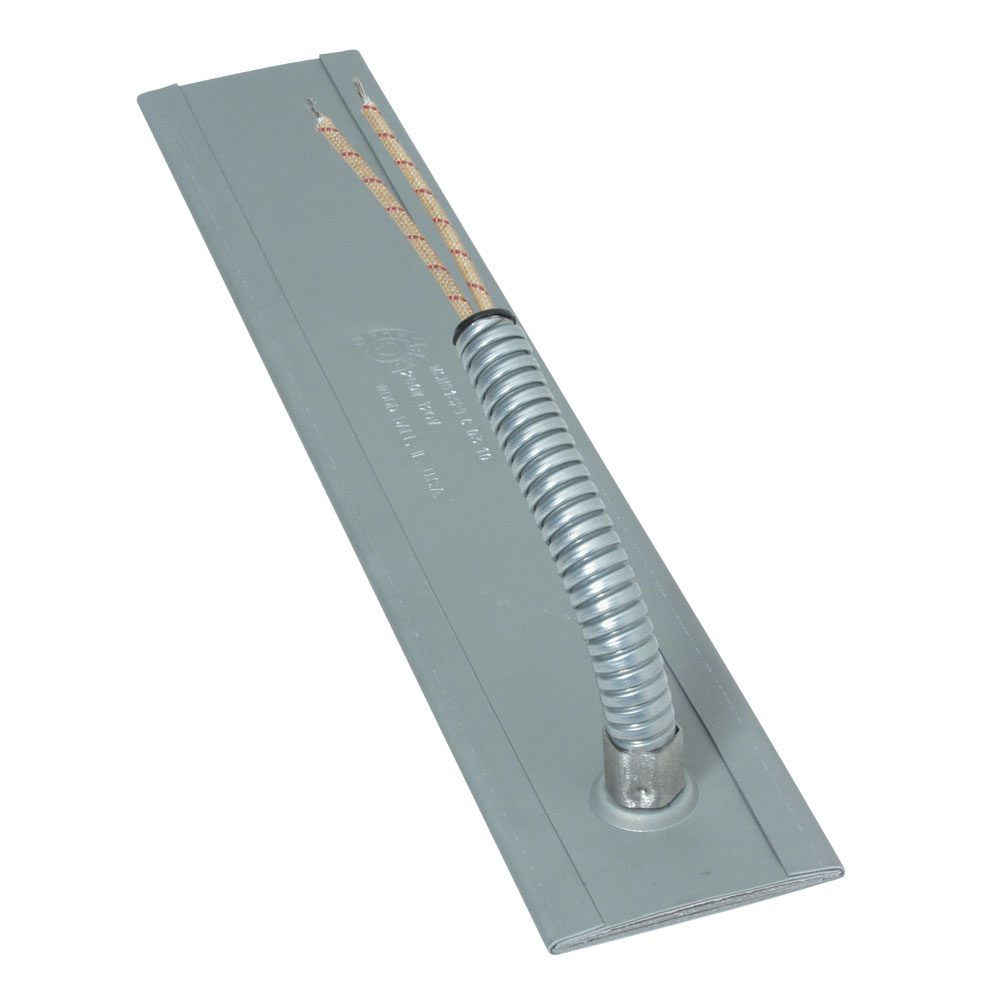

Type L2: Flexible Lead Wire at Heater End

Type L3: Flexible Lead Wire at Each End

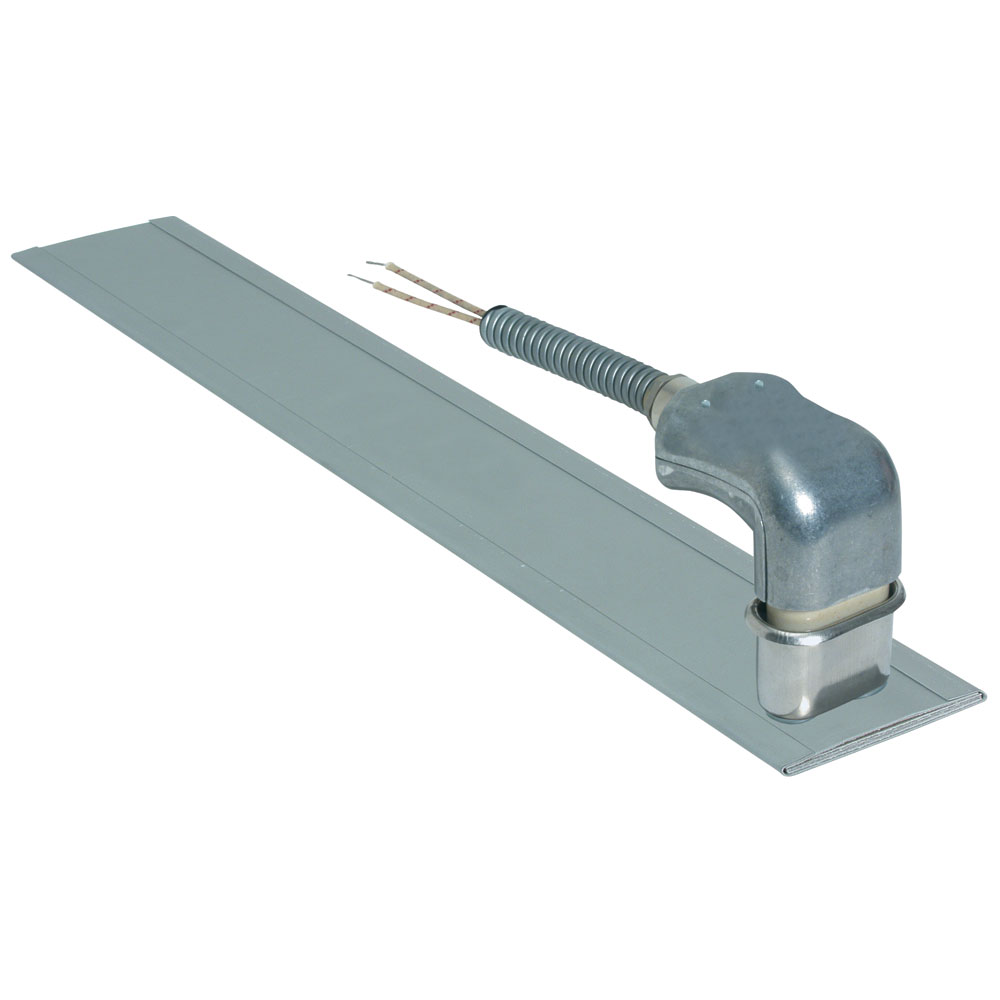

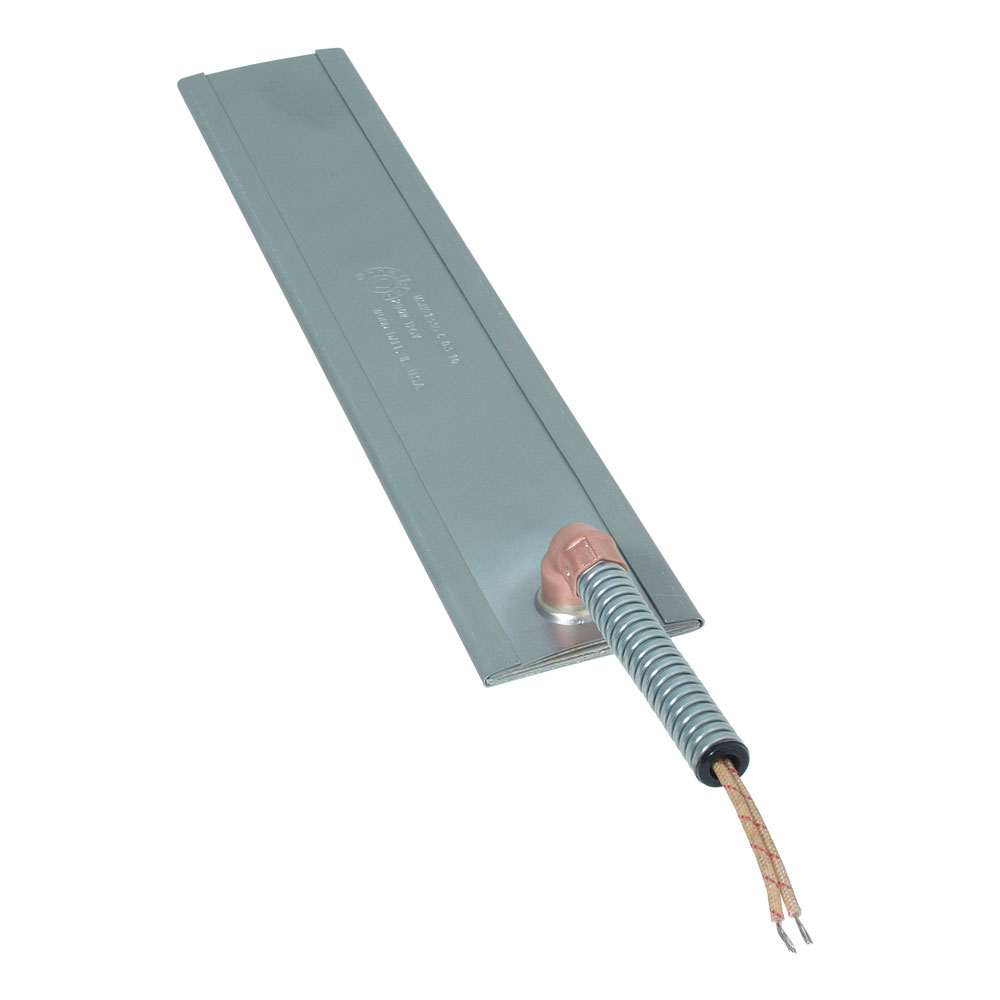

Type R1: Armor Cable at Top

Type R2: Right-Angle Armor Cable at Top

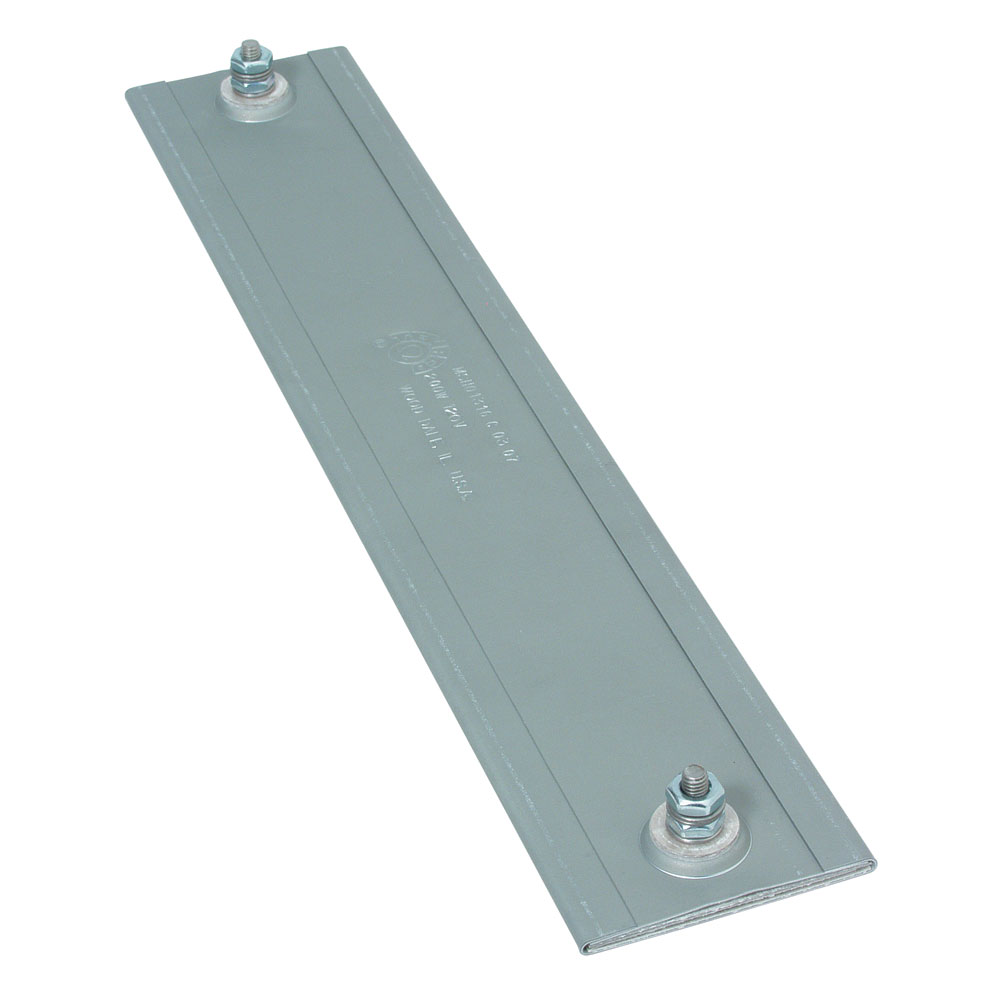

Type T1: Screw Terminals at each end

Screw terminals at opposite ends.

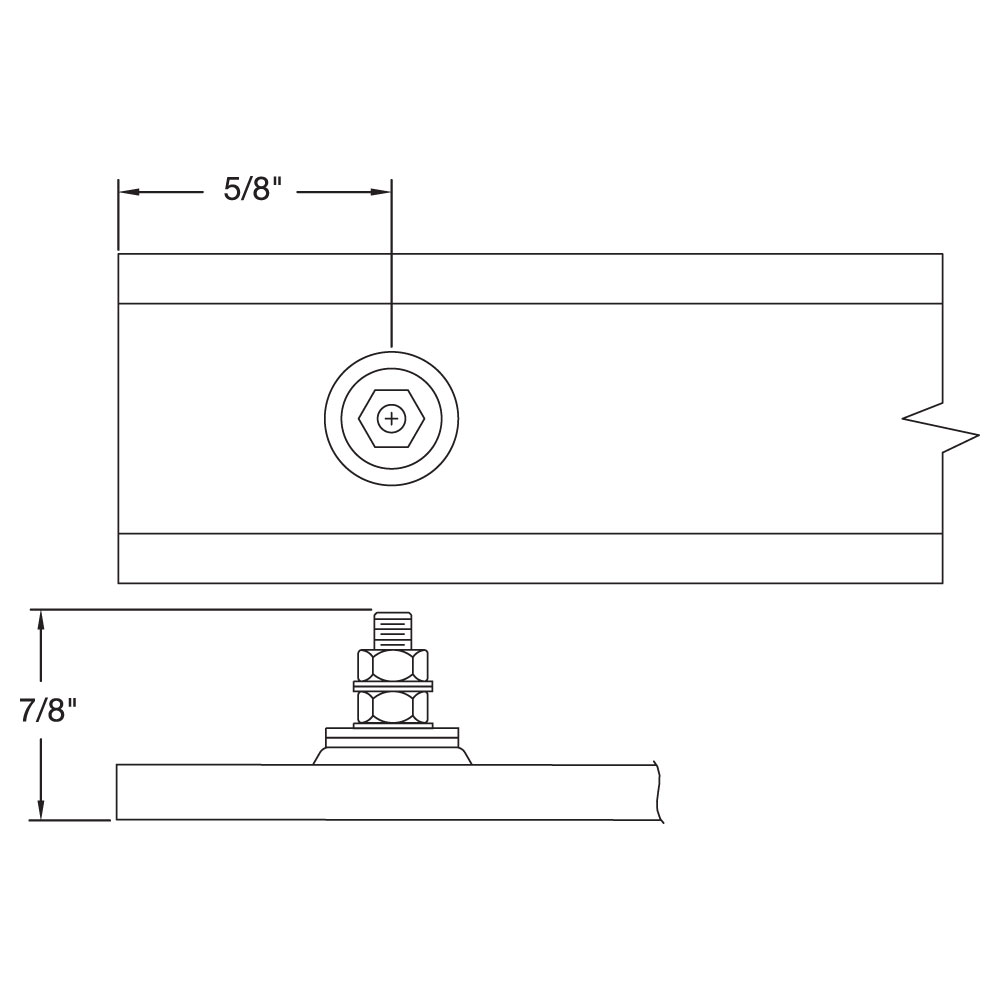

Minimum Width required is 7/8"

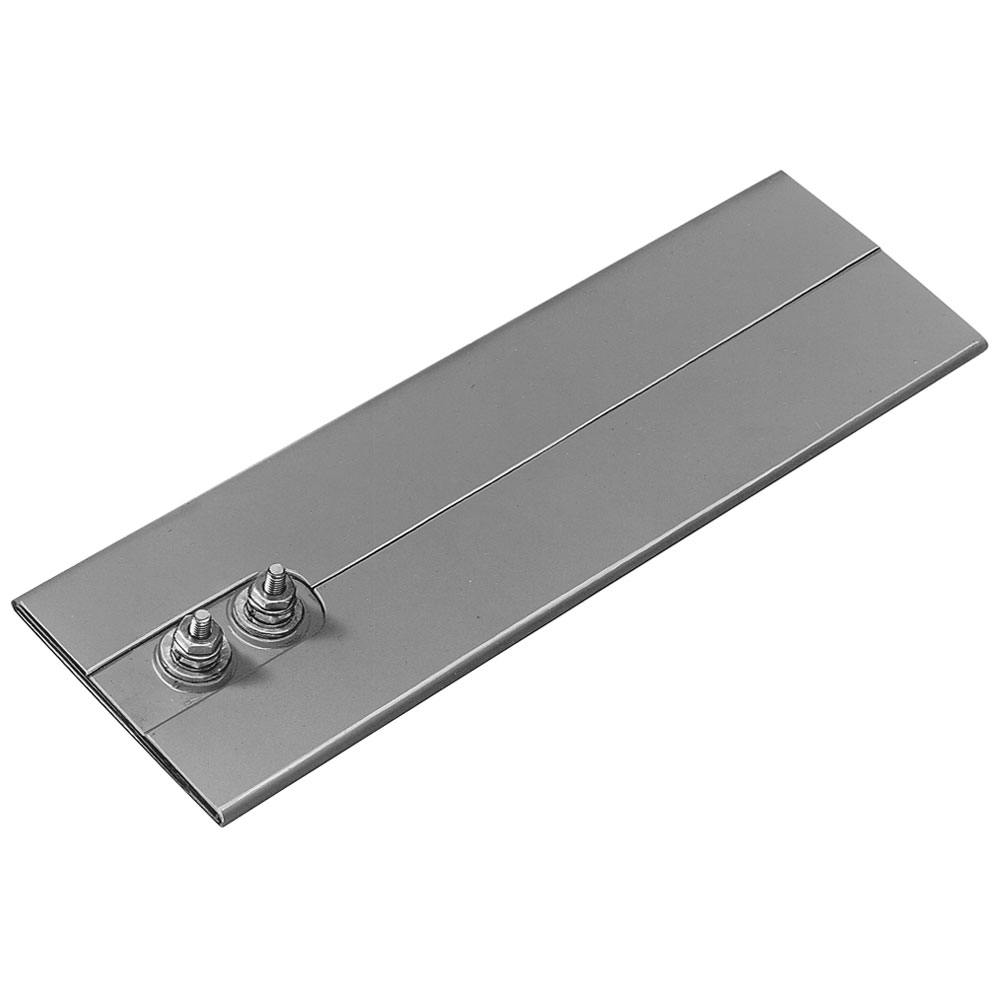

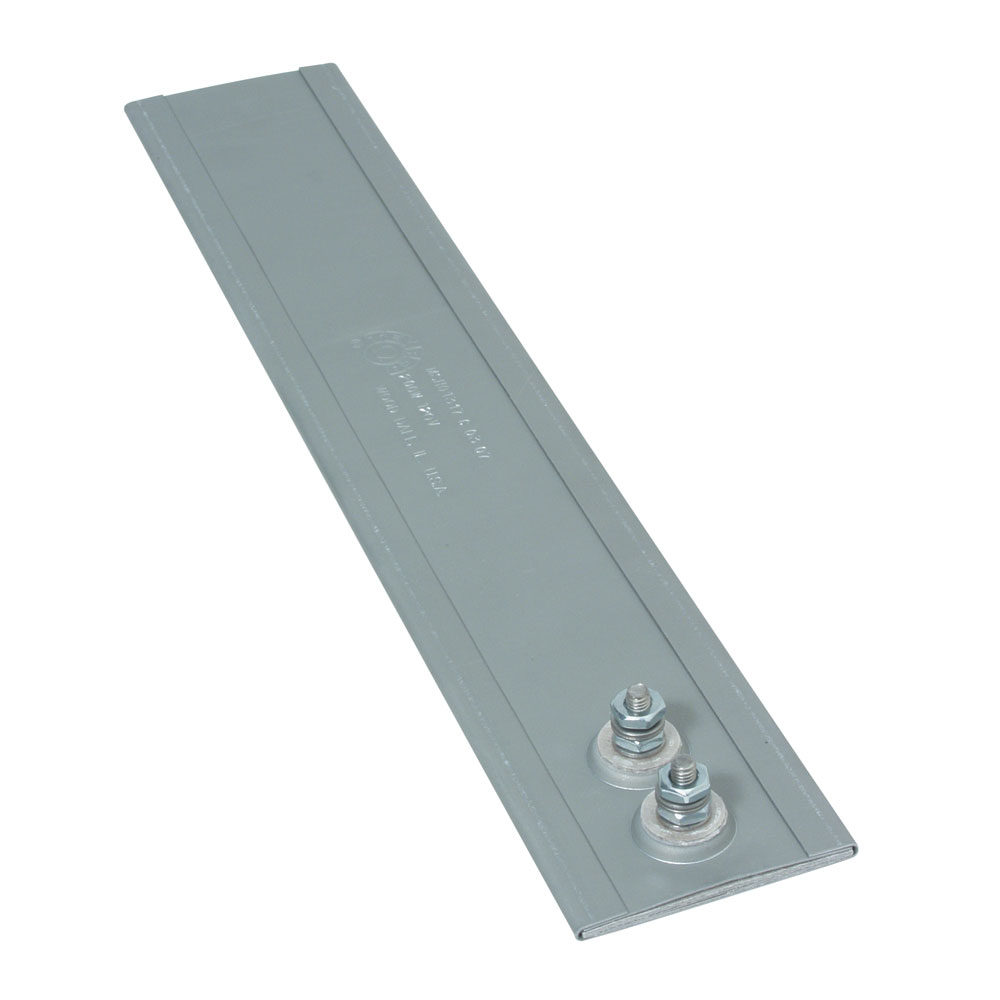

Type T2: Screw Terminals at one end

Screw terminals tandem at one end.

Minimum Width required is 7/8"

Type T3: Screw Terminals at one end

Screw terminals parallel at one end.

Minimum Width required is 2"

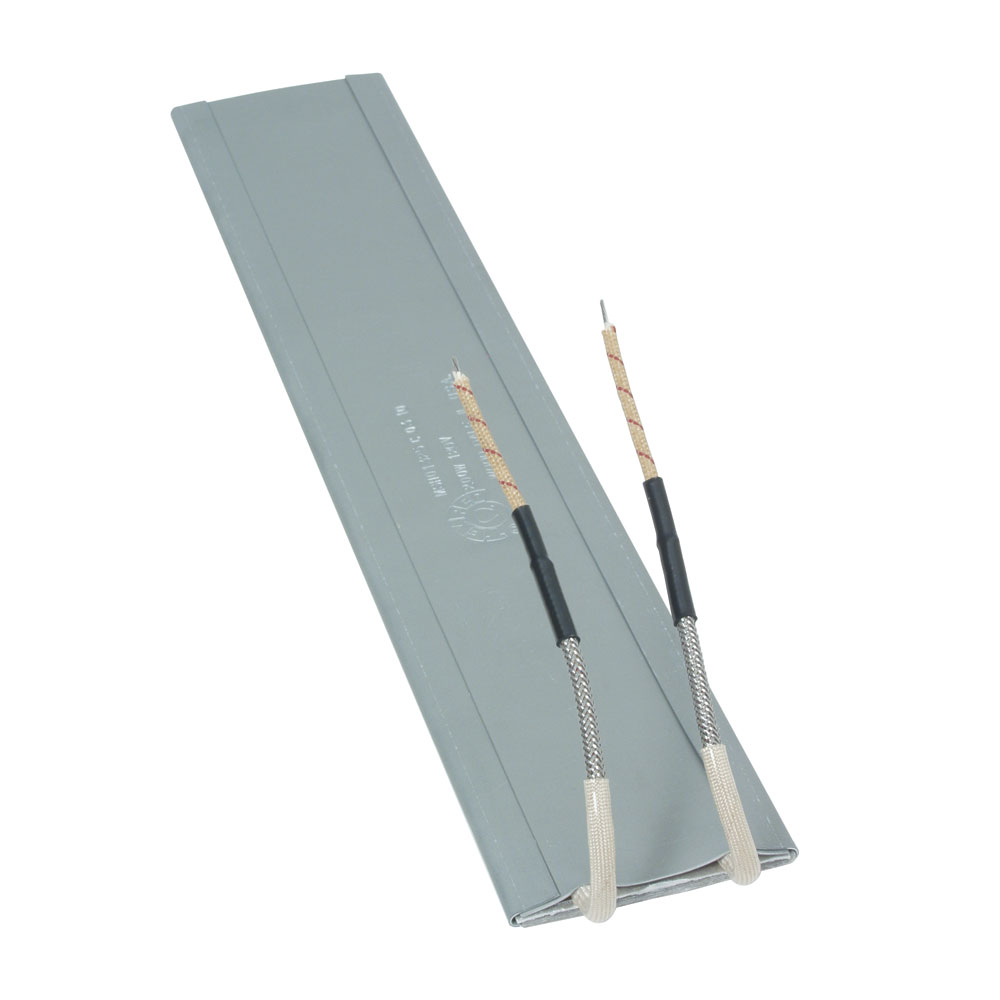

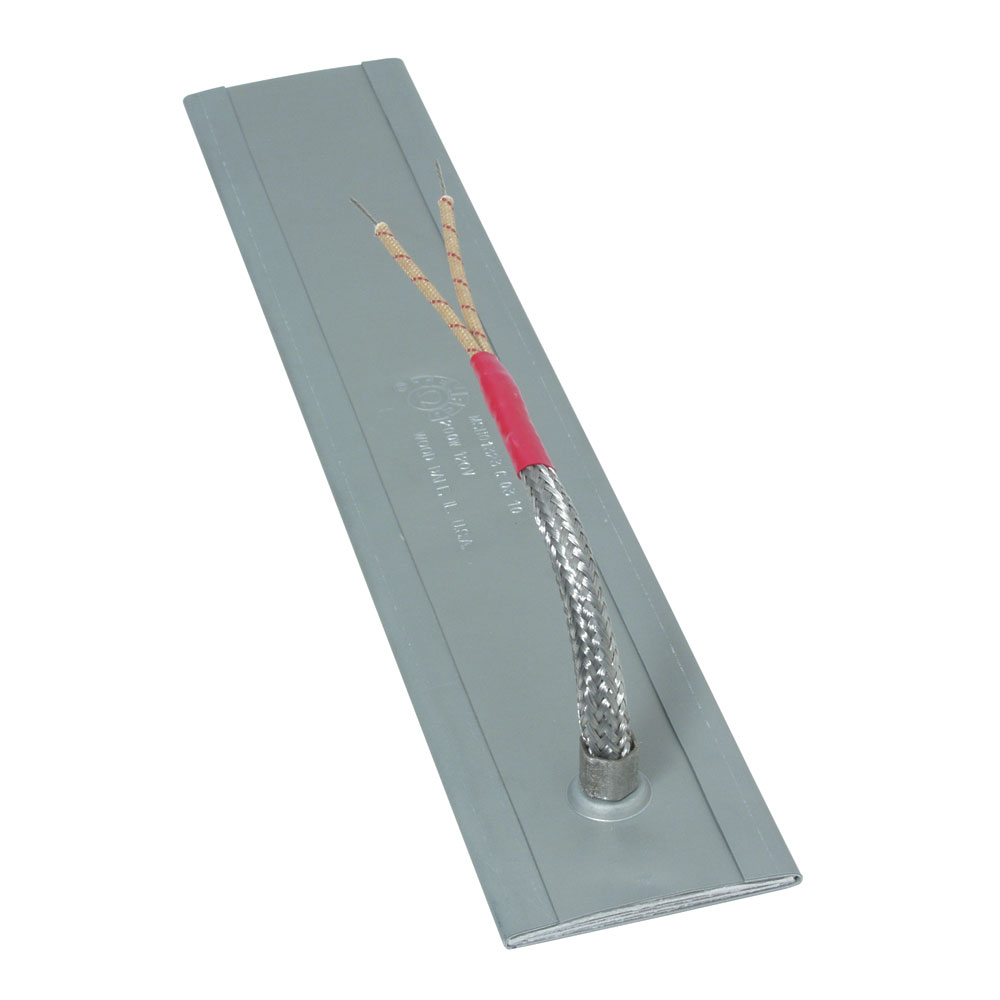

Type W1: Wire Braid at Top

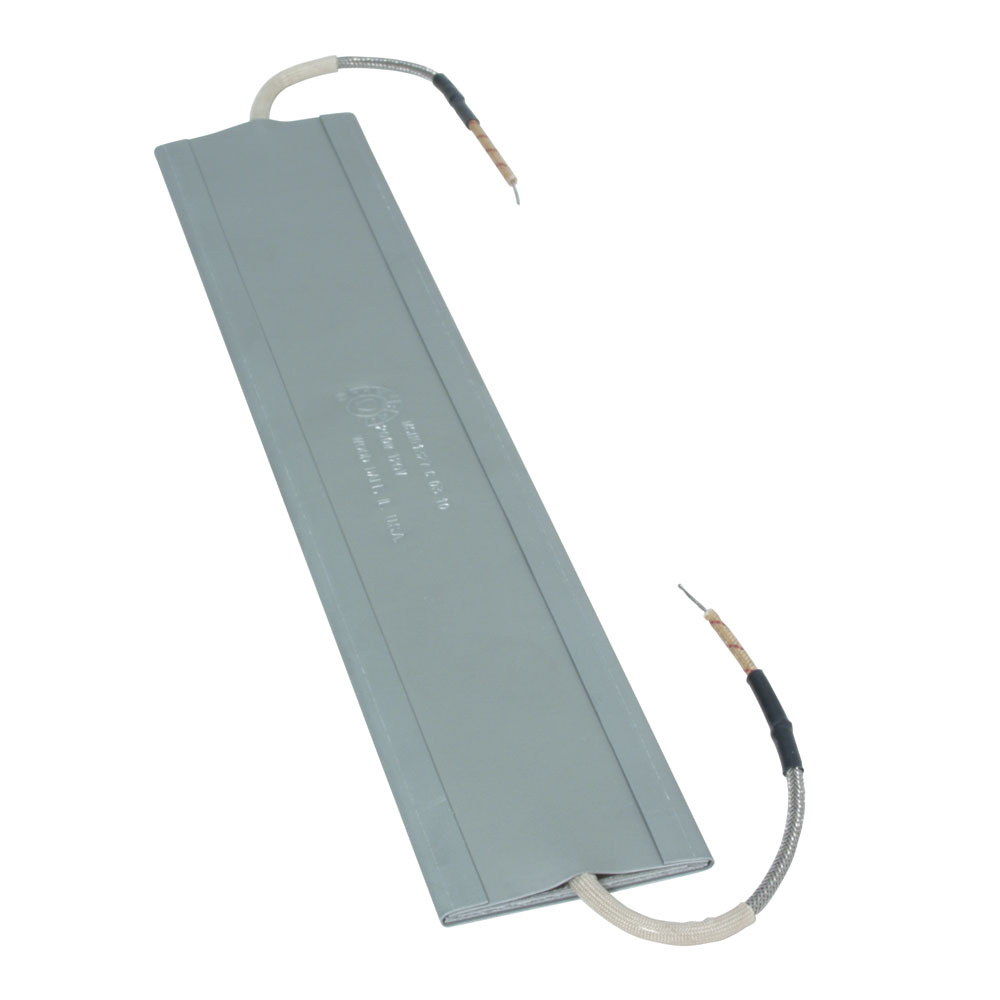

Type W2: Wire Braid at Heater End

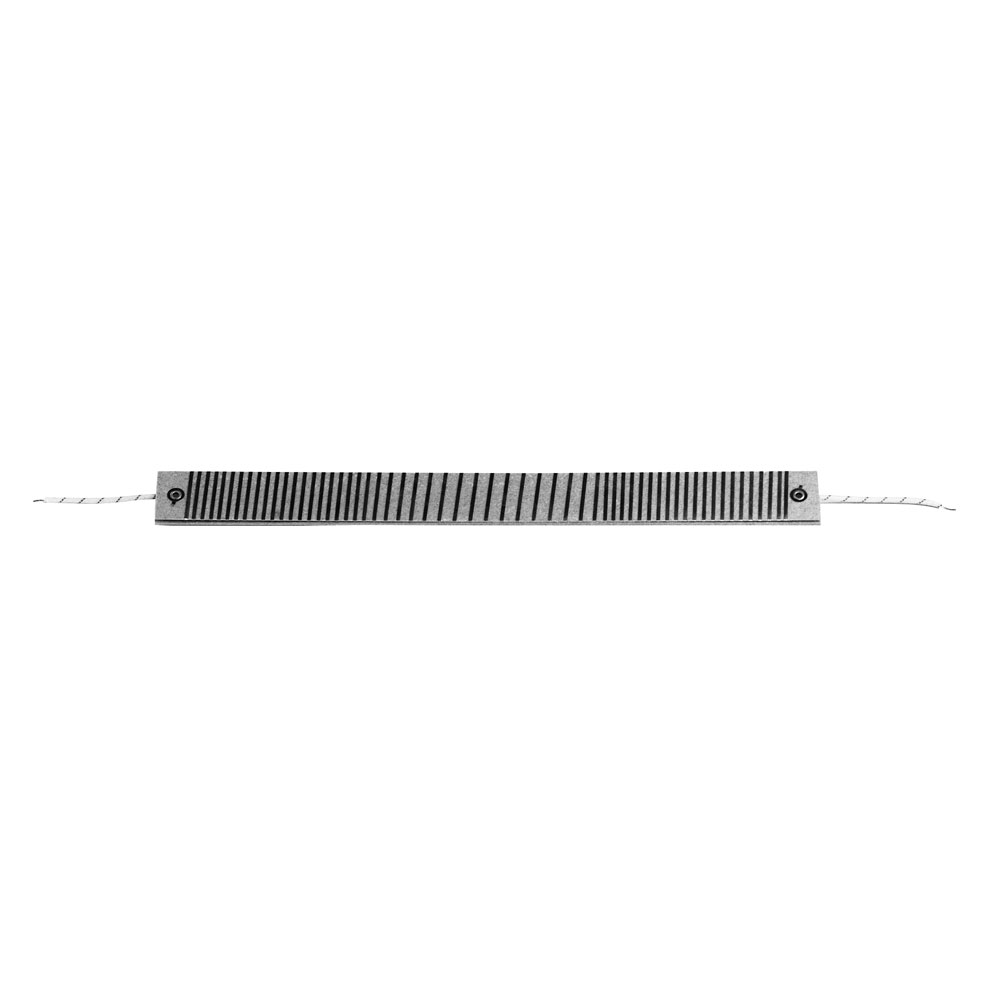

Type W3: Wire Braid at Each End

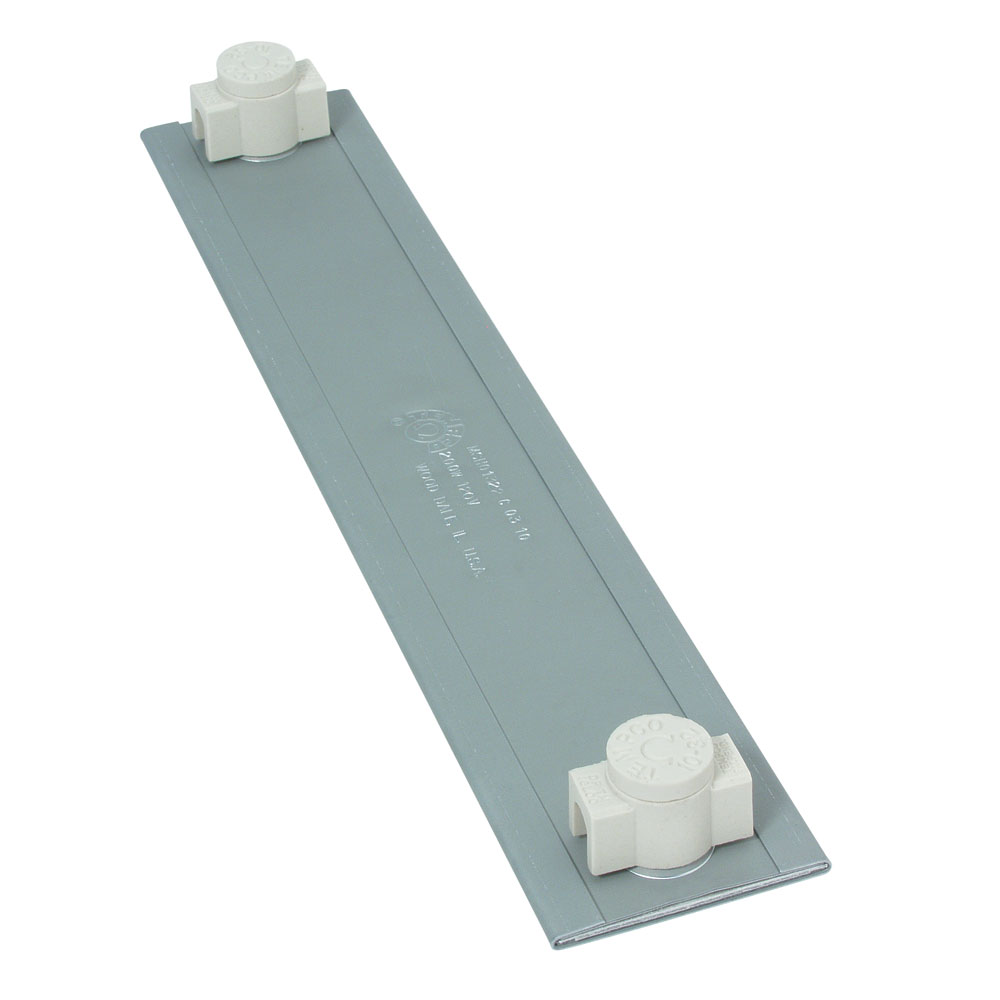

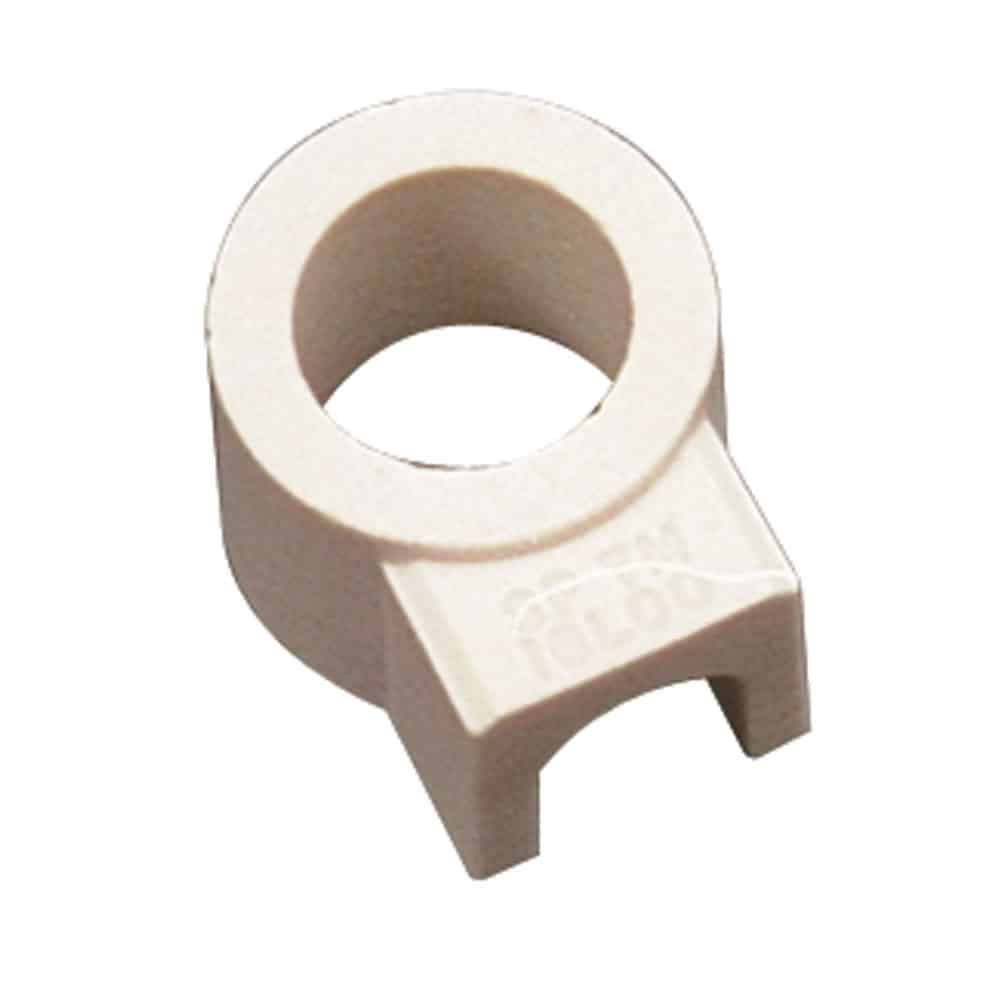

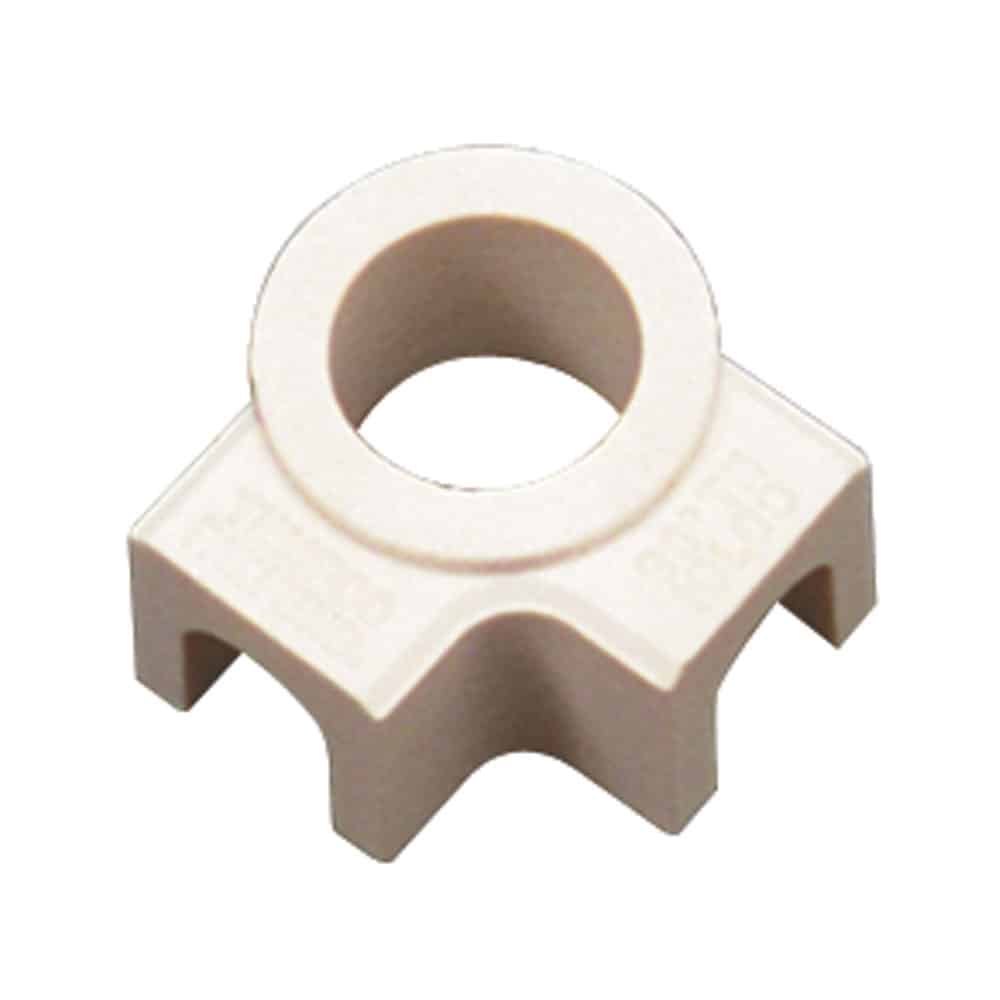

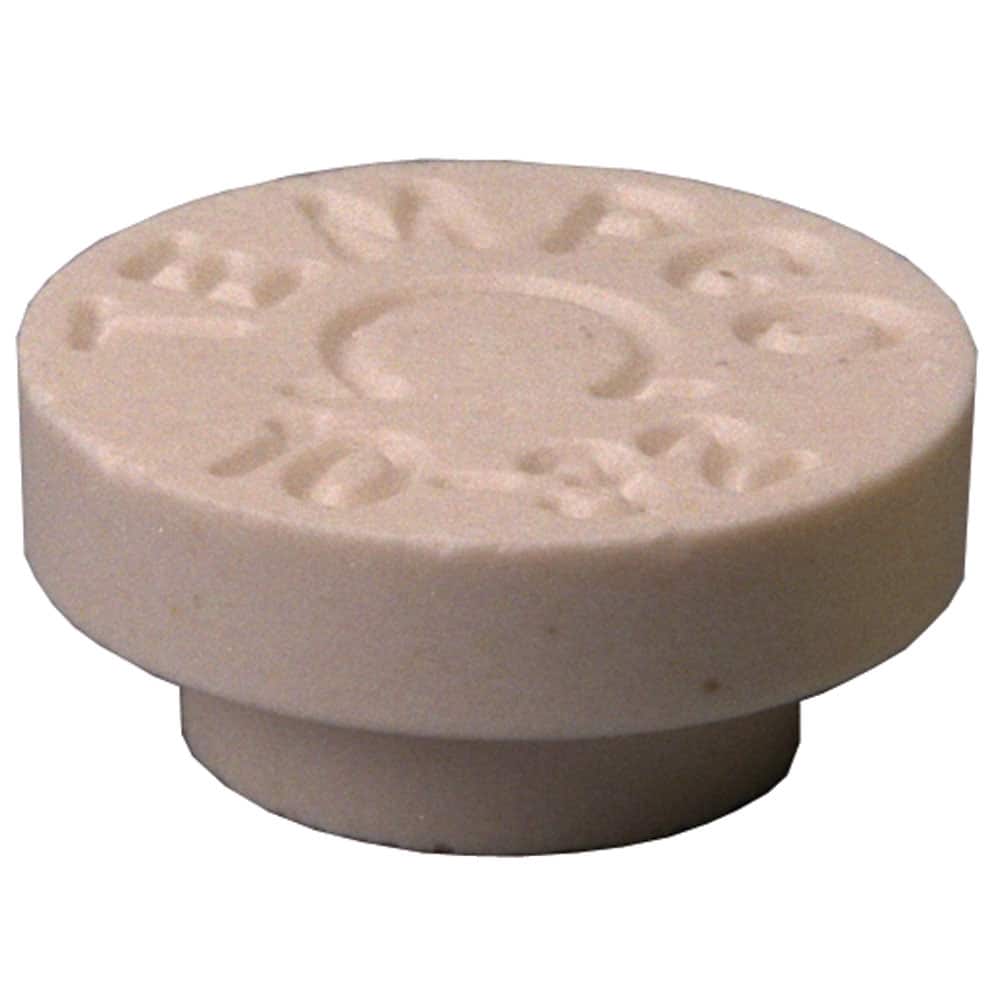

Igloo Ceramic Terminal Covers

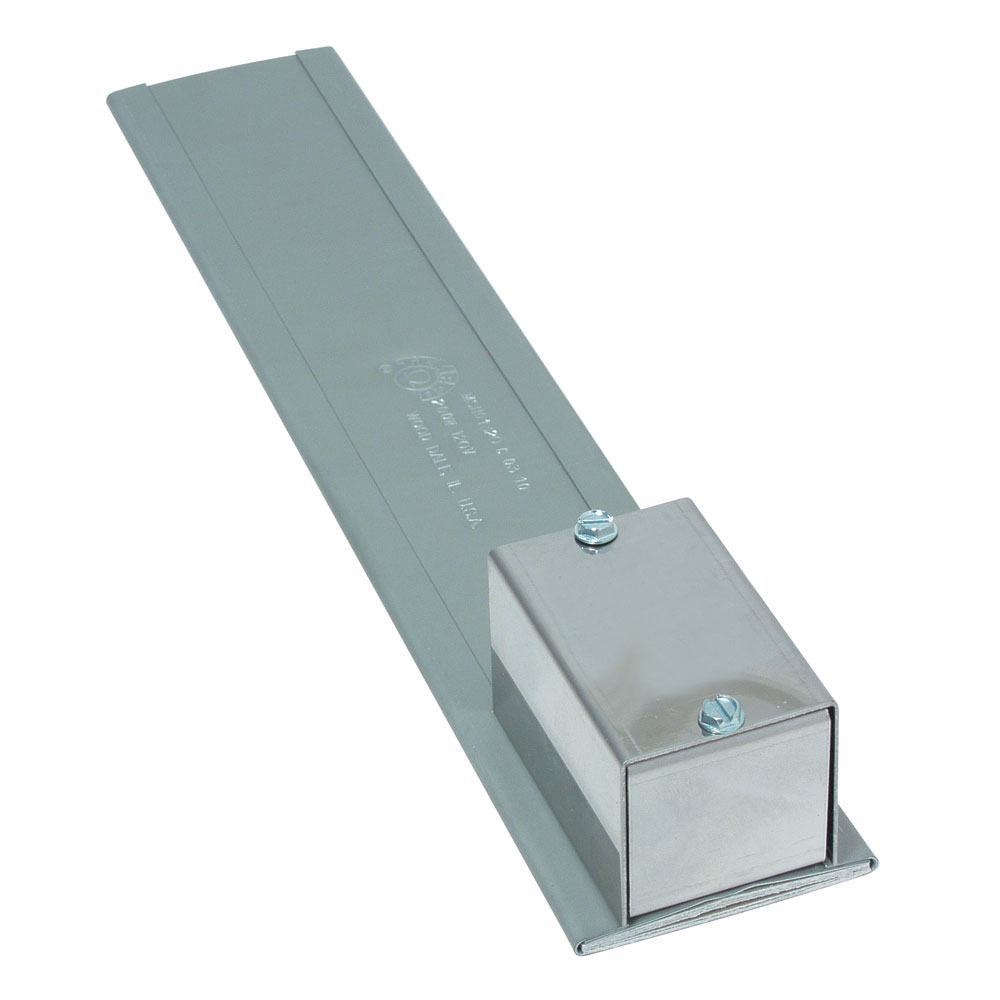

Type C: Terminal Box (General Purpose)

Type P: Quick Disconnect Plugs

Butt Case

Cross Section formed

Disc Heaters

Distributed Wattage

Four Sides Closed

Irregular Shape

Open Element

Pressure Plate

Strip Heaters can be made with built-in pressure plate to add rigidity and minimize warping of the heater. Standard plate thickness is 1/8". Specify plate thickness and choice of mounting method 1, Built-In Pressure Plate, or mounting method 2, Separate Pressure Plate.

Ring Heaters

Sinuated Element

CSA Standard

Channel Strip and Finned Channel Strip Heaters have been certified as Recognized Components by Underwriters Laboratories (File Number E65652) under CCN KSOT2/8 to meet UL standard 499.
This file specifies the end use limitations and conditions of acceptability for the use of this type of heater. For additional information consult Tempco.

Mica Strip heaters are UL recognized and CSA certified in many design variations.
Tempco's UL file number is E65652 and CSA file number is 043099.

UL Standard

Channel Strip and Finned Channel Strip Heaters have been certified as Recognized Components by Underwriters Laboratories (File Number E65652) under CCN KSOT2/8 to meet UL standard 499.
This file specifies the end use limitations and conditions of acceptability for the use of this type of heater. For additional information consult Tempco.

Mica Strip heaters are UL recognized and CSA certified in many design variations.
Tempco's UL file number is E65652 and CSA file number is 043099.

NRTL Standard
